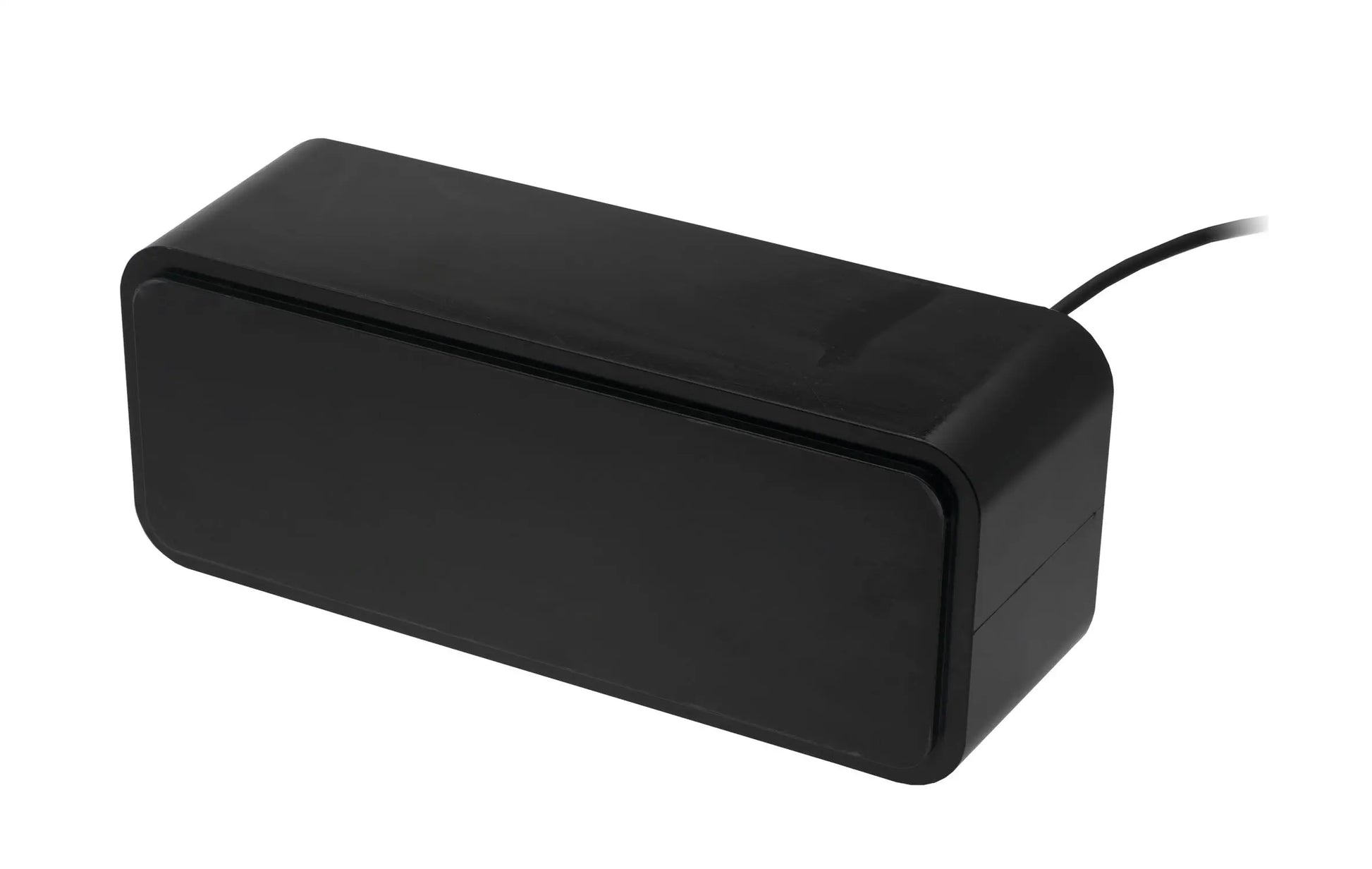

This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.
A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
| Transducer frequency | CHIRP Low (28-60 kHz) & CHIRP High Wide (150-250 kHz) |
|---|---|
| Transducer power | 1 kW/3 kW |
| Transducer beamwidth | 5°x9°-11°x23°/24°-26° |
| Transducer maximum depth | 10,000 ft. |
| Transducer cable length | 70 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | Bare wires |
| Transducer supported deadrise/transom angles | Installation Dependent |
