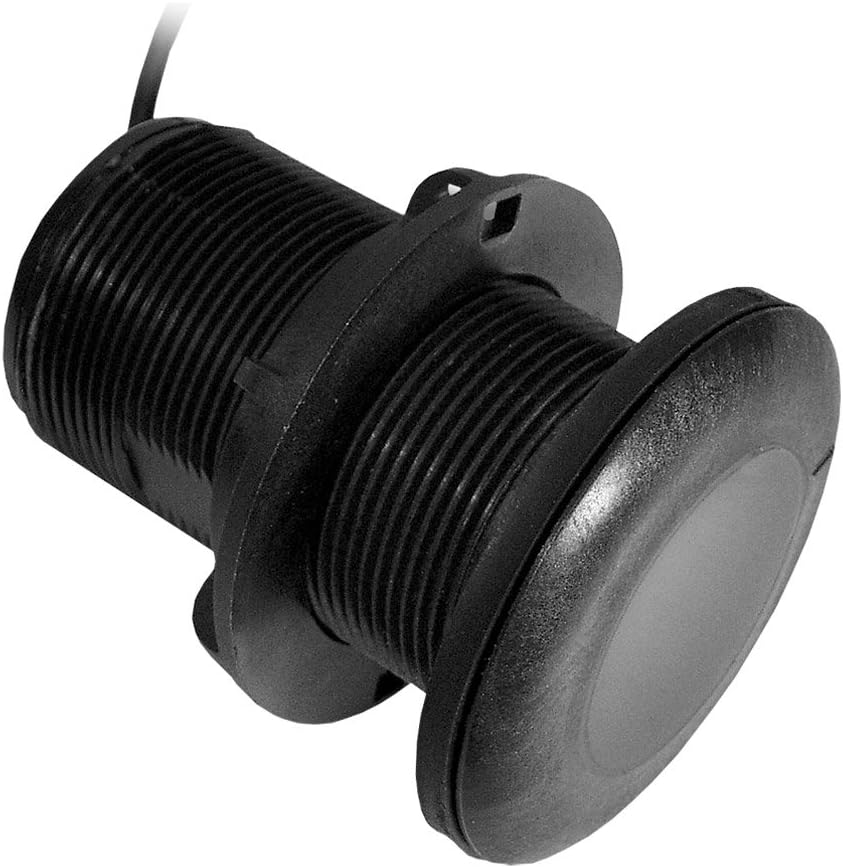

This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.
This 8-pin 300 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
*Do not use on wood hulls. When using with the echo™ series, transducer adapter cable, 010-11947-00, is required.
| Transducer frequency | 200 kHz |
|---|---|
| Transducer power | 300 W |
| Transducer beamwidth | 45°/15° |
| Transducer maximum depth | 900 ft. |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 16°-24° degree deadrise |
