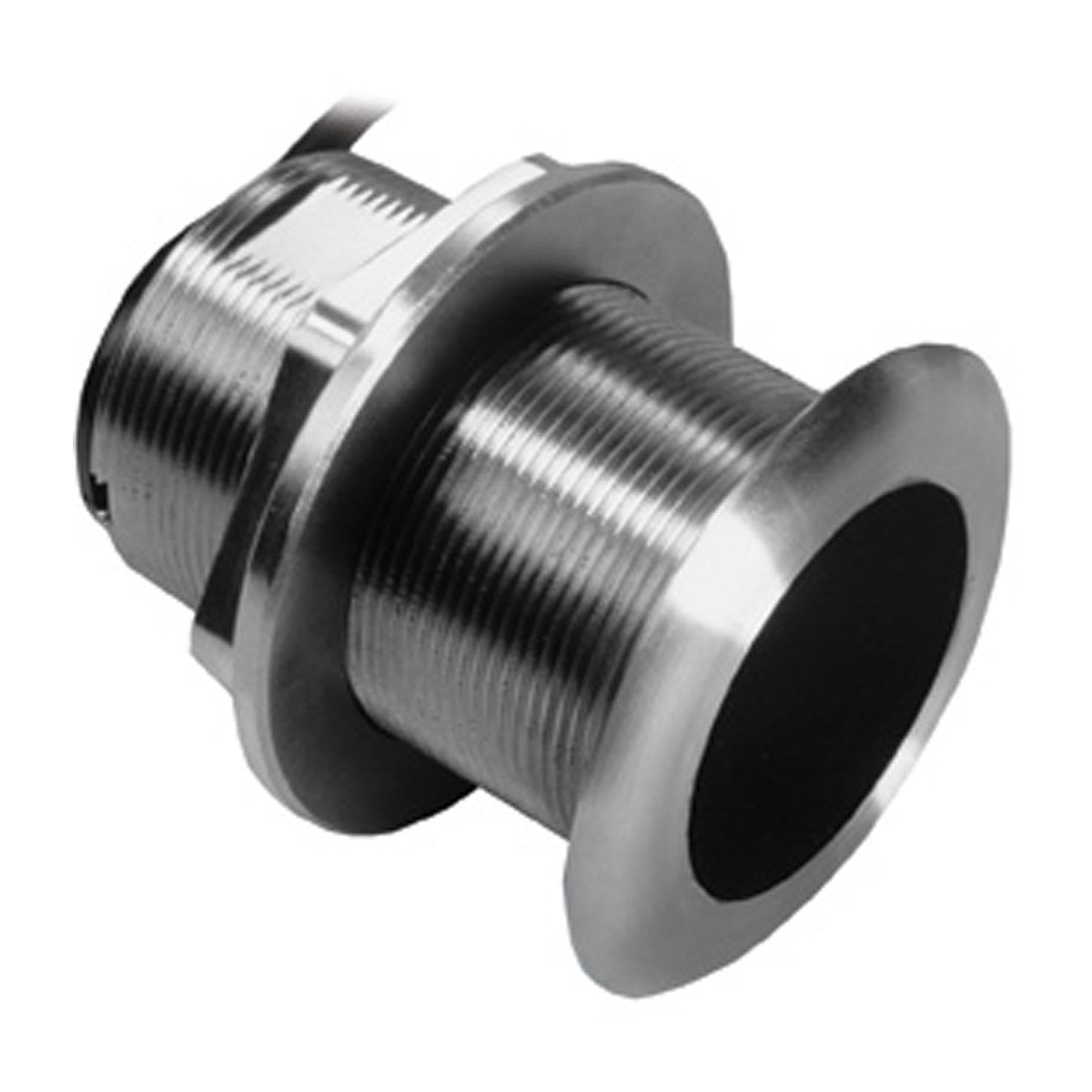

This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 700 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, a transducer adapter cable is required.
| General | |
| Transducer frequency | 50/200 kHz |
| Transducer power | 600 W |
| Transducer beamwidth | 45°/12° |
| Transducer maximum depth | 700-1,200 ft |
| Transducer cable length | 33 ft |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0-7 degree deadrise |
