Alpine I407-WRA-JK

OEM Integration

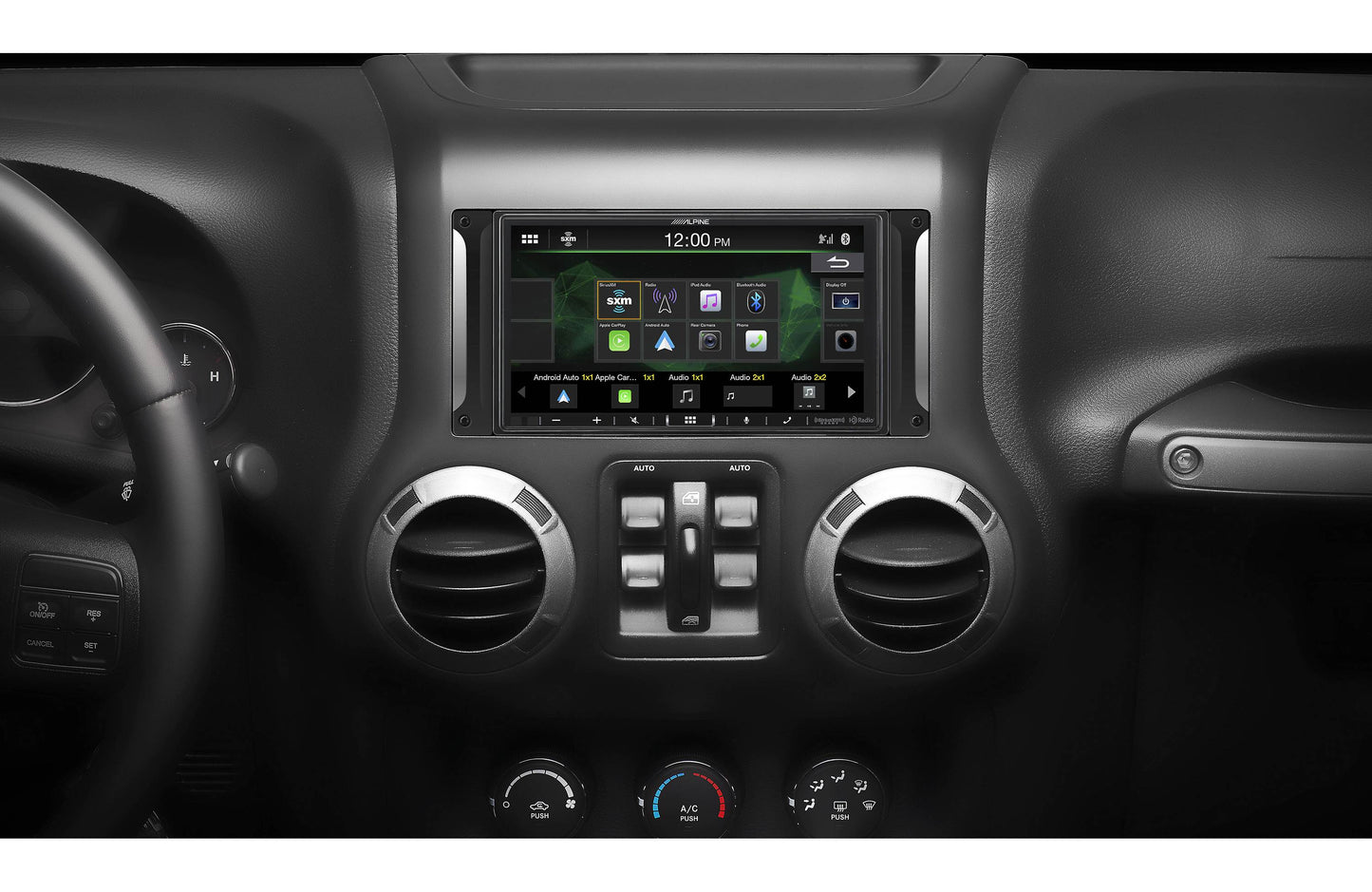

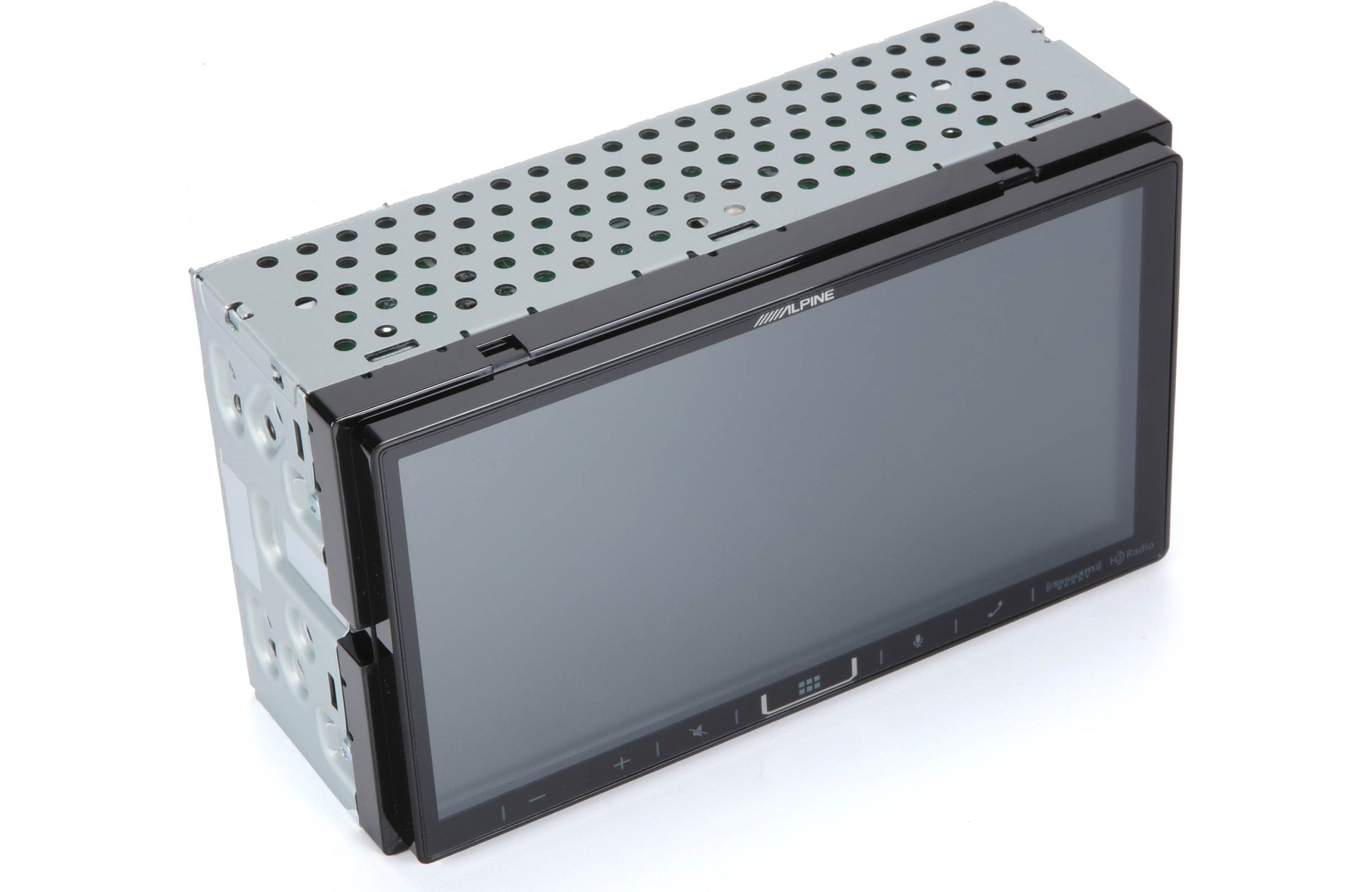

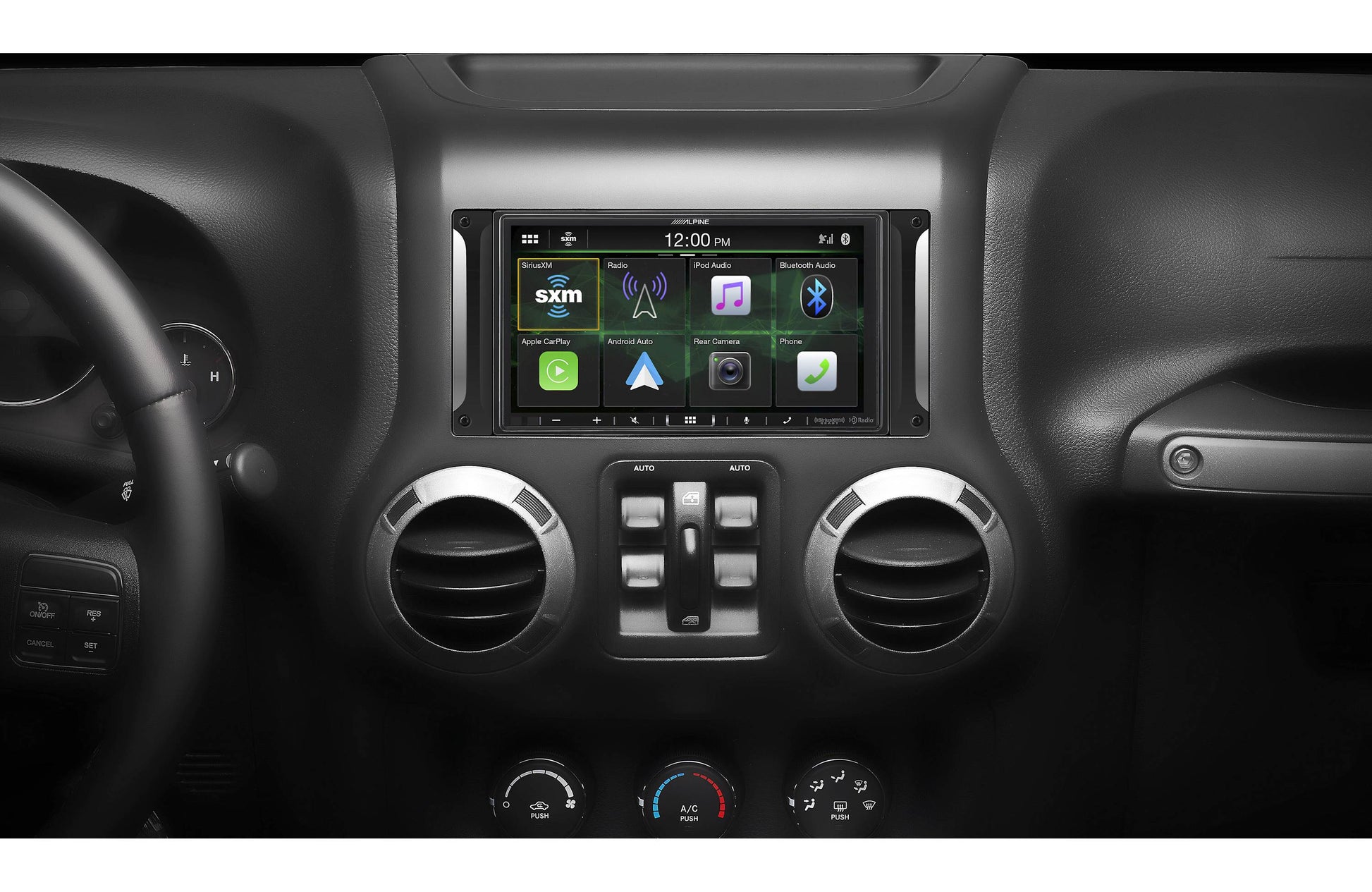

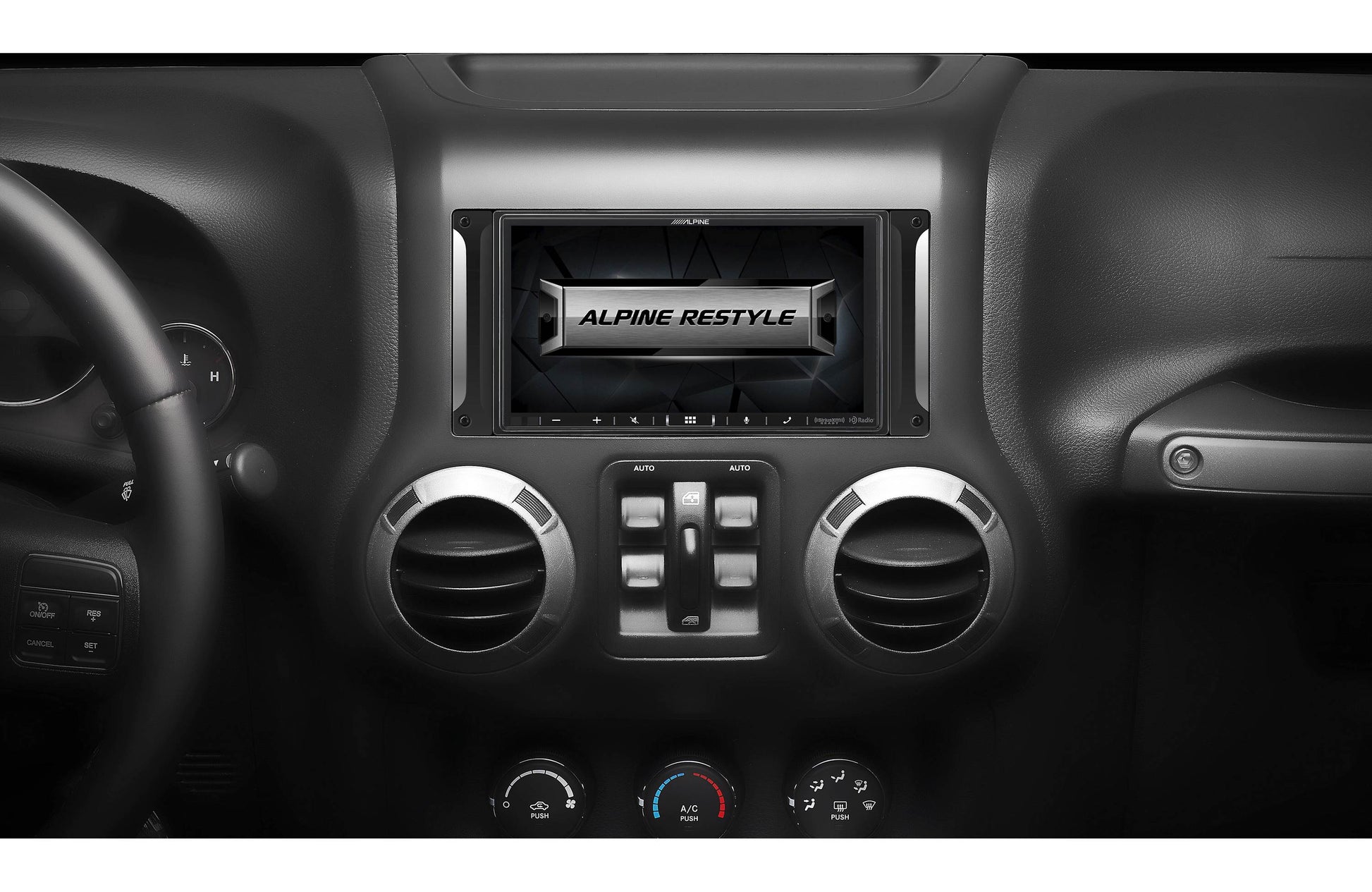

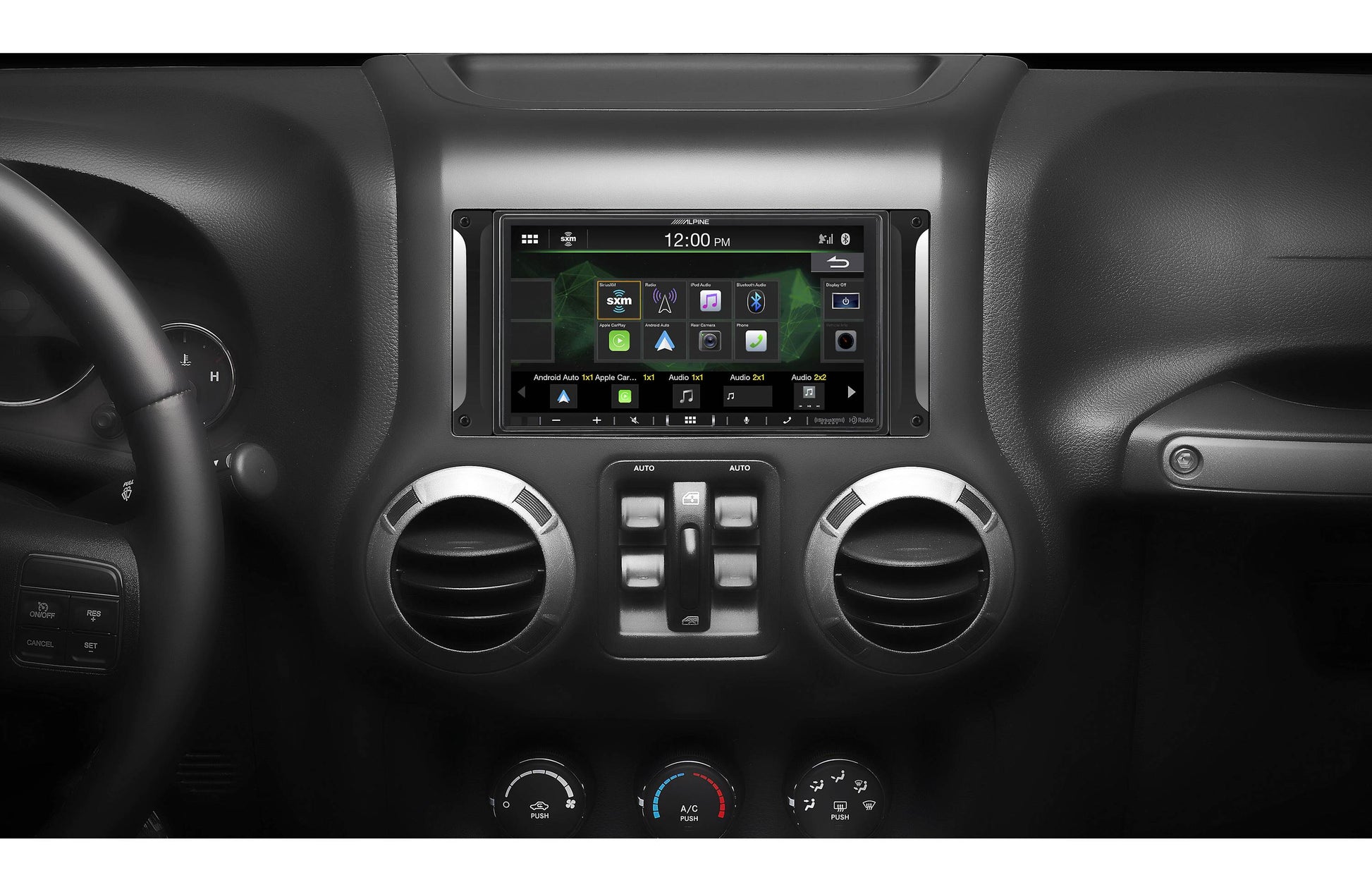

Vehicle Compatibility: The Alpine i407-WRA-JK in-dash digital multimedia receiver is designed specifically to be installed in the following Jeep Wrangler vehicles (as of 2/23/2022).

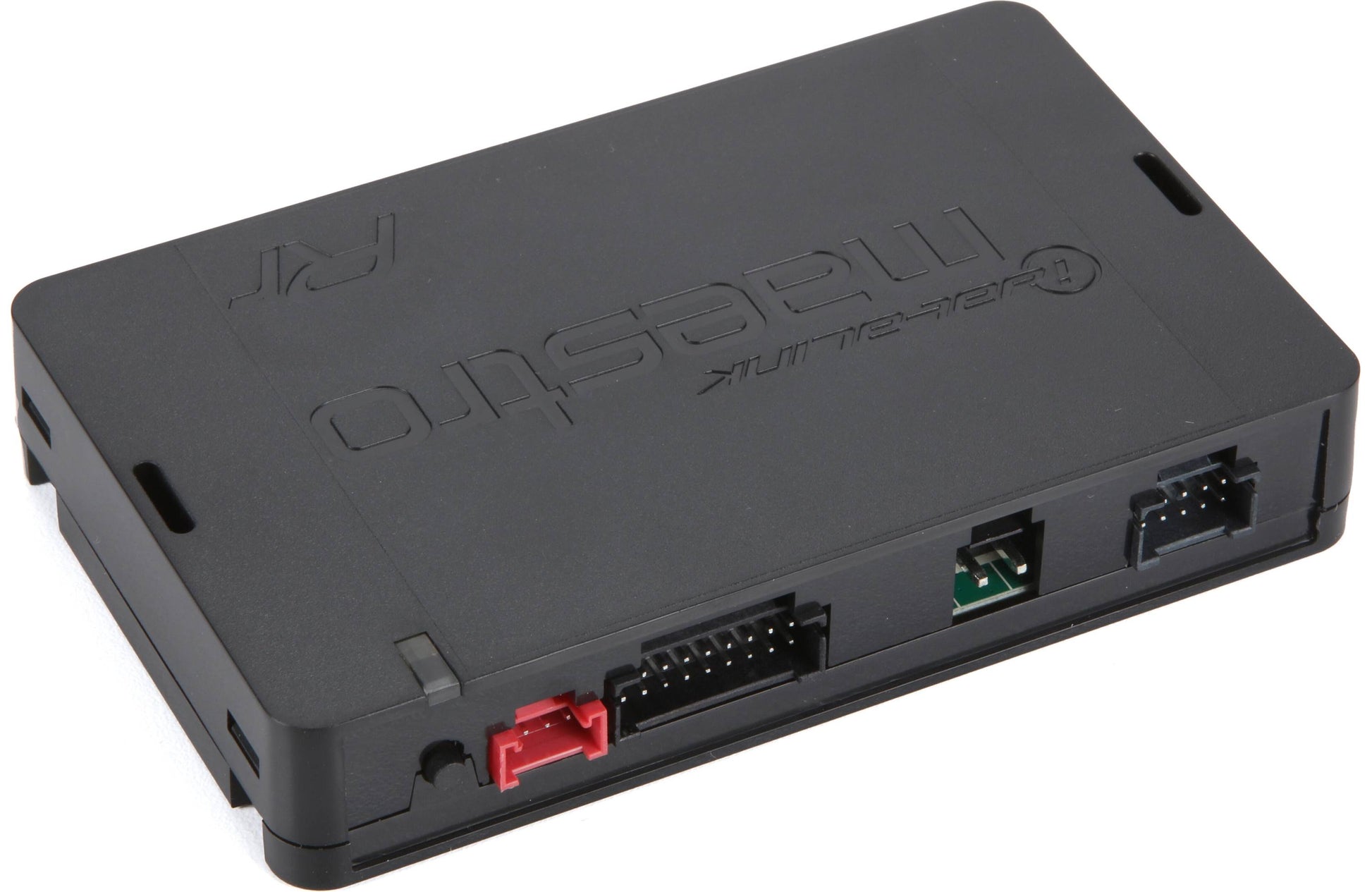

iDataLink Maestro Interface: The Alpine i407-WRA-JK in-dash digital media receiver also includes the iDataLink Maestro (ALP-MRR) radio replacement interface with radio and vehicle harness. The iDataLink Maestro interface (ALP-MRR) retains important factory installed features and functionality when replacing the Jeep's factory OEM radio with Alpine's i407-WRA-JK. Retained factory OEM features and functions include -

• Premium Audio Amplifier: The iDataLink Maestro interface (ALP-MRR) will retain your Jeep's factory installed premium audio amplifier system with fader control and gain adjustment.
• Steering Wheel Controls: Your Jeep's factory steering wheel controls will be retained. You get two functions on each button for standard and expanded radio functions.
• EVIC (Electronic Vehicle Information Center): If your Jeep is equipped with a secondary EVIC cluster display, the iDataLink Maestro will retain it and display Source Name only.
• Vehicle Information & Customizable Gauges: The iDataLink Maestro (ALP-MRR) can also integrate with your Jeep's diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the Alpine receiver's 6.95" touchscreen display.

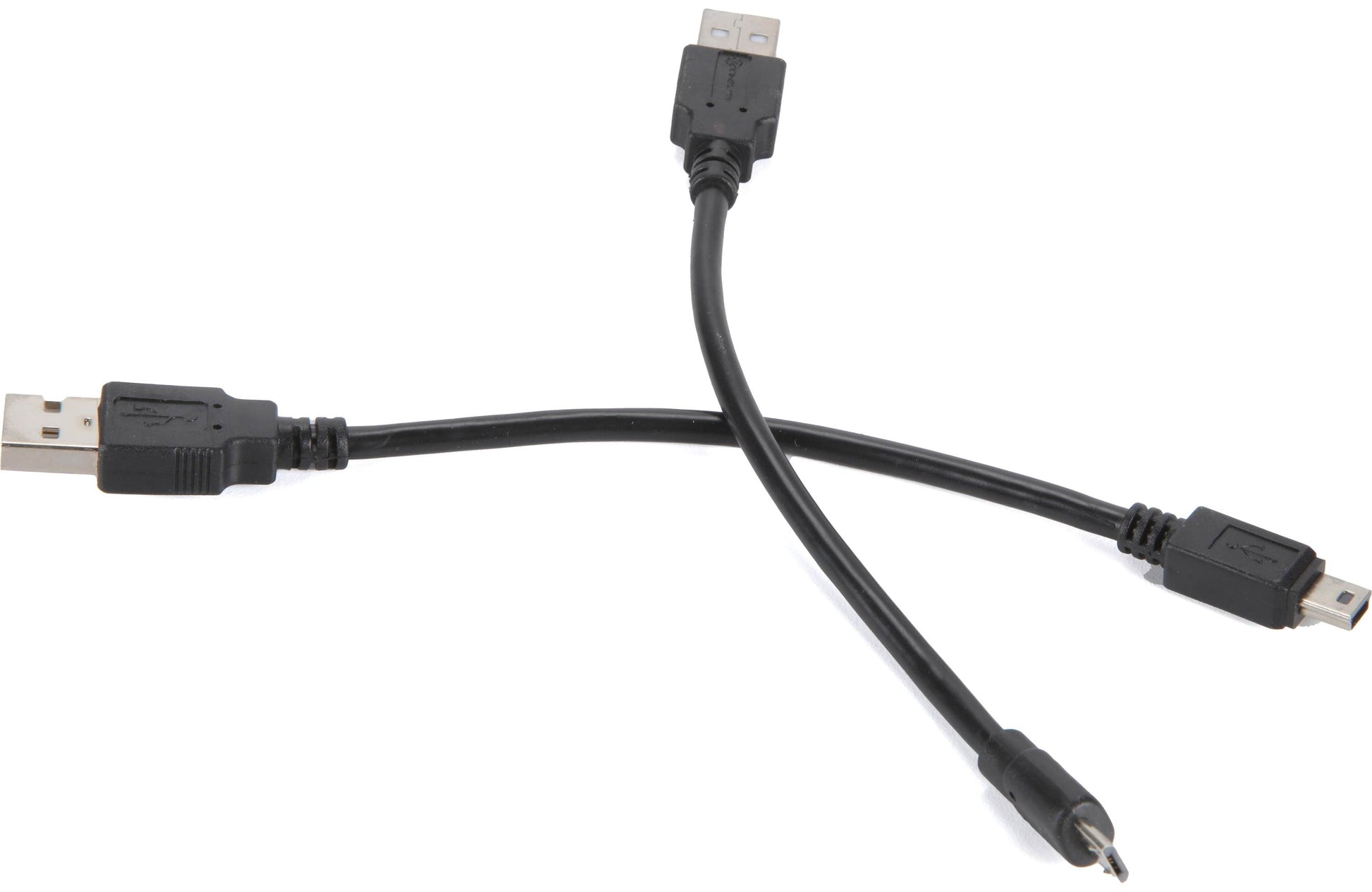

Flashing Module via Weblink Desktop: The iDataLink Maestro RR (ALP-MRR) will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

• Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
• Available USB port (version 2.0 or 3.0)
• 4GB RAM or more
• 200MB available space on HDD
• Internet connection

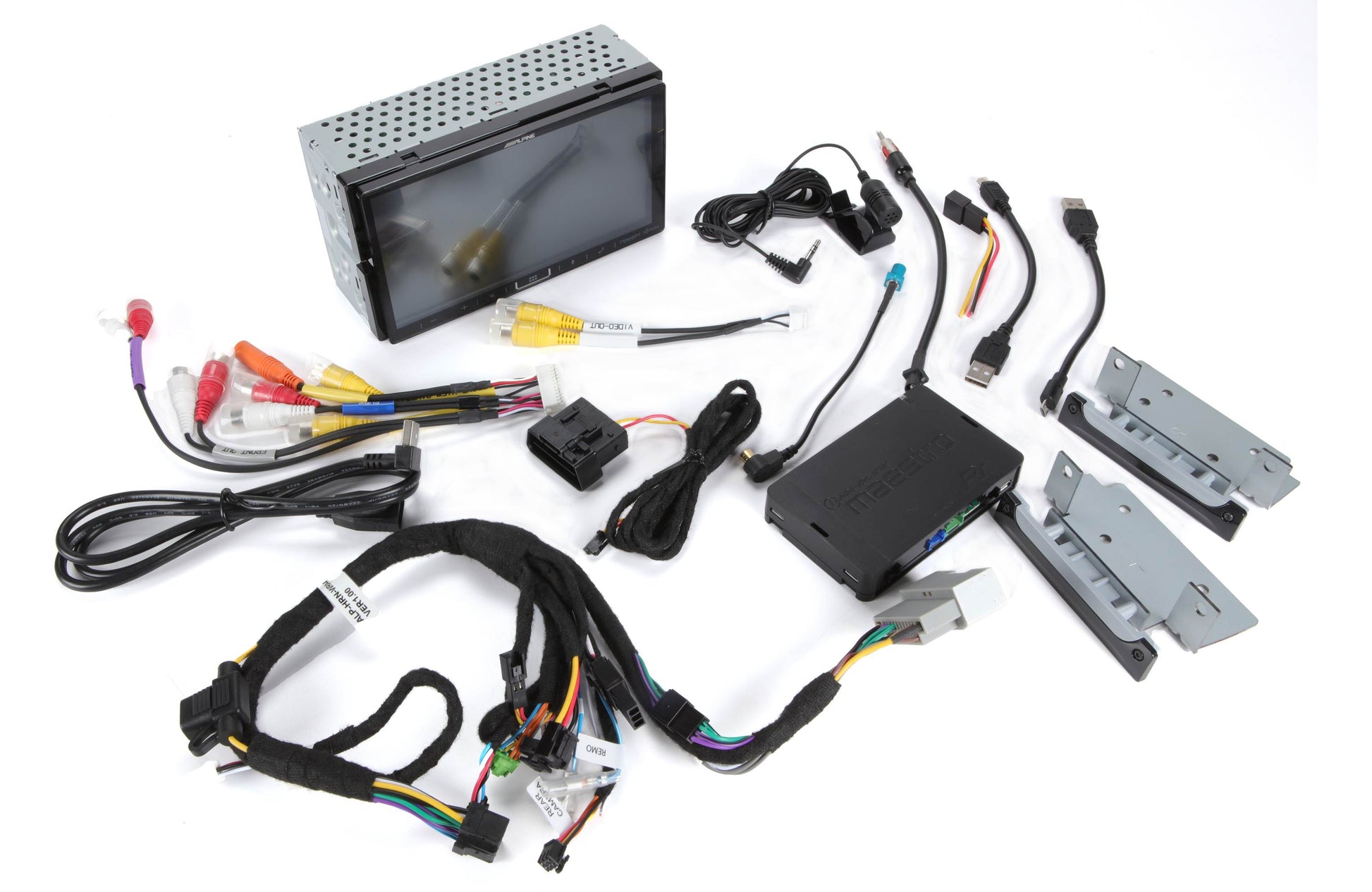

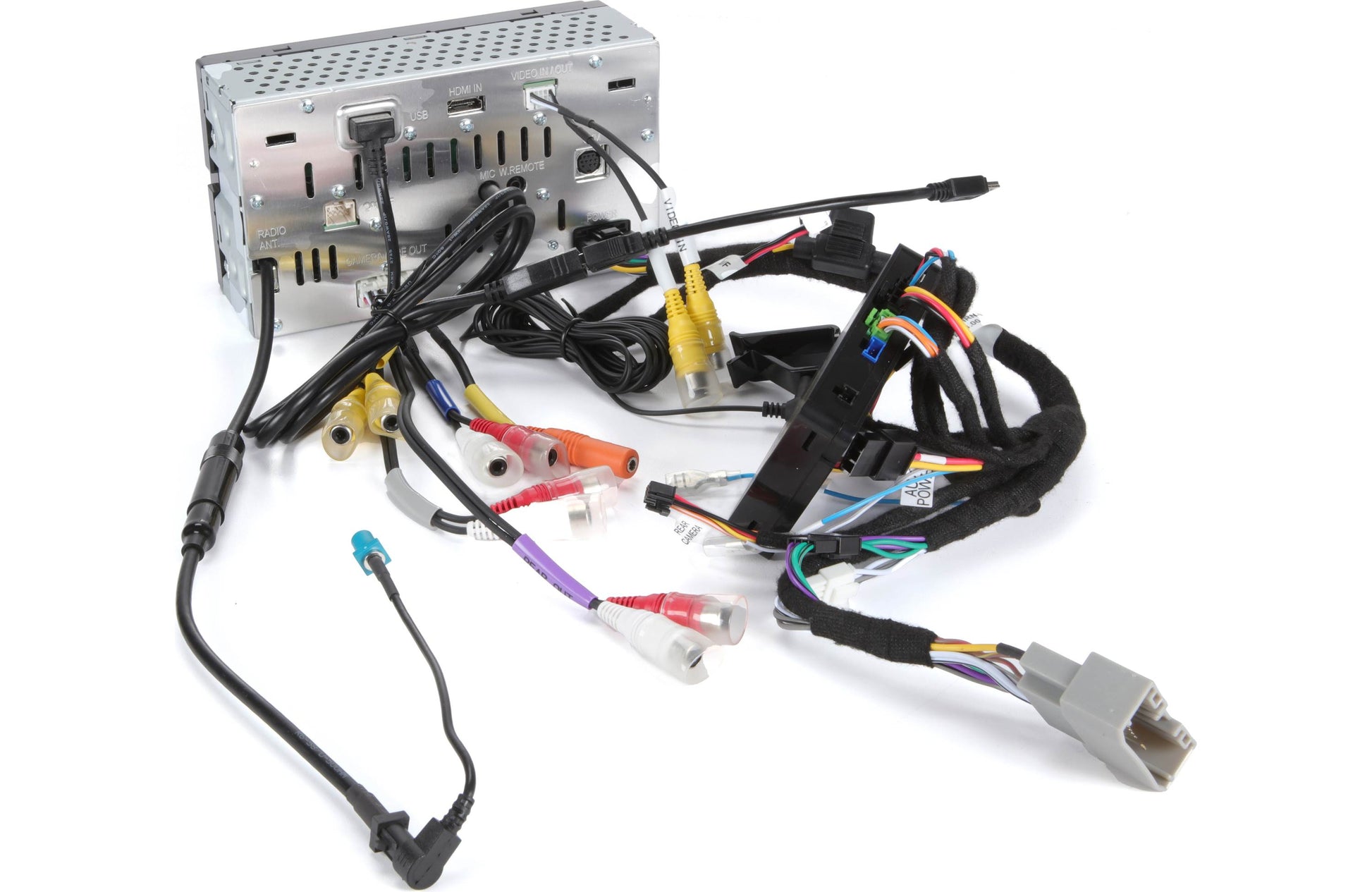

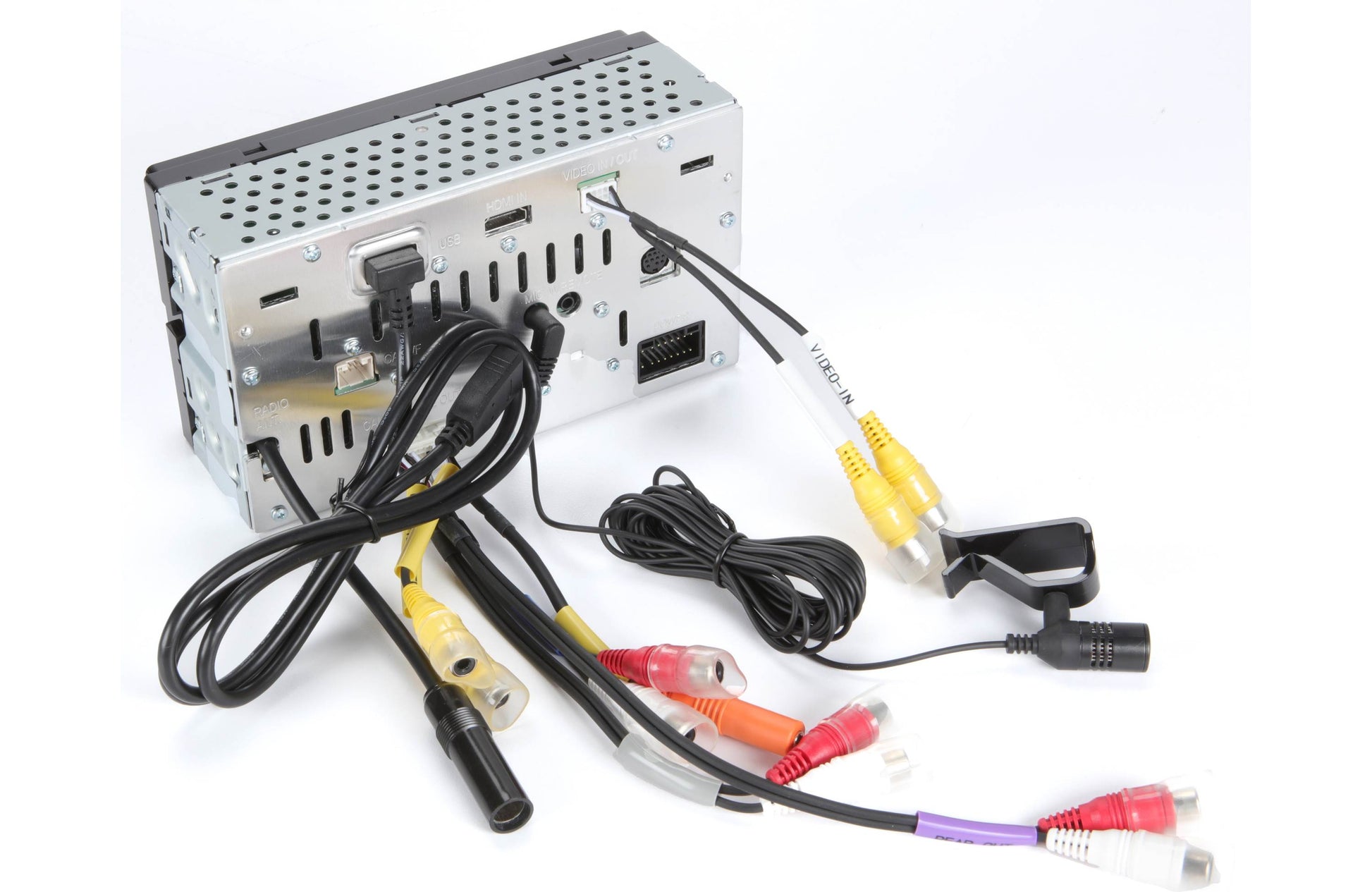

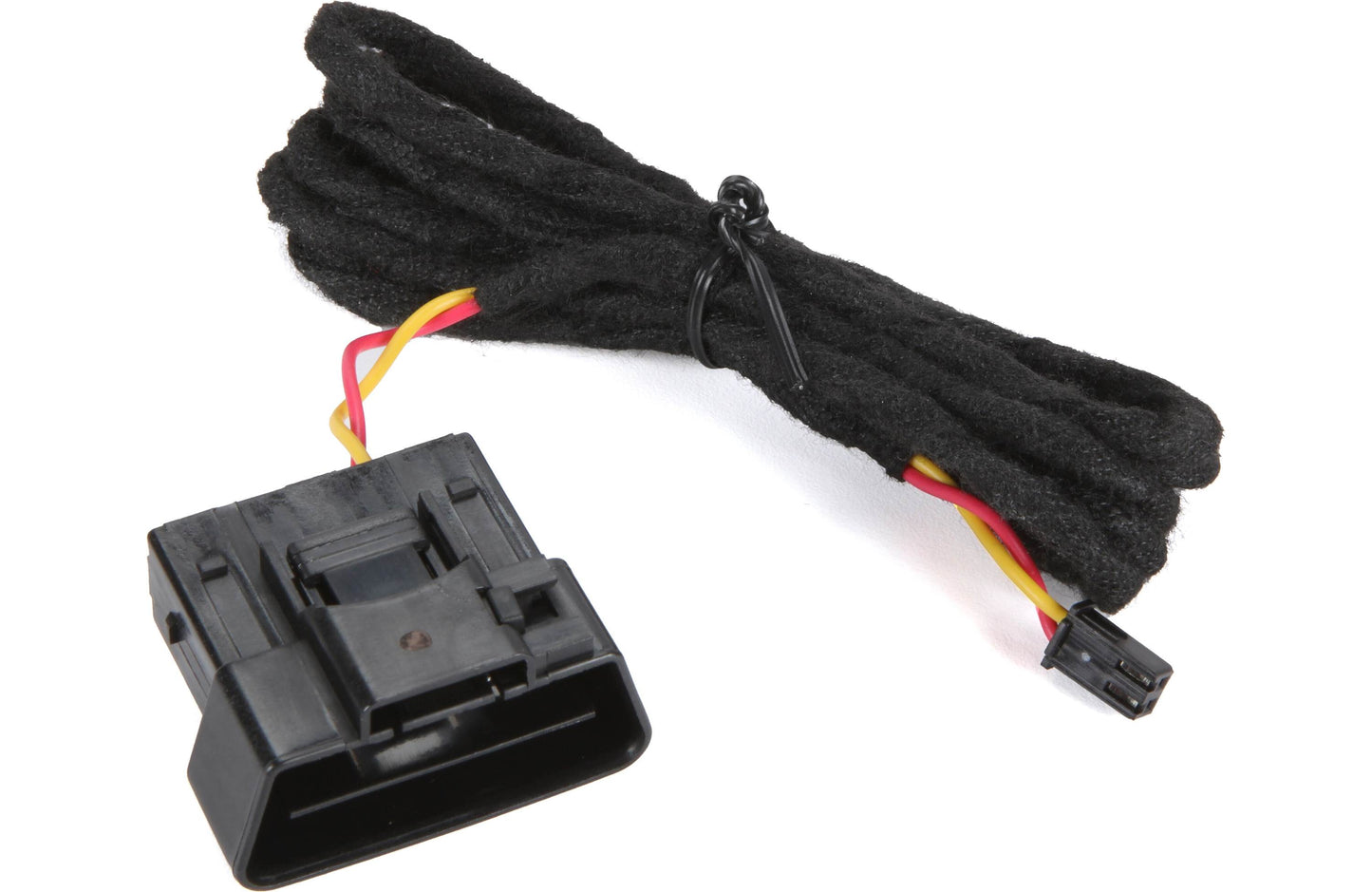

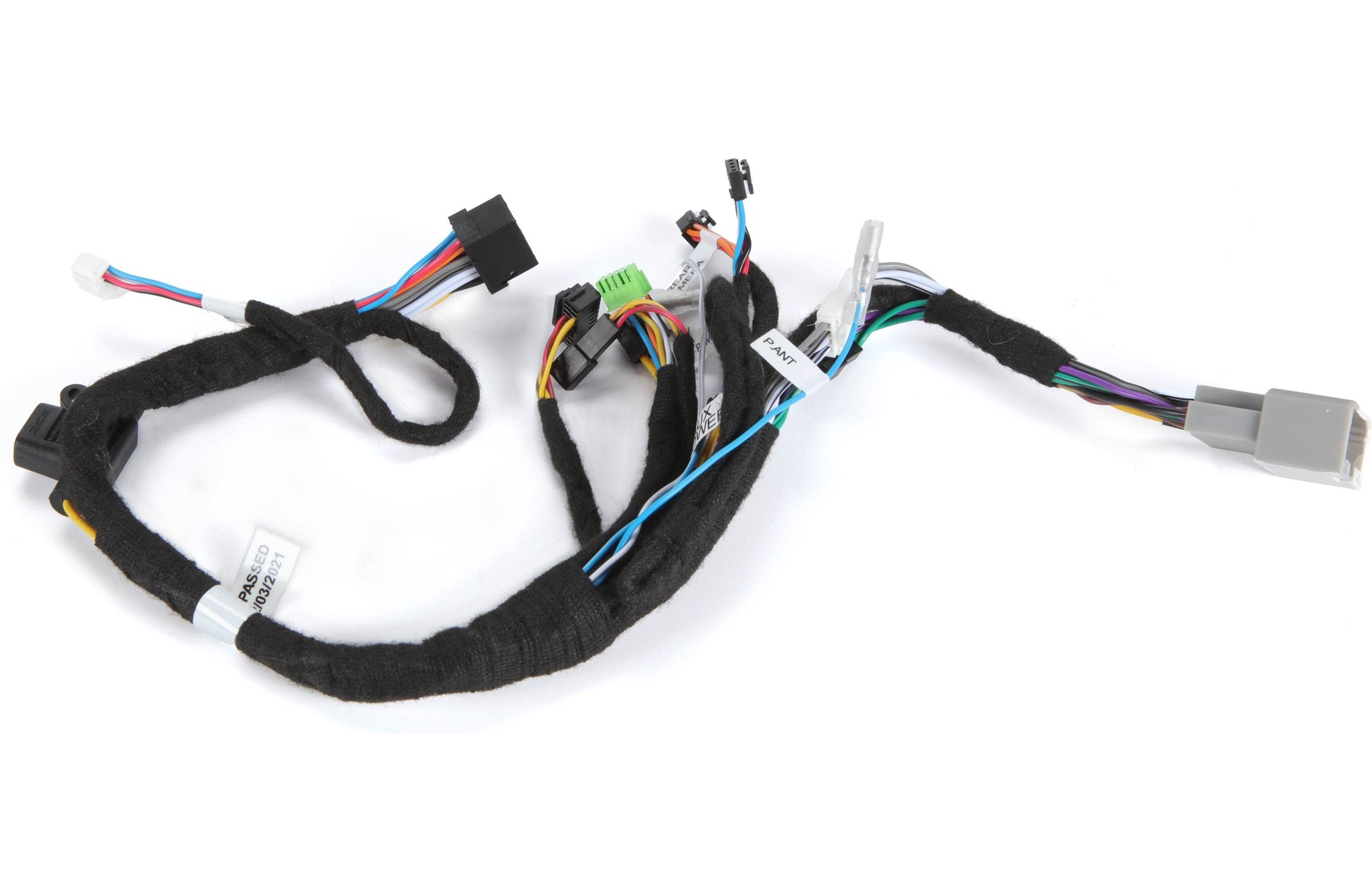

Pre-Wired Harness: The radio, vehicle, and interface harnesses comes pre-wired, so all you need to do is plug the appropriate connector in the back of the Alpine i407-WRA-JK, iDataLink Maestro (ALP-MRR) and the vehicle's factory radio plugs. Even the Parking Brake & Reverse Gear connections are pre-wired to make installation much simpler and less time consuming.

Android Auto & Apple CarPlay

Android Auto: Android Auto brings the most useful apps of your Android smartphone to the Alpine in-dash receiver, making it easier for you to keep your main focus on driving. You can control things like navigation maps, phone calls, text messages, music, and more using the head unit's touchscreen or your voice and Google Assistant. With large touchscreen icons, a simplified user interface, and the Google Assistant, it's designed to minimize distraction so you can stay focused on the road. To use Android Auto, you'll need an Android smartphone running OS Lollipop (6.0 or newer). The compatible Android smartphone must be connected to head unit's rear-panel USB port and paired via Bluetooth. Click here to learn more About Android Auto and to see what phones are compatible

• Google Assistant: With Google Assistant on Android Auto, you can keep your eyes on the road and your hands on the wheel while using your voice to help you with your daily commute. Simply say, "Ok Google" or press the mic button to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
• Navigation Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. You can use the unit's touchscreen or Google Assistant to select your destination and route. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Calls & Messages: Android Auto's Google Assistant lets you stay connected while you're driving. The Google Assistant lets you use voice commands to call phone numbers and your favorite contacts, as well as read-reply-send text messages; all while keeping your hands on the wheel.
• Music Apps: Android Auto gives you access to your Android smartphone's music library through YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen or the Google Assistant to select songs, artists, albums, or playlists. You also get access to select music apps on your Android smartphone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

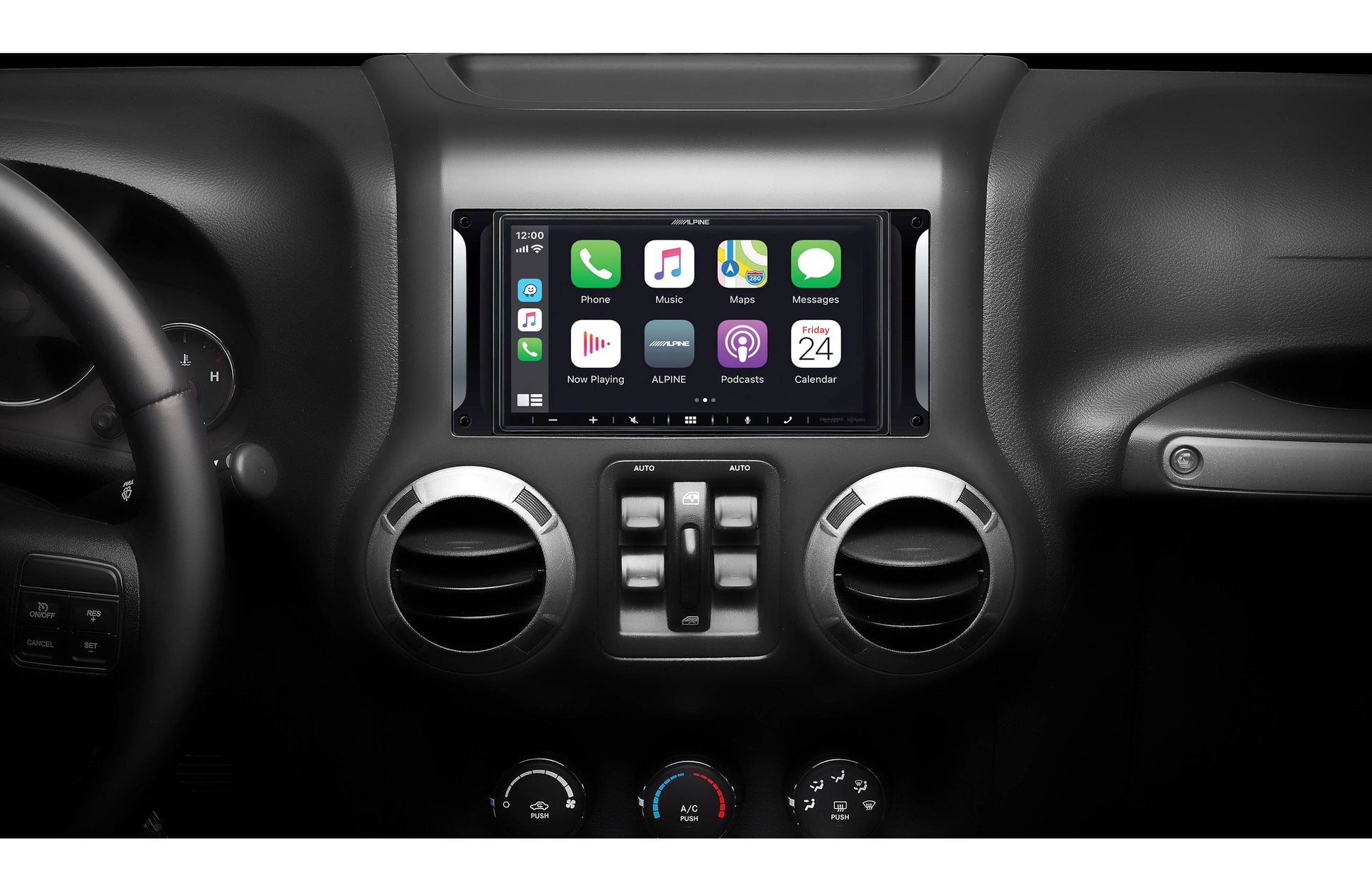

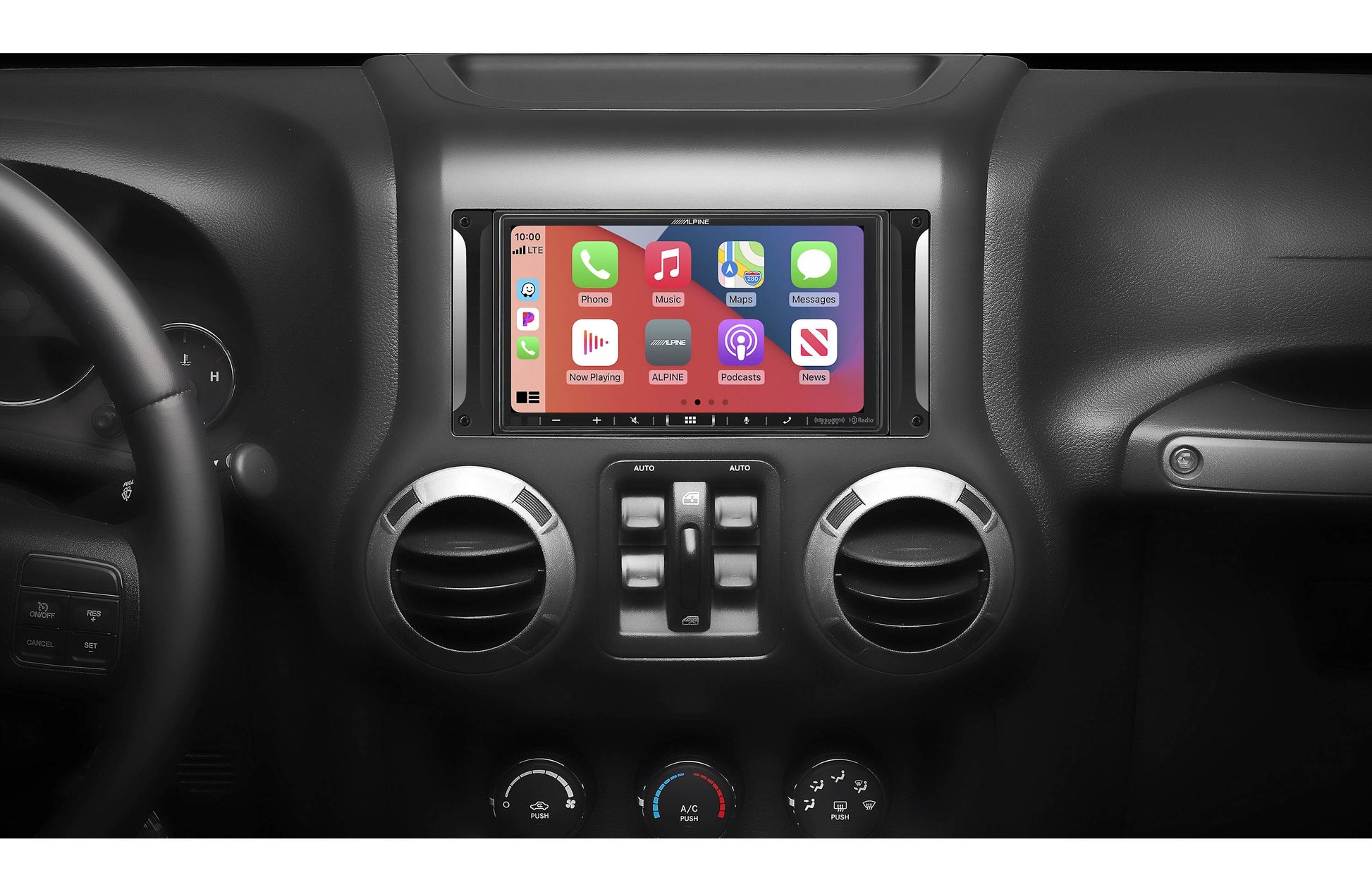

Apple CarPlay: CarPlay is a smarter, safer way to use your Apple iPhone in your vehicle. CarPlay takes the things you want to do with your iPhone while driving and puts them right on the display of the in-dash receiver. You can use the head unit's touchscreen or your voice and Siri to get directions, make calls, send and receive messages, and listen to music - all in a way that allows you to stay focused on the road. You'll need to connect your compatible iPhone 5S or newer (running iOS 7.1+) to the head unit's rear-panel USB port using the included 41" USB extension cable and an Apple Certified cable.

• Maps: Apple Maps will be mirrored on the screen, including traffic information and estimated time to destination. Use the head unit's touchscreen or ask Siri to get turn-by-turn directions. You can search by address, favorites, recents, points-of-interest, and more. CarPlay can even predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. You can also choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone: Use the head unit's touchscreen or ask Siri to make calls, return missed calls, and listen to voicemail messages. Caller ID information will be displayed on the receiver's touchscreen. You'll carry on your side of the conversation through the included microphone, while the other party is heard through your vehicle's speakers.
• Messages: Ask Siri to send, read, and reply to text messages. This hands-free operation minimizes distraction and allows you to keep hands on the wheel and eyes on the road. Text messages cannot be read or typed from the head unit's touchscreen to prevent driver distraction.
• Music: You can access music by artist, song, playlist, and more through the receiver's touchscreen or via Siri. The receiver will display artist/song/album information (including album art in the background). You can access your iPhone's iTunes music library, as well as Apple Music. In addition, you can access other music apps that you have on your iPhone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, SiriusXM, Slacker Radio, Google Play Music & more.
• Apple HomeKit: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.
• Other Applications: In addition to navigation and music apps, Apple CarPlay supports a variety of other applications ranging from Podcasts, Audiobooks, Sports, News, Weather, and More.

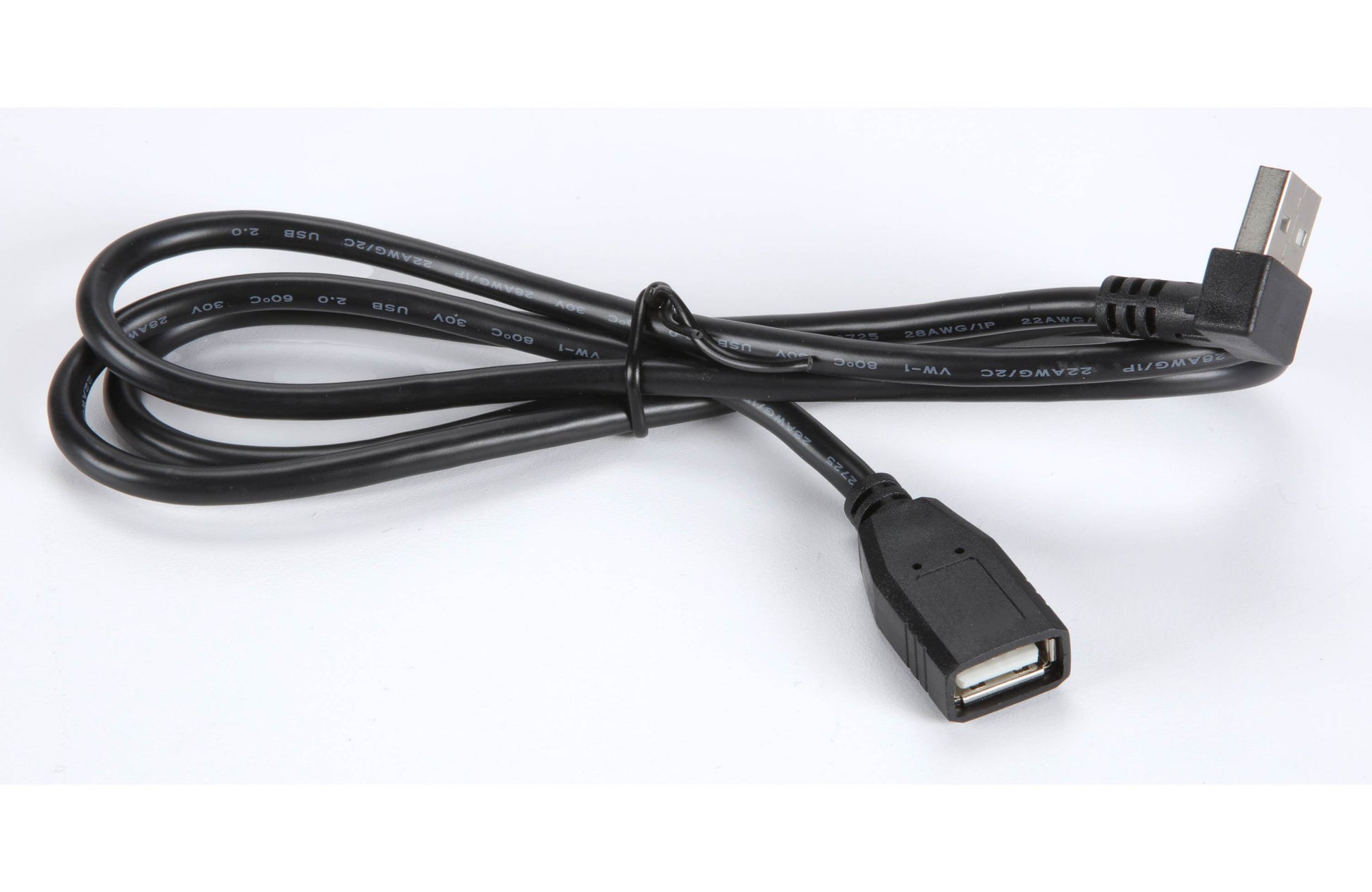

iPhone Music Playback: The Alpine i407-WRA-JK's rear-panel USB port and 41" USB extension cable can also be used to simply connect your Apple iPhone (5S and newer) for music playback only. The USB connection allows for audio playback of stored music, music apps, and other audio content. You can use the head unit to control playback functions such as Play/Pause, Fast Forward/Rewind, Previous/Next Track, and Random/Repeat. You can also browse your music by category (playlist/song/artist/album/genre/etc.). In addition, the unit will display song/artist/album information (including album art).

• Compatible iPhone models include the iPhone 5S and newer.
• Not compatible with iPod nano, iPod touch, older 30-pin Apple devices, and iPhones older than the 5S.

Smartphone Charging: The Alpine i407-WRA-JK will also charge (5V/1.5A) your Android smartphone or Apple iPod/iPhone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

Built-in Bluetooth

Bluetooth 4.1: The Alpine i407-WRA-JK features built-in Bluetooth 4.1 with support for hands-free phone communication and wireless audio streaming. The head unit's built-in Bluetooth allows you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -

• Hands-Free Communication: HFP (Hands Free Profile), PBAB (Phone Book Access Profile).
• Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).

Secure Simple Pairing (SSP): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the i407-WRA-JK without having to enter pin codes or go through complicated settings (your phone must also support SSP). You can pair up to 5 Bluetooth enabled devices with the Alpine head unit, but only one device can be used at a time.

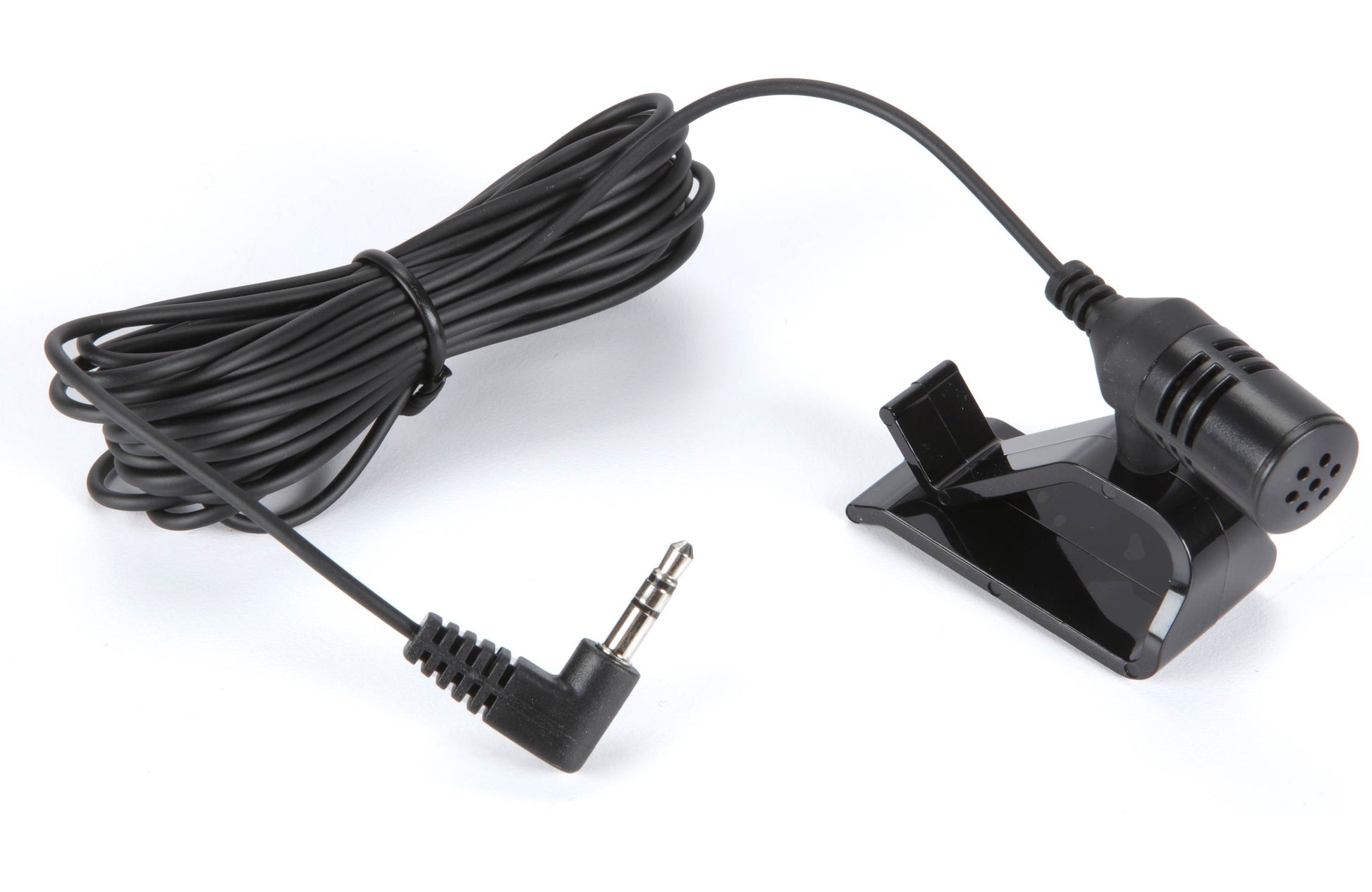

Hands-Free Communication: The Alpine i407-WRA-JK supports wireless hands-free communication for your Bluetooth enabled mobile phone (including iPhone & Android). You'll be able to receive and make calls using the i407-WRA-JK. The Alpine i407-WRA-JK allows you to carry on a phone conversation using the included external microphone and your car audio speakers. You can emphasize or weaken the volume level of the phone caller, the ring tone, and the microphone to fit your own preference (0-11).

• Receiving Calls: Incoming calls are announced by a caller ring tone through your vehicle's speakers (music will be muted) & a Caller ID message across your Alpine head unit's touchscreen display. You can answer an incoming phone call by pressing the telephone icon button on the Alpine receiver's front-panel. Press the telephone icon button again to end the call.
• Making Calls: The Alpine i407-WRA-JK provides a variety of functions for placing a phone call without using your mobile phone. The Alpine i407-WRA-JK features full phone book access, call history, and voice-dialing with compatible phones.
  • Phone Number Entry: Allows you to directly dial a phone number from the head unit's touchscreen.
  • Phonebook (with ABC search): Your contacts and their phone numbers can be downloaded from your compatible mobile phone. You can then search the contacts of your phonebook alphabetically.
  • Presets & Favorites: You can assign up to 5 phone numbers for one-touch dialing to make a call easily. You can also make a phone call using the Short Cut function of numbers that you have registered as Favorites.
  • Call History: The previously dialed, received, or missed numbers can be retrieved and dialed from memory.
  • Voice Dialing: If you have a voice-dial capable phone (including iPhone & Android), you can dial a phone contact by simply speaking the name of your contact or the telephone number.

Audio Streaming: The Alpine i407-WRA-JK can stream stored music, music apps, and other content from your Bluetooth source device (such as your iPhone or Android smartphone). The i407-WRA-JK will be able to control basic playback functions such as Play/Pause, Previous/Next Track, Fast Forward/Rewind and Random/Repeat. Advanced music browsing (such as song/artist/album search) will still need to be done from your Bluetooth source device. The head unit will also display your stored music's song information; such as Artist name & Song/Album title (no Album Art).

Siri Eyes Free Control: When connected to an iPhone with Siri via Bluetooth, the Alpine i407-WRA-JK has the ability to access Siri through its front-panel/touchscreen controls and external microphone. Simply press the head unit's "microphone" button on the front-panel to engage Siri and use the external microphone to communicate with Siri. Siri's voice will be heard through your vehicle's speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the i407-WRA-JK and its microphone. You can ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your iPhone with Siri. The head unit's audio is attenuated while Siri provides audible directions.

USB/HDMI/AV Connectivity

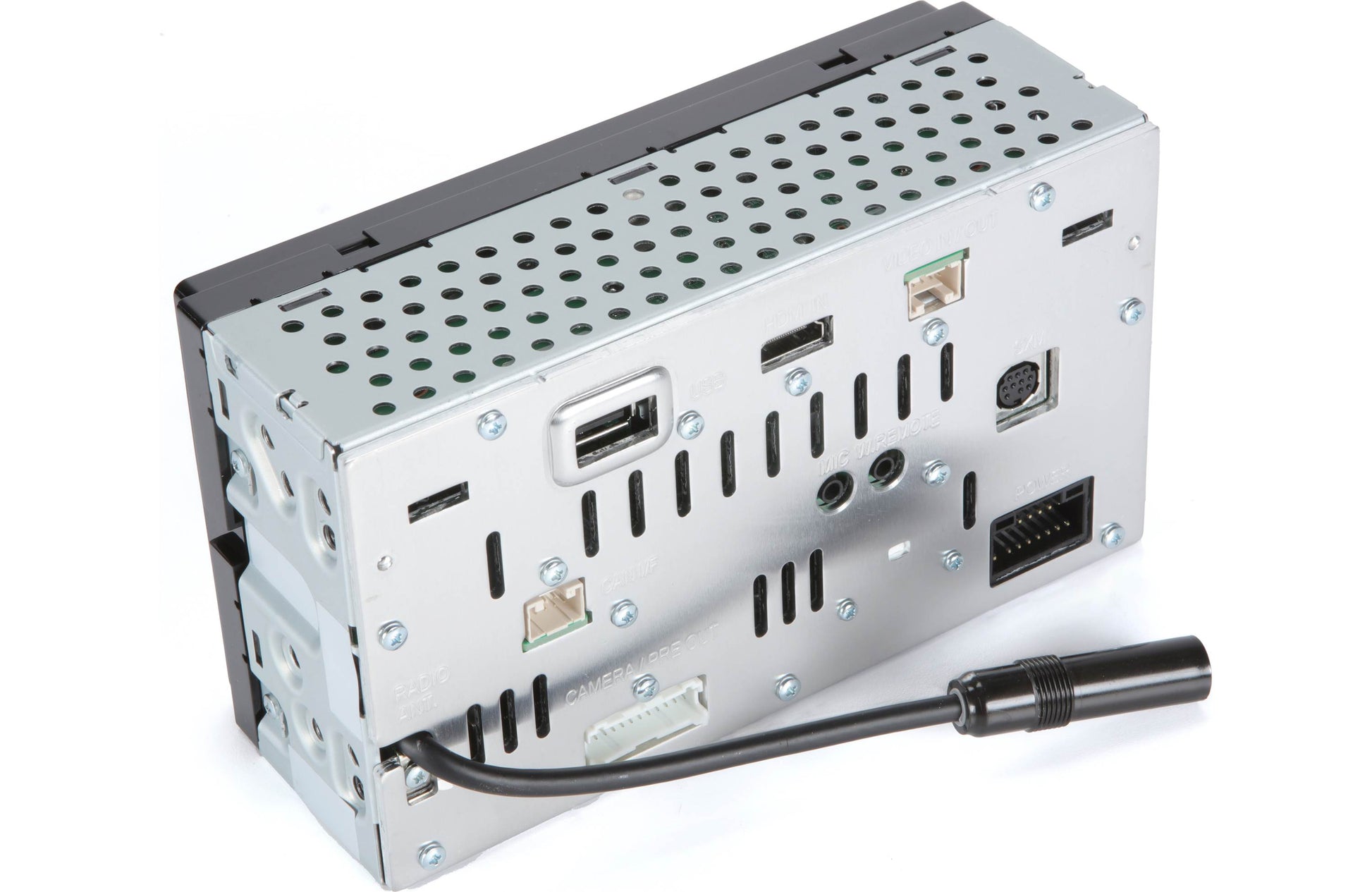

USB Mass Class Storage Devices: In addition to iPhone & Android connectivity, the head unit's rear-panel USB (type-A) port allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive or portable digital audio player. A 41" USB extension cable is included. The unit supports playback of a variety of audio, video, and photo files stored on a compatible USB MSC device. The unit also offers playback control and song/artist information display (including Album Art). USB portable devices that can be charged via USB will be charged when plugged into the digital media receiver's USB port (max. 1.5A), and the vehicle's ignition switch is set to ACC or On.

HDMI Input: The Alpine i407-WRA-JK is outfitted with a full-size, rear-panel HDMI input for an all-digital audio and video connection to an optional DVD player or mobile device. The HDMI input supports up 480p and 720p video. Not all source devices with an HDMI output will be supported by the Alpine i407-WRA-JK.

• Optional DVD Player: The head unit's HDMI input can be used to connect almost any external mobile AV source with an HDMI output, such as a DVD player (sold separately). The HDMI input will provide video and audio playback. Playback functions will need to be controlled from your HDMI-connected device or the remote that came with your HDMI-connected source device.

• Mobile Device Mirroring: The HDMI input can also be used to mirror select Apple iPhones with Lightning connect and select Android smartphones that are MHL compatible, so you can watch videos and photos, as well as listen to audio through the Alpine i407-WRA-JK. There is no touchscreen control from the Alpine head unit; you will still continue to use your mobile device to select content, apps, and control playback. An Apple or Android/MHL adapter (both sold separately) will be required to make a HDMI connection.

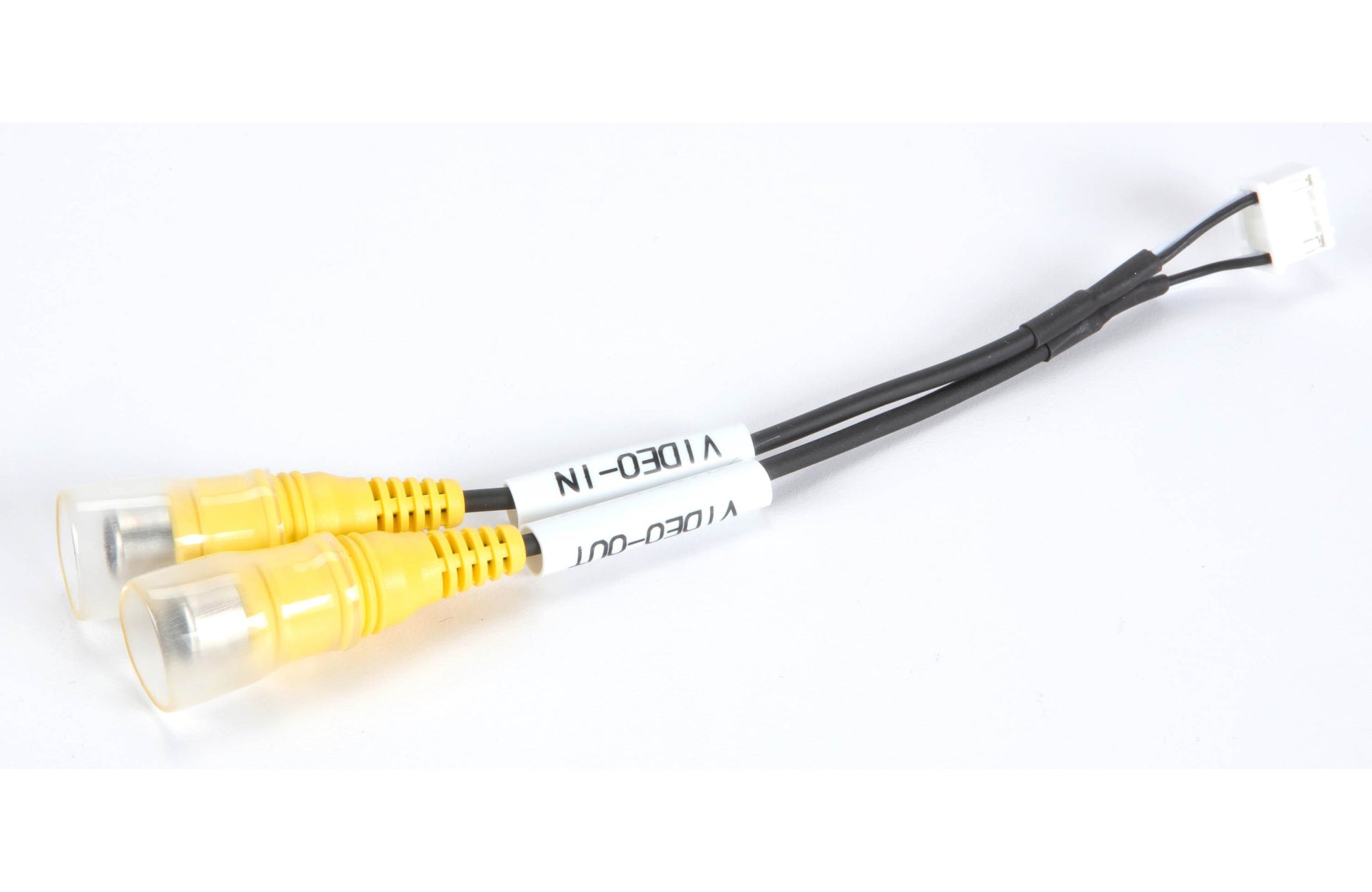

AV Input/Output: The Alpine i407-WRA-JK features a rear-panel 3.5mm Aux input and a rear-panel composite video input to connect to an external audio/video source. It also features a composite video output that allows you to an add external monitor such as rear headrest monitor (sold separately). The video output can display a USB or AV-input video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not.

HD+SiriusXM+Apple Radio

HD Radio: With the built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio lets you listen to the radio with the same fidelity as your digital music. HD Radio features high quality audio, FM multi-casting, and data services. With HD Radio, your FM stations offer near CD-quality sound, AM stations provide FM-like sound, and there is crystal-clear reception with no audio distortion. Best of all, HD Radio is 100% subscription free. The unit's tuner also supports analog AM/FM broadcasts.

• Multicasting: Multicasting is the ability to broadcast multiple program streams over a single AM/FM frequency. this increases the amount and diversity of content choices. A maximum of eight multicast station channels (HD1-HD8) can be selected on this unit.
• Station Text w/ Album Art: AM/FM digital stations can offer text and data such as artist names and song titles, plus Album Art. The built-in HD Radio tuner displays song title, artist and station information on the touchscreen monitor of the Alpine i407-WRA-JK. The RDS (Radio Data System) is a radio information system for analog FM. The RDS allows you to receive a variety of information such as traffic information, station names, and song information from standard analog FM radio stations.
• Preset & Direct Tuning: The built-in tuner provides 12 FM and 6 AM preset stations. The unit's tuner can automatically seek and store six strong stations in a selected band in order of signal strength. Sub-program services of multicast stations are not included in the automatic memory search. You can also input a station number directly from the head unit's LCD touchscreen.
• Tuner Quality Setting: This unit can be set to three different FM tuner quality settings - Normal (standard), HiFi (high-quality), or Stable (controls noise).
• Ballgame Mode: In a live broadcast, such as a sportscast, a time lag occurs between digital sound and analog sound. Therefore, when live broadcasts are received, time lag between the real broadcast may occur and this unit can change to analog broadcasting automatically.

SiriusXM Ready: The Alpine i407-WRA-JK is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

• Channel List + Song/Artist Info: A channel list displays a list of all available channels. Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's touchscreen monitor.
• Category Search & Presets: The Category Search function searches for channels in a certain category. Up to 6 SiriusXM Satellite Radio station presets can be saved for easier access. You can also directly select a channel or station number by using the on-screen numeric keypad.
• Parental Lock: This function restricts the listening of channels for children of certain age levels and is protected by a 4-digit "lock-code".

Apple Music Radio: You can playback Apple Music Radio on your USB-connected Apple iPhone w/ Lightning connector (5S and up) through the Alpine i407-WRA-JK. With a WiFi or cellular connection, you can listen to Beats 1 and other live radio stations. Apple Music subscribers can also listen to on-demand stations from almost any genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations and find the music you want to listen to in the car.

Audio & DSP Section

CTA-2006 Compliant: The specifications given by Alpine for the built-in amplifier comply with the CTA-2006 mobile amplifier power testing and measurement standards from the CTA (Consumer Technology Association). All manufacturers who comply with the standard can display the CTA-2006 logo on their product.

• CTA-2006 Power Rating: 16 watts x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
• Max Power Output: 50 watts x 4 channels (200 watts total)

PowerStack Compatible: The i407-WRA-JK's compact and shallow chassis is optimized to mount one of Alpine's Power Pack amplifiers (sold separately) to the back of the in-dash receiver. Alpine's PowerStack design lets you add more power to your sound system, while occupying the same depth as a traditional Double-DIN (4") radio. These amplifiers are not plug-and-play, and will still require power run to your battery. They feature power/ground/remote wires, as well as line-level RCA inputs and speaker wire outputs. Only one of these Power Pack amplifiers can be mounted to the back of the Alpine receiver (not both).

• KTA-450 Amplifier: The KT-A450 (sold separately) is a 4-channel amplifier that is rated at 50 watts x 4 channels into 4-ohms. It can also be bridged to provide 100 watts x 2 channels into 4-ohms. The amp features a variable high-pass crossover (60Hz, 80Hz, 120Hz, or Off) and adjustable gain control.
• KTA-200M Amplifier: The KTA-200M (sold separately) is a mono-subwoofer amplifier that utilizes Alpine's exclusive Dynamic Peak Power technology to produce 200 watts x 1 channel into 4- or 2-ohms. The amp features a variable low-pass crossover (60Hz, 80Hz, 120Hz, or Off) and adjustable gain control.

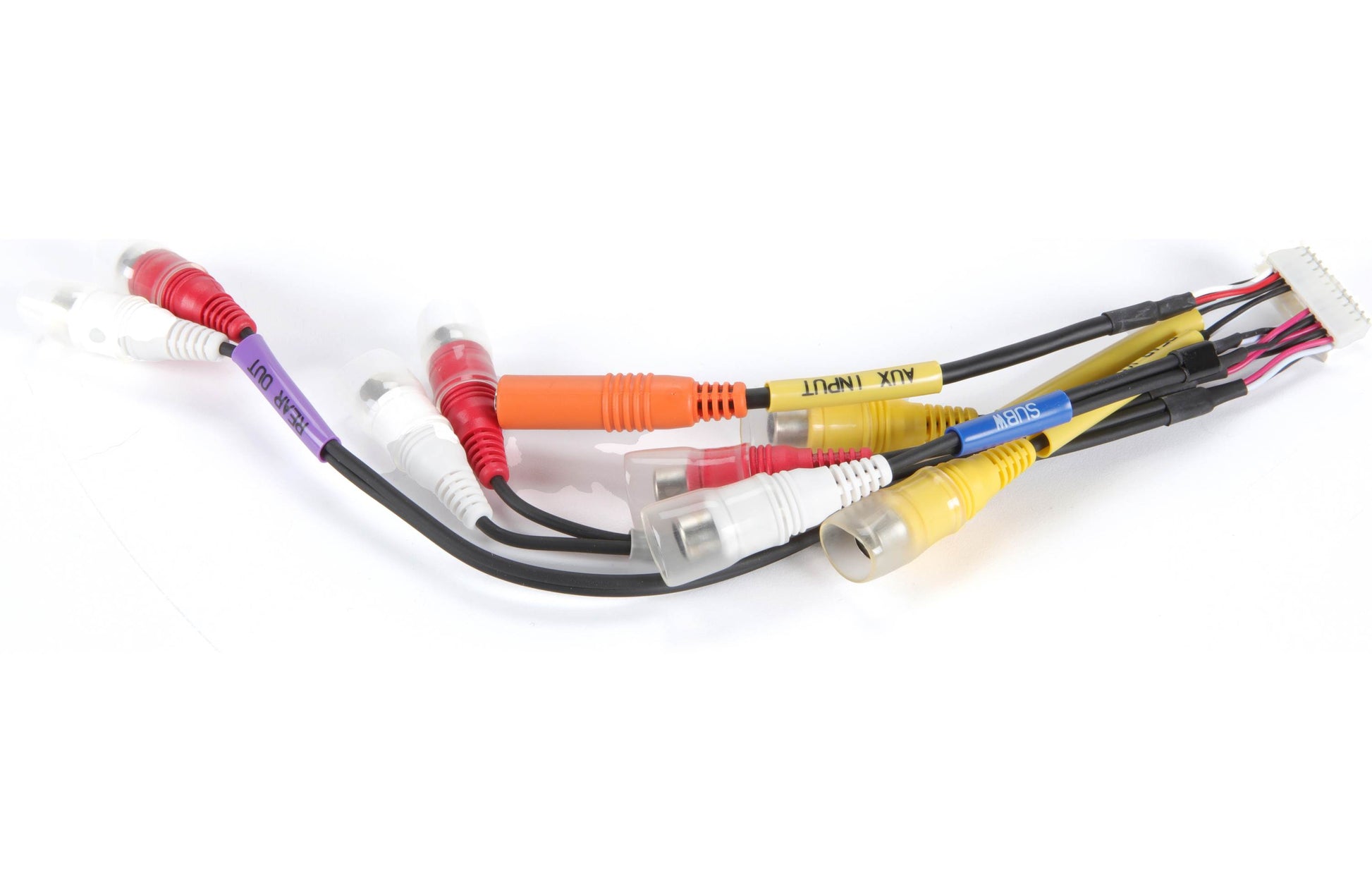

6ch/4V Preouts + Sub Control: The i407-WRA-JK has three sets of 4-Volt RCA pre-outs (Front/Rear/Sub) for connection of external amplifiers. The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading. The subwoofer output level can be adjusted independently from the main volume setting (0-15); so even at low volume settings the subwoofer is still audible. The subwoofer output phase can be set to Normal (0°) or Reverse (180°).

High-Pass & Low-Pass Crossovers: This unit is equipped with active high-pass and low-pass crossovers which limit the frequencies delivered to the speaker and line-level outputs. Each speaker channel is controlled independently, so each speaker pair can be driven by the frequencies for which have they been optimally designed. The crossover adjusts the HFP (high pass filter) or LPF (low pass filter) frequency point of each speaker pair, and also the slope (how fast the filter rolls off the highs or lows).

• High Pass Filter: The Alpine head unit is equipped with a high-pass filter for its speaker-level output and front/rear-channel preamp outputs. You can set the unit's high-pass filter center frequency point to 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, or Off (through). The slope of the high pass filter can be set to 6, 12, 18, or 24 dB/oct.
• Low Pass Filter: The unit's subwoofer output low-pass filter can be set to 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, or Off (through). The slope of the low pass filter can be set to 6, 12, 18, or 24 dB/oct.

Built-in EQ: The i407-WRA-JK digital media receiver is equipped with a variety of EQ presets for different types of music, plus a 5-Band Parametric EQ for fine-tuning the sound to your preference. It also offers simple tone, balance, and fade control.

• EQ Presets: 10 typical equalizer settings are preset at the factory for a variety of music source material. Choose from Flat, Pop, Rock, News, Jazz, Electronic, Hip Hop, Easy Listening, Country, and Classical.
• 5-Band EQ: The 5-Band EQ (250Hz/500Hz/1kHz/30kHz/10kHz) allows you to manually modify the response curve and create a sound that is more
  appealing to your personal taste.
• Tone Control: In addition to the EQ Preset and 5-Band EQ, the receiver offers simple Bass & Treble control with balance and fader adjustment.

Time Correction: This unit is able to delay the audio signal to the speakers closest to the listener with its built-in Time Correction feature. This effectively creates a perception of increased distance for those speakers. Time Correction allows the listener to be placed at an equal distance between the left and right speakers for optimum staging. You can adjust the distance (0-336.6cm) or time delay (0.0-9.9msec) of each speaker and subwoofer to the listener. You are able to save three time correction presets.

Media Xpander: Alpine's exclusive Media Xpander is engineered to bring out the musical details lost in compressed media, and it is adjustable per source to get the most out of your digital audio media. The Media Xpander makes vocals or instruments sound distinct regardless of the music source. The Tuner, USB memory, CarPlay, Android Auto, Pandora, and Bluetooth Audio will be able to reproduce the music more clearly even in vehicles with a lot of road noise.

Source Volume Level: The output level (0-11) of each source can be individually adjusted. For example, if the Tuner level sounds lower than Bluetooth, its output can be adjusted without affecting the other sources.

Touchscreen Control & Camera Inputs

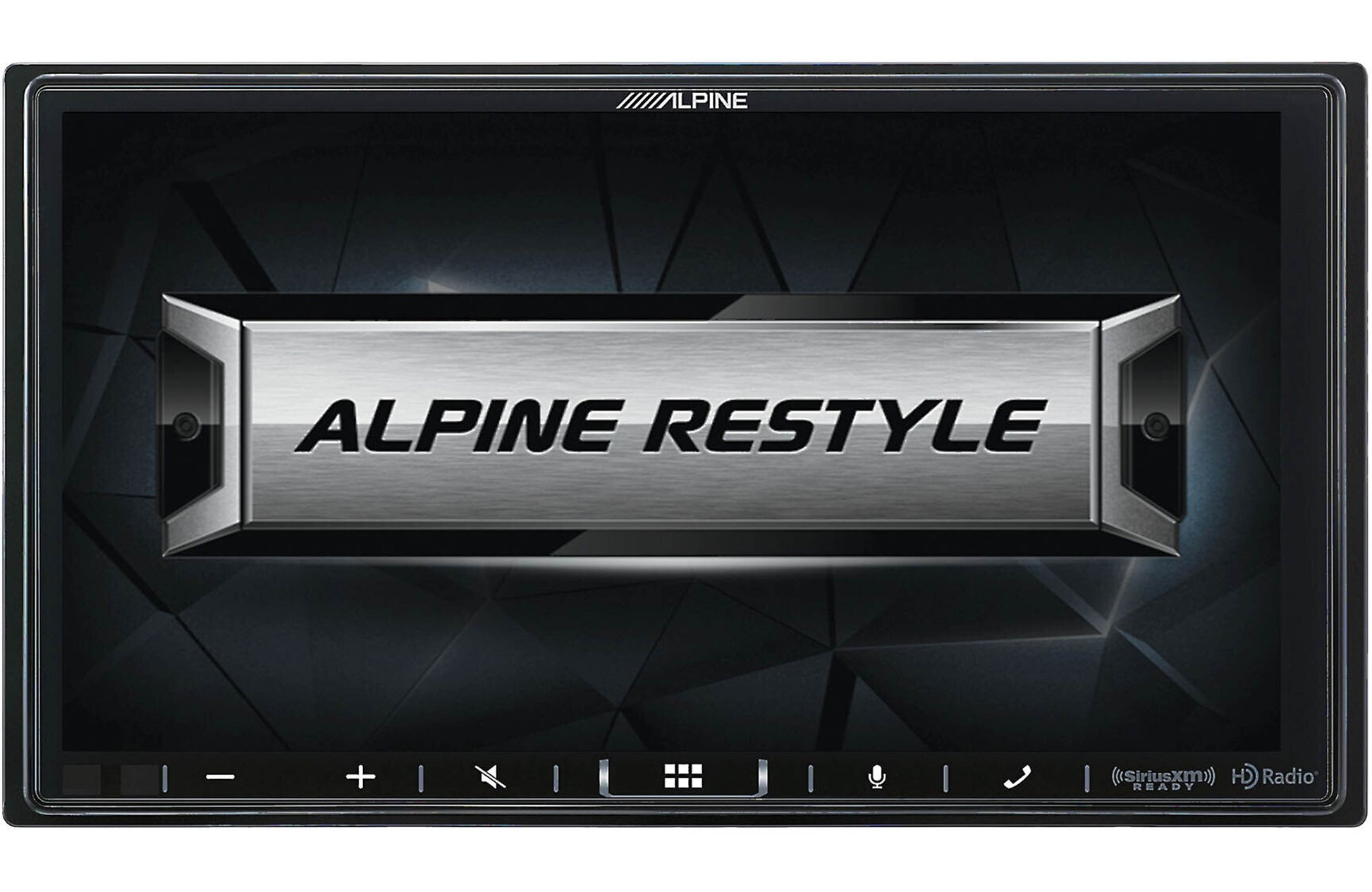

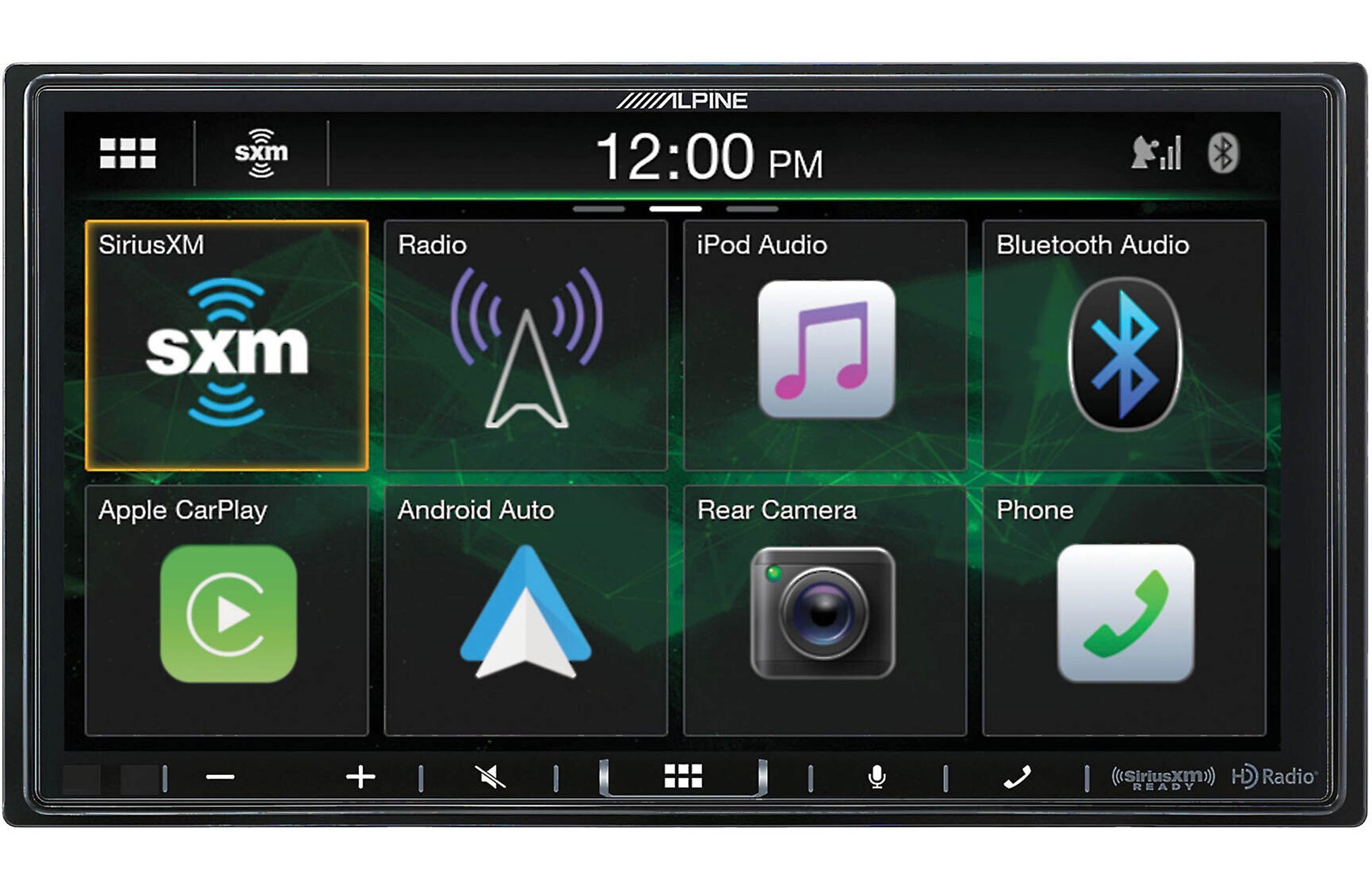

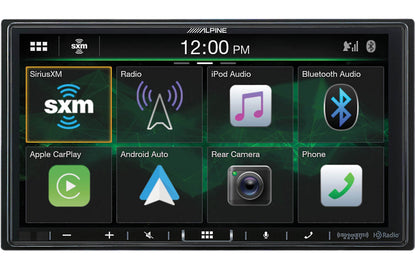

6.95" Capacitive Touchscreen: The 6.95" capacitive touchscreen boasts a 800 x 480 resolution (1.15 million pixels) with a 16:9 widescreen aspect ratio. The touchscreen monitor provides a balanced picture, not over-emphasizing dark or light areas, so album art, map screens, and videos are seen with greater clarity. The capacitive touchscreen requires less pressure, responds faster, and can recognize multiple touch points simultaneously; all advantages when compared to traditional resistive touchscreen displays.

• Swipe Operation: The new swipe control interface is designed for easy use so drivers can keep their eyes on the road. You can move your finger lightly with a swipe - up, down, left, or right. You can also touch a button or list item on the screen lightly for selection. You can even touch and hold the desired item, then drag it to its new location by moving your finger, then release your finger to place the item.
• Touch-Sensitive Buttons: Conveniently located touch-sensitive buttons (including Power/Menu, Source, Volume Up/Down, Mute, Phone/Answer, and Voice/Mic)s are accessible along the bottom edge of the 6.95" touchscreen monitor for quick access and simple control.
• Beep Guide: This function will give audible feedback with varying tones depending upon the button pressed. This feature can be turned On or Off.

Customizable Screen: You can customize the Alpine i407-WRA-JK's touchscreen monitor exactly the way you want it.

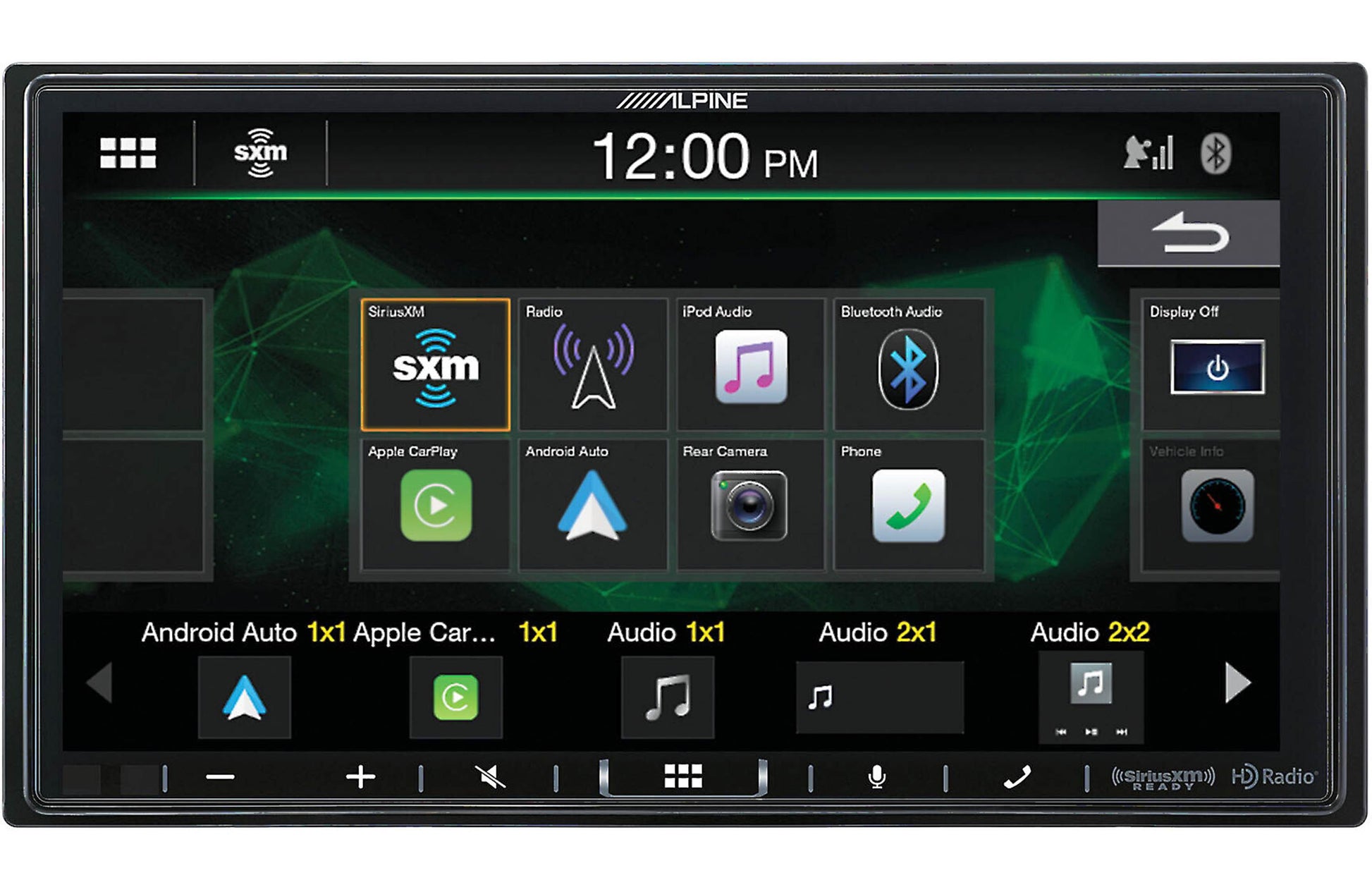

• Home Screen & Widgets: Use the capacitive touchscreen to move an icon using drag-and-drop motions with your finger. With over 29 available widgets, you can prioritize your 3 home screens so you can quickly find the apps you want. While driving, choose from widgets like Clock, USB images, Apple CarPlay, Android Auto, Now Playing, Sources, Camera, and Bluetooth functions.
• Wallpaper & Backgrounds: You can change the wallpaper of the display screen from 4 different colored default images (Amber, Blue, Green, Red). You can even add a customizable wallpaper from your photos through a thumbdrive.
• Brightness Control: You can adjust the brightness of the LCD backlight from -15 to +15 and the brightness of the button illumination from -2 to +2. You can then select one of the following modes for both the LCD's backlight and button illumination - Auto (adjusts the brightness of the background illumination based on the ambient light in your vehicle), On (keeps the background illumination of the monitor dark), or Off (keeps the background illumination of the monitor bright).
• Clock Display: The i407-WRA-JK lets you select between a 12 hour or 24 hour clock. The clock is displayed on each source screen and turns off when the head unit is powered down.

Optional Remote Control: The RUE-4360 IR remote control (sold separately) provides wireless operation of the Alpine in-dash receiver. The remote provides access to many of Alpine head unit's functions. However, some features and functions will still require the use of the receiver's touchscreen monitor.

Dual Camera Inputs: The Alpine i407-WRA-JK is equipped with two camera inputs consisting of a composite video jack. There is one rear-view camera input and one front-view camera input. If a rear-view camera is connected, you should also connect the unit's reverse lead wire (Orange/white) to your vehicle's back-up lamp circuit. When properly connected, the image from the rear-view camera automatically appears on the monitor when the vehicle is shifted into reverse. Automatic video switching takes approximately 0.75 seconds.

• Guidelines: The rear-view camera function also provides on-screen color-coded guidelines to assist you when backing up your vehicle into a parking space.

• Visual Adjust: Visual Adjust lets you can change the picture quality (Brightness, Color, Contrast) for the connected cameras.
• Backup Mute: When the Backup Mute features is activated, the receiver's sound will be muted automatically when your vehicle's gear lever is moved to the reverse position.

Optional Spare Tire Camera & Light System: The i407-WRA-JK also supports Alpine's HCE-TCAM1-WRA spare tire camera & light system (sold separately); which consists of a rear view camera, LED third brake light, and LED reverse light in a 7" round housing that installs onto your Jeep Wrangler's spare tire mount.

• Backup Camera: The backup camera features a 1/4" color CMOS image sensor (300,000 pixels) and a wide-angle lens (132° horizontal / 105° vertical). Its illumination range is approximately 1.0 to 100,000 lux. The backup camera is optimally angled within the spare tire mount to provide visibility for both near and far objects behind your Jeep Wrangler. The camera's backup image will be displayed on the i407-WRA-JK's video touchscreen.
• Third Brake Light & Reverse Light: The third brake light is 6.25" (w) x 2" (h) and stretches across the middle of the unit to provide extra safety. The reverse light is not only helpful when backing up, but also illuminates the camera's viewing angle in low light situations.
• Rugged Housing: The Alpine HCE-TCAM1-WRA spare tire camera & light system is waterproof and dust proof with an IP66 rating (universal standards set for International Protection Marking of products), so it's ready for off-road challenges like heavy dust and water crossings. The housing has a matte black finish with gun metal gray powder coat accents. It has a 7.125" diameter footprint.
• Spare Tire Mount: The Alpine HCE-TCAM1-WRA backup camera system conveniently installs onto the spare tire mount for an integrated look and is easily removed. The HCE-TCAM1-WRA attaches to your Jeep Wrangler's spare tire mount and is fixed using the factory lug nut or an optional aftermarket wheel lock. It is compatible with most factory and aftermarket wheels and comes with three mounting posts of varying lengths, allowing you to choose a post that fits the depth of the spare wheel. A removable rubber cap with a debossed Alpine logo covers the wheel lock in the center of the unit.
