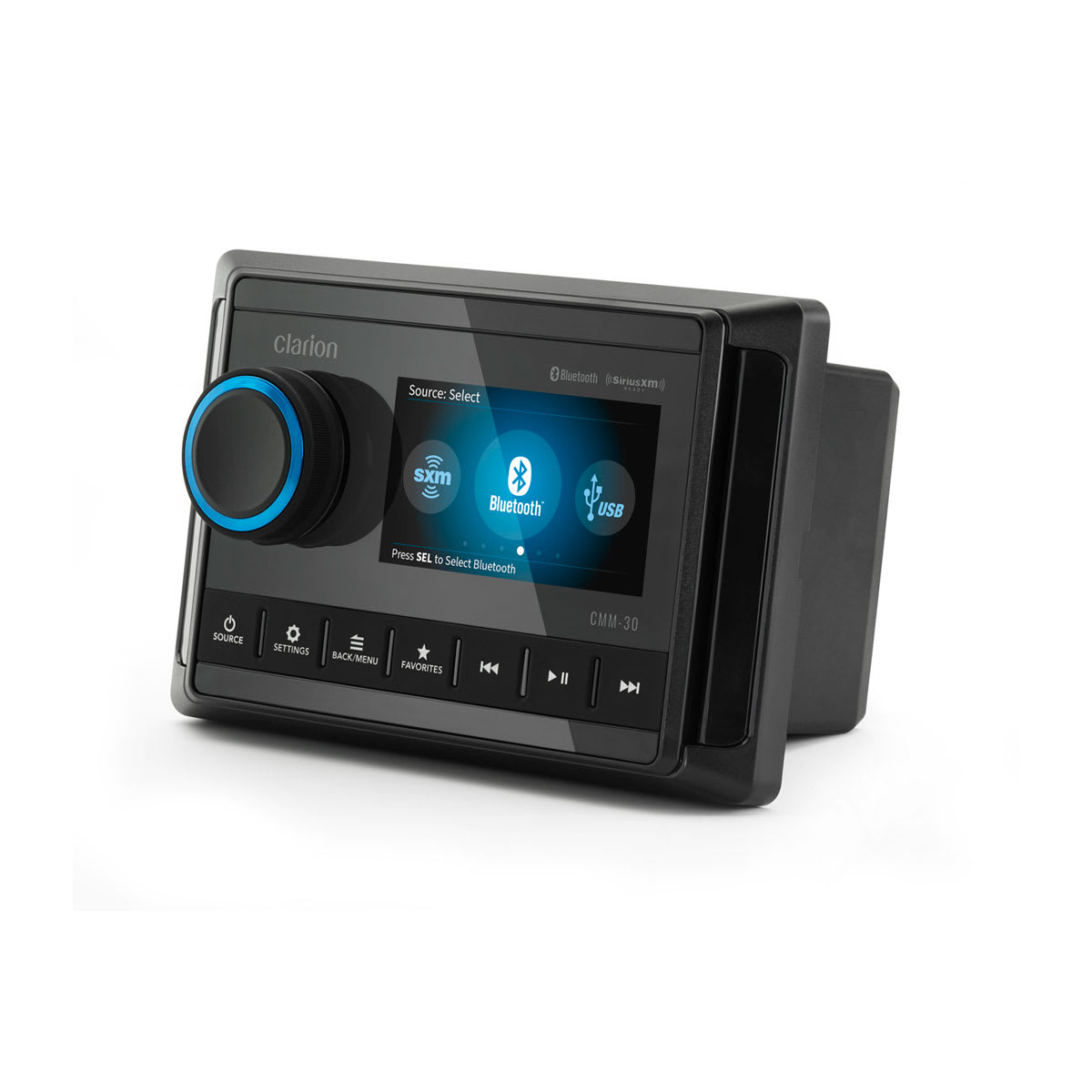

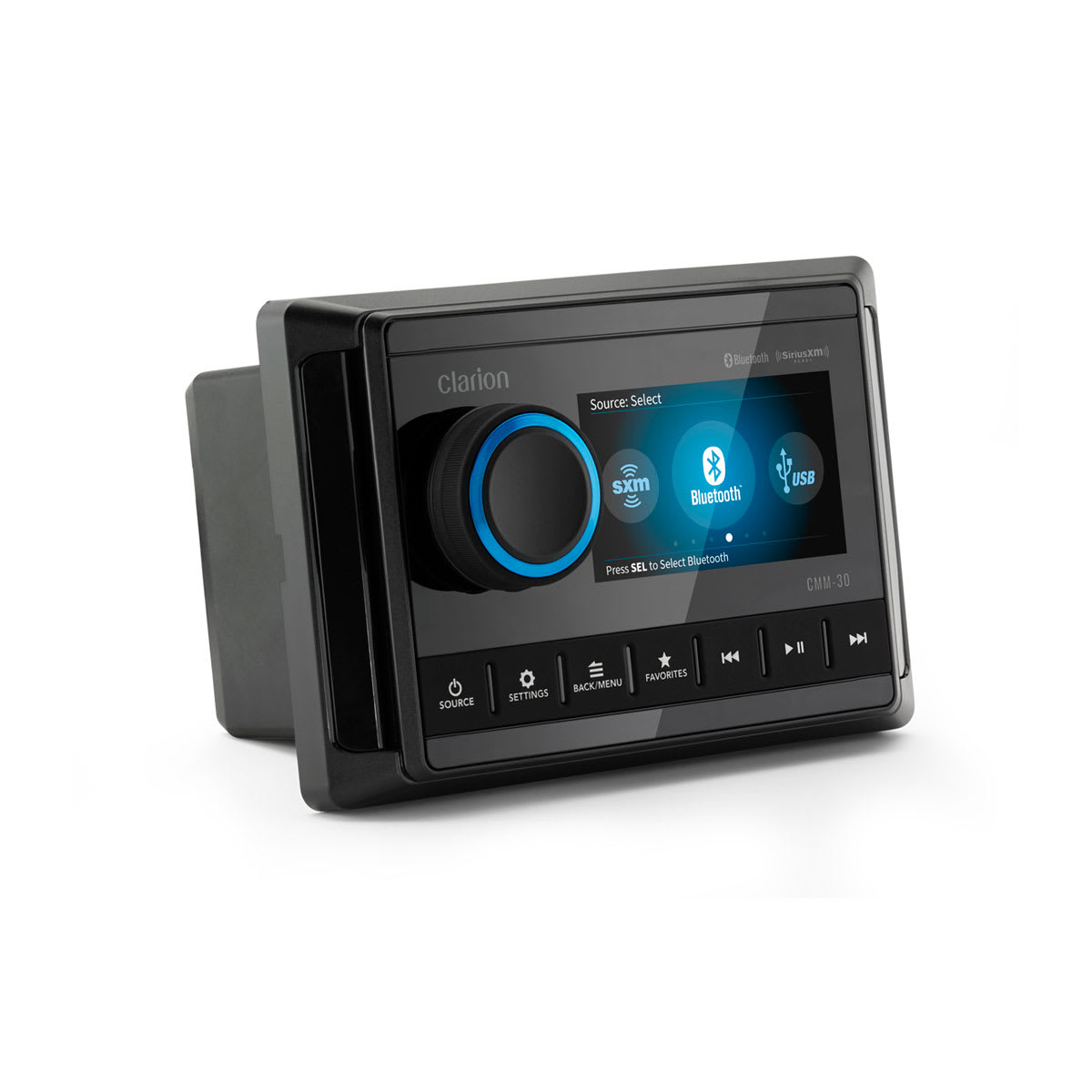

The compact CMM-30 is an all-in-one source unit and multimedia hub. Add sound and style to your boat with the 3.5-inch color LCD controller.
MUSIC STREAMING VIA BLUETOOTH® TECHNOLOGY
FULL-COLOR 3.5-INCH LCD DISPLAY
4-ZONE SOUND CONTROLLER
GLOBAL AM/FM AND WEATHER BAND TUNER
BUILT-IN AMPLIFIER
IP66-RATED WATER-RESISTANT DESIGN
Start streaming from your compatible smartphone or any device with BLUETOOTH technology, and get improved audio quality with Qualcomm® aptX™ processing.
This digital receiver has one stereo pair of auxiliary inputs as well as USB for charging and file playback. It’s also equipped with SiriusXM-Ready® radio (tuner and antenna sold separately; subscription required).
Adjust highs, mids and lows to get the perfect sound with a 5-band equalizer and built-in amp. You can even adjust sound in different parts of the boat with 4-zone control.

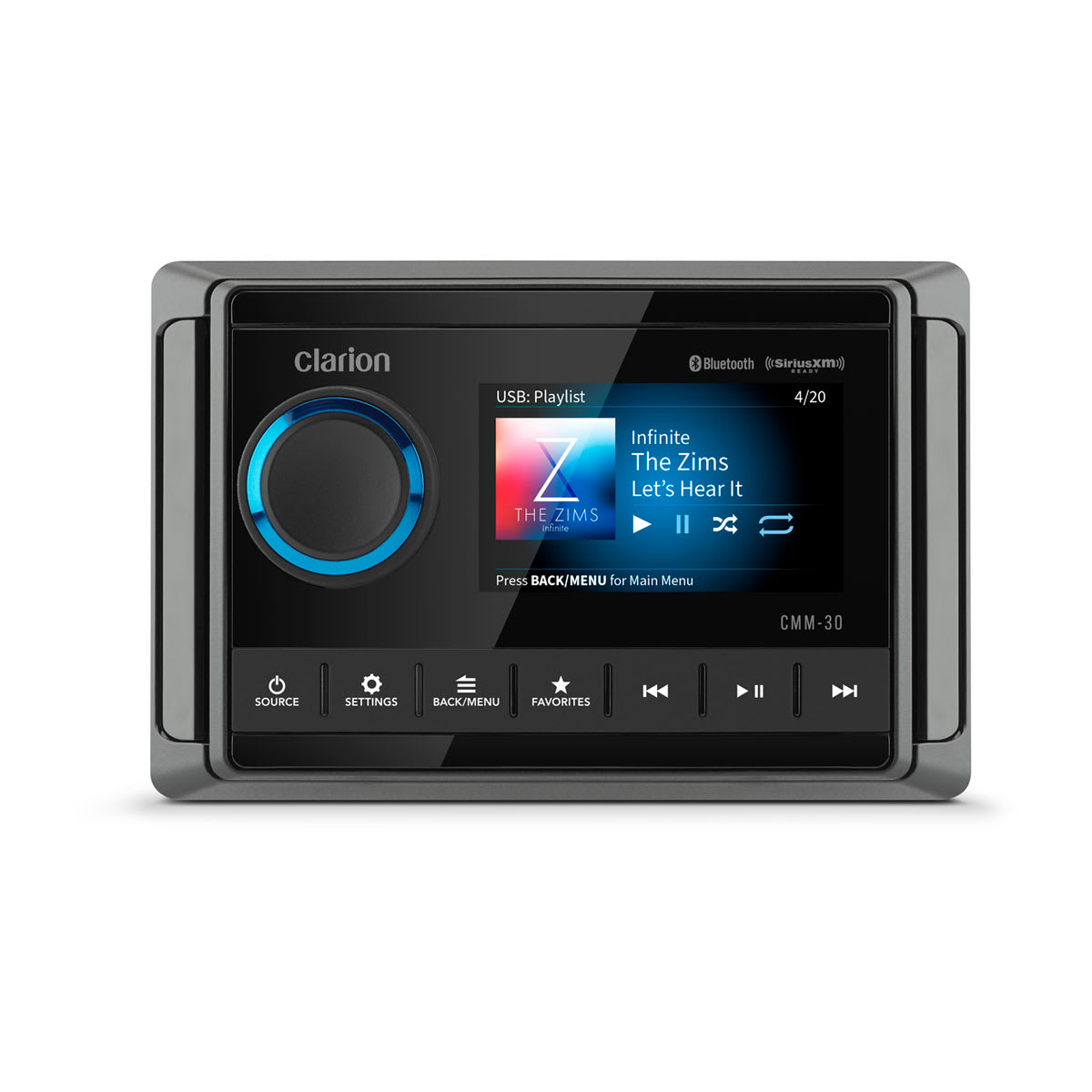

See what’s playing with the 3.5-inch full-color LCD display.
Play local radio stations with a built-in AM/FM tuner, or get the latest forecast from the weather band.
| General | |
| Physical dimensions (Height) | CMM-30: 3.90" (99 mm) CMM-30BB: 7.90" (201 mm) |
| Physical dimensions (Width) | CMM-30: 5.94" (151 mm) CMM-30BB: 5.42" (138 mm) |
| Physical dimensions (Depth) | CMM-30: 2.95" (75 mm) CMM-30BB: 2.01" (138 mm) |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -4° F to +140° F (-20° C to +60° C) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
| Networking | |
| NMEA 2000® LEN | 1 (50 mA) |
| Bluetooth® wireless range | Up to 35 ft (11 meters) |
| Wireless frequencies/protocols | BLUETOOTH® |
| Audio | |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 25 W x 4 |
| Electrical Features | |
| Power Input | 10-16 VDC |
| Stereo Features | |
| Display size | CMM-30: 3" (76 mm) |
| Display type | CMM-30: color TFT LCD backlit |
| Display resolution | CMM-30: 640 x 360 |
| Optically bonded display | yes (CMM-30) |
| Built-in amplifier | Class D (2 Ω stereo-stable) |
| Multi-Zone™ technology | ✓ |
| Bluetooth® wireless technology | ✓ |
| SiriusXM-ready | ✓ |
| Multi-language interface | English |
| Software updates | ✓ |
| Sources | |
| Supported sources | Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner) |
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
| Connections | |
| Auxiliary inputs (RCA) | 1 (2V or 1V RMS Input Sensitivity) |
| NMEA 2000® ports | 1 (Micro-C connector) |
| USB 2.0 ports | 1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
| SiriusXM ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones (L+R) or Zone 4 as subwoofer |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 4 |
