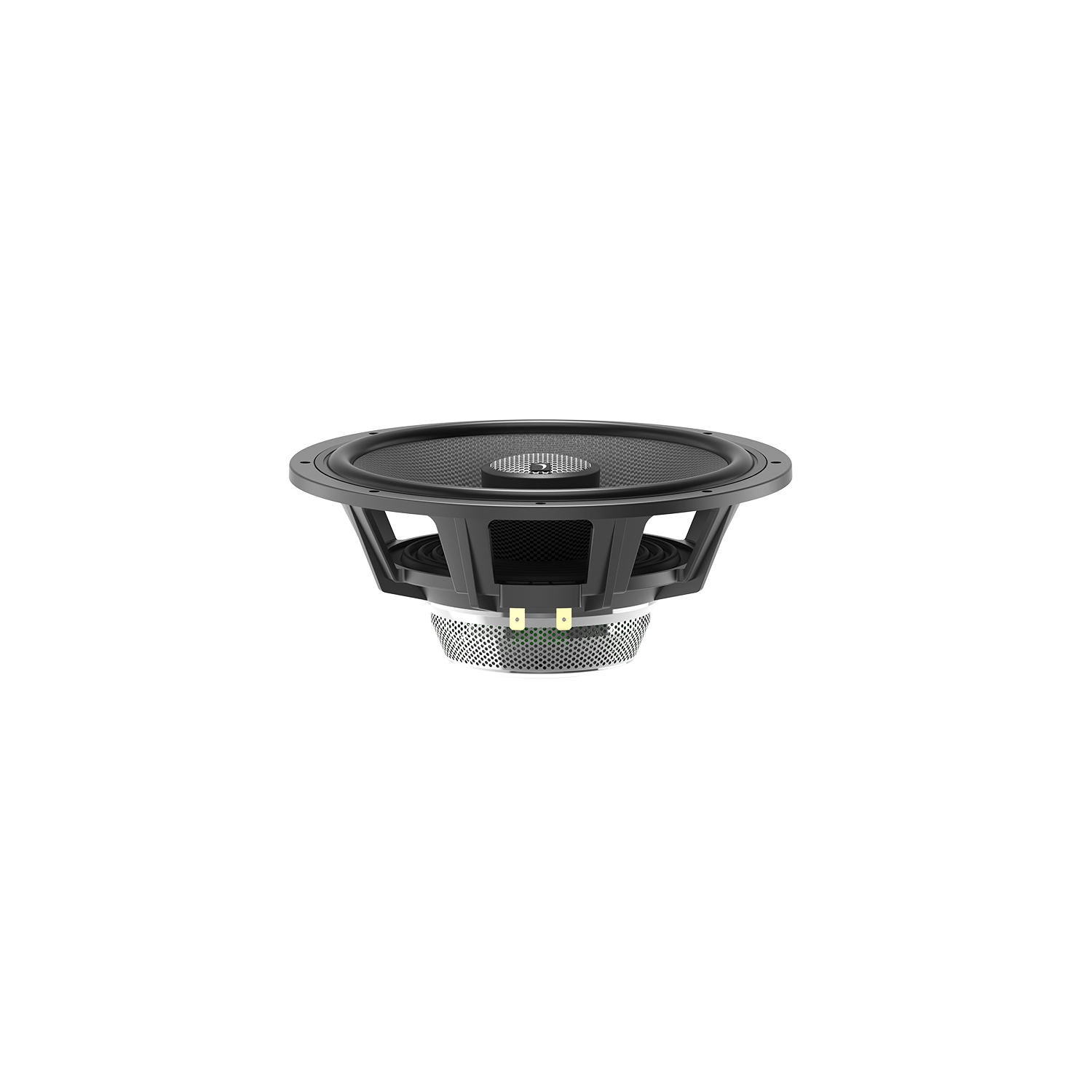

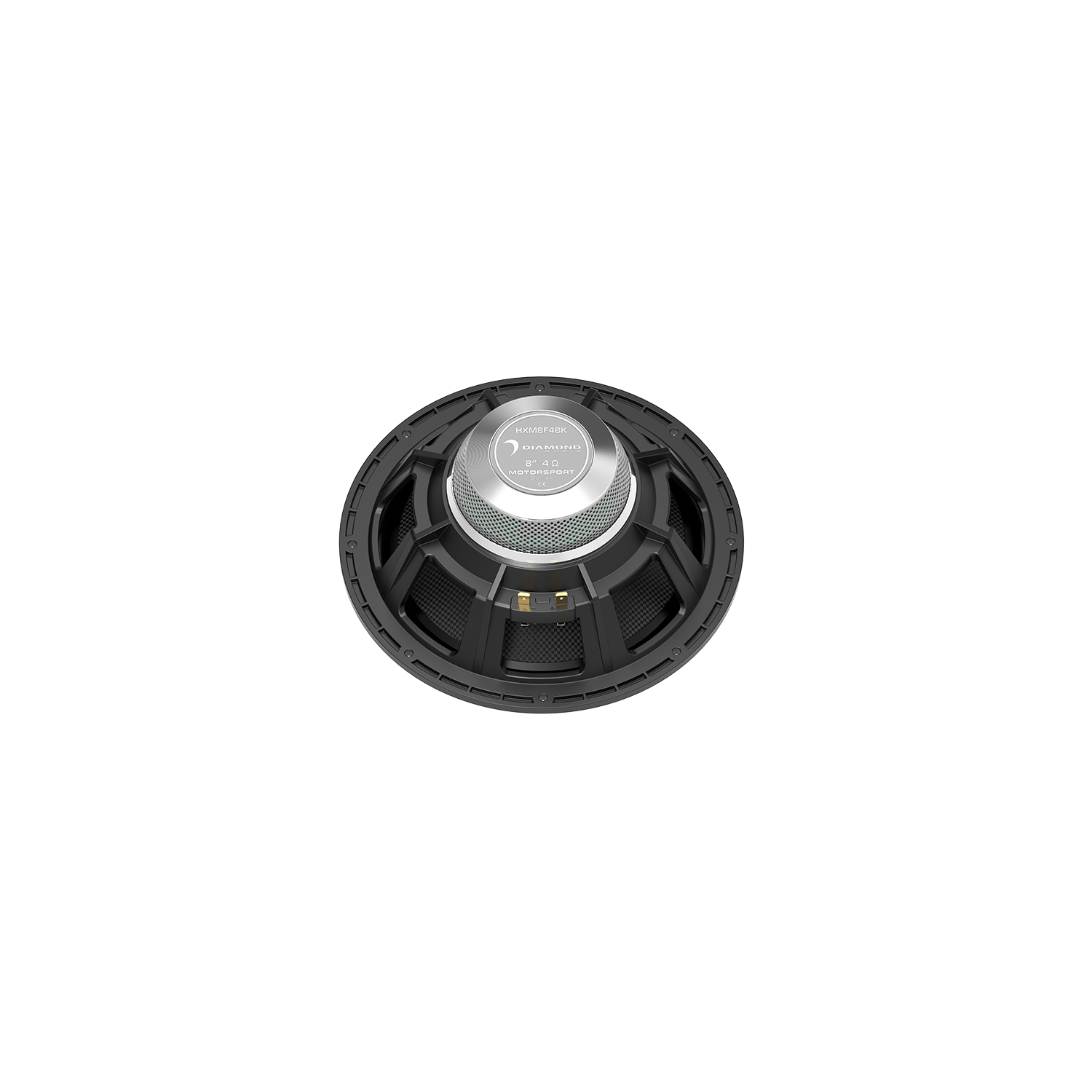

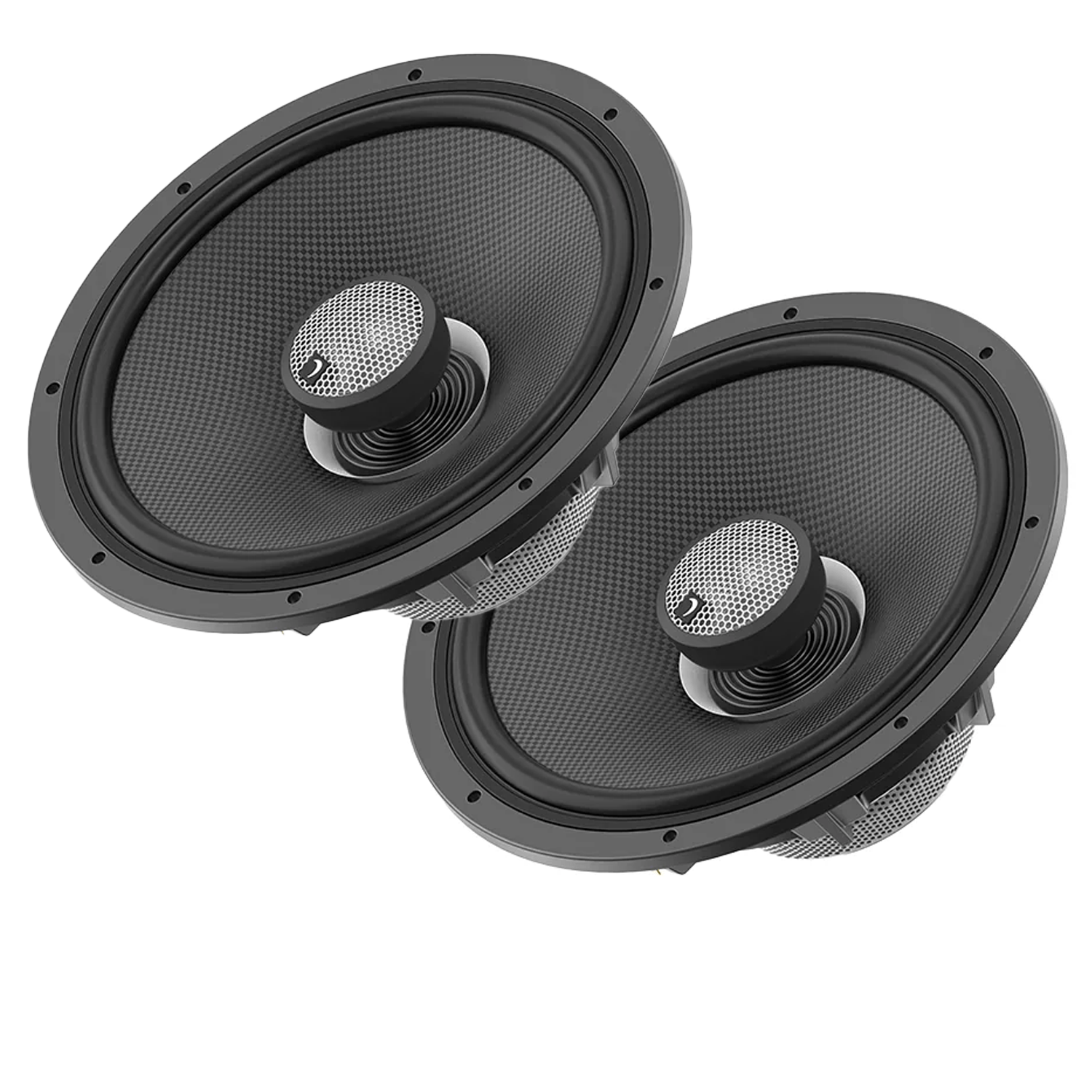

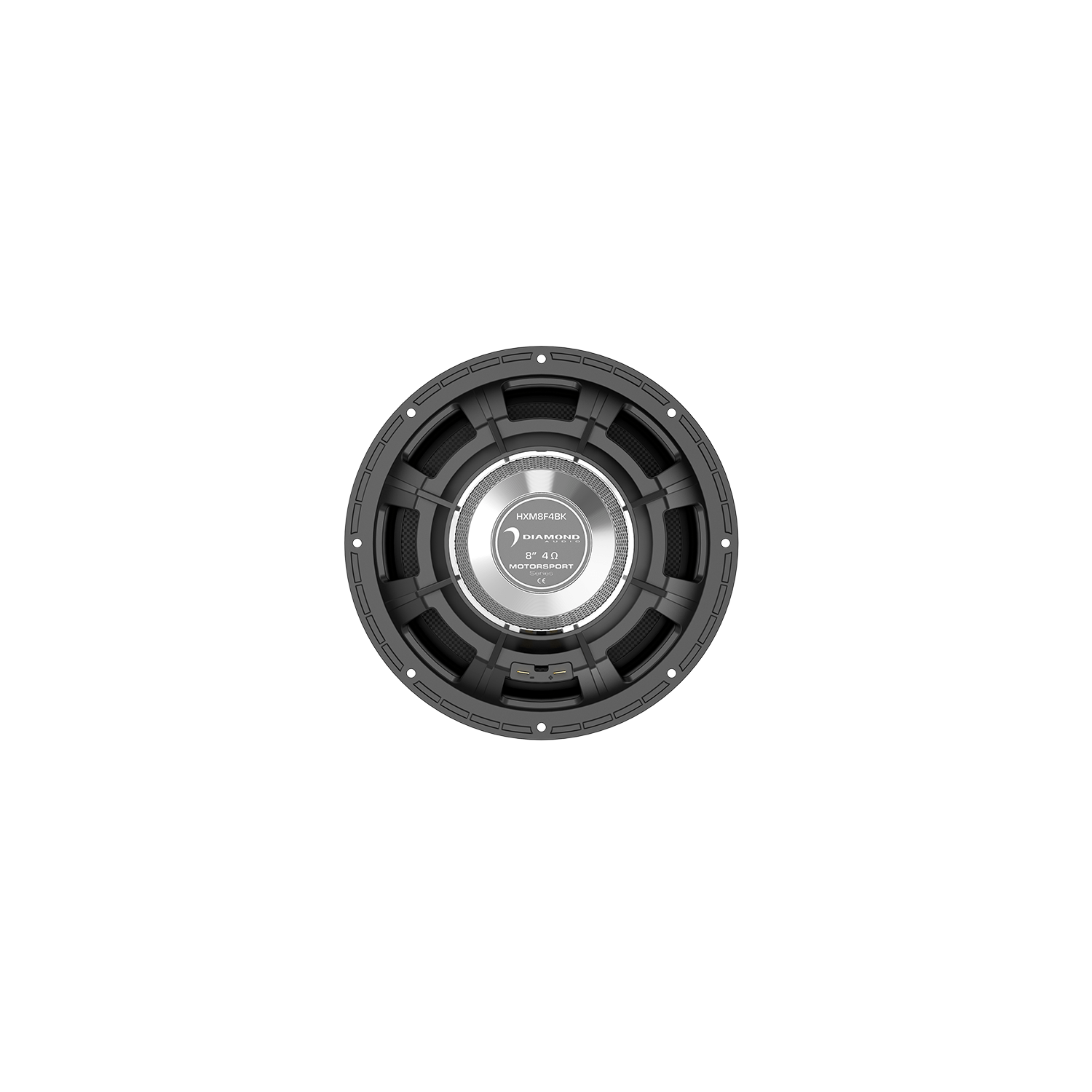

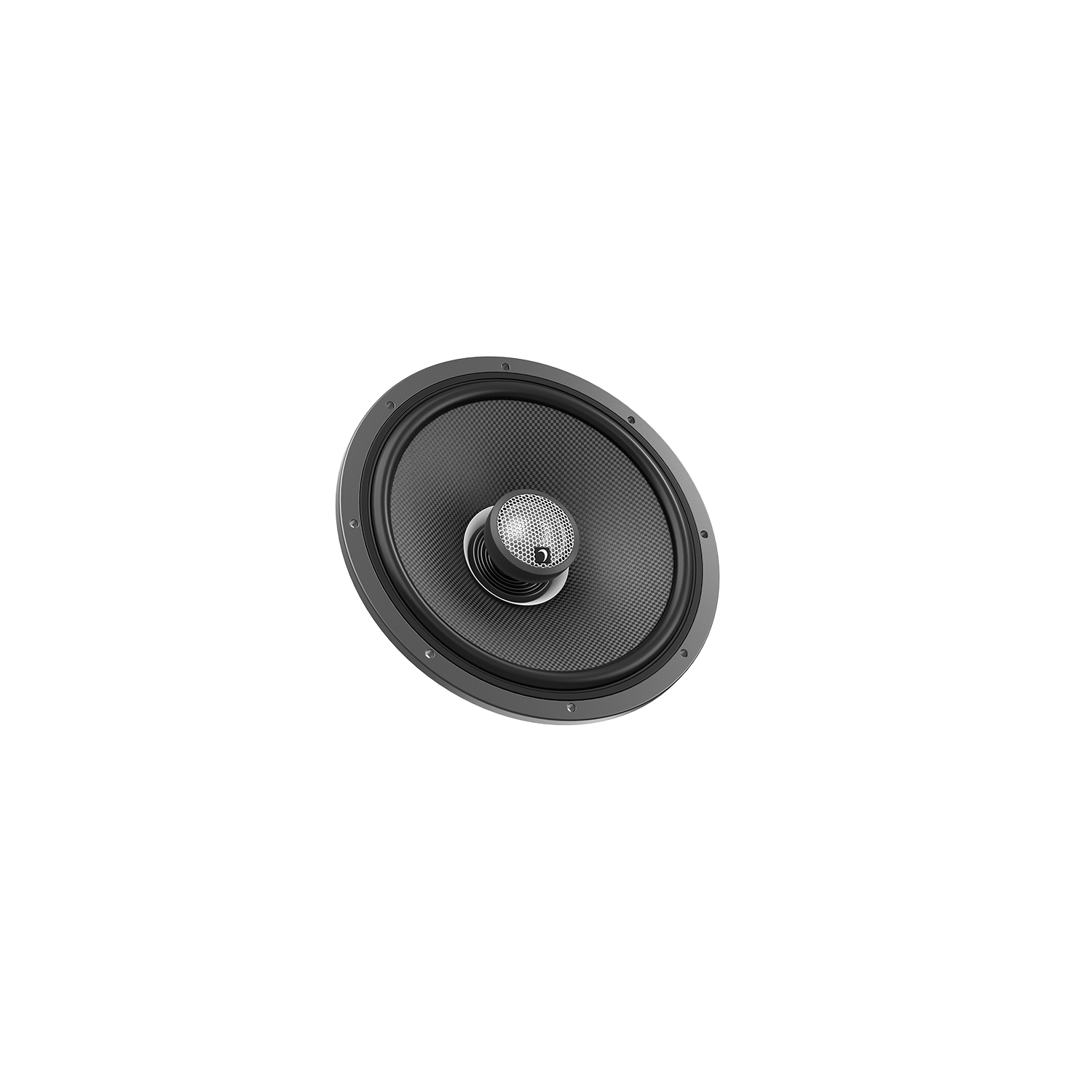

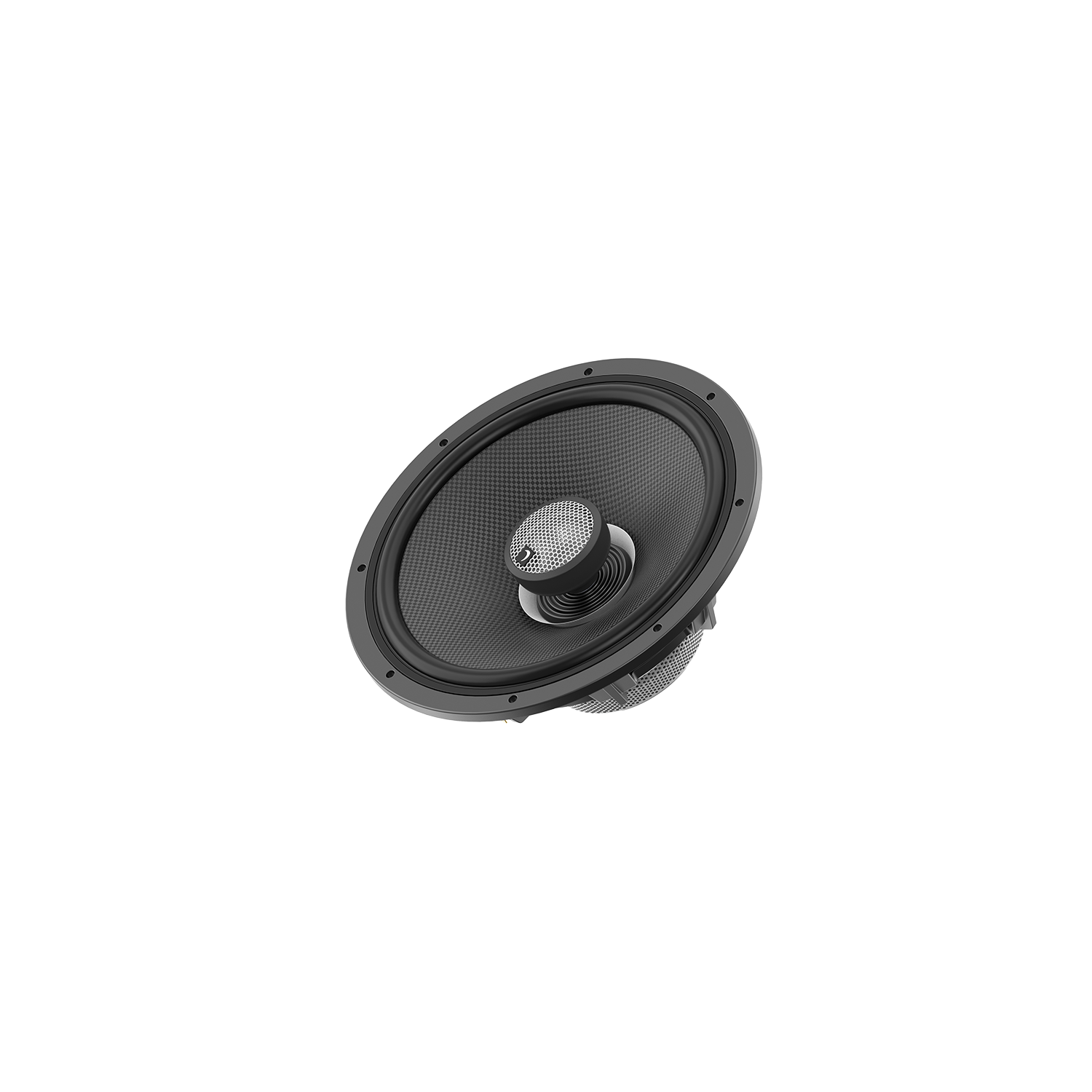

Diamond Audio 8" 2-Way High Output Marine Speaker (4Ω) HXM8F4BK

Diamond Audio 8" 2-Way High Output Marine Speaker (4Ω) HXM8F4BK

In stock

  • price-tag logoNew Launch
Regular price $599.99
Regular price Sale price $599.99
Save: $-599.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Turn up the volume on your next adventure with these rugged, high-output marine speakers designed to dominate the waves. Featuring carbon fiber cones and oversized titanium tweeters, they deliver crystal-clear audio even in the harsh elements. The fiber-reinforced composite basket and advanced Neodymium motor structures provide rock-solid reliability for your boat or motorcycle. Experience sound that hits as hard as the bass, transforming every ride into a concert on the water.

Driver Size 8 inch
Impedance 4 Ohm
Tweeter Size 1.5 inch
Tweeter Material Titanium
Cone Material Carbon Fiber
Basket Material Fiber-reinforced composite
Motor Structure Neodymium
Waterproof Yes
Configuration 2-Way Coaxial



Specifications

SPEAKER SIZE - 8"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.9
QMS: 3.873
QES: 0.472
QTS: 0.421
FS (HZ): 83
VAS (L): 16.072
CMS (MM/N): 0.23
MMS (G): 16.04
SD (M2): 221.671
BL (T*M): 5.797
XMAX (MM): 3.25
POWER HANDLING RMS: 175
POWER HANDLING MAX: 600
MOUNTING DEPTH: IN.(MM):3.11" (78.9MM)
CUT OUT DIAMETER IN.(MM):7.02" (178.38MM)
OVER ALL DIAMETER IN.(MM):8.31" (211MM)
OVER ALL HEIGHT IN.(MM):3.56" (90.32MM)
