Diamond Audio

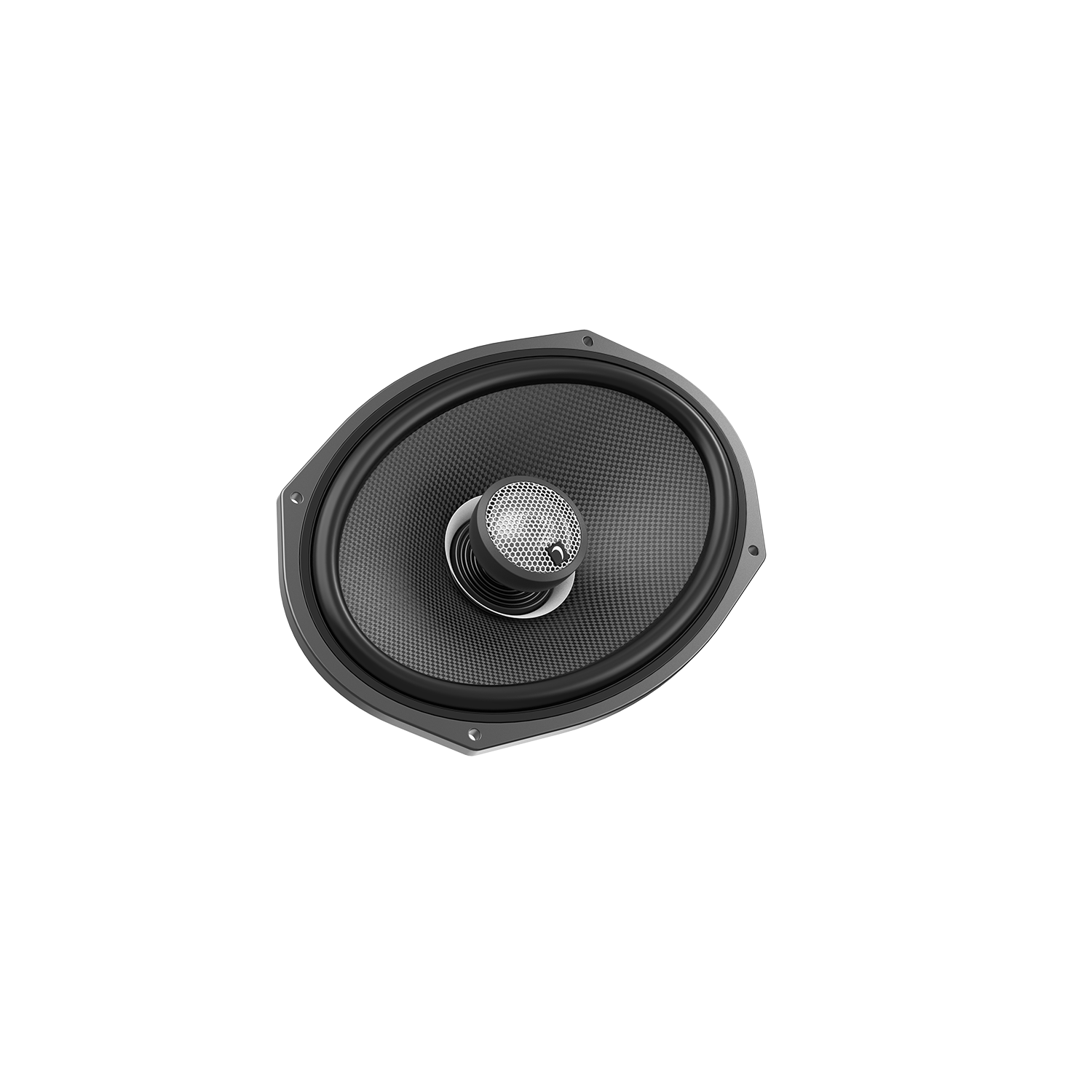

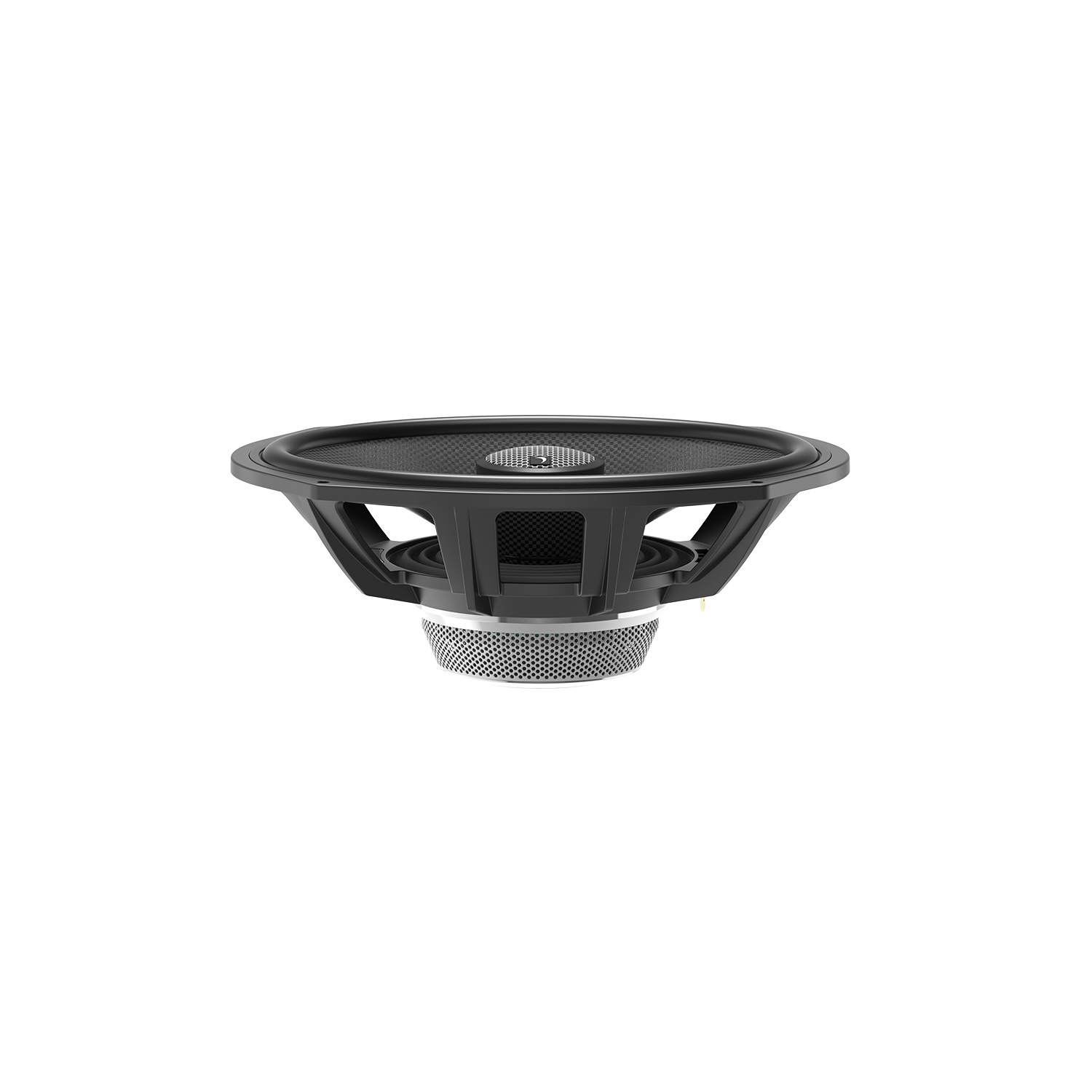

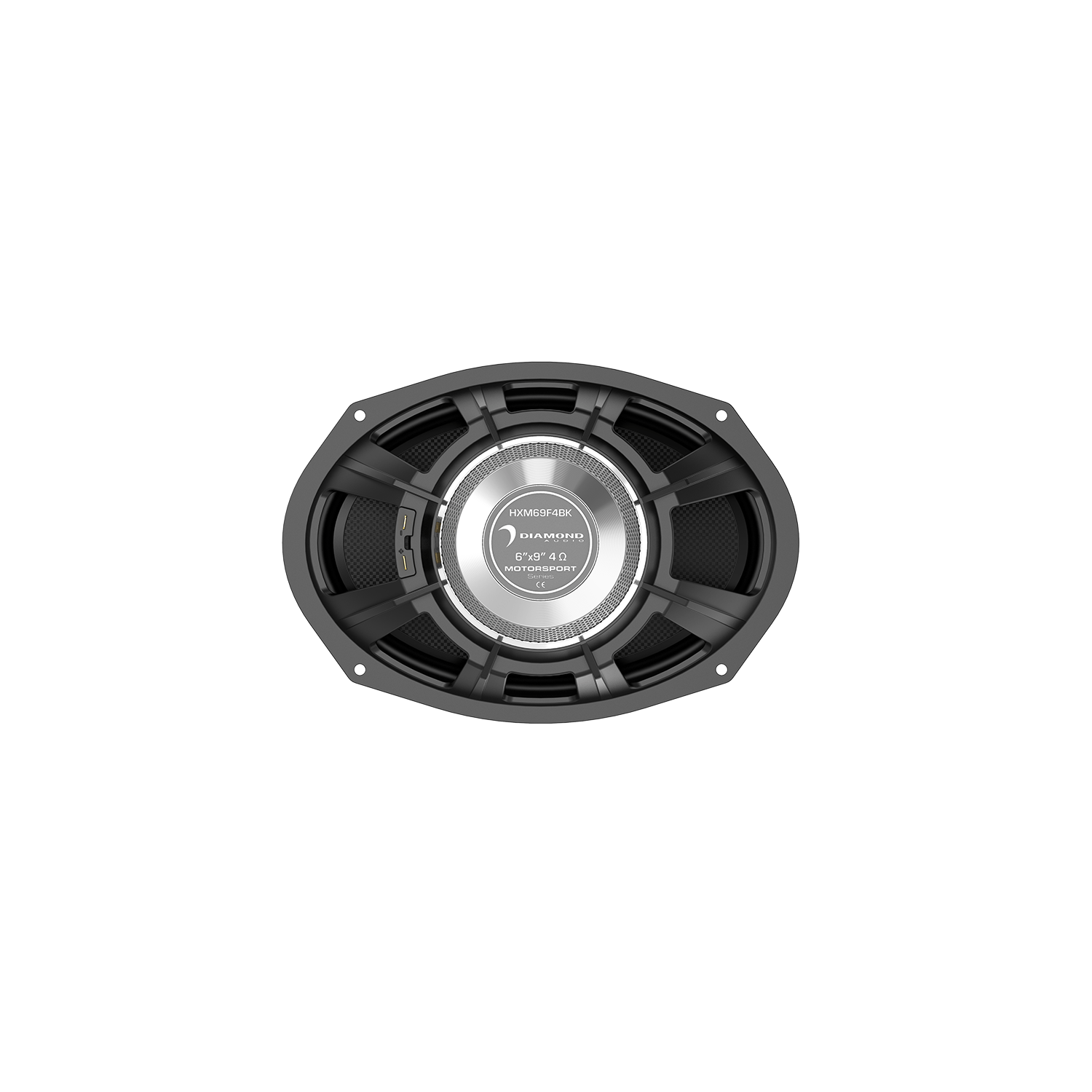

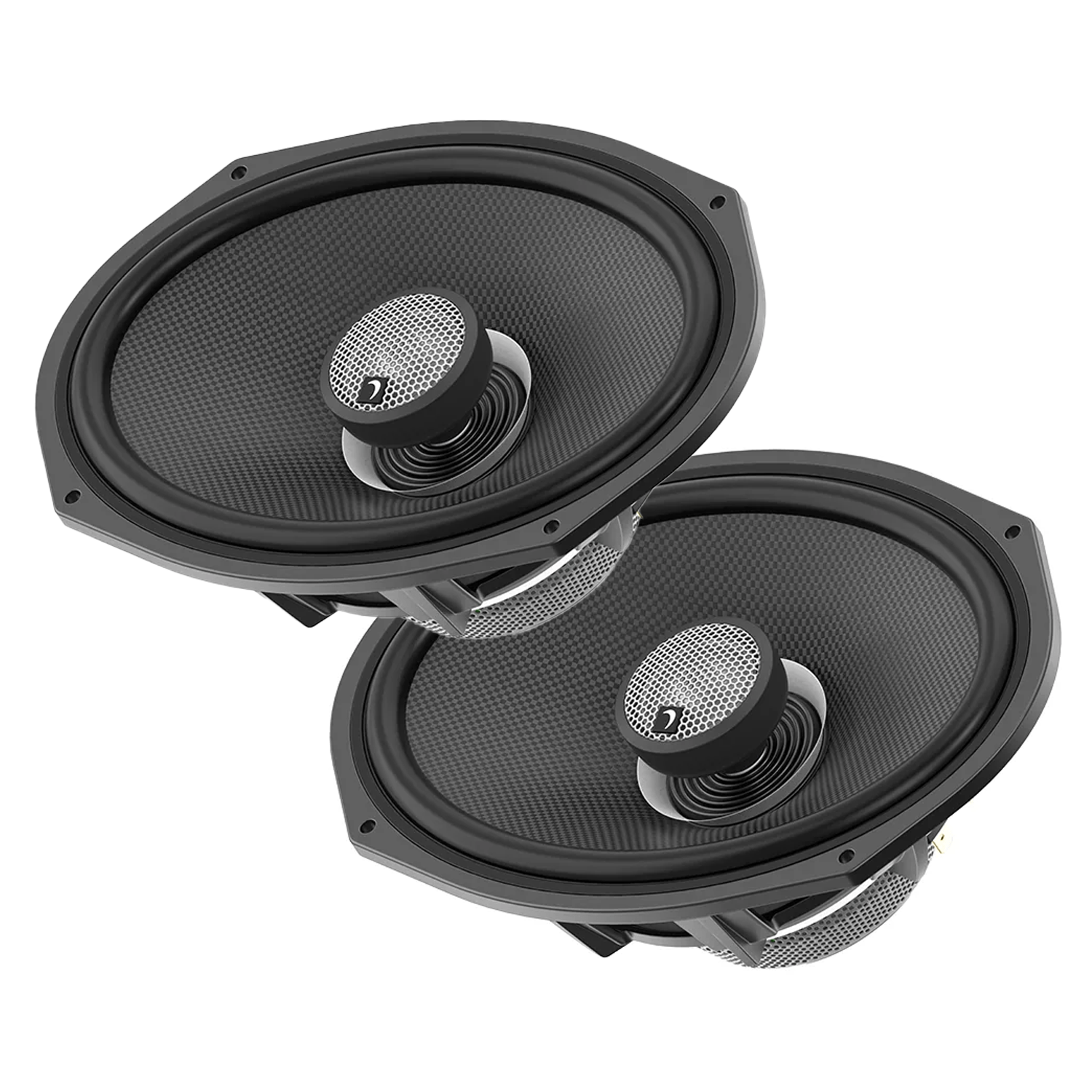

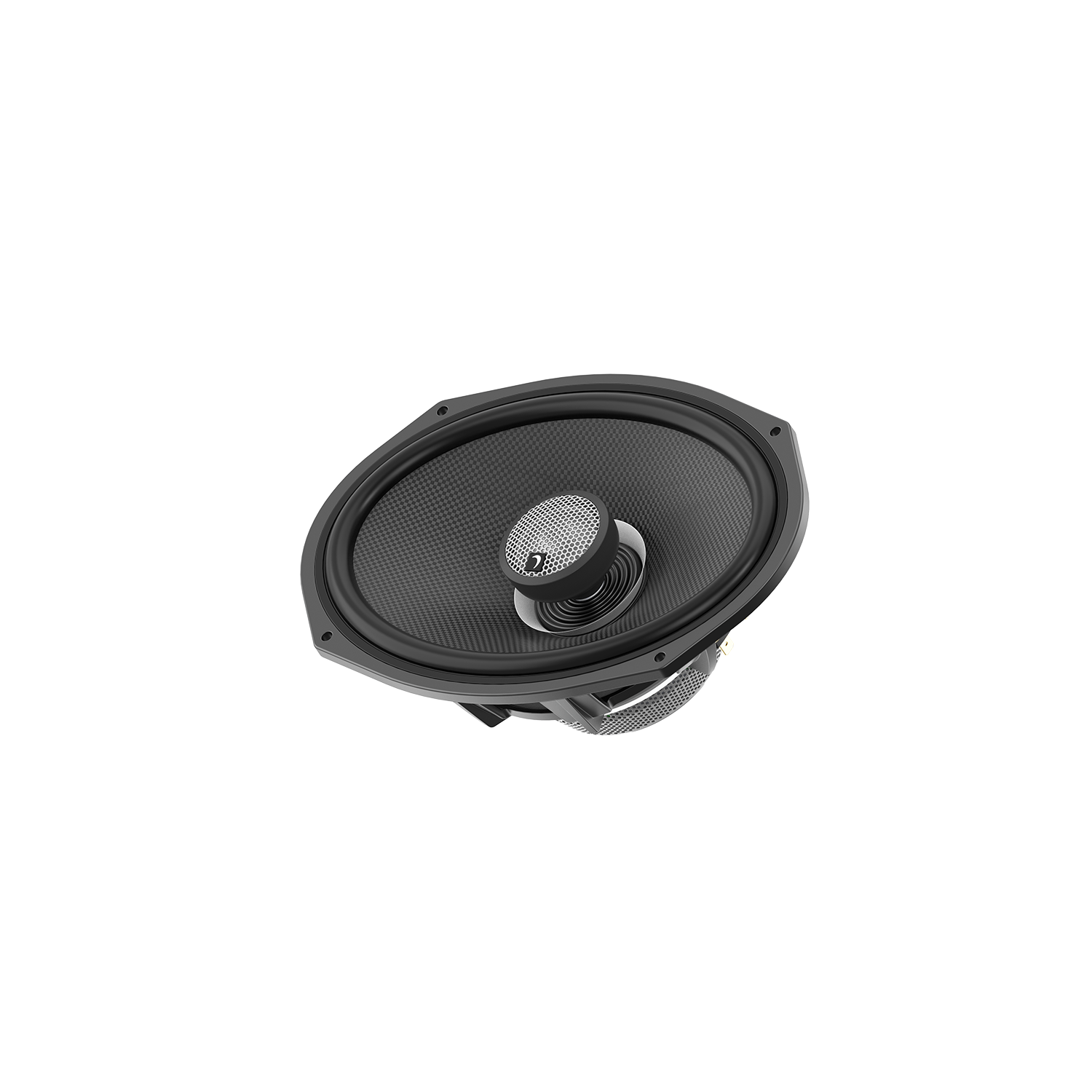

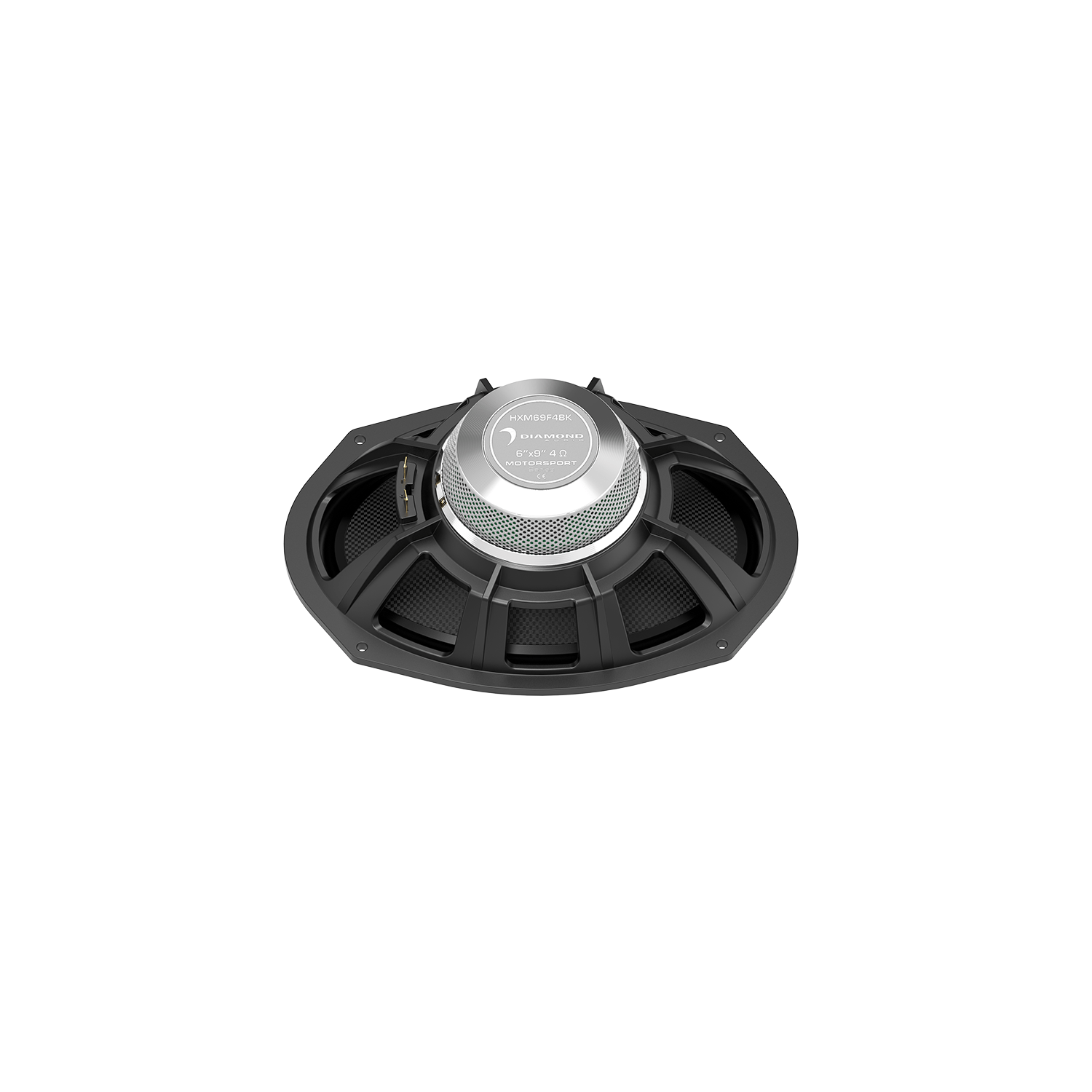

Diamond Audio HXM69F4BK 6x9 Inch 2-Way 4Ω Marine Speaker

Diamond Audio HXM69F4BK 6x9 Inch 2-Way 4Ω Marine Speaker

In stock

  • price-tag logoNew Launch
$549.99
$549.99
Save: $-549.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Turn every ride into a concert with the Diamond Audio HXM69F4BK, engineered for those who demand serious sound. These 6x9 inch powerhouses feature premium carbon fiber cones and oversized titanium tweeters for crisp, high-output audio that cuts through the wind and water. Built with a rugged, fiber-reinforced basket, they are ready to handle the toughest marine and motorsport environments. Elevate your audio game and experience the legendary clarity that makes Diamond Audio a favorite among enthusiasts.

Speaker Size 6x9 inches
Design 2-Way Coaxial
Impedance 4Ω
Cone Material Carbon Fiber
Tweeter Size 1.5 inches
Tweeter Material Titanium
Basket Material Fiber-reinforced composite
Application Marine, Motorsports, Motorcycle



Specifications

SPEAKER SIZE - 6X9"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 94
RE (Ω) [SERIES]: 2
QMS: 3.759
QES: 0.471
QTS: 0.419
FS (HZ): 69
VAS (L): 23.014
CMS (MM/N): 0.343
MMS (G): 15.599
SD (M2): 217.28
BL (T*M): 5.348
XMAX (MM): 3.25
POWER HANDLING RMS: 150
POWER HANDLING MAX: 450
MOUNTING DEPTH: IN.(MM):3.10" (78.81MM)
CUT OUT DIAMETER IN.(MM):8.51" (216.03MM)
OVER ALL DIAMETER IN.(MM):9.46" (240.29MM)
OVER ALL HEIGHT IN.(MM):3.58" (90.81MM)
