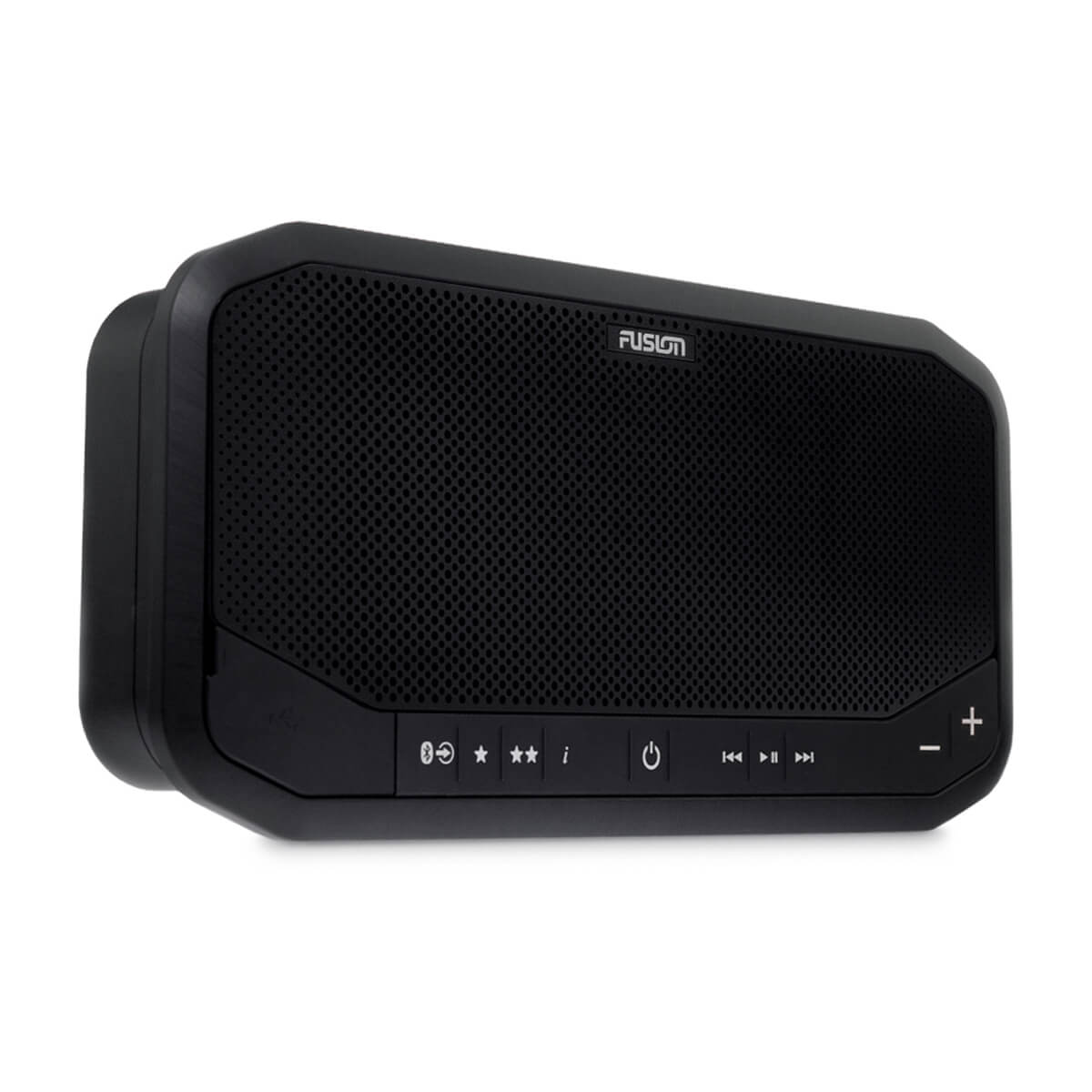

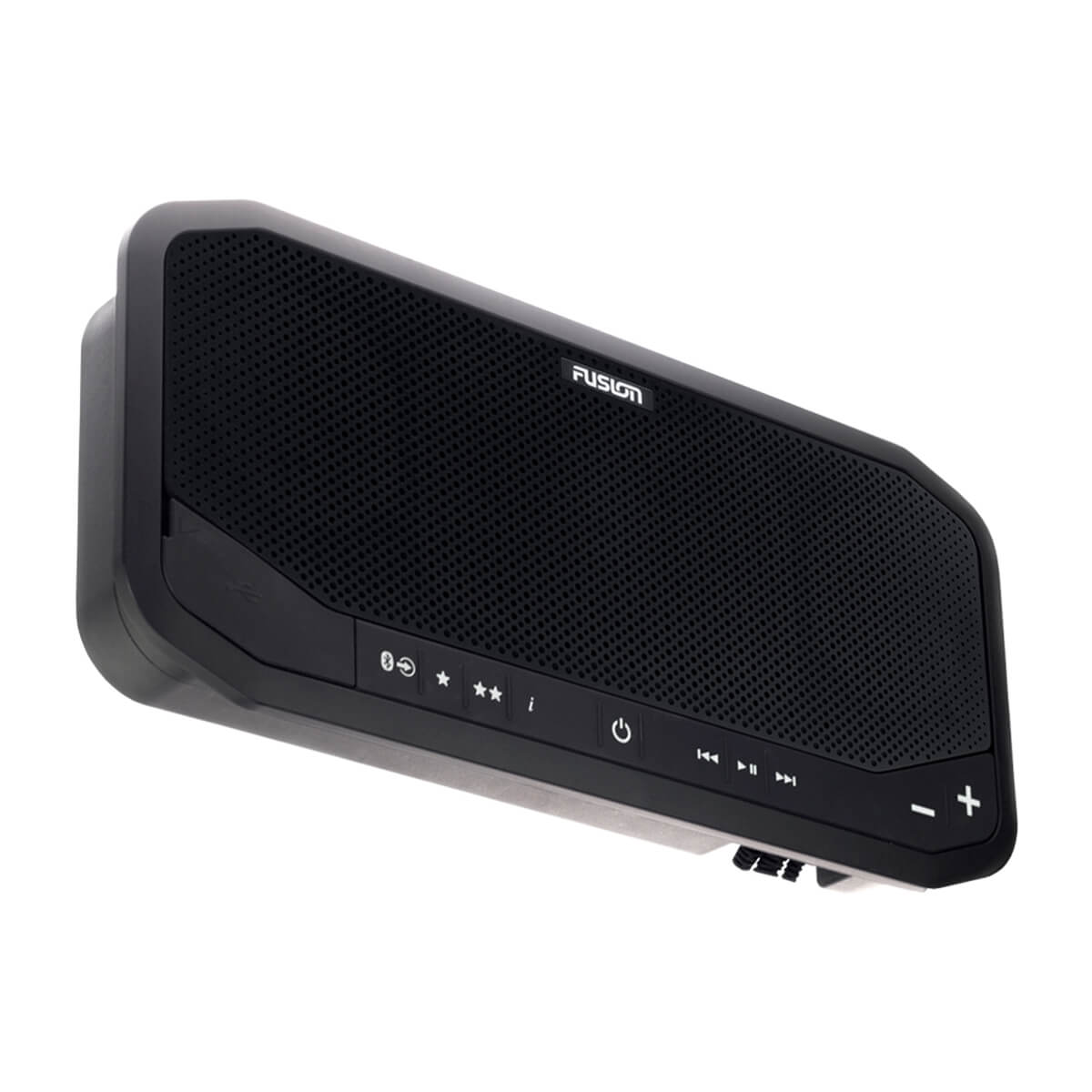

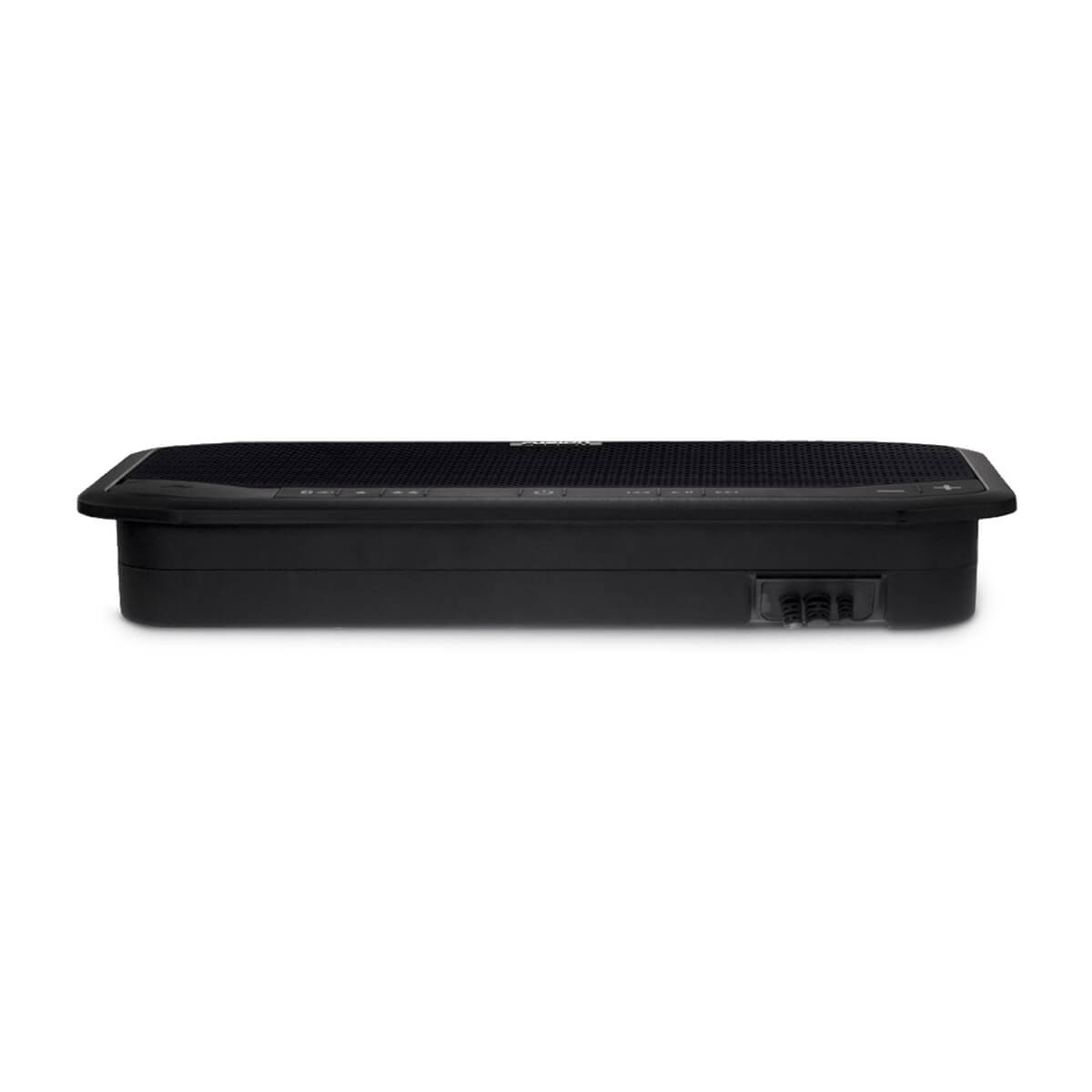

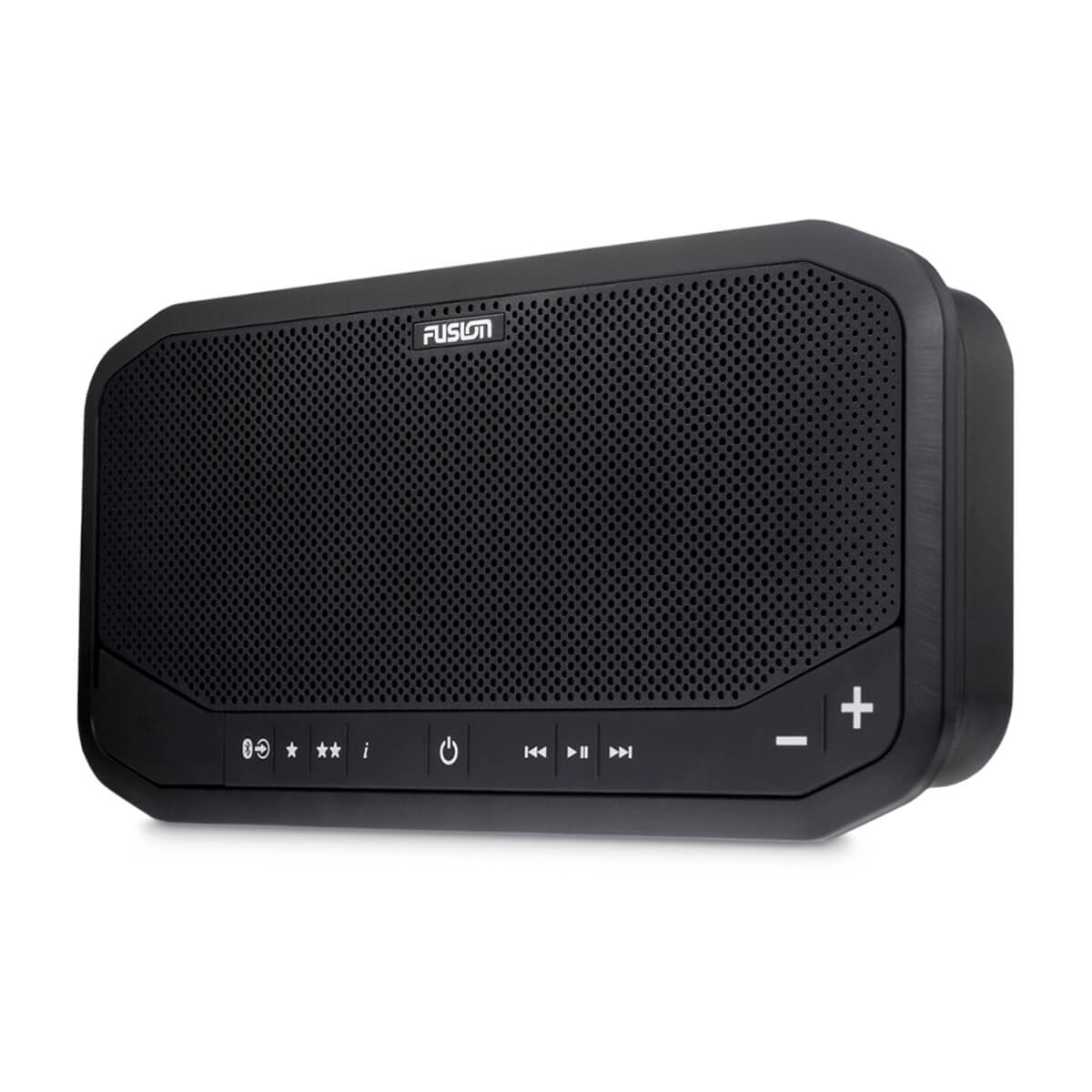

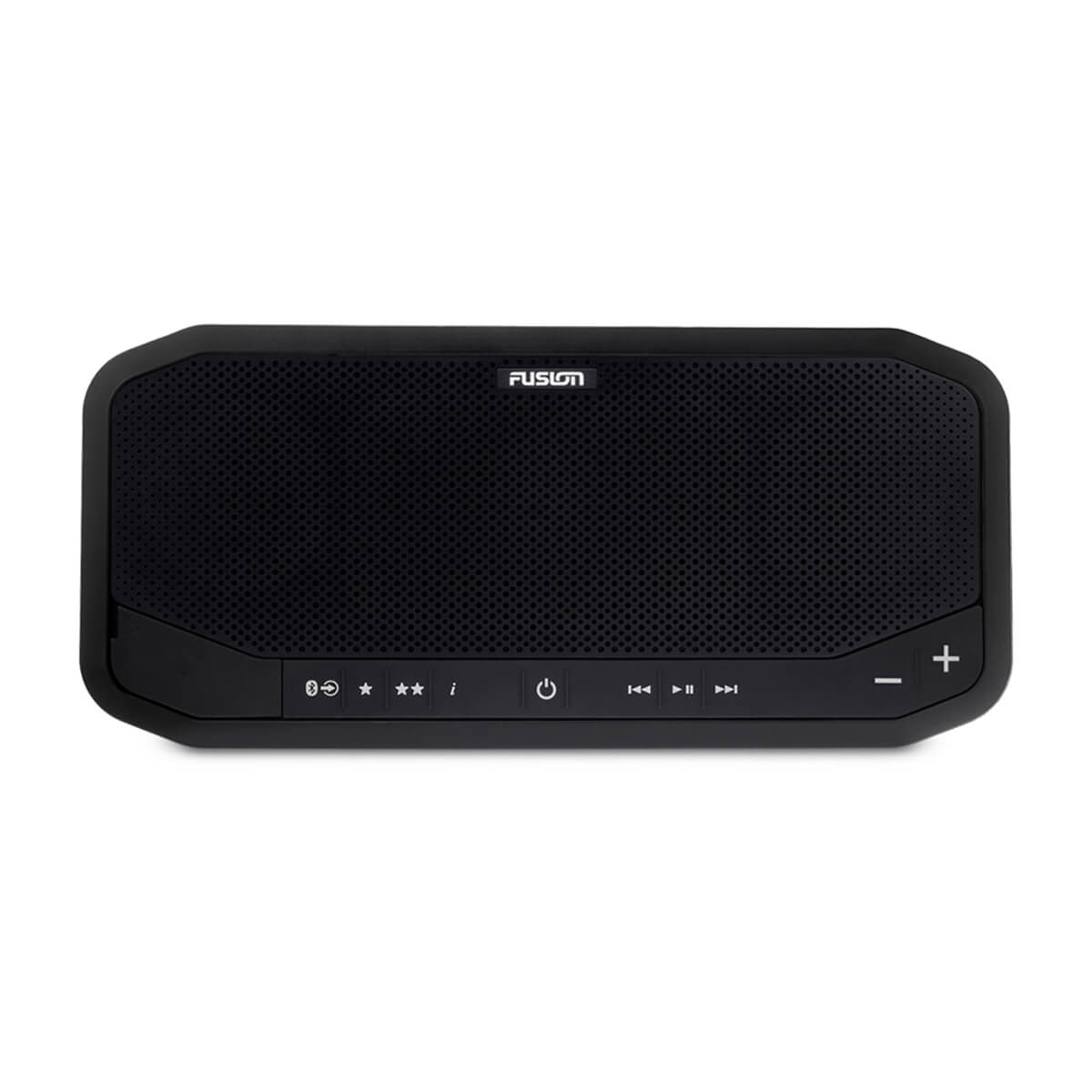

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.
Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.
Hi-Fi audio reproduction through preconfigured DSP.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.
Multiple mounting options available, including flush, flat and surface mounting.
Control your music from a compatible smart device or Garmin watch.
Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor is tested to a high level of protection against UV and comes with a high-grade plastic grille.
The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.
The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimized audio on board from a single unit.
Take advantage of the different source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.
You can install the Panel-Stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.
| Parameter | Value |
| General | |
| Dimension | 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm) |
| Weight | 2.54 lbs (1.15 kg) |
| Water rating | IP65 (when properly installed) |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 10 A |
| Networking | |
| Bluetooth® wireless range | up to 30 ft |
| ANT® wireless range | Up to 10 ft |
| Wireless frequencies/protocols | BLUETOOTH®: 2.4 GHz @ +9 dBm nominal ANT®: 2.4 GHz @ +9 dBm nominal |
| Audio | |
| Amplifier | Class-D |
| Electrical Features | |
| Power Input | 10.8 - 16 VDC |
| Compass-safe distance | 7.6" (229 mm) |
| Stereo Features | |
| Peak power | 140 watts |
| Rated power output (2 ohm) | 43 watts RMS x 2 @ 14.4 V input < 1% THD |
| Built-in Digital Signal Processing (DSP) | yes (preconfigured) |
| Fusion-Link™ control | yes (smart device and Garmin watch) |
| Bluetooth® wireless technology | ✓ |
| ANT® wireless technology | ✓ |
| Multi-language interface | Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish |
| Software updates | USB |
| Warranty | 1 year |
| Sources | |
| Supported sources | AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x2, AOA |
| Connections | |
| Auxiliary inputs (RCA) | 2 |
| USB 2.0 ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Line out | 1 RCA Output (AUX) |
