The world’s first touchscreen marine stereo with the AirPlay® 2 software feature and built-in Wi-Fi® connectivity, Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design.
Custom audio profiles for each zone on your boat to deliver superior quality audio.
Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate1.
Experience seamless high-quality audio streaming from your music app via the AirPlay 2 feature1 from Apple®.
Enjoy the freedom of musical choice with PartyBus™-Network technology1.
This 4.3” touchscreen includes play, pause and skip functions using touch display commands.
Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
Built on the True-Marine design philosophy from Fusion®, the Apollo RA770 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
Providing uniformity across the helm, the brilliantly designed black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion Audio app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi, including the convenience of AirPlay 2 and universal plug-and-play (UPnP)1.
Designed with Wi-Fi onboard, the Apollo RA770 and its perfect companion SRX400 can be connected without running any wires – reducing installation time, cost and complexity.
Updates are now available from your compatible smartphone or device, via the free Fusion Audio app. The Apollo Series is intelligently simple and easy to keep up to date1.
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.
Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
| General | |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 15 A |
| Networking | |
| NMEA 2000® LEN | 1 (50 mA) |
| BLUETOOTH® WIRELESS RANGE | up to 30 ft |
| ANT® WIRELESS RANGE | Up to 10 ft |
| WIRELESS FREQUENCIES/PROTOCOLS | BLUETOOTH®: 2.4 GHz @ +13.29 dBm nominal ANT®: 2.4 GHz @ +6.92 dBm nominal |
| Electrical Features | |
| POWER INPUT | 10.8 - 16 VDC |
| COMPASS-SAFE DISTANCE | 7.87" (200 mm) |
| Stereo Features | |
| PEAK POWER | 280 W |
| RATED POWER OUTPUT (2 OHM) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| RATED POWER OUTPUT (4 OHM) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) | yes (with custom DSP profile setup using Fusion-Link™ app) |
| STEREO NETWORKING | yes (wired) |
| FUSION-LINK™ CONTROL | yes (MFD, smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 3 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | ✓ |
| ANT® WIRELESS TECHNOLOGY | ✓ |
| SIRIUSXM-READY | ✓ |
| DAB+ READY | ✓ |
| OPTICAL AUDIO INPUT | ✓ |
| SUPPORTS ERX WIRED REMOTE | ✓ |
| SUPPORTS NRX WIRED REMOTE | ✓ |
| MULTI-LANGUAGE INTERFACE | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
| SOFTWARE UPDATES | Over-the-air updates via Fusion-Link™ app / USB |
| Sources | |
| SUPPORTED SOURCES | AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP |
| SiriusXM-Ready | (U.S. only, requires optional SiriusXM Connect vehicle tuner) |
| DAB+ ready | (available in Europe and Australia only) |

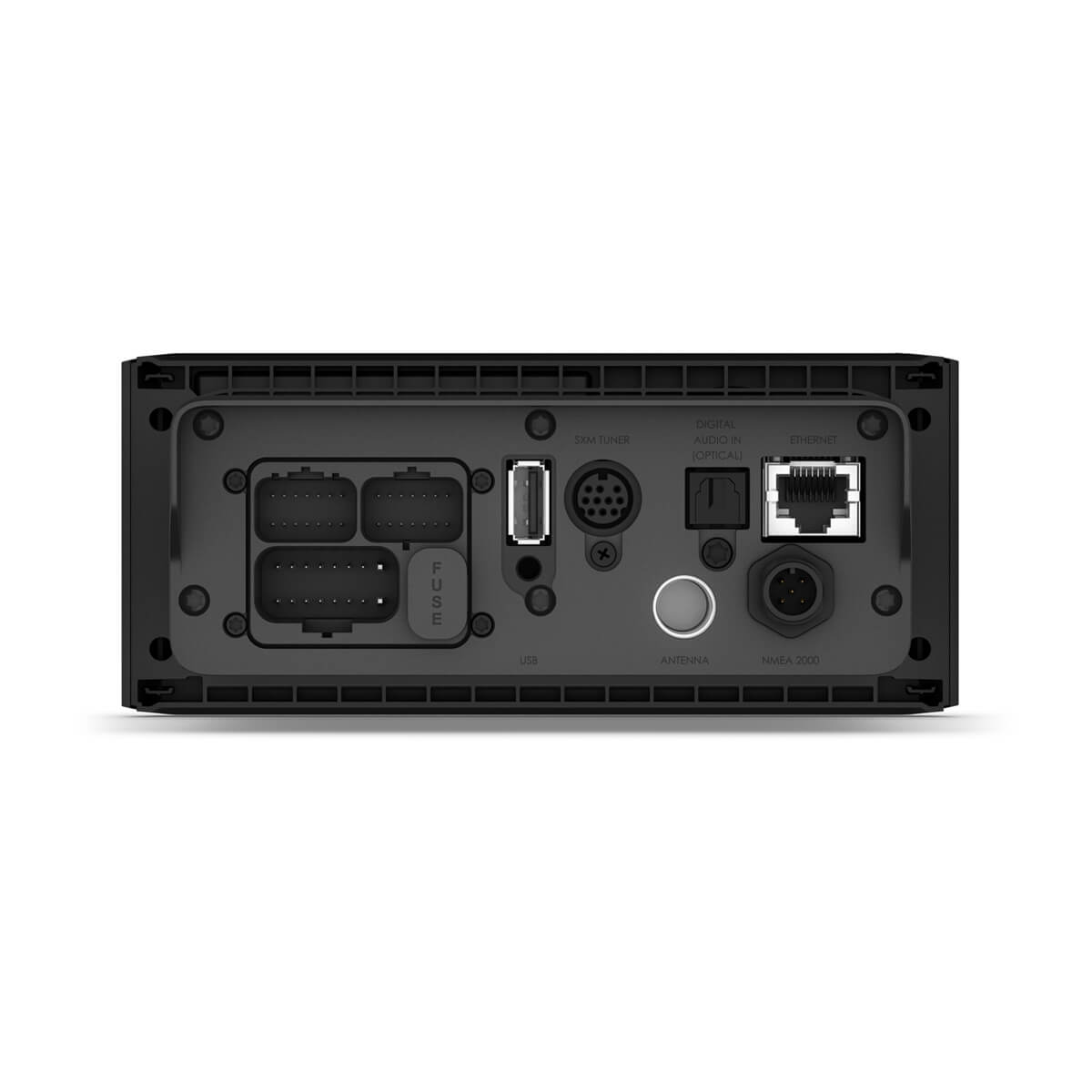

| Connections | |
| AUXILIARY INPUTS (RCA) | 1 |
| OPTICAL AUDIO INPUTS (DIGITAL OPTICAL INPUT SPDIF) | 1 |
| ETHERNET PORTS | 1 |
| NMEA 2000® PORTS | 1 |
| USB 2.0 PORTS | 1 |
| SIRIUSXM PORTS | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 3 zones (requires external amplification) |
| LINE OUT | 3 (L + R per zone, requires external amplification) |
| SUBWOOFER OUT | 3 (1 mono output per zone, requires external amplification) |
