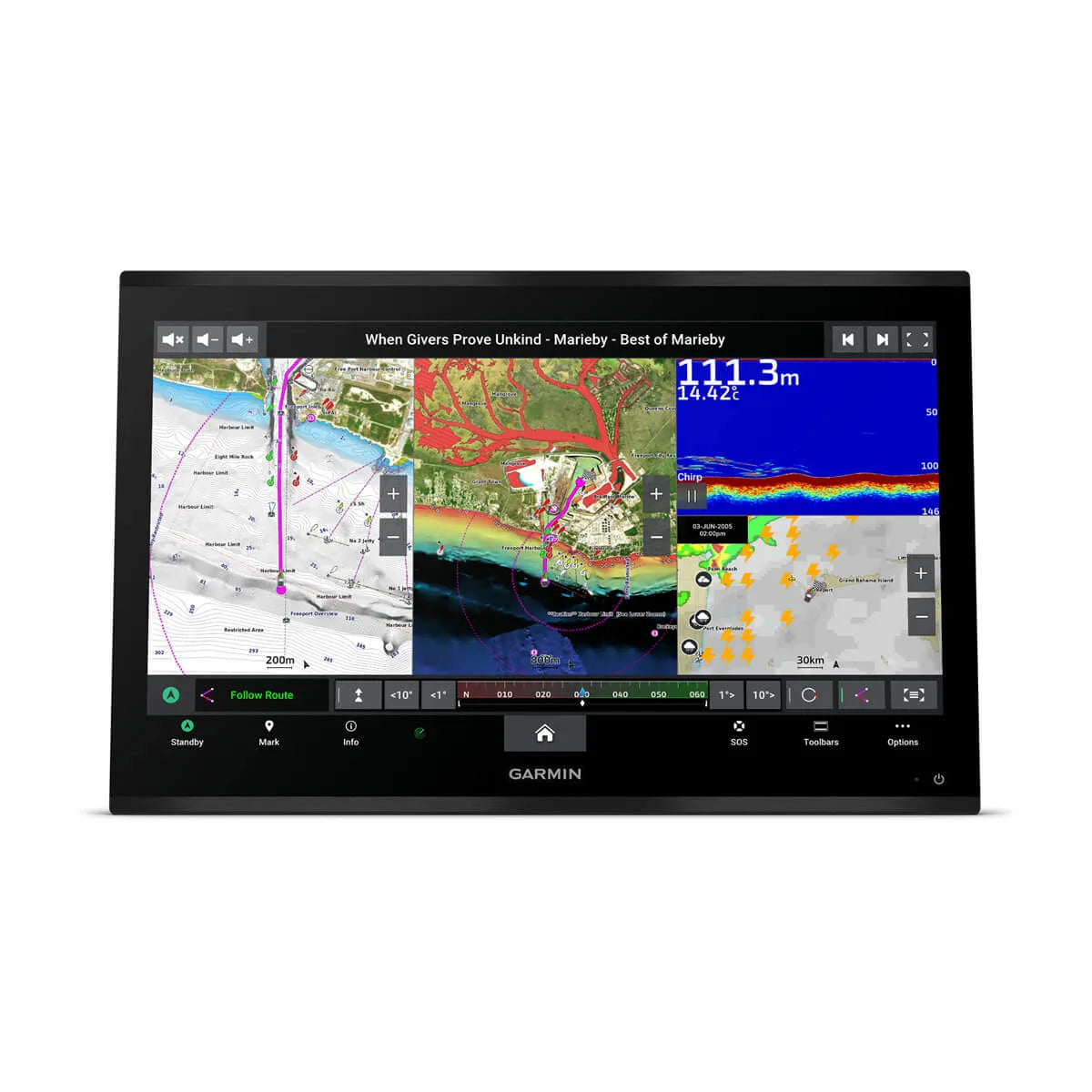

It’s the industry’s first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.
PREMIUM 4K IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY
UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS
GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
VIDEO INTEGRATION CAPABILITIES WITH HDCP DISTRIBUTION
SEE SONAR TARGETS LIKE NEVER BEFORE ON THE 4K DISPLAY1
NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND SONARS
The 4K resolution IPS sunlight-readable touchscreen display is available in the industry’s largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+™ routes2 with lightning speed with an optional Garmin Navionics+™ subscription.

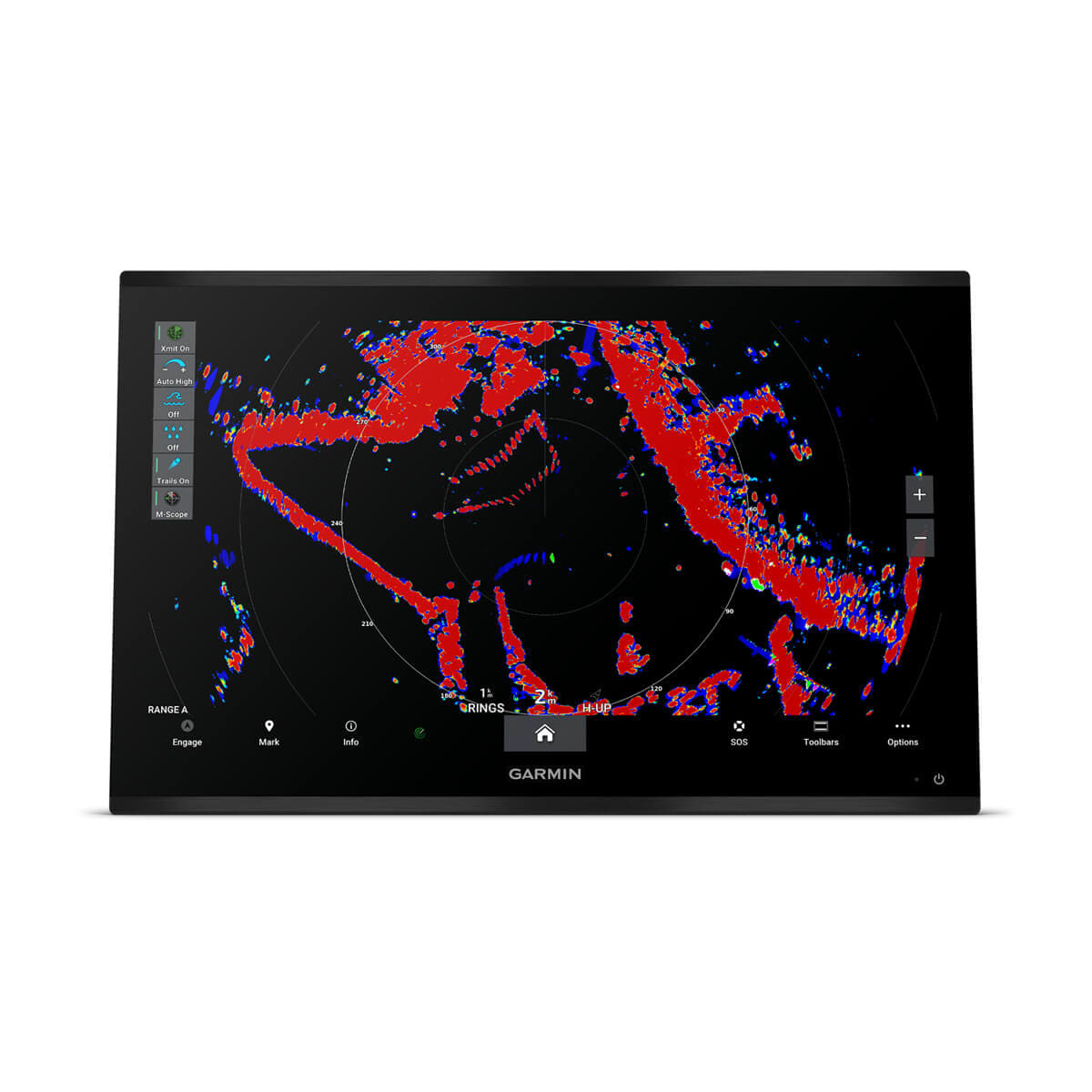

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy 10 times faster networking speeds with minimal lag.
Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

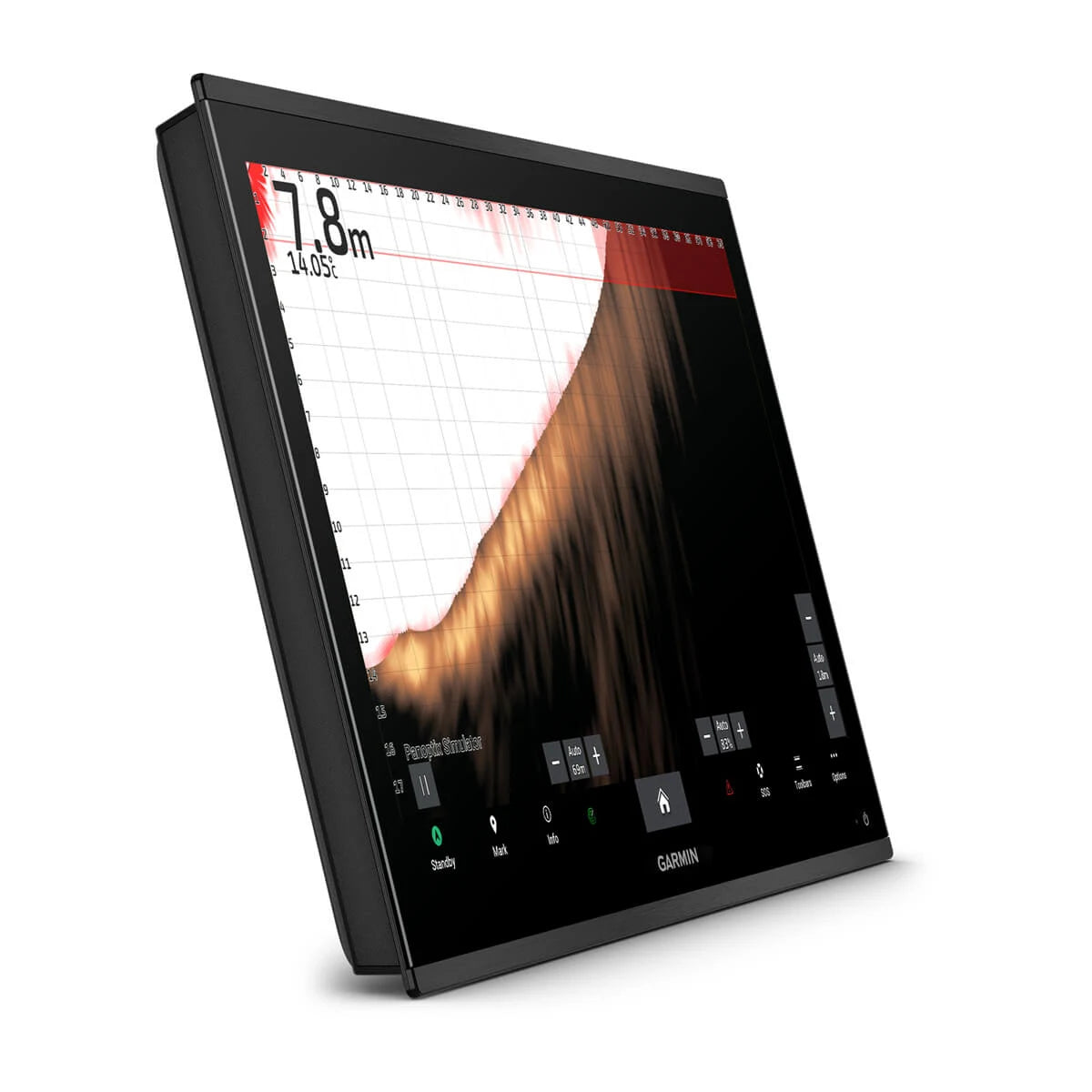

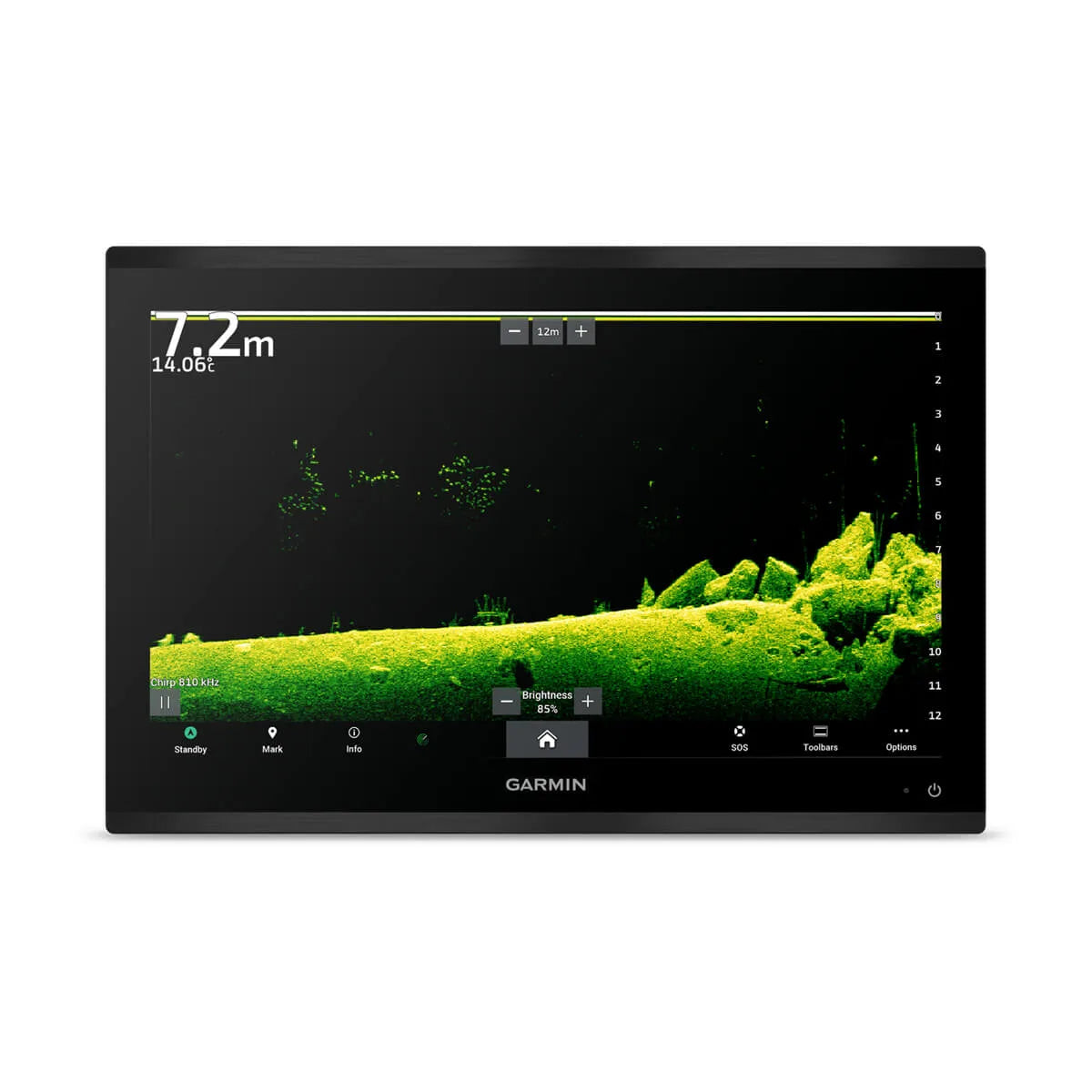

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).
Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® and NMEA 0183 networks to connect to your compatible accessories.
Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.
Keep tabs on engine performance with extensive engine integration.
Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.

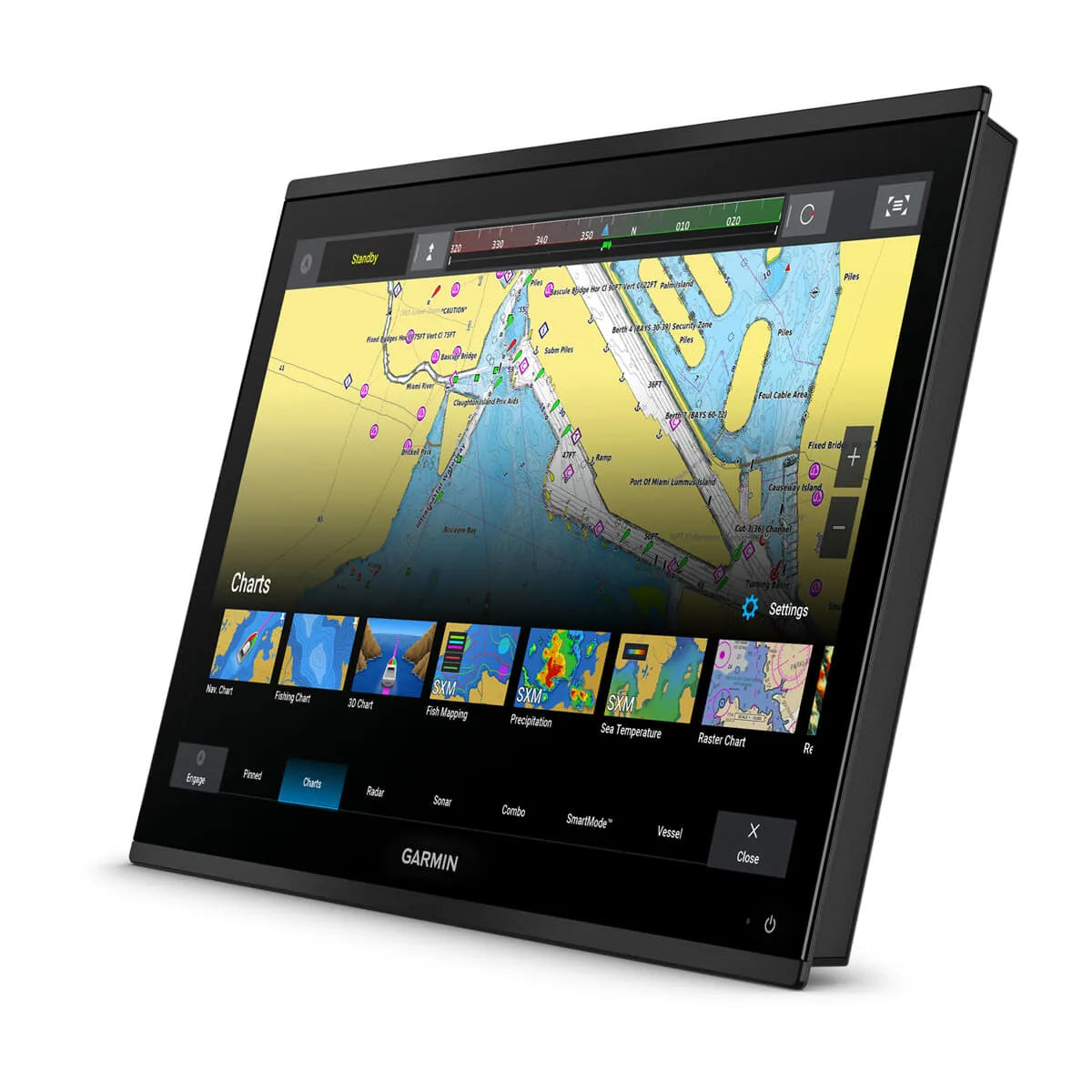

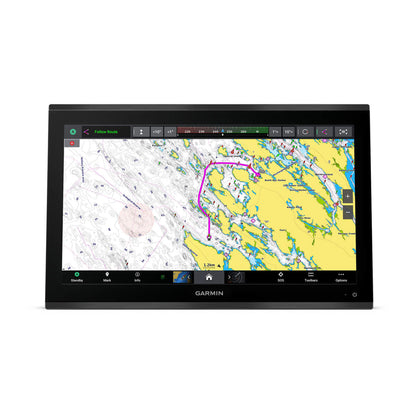

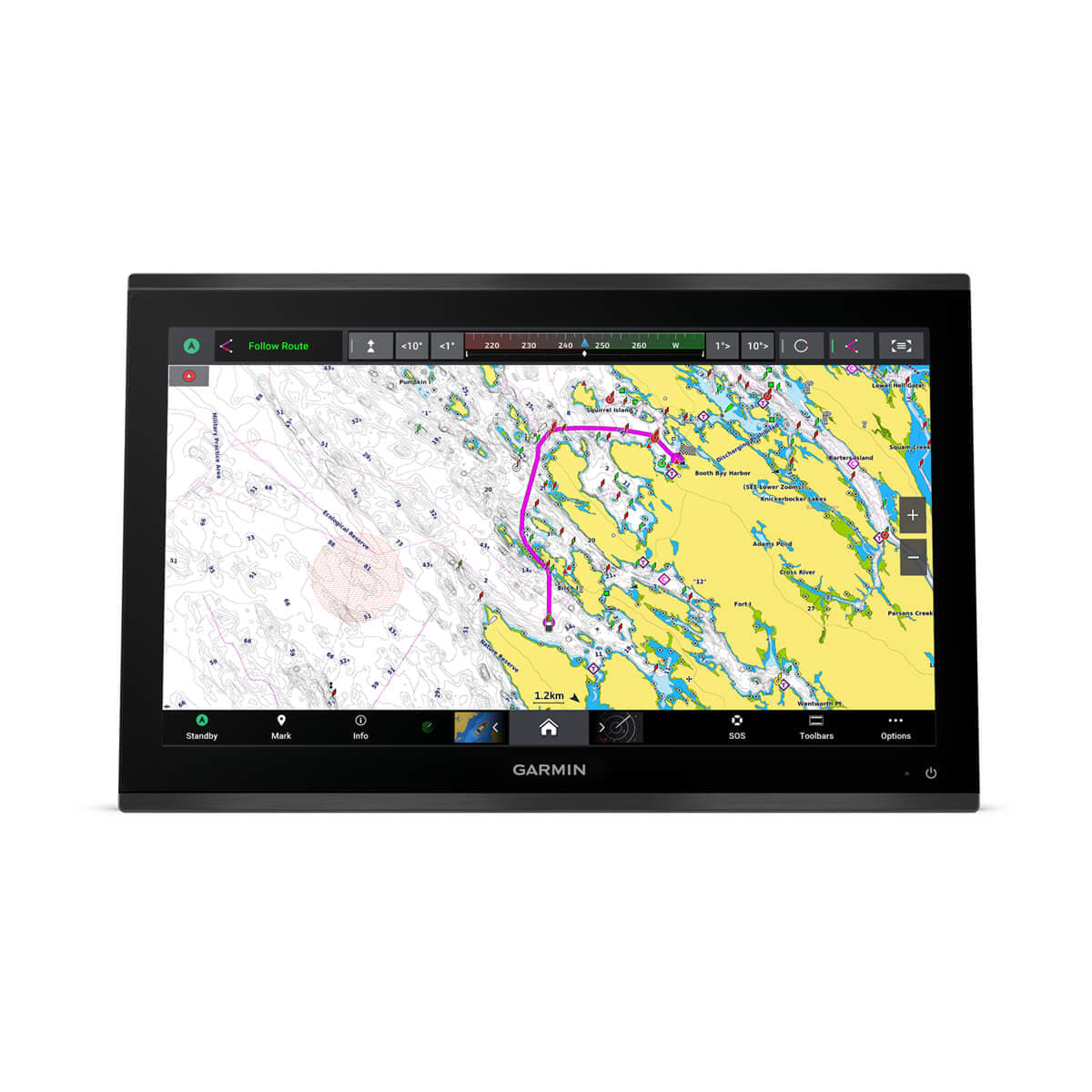

Navigate with optional Garmin Navionics+™ charts that include Auto Guidance+ technology, daily updates and more2 (subscription required).
Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
Get your precise location with the included GPS 24xd position receiver and antenna.
Control the autopilot with any compatible chartplotter on the network with autopilot integration.
Get extensive camera support and control to see footage directly on the chartplotter.
Get a bird’s-eye view with support for our Surround View Camera System (accessory purchase required).
Connect to your chartplotter with your compatible Garmin smartwatch.
Connect compatible devices with integrated BLUETOOTH® and ANT® technologies.
Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
Use spoken commands to control the chartplotter through your compatible headset.
The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
| General | |
|---|---|
| Dimension | 25.8" x 16.7" x 3.3" (65.5 cm x 42.3 cm x 8.5 cm) |
| Weight | 27.65 lbs (12.54 kg) |
| Water rating | IPX7 |
| Touchscreen Display | |
| Display Type | 4K, IPS |
| Display Size | 23.5" x 13.2" x 27.0" diagonal, 59.7 cm x 33.6 cm x 68.5 cm diagonal |
| Display resolution | 3840 x 2160 pixels |
| Mounting Options | Flush or flat |
| Input | Touchscreen |
| Maps & Memory | |
| Accepts Data Cards | 2 SD Cards |
| Compatible with Garmin SD card reader | Yes |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
| GPS | GLONASS, Galileo, BeiDou |
| Receiver | 10 Hz (included receiver) |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Built-in Maps | |
| Built-in Auto Guidance+ | Yes |
| Garmin Navionics+ | Inland & Coastal |
| Tide tables | Yes |
| Optional Map Support | |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Garmin Quickdraw Contours | Yes |
| Raster chart support | Yes |
| Chartplotter Features | |
| Smart Mode Compatible | Yes |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| GSD Black Box Sonar Support | Yes |
| GCV Black Box Sonar Support | Yes |
| ActiveCaptain® compatible | Yes |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Wireless Remote Compatible | Yes |
| Sailing Features | Yes |
| Spoken audio alerts | Yes |
| OneHelm support | Yes |
| Electrical Features | |
| Power Input | 10 to 35 Vdc |
| Typical current draw at 12 Vdc | 7.2A |
| Maximum current draw at 12 Vdc | 8.1A |
| Maximum power usage at 10 Vdc | 97W |
| Sonar Features | |
| Displays sonar | Yes |
| Traditional sonar (dual frequency/beam) | Yes (with compatible black box sonar) |
| ClearVü | Yes (with compatible black box sonar) |
| SideVü | Yes (with compatible black box sonar) |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
| NMEA 2000® ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 2 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 4 |
| USB ports | Yes (2x USB-C) |
| BLUETOOTH® pairing | Yes |
| ANT® (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Audio output | Yes |
