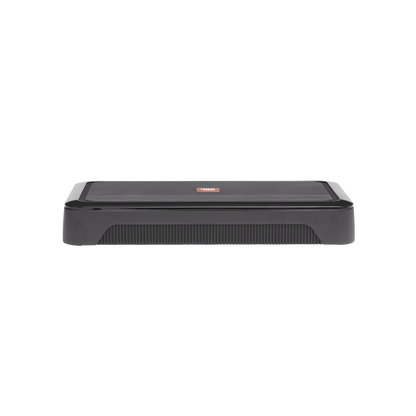

The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.
| Specification | Details |
|---|---|
| Type | 5-channel car amplifier |
| Power Output (4 ohms) | 50W RMS × 4 + 320W RMS × 1 |
| Power Output (2 ohms) | 65W RMS × 4 + 500W RMS × 1 |
| Bridged Power | 140W RMS × 2 (bridged at 4 ohms) + 500W RMS × 1 (at 2 ohms) |
| High/Low-Pass Filters | Variable (32–320 Hz, 12 dB/octave) on front and rear channels |
| Subwoofer Low-Pass Filter | 32–320 Hz, 12 dB/octave |
| Bass Boost | 0–12 dB at 45 Hz (subwoofer channel) |
| Phase Switch | 0° / 180° (subwoofer channel) |
| Inputs | Preamp and speaker-level inputs |
| Fuse Rating | 30A × 3 |
| Recommended Wiring | 4-gauge power and ground (not included) |
| Dimensions (W × H × D) | 360 × 51.3 × 180 mm (14-3/16" × 2-1/16" × 7-1/8") |
