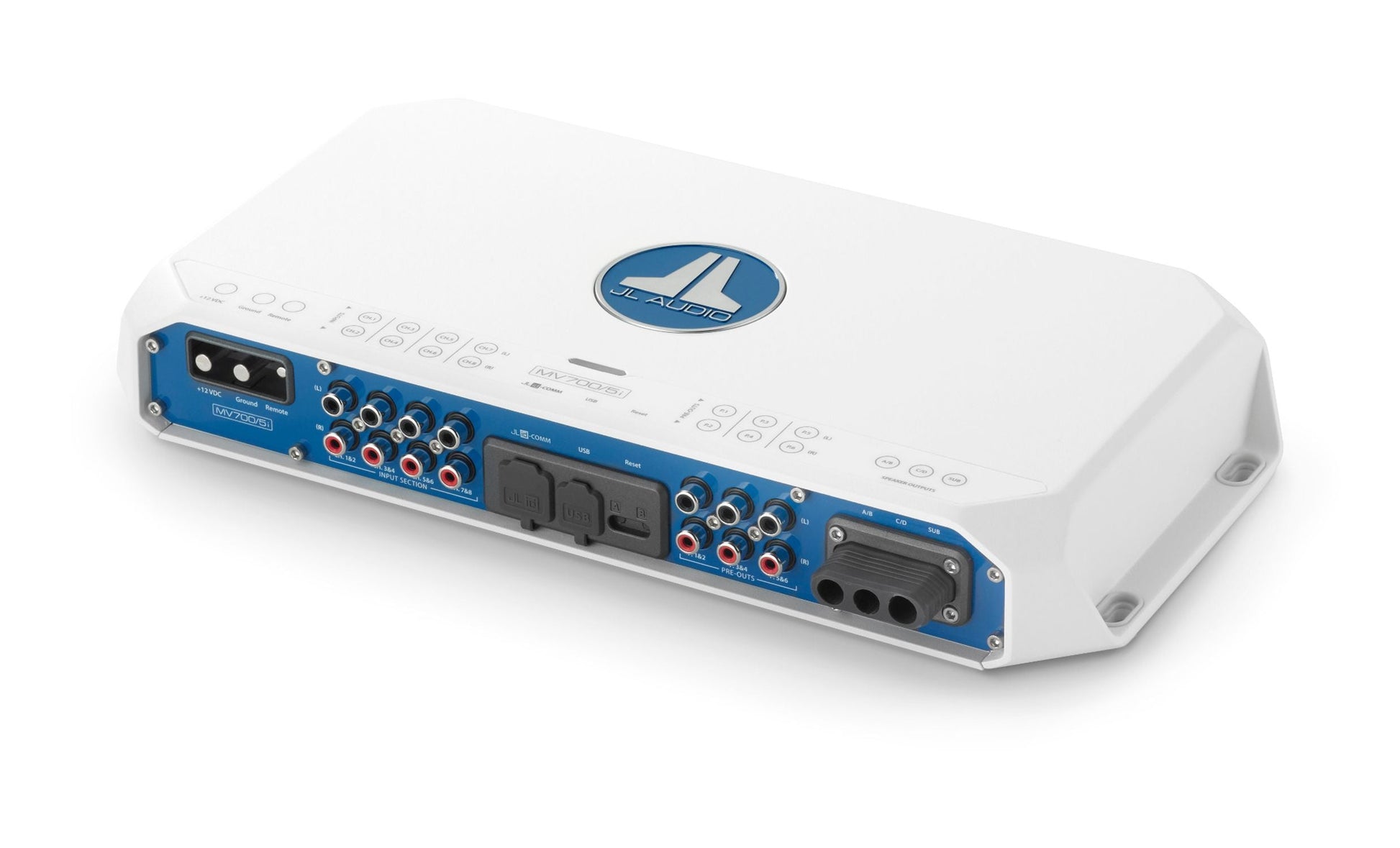

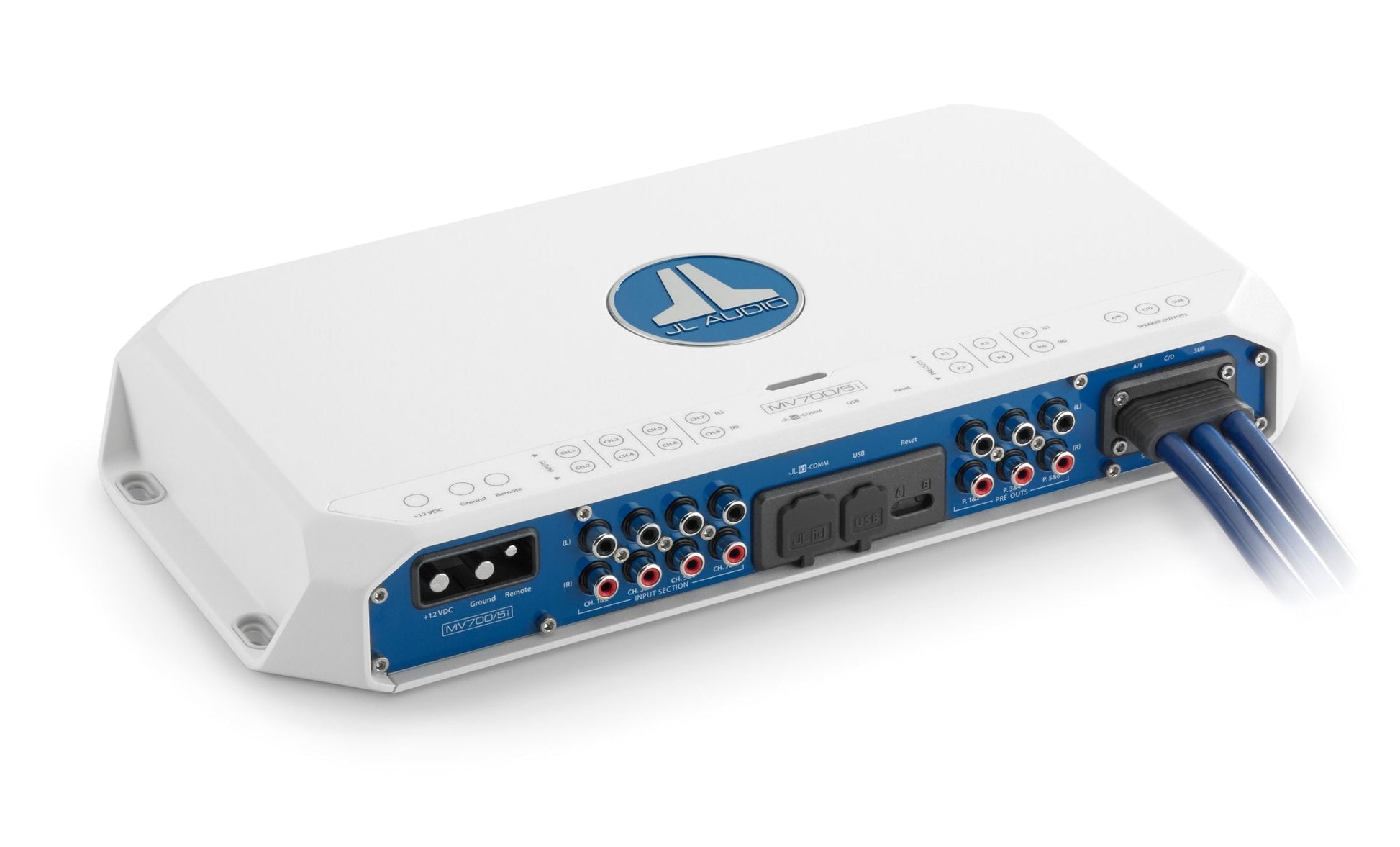

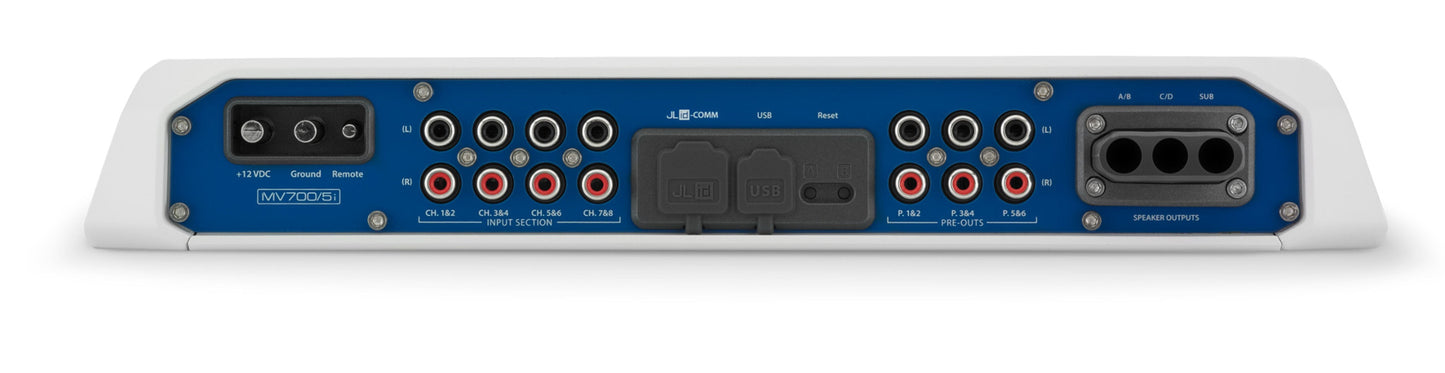

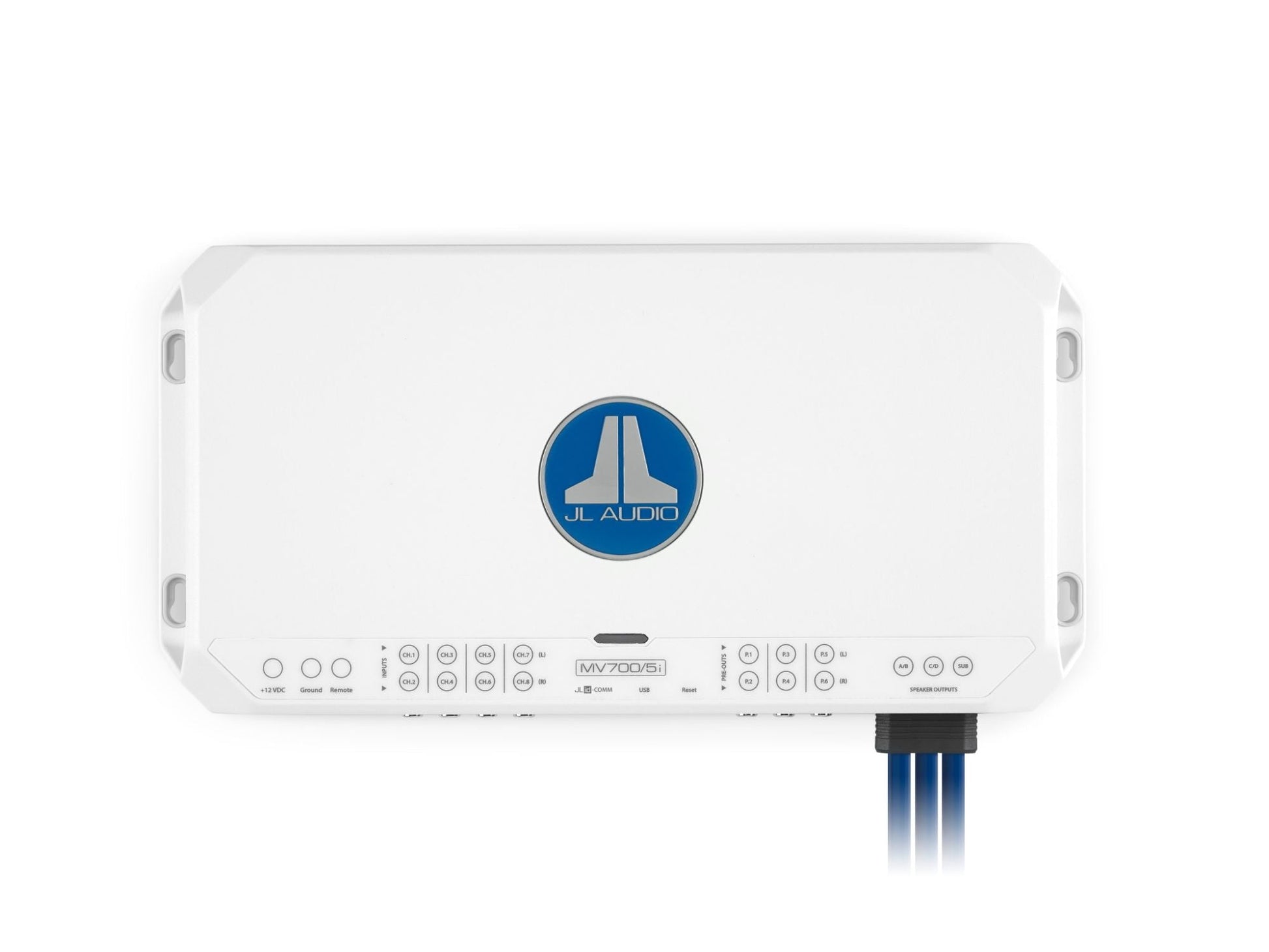

JL Audio MV700/5i

JL Audio MV700/5i

In stock

5 Ch. Class D Marine System Amplifier with Integrated DSP, 700 W

  • price-tag logoNew Launch
$1,249.99
$1,249.99
Save: $-1,249.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

5-Channel Class D Marine System Amplifier with Integrated DSP, 75 W x 4 @ 4 ohms + 300 W x 1 @ 2 ohms - 14.4V


Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Equipped with our second-generation NexD2™ technology, the MV700/5i is capable of powering a complete marine audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is a ultra-compact, cast alloy design with marine-grade powder coat finish and corrosion-resistant hardware.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Speaker Output Harnesses (2), Subwoofer Output Harness, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

  • Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
  • TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

  • Advanced, high-speed switching technology delivers reference-grade power and efficiency.
  • DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs?

  • Differential-Balanced Analog Inputs accept a wide range of signals levels (up to 16V RMS), offering outstanding noise rejection for clean, clear audio.
  • Analog Pre-Outs, with fully independent DSP processing allow sharing DSP capabilities with other amplifiers in the system (4V RMS Max)

    JLid™ System Command and Control with Networking Capabilities

    • Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:
    VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.?
    M-DRC-50 (Digital Preset Controller): Offers convenient activation of up to six DSP presets from the helm.
    MVi-HUB JLid-COMM and Network Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.

    Download and test-drive all TüN® software versions in simulation mode for free (no MVi hardware needed).

    Learn More



    Specifications:

    Main Channels @ 4 ohms 75 W RMS x 4
    Main Channels @ 2 ohms 100 W RMS x 4
    Main Channels - Bridged @ 4ohms 200 W RMS x 2
    Subwoofer Channel @ 4 ohms 180 W RMS x 1
    Subwoofer Channel @ 3 ohms 240 W RMS x 1
    Subwoofer Channel @ 2 ohms 300 W RMS x 1
    Subwoofer Channel @ 1.5 ohms N/A
    Main Channels @ 4 ohms 60 W RMS x 4
    Main Channels @ 2 ohms 90 W RMS x 4
    Main Channels - Bridged @ 4ohms 180 W RMS x 2
    Subwoofer Channel @ 4 ohms 180 W RMS x 1
    Subwoofer Channel @ 3 ohms 240 W RMS x 1
    Subwoofer Channel @ 2 ohms 300 W RMS x 1
    Subwoofer Channel @ 1.5 ohms N/A
    Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB)
    Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB)
    S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    Damping Factor @ 4 ohms >150 / 50 Hz
    Damping Factor @ 2 ohms >50 / 50 Hz
    THD+N @ Rated Power (Main Channels) <1% @ 2 ohms per Ch.
    THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 ohms per Ch.
    Input Voltage Range @ RCA Inputs 250 mV - 16 V RMS
    Min.Copper Power / Ground Wire Gauge 4 AWG wire
    Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
    IP Rating IPX2 (when mounted vertically with connections pointed downward)
    Height (H) 2.05 in / 52 mm
    Width (W) 13.96 in / 355 mm
    Depth (D) 6.93 in / 176 mm
    Net Weight 5.6 lb / 2.54 kg



    Support:

    • USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
