Kenwood DNR476S Digital Multimedia/Navigation Receiver

Going disc-free? Check out Kenwood's new navigation receiver

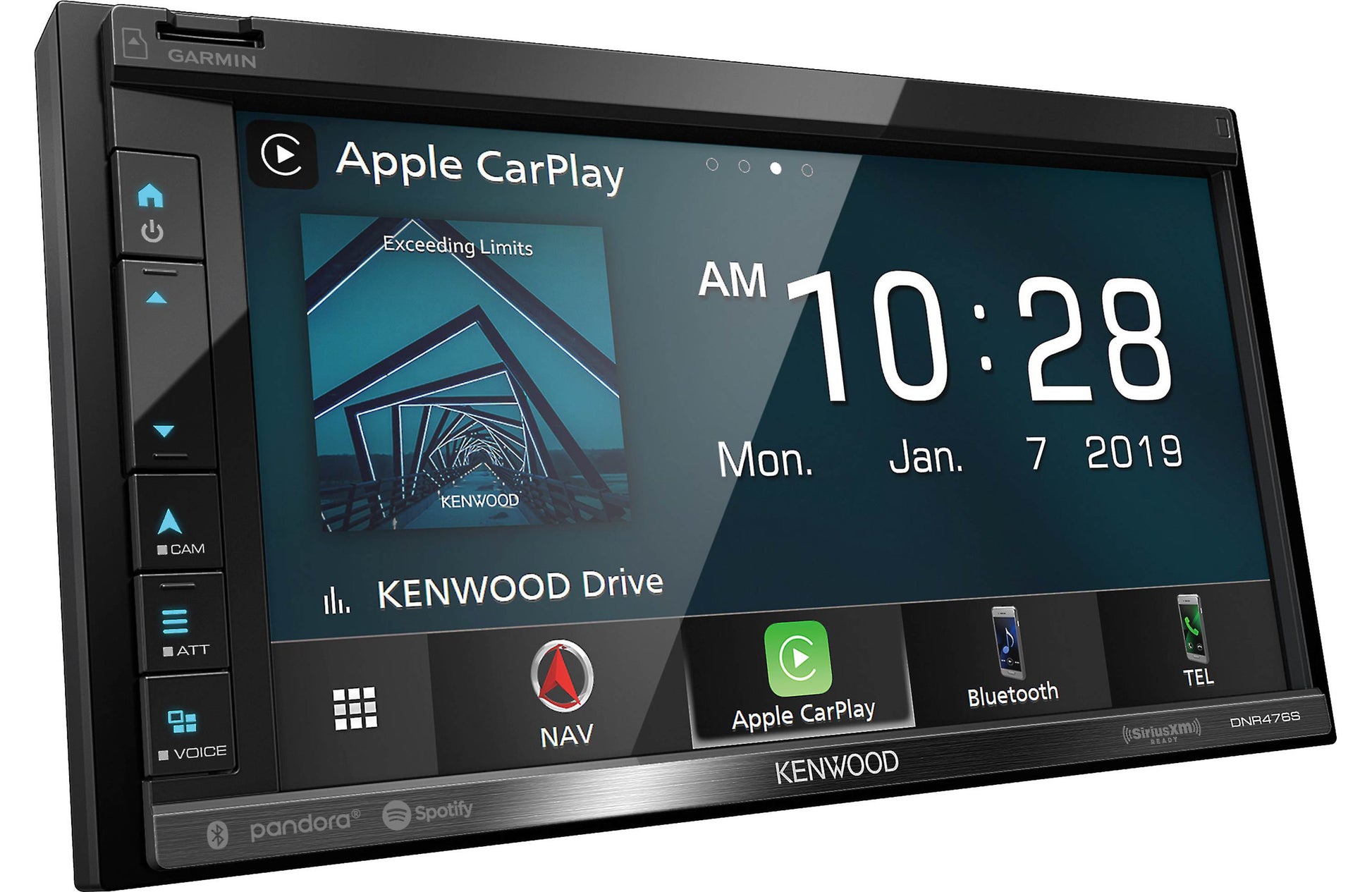

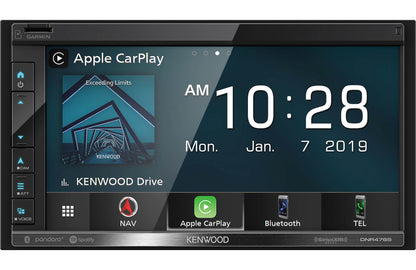

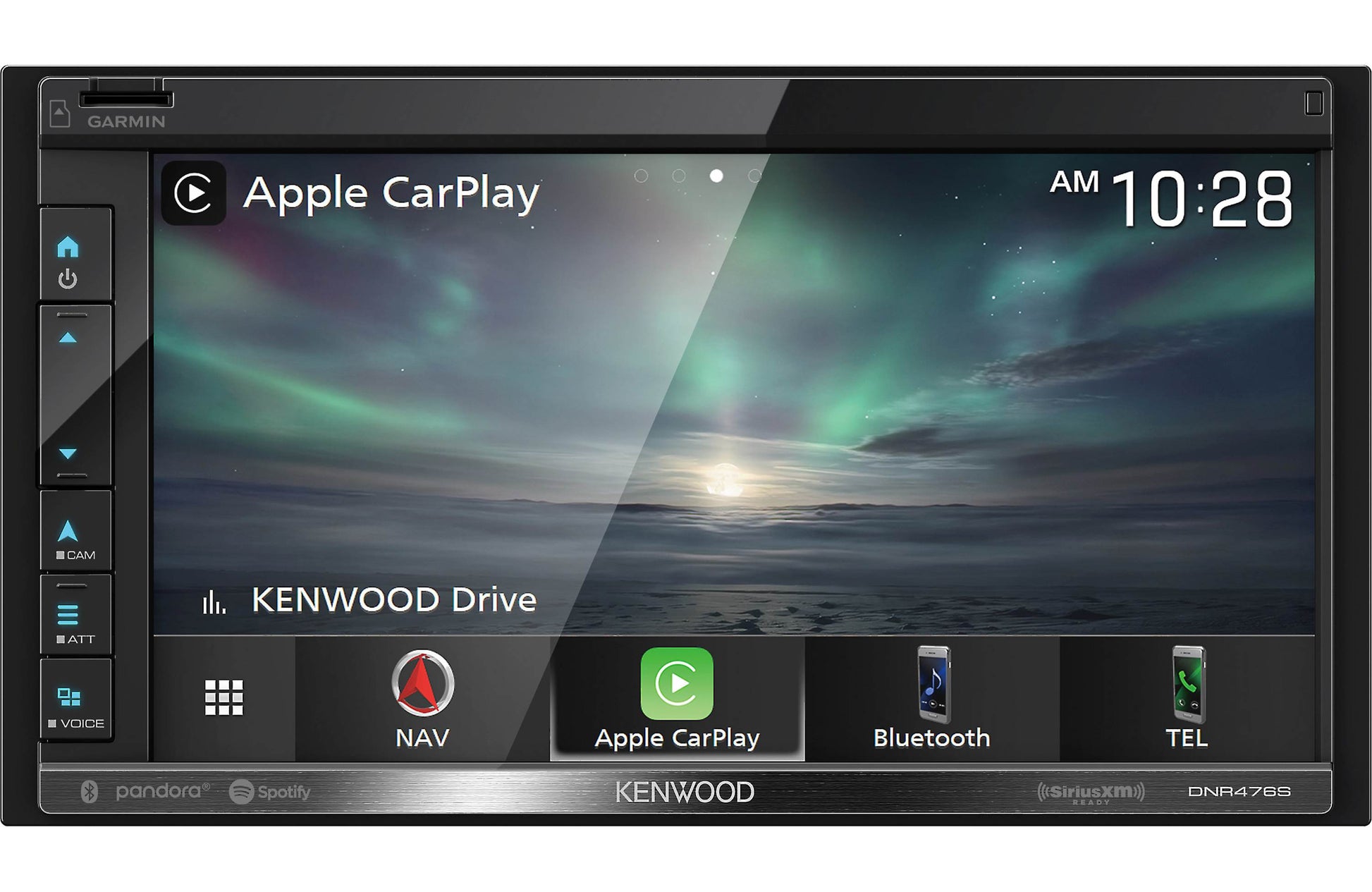

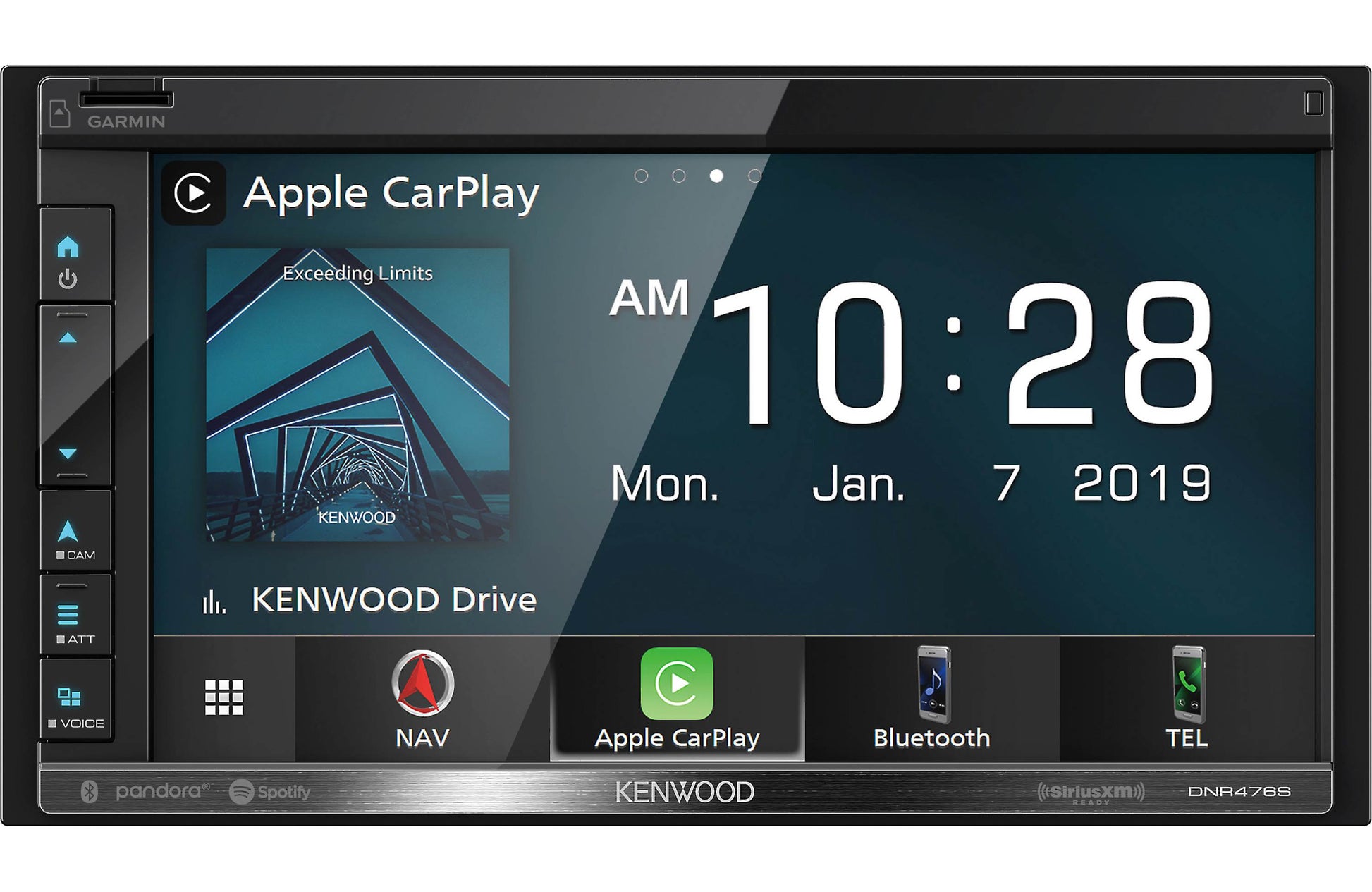

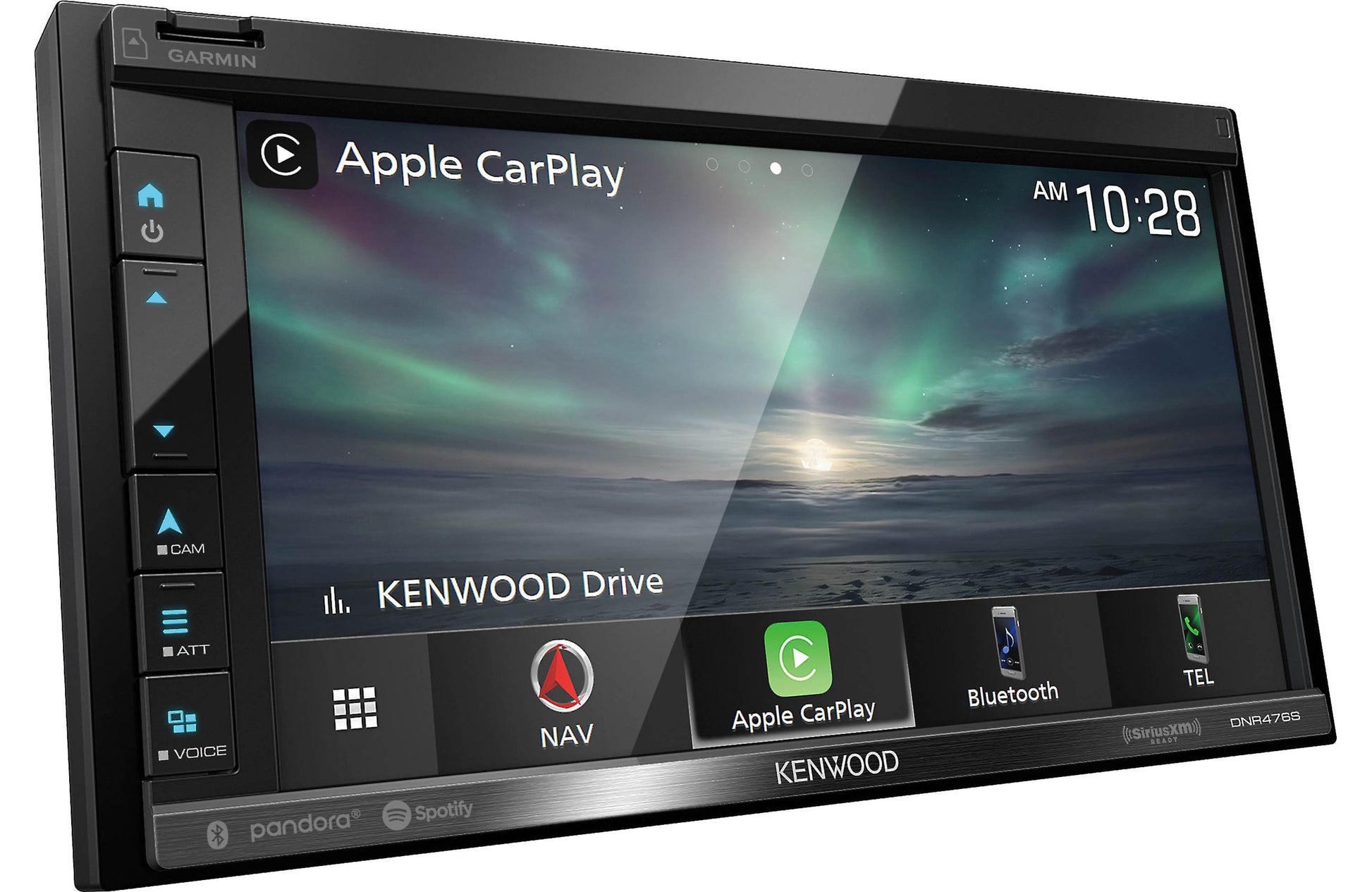

The DNR476S navigation receiver from Kenwood has a lot of what you want — Apple CarPlay® and Android Auto™ capability, Bluetooth® for streaming and hands-free calling, Garmin GPS guidance, plenty of sonic goodness — and leaves out the one thing you no longer need: a disc player. If you're done with shiny platters cluttering up your car but still want the benefits a new 6.75" touchscreen stereo can bring, Kenwood's ready to fill your dash with a road-ready vanguard that sounds as good as it looks.

Supreme smartphone integration

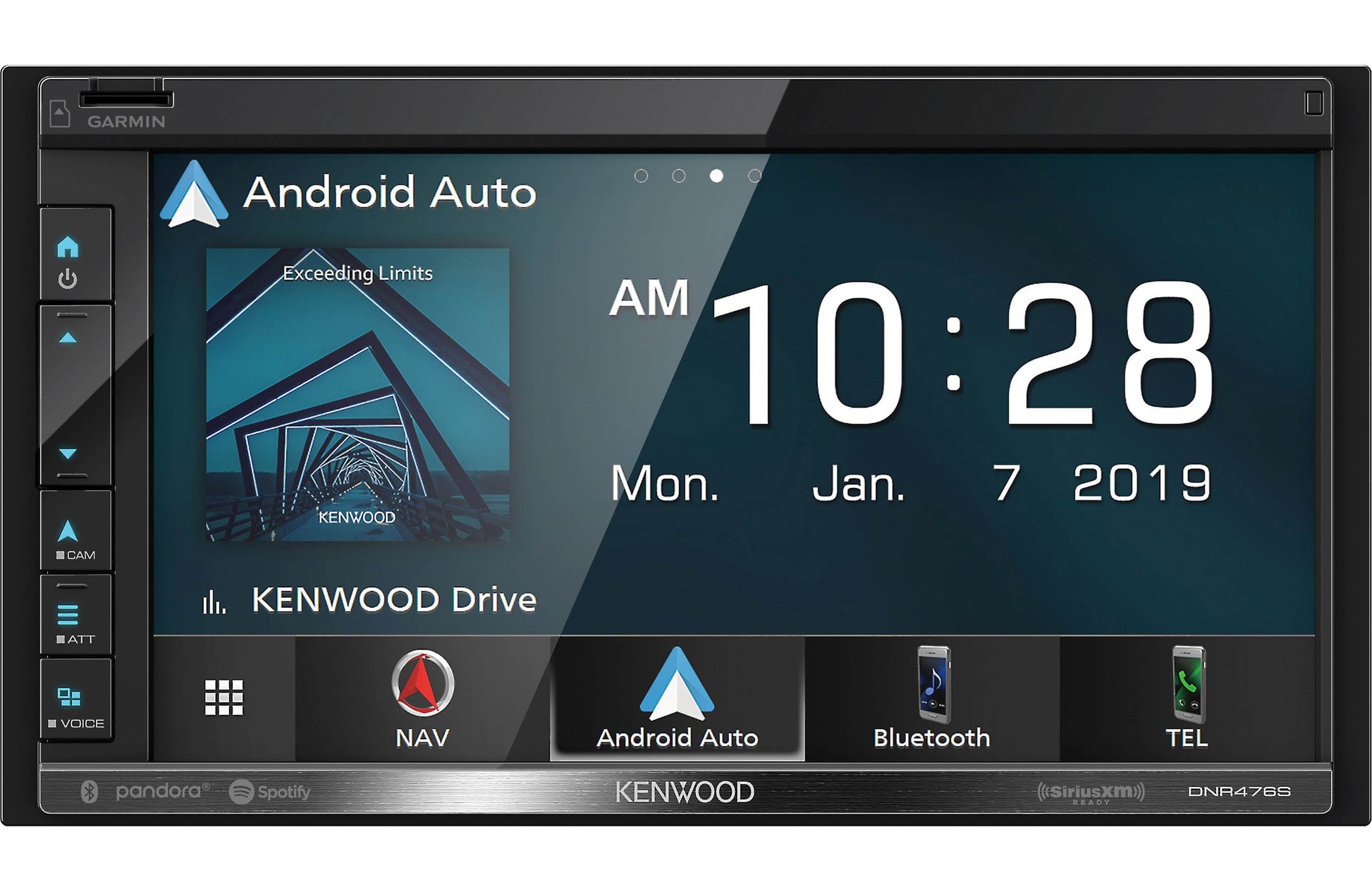

Kenwood designed the DNR476S to work seamlessly with both Apple CarPlay and Android Auto. No matter what phone you (or your passengers) prefer, you can access the apps you need without getting distracted from the matter at hand — driving your vehicle. The DNR476S gives you fingertip or voice control of your apps, and its beautiful 6.75" resistive touchscreen display offers plenty of real estate to check out your sources and other important info — you can even customize the source button locations for easier access. And even if you're not into using Android Auto to access streaming services, you can still get control of select music apps (like Pandora and Spotify) through the receiver via a wireless Bluetooth connection for most Android devices.

Get two phones in on the action

If you're driving with a passenger, the DNR476S can pair with up to two phones at once. You'll be able to designate one phone as the priority but be able to switch between the two with ease, as well as have access to both phonebooks.

Garmin directions get you there on time

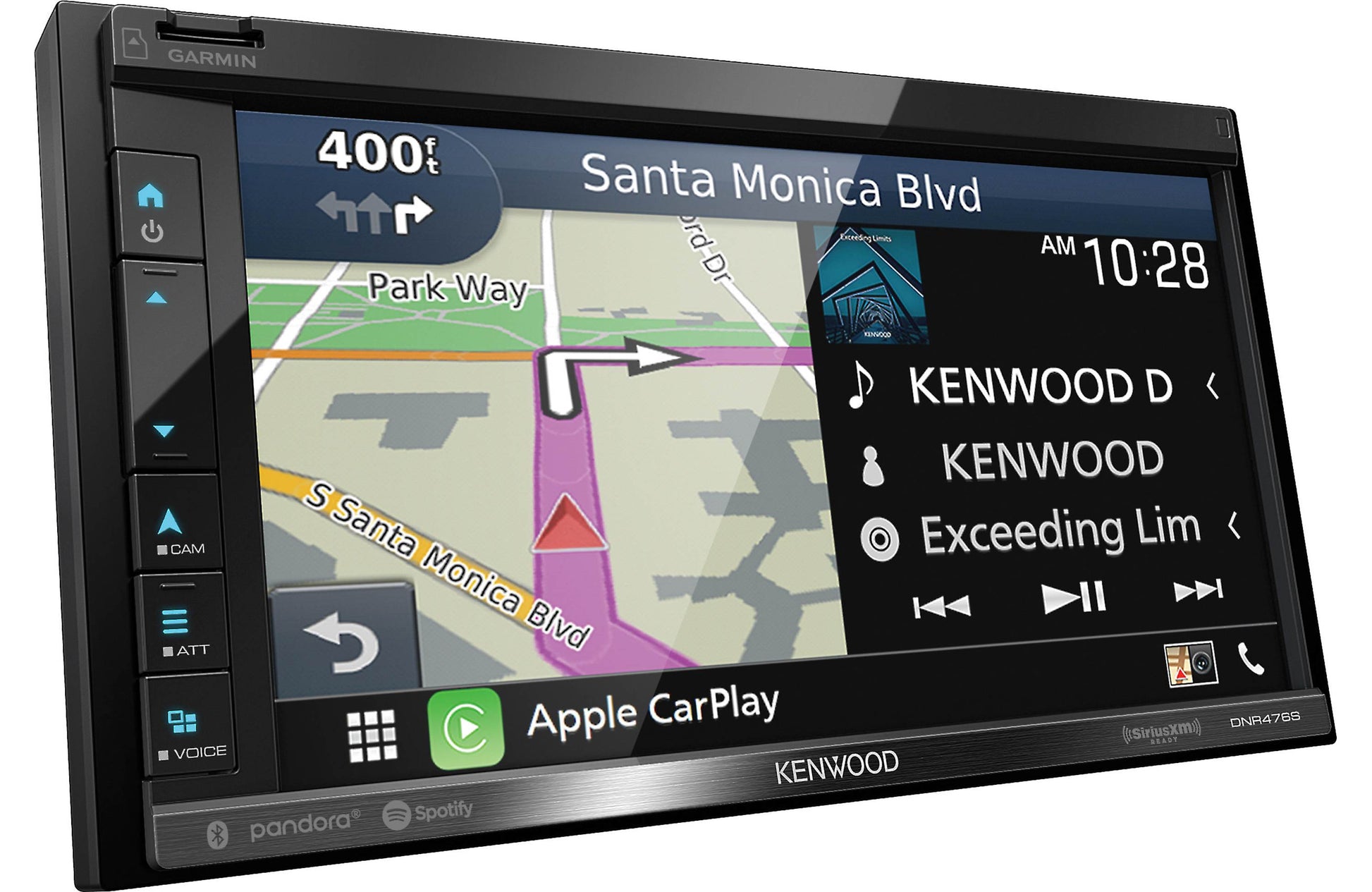

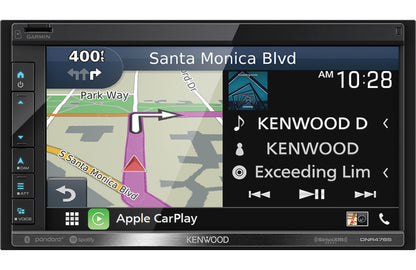

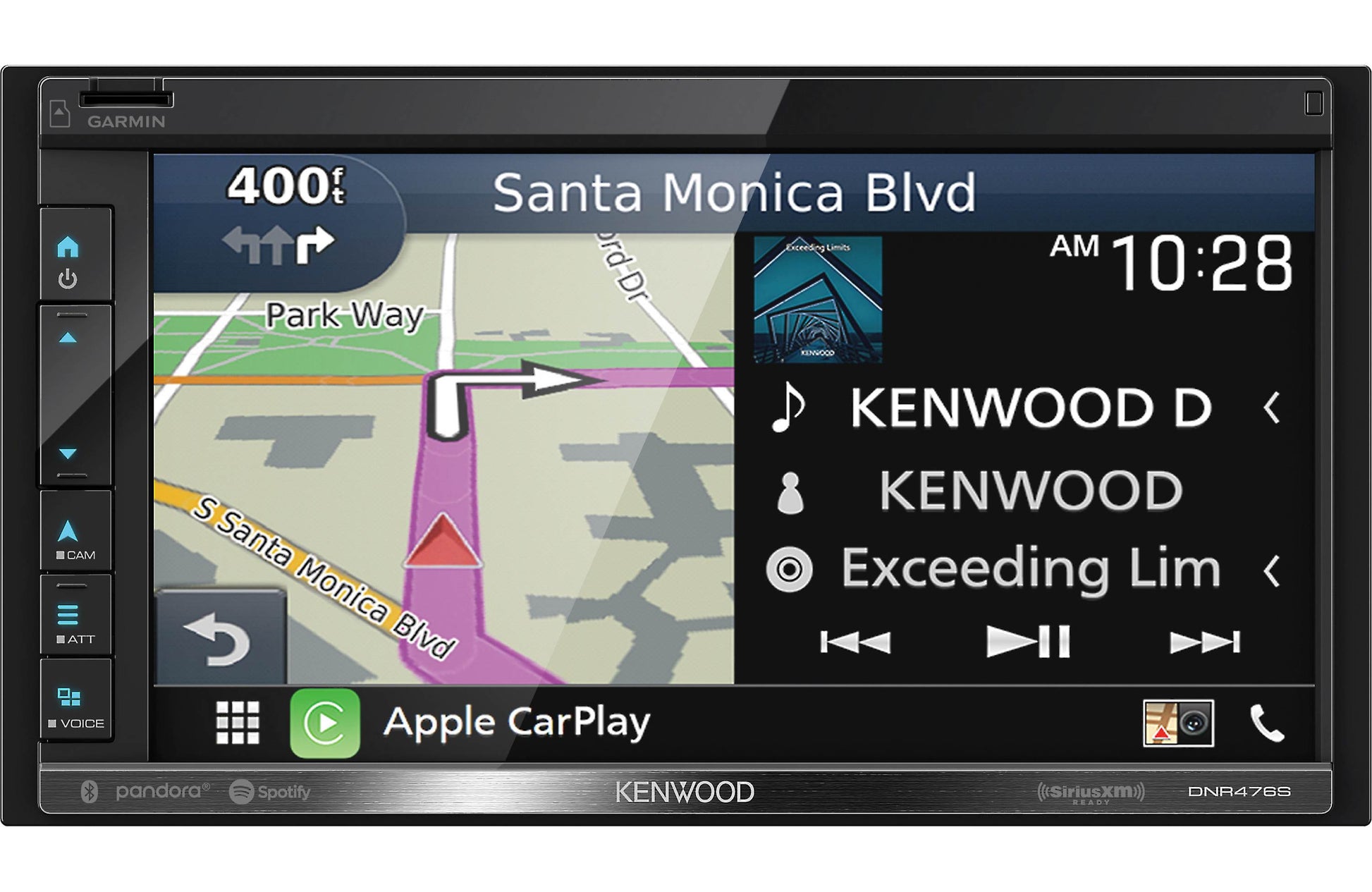

Leave worries about getting lost behind, as the DNR476S supplies Garmin maps of the U.S., Canada, Mexico, Puerto Rico, and U.S. Virgin Islands. You'll also get reliable routing with spoken street names at turns and lane assistance. Kenwood's interface also provides more opportunities for split-screen control, so you can still follow the maps as the stereo shows you what's playing or who's calling.

Upgraded interface and Photo Frame Widget

Kenwood refreshed their user interface for 2019, so it's easier than ever to find and switch between your favorite sources and check out album artwork and map details. The new Photo Frame Widget feature lets you create a slideshow of up to 500 images from a thumb drive on the receiver's home screen.

Play your files and external sources

Even without a disc player, you can still enjoy connection for more audio/video sources with an A/V input. A rear USB port lets you add audio from an iPod or flash drive, including high-resolution lossless FLAC and WAV files. You also get a microSD card slot for playing digital music files and map updates.

Catch the satellite radio wave

Why struggle with stations fading away as you travel? You can hook up a SiriusXM satellite radio tuner (not included) to this receiver and access the wide variety of entertainment, sports, news, and commercial-free music satellite radio provides — and your favorite stations are always there.

See all kinds of obstacles with a camera or two or three

The DNR476S is capable of connecting two different cameras, so you can see more when you're getting in and out of tight spots. If you've got a pair of rear-view cameras, you can reverse the image of the one up front to get a more precise picture. With select Kenwood cameras, you can have the display automatically switch to a momentary view from the front camera when you shift out of reverse. The receiver also features a dedicated input for Kenwood's DRV-N520 Drive Recorder dash cam so you can capture your travels in high definition.

iDatalink Maestro lets you keep your factory extras — and add some upgrades

The DNR476S offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle info on the Kenwood's screen. It'll even integrate your stealth K40 RL200di radar detector into the stereo's display, so you can see and hear about incoming threats. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Product highlights:

General Features:

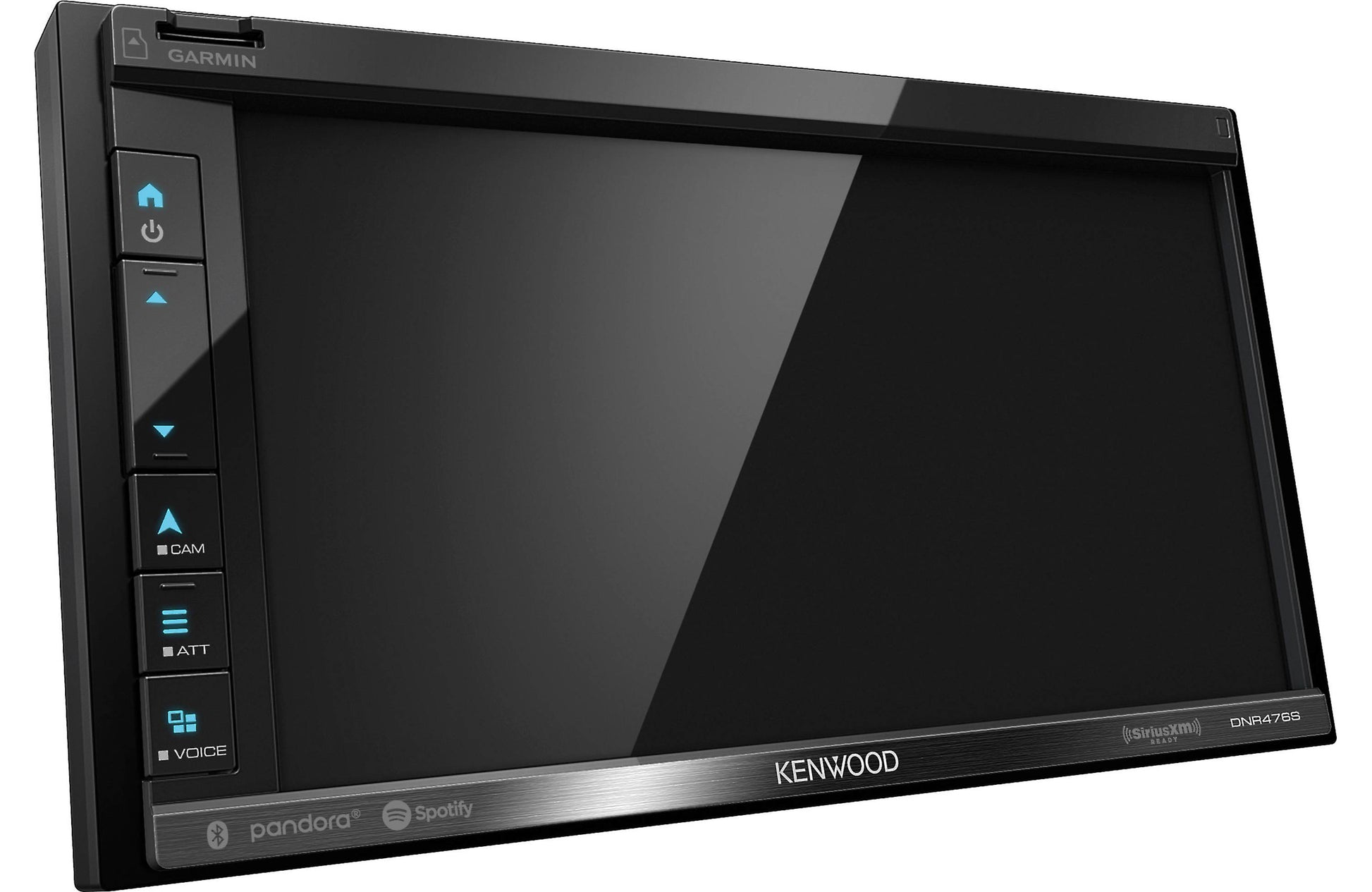

• digital multimedia player with 6.75" resistive touchscreen (does not play discs)
• built-in Garmin navigation system
• plays media loaded with MP3, WMA, AAC music files, plus high-res WAV and FLAC files
• fits double-DIN (4" tall) dash openings
• built-in Bluetooth for hands-free calling and audio streaming
• AM/FM tuner

Smartphone Features:

• wired Apple CarPlay compatible
• wired Android Auto compatible
• music control and charging of Apple devices using the USB connections
• Pandora and Spotify control with iPhone and Android
• compatible with Kenwood Remote S smartphone app for wireless source selection through your phone

Navigation Features:

• Garmin maps of the United States, Canada, Mexico, Puerto Rico, and U.S. Virgin Islands, plus 6 million points of interest
• text-to-speech voice prompts announce actual road names at turns
• lane assistance

Audio/video Features:

• plays USB memory devices and microSD cards (see Details for full capabilities)
• Drive EQ boosts specific frequencies to overcome road noise
• 13-band EQ
• high- and low-pass filters
• digital time alignment, space enhancer, sound realizer, sound elevation, bass boost, and loudness
• dual-zone A/V output
• supports rear-view camera adjustable parking lines (optional camera required)

Expandability:

• compatible with SiriusXM satellite radio tuner
• inputs: rear USB input; SD card slot; rear A/V input (mini); two camera inputs; input for Kenwood DRV-N520 Drive Recorder
• outputs: rear A/V output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)

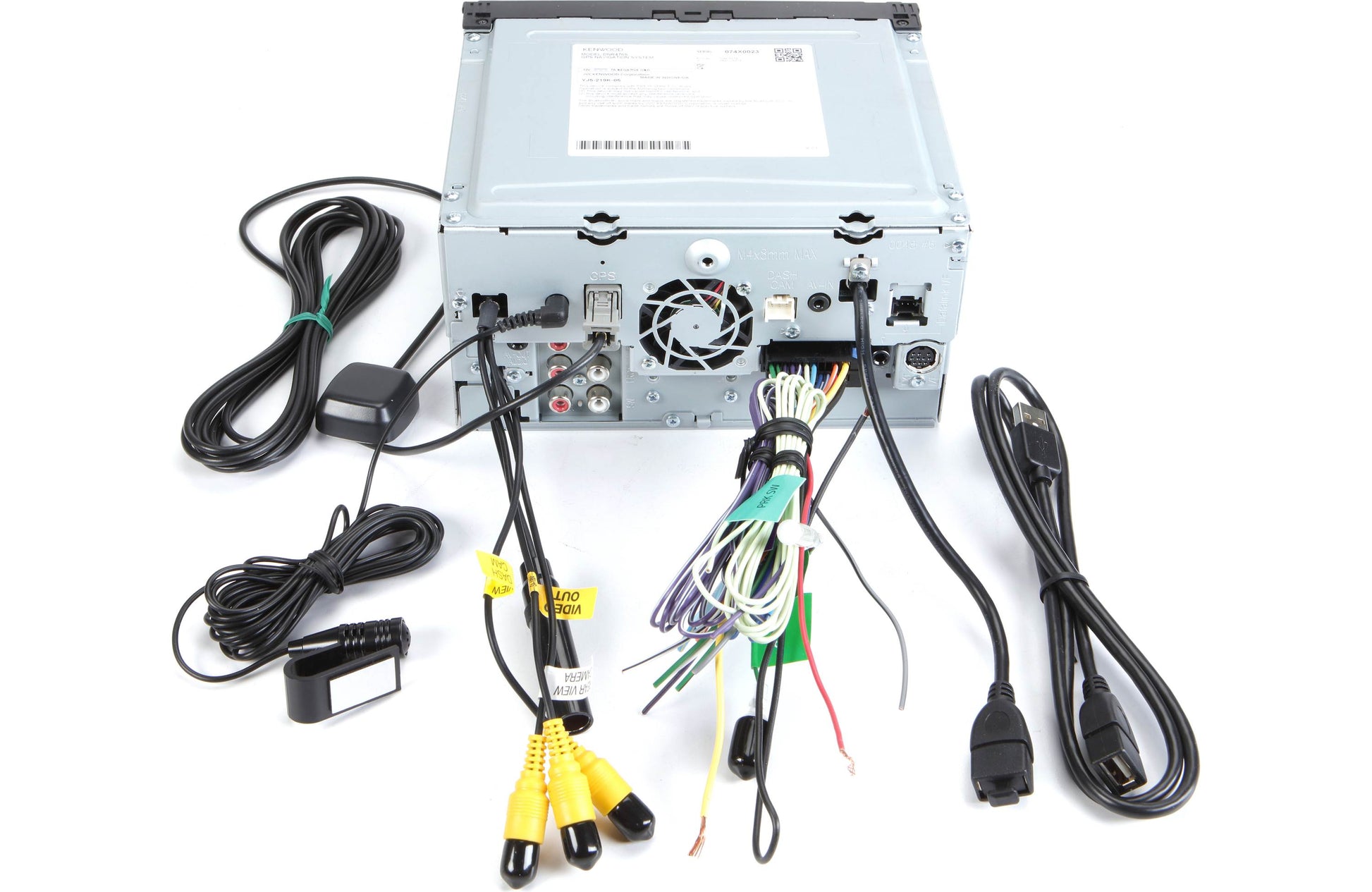

What's in the box:

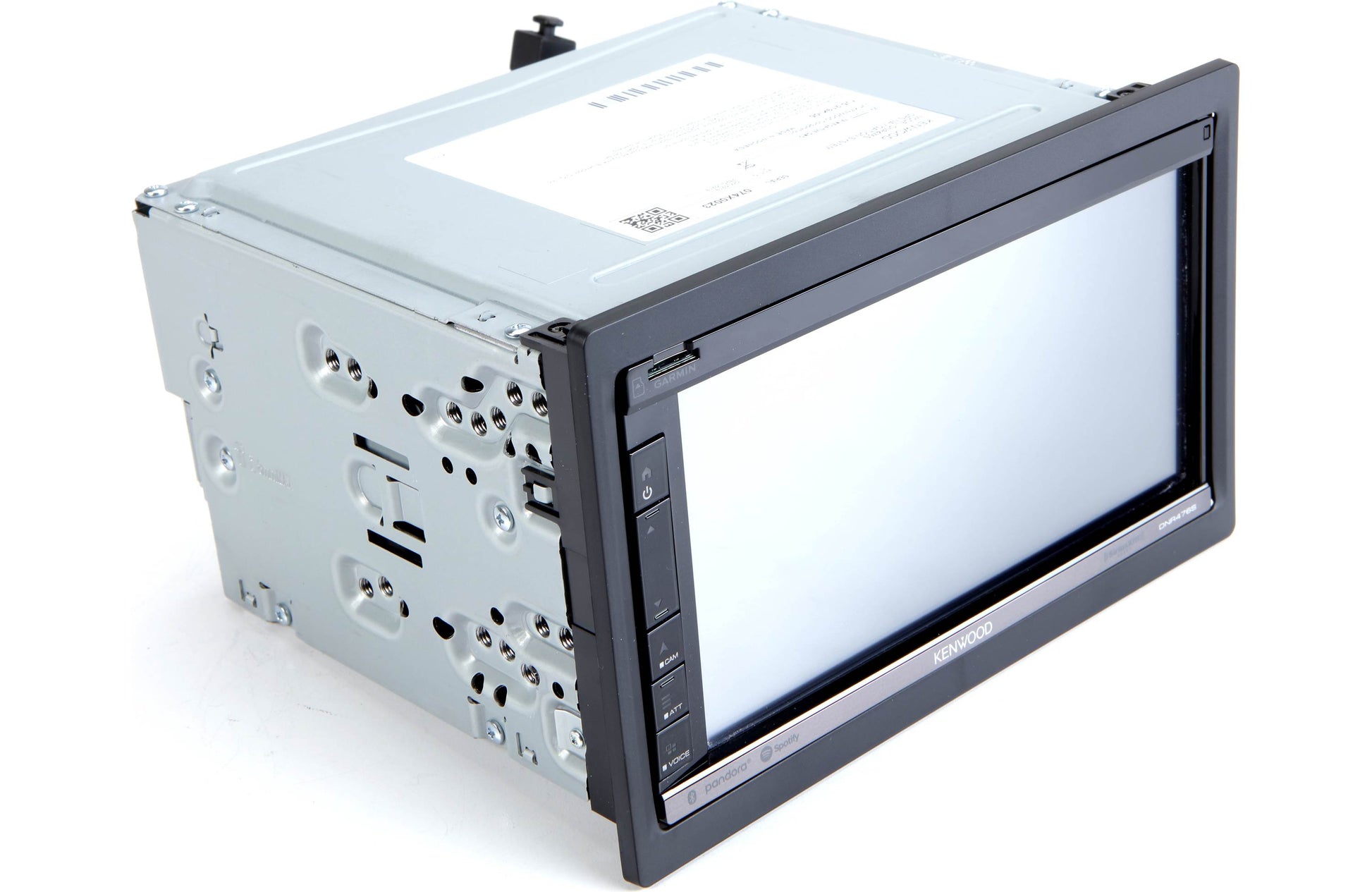

• Navigation receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
• Sleeve (attached)
• Trim ring
• Wiring harness
• 39" USB extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietary connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 2 Radio removal tools
• 6 Pan-head ISO-mount screws
• 6 Flat-head ISO-mount screws
• Quick Start Guide
• Warranty card
