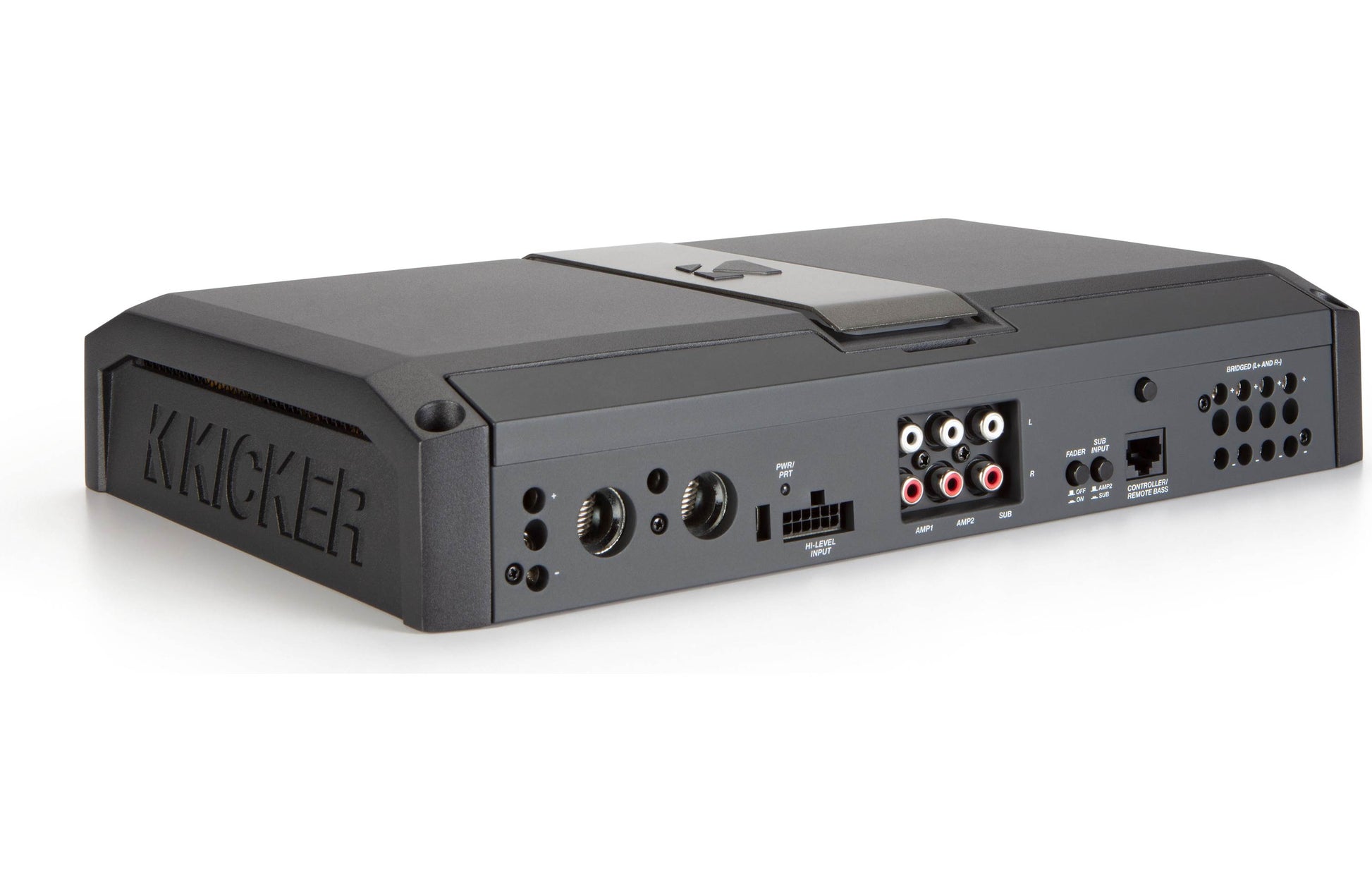

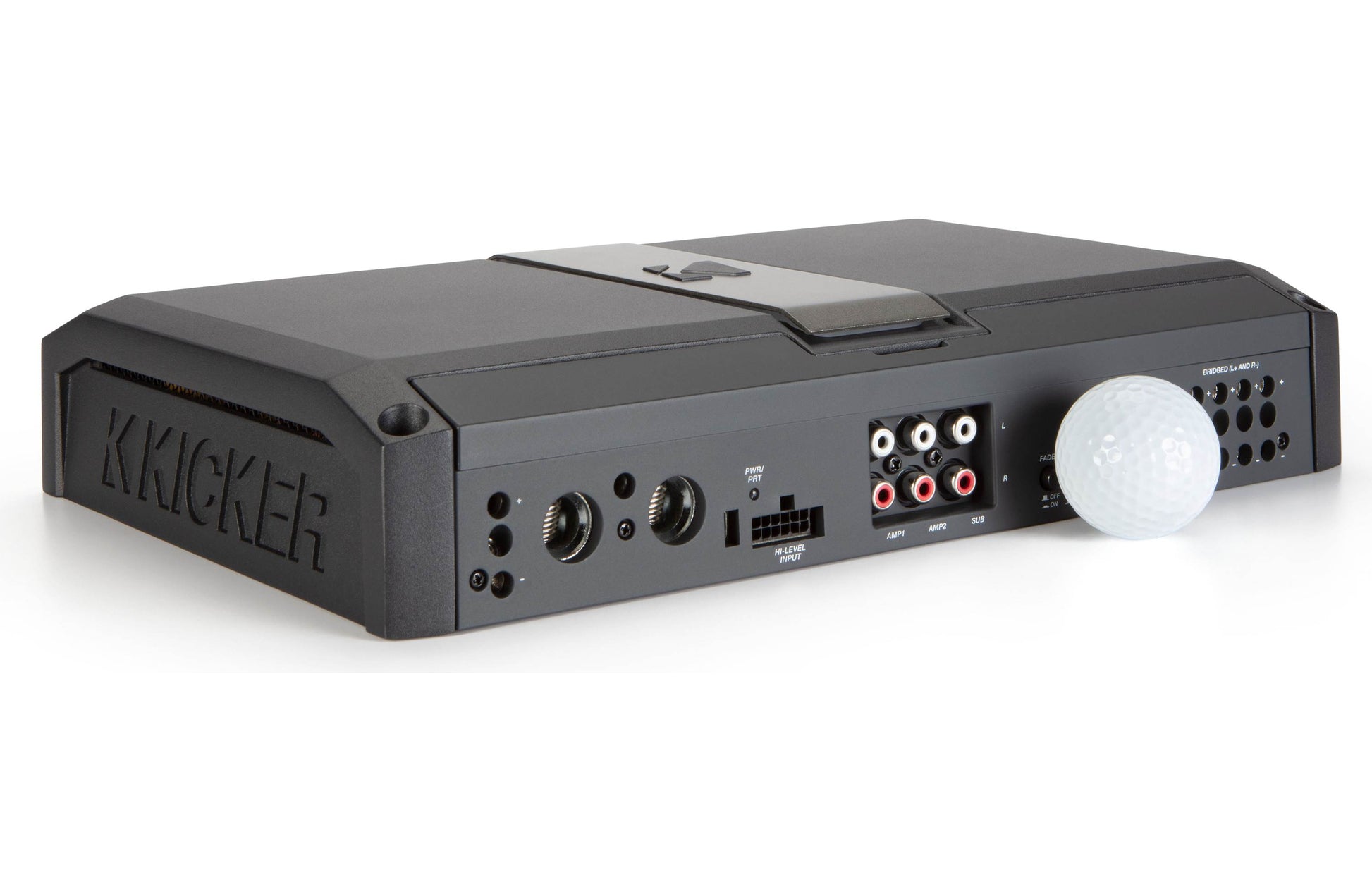

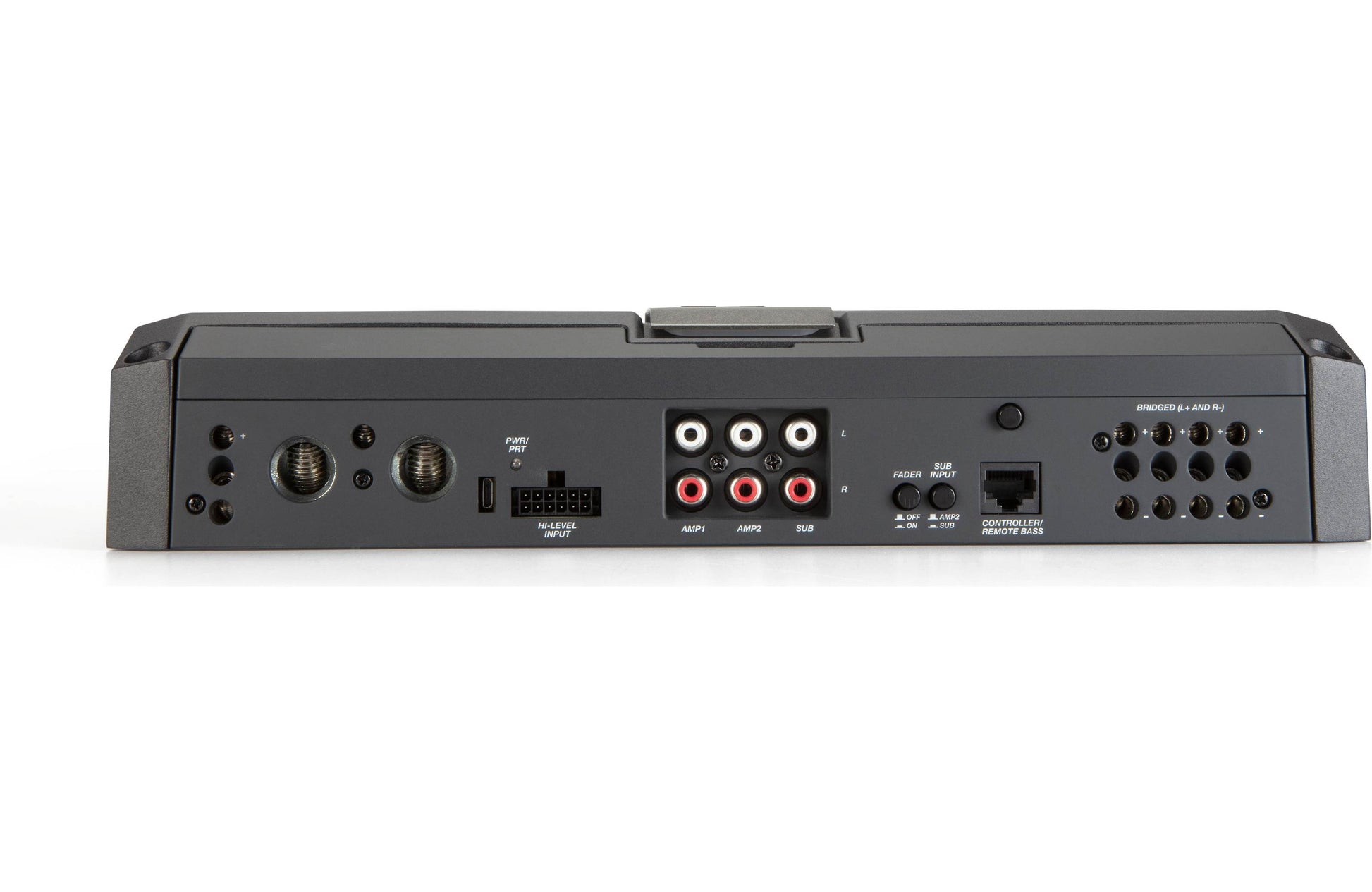

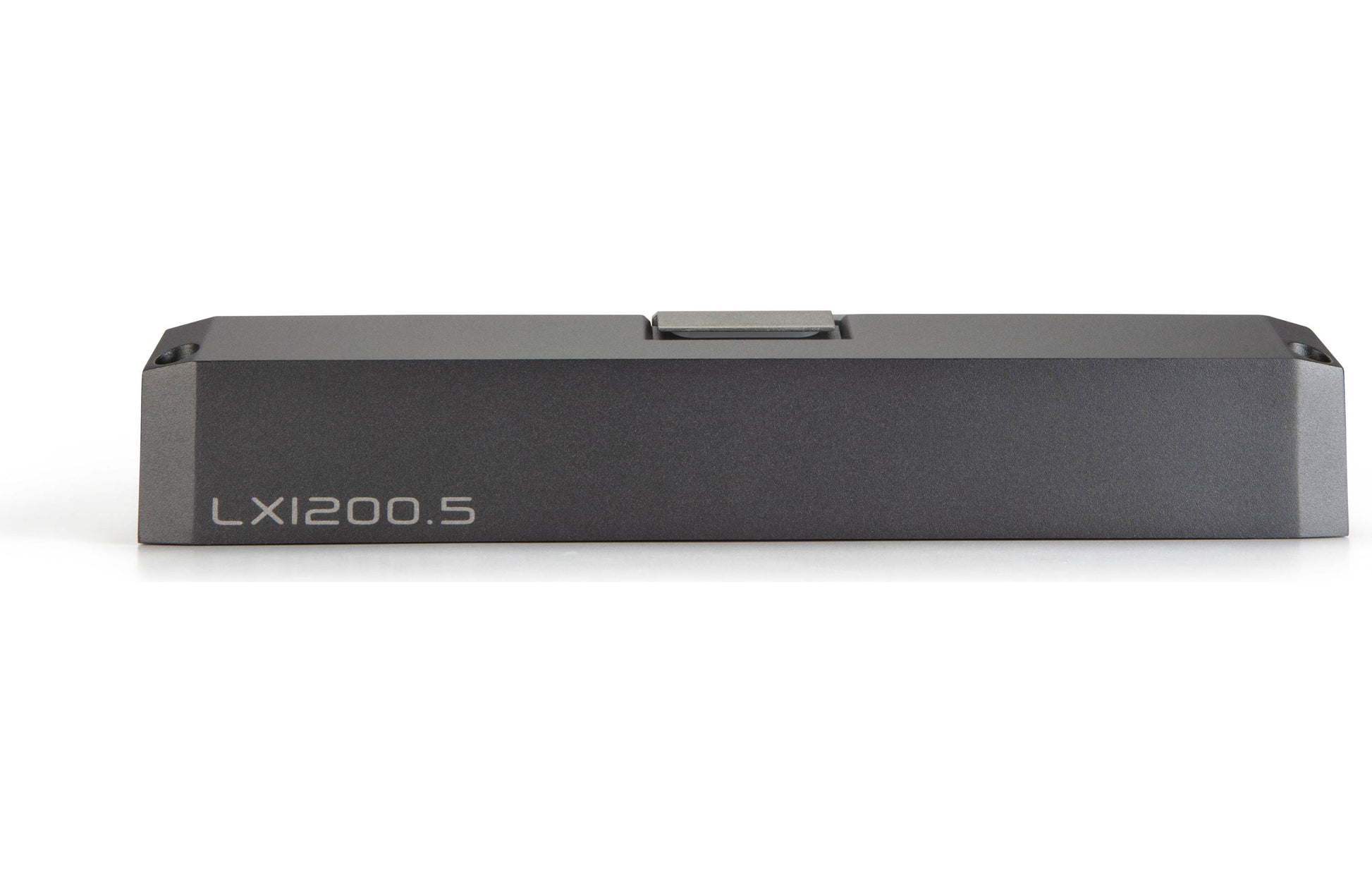

Kicker 51LX12005 LX1200.5 5-Channel Amplifier

Kicker 51LX12005 LX1200.5 5-Channel Amplifier

In stock

The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuring SHOCwave2.0™.

  • price-tag logoNew Launch
$849.99
$849.99
Save: $-849.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

From the Ground Up

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.

  • Incrementally dial in entire system with the included LX Control Center

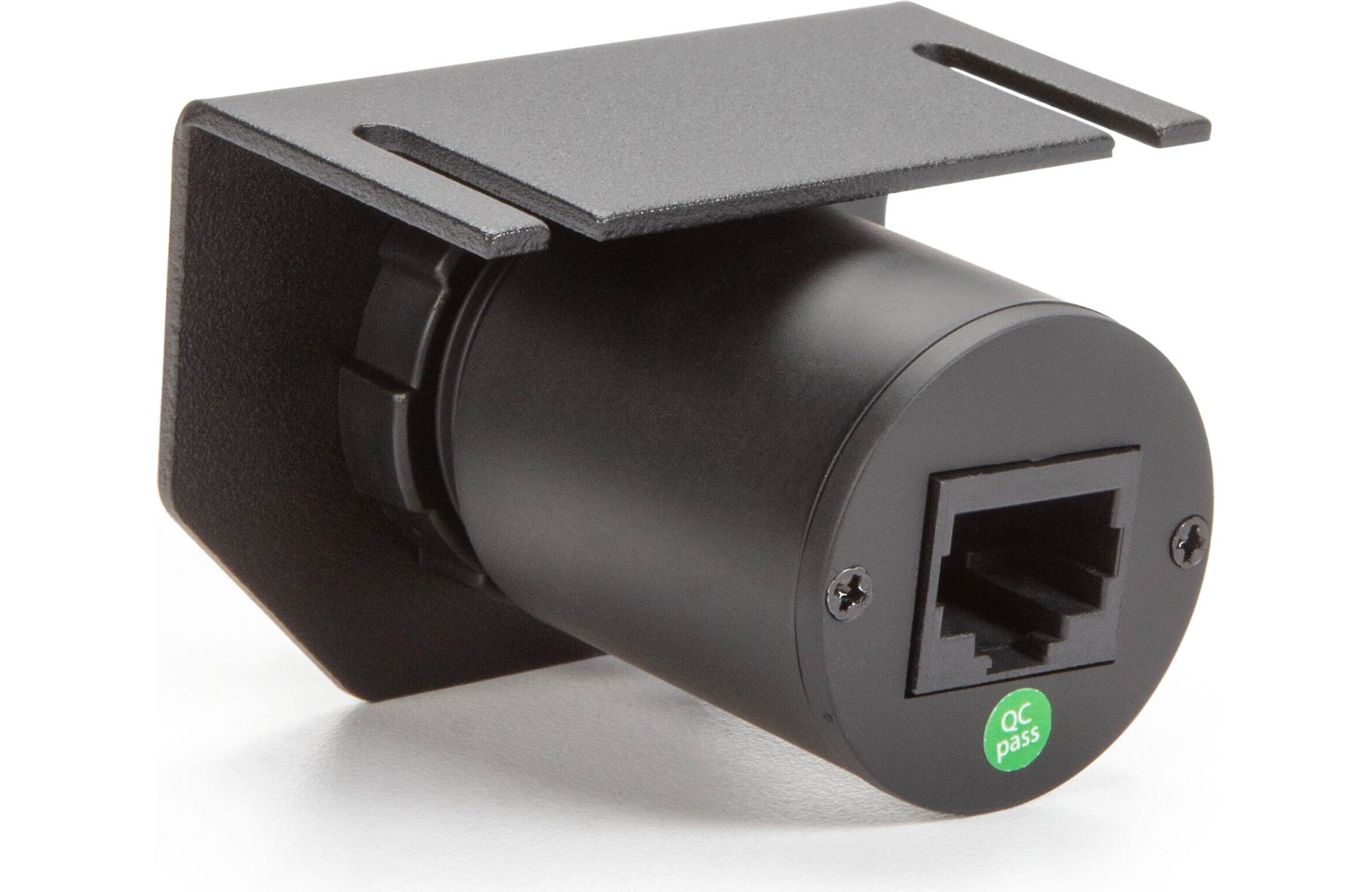

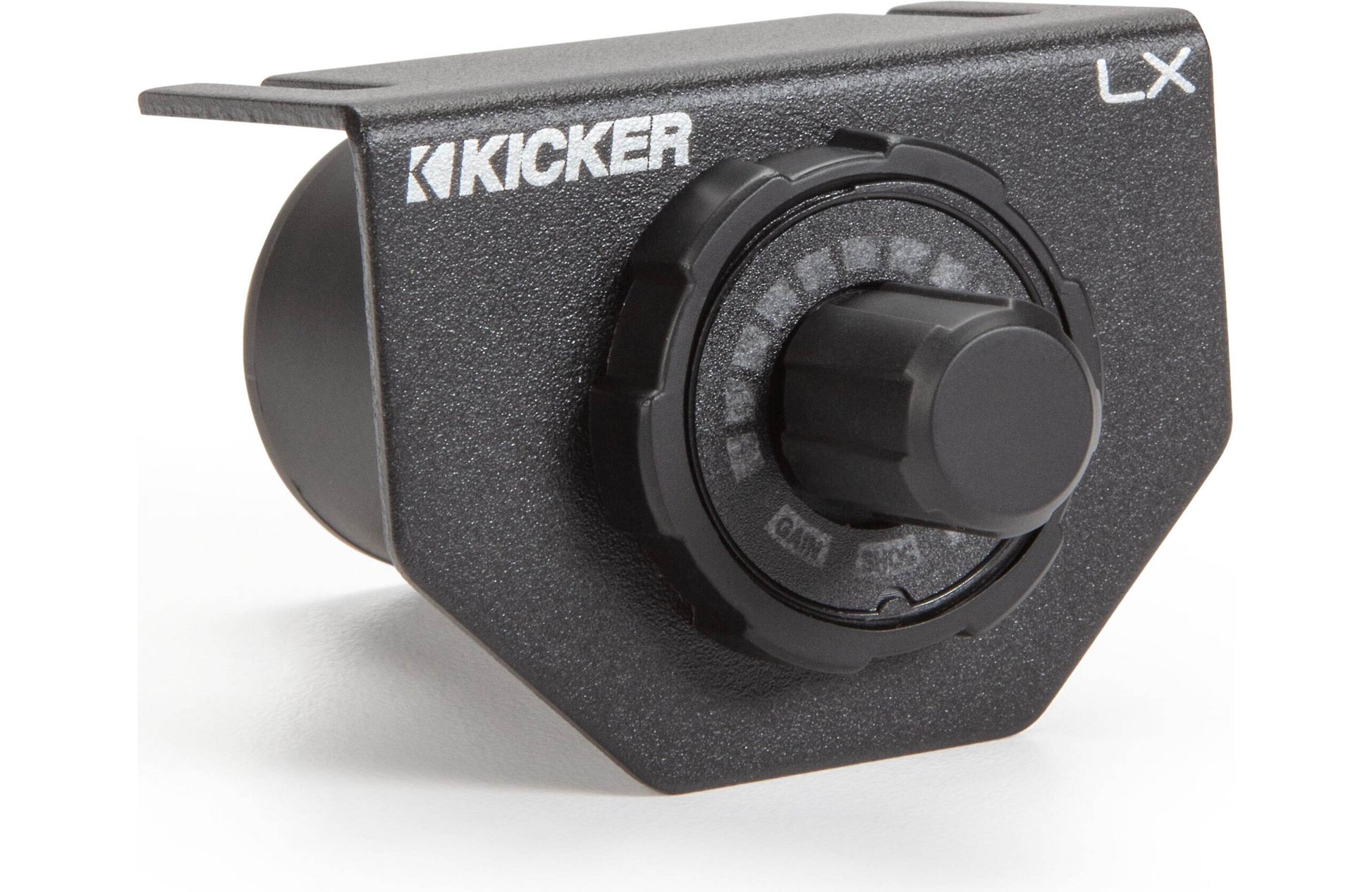

  • Monitor and adjust sub section with the included LXRC Dash Remote
  • Class-D design for lower current draw, longer playing times, and lower operating temperatures
  • Gain-match LEDs show you perfect gain setting

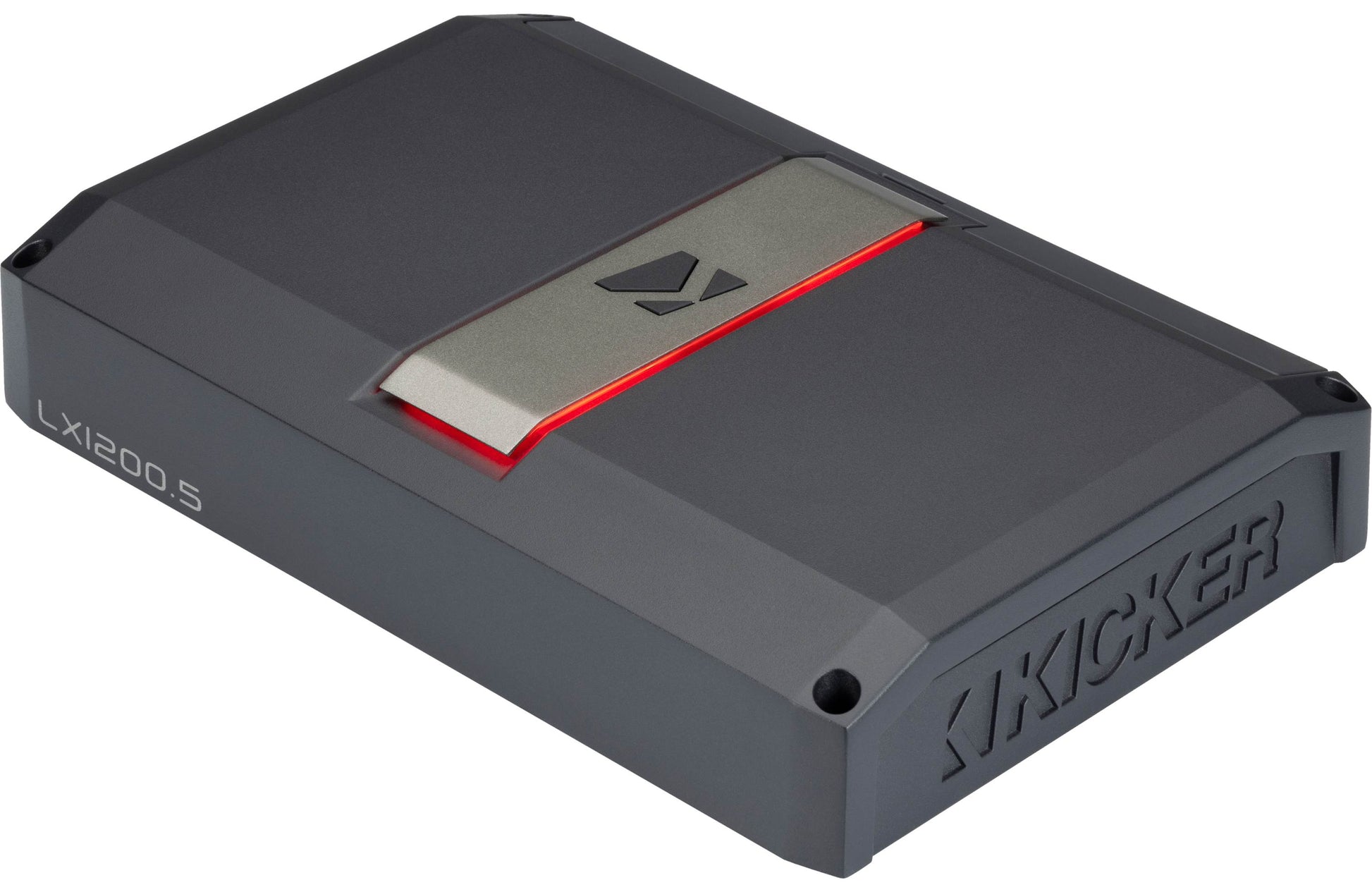

  • Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
  • Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
  • LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

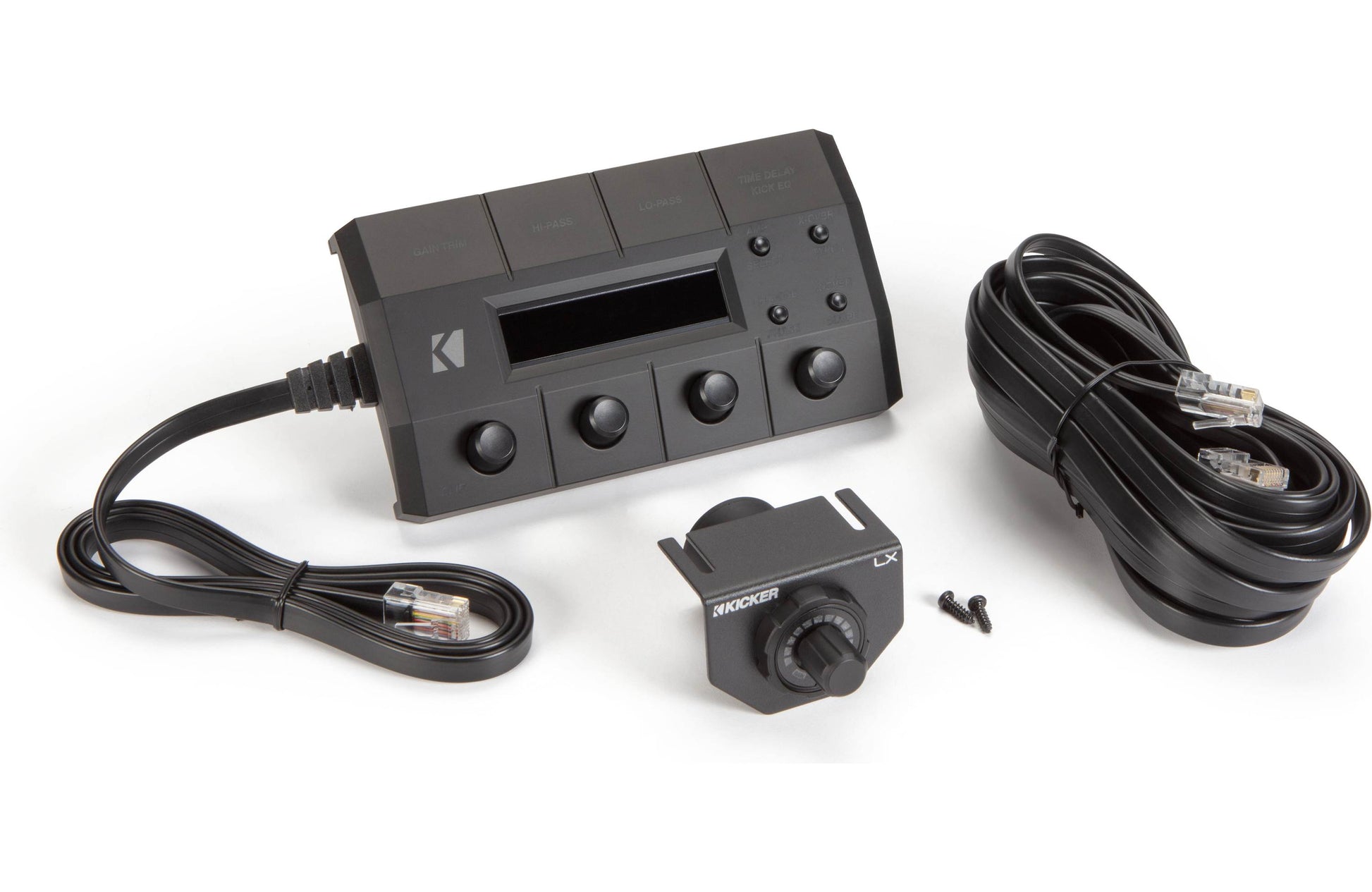

Comes with the LX CONTROL CENTER (LXCC)

  • Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
  • Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
  • Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel
  • Cable Length – integrated 3.28 feet (1m), directly into amp
-Learn More / LX Control Center PDF-

Specifications
LX 1200.5 white paper 51LX12005 Whitepaper PDF
RMS Power [Watts/Channel] @ 14.4V
Amp 1 & Amp 2 (Stereo Channels):		 2? Stereo: 175 x 4
4? Stereo: 125 x 4
4? Bridged: 350 x 2
RMS Power [Watts/Channel] @ 14.4V
Sub Channel:		 1? mono: 700W
2? mono: 550W
4? mono: 300W
Dynamic Power [Watts] 1500
Frequency Response [Hz] Stereo Channels: 20–20k
Sub Channel: 10–160 (+0/-1dB)
Signal-to-Noise Ratio (a-weighted, re: rated power) >95dB
Signal-to-Noise Ratio (ref: 1W output) >75dB
Dimensions [in, cm] Height: 2-3/8 (6 cm)
Width: 8-7/16 (21.4 cm)
Length: 12-5/8 (32 cm)
Input Sensitivity High level 1V–40V
Low level 125mV–5V
Variable Electronic Crossover
Amp 1 & Amp 2 (Stereo Channels):		 Off/HP/LP/BP
HP: 20–5kHz
LP: 40–5kHz
Variable Electronic Crossover
Sub Channel:		 LP 40–160Hz, 24dB/octave Linkwitz-Riley
Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley
Variable Subsonic Filter 24dB/octave Linkwitz-Riley, variable hi-pass @ 10–80Hz (sub channel only)
KickEQ+™ (Sub Channel) 0–6dB, variable center 20–80Hz, variable bandwidth 1–5

File Downloads

Manual | Download

LX Control Center Info | Download
