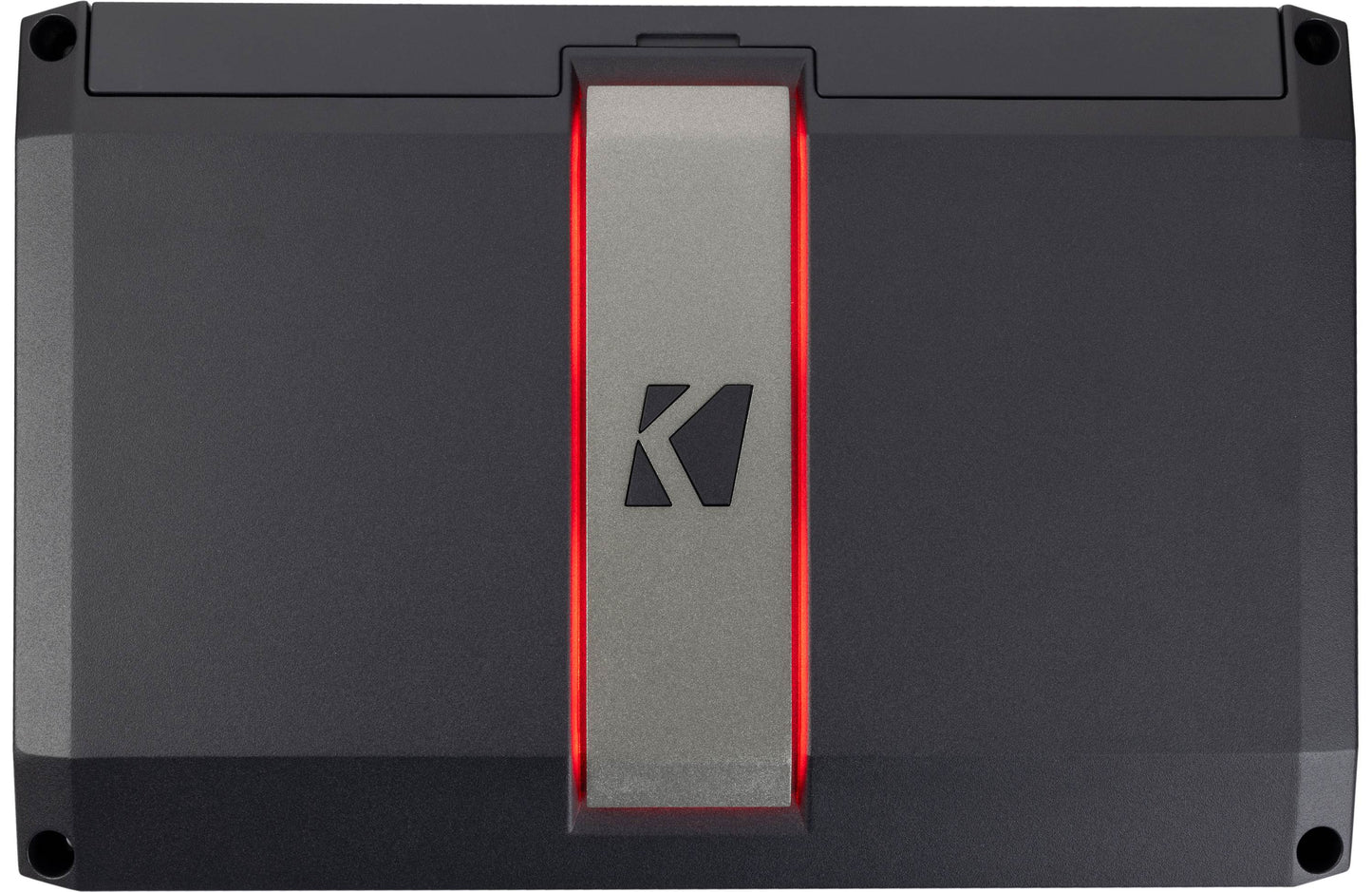

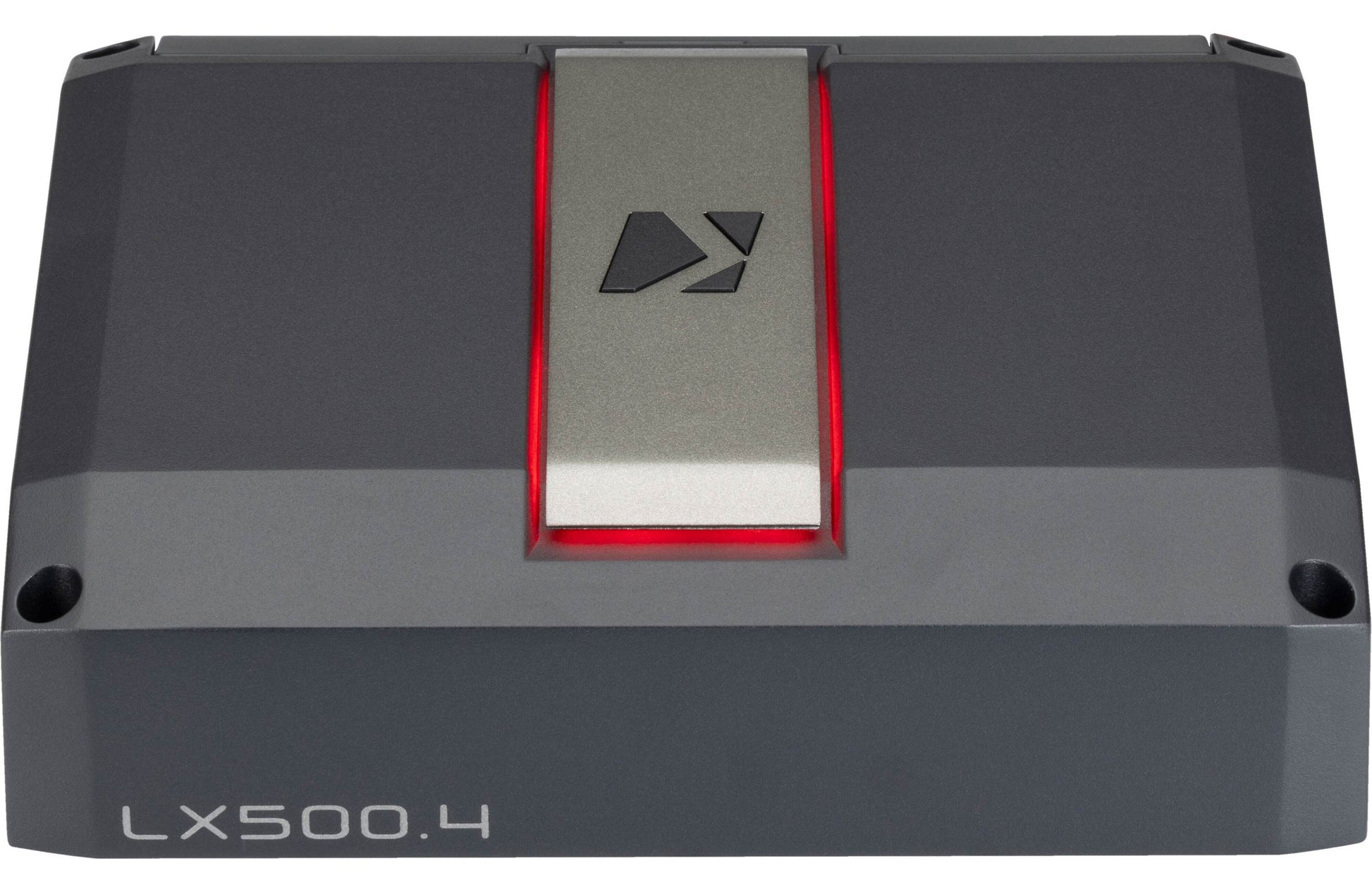

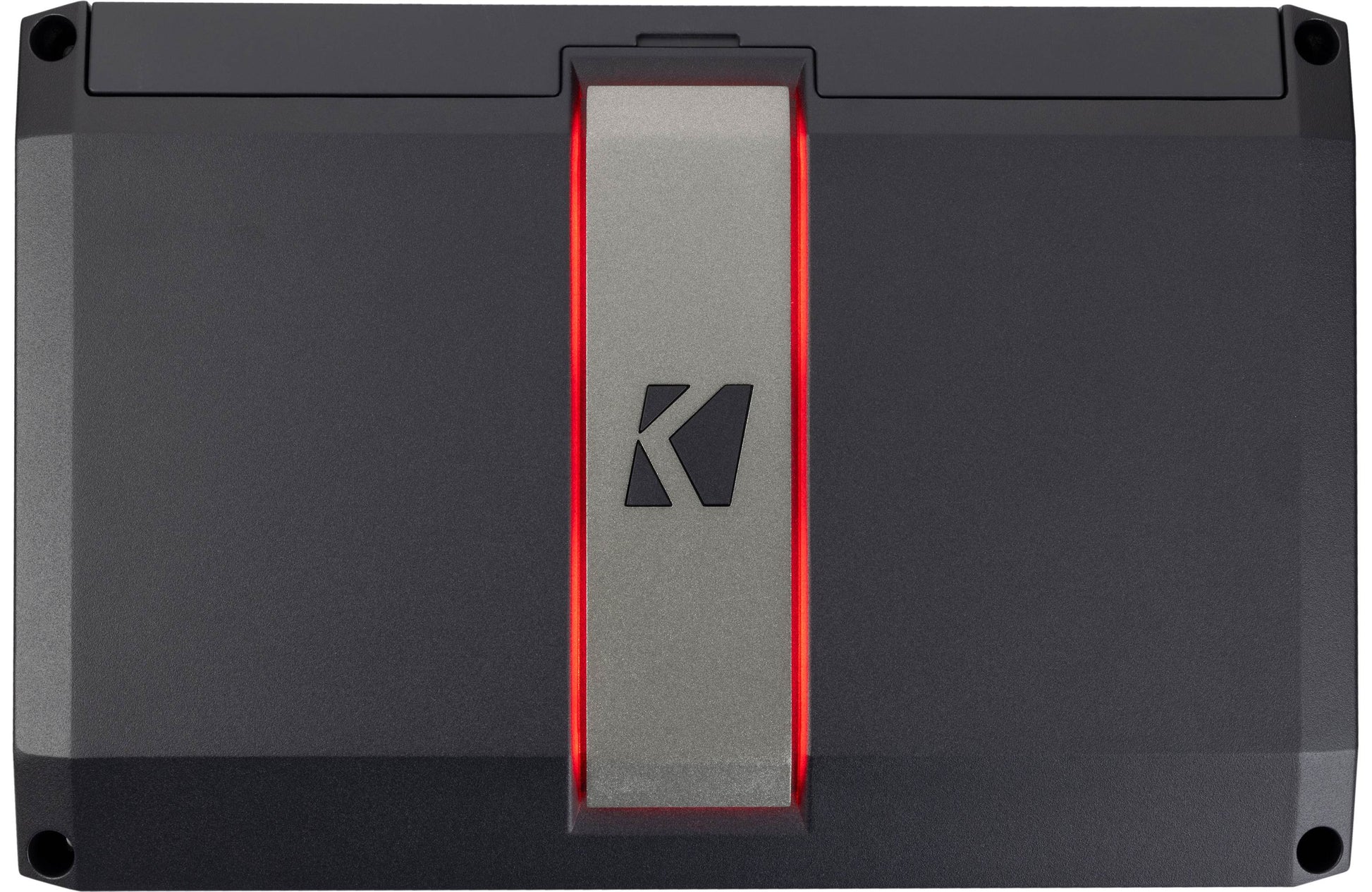

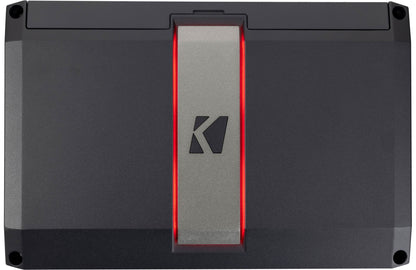

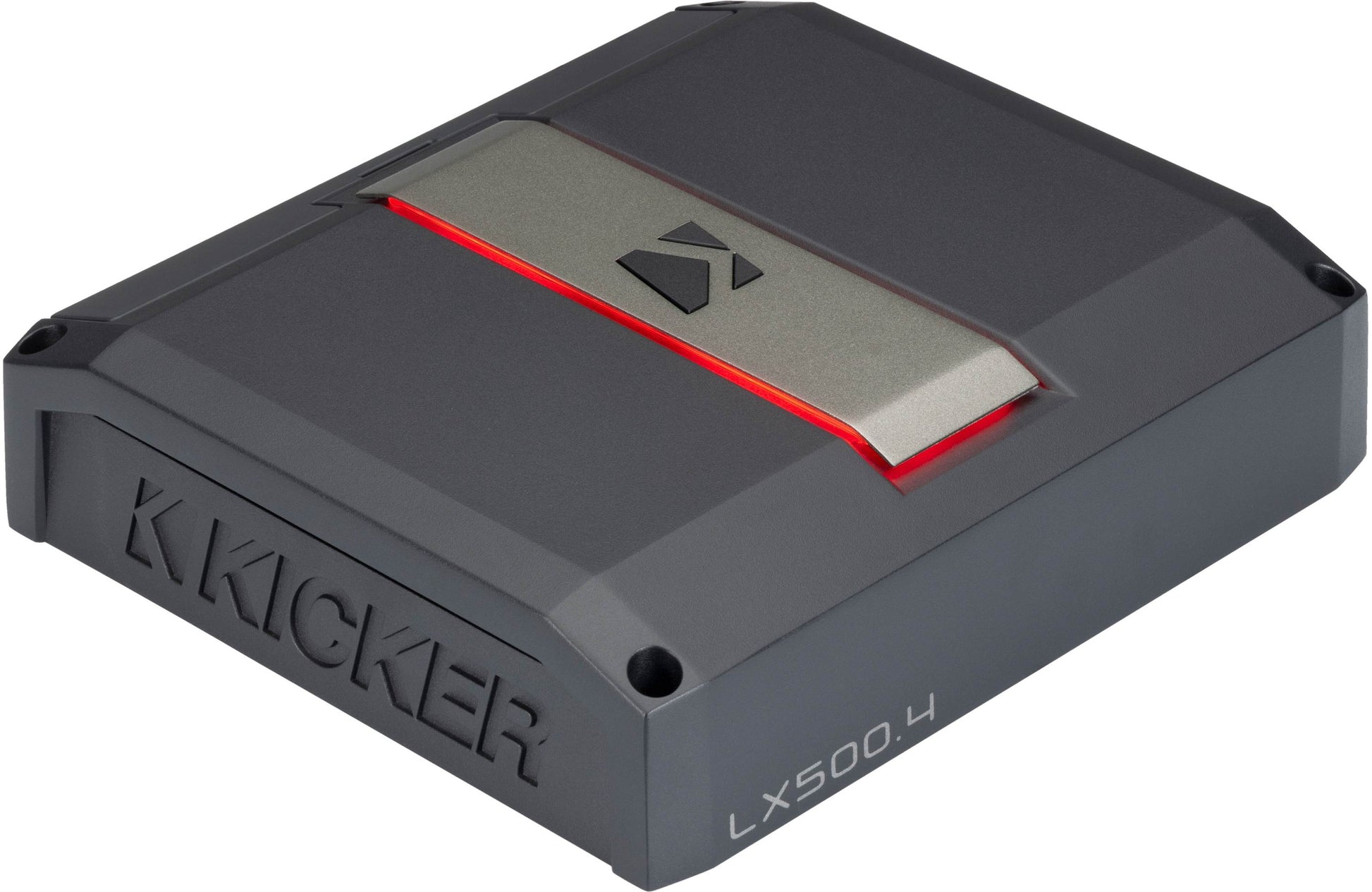

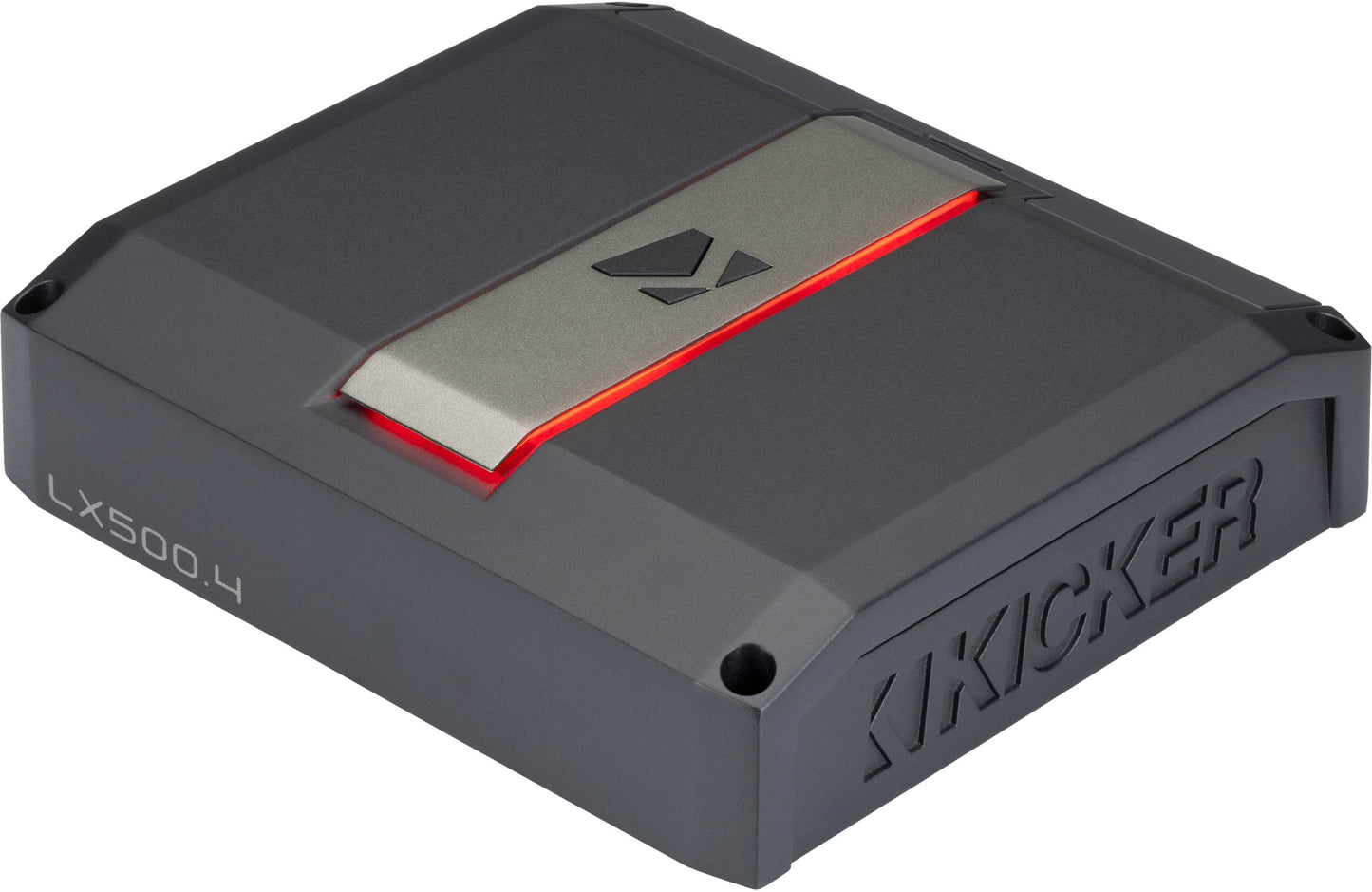

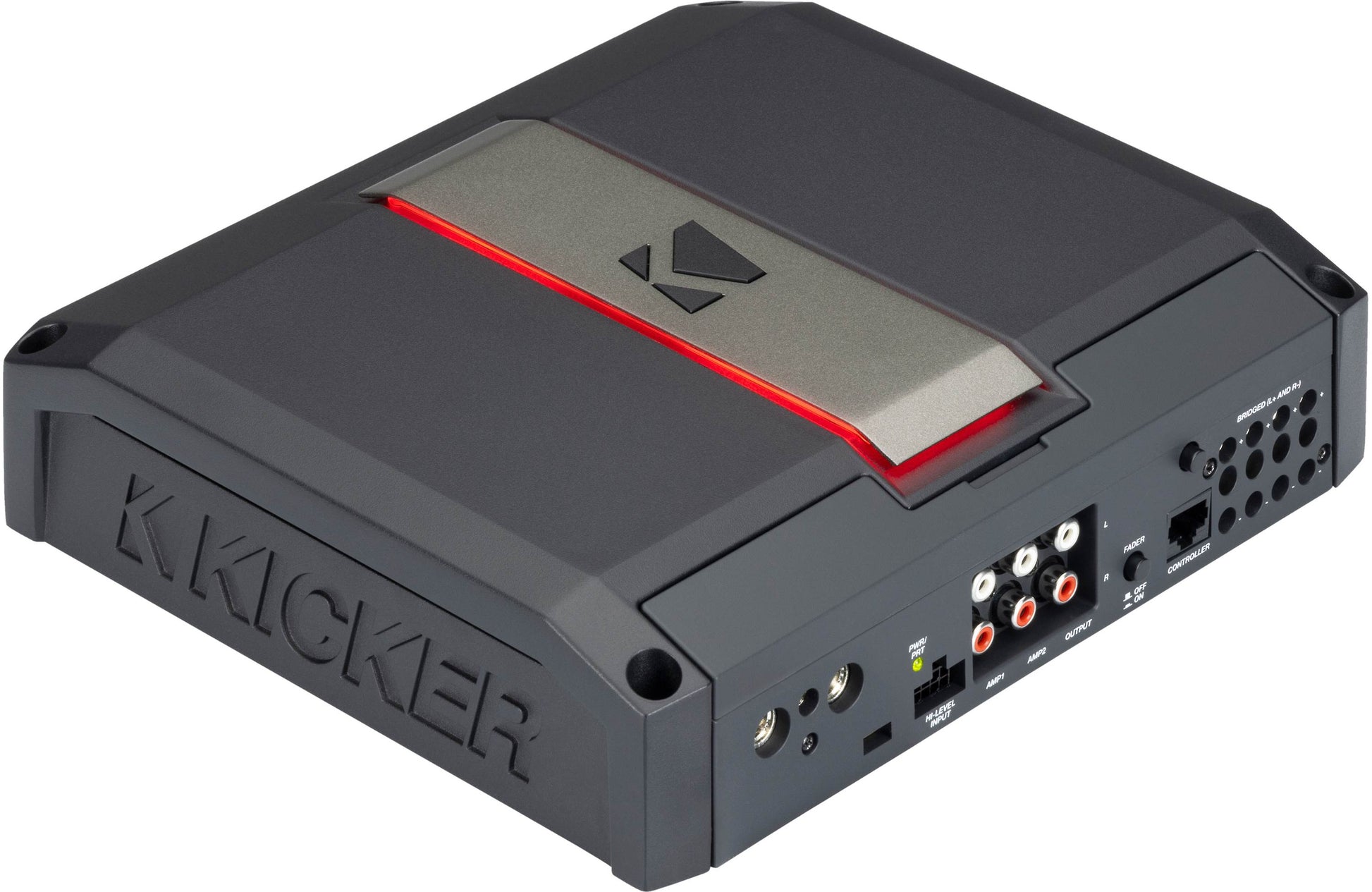

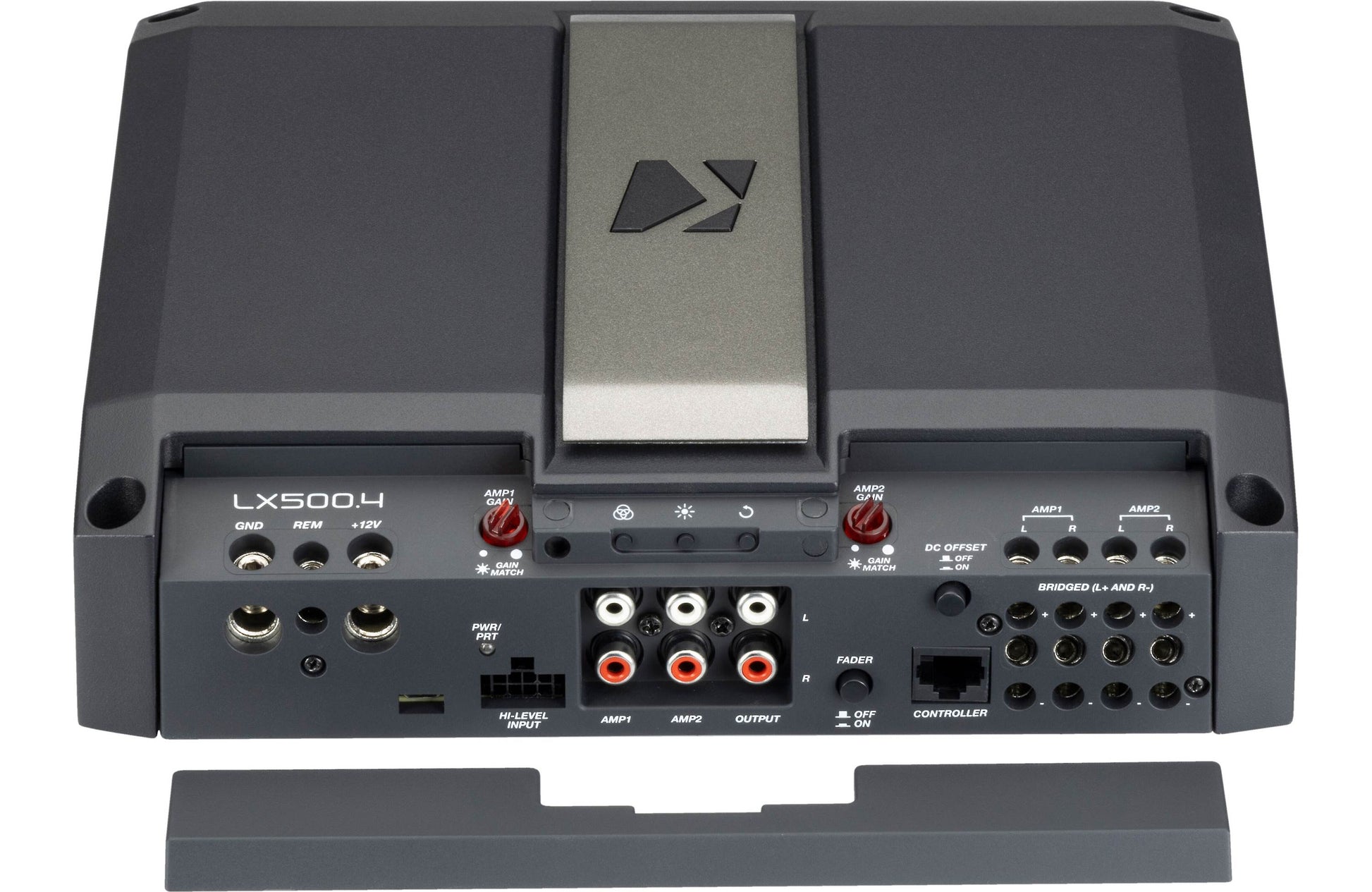

Kicker 51LX5004 LX500.4 4-Channel Amplifier

Kicker 51LX5004 LX500.4 4-Channel Amplifier

In stock

The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC).

  • price-tag logoNew Launch
$599.99
$599.99
Save: $-599.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

From the Ground Up

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.

  • Incrementally dial in entire system with the included LX Control Center
  • Class-D design for lower current draw, longer playing times, and lower operating temperatures
  • Gain-match LEDs show you perfect gain setting

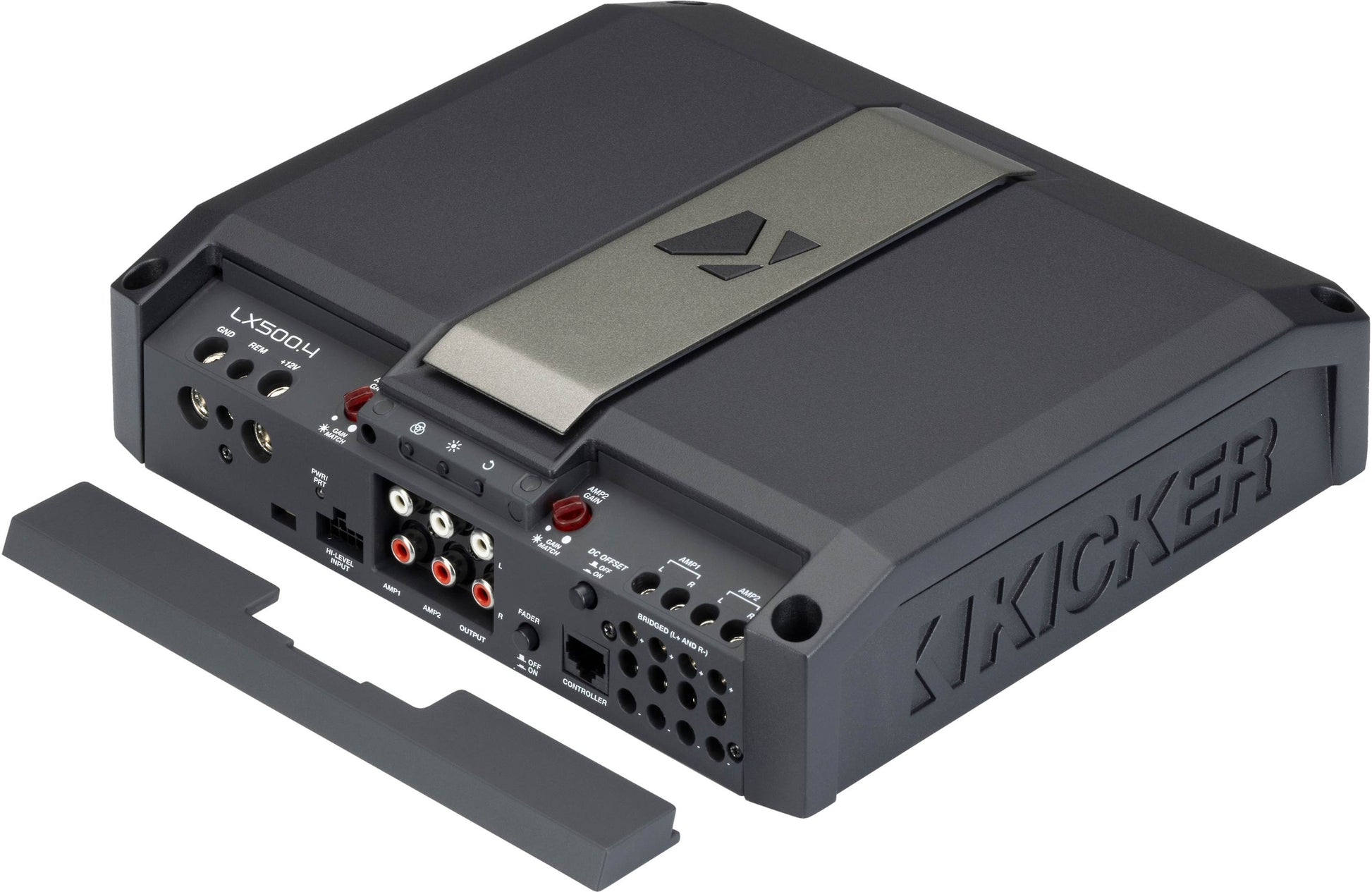

  • Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
  • Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with full differential inputs created to eliminate unwanted noise for crystal-clear sound
  • LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

Comes with the LX CONTROL CENTER (LXCC)

  • Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
  • Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
  • Cable Length – integrated 3.28 feet (1m), directly into amp
-Learn More / LX Control Center PDF-

Specifications
LX 500.4 white paper 51LX5004 Whitepaper PDF
RMS Power [Watts/Channel] @ 14.4V 2? Stereo: 225 x 4
4? Stereo: 125 x 4
4? Bridged: 450 x 2
Dynamic Power [Watts] 1100
Frequency Response [Hz] 20–20k
Signal-to-Noise Ratio (a-weighted, re: rated power) >95dB
Signal-to-Noise Ratio (ref: 1W output) >75dB
Dimensions [in, cm] Height: 2-3/8 (6 cm)
Width: 8-7/16 (21.4 cm)
Length: 9-7/16 (24 cm)
Input Sensitivity High level 1V–40V
Low level 125mV–5V
Variable Electronic Crossover 24dB/octave Linkwitz-Riley
Each channel pair Off/HP/LP/BP:
• HP: 20–5kHz
• LP: 40–5kHz
Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley
KickEQ+™ Not applicable for LX500.4 (no sub channel)
