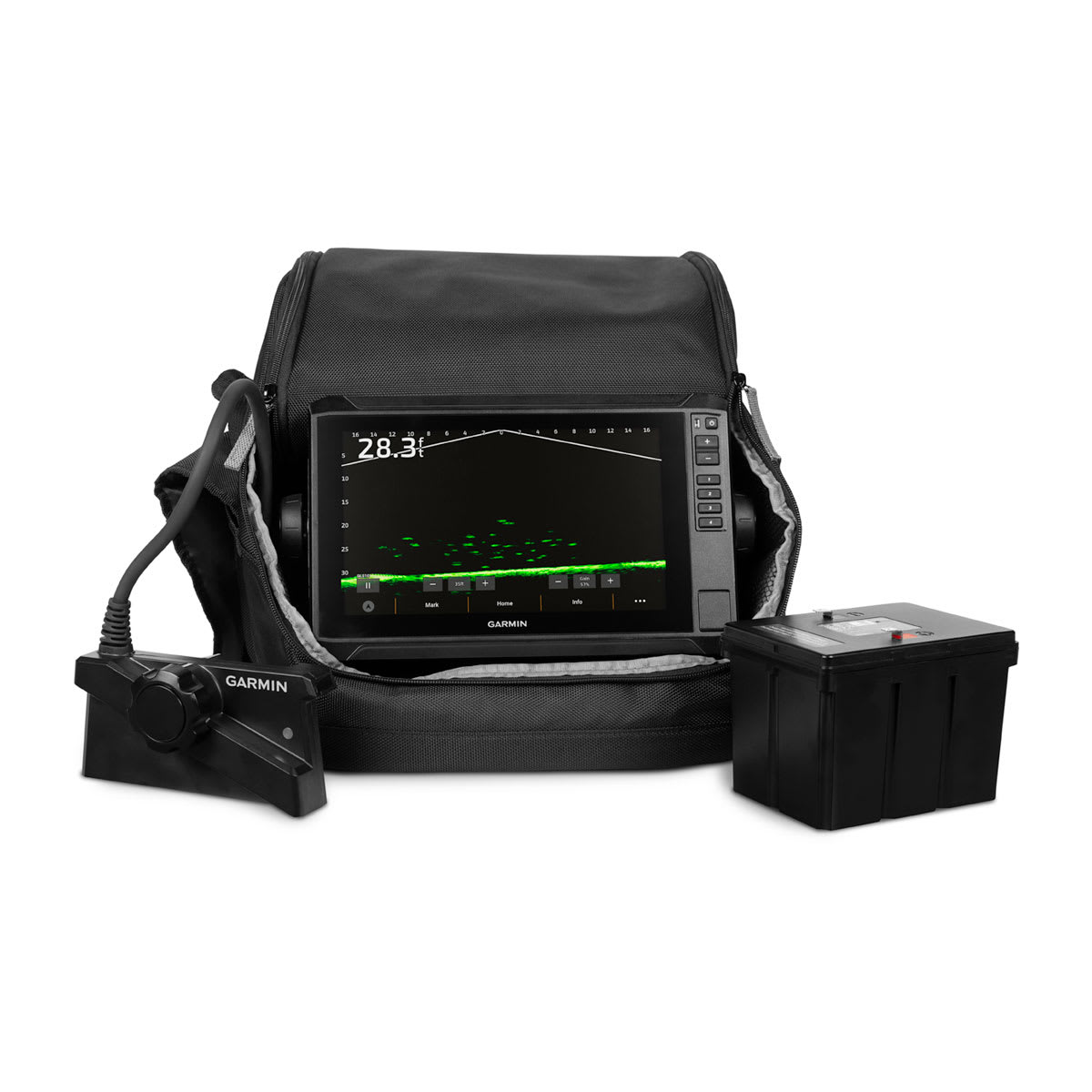

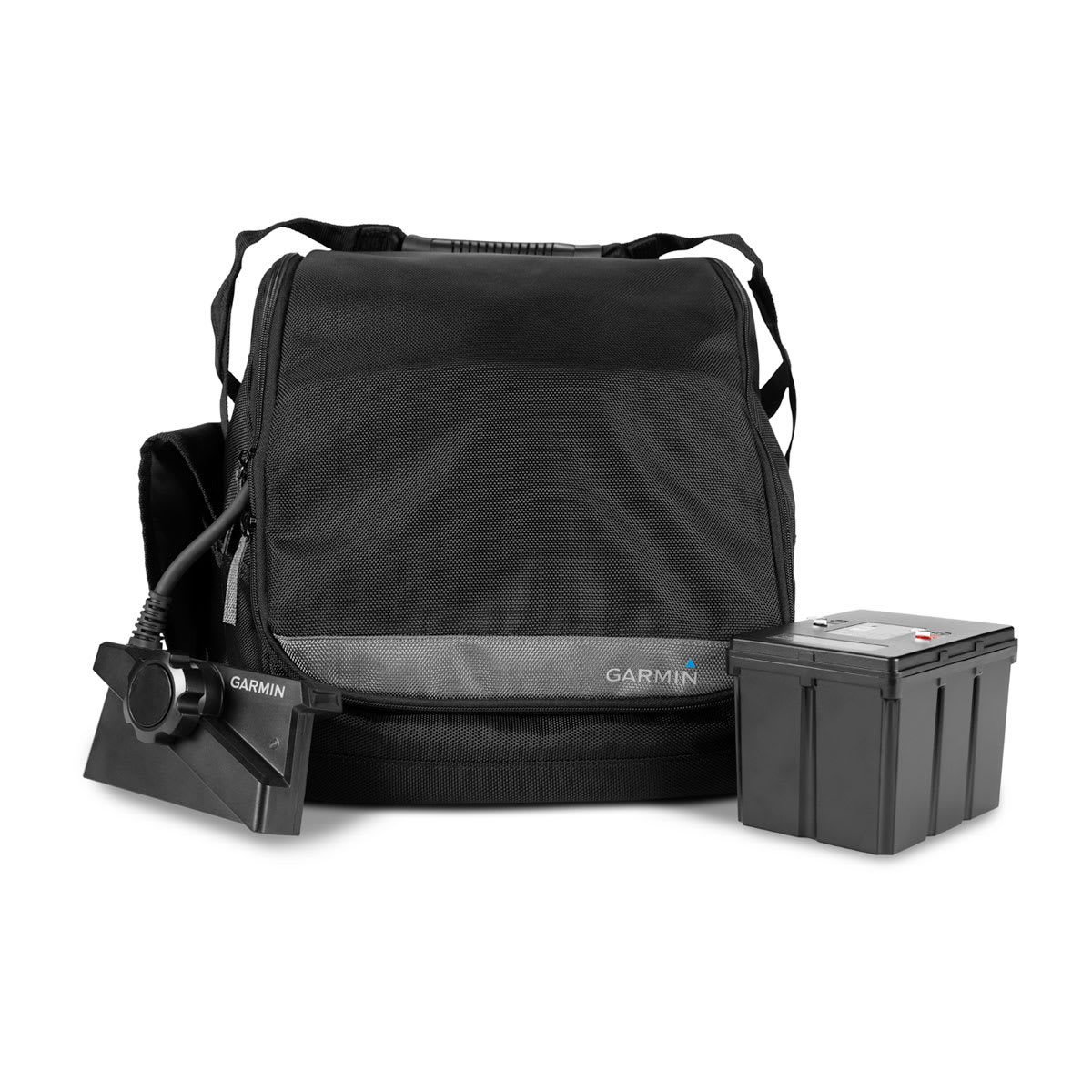

Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.
GET IMPROVED CLARITY, SENSITIVITY AND TARGET SEPARATION
SCAN SURROUNDINGS WITH REDUCED NOISE AND FEWER SONAR ARTIFACTS
USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL
USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH
FISH LONGER WITH A 16.5AH LIGHTWEIGHT LITHIUM-ION BATTERY
INCLUDES A RUGGED, PORTABLE CARRYING CASE

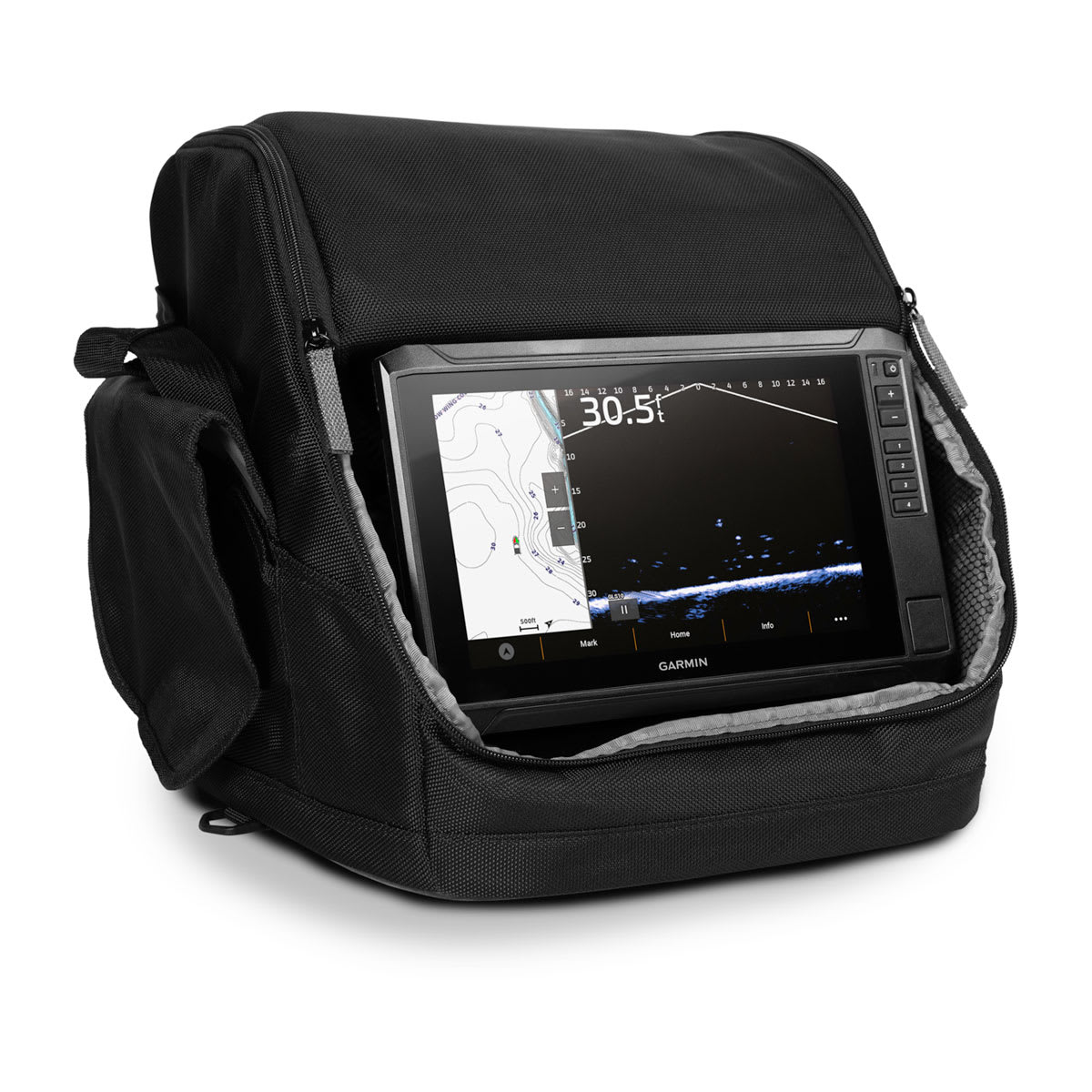

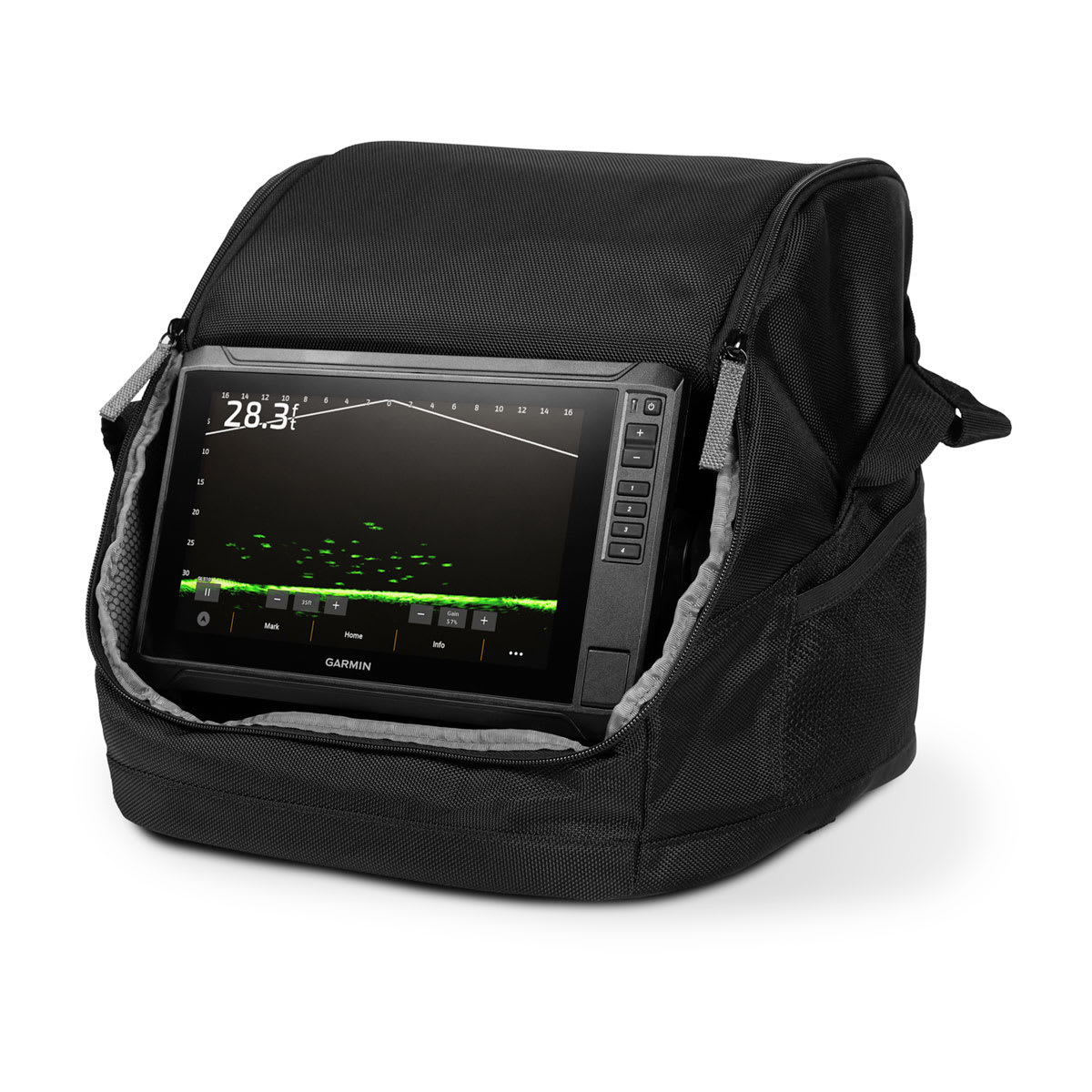

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.
The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions
Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
You can create custom pages that combine sonar, flasher and map on your display.
Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig.

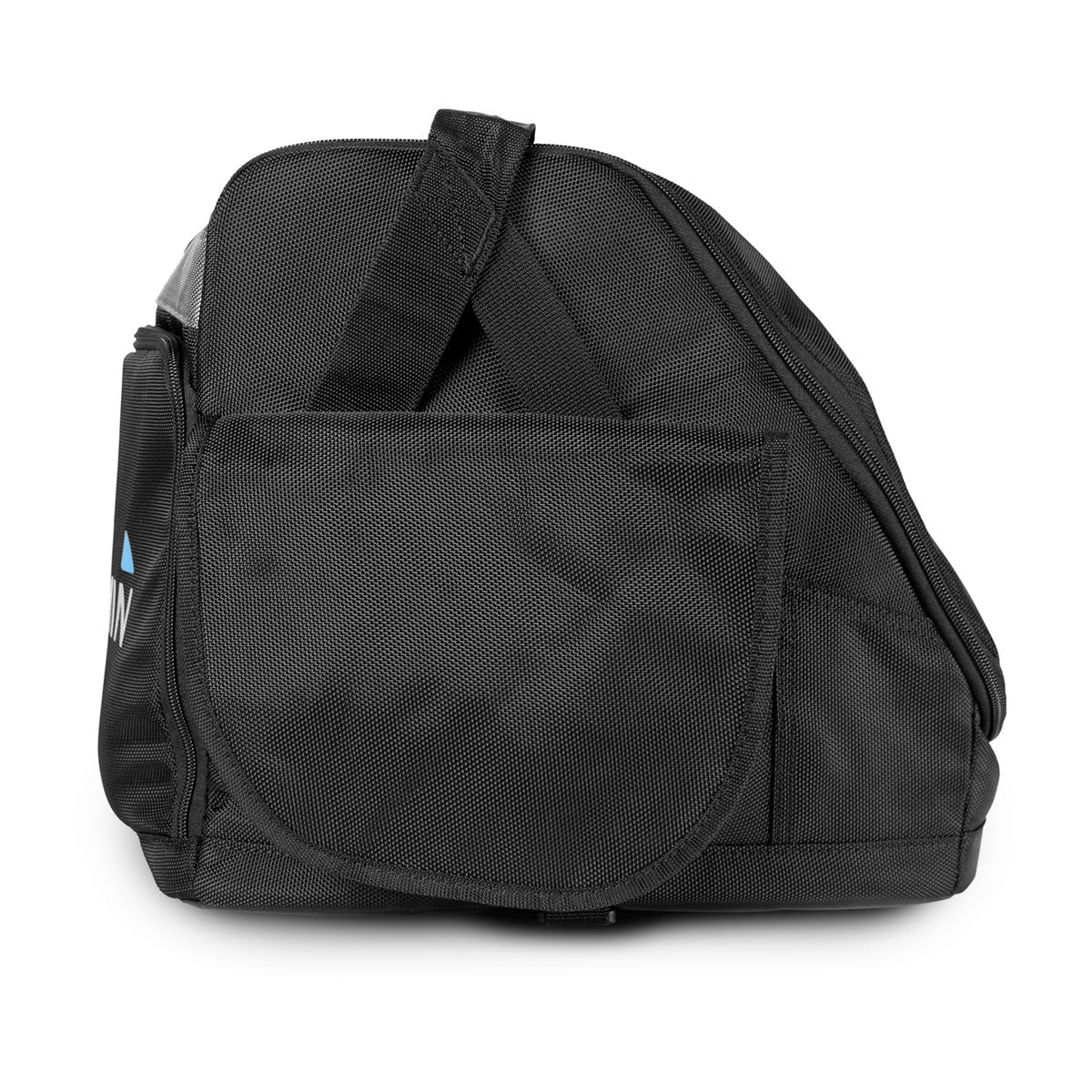

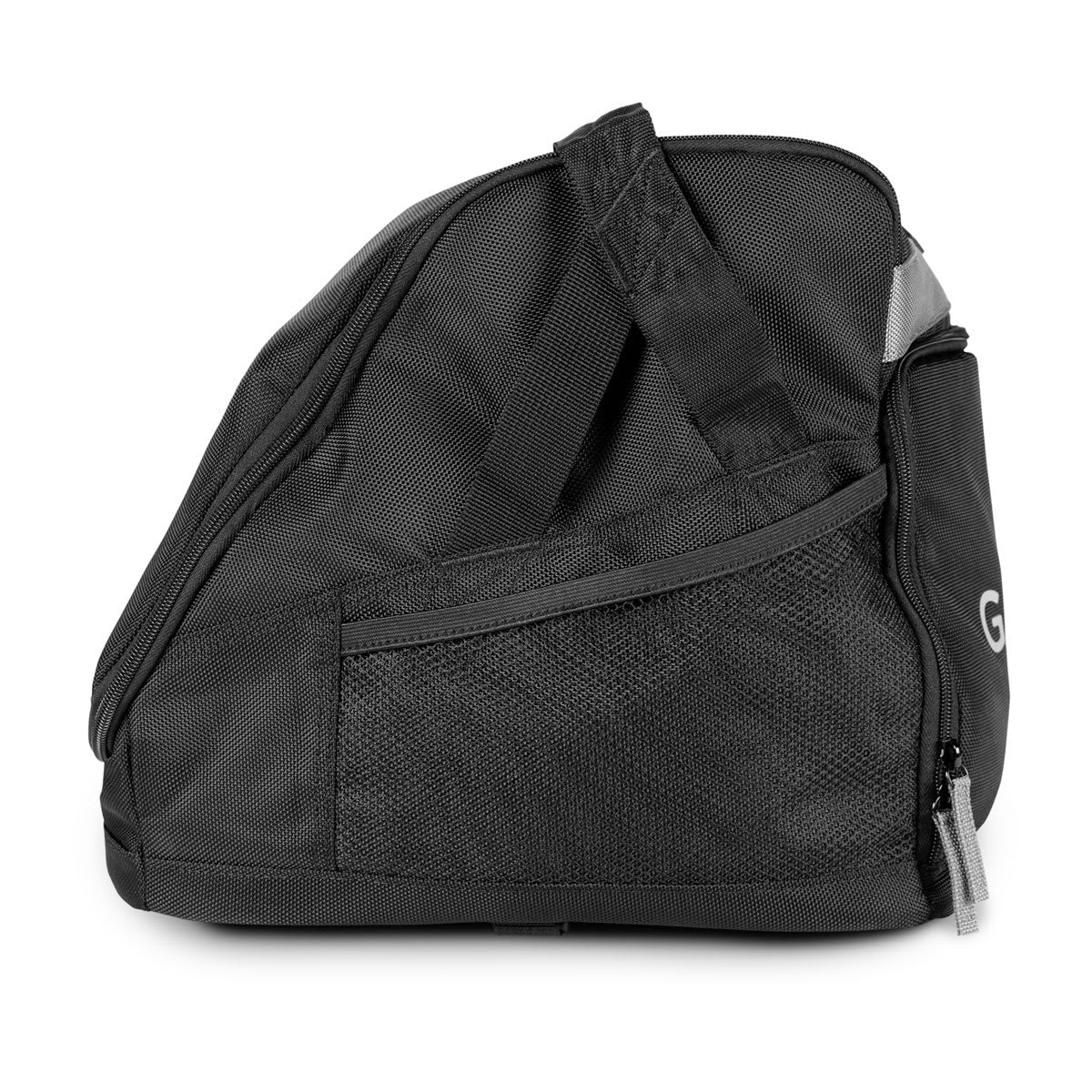

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
| General | |
| Dimension | 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm) |
| Weight | 22.5 lbs (10.2 kg) |
| Water rating | IPX7 |
| Touchscreen | ✓ |
| Display Type | WSVGA, TN |
| Display Size | 7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm) |
| Display resolution | 1024 x 600 pixels |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Ice Fishing Details | |
| Battery type, size | Lithium-ion, 16.5Ah |
| Bag size | XL |
| Included transducer | LiveScope™ Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
| Sensors | |
| GPS | ✓ |
| GLONASS | ✓ |
| Galileo | ✓ |
| BeiDou | ✓ |
| Has built-in receiver | ✓ |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | ✓ |
| Supports WAAS | ✓ |
| Supports multi-band, multi-constellation GPS | ✓ |
| Built-in Maps | |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Optional Map Support | |
| Garmin Navionics+™ | ✓ |
| Garmin Navionics Vision+™ | ✓ |
| TOPO 100K | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Chartplotter Features | |
| ActiveCaptain® compatible | yes |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Sonar Features | |
| Displays sonar | ✓ |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✓ |
| LiveScope | ✓ |
| Connections | |
| NMEA 2000® ports | ✓ |
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| Bluetooth® pairing | ✓ |
| ANT® (Connectivity) | ✓ |
| Garmin Wi-Fi network (local connection) | ✓ |
| Additional | |
| Garmin Navionics+ Inland & Coastal | 95sv Canada |
| Garmin Navionics + (Inland) | 93sv U.S. Lakes |
