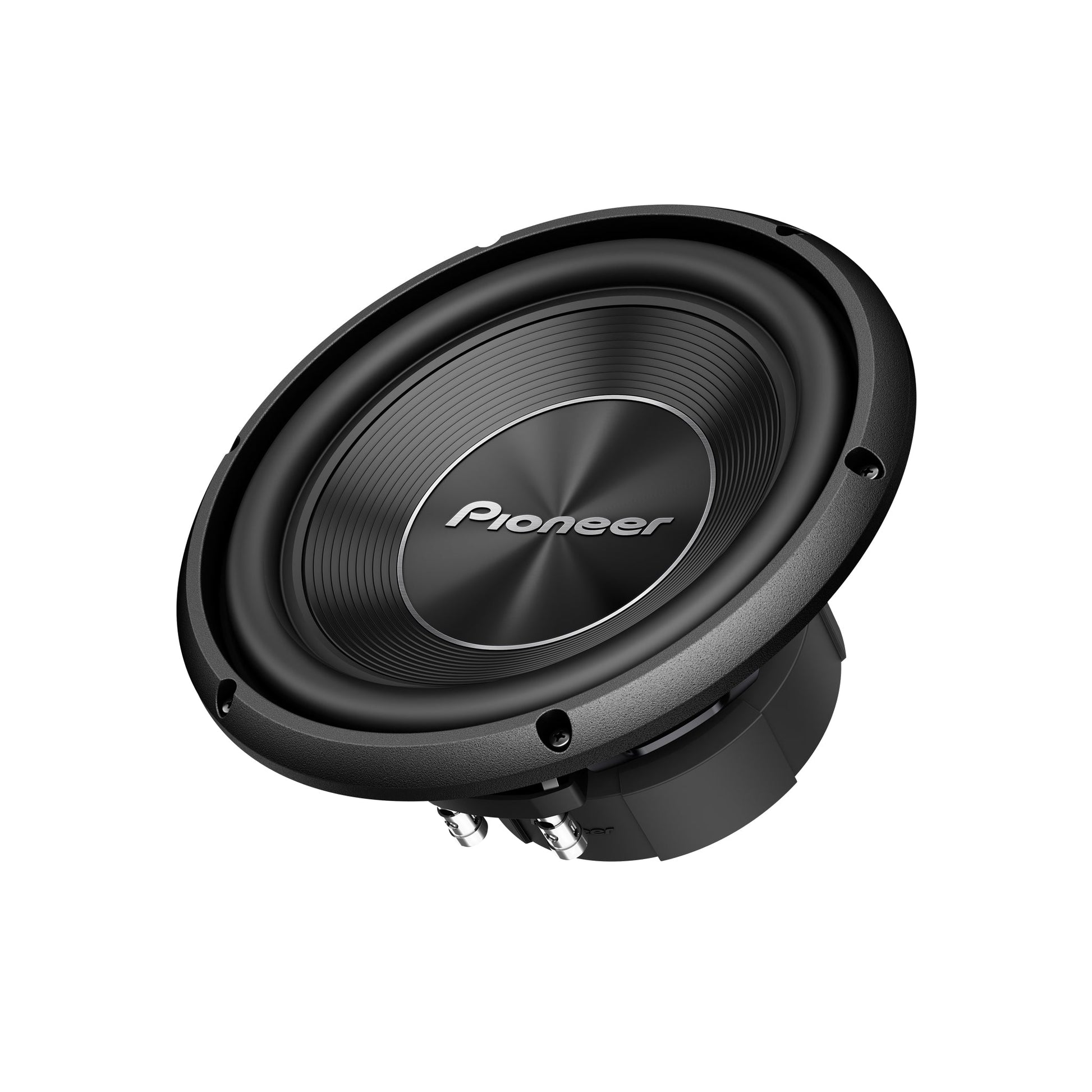

Pioneer TS-A250D4

A-SERIES SUBWOOFER

Upgrade to high performance with the Pioneer A-series sound design which acoustically matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

GLASS-FIBER & MICA REINFORCED IMPP™

Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone due to its low mass and high damping properties. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers, using advanced Computer-Aided Manufacturing, developed a process to blend glass fibers and mica into the polypropylene resin during the injection molding process. The resulting reinforced IMPP™ cone is thinner and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.

DEEP BASS

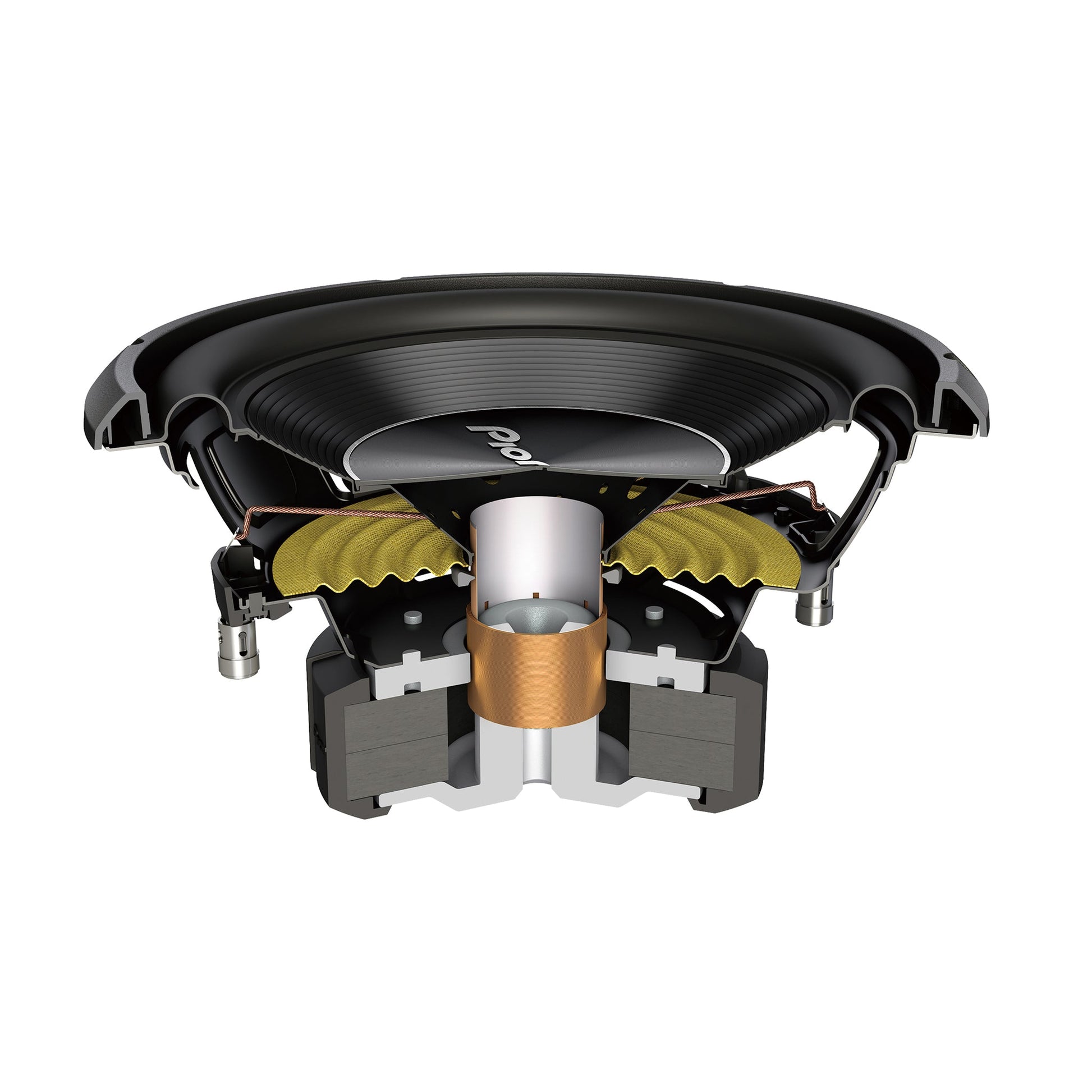

To achieve deep and tight bass, a rigid and lightweight cone is essential. However, without a proper motor structure, it’s ineffective if you’re looking for strong and dynamic bass. The subwoofer uses a double-stack strontium magnet for a stronger and longer magnetic field, paired with a large copper voice coil and an aluminum voice-coil former for better bass control under high excursions. This also helps achieve better heat dissipation.

CARSOUNDFIT

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

• 1300 Watts Max. Power / 400 Watts Nominal Power
• 10" Glass-fiber & Mica reinforced IMPP™ Cone
• Rubber Surround & Aramid-fiber spider
• Frequency range: 20 Hz to 2.0 kHz
• Speaker Impedance: 2x 4 ohms
• Speaker Efficiency: 74 dB (1W/1M)
• Mounting depth: 5.875” (149mm)
• Recommended Box volume : 1.0cu.ft (vented) / 0.7cu.ft. (sealed)
