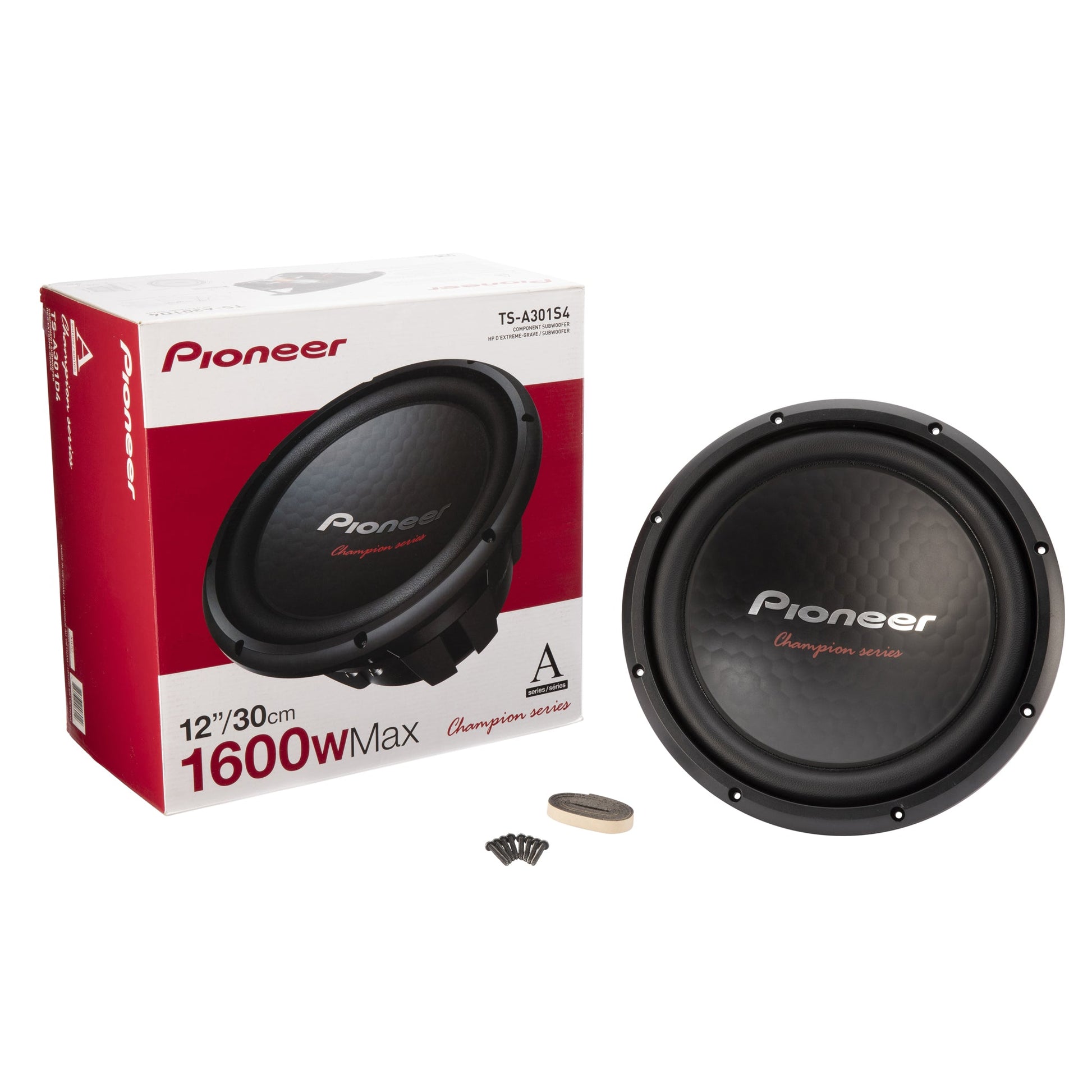

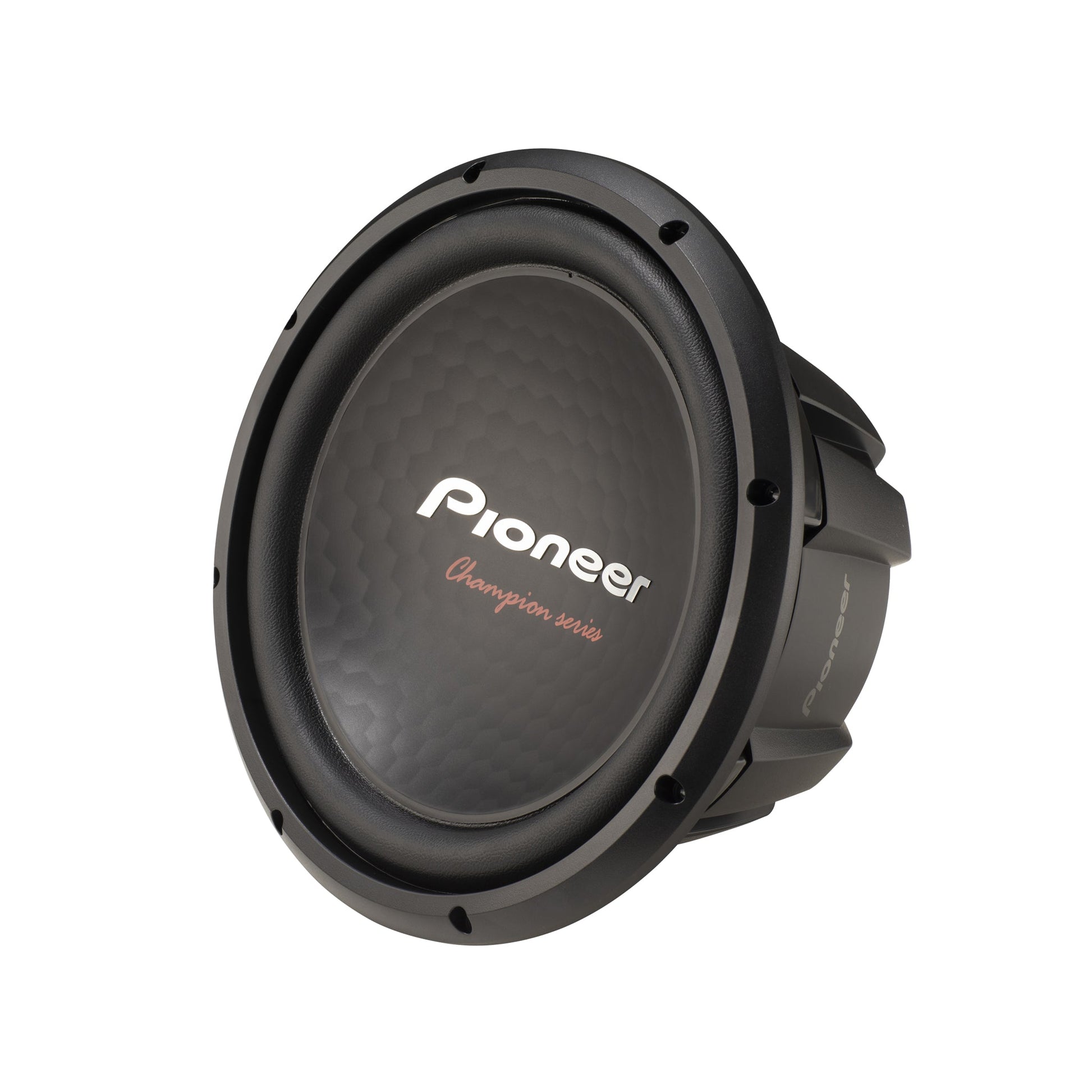

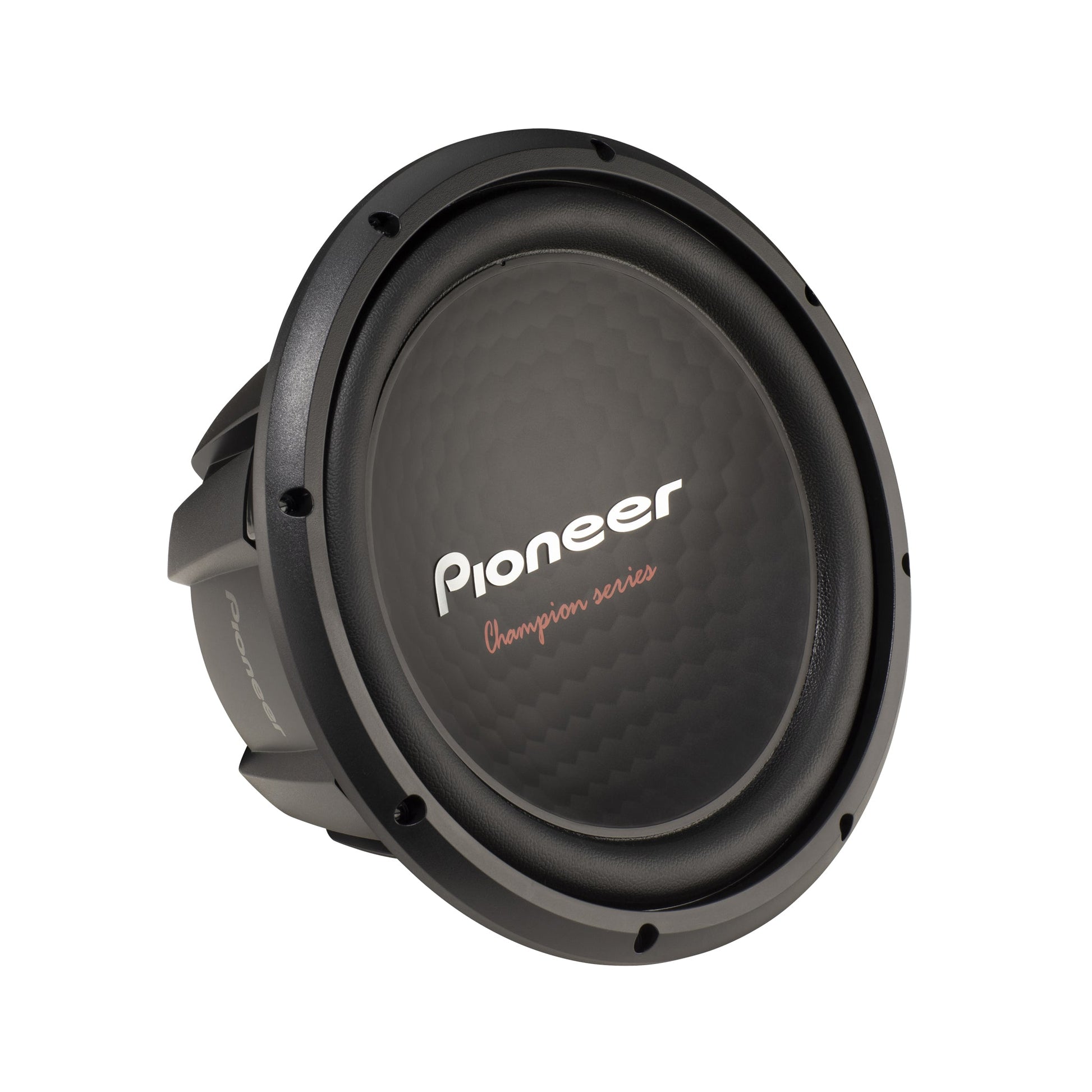

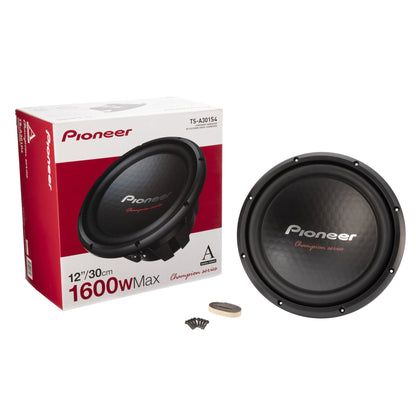

The Champion Series Subwoofers features iconic design elements that are symbolic to the subwoofer’s lineage including red graphics design decals; spider; and “Champion” cursive script.

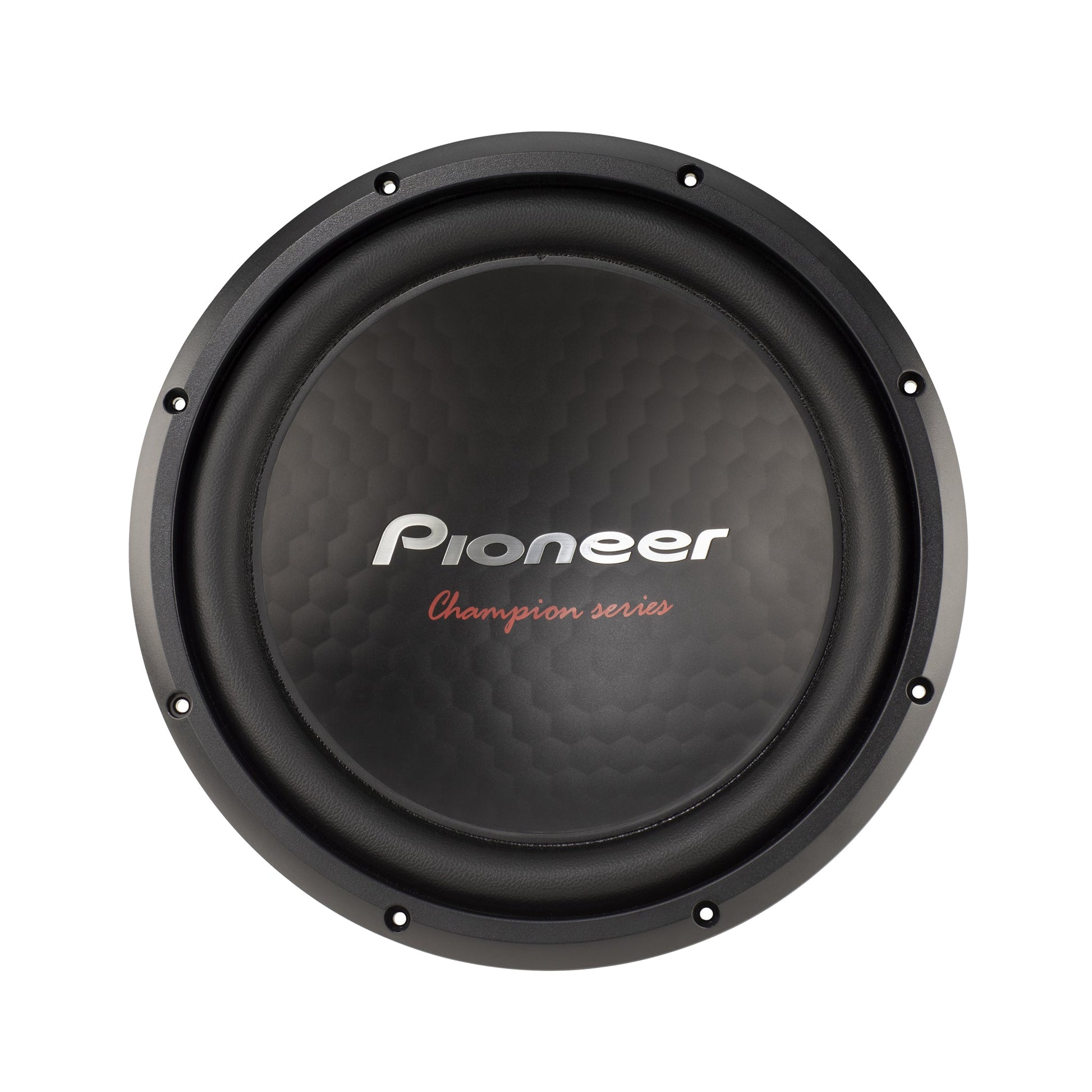

Designed with a highly rigid and durable Honeycomb IMPP™ composite seamless cone plus a rigid drive cone for deeper and louder bass reproduction.
A lighter and more durable surround, this subwoofer is comprised of elastic polymer and reinforced fiber to support the woofer during cone excursion for accurate and powerful bass.
To achieve deep and tight bass, a rigid and lightweight cone is essential. However, without a proper motor structure, it’s ineffective if you’re looking for strong and dynamic bass. The subwoofer uses a double-stack strontium magnet for a stronger and longer magnetic field, paired with a large copper voice coil and an aluminum voice-coil former for better bass control under high excursions. This also helps achieve better heat dissipation.

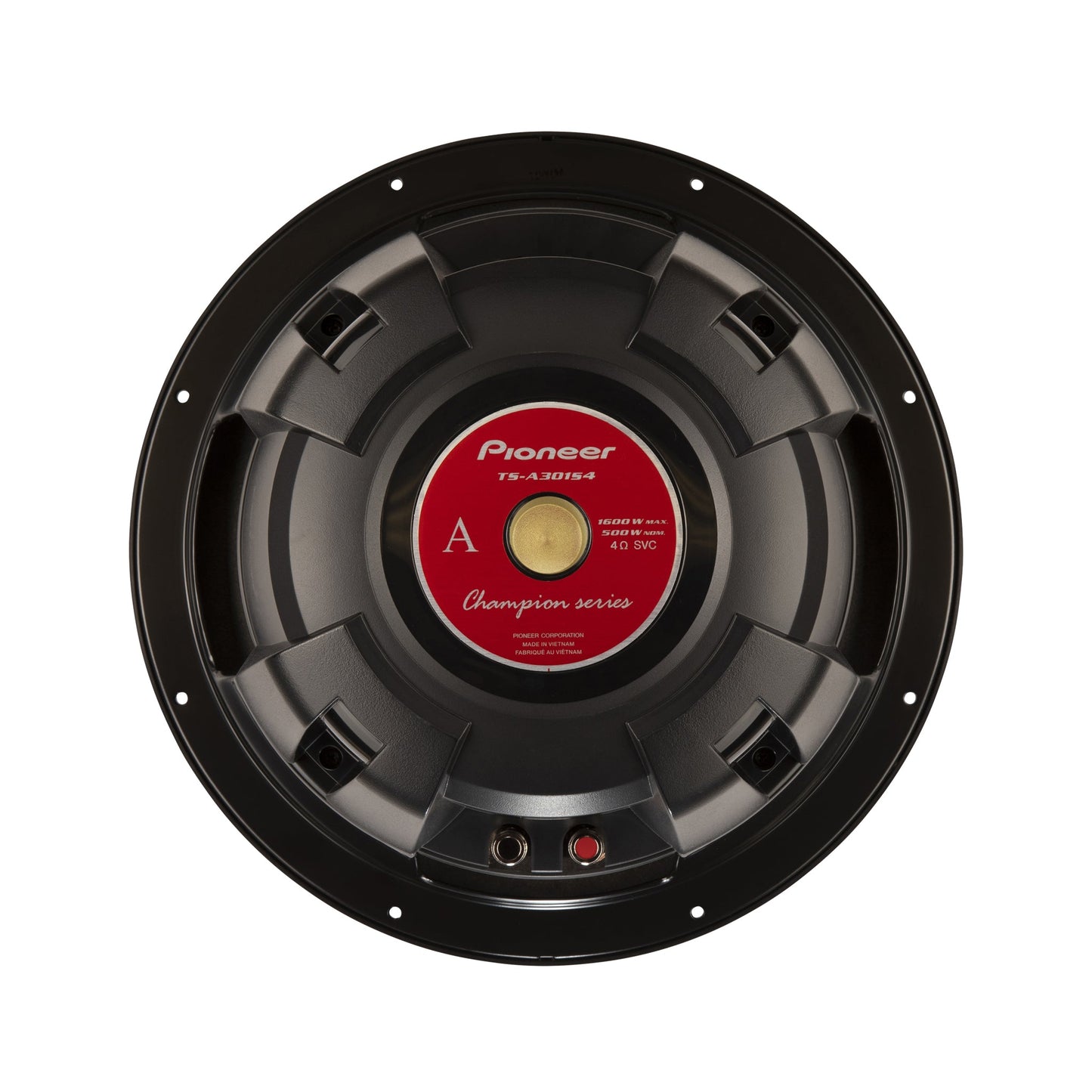

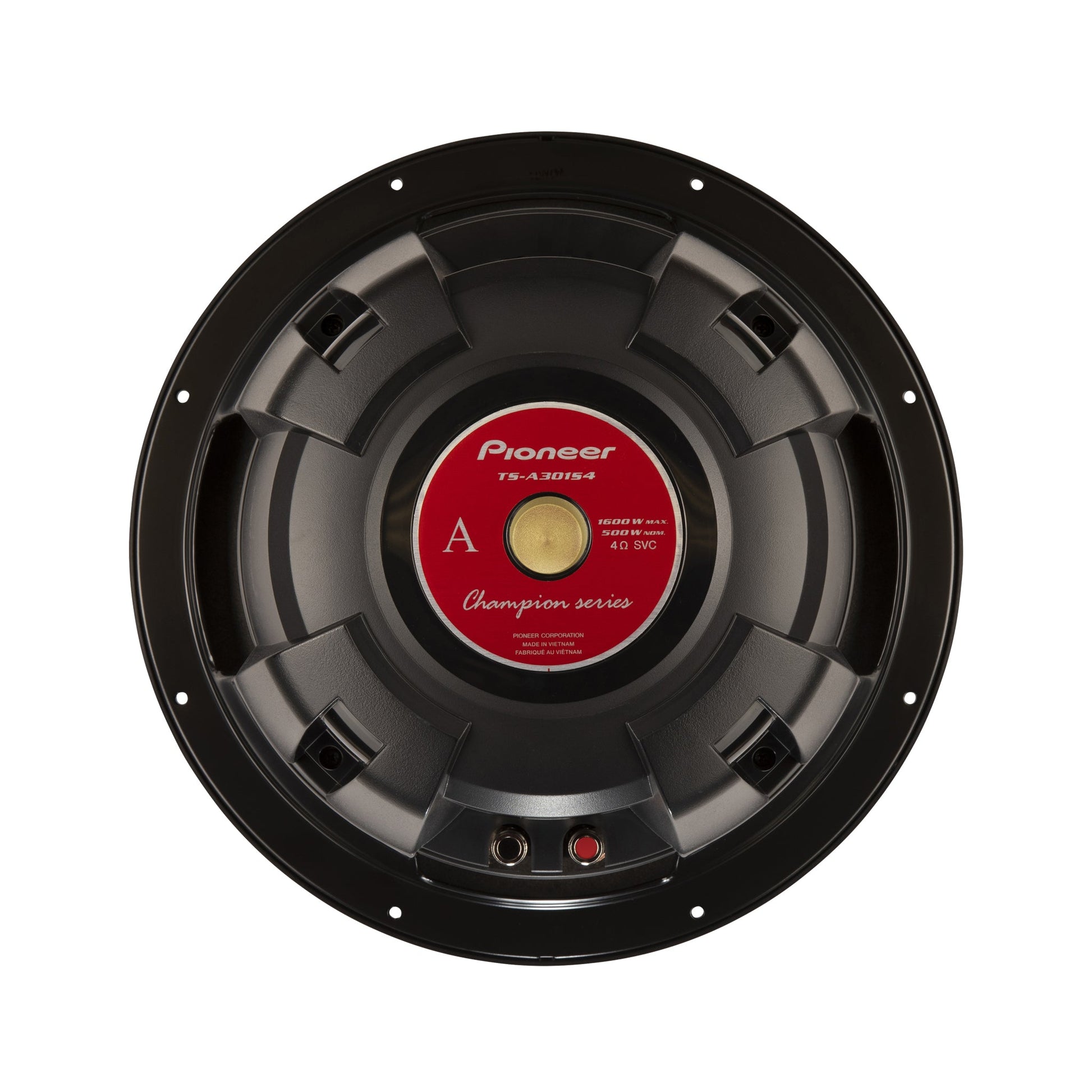

This Champion subwoofer features a reinforced steel chassis with a grooved structure that increases strength through stress dispersion. This robust design, intended to support high driving power, also helps minimize any vibrations that may be induced during large cone excursions. The goal is to give you only the good vibrations that are on the recording.
Pioneer's Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You'll be able to hear the difference between stock speakers and Pioneer's various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power handling (RMS) - Watts
500 W
|
Frequency Response
20 Hz to 1.6 kHz
|
|
Maximum Peak Power Handling - Watts
1600 W
|
Nominal Impedance - Ohm
4-Ohm
|
|
Sensitivity (1W/1m)
92 dB
|
System-Type
Component
|
| FEATURES | |
|---|---|
|
CarSoundFit
Yes
|
Cut Out dimensions
11.125",28.26 cm
|
|
Equivalent Compliance (VAS)
34.1 Liters,1.2 Cu. Ft.
|
Free Air ResoNAnce (Fs)
38
|
|
Linear Excursion (Xmax)
7.7 mm,5/16"
|
Mounting Depth
6.125"
|
|
Port Diameter
3",7.62 cm
|
Port Length
6.5",16.51 cm
|
|
Recommended Ported Box Internal volume
42.5 Liters,1.5 Cu. Ft.
|
Recommended Sealed Enclosure Volume
1.25 Cu Ft,35.4 Liters
|
|
Total Speaker "Q" (Qts)
0.64
|
|
| MATERIALS | |
|---|---|
|
Basket Material
Steel
|
Center Cap Material
Polypropylene
|
|
Cone Material
Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
|
Damper
Poly cotton
|
|
Drive Cone Material
Cellulose Fiber
|
Installation Ring
ABS
|
|
Magnet Material
Ferrite
|
Magnet Weight
90 oz
|
|
Surround Material
Elastic Polymer,Reinforced Fiber
|
Surround Type
Rolled
|
|
Voice Coil Bobbin
Aluminum
|
Voice Coil Type
Single Voice Coil 4-ohm
|
|
Voice Coil wire
Copper
|

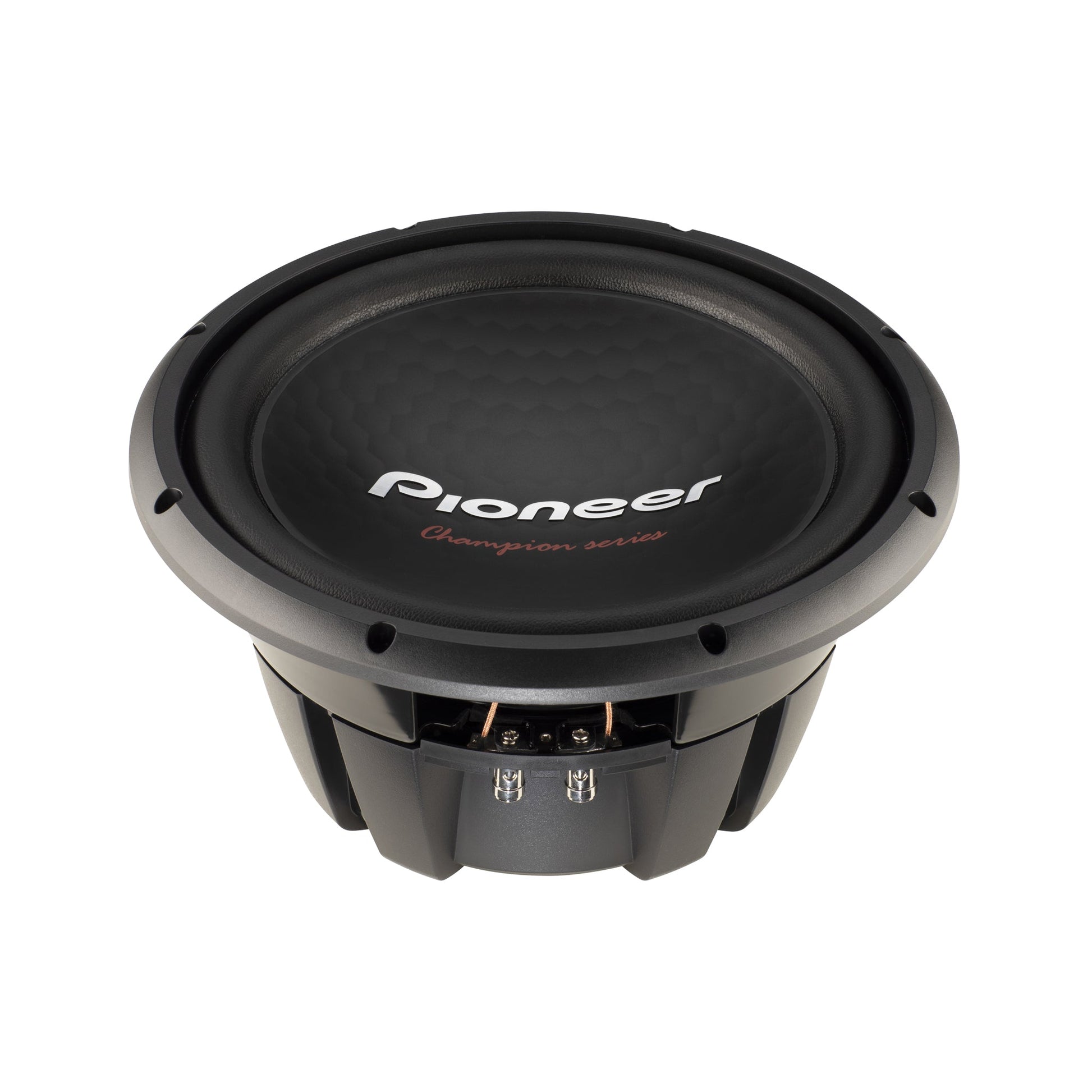

Wire Terminals
Push Type
|
