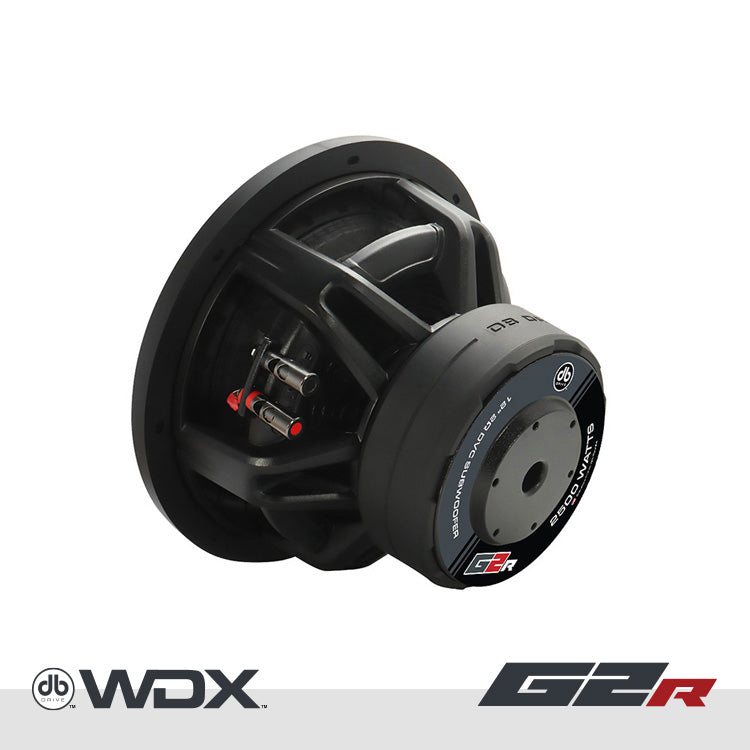

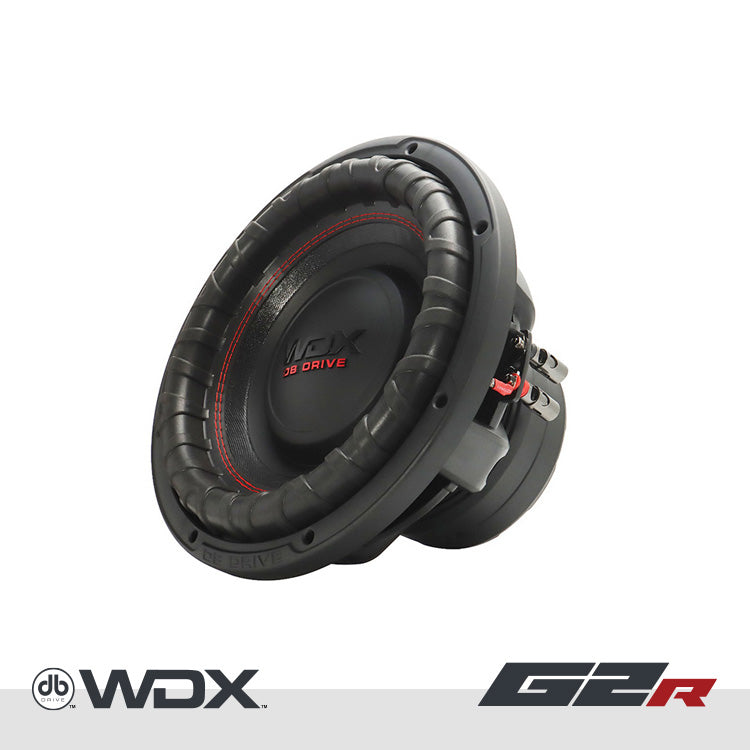

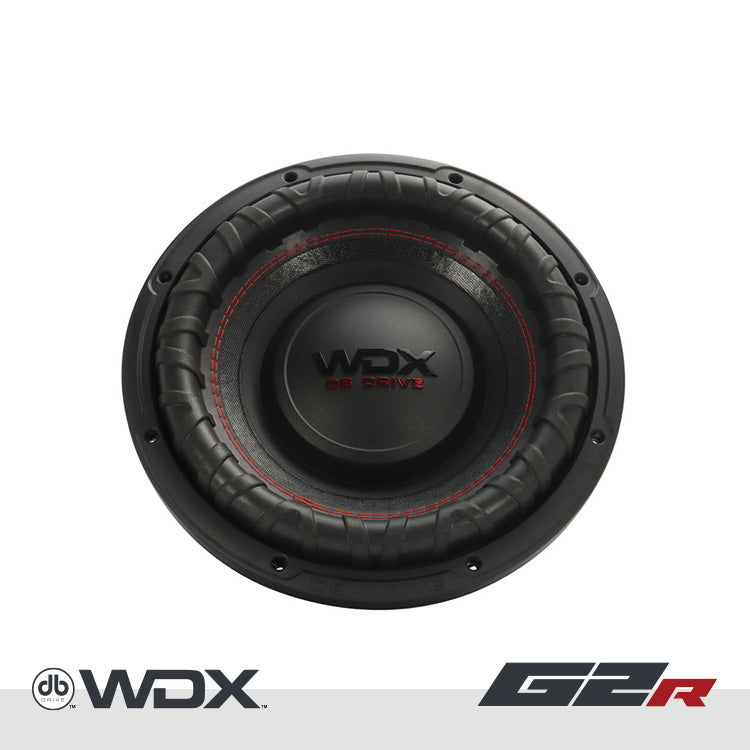

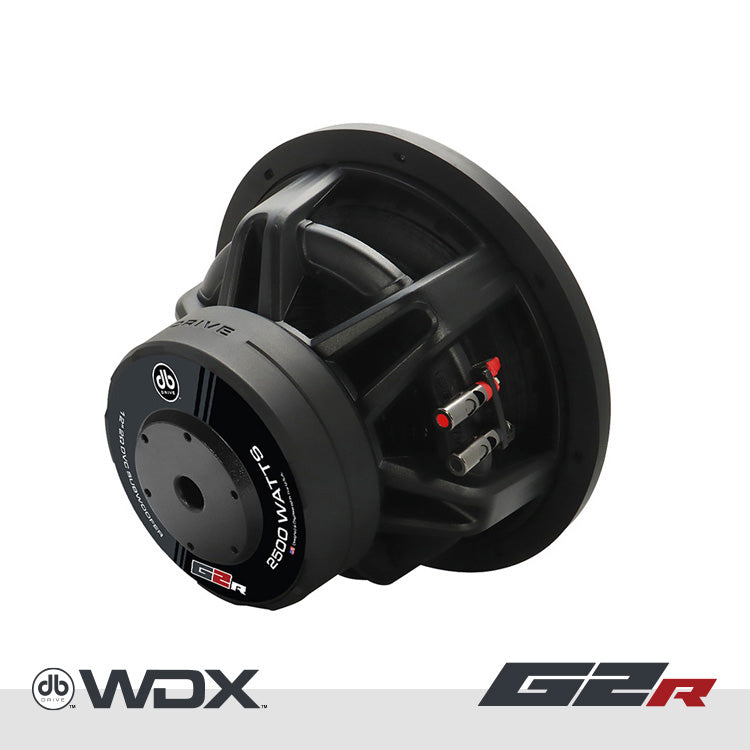

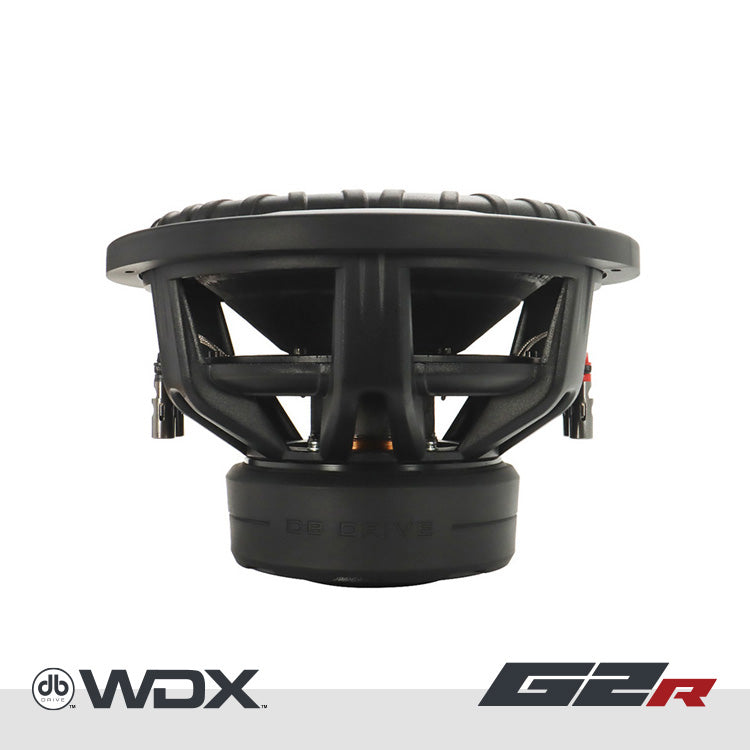

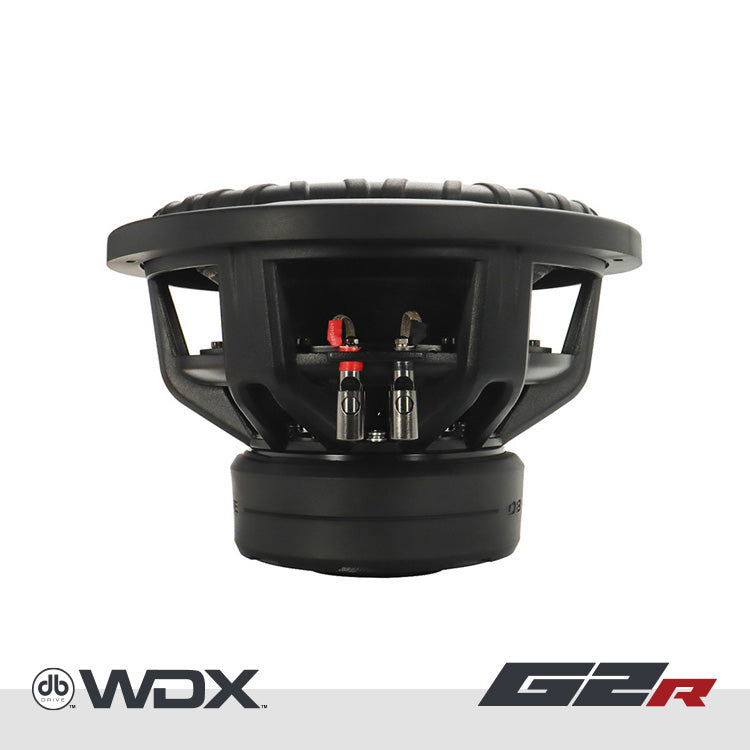

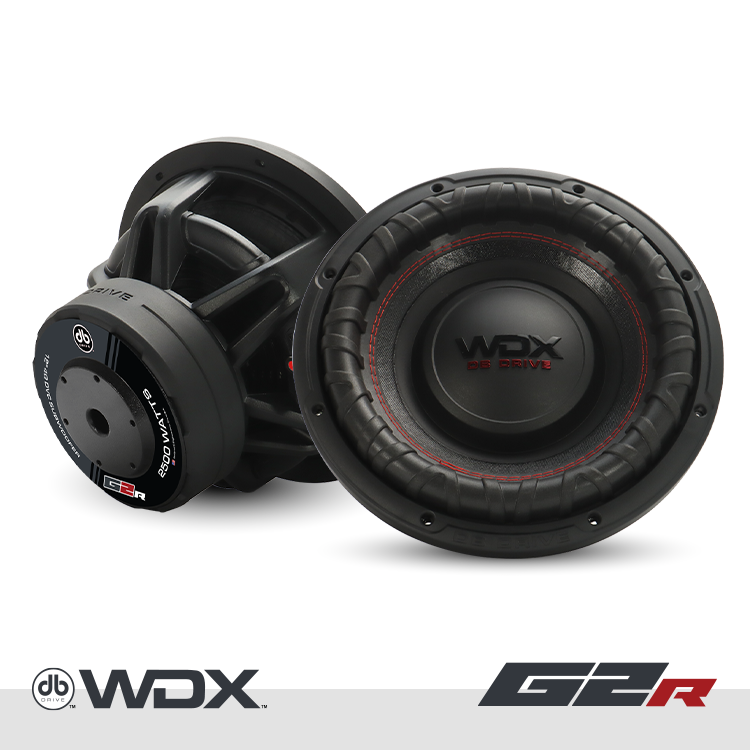

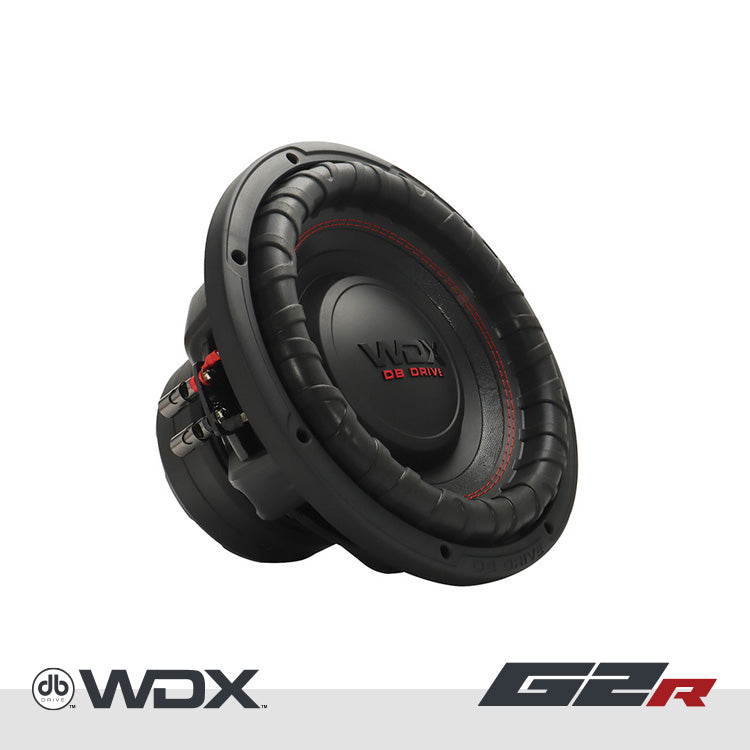

DB Drive WDX12G2R.4 : 12 in. Dual 4-Ohm Subwoofer

• Dynamic Power Handling: 2500 Watts

• Nominal Power Handling: 1250 Watts

• Impedance: Dual 4? Voice Coil

• Resonant Frequency (fs): 33.597 Hz

• D.C. Voice Coil Resistance (Re): 2 x 3.2?

• Mechanical Quality Factor (Qms): 4.413

• Electrical Quality Factor (Qes): 1.253

• Total Quality Factor (Qts): 0.976

• Equivalent Air Volume (Vas): 22.153 L

• Mechanical Compliance of Suspension (CMS): 57.973 mm/N

• Mass of Diaphragm/Coil (Mms): 387.090 g

• Force Factor (BL): 20.429

• Sound Pressure Level (SPL): 80.1 dB

Designed for true bass enthusiasts, the WDX12G2R.4 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 2500 watts dynamic (1250 watts nominal) •    The WDX12G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?

Product Manual PDF
