Feel the Bass, Embrace the Power with DB Drive WDX8G0.4!

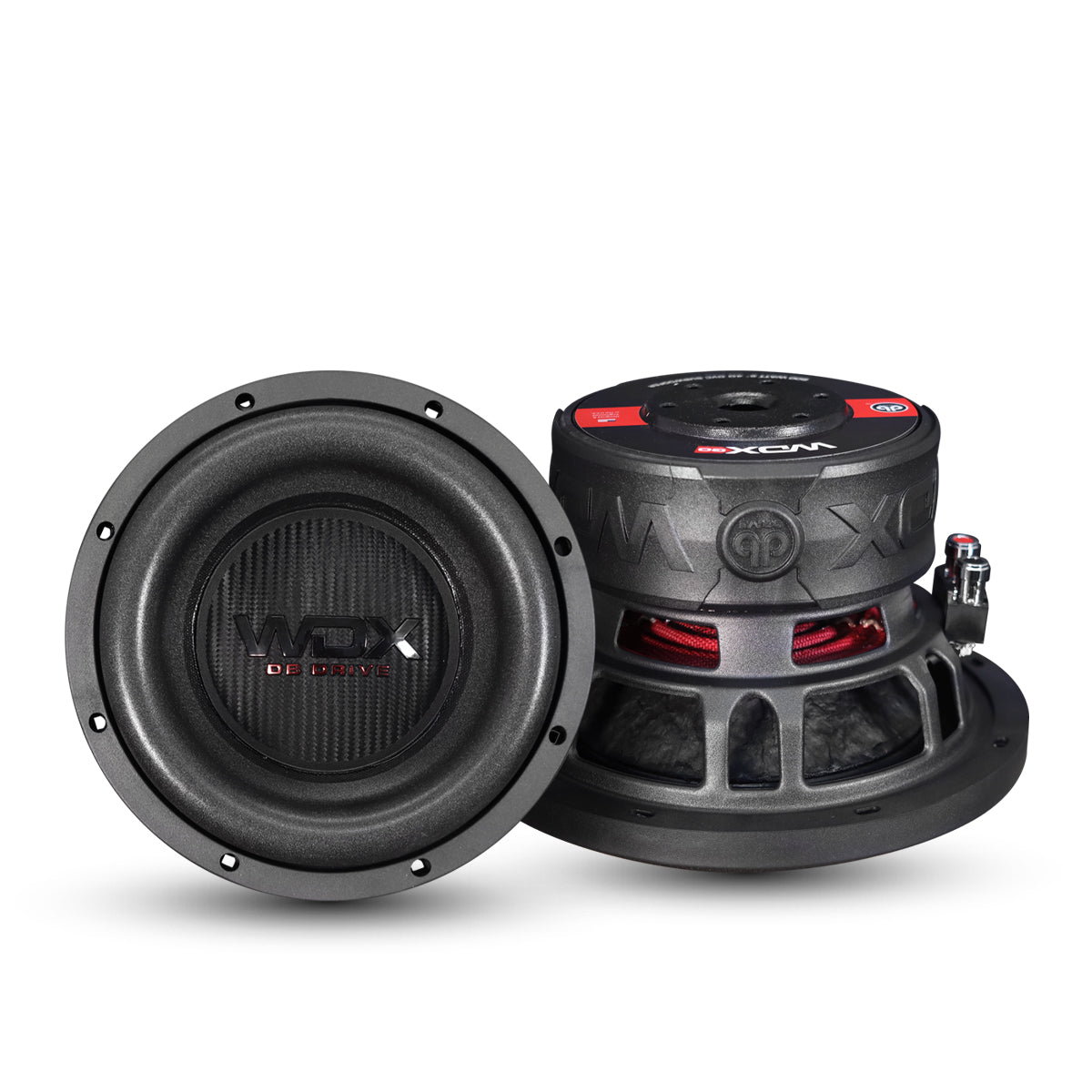

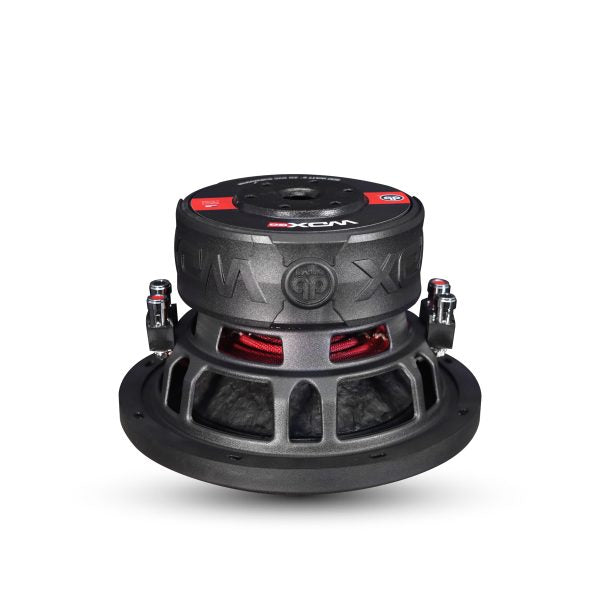

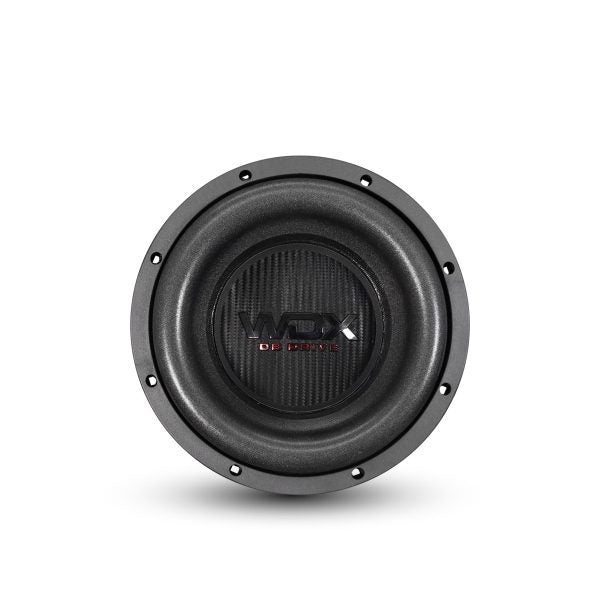

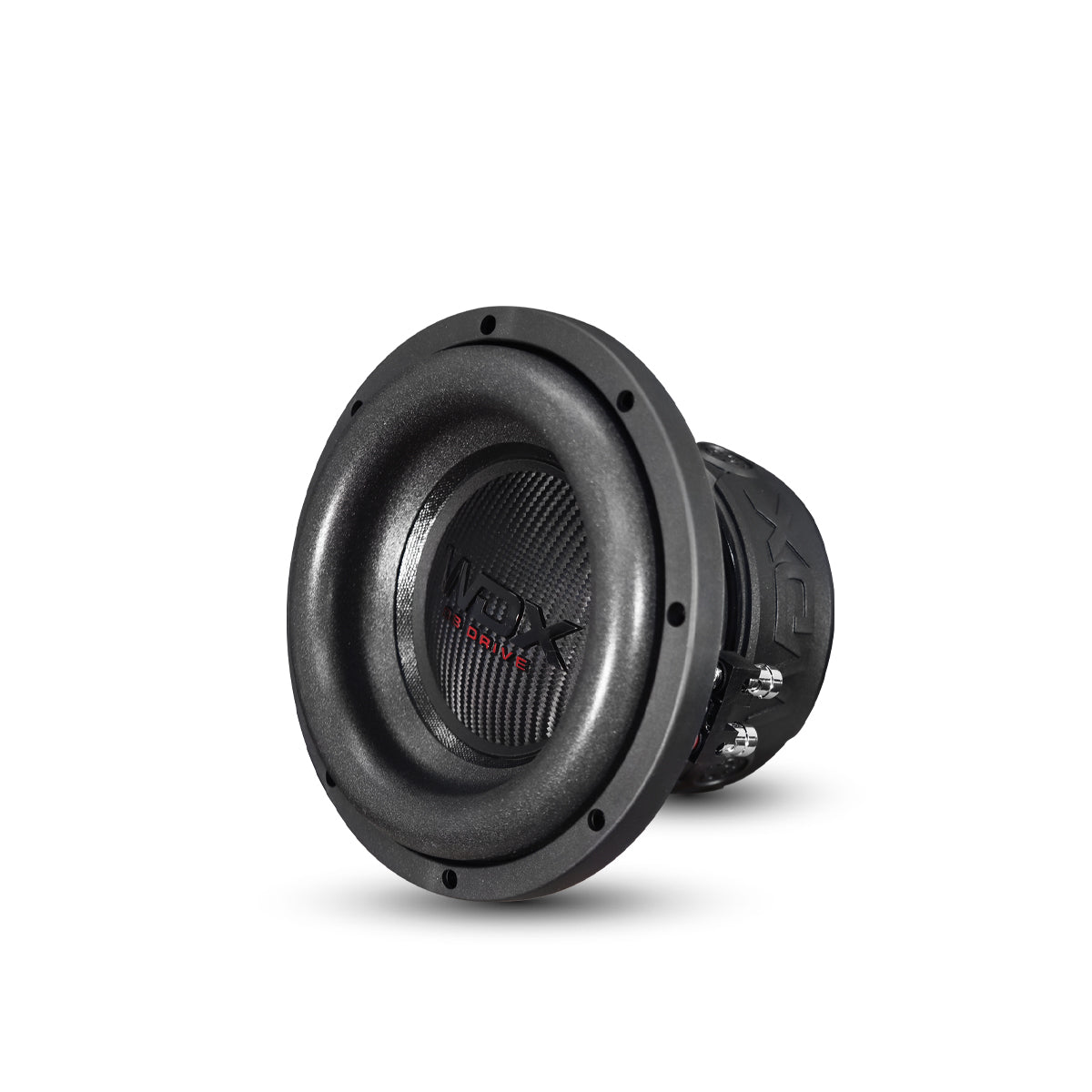

Unleash the full potential of your audio system with the DB Drive WDX8G0.4 8in Stamped Frame Woofer. Designed for those who crave powerful, high-quality sound, this subwoofer features a high-temperature voice coil and a reinforced paper cone, ensuring durability and exceptional performance. With its dual 4ohms voice coil, you get maximum flexibility in wiring configurations. The 800-watt max power and 400-watt nominal power ratings mean it can handle even the most demanding audio tracks with ease. The double-stitched foam surround and dual poly-cotton dampeners provide superior control and reduced distortion, while the large gauge compression terminals and protective magnet cover ensure longevity and reliability. Whether you're setting up a new system or upgrading an existing one, the DB Drive WDX8G0.4 is the perfect choice for delivering deep, rich bass that you can feel.
Features
- 2" High Temperature Voice coil
- Reinforced paper cone
- Dual poly-cotton dampeners
- Stamped Cast basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications

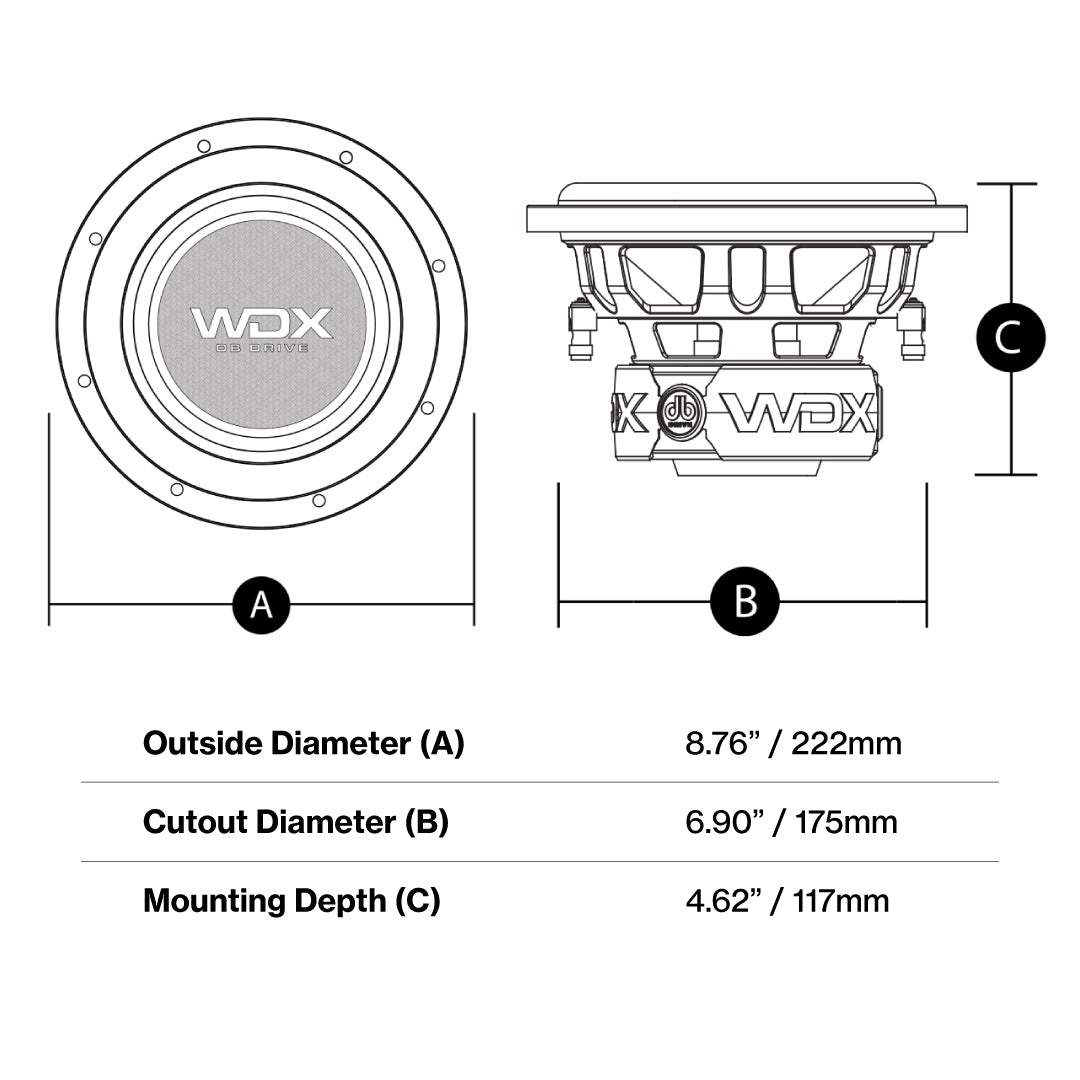

| Structure |
8” (20.3cm) Woofer |
| Dynamic Power Handling |
800 Watts |
| Nominal Power Handling |
400 Watts |
| Impedance |
Dual 4Ω Voice Coil |
Parameters
| Resonant Frequency (fs) |
41.702Hz |
| D.C. Voice Coil Resistance (Re) |
3.2? x 2 |
| Mechanical Quality Factor (Qms) |
2.230 |
| Electrical Quality Factor (Qes) |
0.447 |
| Total Quality Factor (Qts) |
0.372 |
| Equivalent Air Volume to Cms (Vas) |
8.417 m |
| Mass of Diaphragm/Coil (Mms) |
93.321 g |
| Force Factor (Bl) |
9.745 |
| Sound Pressure Level (SPL) |
84.3dB |
