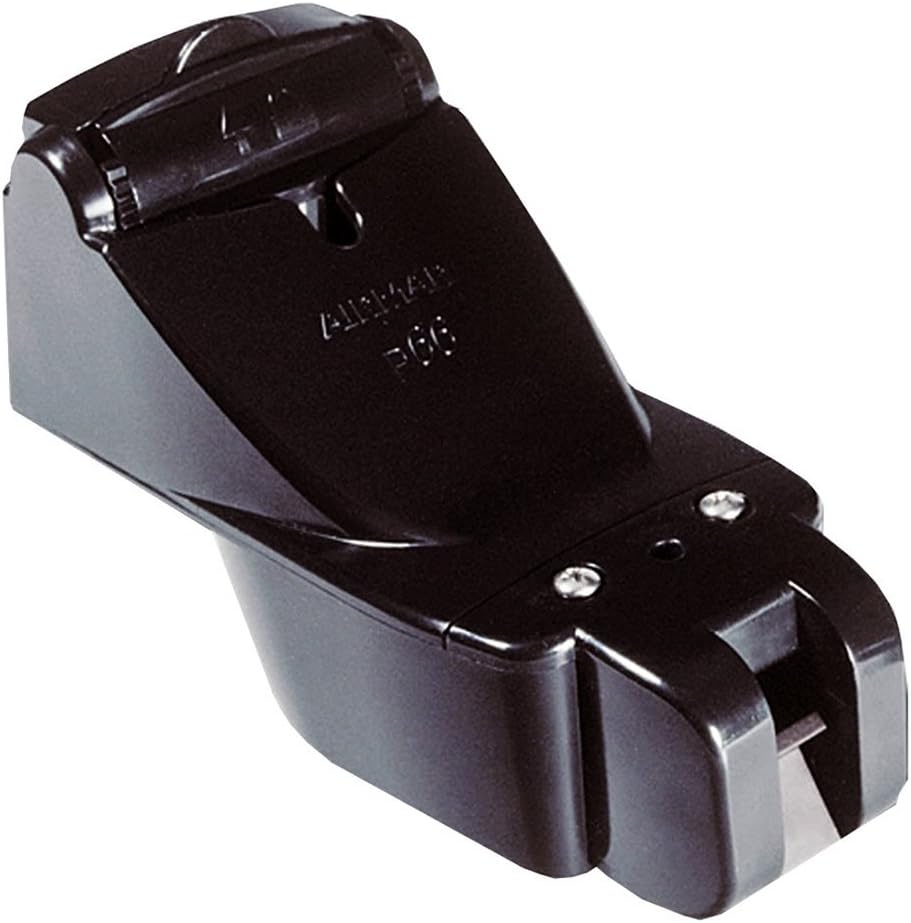

This plastic transducer is the only offshore transom mount to provide depth, speed and temperature in 1 package.
The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 11 degrees; and mounts on a 2 to 20 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 45°/11° |
| Transducer maximum depth | 800-1,200 ft. |
| Transducer cable length | 25 ft. |
| Transducer depth/speed/temperature | Depth, Speed and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 2°-20° degree transom |
