Alpine DVR-C310R

Features

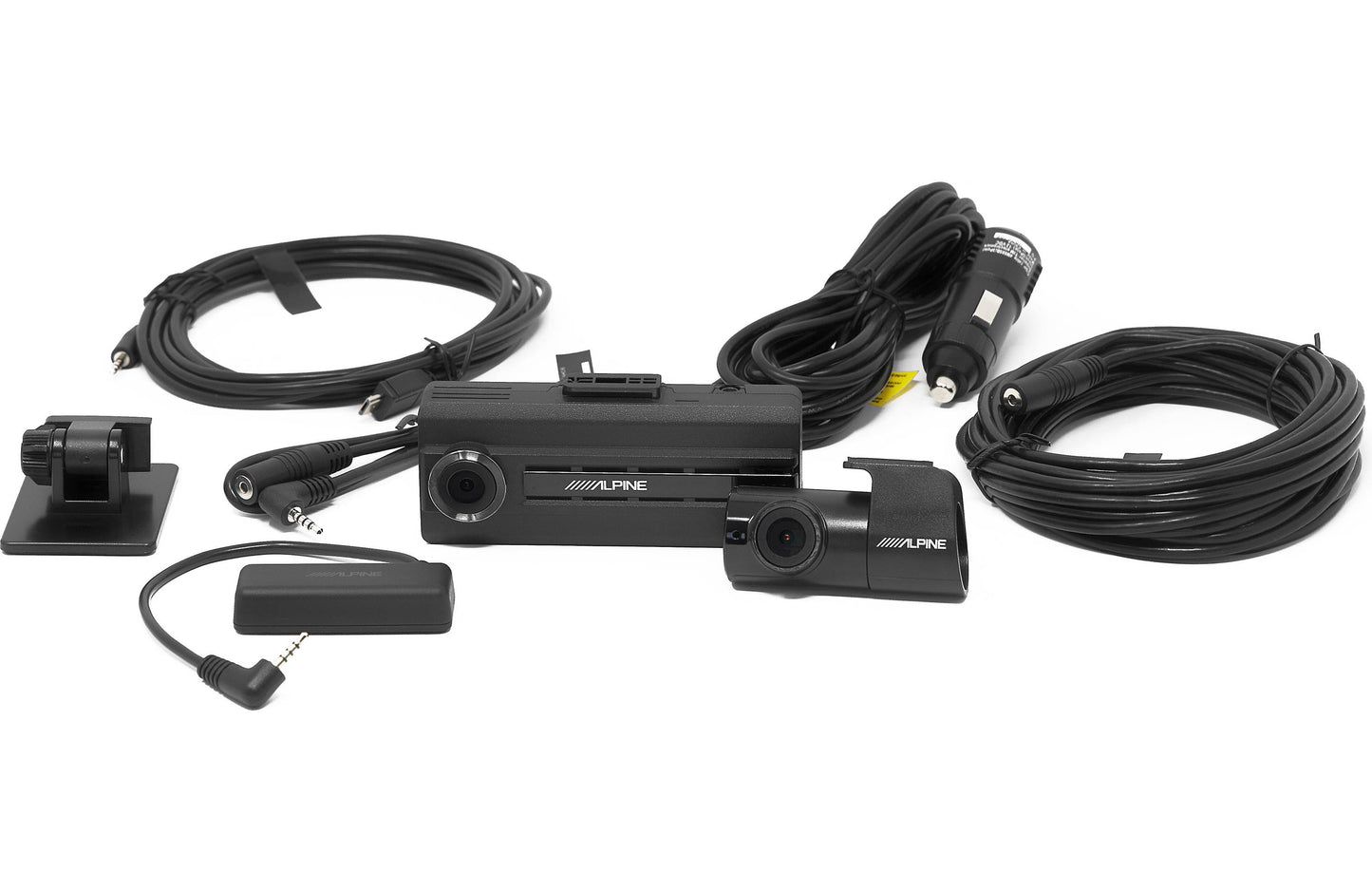

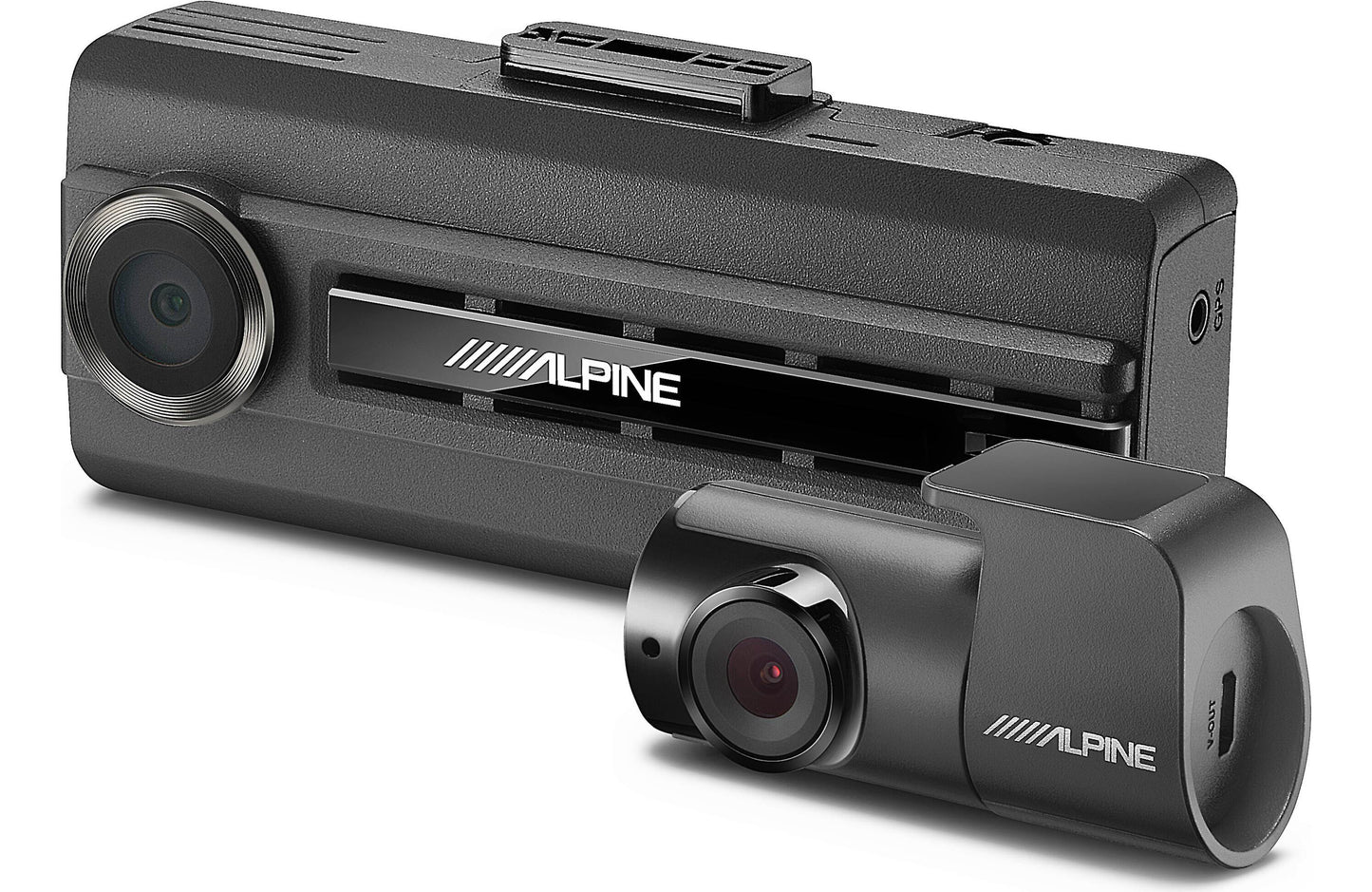

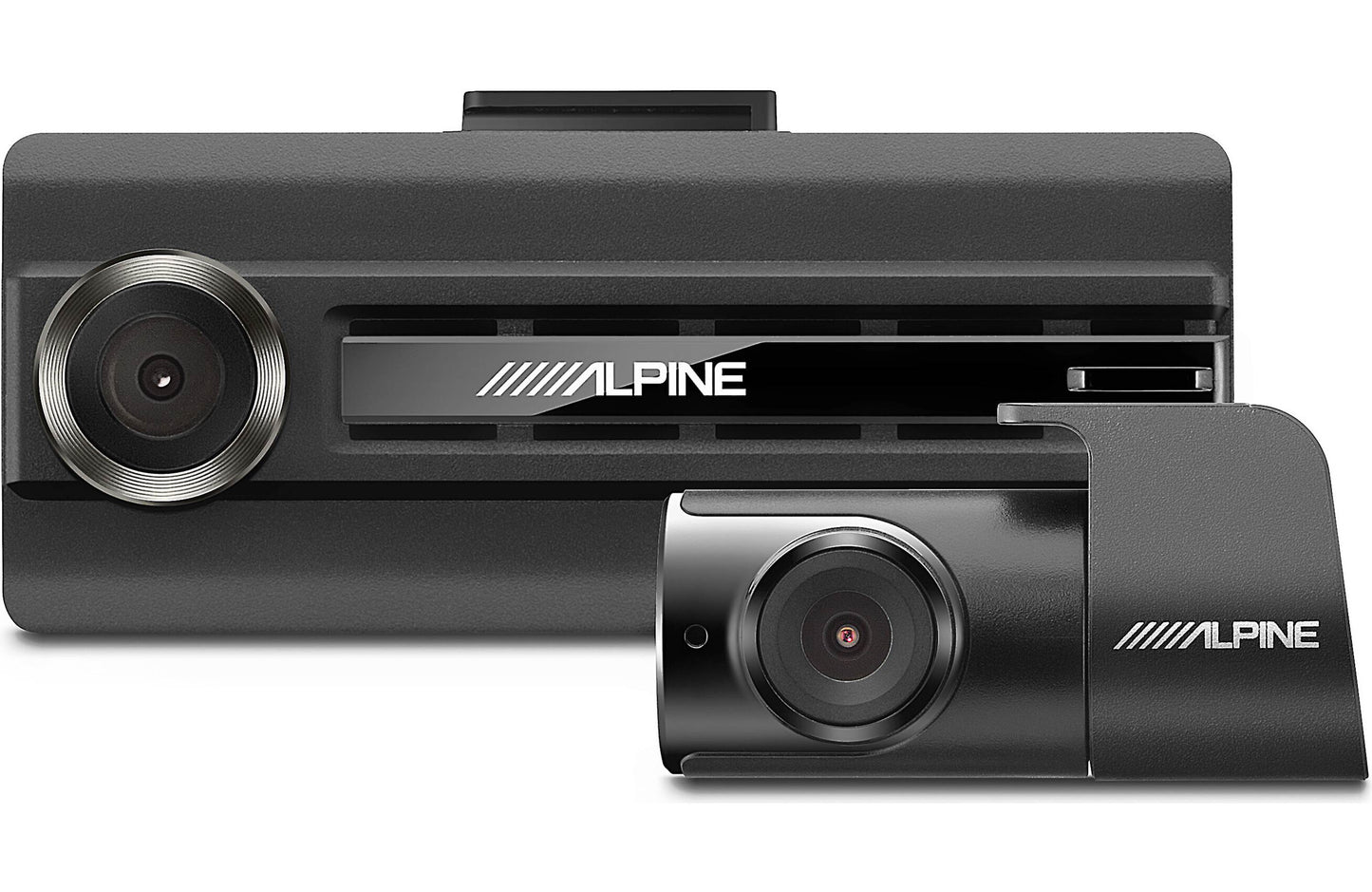

Dual Camera DVR System: The Alpine DVR-C310R is dual camera system that includes a dash-cam with built-in DVR, a GPS receiver, and a rear interior camera so you can view, record, and playback what went on in front of your vehicle, as well as inside or behind your vehicle.

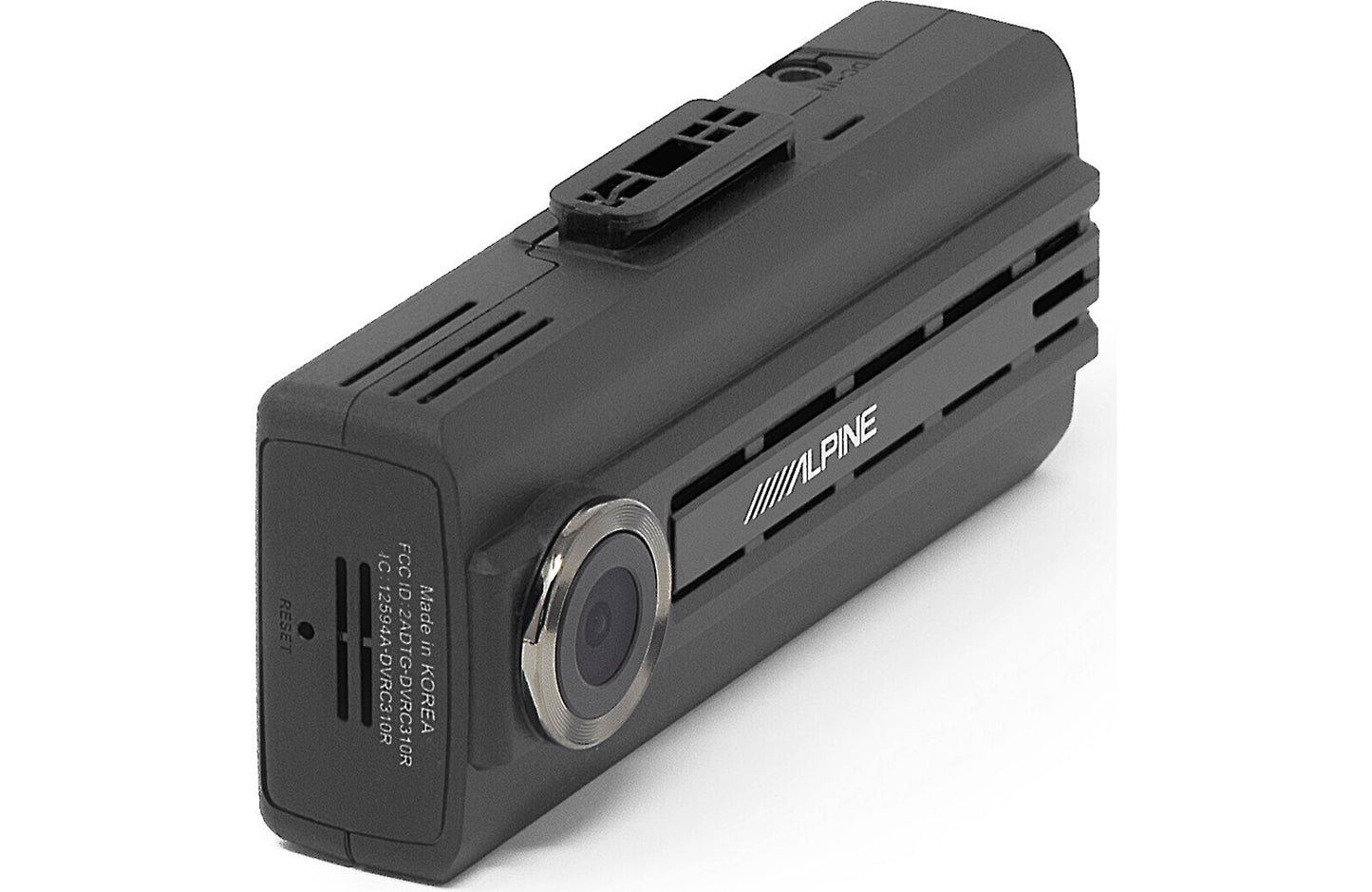

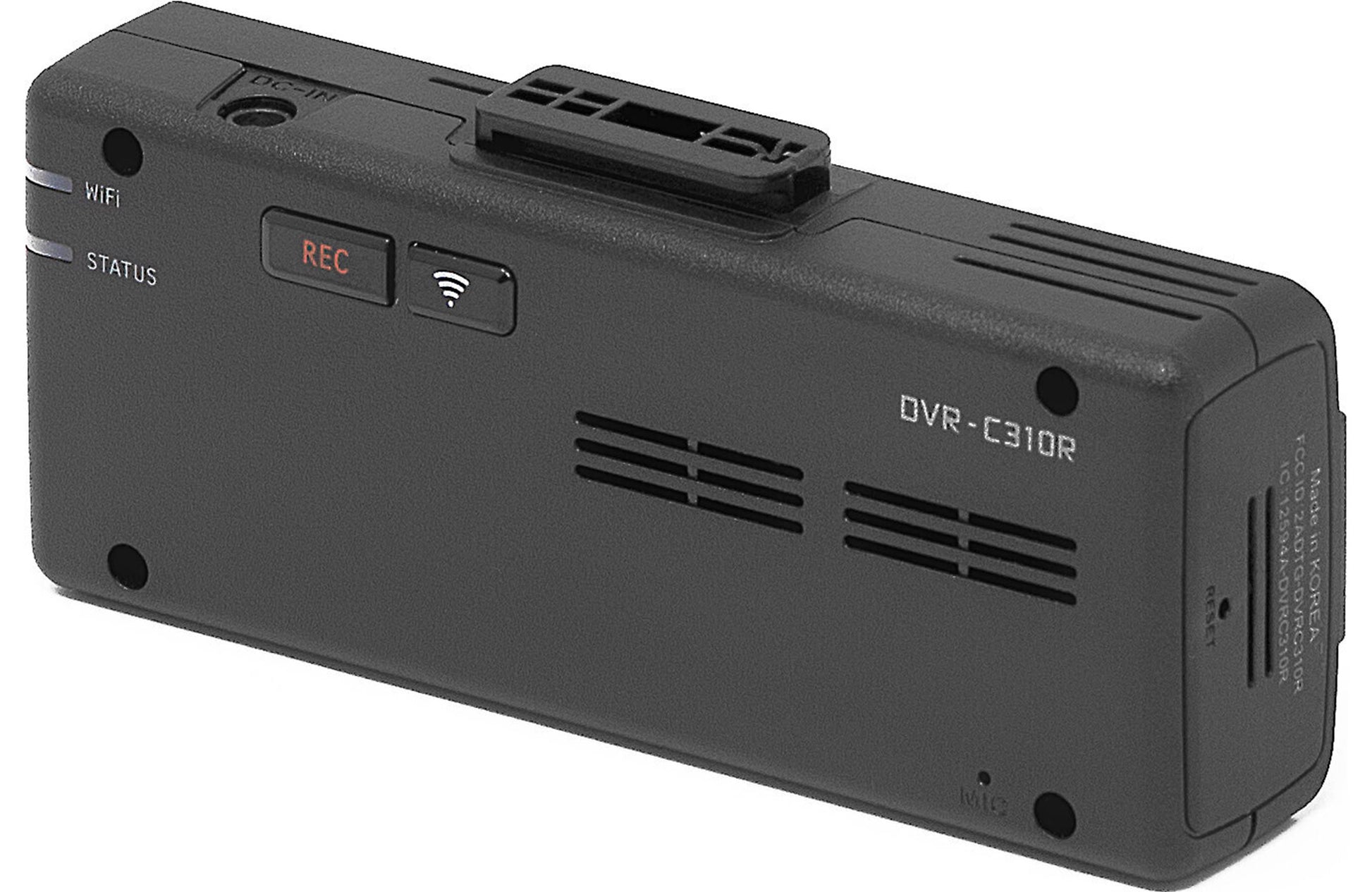

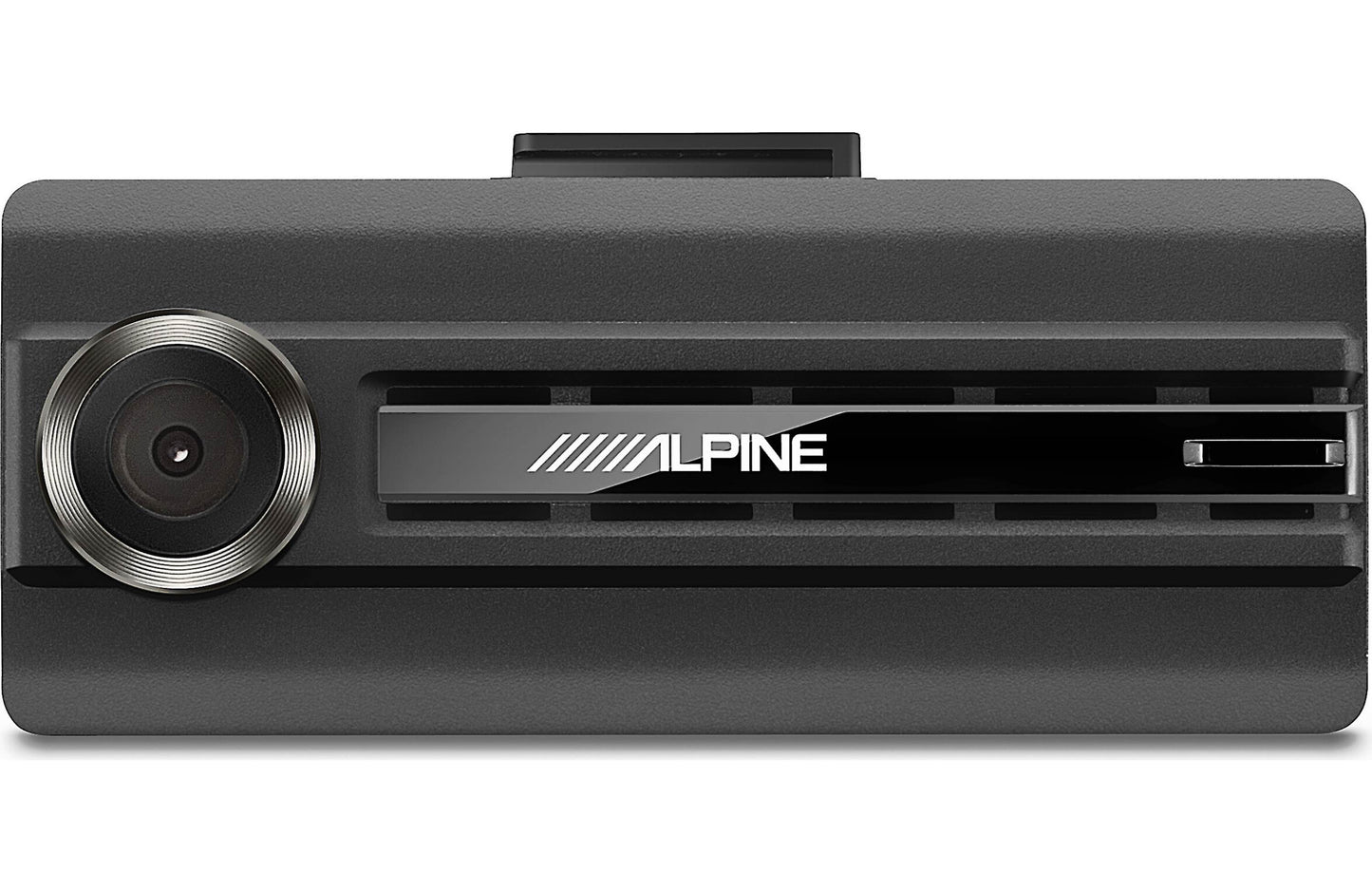

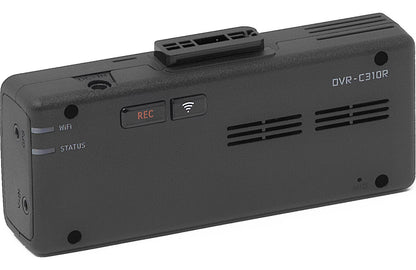

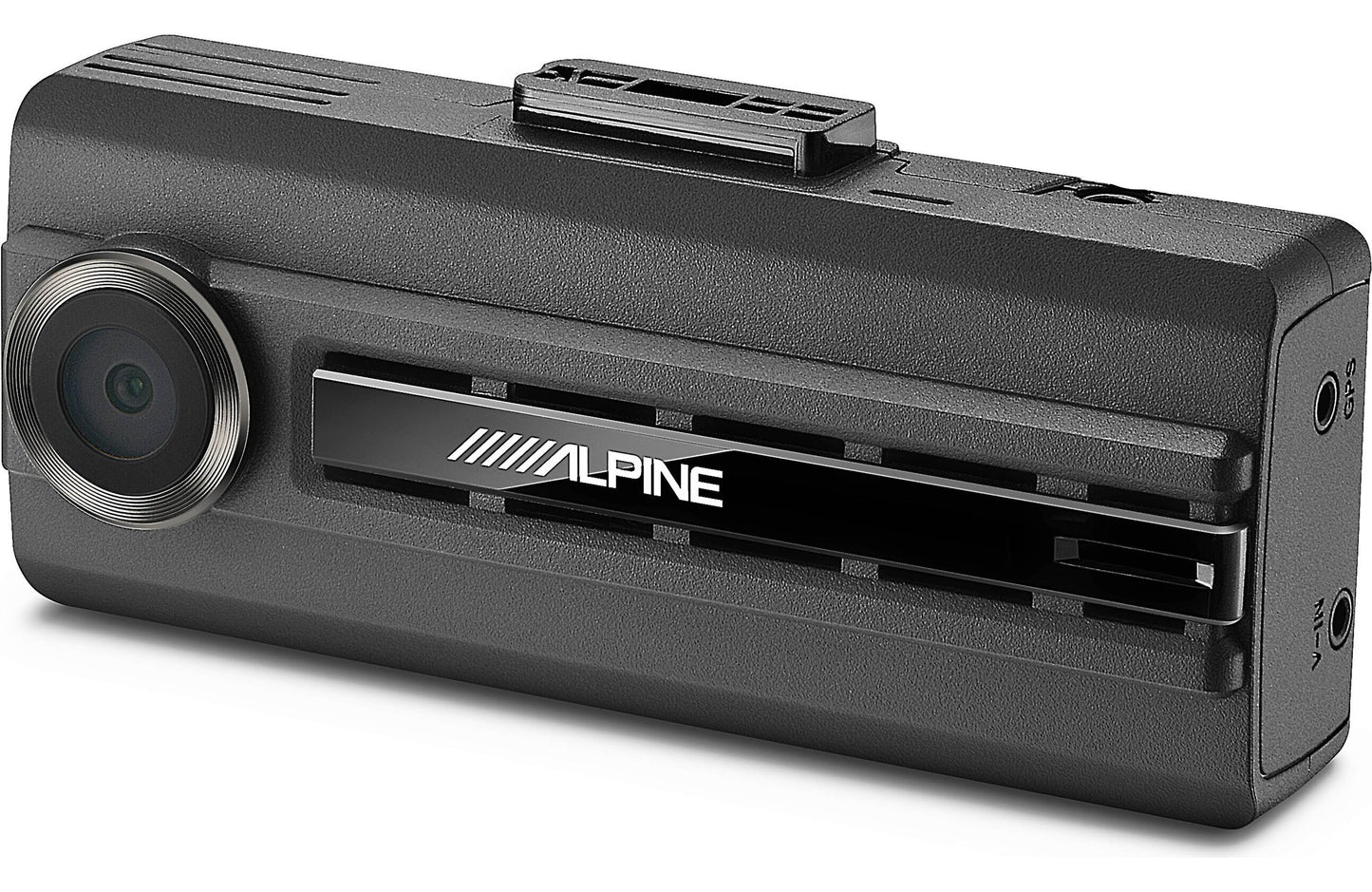

• Front Dash Camera w/ DVR: The front dash cam lets you view a live video feed from the front or rear camera on your compatible smartphone or tablet device via the Alpine Recording viewer app (for Apple iOS 11.0+ and Android OS 7.0+), as well as record video from the front or rear camera on the dash cam's built-in DVR for playback later on your computer via Alpine's PC Viewer software program..

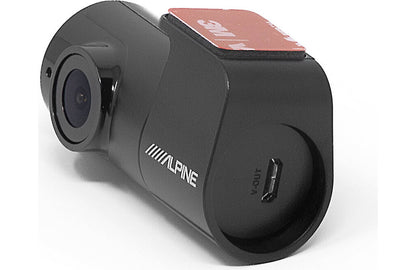

• Rear Interior Camera: The DVR-C3310R also includes a secondary camera for an additional recording device anywhere in the vehicle. Use the secondary camera to monitor and record activity inside the cabin, or point it towards the rear of the vehicle on the back windshield for rear-video footage.

HD Video + WDR: The front dash camera is equipped with a 2.1MP (megapixel) CMOS image sensor, while the rear interior camera features a 1.0MP (megapixel) CCD image sensor. The front dash cam will capture 1080p (1920 x 1080) @ 30fps video images with a 144 degree viewing angle; while the rear camera captures 720p (1080 x 720 ) @ 30fps video images with a 140 degrees viewing angle. The front dash cam also supports WDR (Wide Dynamic Range Video). WDR technology automatically adjusts the exposure and white balance for a clear recording during sudden lightening changes and night vision allows you to capture footage when it’s dark. .

Built-In Mic & Speaker: The front dash camera features a built-in microphone to capture and record audio inside the cabin of the vehicle. The front dash camera's built-in speaker provides audible alarms and alerts.

DVR: The front dash cam features a built-in DVR that records up to full HD 1080p @ 30 fps with a wide viewing angle, allowing you to capture accident footage and license plate capture. Video from the front camera is recorded at 1080p (1920 x 1080), while video from the rear camera is recorded at 720p (1080 x 720). Video is recorded in MP4 (H.264) format to the included 32GB microSD memory card (pre-installed); you can use up to a 128GB microSD card. The unit offers Continuous Recording, Manual Recording, Parking Mode, and Record Timer.

• Continuous Recording: While driving, videos are recorded in 1 minute segments. In addition, when an impact to the vehicle is detected, a video is recorded for 20 seconds.
• Manual Recording: You can manually record a scene you want to capture while driving and store it as a separate file. Simply the record button on the front dash cam. The unit will record for 1 minute.
• Parking Mode: When a moving object or impact is detected while parked, the unit will record for up to 20 seconds. You can choose to have unit monitor and record a moving object, impact, both, or neither.
• Record Timer: You can active a record timer feature in Park Mode that will record a video for a preset time (3, 6, 12, 24, 48, or 72 hours).

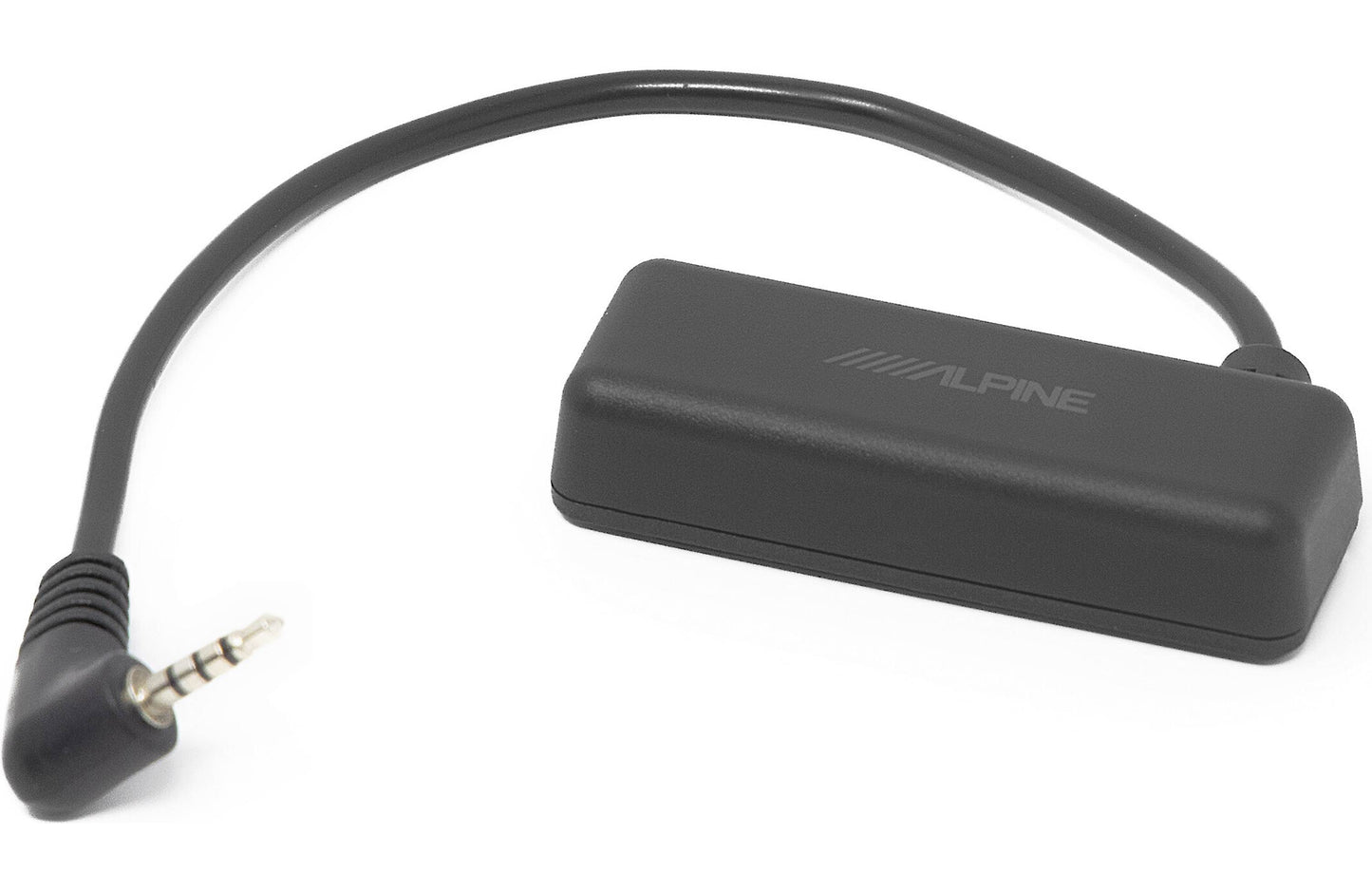

GPS Receiver: The included GPS receiver plugs into the dash camera with DVR and includes the location data in the recorded videos.

Viewing Images: Live video and recorded video can be viewed back on your compatible smartphone or tablet device using the the Alpine Recording View App (for Apple iOS and Android OS). You can also view recorded video (not live video) on your home computer using Alpines PC viewer software program.

• Alpine Recording Viewer App: Footage captured by the DVR-C310R can be viewed on your smartphone with the free Alpine Recording viewer app (for Apple iOS 11.0+ and Android OS 7.0+). Your compatible Apple iOS or Android device will connect to the DVR-C310R via WiFi. You'll be able to view real-time recording around your vehicle with Live View or review past recordings with the File List option. The app also lets you configure settings of the DVR-C310R - such as camera settings, memory card settings, recording function settings, and system settings.
• PC Viewer: Insert the DVR-C310R's microSD memory card into your laptop or desktop computer to view and manage the recorded videos and configure various product features through Alpine's PC view software for Windows (7 or later) and Mac (OSX X 10.8 or later). Your compatible Windows or Mac computer must have a Intel Core i5 processor or higher, 4GB or more of memory, and use Microsoft Explorer (7.0+) or DirectX 9.0+).

Mounting Options: The DVR-C310R offers simple mounting solution for the front dash cam, GPS receiver and rear interior camera. The dash front dash camera come with a self-adhesive mounting bracket that can attach it directly to the inside of the front windshield for a factory fit and finish with minimal obstruction. The rear camera includes tape to mount it to the inside of the rear windshield with minimal obstruction. Once the front dash cam and rear interior camera are mounted, you can adjust the vertical angle (up or down) of the cameras for better visibility and viewing image. The GPS receiver mounts near the dash cam on the front windshield using the included tape.

• Dash Camera: Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision. Ensure that the front camera lens is located in around the center of the windshield. Keep it as far away as possible from other antennas.
• GPS Receiver: The GPS receiver mounts near the dash cam on the front windshield using included tape.
• Rear Camera: Select a location on the rear windshield where there is no defrost grid wire and the camera can record the entire rear view

Power Requirements: The Alpine DVR-C310R can be hardwired to your vehicle's eletrical system using the included wiring harness. Power can also be supplied to the DVR-C310R through your vehicle's 12-volt power port using the included 12-volt power adapter.
