Alpine HCE-C2100RD

Alpine HCE-C2100RD

In stock

Surface-mount, multi-view backup camera — designed for Alpine video receivers

  • price-tag logoNew Launch
$399.95
$399.95
Save: $-399.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine HCE-RCAM-WRA

Wrangle in reverse

Traditionally, you want to mount a backup cam in a centrally located spot on the rear of your vehicle, usually in close proximity to your license plate. If you're a Jeep Wrangler owner, you know that ain't happening because of where the Wrangler spare is traditionally stored. Alpine's HCE-RCAM-WRA offers a creative solution — a backup camera that mounts behind your spare tire and looks through the spokes to give you a view of what's behind you.

The camera

Alpine adds High Dynamic Resolution to the HCE-C1100 rear-view cam to give you their best picture yet. With HDR, you'll see more detail whether you're backing up in a bright parking lot at noon or a dark parking garage at midnight. The camera works with any aftermarket car stereo with a composite (RCA) camera input. With the addition of Alpine's SGS-CH01 camera interface (not included), you'll be able to integrate this camera with select Jeep Wrangler factory radios and add active parking lines.

Mounting bracket

Alpine's bracket uses your Wrangler's bolt pattern to mount behind your spare. On the camera end of the bracket, Alpine gives you the flexibility to move the camera to the left or right for a clear view through the Wrangler spare's 5x5 wheel pattern.

Installing this camera yourself? Here's what you should know.

What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)

What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.

Product highlights:

  • rear-view camera designed for select 2007-18 Jeep Wrangler JK vehicles
  • includes bracket to mount camera behind factory spare tire
  • includes Alpine HCE-C1100 rear-view camera
  • compatible with any device with a composite (RCA) video connection
  • compatible with Alpine SGS-CH01 camera interface for Wrangler factory radio integration
  • warranty: 1 year
  • MFR # HCE-RCAM-WRA
  • Item # 500HCERCAM

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • Camera with mounting bracket (attached 18" cable)
  • 10' Power/Video cable (7.5A fuse)
  • 23' Extension cable
  • Spare tire bracket
  • 3 Retaining clips
  • Torx-screw
  • Lock-washer
  • Heat shrink tube
  • Water-proofing pad
  • Two-sided tape
  • 5 Wire-ties
  • Allen-wrench
  • Installation Instructions

Features

Spare Tire Backup Camera System: The Alpine HCE-RCAM-WRA spare tire backup camera is compatible with 2007-2018 Jeep Wrangler (JK) and Wrangler Unlimited (JK) models. The included spare tire mounting bracket installs behind the spare tire and extends the camera through the spokes of the wheel. The HCE-RCAM-WRA can be connected to Alpine in-dash receivers and other aftermarket in-dash receivers via composite video.

Note: This rear-view camera system is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

HDR Camera: The Alpine HCE-RCAM-WRA is equipped with an HDR backup camera (HCE-C1100) that makes maneuvering your Jeep Wrangler JK in reverse easier and safer. A rearview camera is a great way to improve your parking skills and make backing up safer. The HDR backup camera employs a weatherproof (IP67) housing to protect the backup camera from the outdoor elements.

  • CMOS Images Sensor & Wide-Angle Lens: The rearview camera's equipped with a 1/3.7" CMOS image sensor with an effective resolution of 640 x 480 (307,200 total pixels). The image sensor offers automatic metering and automatic white balance adjustment for high-quality rearview images. The rearview camera's wide-angle lens has a focal length of f=1.34mm and brightness of f=1:2:0, with a 131° (h) x 103° (v) field of view.
  • HDR (High Dynamic Range): Thanks to HDR technology, the picture quality is much better compared to regular camera systems, for even better visibility behind your vehicle when backing up, with a high-resolution and high-detail camera image. The rearview camera offers incredible image quality in varying levels of light with a wide illumination range (1.5 to 100,000 Lux). HDR (High Dynamic Range) and automatic fast exposure adjustment eliminates image wash-out common when going from areas of heavy shade into areas with bright sunlight (for example underground parking, tunnels, etc).

Note: Because this is a wide-angle lens, there is a difference in distance perspective between what is normally seen behind the vehicle and what appears on the screen of your in-dash receiver.

Spare Tire Mounting Bracket: The Alpine HCE-RCAM-WRA comes with a bracket that mounts between the spare tire and your Jeep Wrangler's 5x5 wheel pattern. The upper portion of the bracket can be positioned to the left or right of the wheel's spokes, ensuring that the attached camera has a clear line of sight behind the vehicle and is not blocked by the wheel.

Power & Ground: The HCE-RCAM-WRA's power (red) & ground (black) wires will need to be hardwired. Power can be obtained from your vehicle's reverse light circuit or from the reverse gear wire of your aftermarket stereo (if applicable). The ground will need to connected to your vehicle's metal chassis.

Optional Multi-Camera Selector Interface: The optional Alpine KCX-C250MC Multi-Camera Selector Interface (500KCXC250, sold separately) allows as many as three camera systems (Front, Rear, & Side) to be connected to and controlled from select Alpine in-dash navigation receivers.

Product highlights:

  • backup camera — only works with select Alpine video receivers
  • High Dynamic Range for improved exposure adjustment
  • mounting hardware and 34-foot power/video cable included
  • 1/4" CMOS image sensor
  • 4 viewing modes:
    • rear-view
    • corner (split right/left views)
    • ground (downward view)
    • panorama (larger rear-view perspective)
  • illumination range: 1.5 to 100,000 Lux
  • 180° horizontal viewing angle
  • weather-proof camera housing
  • dimensions: 15/16"W x 15/16"H x 1"D
  • warranty: 1 year
  • MFR # HCE-C2100RD
  • Item # 500HCEC21
  • California customers: Please click here for your Proposition 65 WARNING.

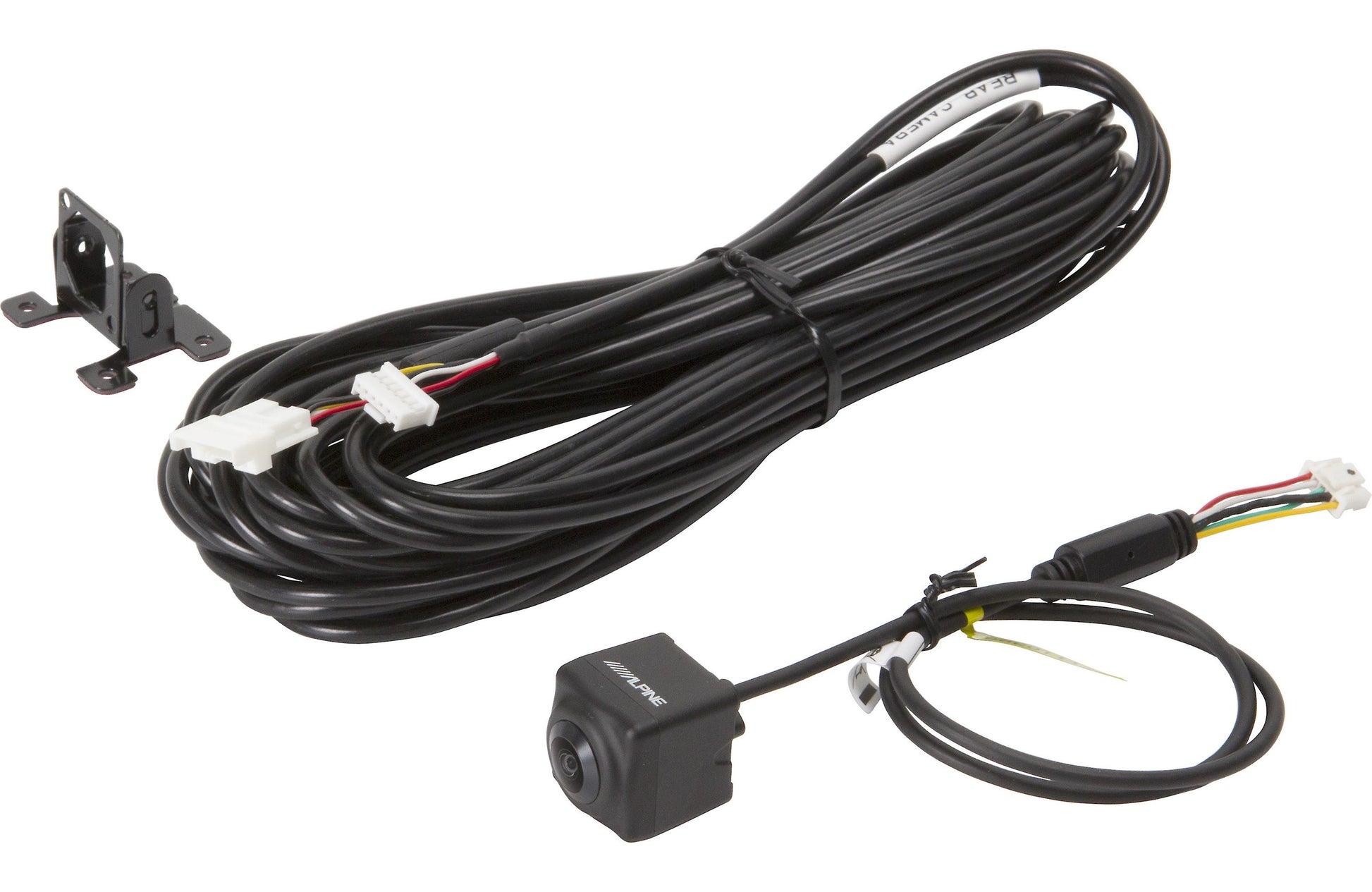

What's in the box:

Alpine HCE-C2100RD owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • Multi-view camera (attached 20" harness terminated by 5-pin harness)
  • 32.5' Power/Video harness (with female 5-pin connector on one end and a male 6-pin connector on other end)
  • 2-Piece mounting bracket
  • 4 Machine screws
  • 4 Self-tapping screws
  • Rubber sleeve
  • Rubber wedge
  • 3M tape
  • 5 Wire-ties
  • Owner's Manual (En/Fr/Sp)

Features & specs

Features and Specs
Camera Type Multi-view
Resolution 1,228,800
Parking Guidelines Yes
Lux Rating 1.5 Lux (min)
Selectable Views rear/corner/ground/pan
Reversed Image Mirror
Horizontal Viewing Angle 180 degrees
Vertical Viewing Angle 70 degrees
Wireless No
Plug type Alpine Proprietary
The Alpine HCE-C2100RD replaces these items:
  • Alpine HCE-C2100RD4
  • Alpine HCE-C252RD

Product Research

Features

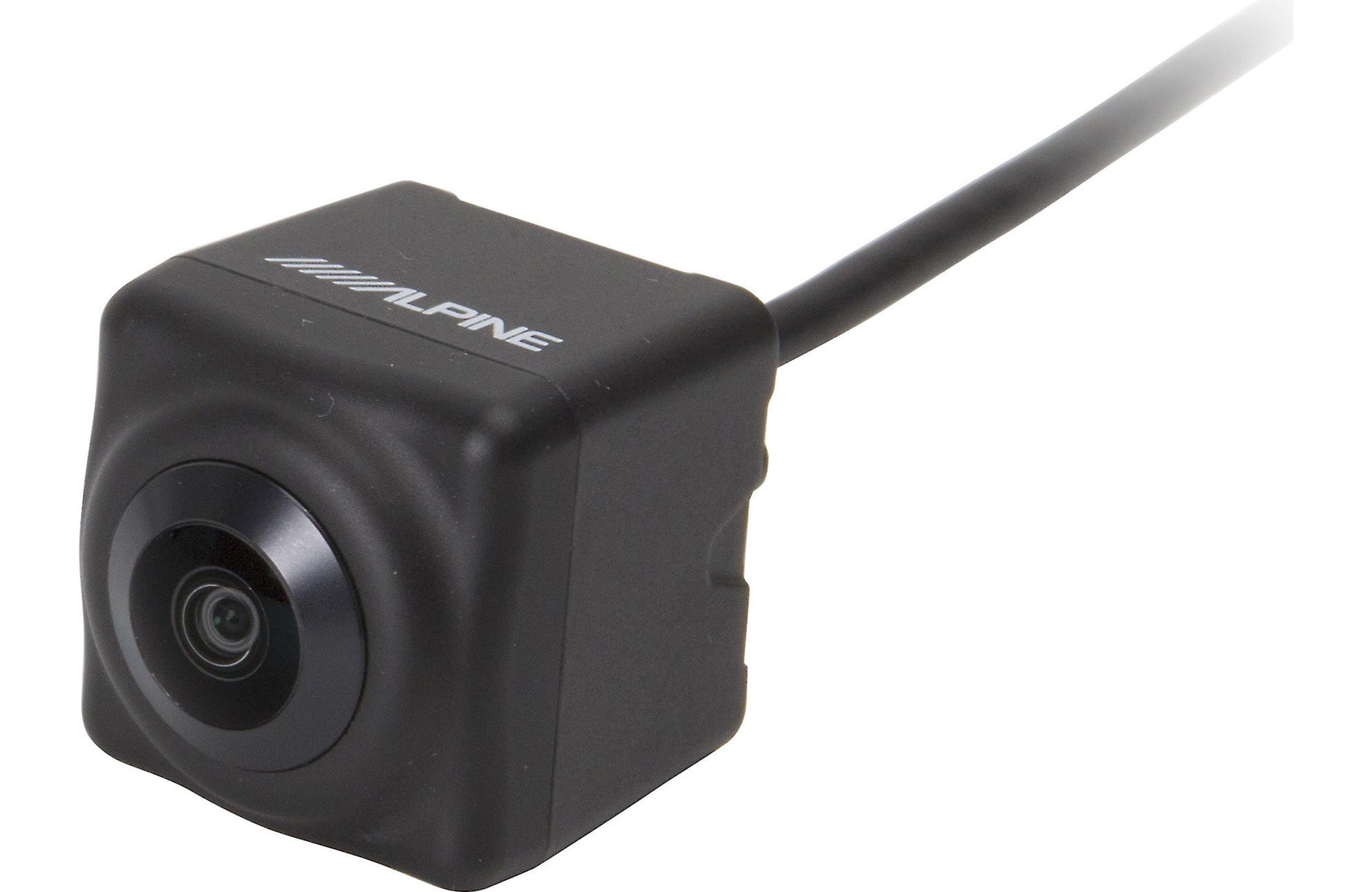

Multi-View Backup Camera: The HCE-C2100RD multi-view camera will show you the obstacles around the rear of the vehicle from different angles to assist you with parking, backing up, and to even connect a trailer.

  • Rear View: Displays an image of the area directly behind the vehicle. Use this when backing into a parking space.
  • Corner View: Displays a divided image left and right of center. Use this when checking the left and right area directly behind your vehicle
  • Panorama View: Display a general perspective of what is behind the car. Use this when  you want to check mainly behind the vehicle.
  • Ground View: Displays an image from above down to the lower section for the vehicle. Use this when determining the vehicle's position in relation to the curb, a trailer hitch, etc..
Note: This rearview camera is meant as a back-up aid only; never solely rely on the rearview camera when backing-up. In addition to using the rearview camera, always look behind you to make sure everything is clear when backing up your vehicle.

Compatibility: The HCE-C2100RD multi-view backup camera is compatible solely with Alpine in-dash multimedia and navigation receivers which are equipped with a proprietary multi-pin camera input. The HCE-C2100RD comes with an extra-long cable to run the power and signal from the camera to your compatible Alpine receiver. Compatible Alpine receivers include - (as of 10/31/22)

  • INE Series: INE-W987D
  • U Series: X108U, X208U, X308U
  • Restyle Series: i209-GM, i209-WRA, i209-WRA-JL, X009-FD1, X009-FD2, X009-GM, X009-GM2, X009-RAM, X009-TND, X009-U, X009-WRA, X109-WRA, X110-SLV, X110-SRA, X209-WRA, X209-WRA-OR
  • HALO Series: iLX-507, iLX-F509, i509-WRA-JK, i509-WRA-JL, iLX-F511, iLX-F409, X409-WRA-JK, X409-WRA-JL

CMOS Image Sensor + Wide-Angle Lens: The HCE-C2100RD multi-view backup camera employs a 1/4" color CMOS image sensor with 1280 (h) x 720 (v) effective number of pixels (1,228,800 megapixels). Plus an automatic exposure adjustment and white balance adjustment delivers clear viewing day or night. The Alpine HCE-C2100RD multi-view backup camera features a wide-angle lens (180° horizontal x 70° vertical) for an extended view behind your vehicle to reduce your blind spot areas. The camera's lens has a focal length of f=1.27mm and brightness of f=1.8.

HDR (High Dynamic Range): Thanks to HDR technology, the picture quality is much better compared to regular camera systems, for even better visibility behind your vehicle when backing up, with a high-resolution and high-detail camera image. The HCE-C2100RD offers incredible image quality in varying levels of light with a wide illumination range (1.5 to 100,000 Lux). HDR (High Dynamic Range) and automatic fast exposure adjustment eliminates image wash-out common when going from areas of heavy shade into areas with bright sunlight (for example underground parking, tunnels, etc).

Parking Guidelines: This multi-view backup camera includes convenient Parking Guidelines that can be fully adjusted to match the width of your vehicle. This makes parking safer and more convenient compared to a regular backup camera without Parking Guidelines.

Rugged Housing: The Alpine HCE-C2100RD employs a water & dust proof housing (IP68) to protect the multi-view backup camera from the outdoor elements.

Mounting Options: The multi-view backup camera comes supplied with a bracket designed to mount to the rear of your vehicle. The mounting bracket comes supplied with a self-adhesive pad and mounting screws. The bracket allows you to adjust the camera angle up or down.

Note: The HCE-C2100RD rearview camera is also compatible with Alpine's KTX-C10LP rearview camera license plate mounting kit (500KTXC10L, sold separately).

Optional Multi-Camera Selector Interface: Purchase an optional Alpine multi-camera selector interface (sold separately) to connect multiple cameras to a compatible Alpine in-dash navigation receiver.

  • Universal 2 Camera Switcher: The Alpine KCX-C2600B Multi-Camera Selector Interface (500KCXC260, sold separately) allows as many as two cameras (including an Alpine front & rear camera or Alpine front and other brand of rear camera) to be connected to an Alpine or other brand of in-dash multimedia/navigation receiver with a composite video camera input.

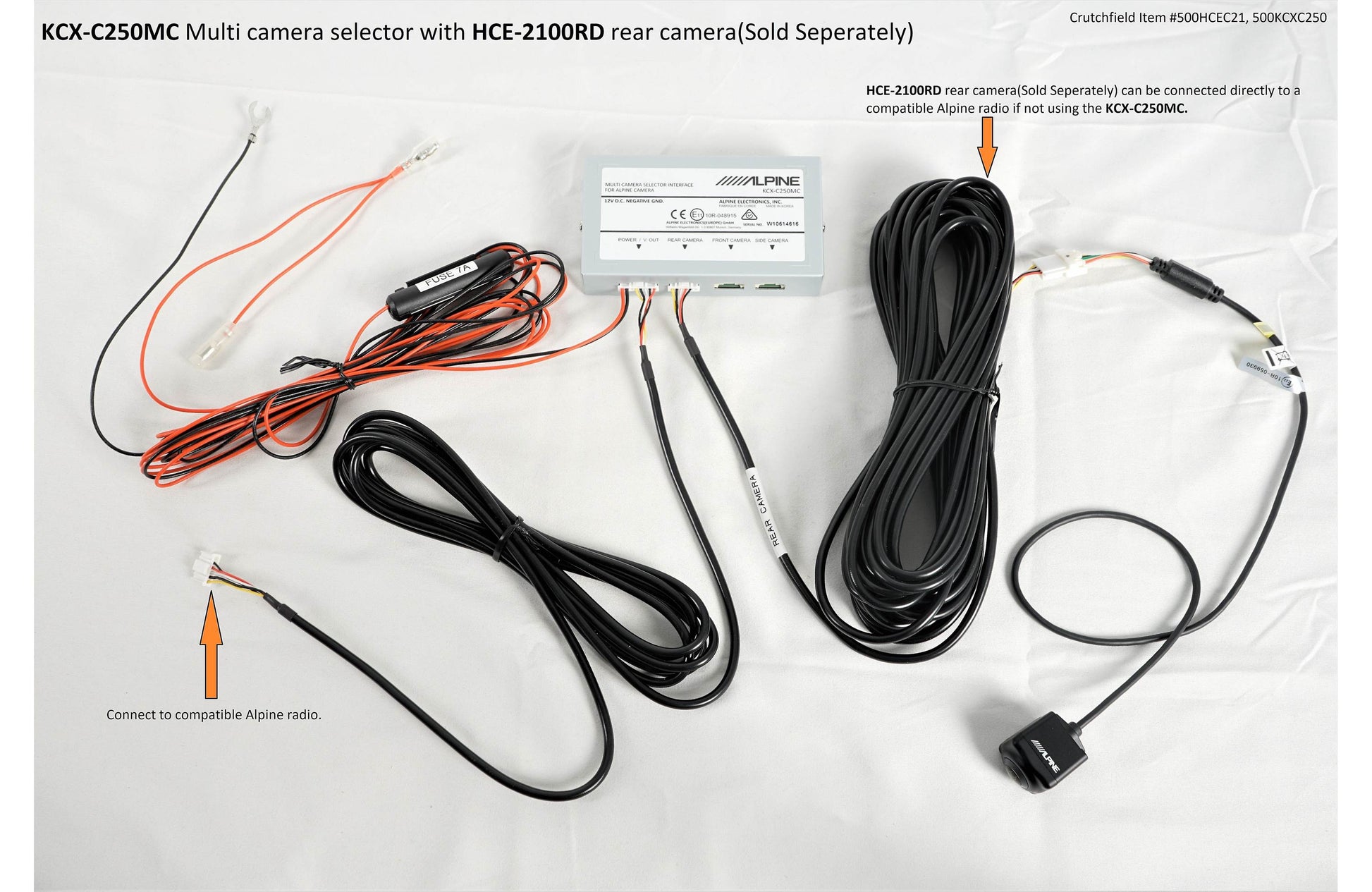

  • Proprietary 3-Camera Switcher: The Alpine KCX-C250MC Multi-Camera Selector Interface (500KCXC250, sold separately) allows as many as three camera systems (Front, Rear, & Side) to be connected to and controlled from select Alpine in-dash navigation receivers. Compatible Alpine receivers include the 10" Restyle navigation receivers (X110-SLV for 2014-up Chevrolet Silverado / X110-SRA for 2014-up GMC Sierra), 9" Restyle navigation receivers (X109D for various trucks and SUVs), 8" navigation receivers (X108U for various trucks and SUVs), and 7" navigation receivers (INE-W967HD, INE-W977HD, or INE-W987HD for universal applications).
