About the Alpine HDZ-653

Alpine Status high-resolution audio system

Alpine designed its Status System components for high-resolution audio playback. Their Status Series digital receiver, amp, speakers, and subs were designed to work together and play your 192kHz/24bit digital music streaming files with high-quality, studio-level purity and sonic fidelity.

Ready for high-resolution

Alpine crafted their HDZ-653 6-1/2" 3-way component speaker system for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker system optimizes the woofer, midrange driver, tweeter, and crossover for near-perfect sound from premium sources, like high-resolution audio files.

Optimized for Alpine

These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components, which Alpine designed with high-resolution audio in mind. Alpine uses a carbon composite woofer cone and midrange driver for consistency across the speaker's ultra-wide frequency range, plus a special double gathered-edge surround, which helps minimize distortion and promote accuracy.

Product highlights:

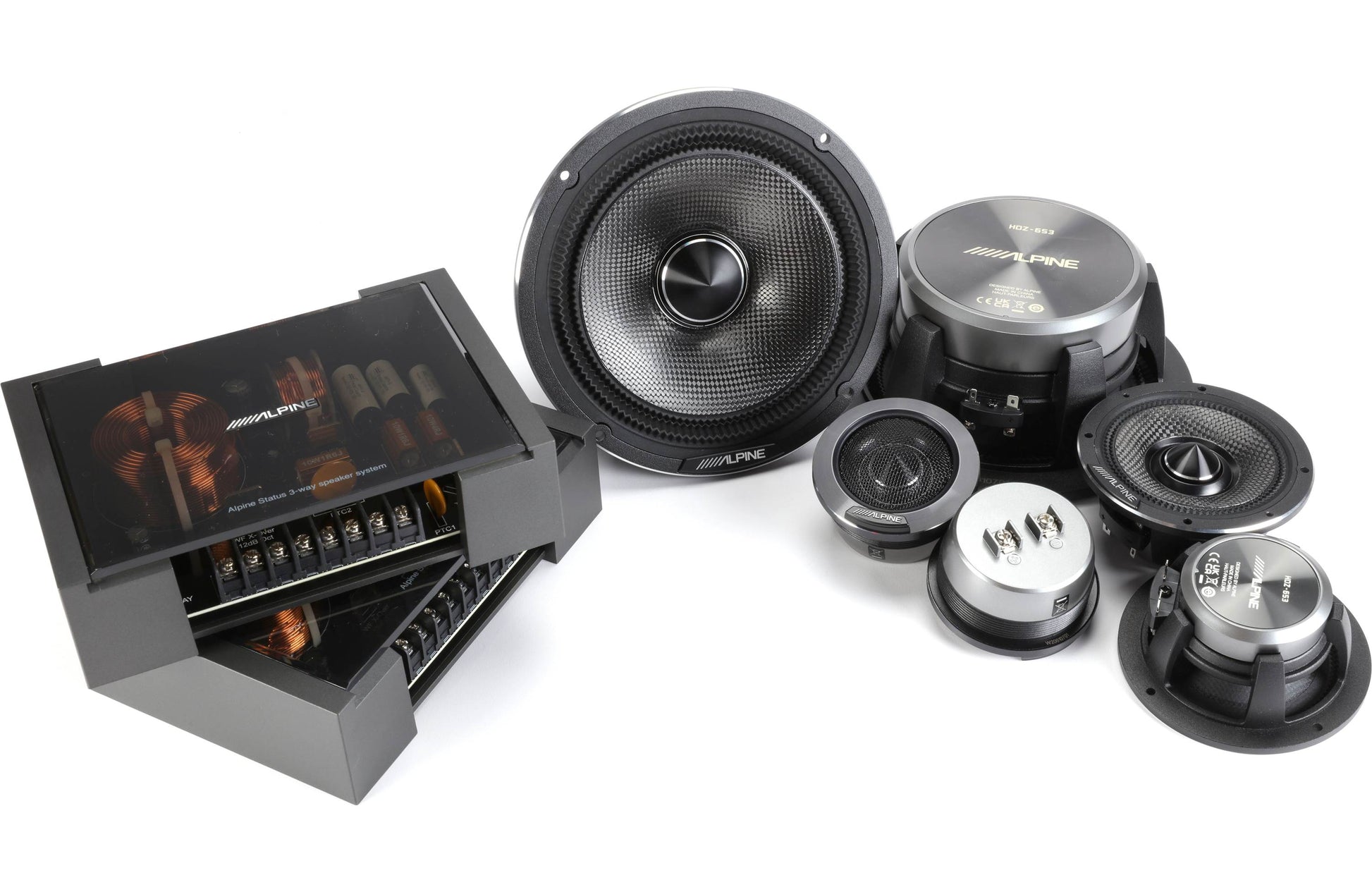

  • 3-way component speaker system

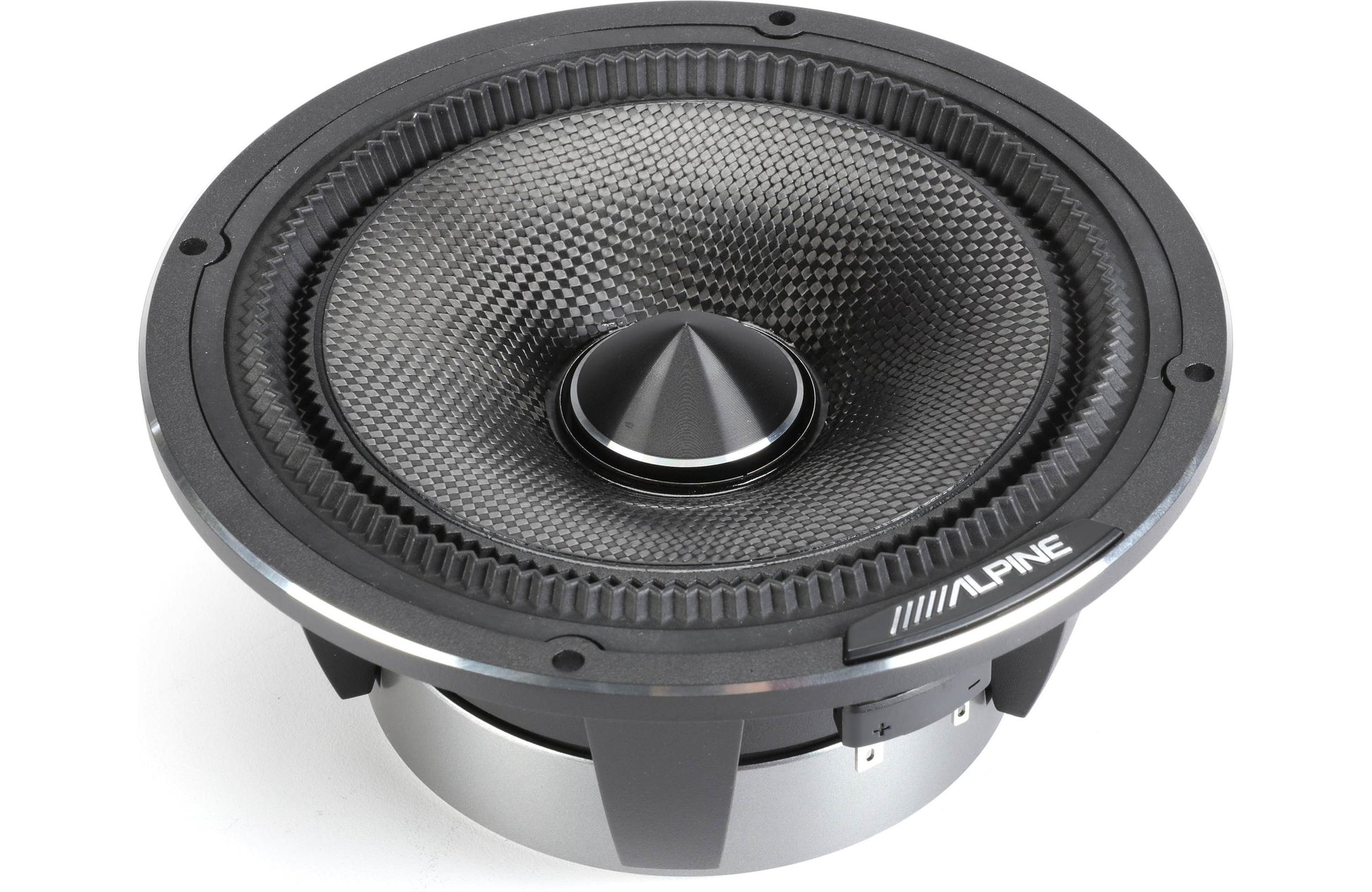

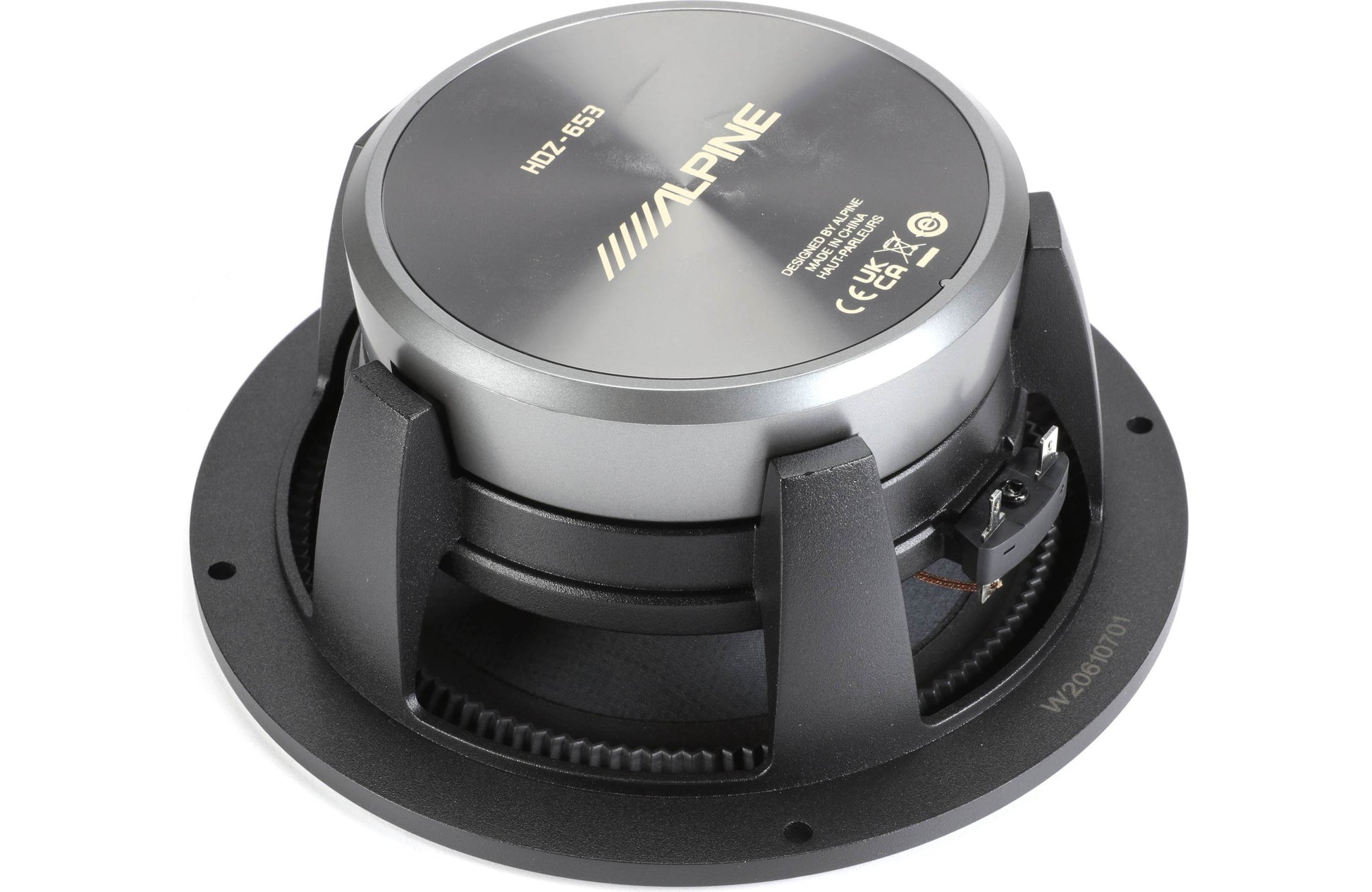

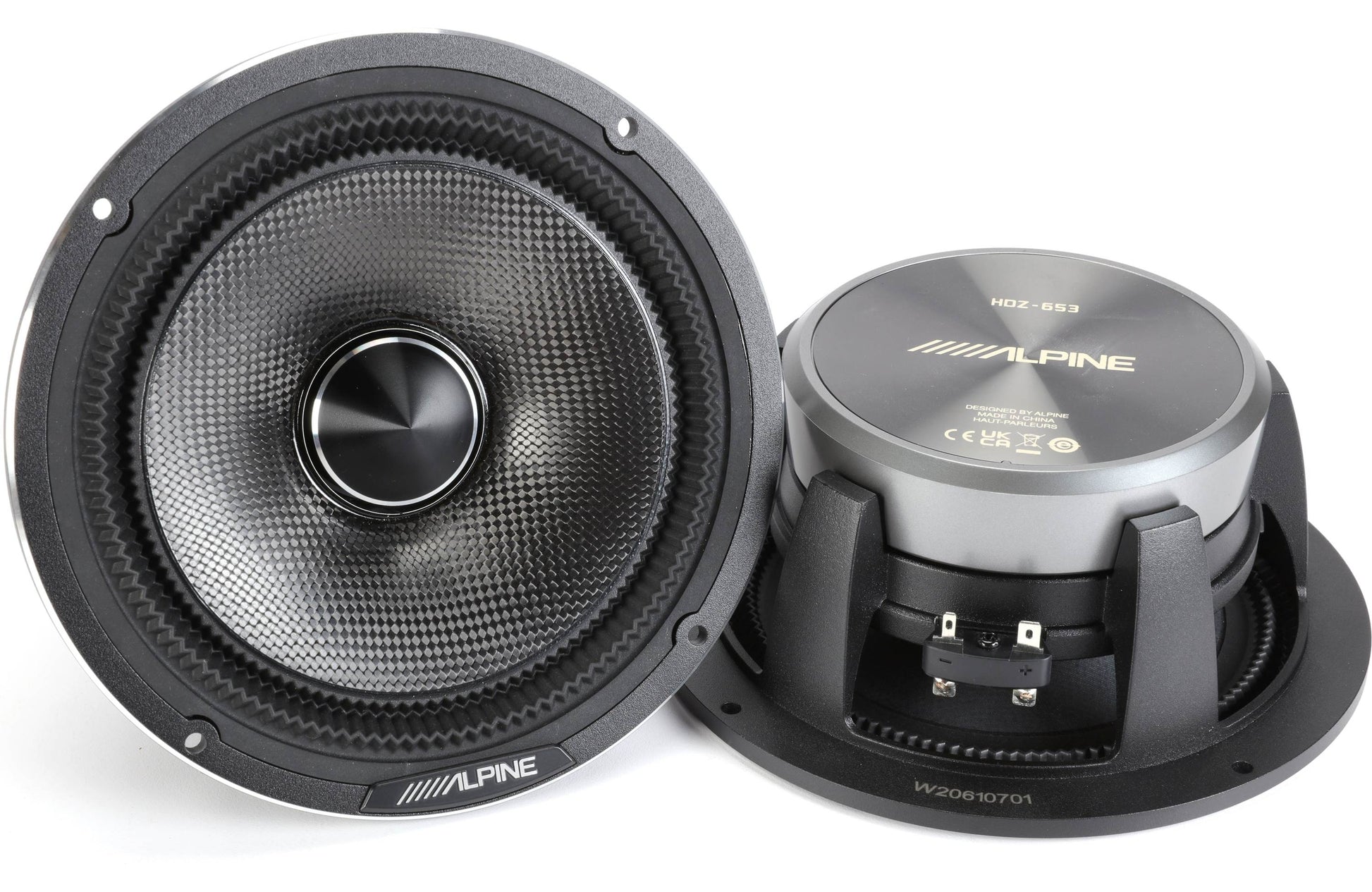

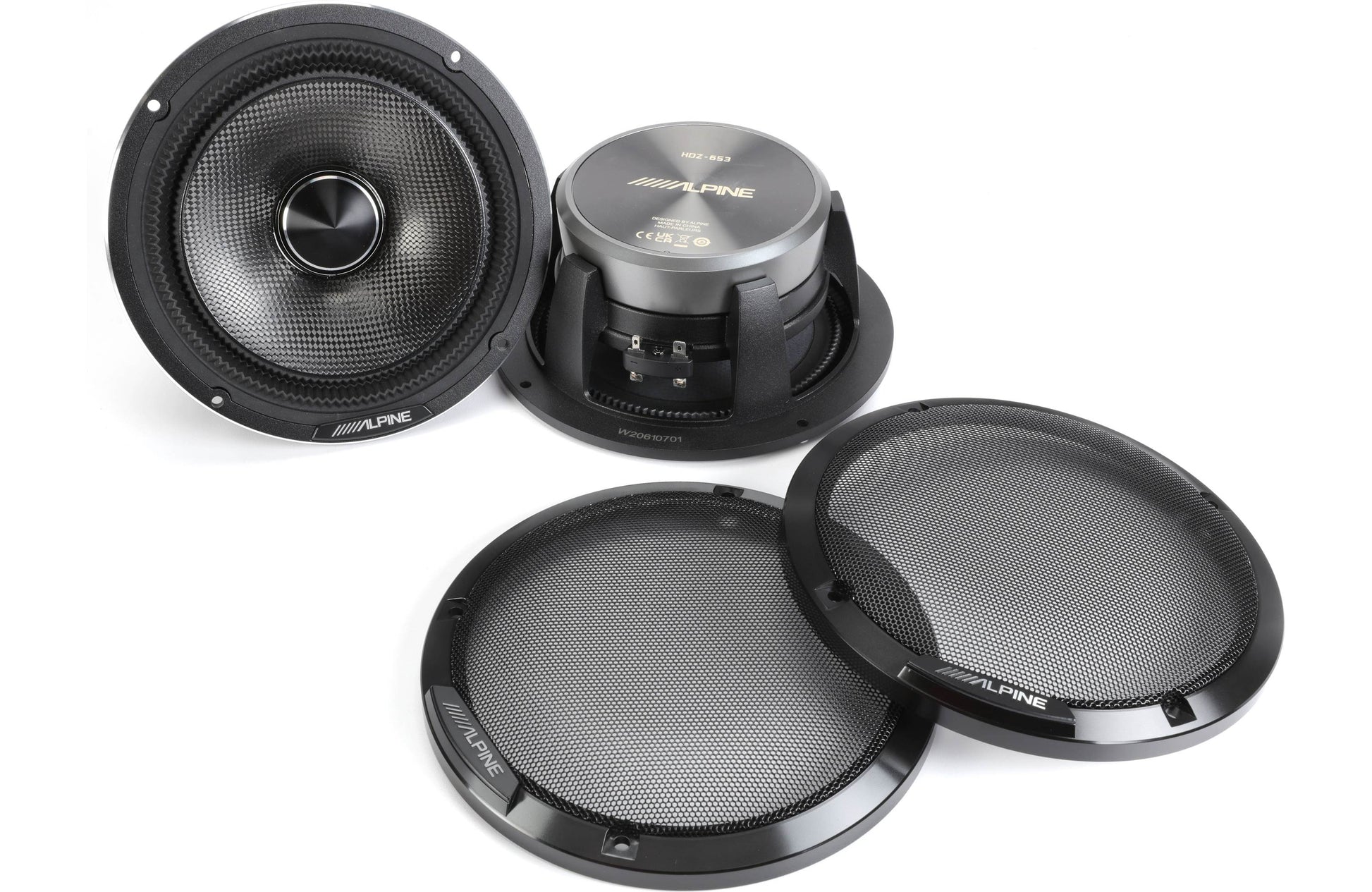

  • 6-1/2" carbon composite woofer with double-gathered edge surround
  • 3-1/2" carbon composite midrange
  • 1-1/4" dome tweeter
  • handles up to 100 watts RMS (300 watts peak power)
  • frequency range: 55-40,000 Hz
  • sensitivity: 88 dB
  • warranty: 1 year
  • MFR # HDZ-653
  • Item # 500HDZ653
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.

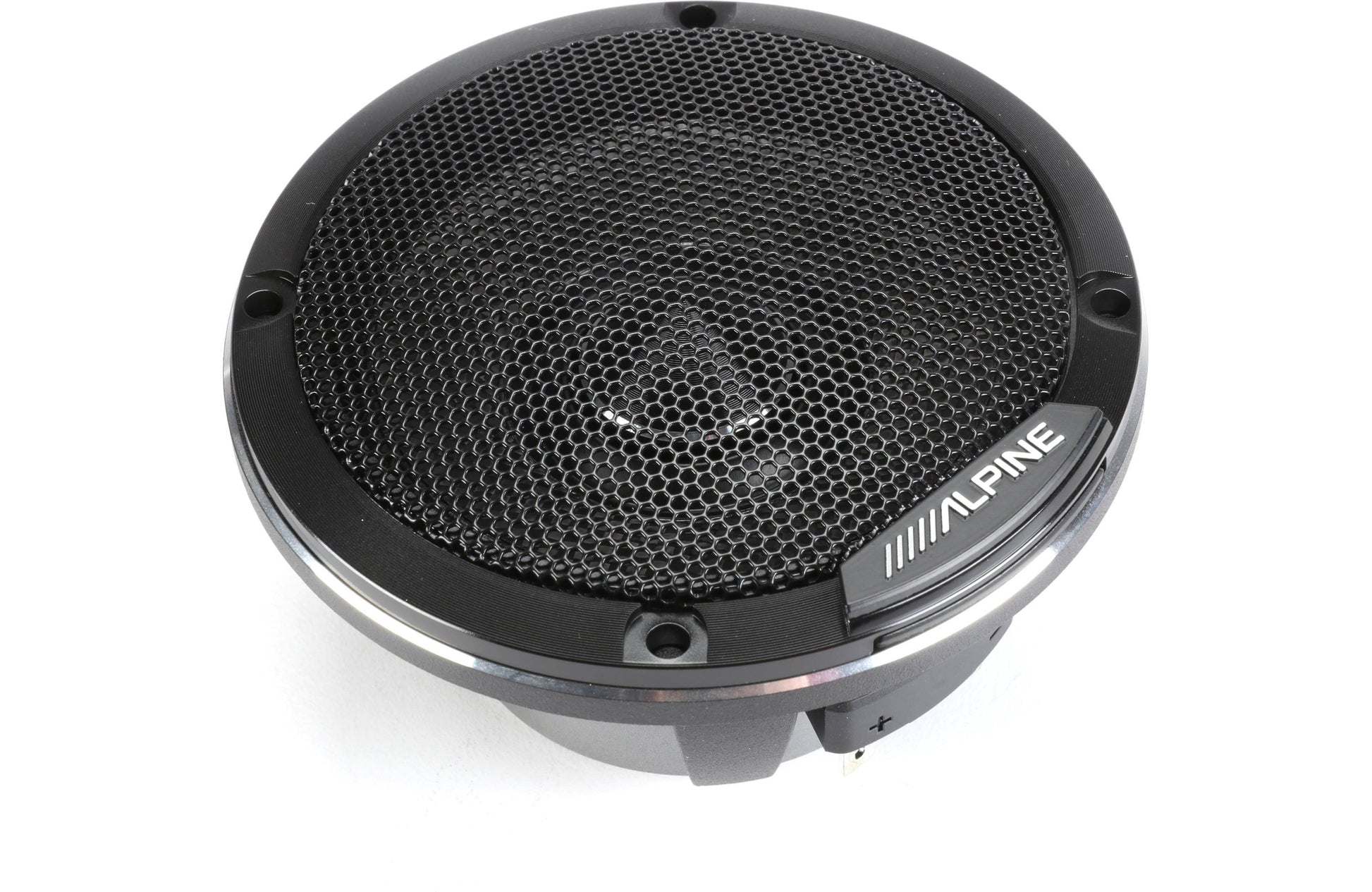

  • Two woofers
  • Two woofer grilles
  • Two midrange
  • Two midrange grilles
  • Two tweeters
  • Two threaded tweeter mounting rings
  • Two crossovers
  • Eight M4 Screws (1-1/8")
  • Sixteen M3 Screws (1-1/8")
  • Eight speed-clips
  • Eight flat washers
  • Owner's manual
  • Warranty information
  • Important Notice
  • On-line product registration information

Features & specs

General
Speaker Size 6 1/2
Driver Design 3-way
Woofer Design Cone
Woofer Material Carbon Composite
Woofer Surround Rubber
Midrange Design Cone
Midrange Material Carbon Composite
Tweeter Design Cone
Tweeter Material Carbon Composite
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No

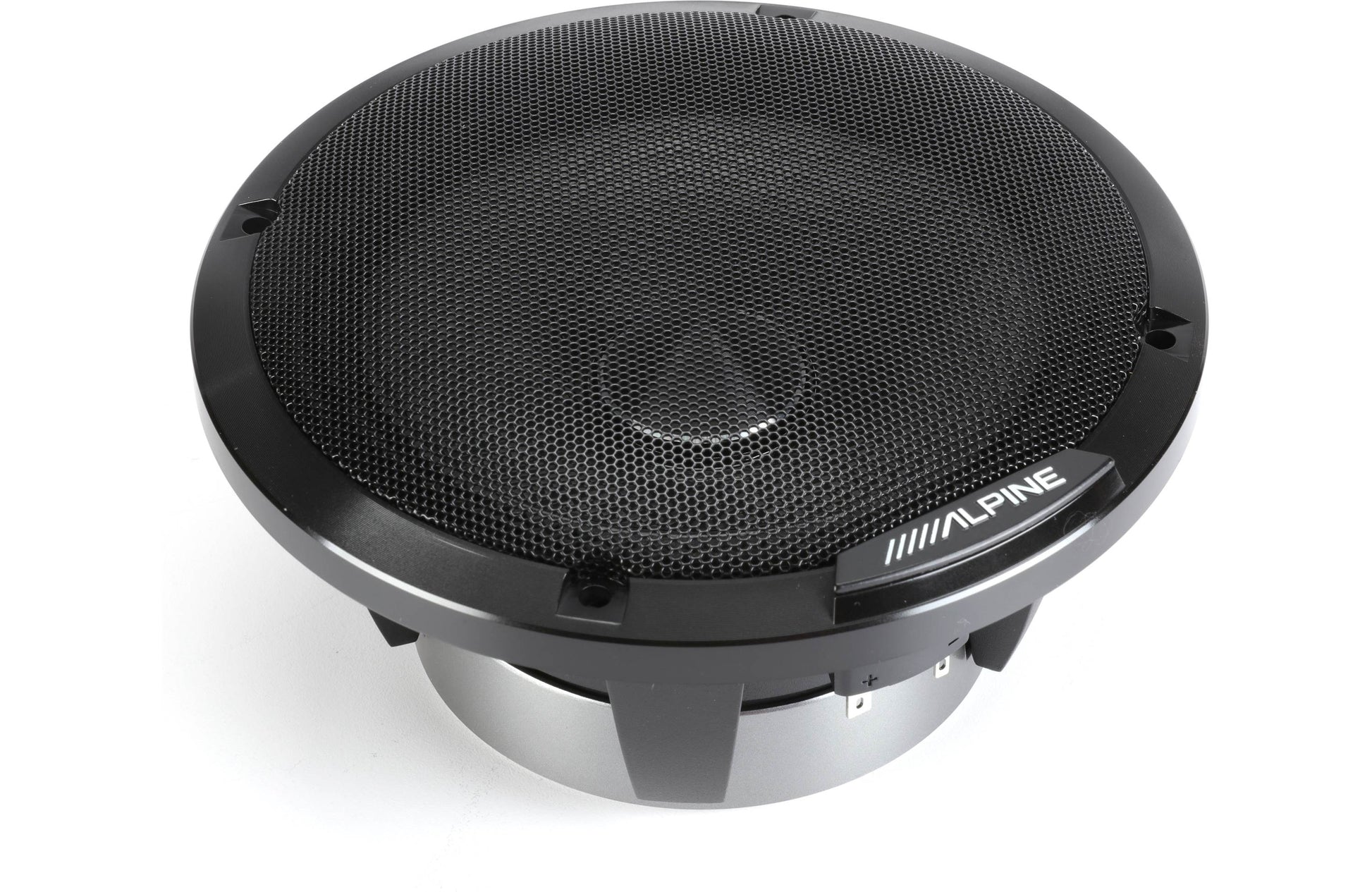

Grilles Included Black, Steel mesh, Plastic frame
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 88
Frequency Response 55 - 40k Hz
Maximum RMS Wattage 100
Peak Power Handling (Watts) 300
Top-mount Depth (Inches) 2 11/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 9/16
Mounting Height (Inches) 0.35
Frame Width 6.696
Frame Length 6.696

Features

Woofer: Alpine describes the woofer size as 6½, but because they require a larger cutout than a standard 6½ speaker, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.

Cone Material: The same carbon composite cone material is used for the woofers, midrange and tweeters, aiding the smooth transition between the drivers.

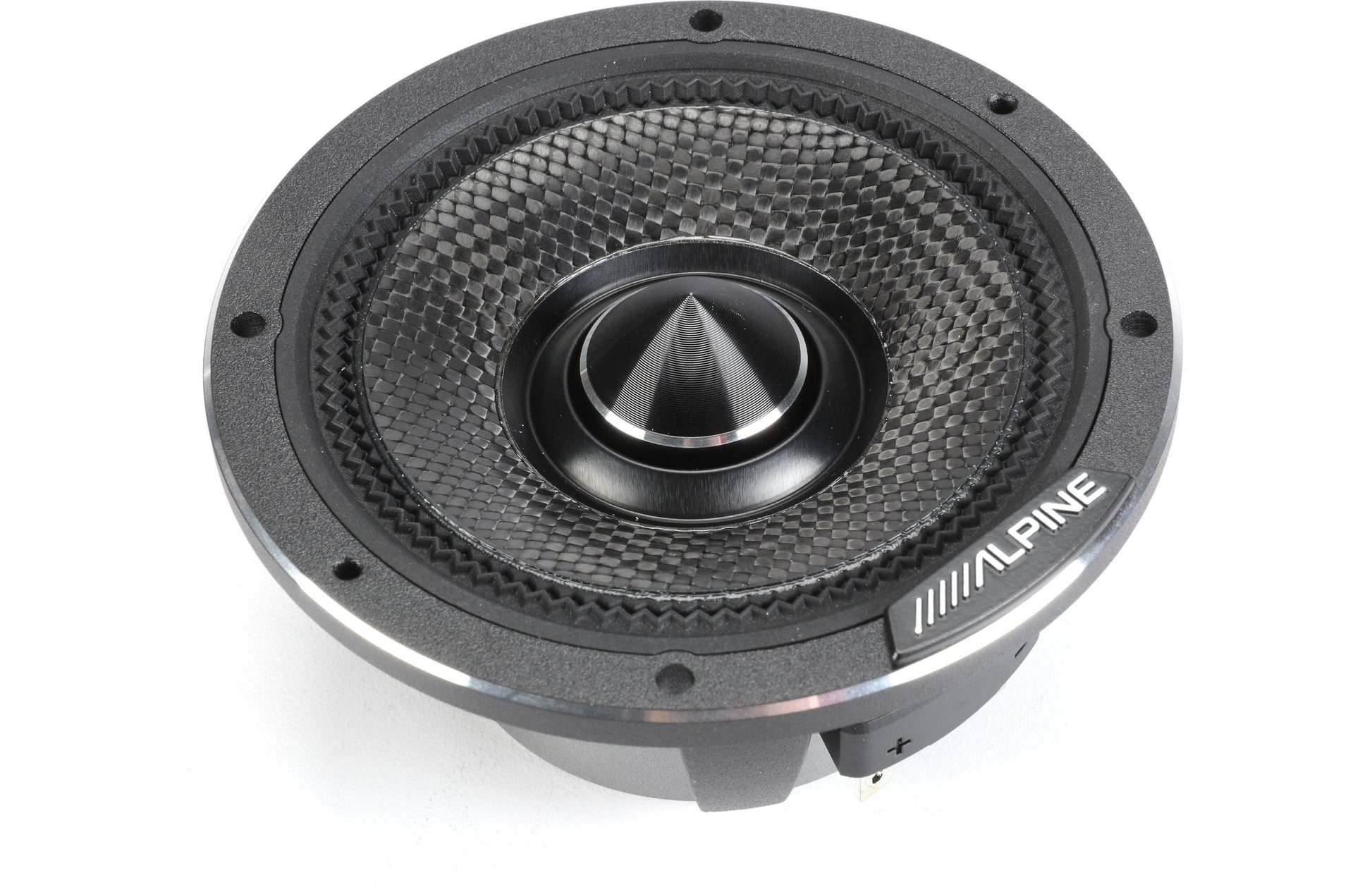

Phase Plug: The woofers, midrange and tweeters all use an aluminum phase plug in the center of the cone to help produce a smooth, flat off-axis frequency response by preventing the high frequency sound waves from one side of the cone from interfering with sound waves from the other side of the cone.

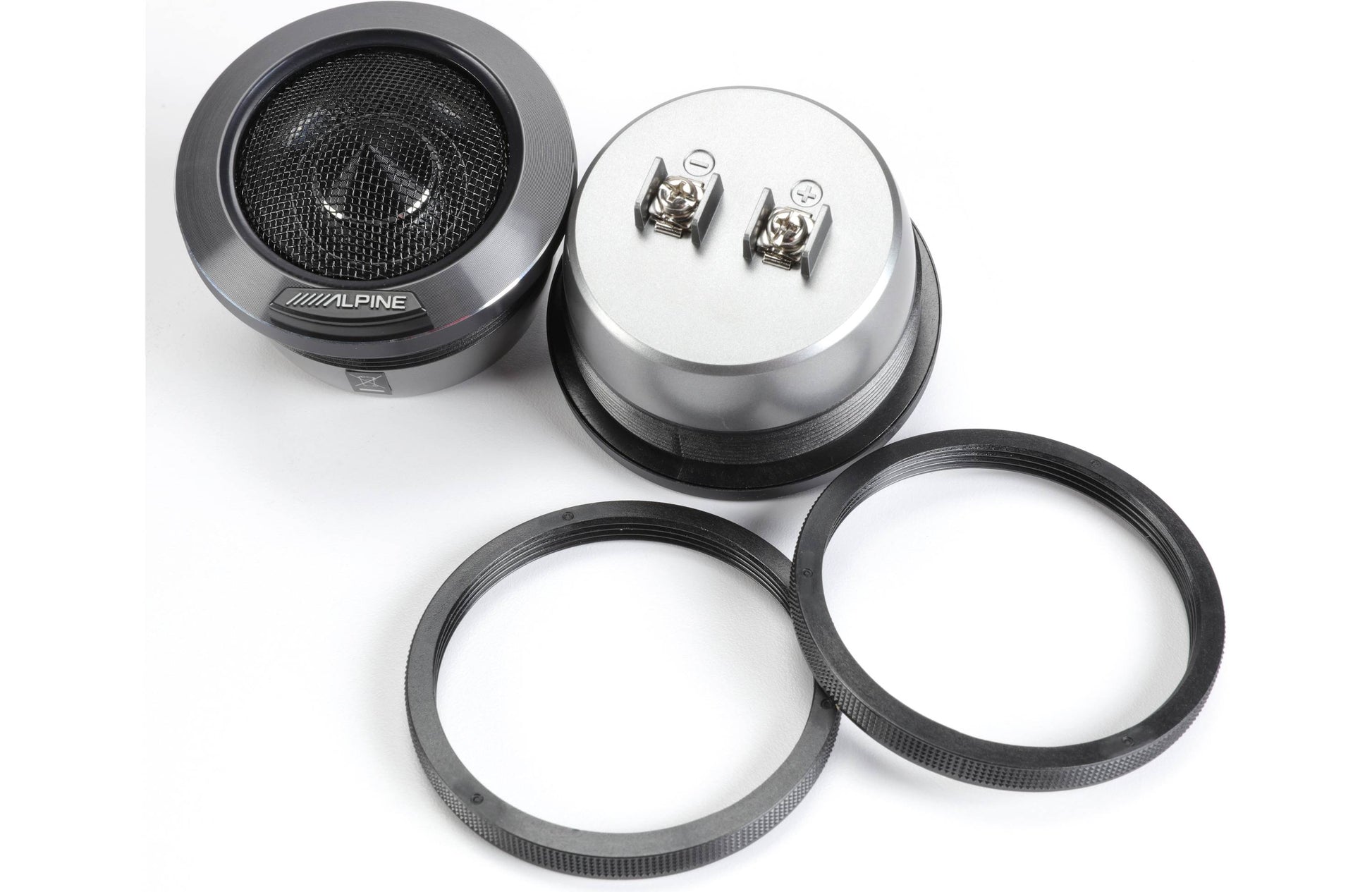

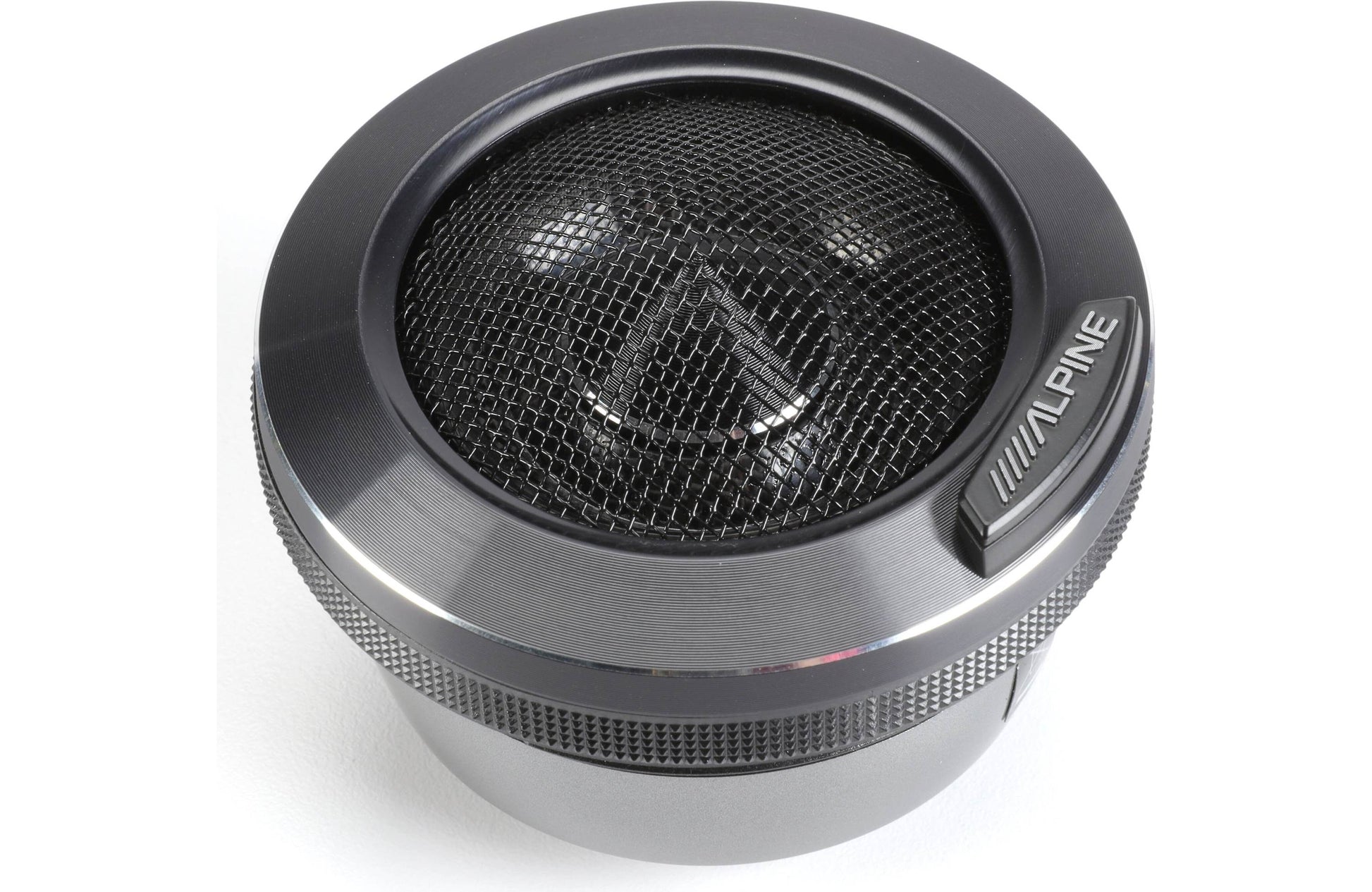

Tweeters: Each tweeter is housed in a tuned enclosure and designed to be flush mounted, with the mounting surface sandwiched between the tweeter flange and the threaded mounting ring.

Tweeter Dimensions:

  Flush Mount
Mounting Height 0.605"
Mounting Depth 1.425"
Cutout Diameter 2.435"
Frame Diameter 2.74"

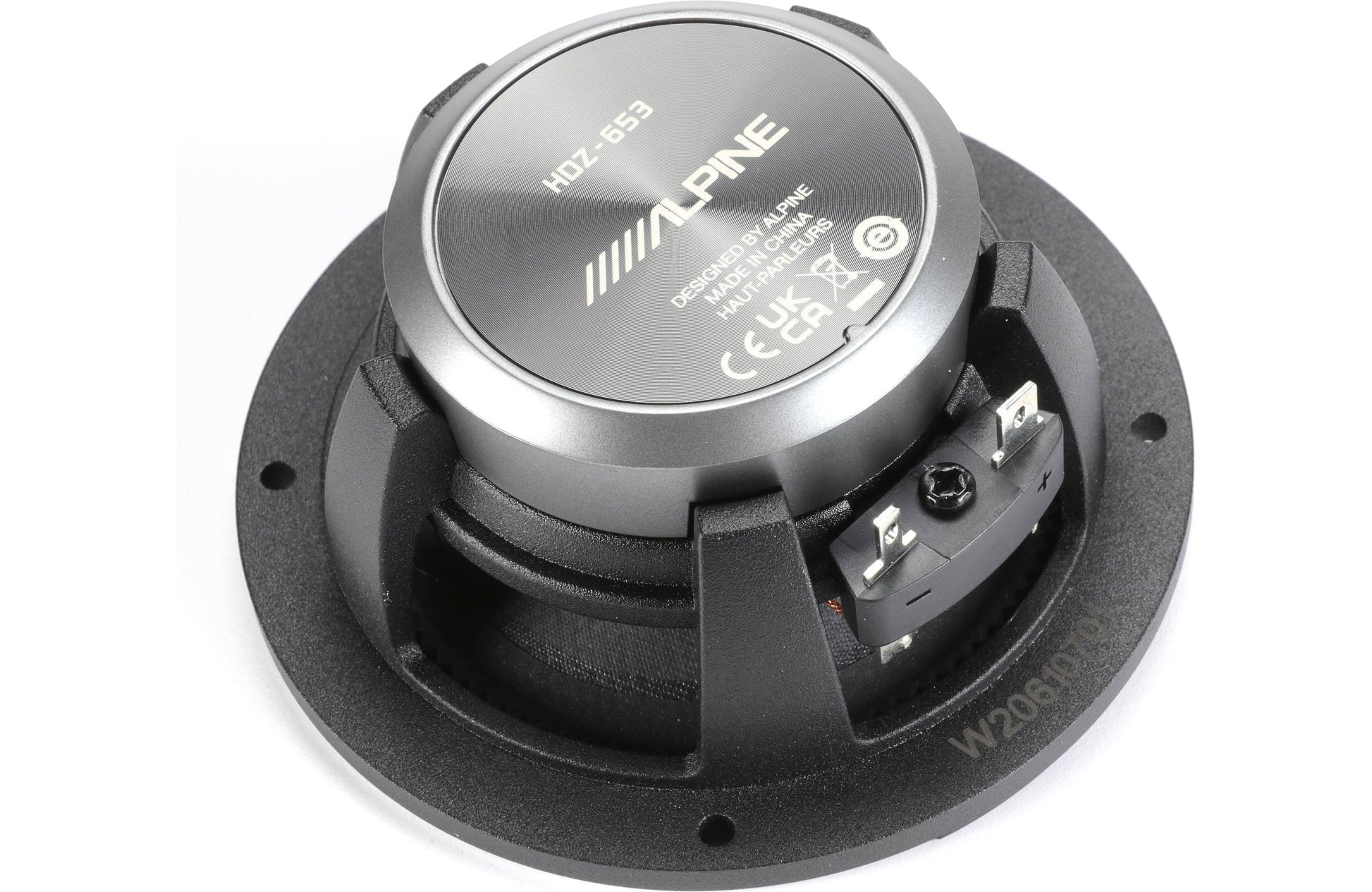

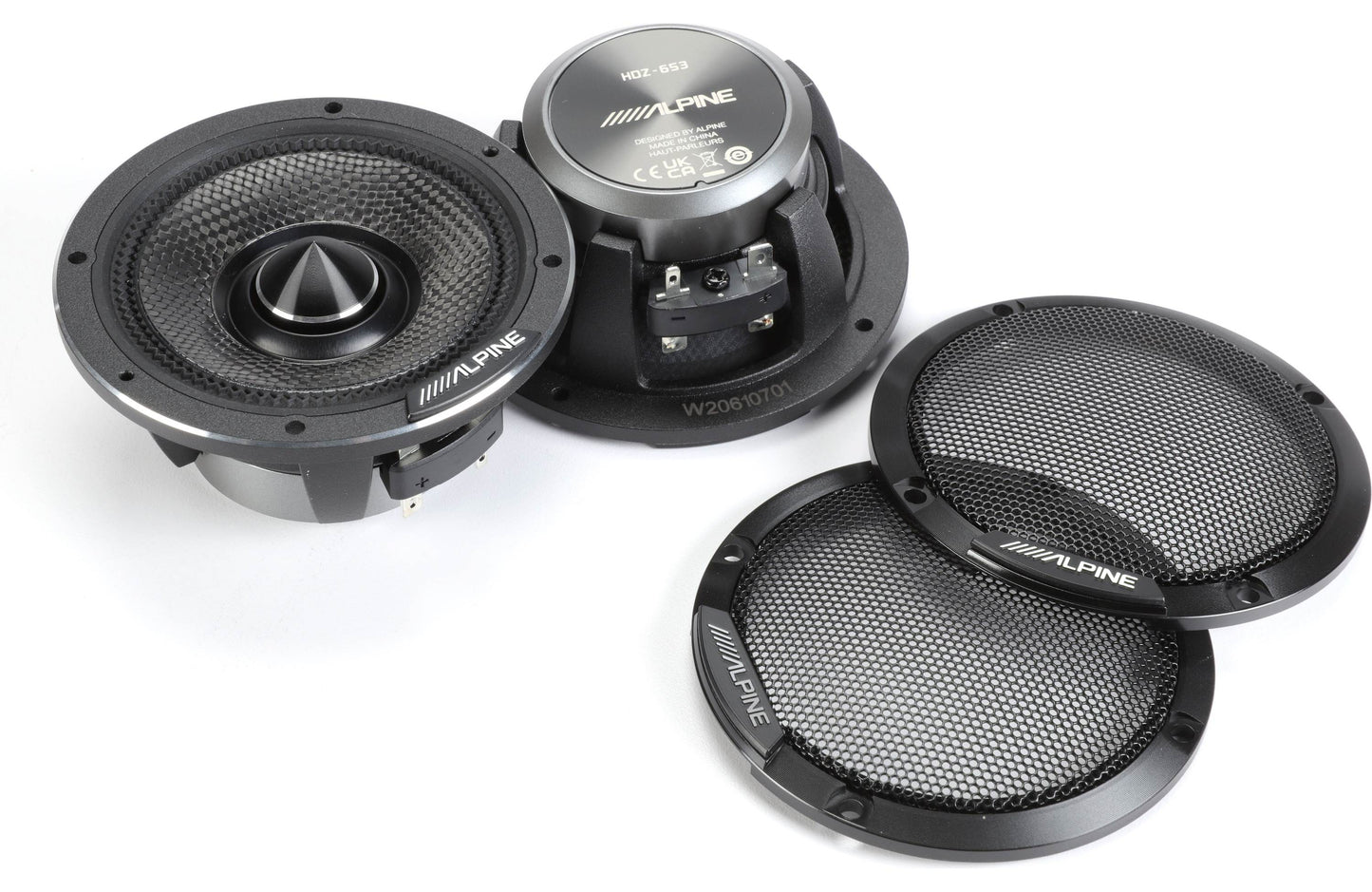

Midrange: The midrange drivers are not a standard size; they are similar to a 3½, but have a different screw hole pattern. They are top mounted and have these dimensions:

  • Depth: 1.548"
  • Mounting height: 0.358"
  • Flange height: 0.192"
  • Cutout diameter: 3.087"
  • Frame diameter: 3.778"
  • Grille diameter: 3.7"
  • Grille height: 0.5"

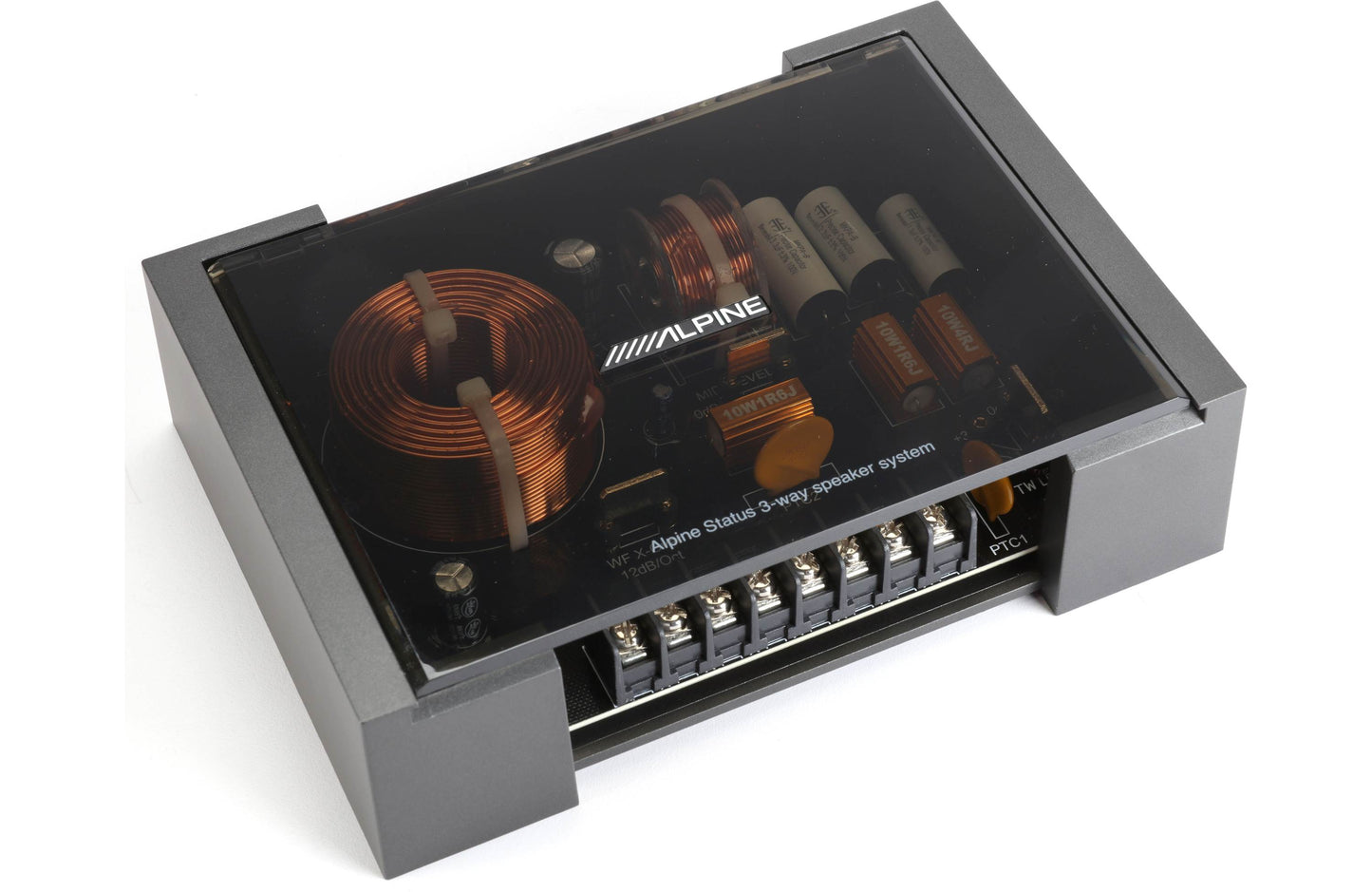

Crossover: The passive crossovers allow some system flexibility; the tweeter output level, midrange output level, and crossover slope are adjustable.

  • Tweeter Output Level: three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
  • Midrange Output Level: two jumper positions; choose 0 dB (flat) or -3 dB
  • Crossover Slope: two jumper positions; choose 12 dB/octave or 6 dB/octave

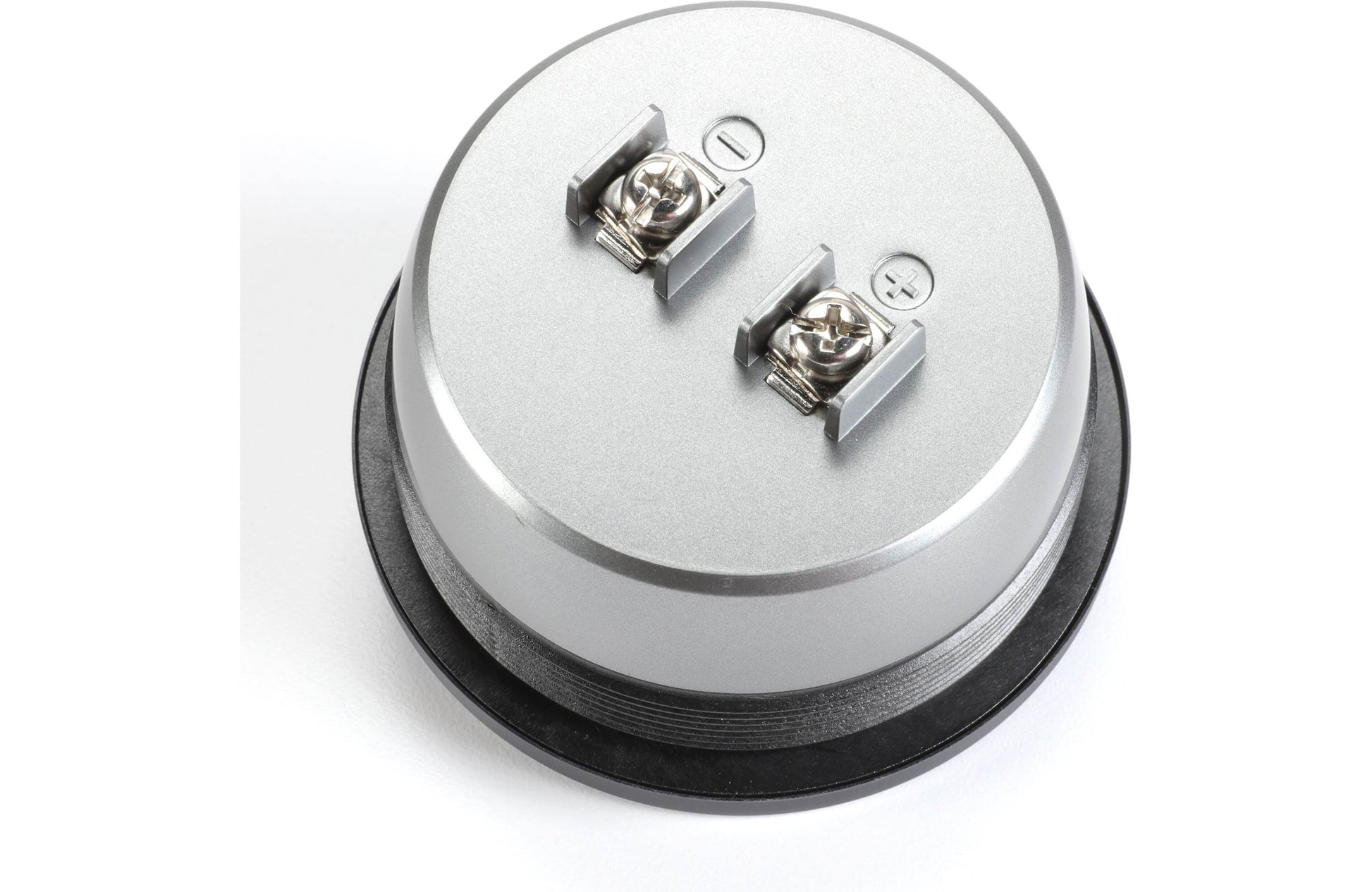

  • Wire Connections: inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.315" wide (no wire is included with the speakers)
  • Crossover Dimensions:
    • Width: 7.2"
    • Height: 2"
    • Depth: 5.04" (plus wire)
