Alpine designed its Status System components for high-resolution audio playback. Their Status Series digital receiver,amp, speakers, and subs were designed to work together and play your 192kHz/24bit digital music streaming files with high-quality, studio-level purity and sonic fidelity.
Ready for high-resolution

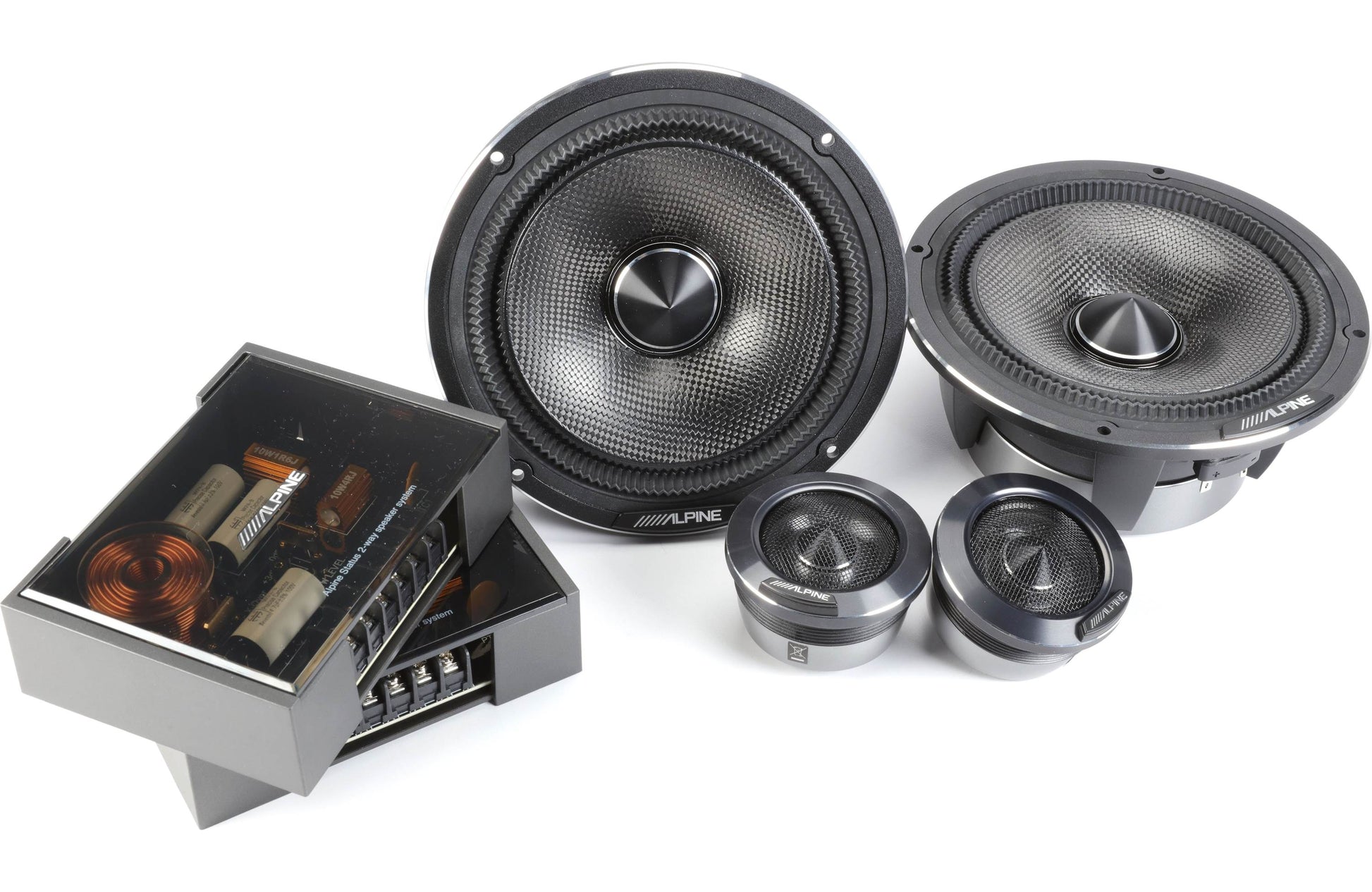

Alpine crafted their HDZ-65C 6-1/2" 2-way component speaker system for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker system optimizes the woofer, tweeter, and crossover for near-perfect sound from premium sources, like high-resolution audio files.
Optimized for Alpine
These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components, which Alpine designed with high-resolution audio in mind. Alpine uses a carbon composite cone for consistency across the speaker's ultra-wide frequency range, plus a special double gathered-edge surround, which helps minimize distortion and promote accuracy.
Product highlights:
2-way car speakers (pair)
6-1/2" carbon composite woofer with double-gathered edge surround
1-1/4" dome tweeter
handles up to 100 watts RMS (300 watts peak power)
frequency range: 55-40,000 Hz
sensitivity: 88 dB
warranty: 1 year
MFR # HDZ-65C
Item # 500HDZ65C
California customers:Pleaseclick herefor your Proposition 65 WARNING.
What's in the box:
If you need assistance accessing this owner's manual, please give us a call.

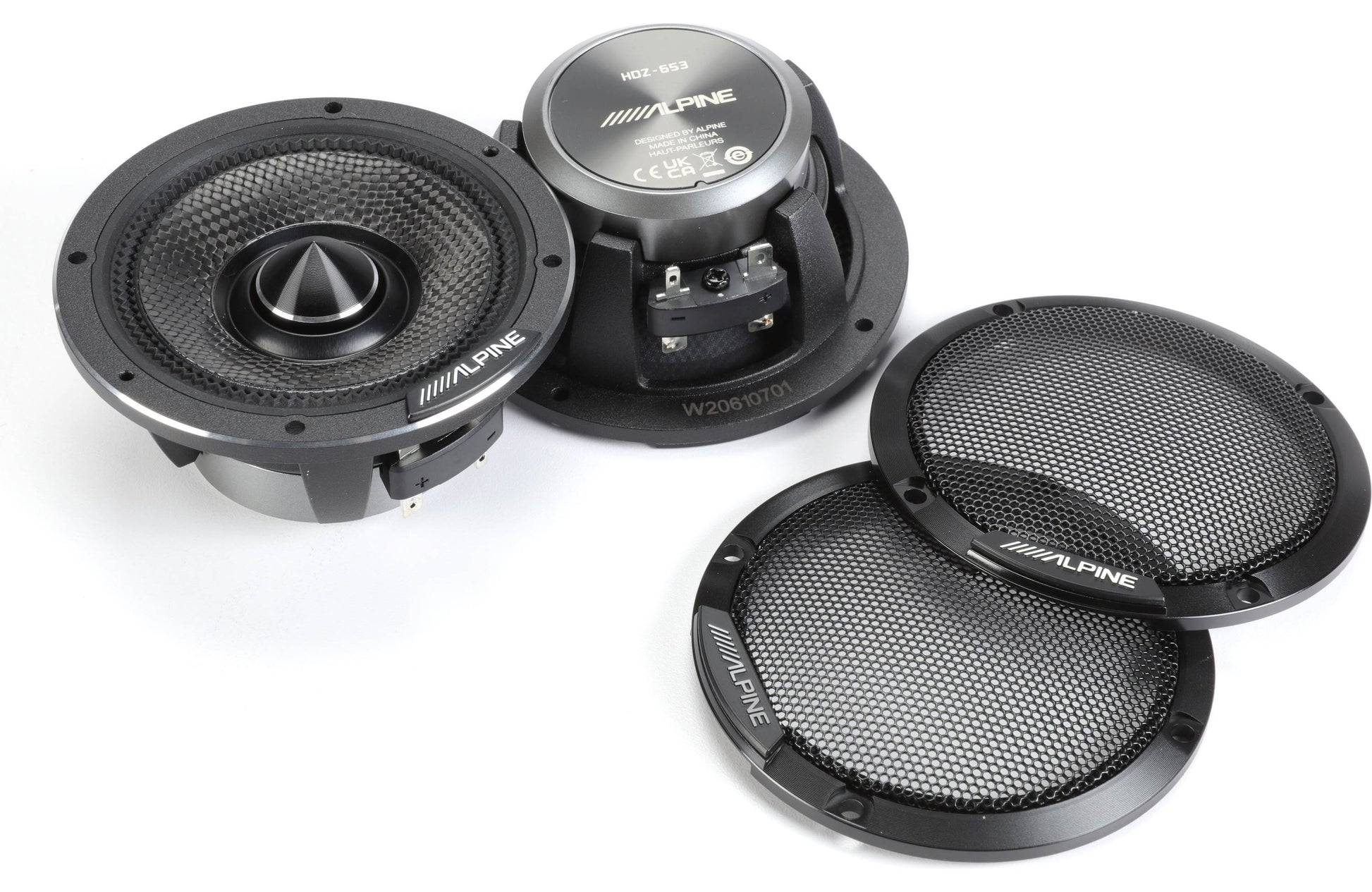

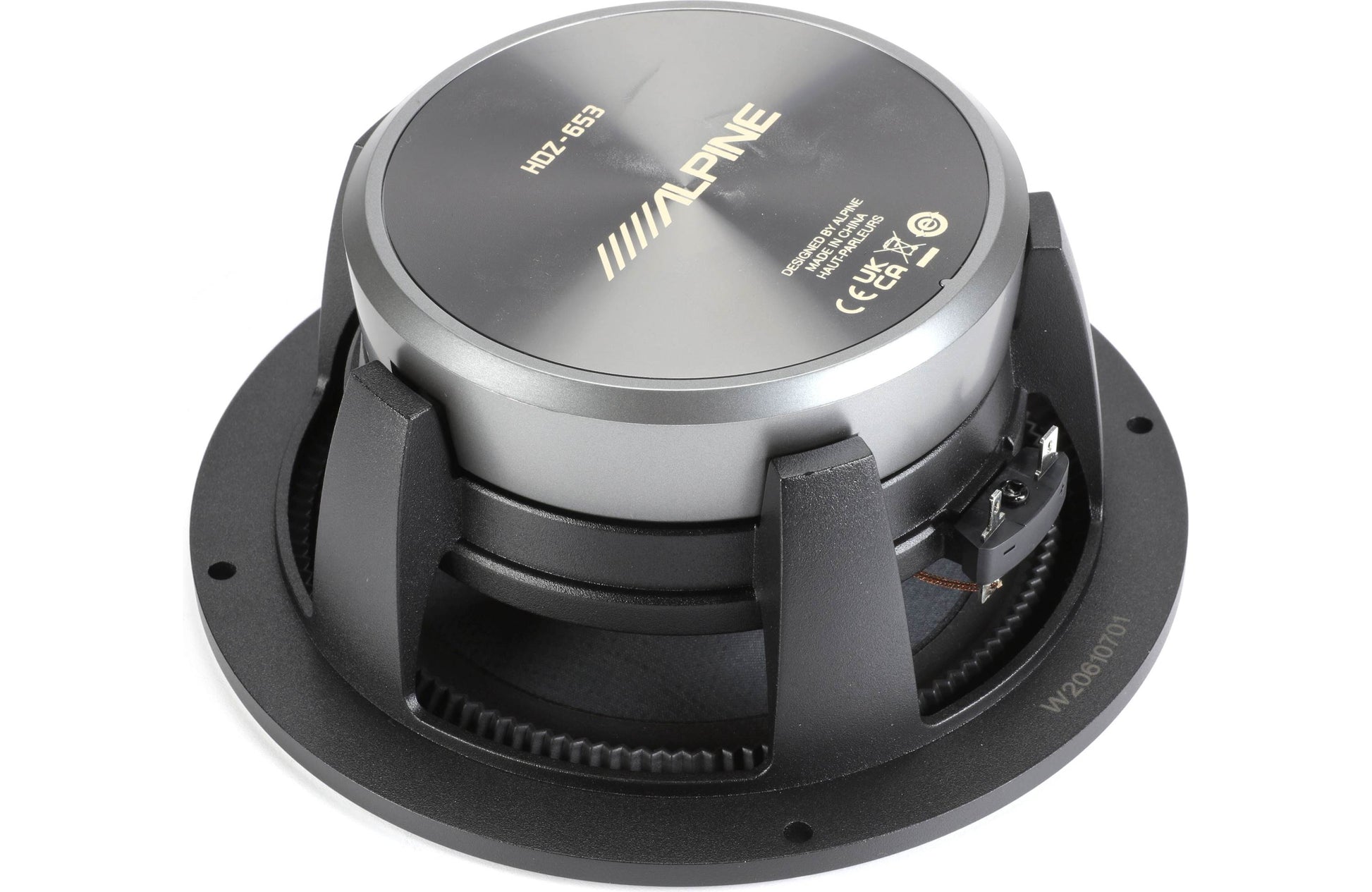

Woofer:Alpine describes the woofer size as 6½, but because they require a larger cutout than a standard 6½ speaker, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
Cone Material:The same carbon composite cone material is used for both the woofers and tweeters, aiding the smooth transition between the drivers.

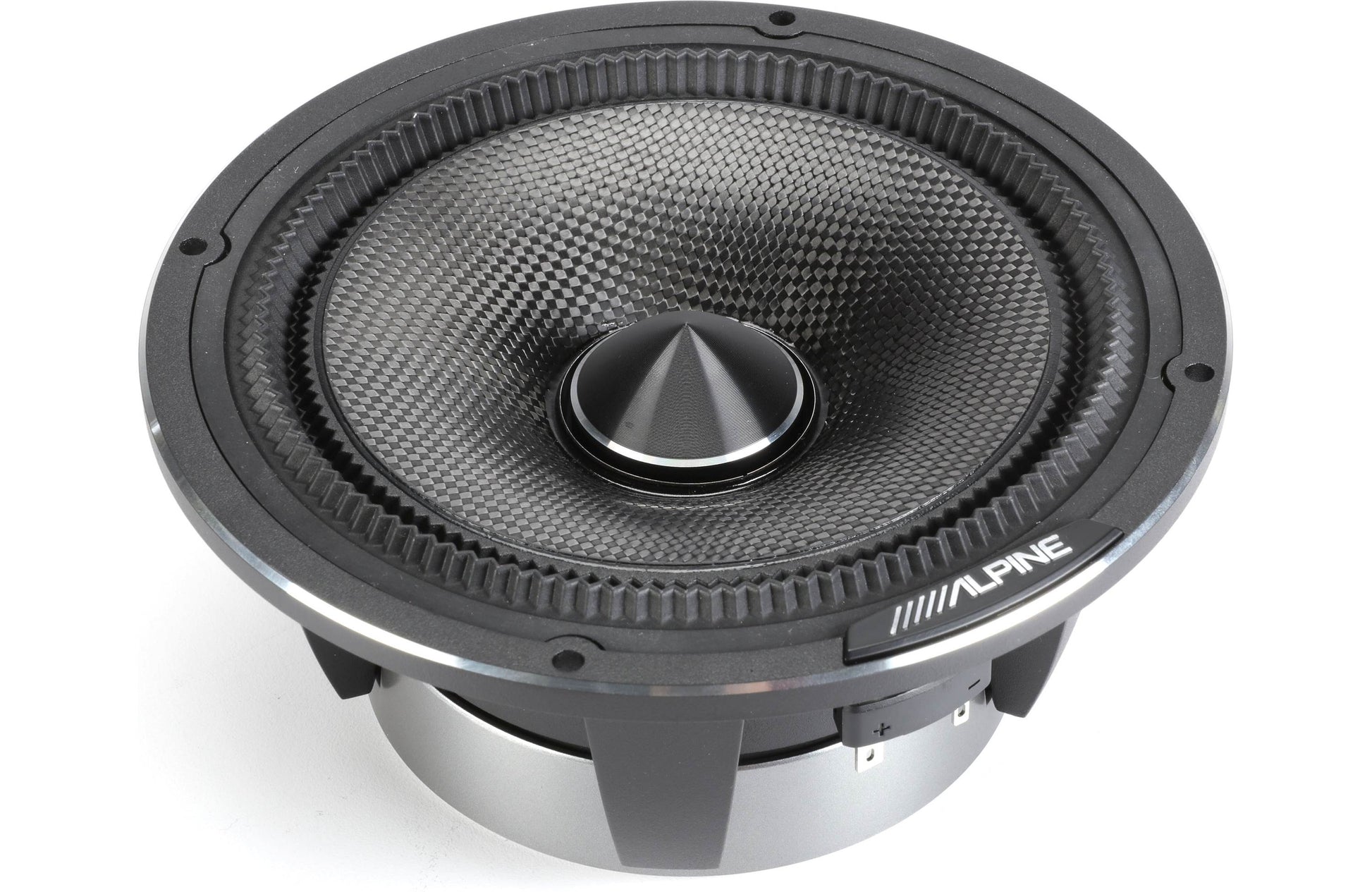

Phase Plug:The woofers and tweeters use an aluminum phase plug in the center of the cone to help produce a smooth, flat off-axis frequency response by preventing the high frequency sound waves from one side of the cone from interfering with sound waves from the other side of the cone.

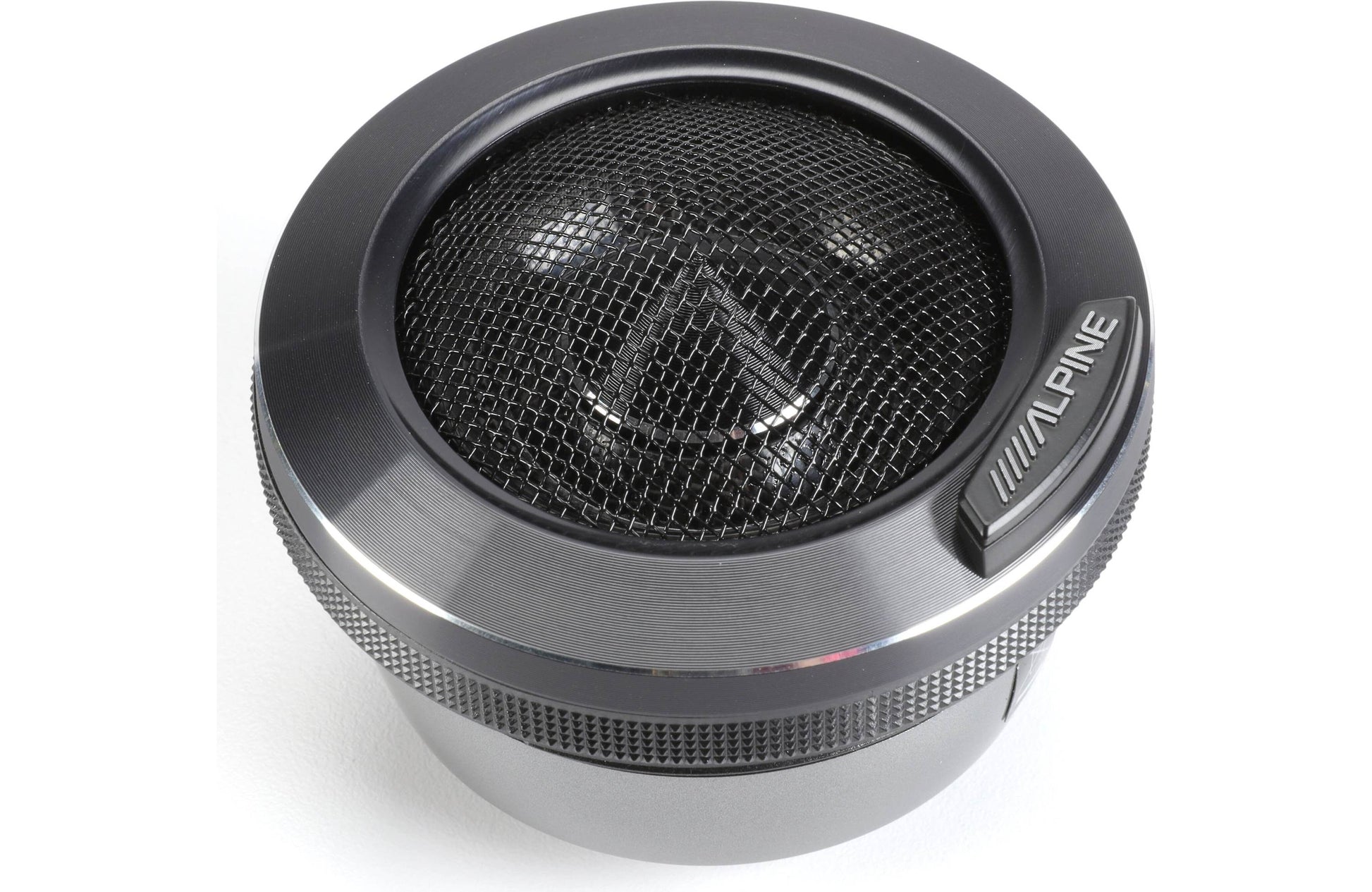

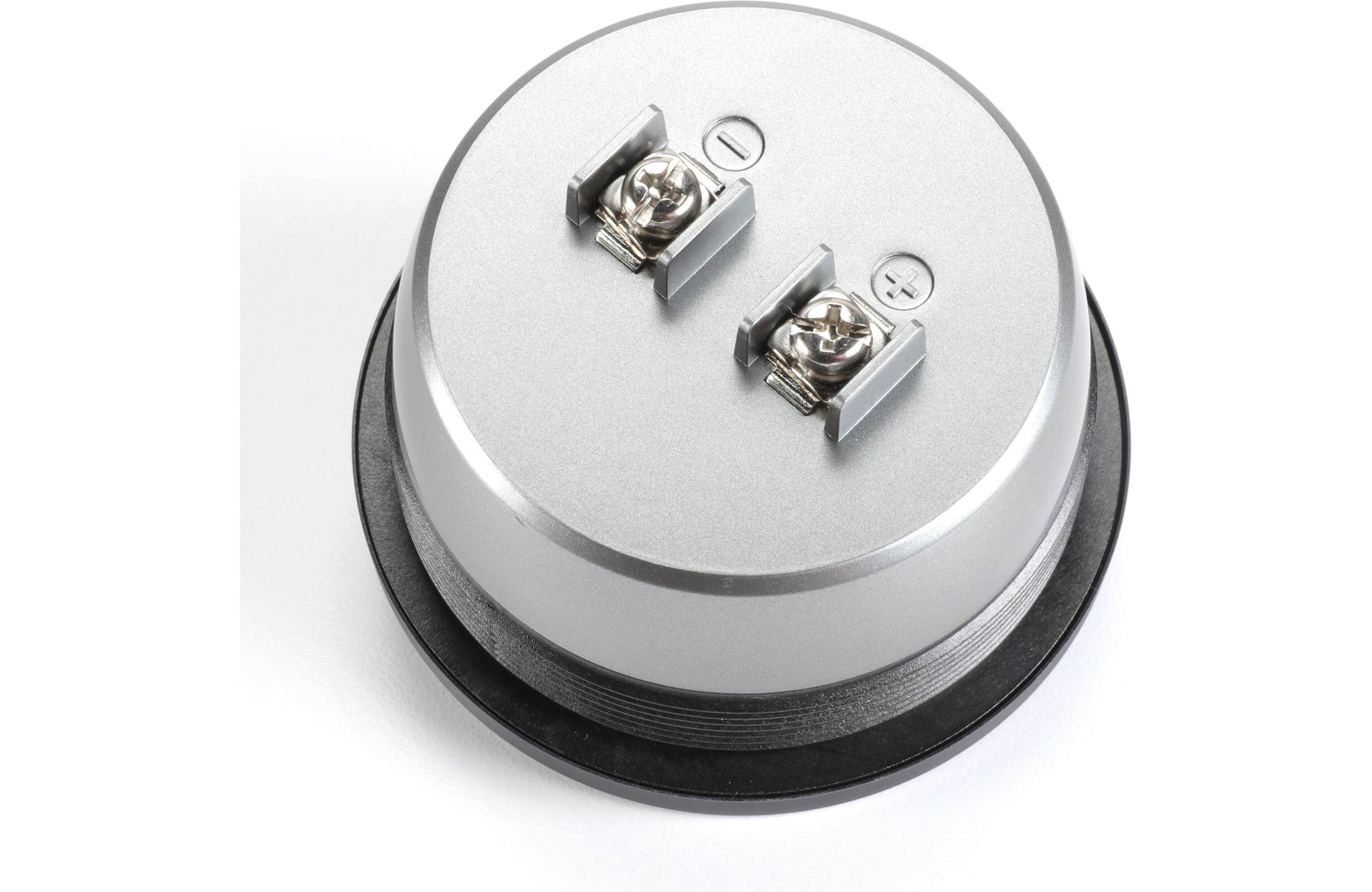

Tweeters:Each tweeter is housed in a tuned enclosure and designed to be flush mounted, with the mounting surface sandwiched between the tweeter flange and the threaded mounting ring.
Tweeter Dimensions:
Flush Mount
Mounting Height
0.605"
Mounting Depth
1.425"
Cutout Diameter
2.435"
Frame Diameter
2.74"
Crossover:The passive crossovers allow some system flexibility; the tweeter output level and crossover slope are adjustable.
Tweeter Output Level:three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
Crossover Slope:two jumper positions; choose 12 dB/octave or 6 dB/octave
Wire Connections:inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.315" wide (no wire is included with the speakers)
Crossover Dimensions:
Width:5.32"
Height:1.59"
Depth:3.94" (plus wire)
