Alpine designed its Status System components for high-resolution audio playback. Their Status Series digital receiver,amp, speakers, and subs were designed to work together and play your 192kHz/24bit digital music streaming files with high-quality, studio-level purity and sonic fidelity.
Ready for high-resolution

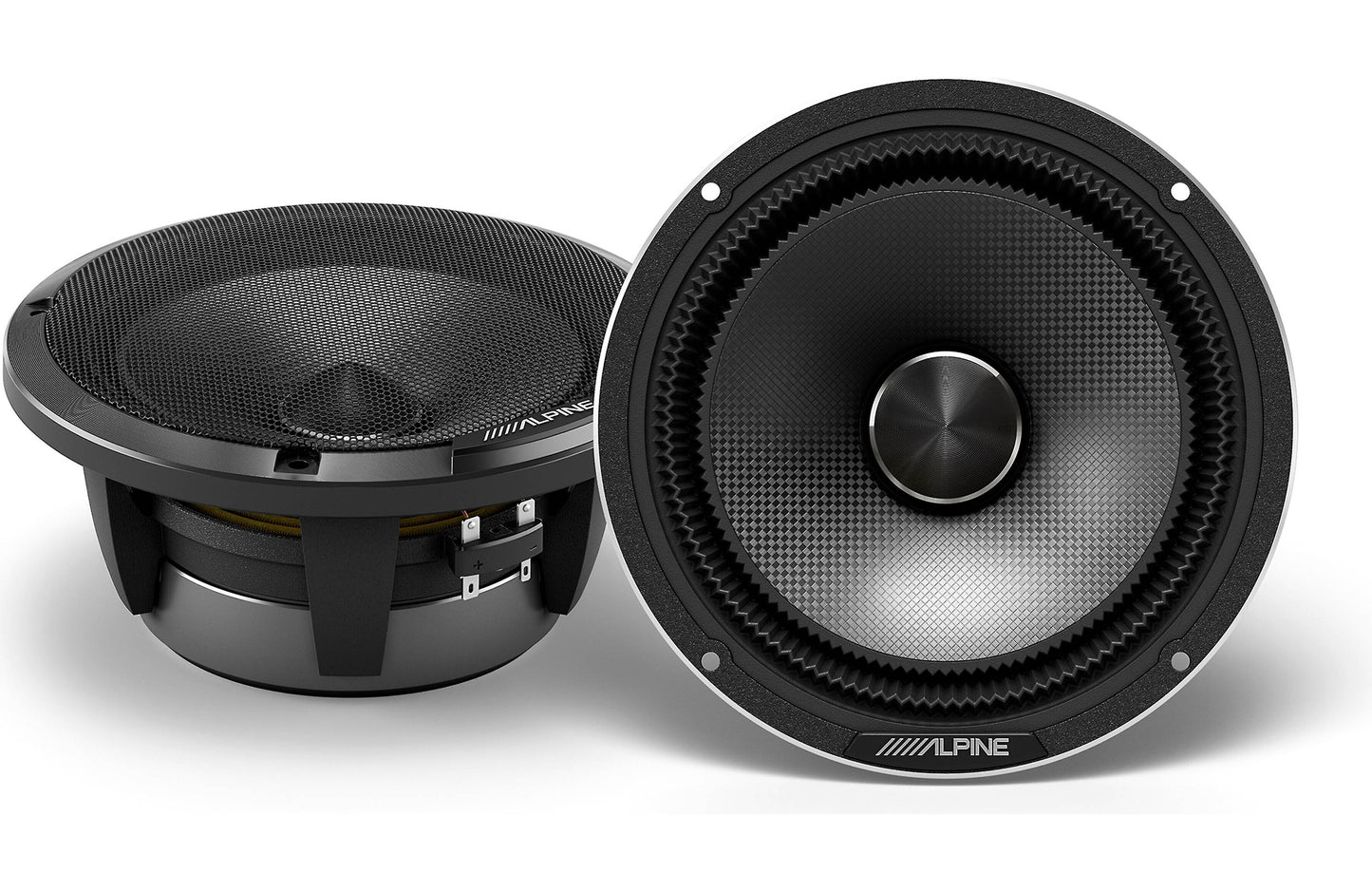

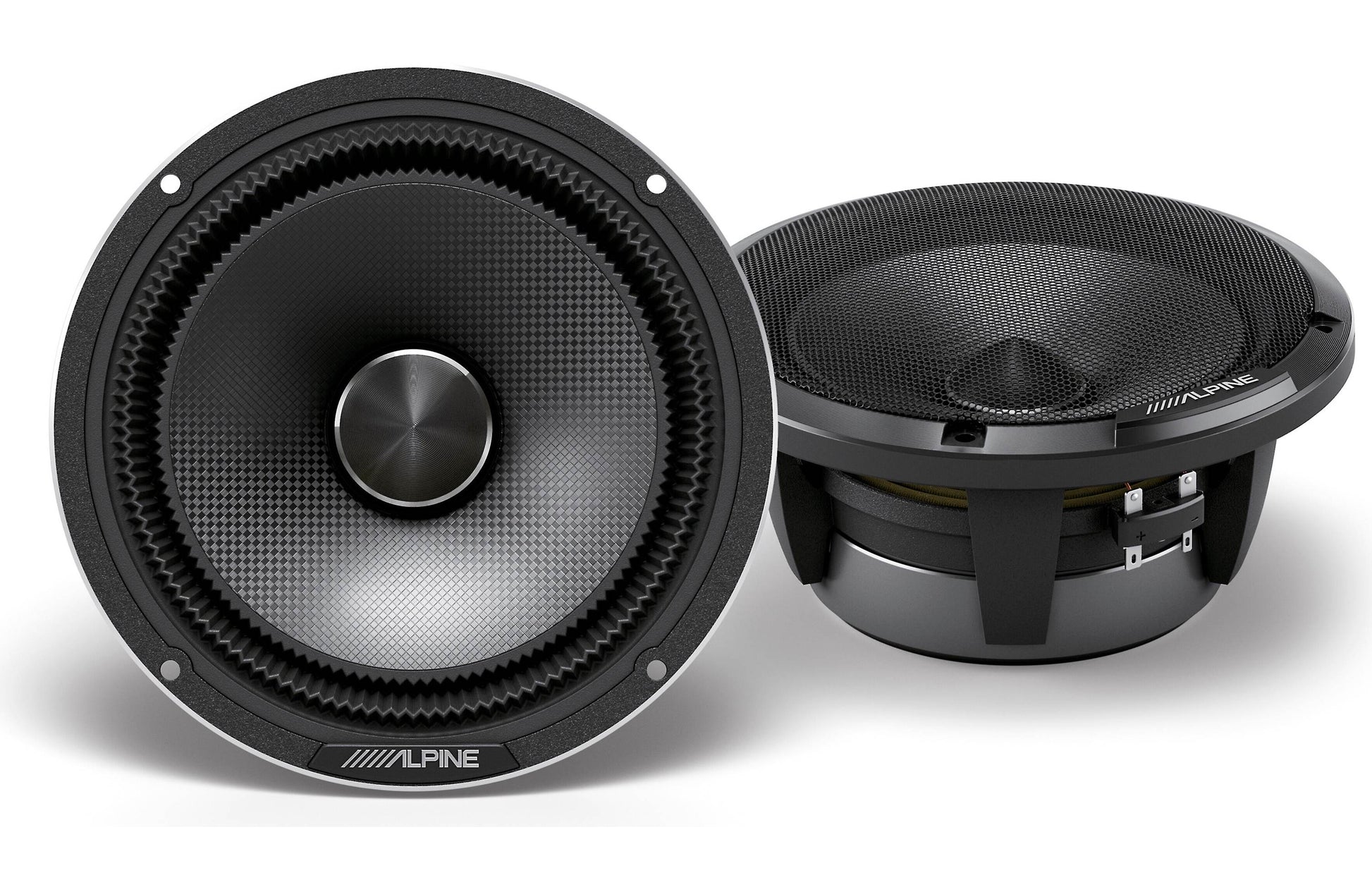

Alpine crafted their HDZ-65CS 6-1/2" 2-way component speaker system for listeners in search of excellent audio quality in the car. Using many of the same design and material elements as their flagship F#1 Status speakers, this speaker system optimizes the woofer, tweeter, and crossover for near-perfect sound from premium sources, like high-resolution audio files.
Optimized for Alpine
These Status Series speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS, but you can unlock their full potential by pairing them with Status System components, which Alpine designed with high-resolution audio in mind. Alpine uses a carbon composite cone for consistency across the speaker's ultra-wide frequency range, plus a special double gathered-edge surround, which helps minimize distortion and promote accuracy.
Alpine prioritizes tweeter fit
If you're upgrading a factory 3-way component system, Alpine optimizes fit to minimize the need for custom work. Their slim-fit 1" tweeter makes it easier to utilize the factory tweeter locations of more vehicles.
Product highlights:
2-way car speakers (pair)

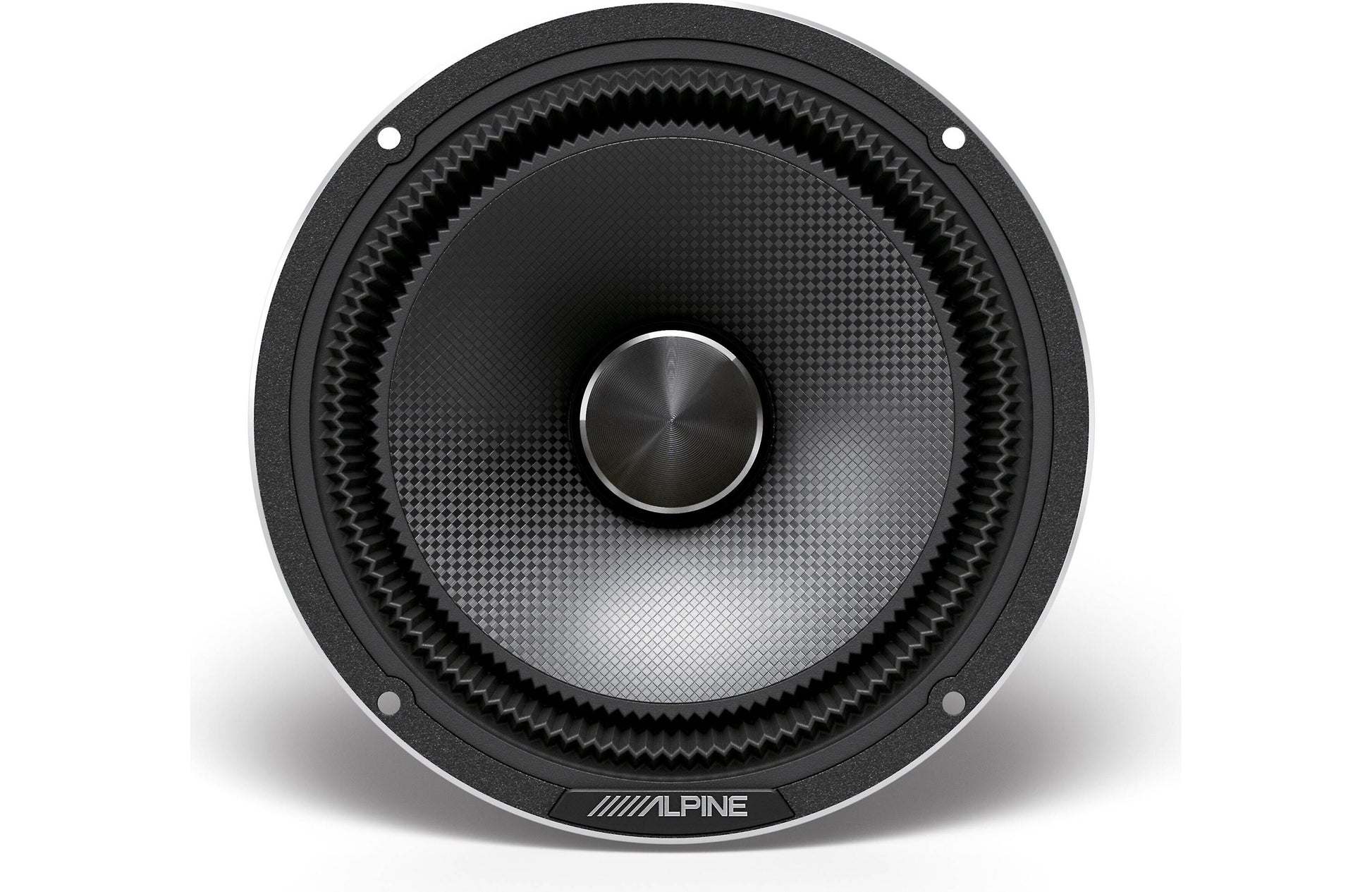

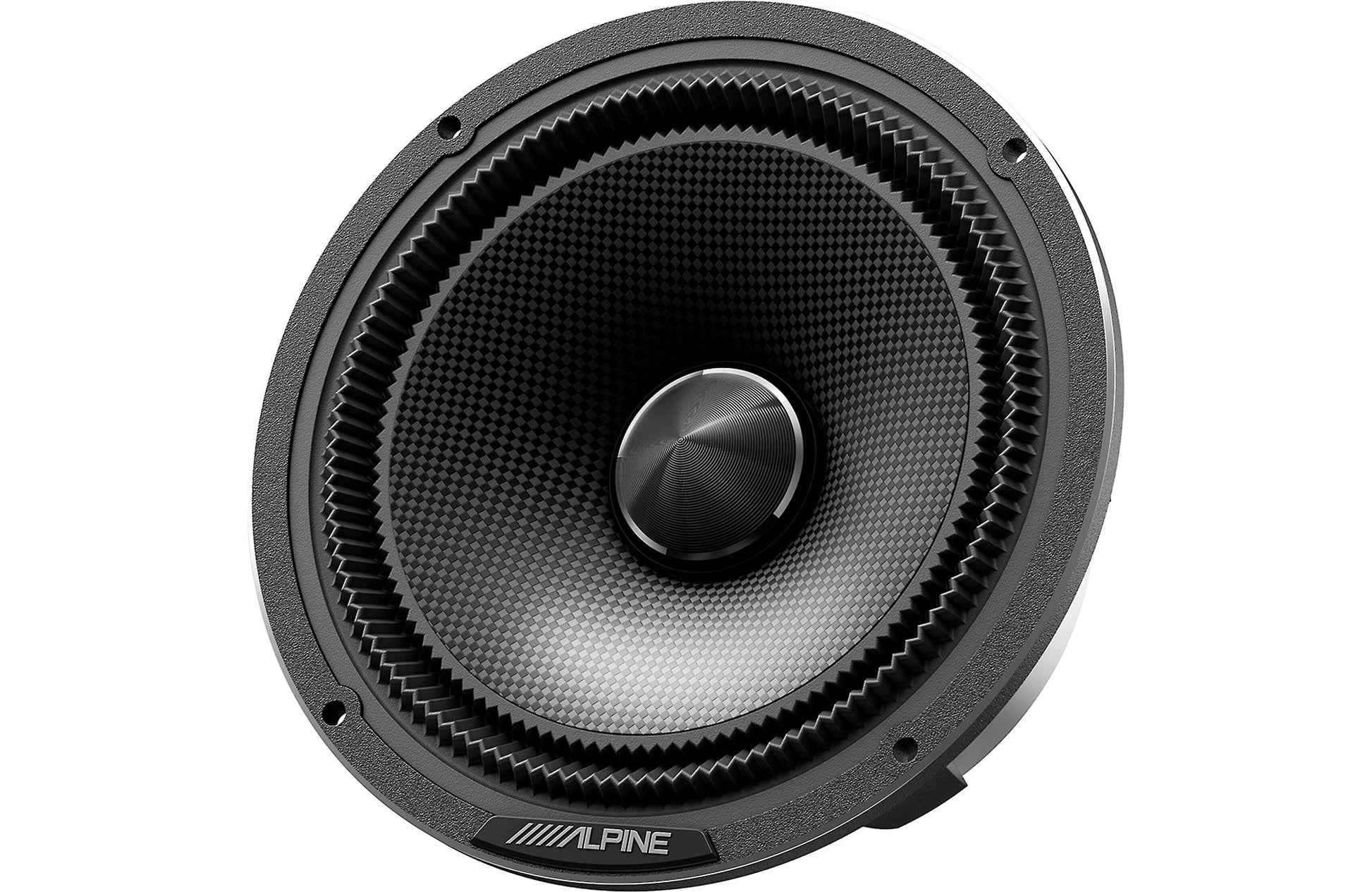

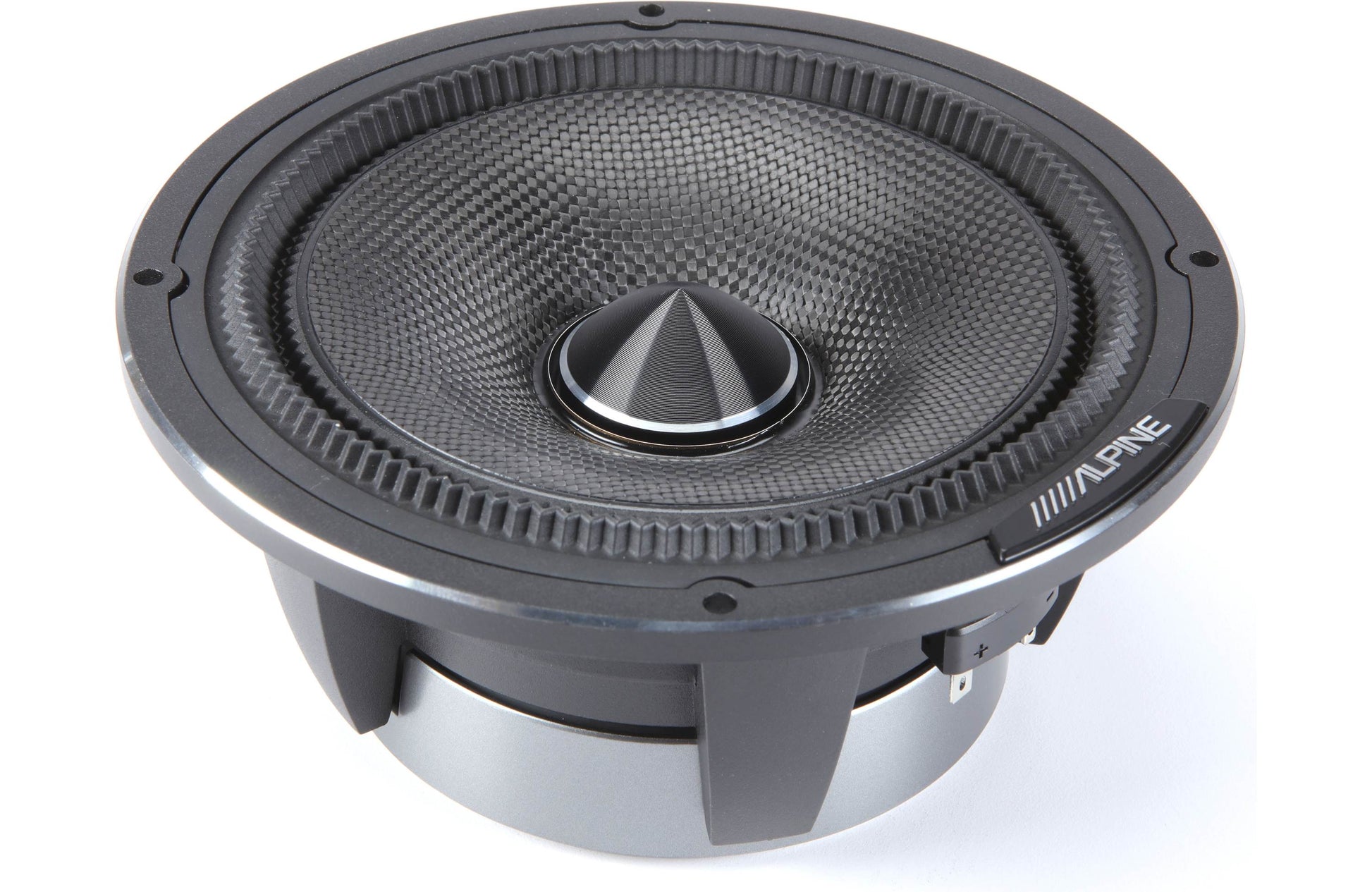

6-1/2" carbon composite woofer with double-gathered edge surround
1" slim-fit tweeter
handles up to 100 watts RMS (300 watts peak power)
frequency range: 55-40,000 Hz
sensitivity: 88 dB

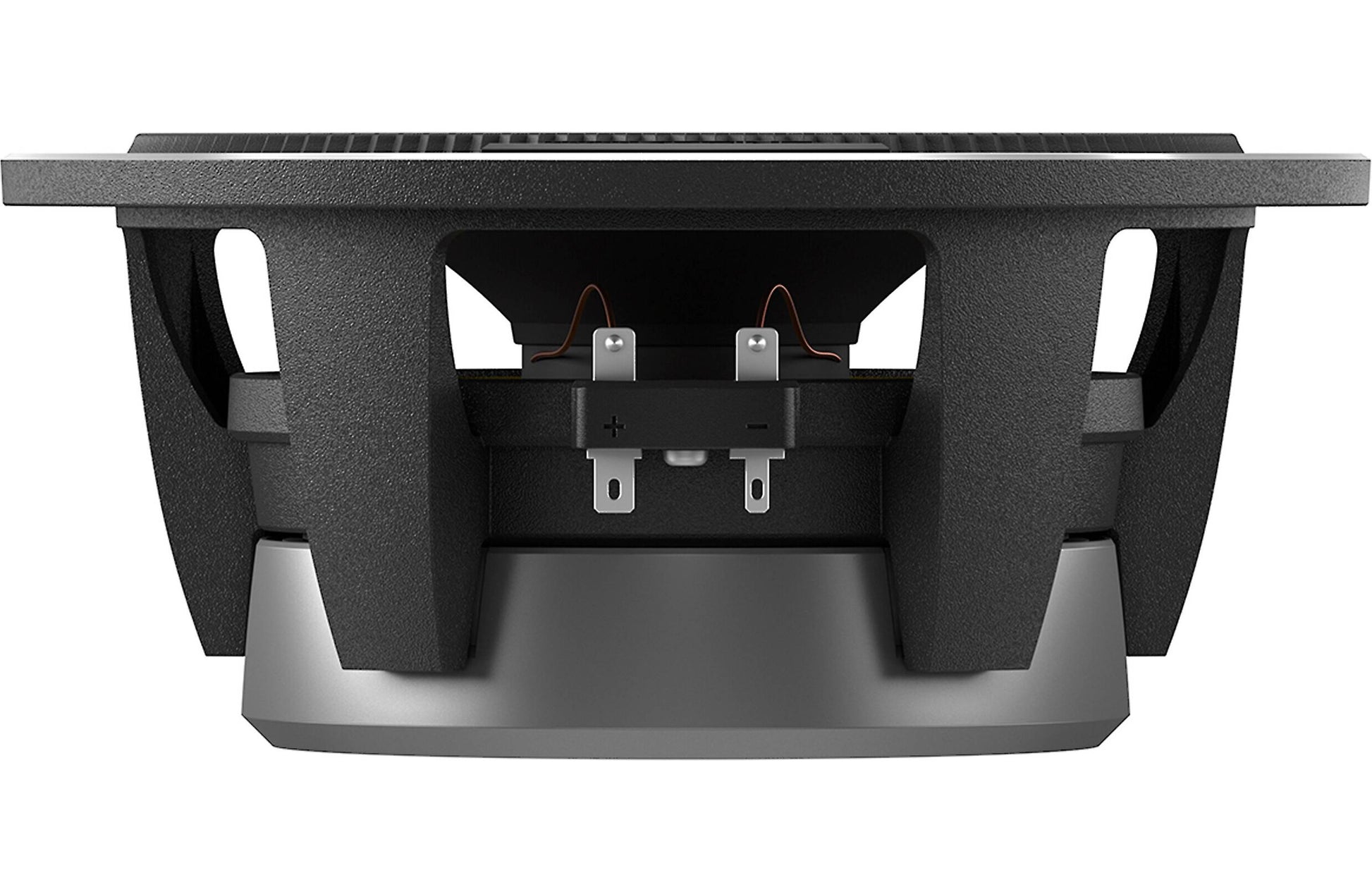

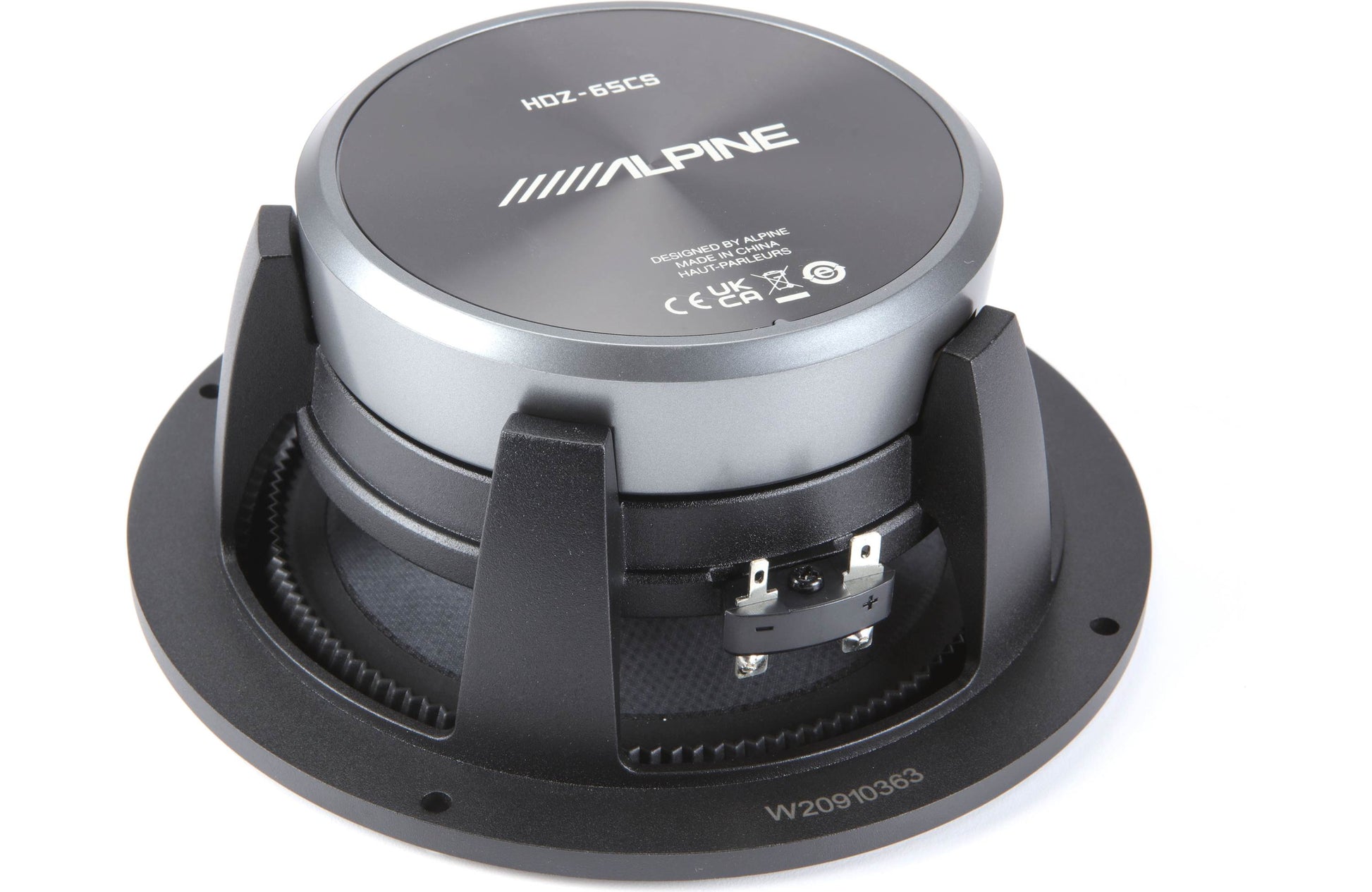

woofer top-mount depth: 2-11/16"
warranty: 1 year
MFR # HDZ-65CS
Item # 500HDZ65CS
California customers:Pleaseclick herefor your Proposition 65 WARNING.

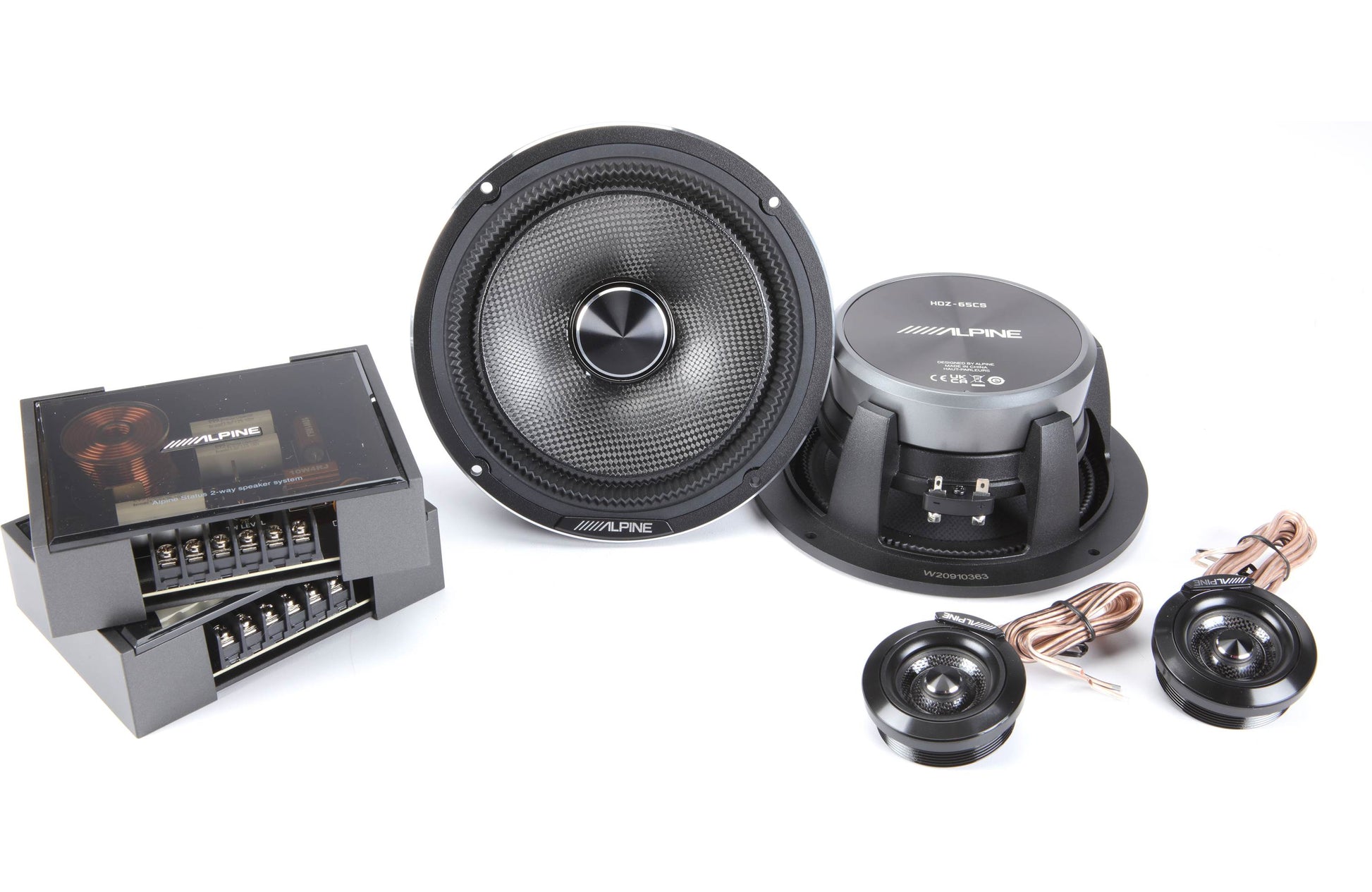

What's in the box:
If you need assistance accessing this owner's manual, please give us a call.

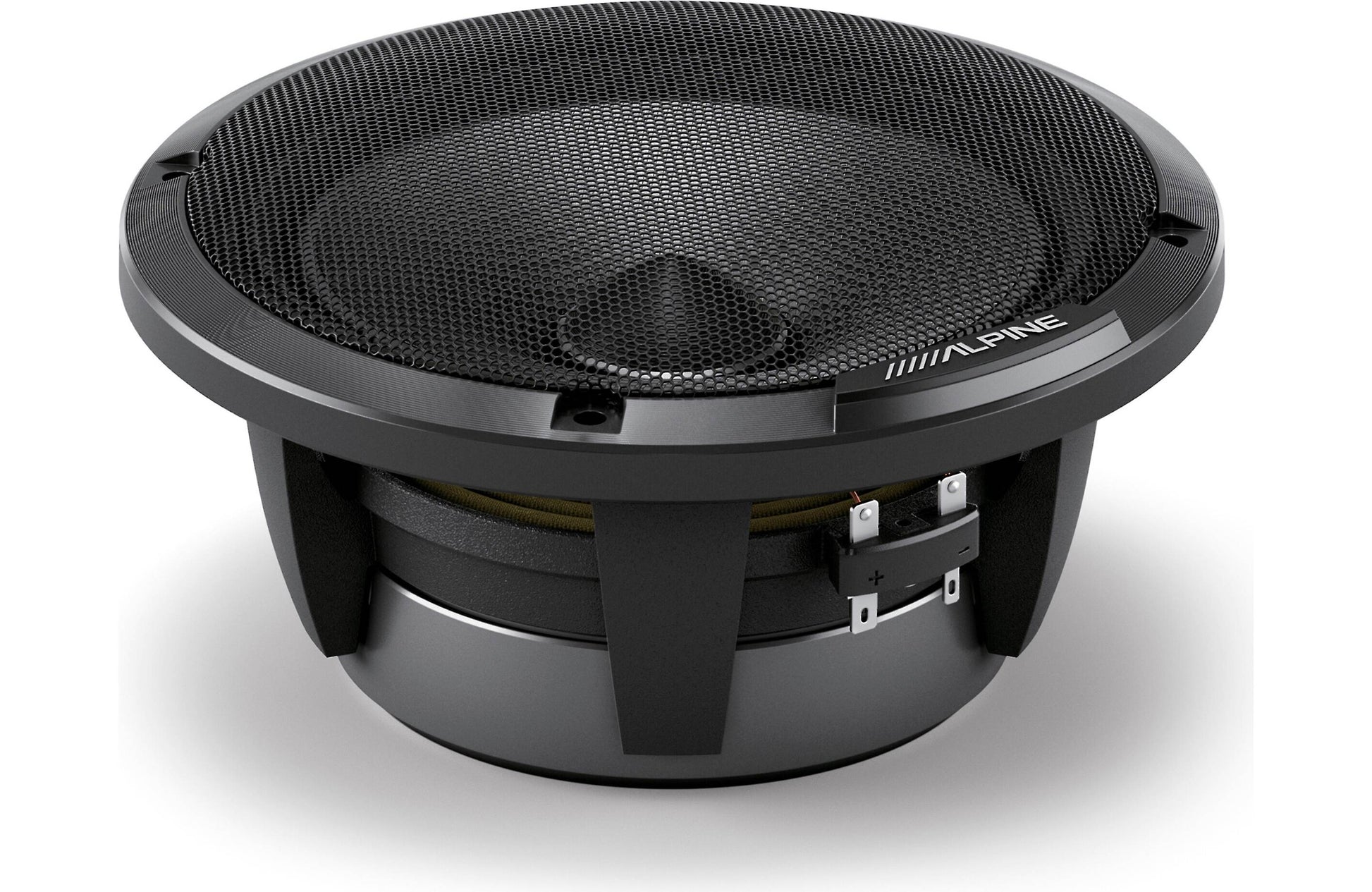

Two woofers

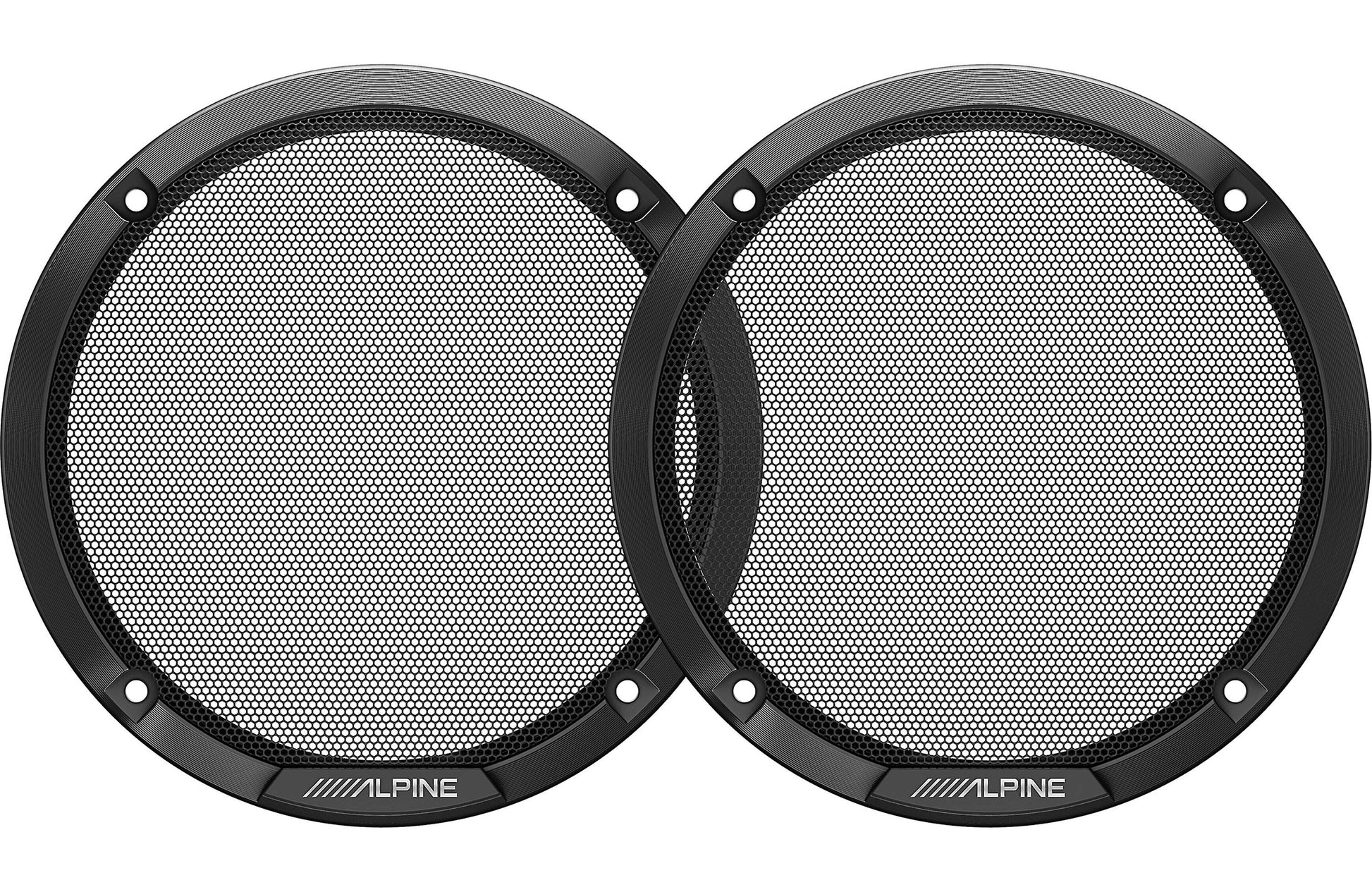

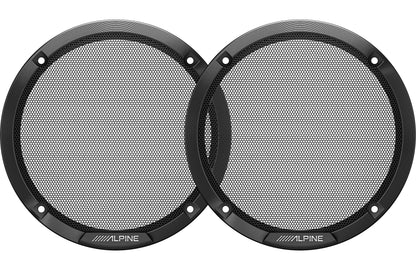

Two woofer grilles
Two tweeters
Two flush-mount housings (with tweeters installed)

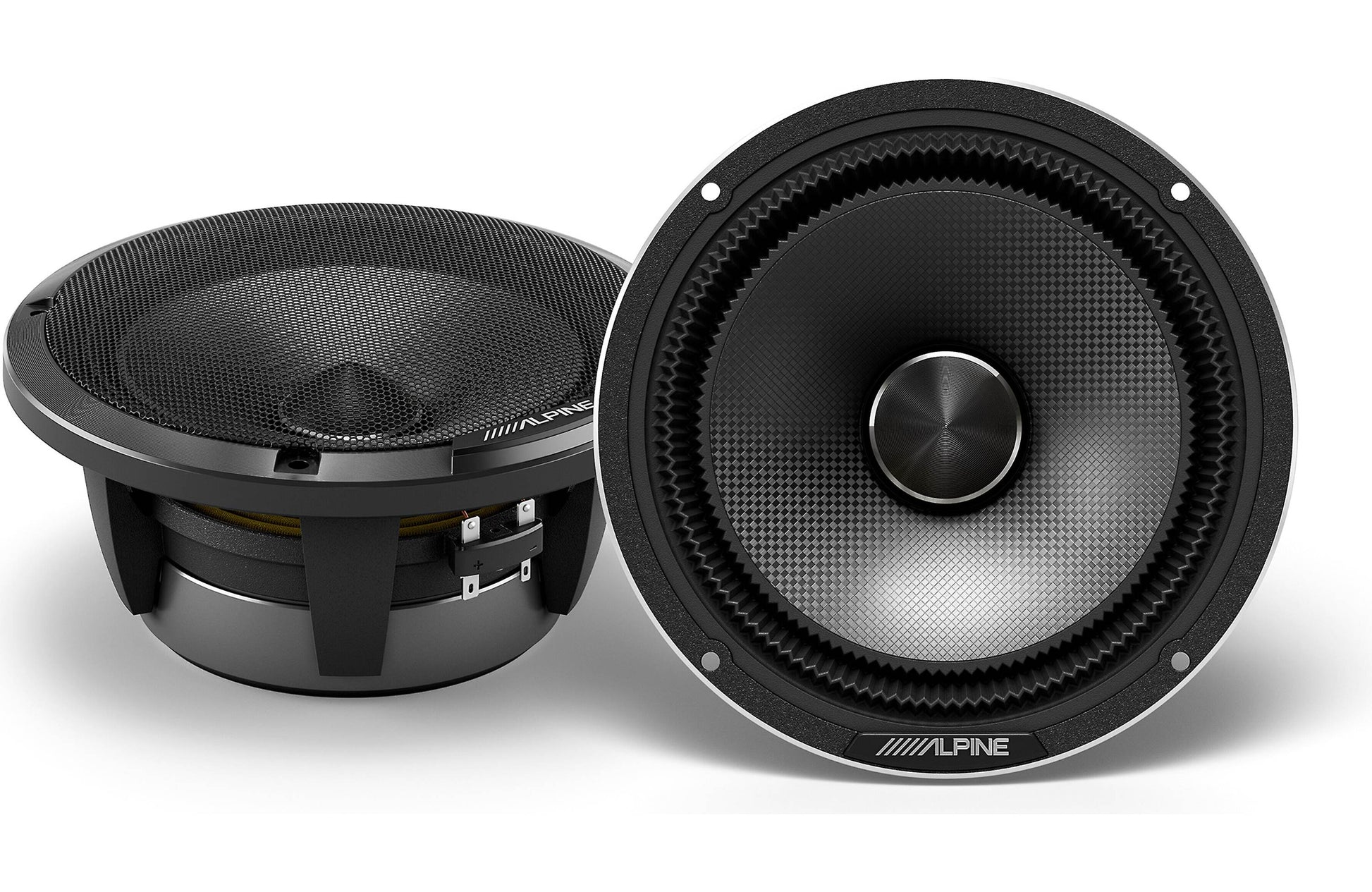

Woofer:Alpine describes the woofer size as 6½, but because they require a larger cutout than a standard 6½ speaker, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
Cone Material:The same carbon composite cone material is used for both the woofers and tweeters, aiding the smooth transition between the drivers.
Phase Plug:The woofers and tweeters use an aluminum phase plug in the center of the cone to help produce a smooth, flat off-axis frequency response by preventing the high frequency sound waves from one side of the cone from interfering with sound waves from the other side of the cone.

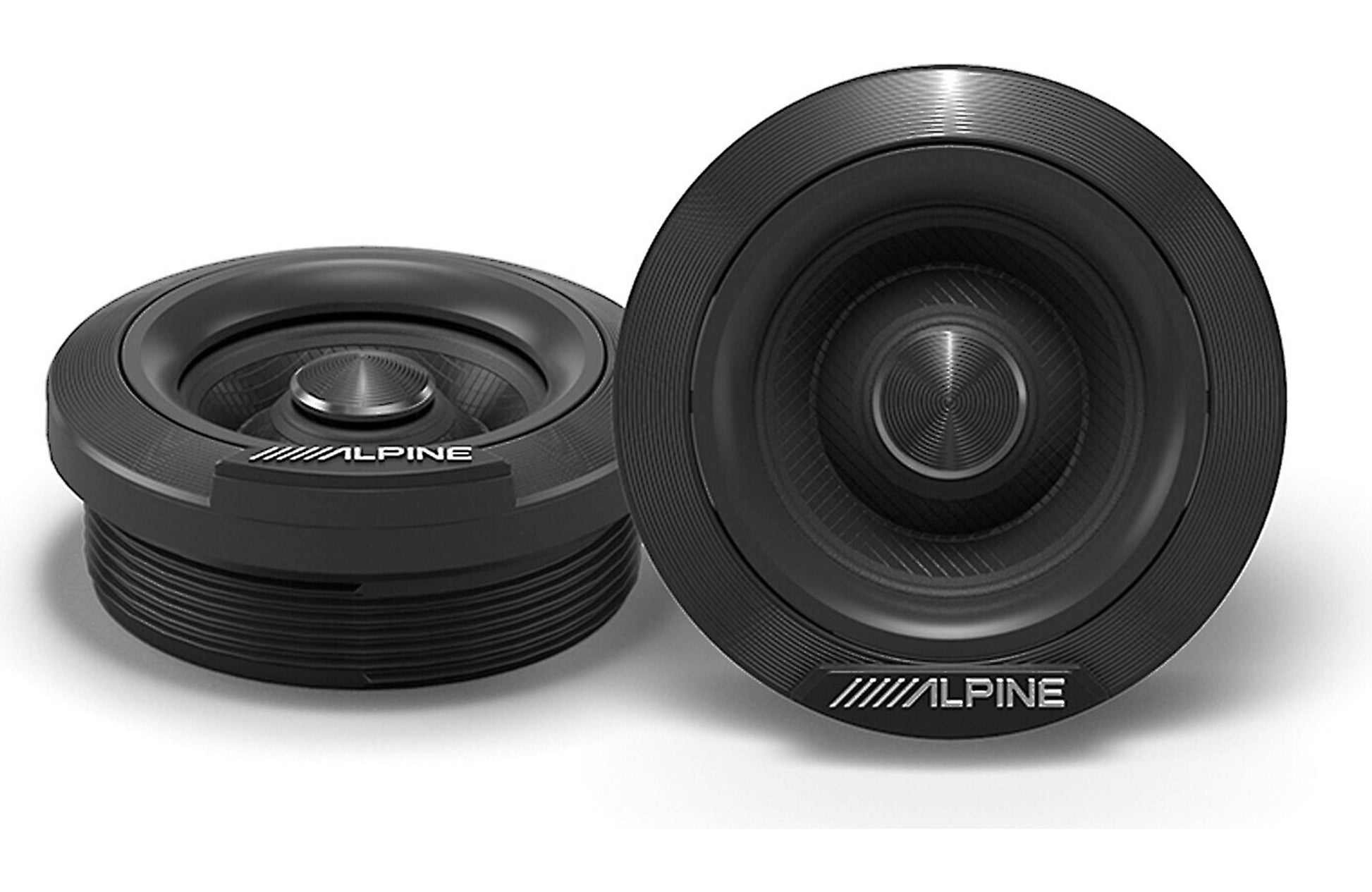

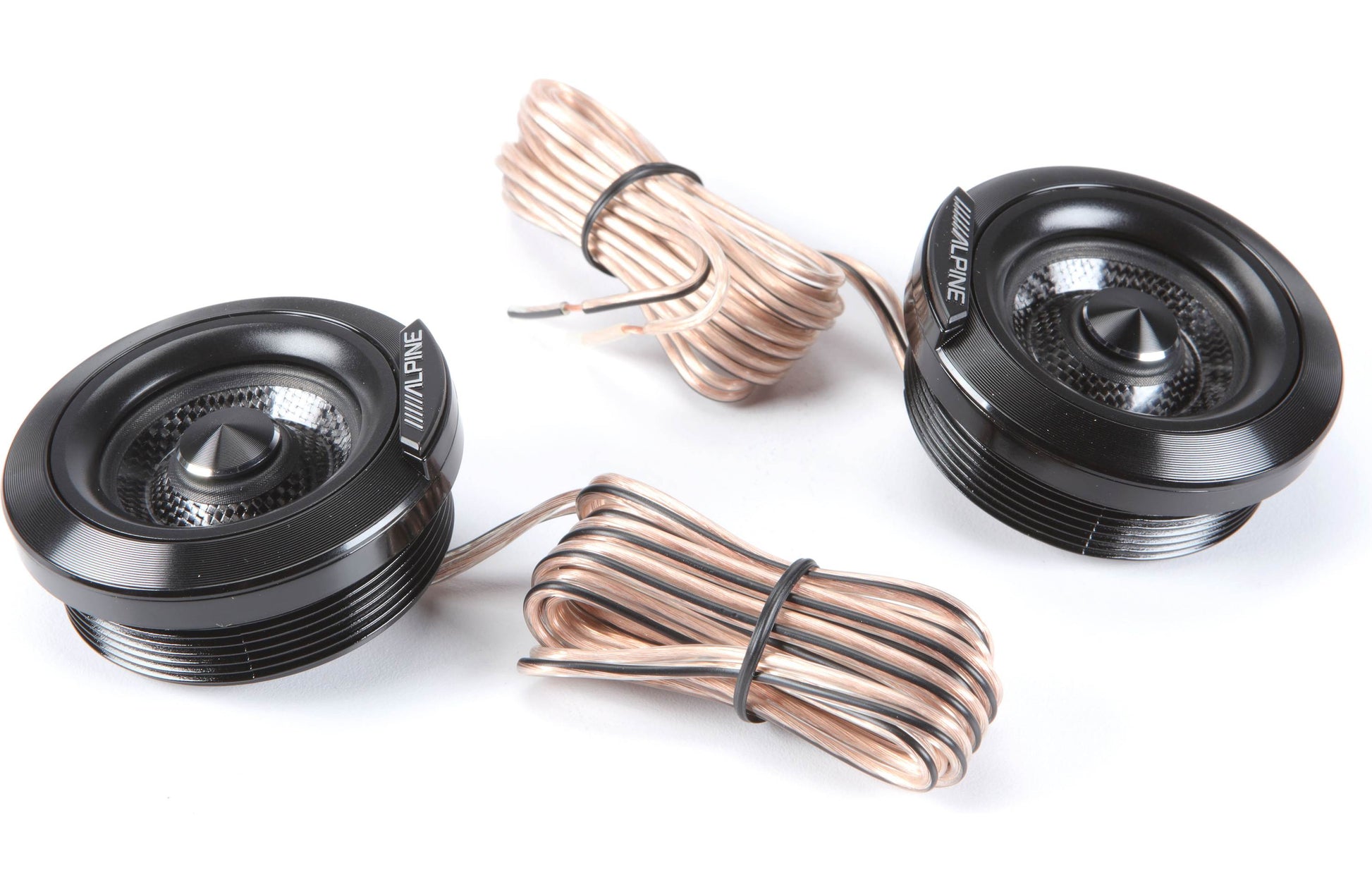

Tweeters:The tweeters are designed to be flush mounted, with the mounting surface sandwiched between the tweeter flange and the threaded mounting ring.
Tweeter Dimensions:
Flush Mount
Mounting Height
0.48"
Mounting Depth
0.57"
Cutout Diameter
2"
Frame Diameter
2.275"

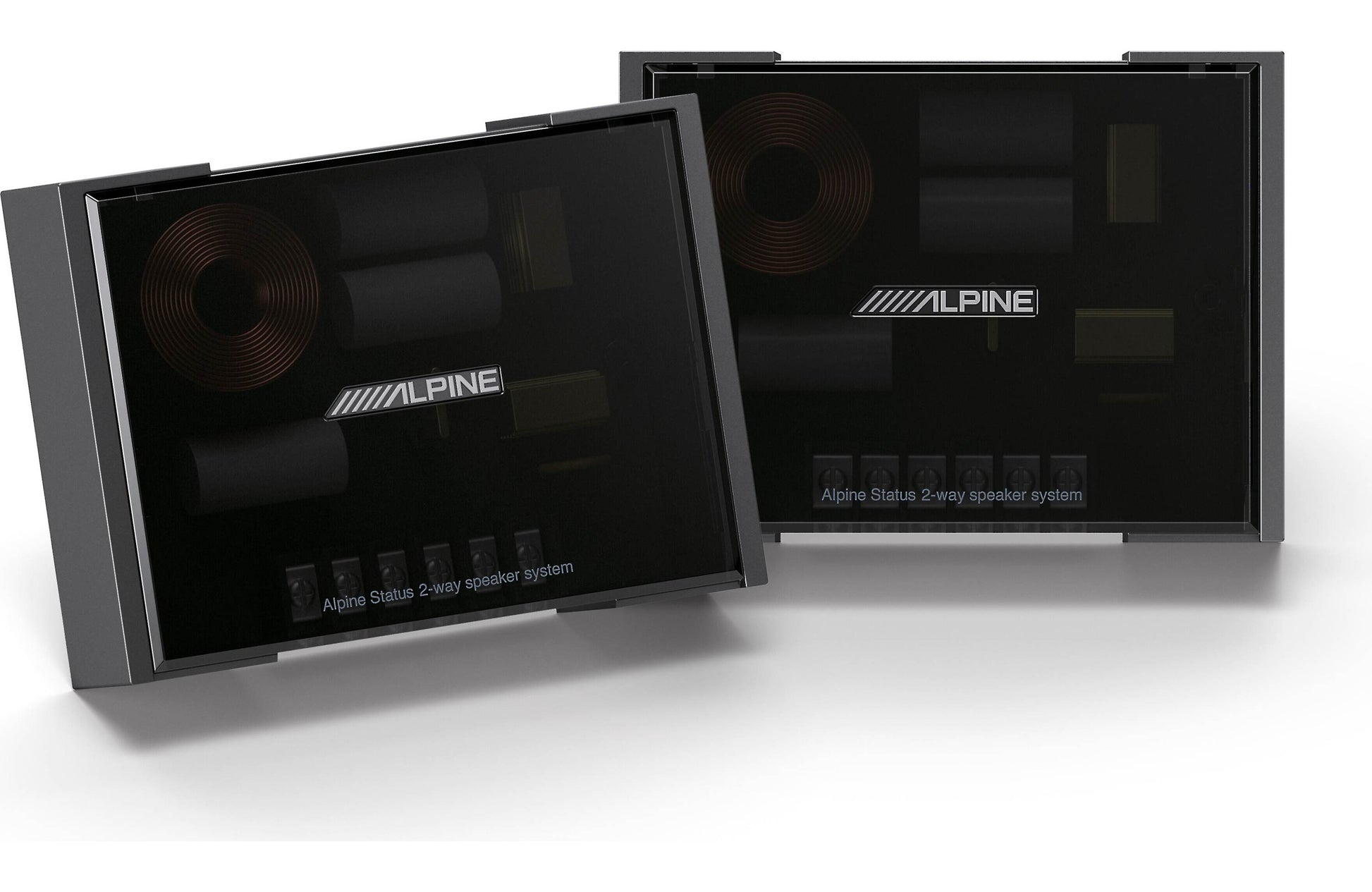

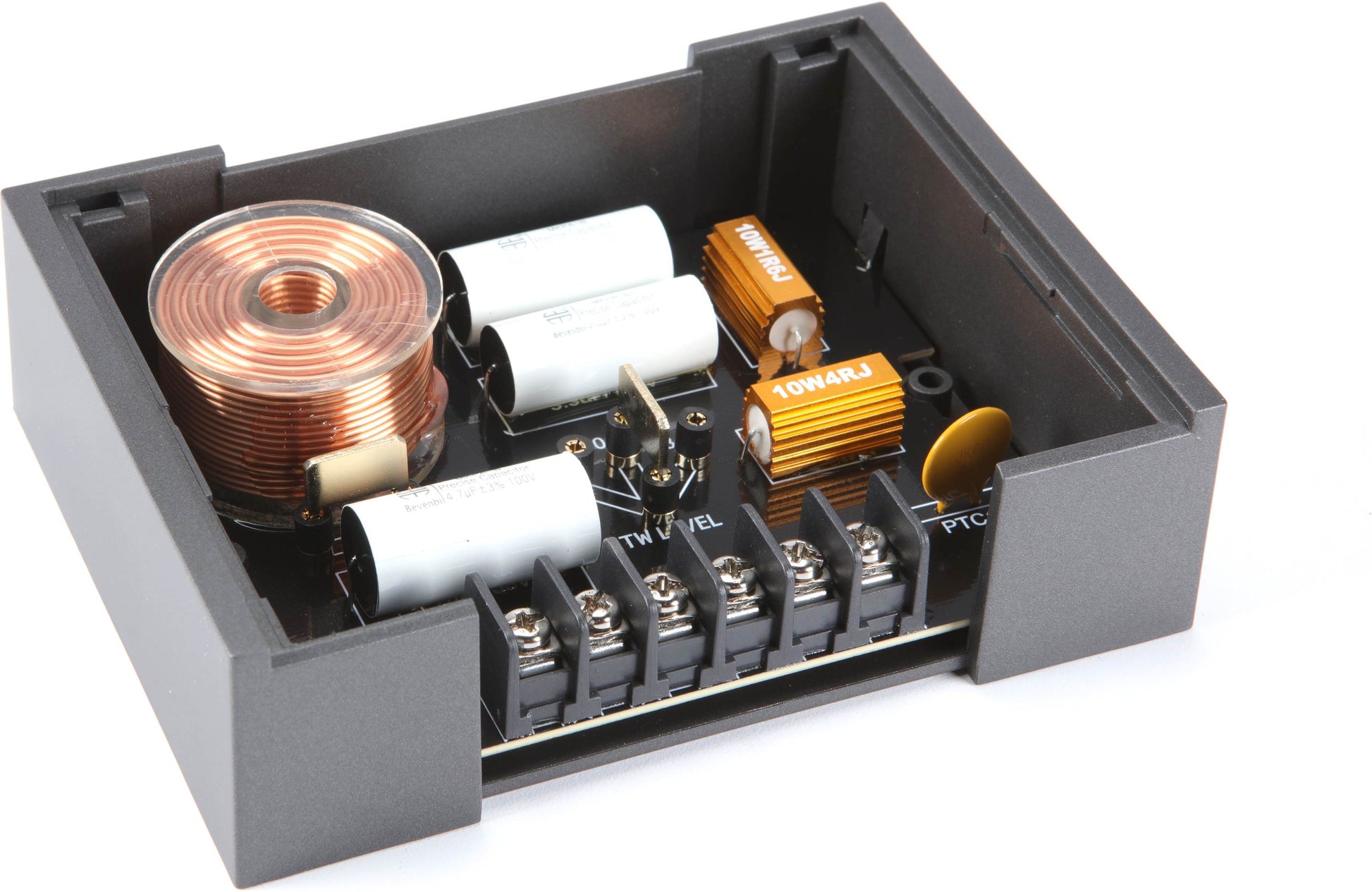

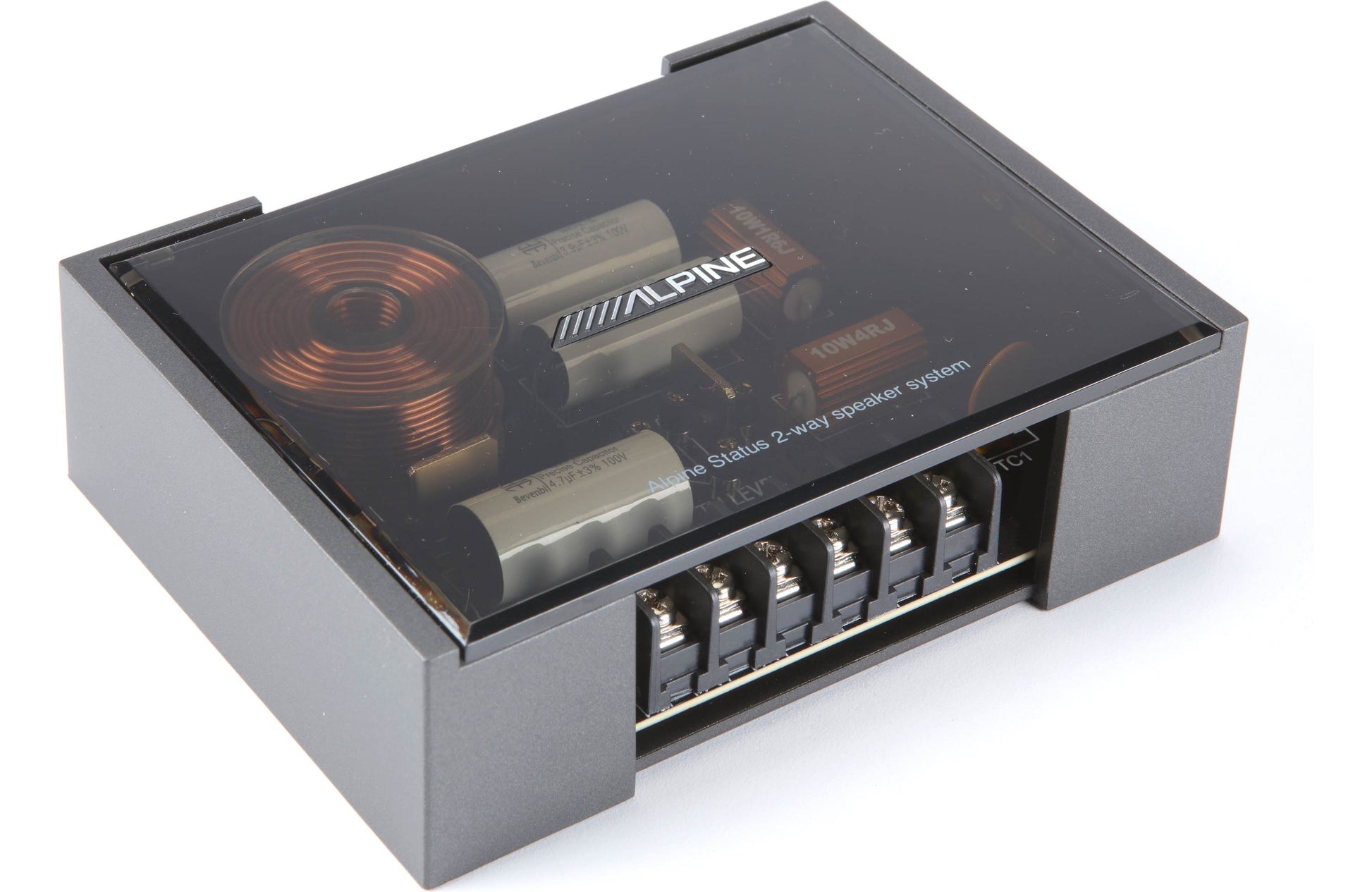

Crossover:The passive crossovers allow some system flexibility; the tweeter output level and crossover slope are adjustable.
Tweeter Output Level:three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
Crossover Slope:two jumper positions; choose 12 dB/octave or 6 dB/octave
Wire Connections:inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.315" wide (no wire is included with the speakers)
Crossover Dimensions:
Width:5.32"
Height:1.625"
Depth:3.94" (plus wire)
