About the Alpine HDZ-W10

High performance, high resolution

Alpine designed their Status Series of car audio components to deliver high-resolution sound in the automotive environment. Their HDZ subwoofers extend this level of quality by using technology developed for Alpine's premium F#1 Status Series car speakers. Now you can enjoy home system-quality sound in your home away from home.

Built to deliver

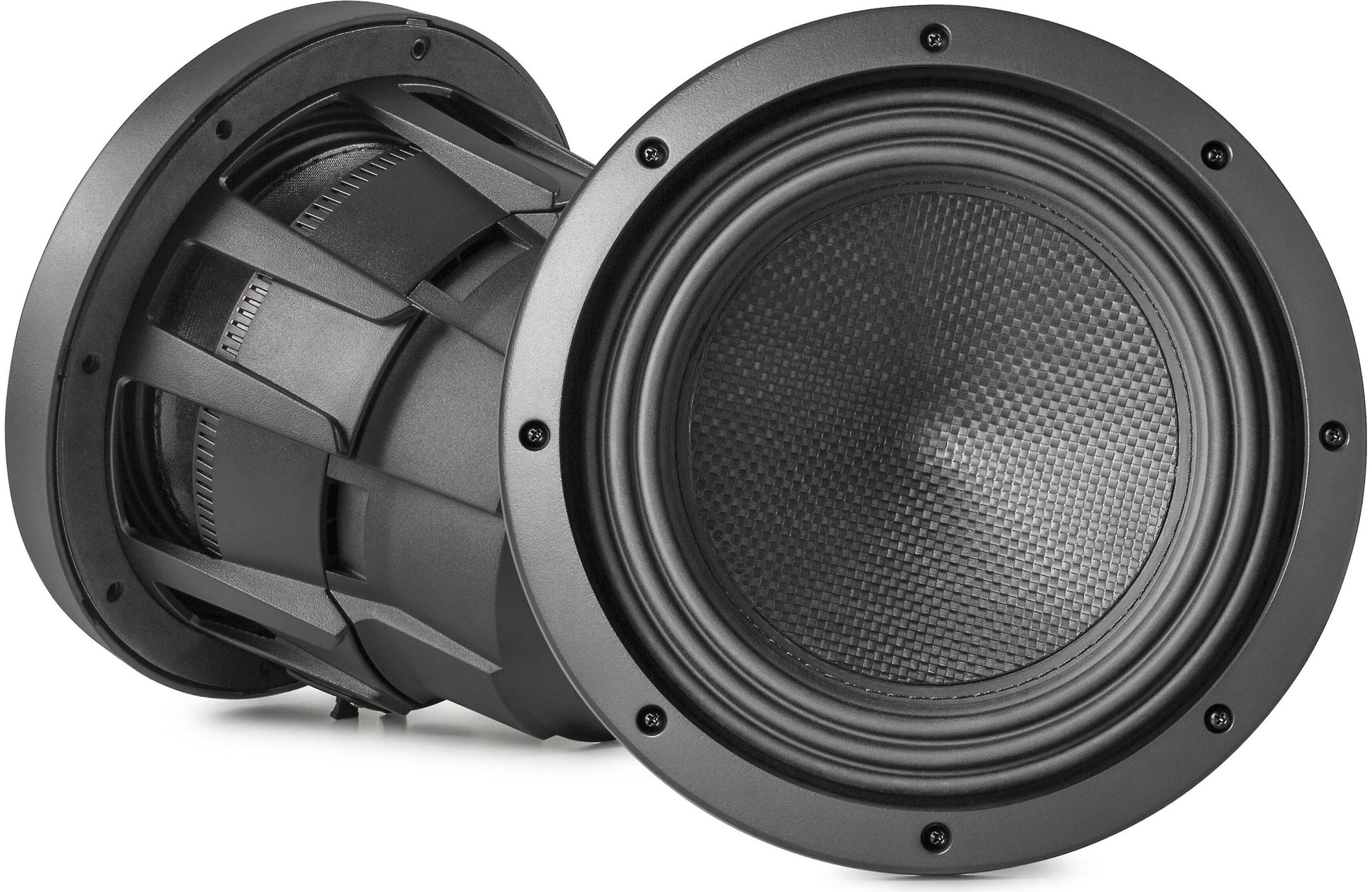

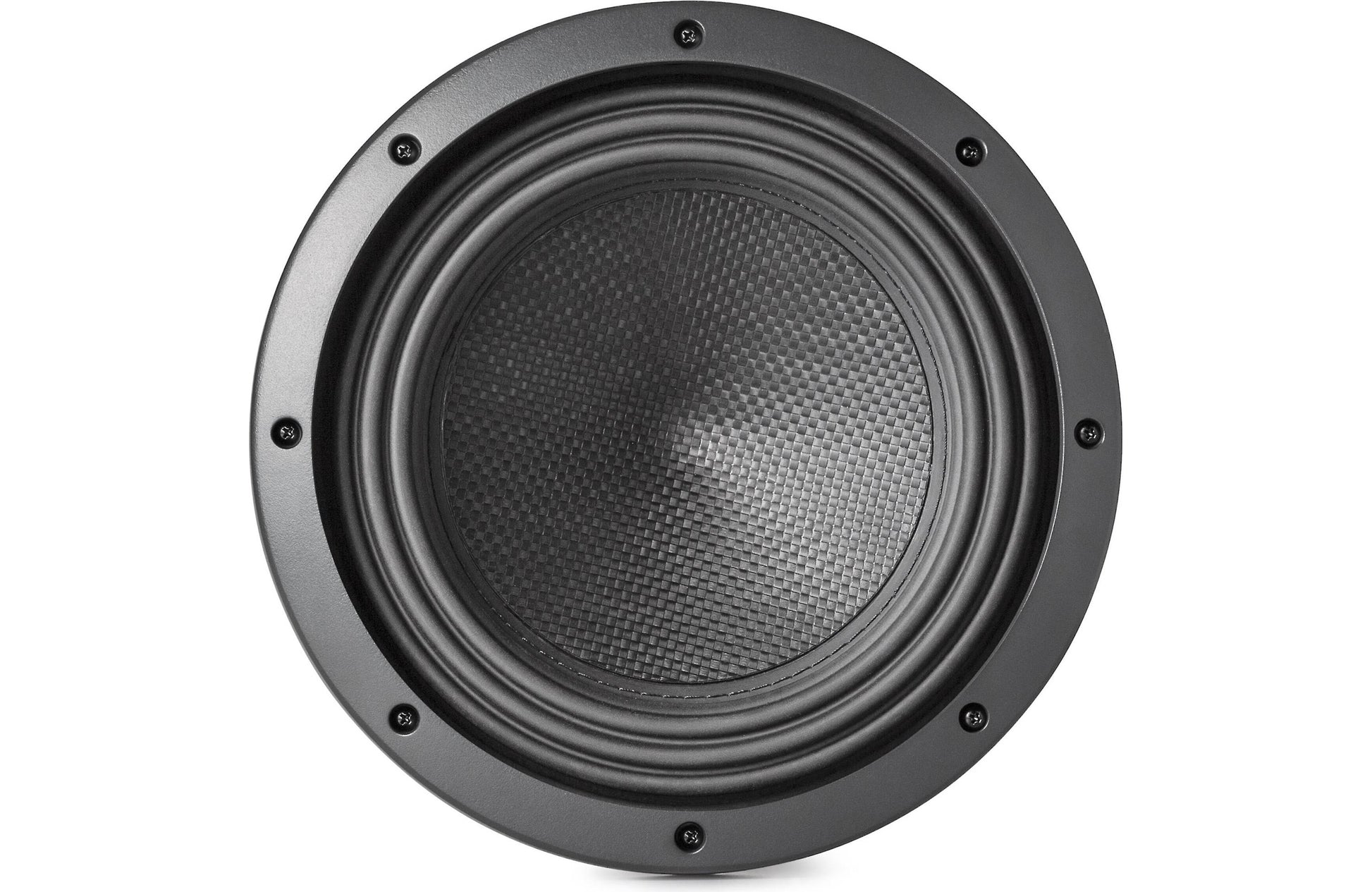

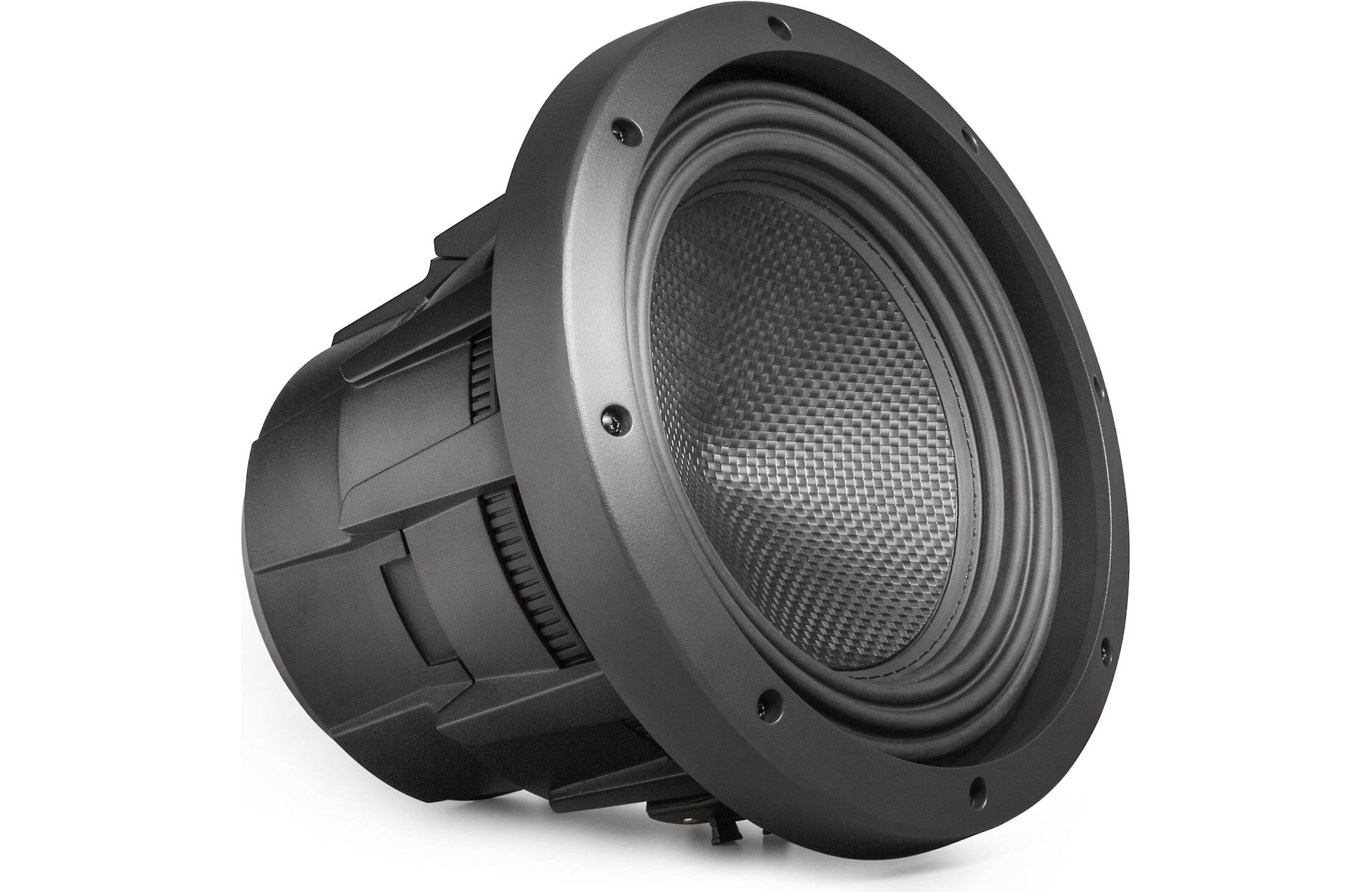

The HDZ-W10 starts with a solid cast aluminum frame that supports the cone and motor for greater clarity and minimal distortion. The pulp/mica cone combines accuracy and warmth, and the proprietary High-Amplitude Multi-Roll (HAMR) surround and dual progressive spiders deliver the precise low end needed for hi-res sound. A carbon-fiber dust cap protects the 2-1/2" voice coil, and the included mesh grille and aluminum trim ring complete the package, offering both protection and good looks.

Power and flexibility

This HDZ-W10 subwoofer is designed to handle a whopping 800 watts of RMS power handling (2400 watts peak) so you'll get all the bass you're looking for and more. Its dual 4-ohm voice coils give you plenty of system configuration options, so you can build a Status Series system that's right for you. Whether as part of a full Status Series system or as an addition to your current system, you'll get supreme accuracy and full, solid high-fidelity performance.

Product highlights:

  • 10" Status Series subwoofer with dual 4-ohm voice coils
  • pulp/mica cone with carbon-fiber dust cap
  • High-Amplitude Multi-Roll (HAMR) rubber surround
  • cast aluminum frame
  • frequency response: 26-200 Hz
  • power handling: 800 watts RMS (400 watts per coil)
  • peak power handling: 2400 watts
  • sensitivity: 82.2 dB
  • top-mount depth: 7.42"
  • cutout diameter: 9"
  • sealed box volume: 0.622-1.622 cu. ft.
  • ported box volume: 1.1-1.872 cu. ft.

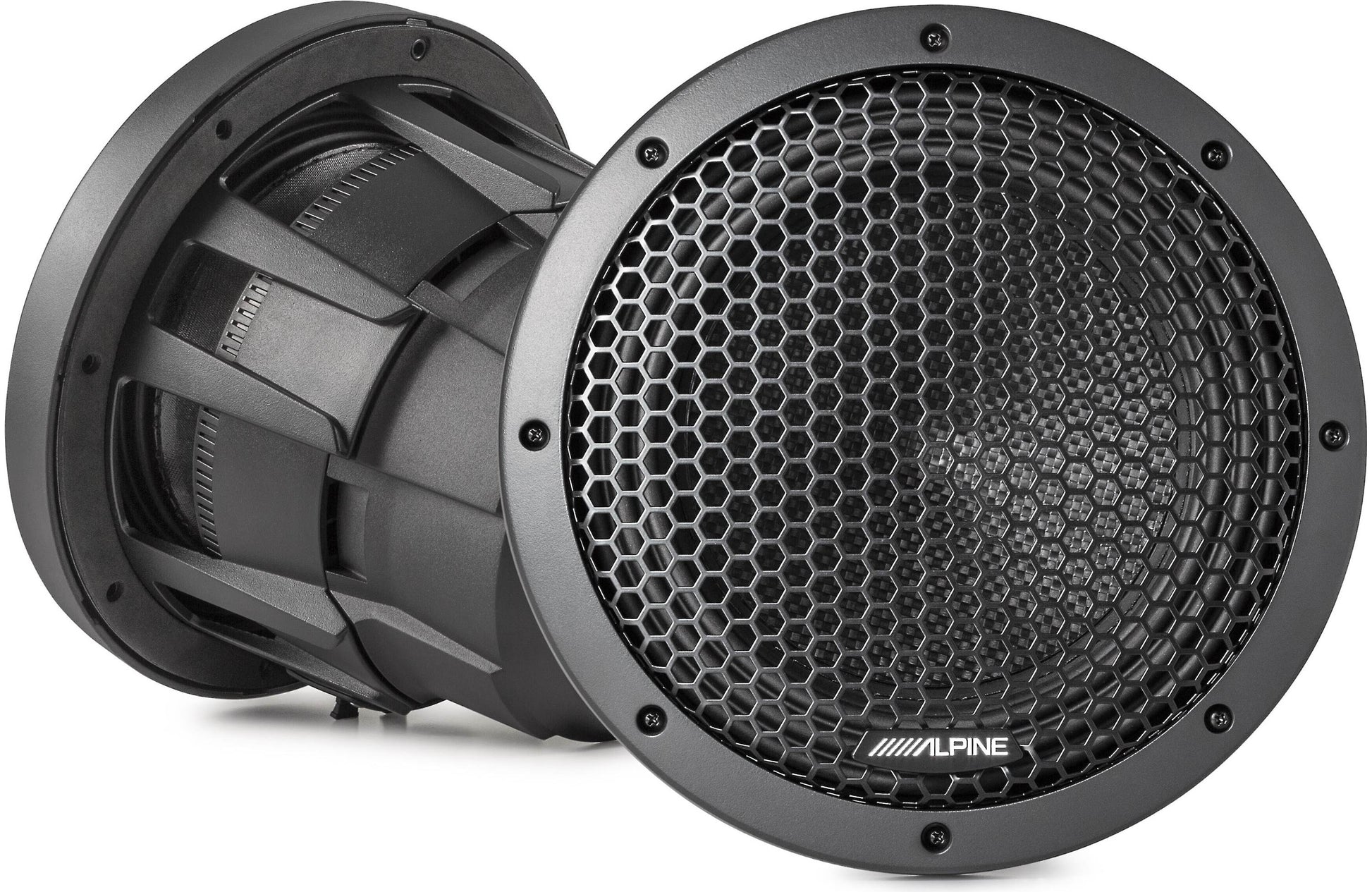

  • mesh grille and aluminum trim ring included
  • warranty: 1 year
  • MFR # HDZ-W10
  • Item # 500HDZW10

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • One 10" Dual 4-ohm voice coil subwoofer
  • Grille
  • Aluminum trim ring
  • Two voice coil jumpers (installed)
  • 3mm Hex key
  • Application guide (English/ French)
  • On-line product registration information
  • Warranty information (English/ French)
  • Important Notice (English/ French)

Features

Dual Voice Coils: For system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

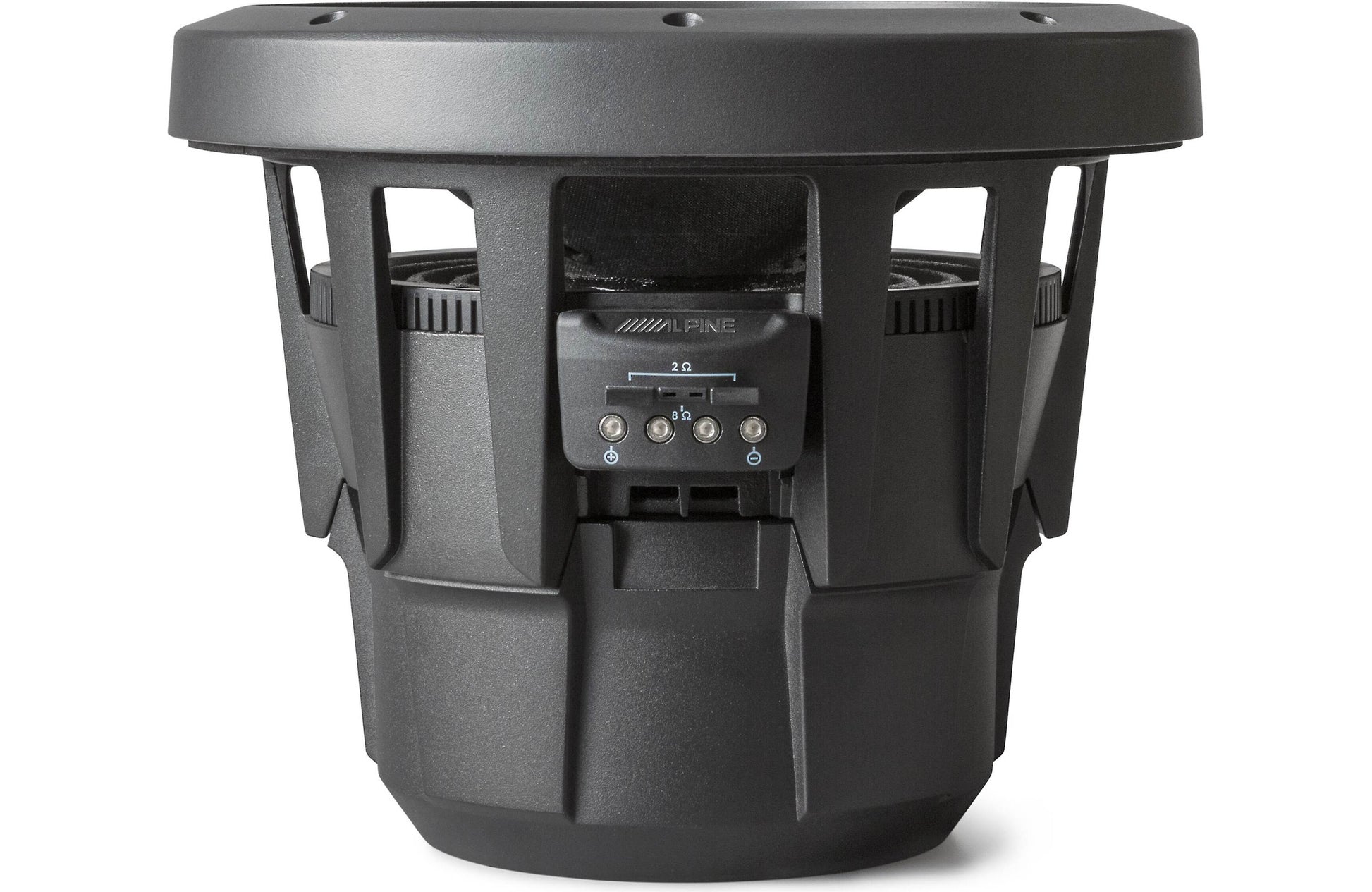

Terminals: Two pair of set screw terminals are located on one side of the woofer. The terminals will accept bare wire up to 8-gauge.

Jumpers: Two voice coil jumpers are factory installed, wiring the voice coils in parallel (for a 2Ω load). Removing both and installing one of them in a different position wires the voice coils in series (for an 8Ω load). With both jumpers removed the voice coils can be wired independently.

Sealed Box Volume: The recommended sealed box volume range is from 0.622 ft³ to 1.622 ft³, with 0.97 ft³ being the ideal size.

Ported Box Volume: The recommended ported box volume range is from 1.122 ft³ to 1.872 ft³. The ideal size is 1.76 ft³ using a slot port measuring 4" x 3¾" x 15" (length), resulting in a tuning frequency of 33 Hz.
