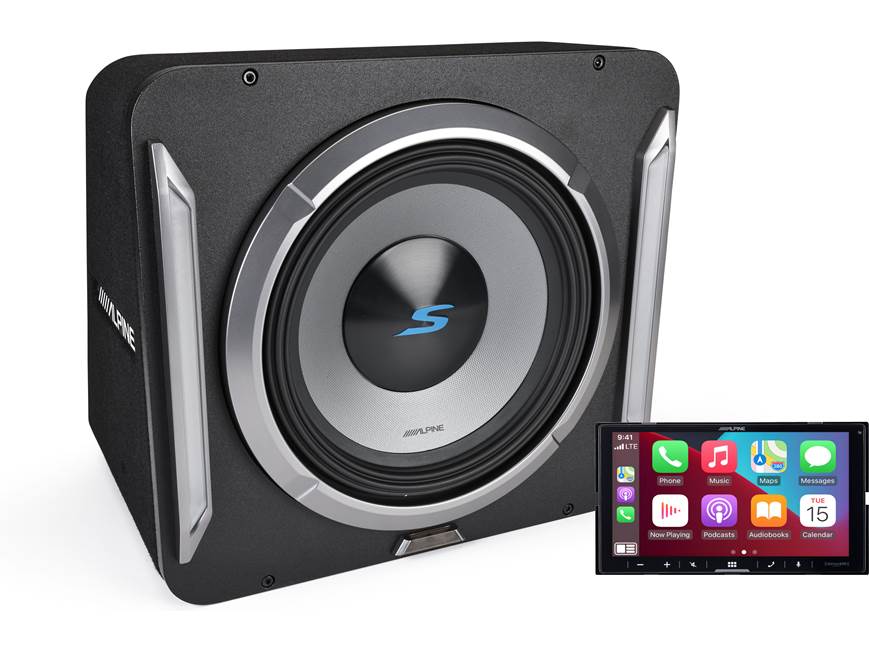

Alpine ILX-W670-M and S2-SB12 Package

Add visual appeal and hard-hitting bass to your ride with this Alpine receiver and light-up sub box pairing. The 6.75" stereo adds wired Apple CarPlay/Android Auto capability, plus connectivity with a bevy of sources, including optional satellite radio. The 12" loaded sealed sub enclosure includes RGBW lighting; it can be linked to additional enclosures with an optional bracket.

roduct info:

• package contains iLX-W670-M digital multimedia receiver and S2-SB12 12" PrismaLink loaded enclosure
• separate power amplifier required to power the sub enclosure

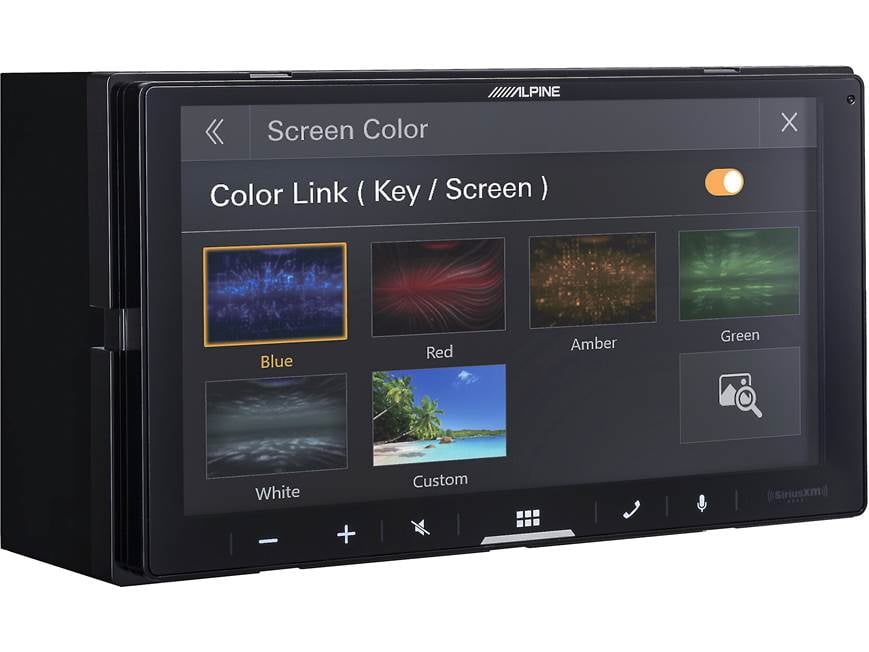

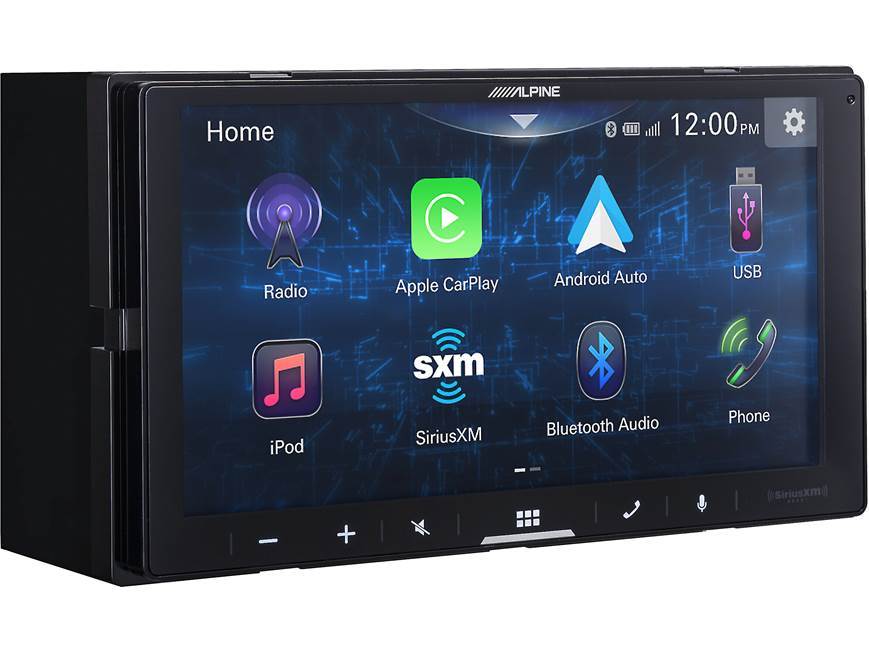

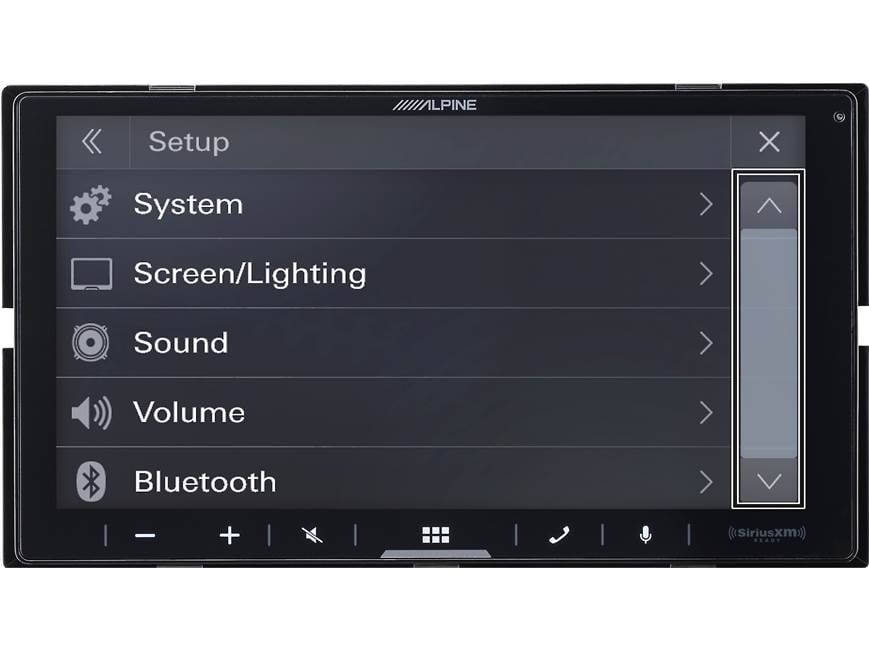

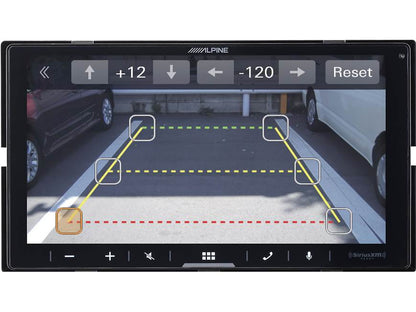

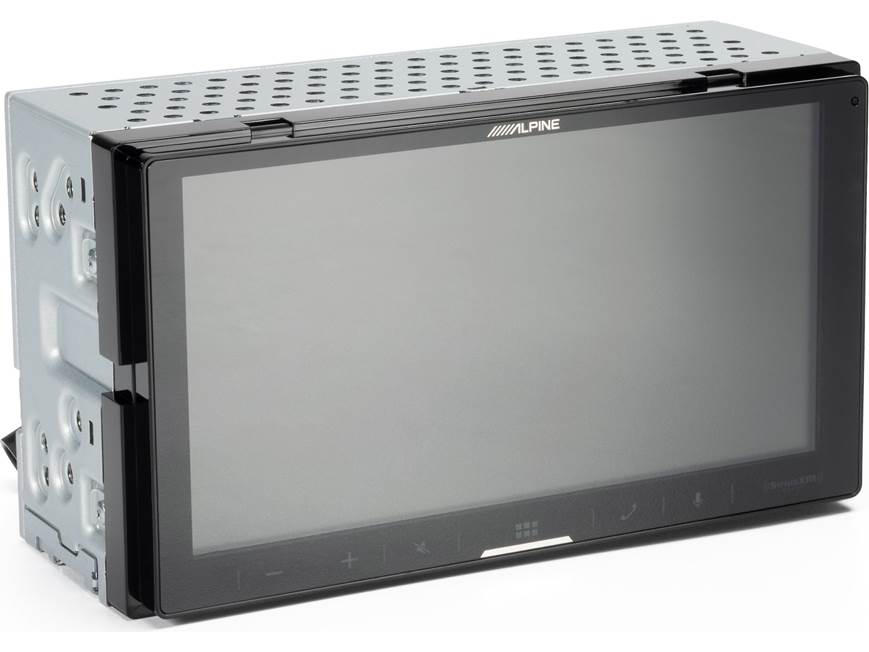

Alpine iLX-W670-M digital multimedia receiver

• digital multimedia receiver with AM/FM tuner (does not play discs)
• 6.75" capacitive touchscreen
• designed for use with Alpine's KTA-450 or KTA-200M power pack amplifiers
• fits in double-DIN (4" tall) dash openings

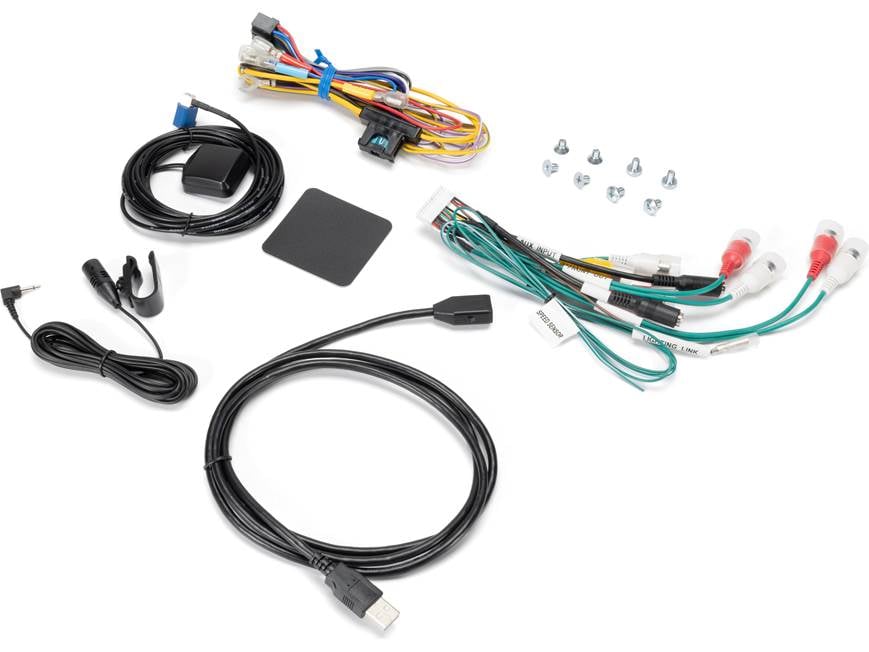

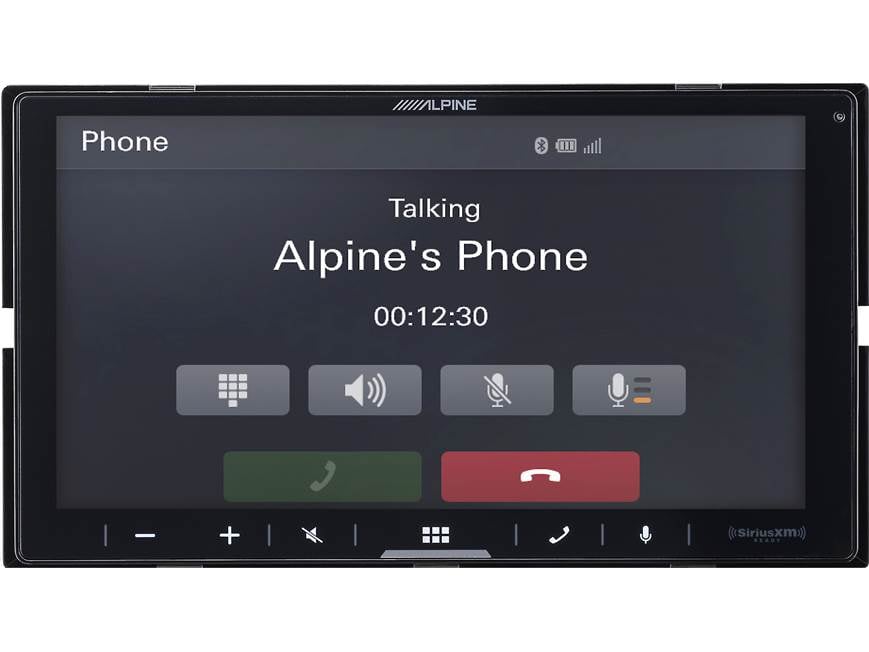

• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay compatible (requires wired connection)
• Android Auto compatible (requires wired connection)
• built-in iPhone control
• Siri Eyes Free and Google Assistant control
• playback and control of music files on compatible Android devices

Audio/video features:

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details tab for full capabilities)
• plays AVI, MPEG 1/2, MPEG-4, and WMV video files (see Details tab for full capabilities)

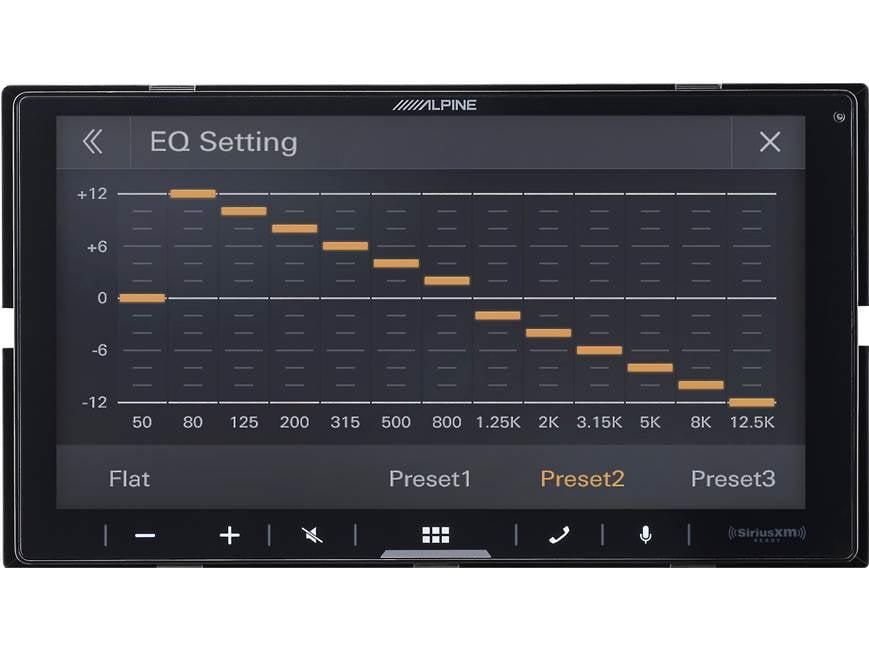

• 13-band graphic equalizer

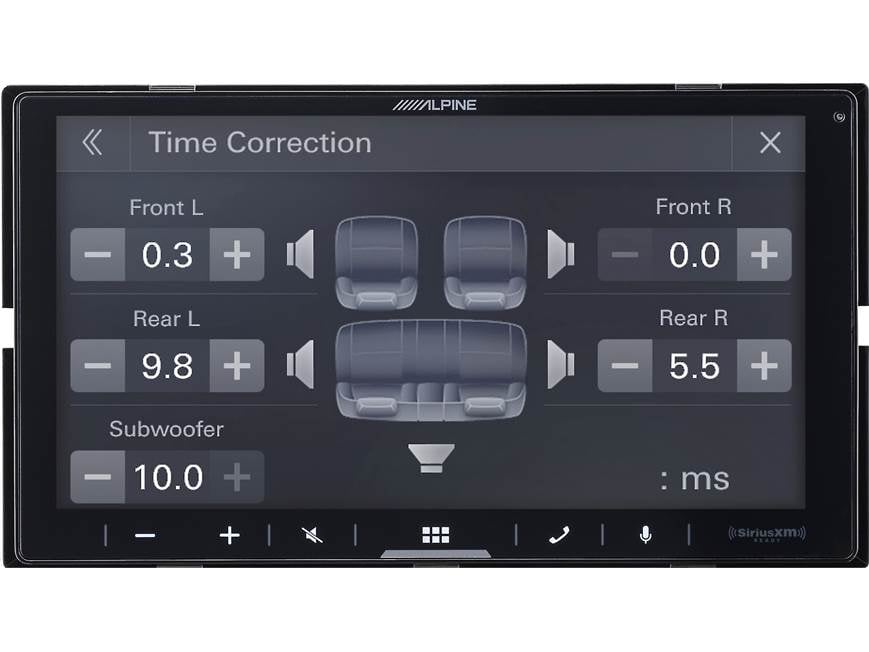

• 6-channel time correction

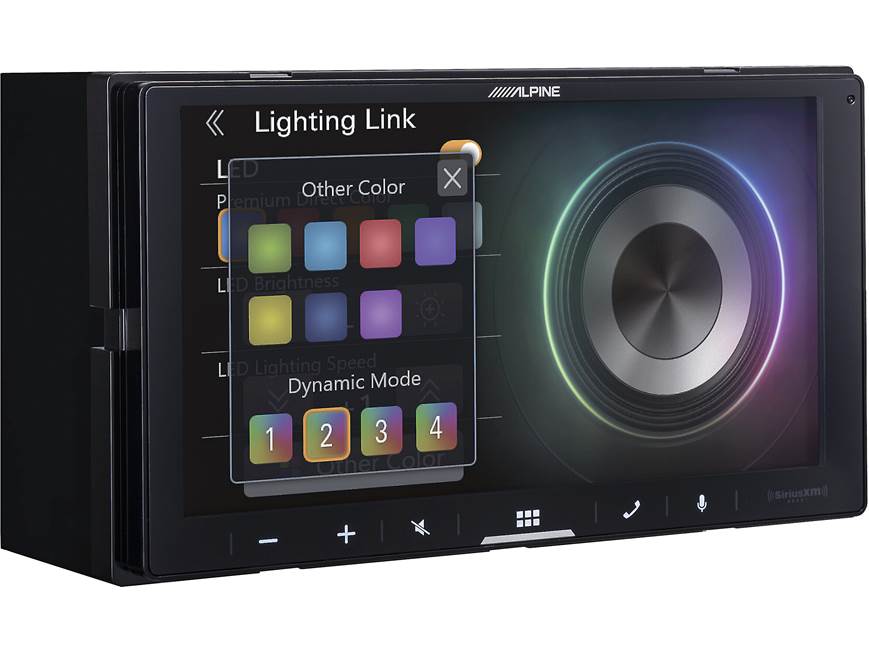

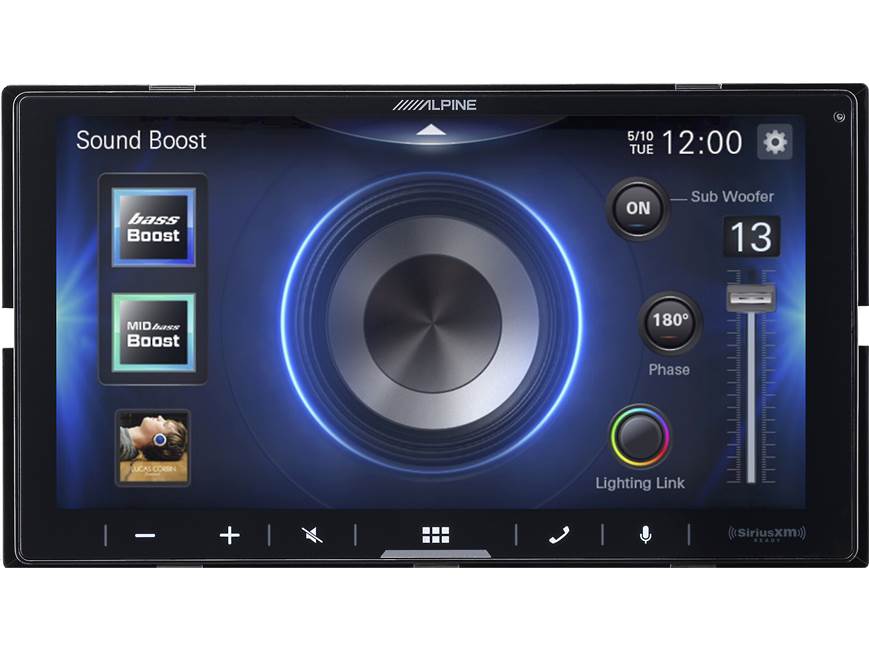

• Lighting Link Control (compatible with Alpine PrismaLink subwoofers)

Expandability:

• works with SiriusXM SXV300 tuner (not included)

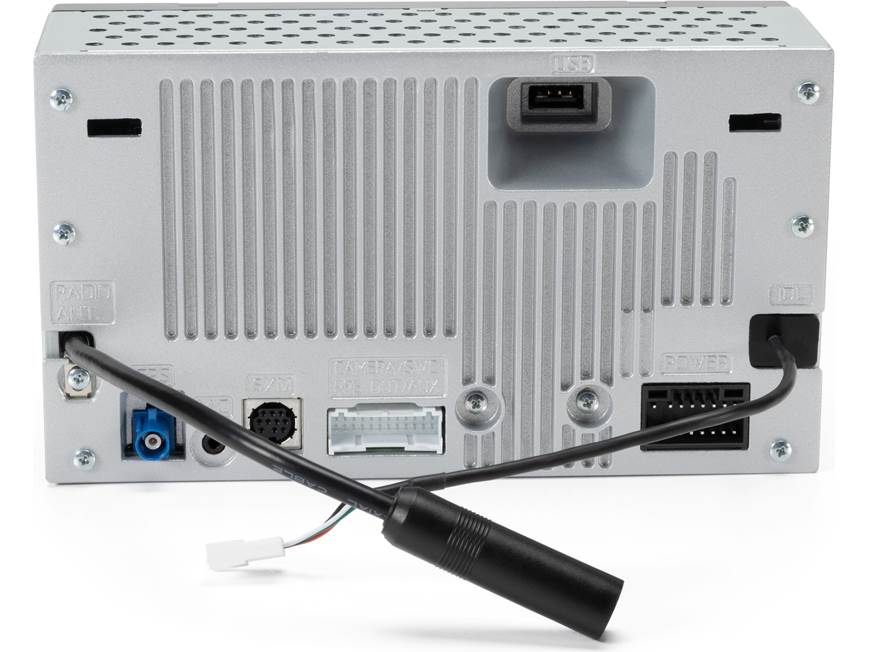

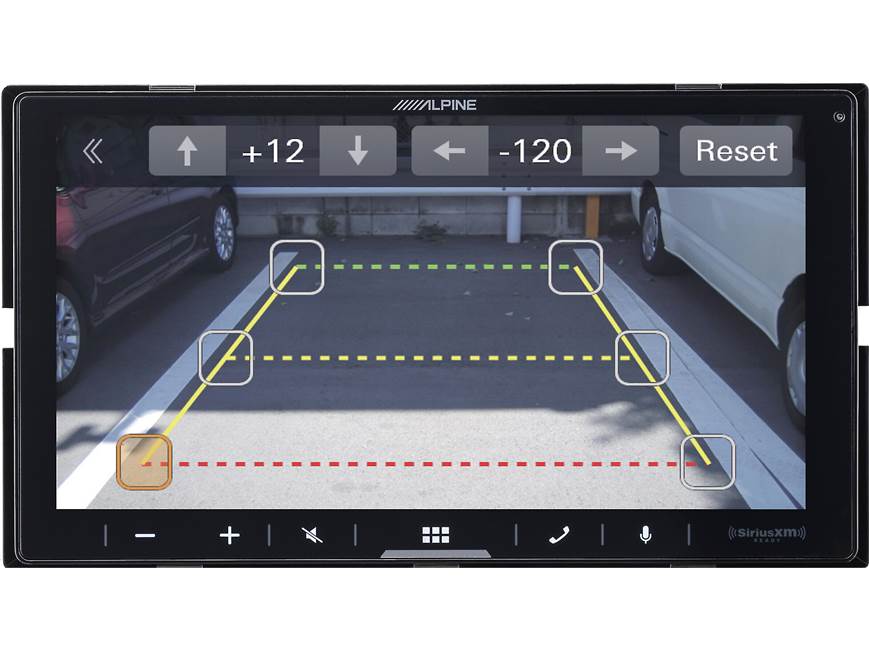

• inputs: rear USB port, rear 3.5mm audio/video auxiliary input, camera input
• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other features and specs:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• compatible with most factory steering wheel audio controls (adapter required)
• built-in amplifier (16 watts RMS/50 peak x 4 channels) — CTA-2006 compliant

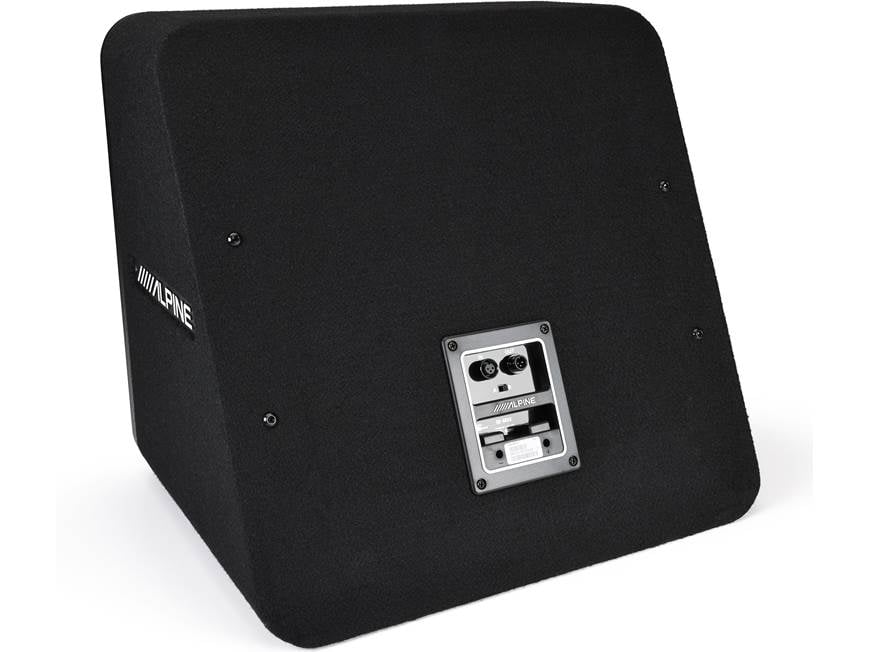

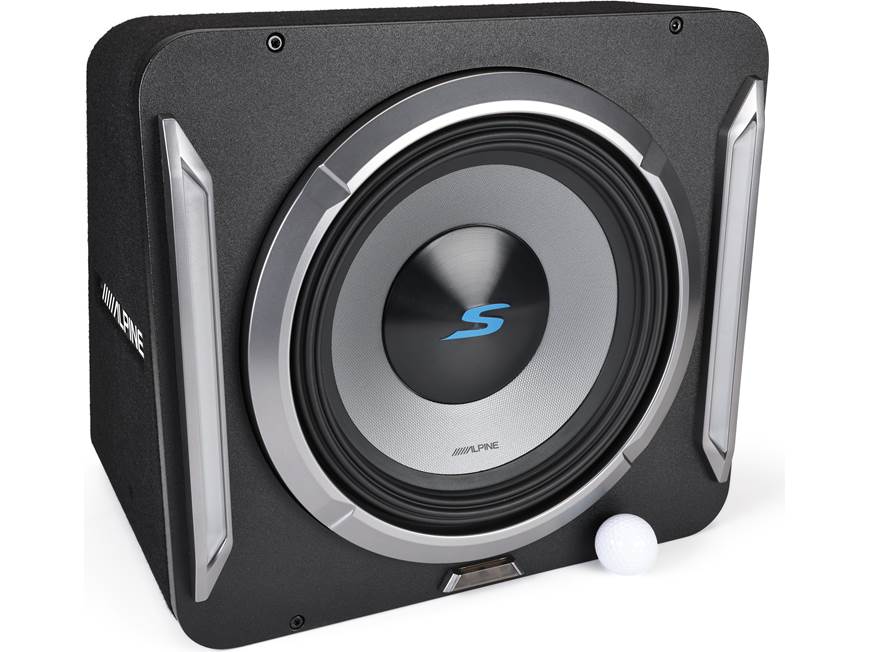

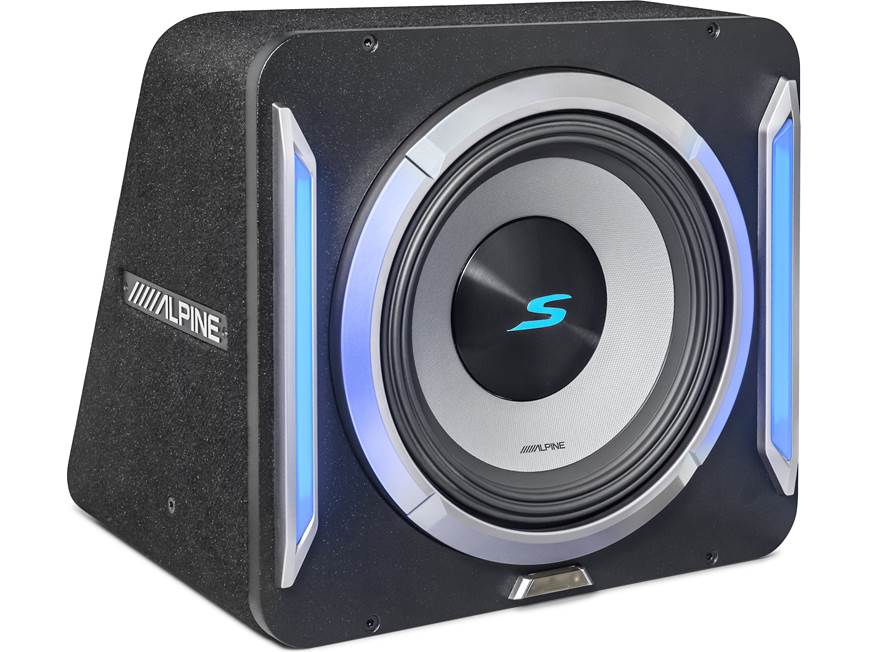

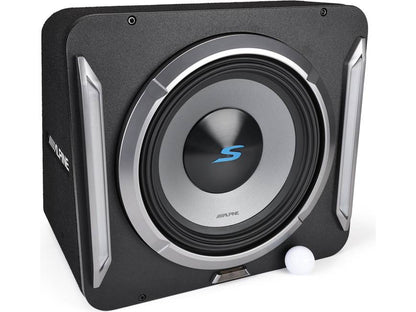

Alpine S2-SB12 12" PrismaLink loaded enclosure

• sealed enclosure with one S2 Series 12" woofer
• MDF enclosure with carpet covering
• carbon fiber/polypropylene cone with ceramic/polypropylene dust cap

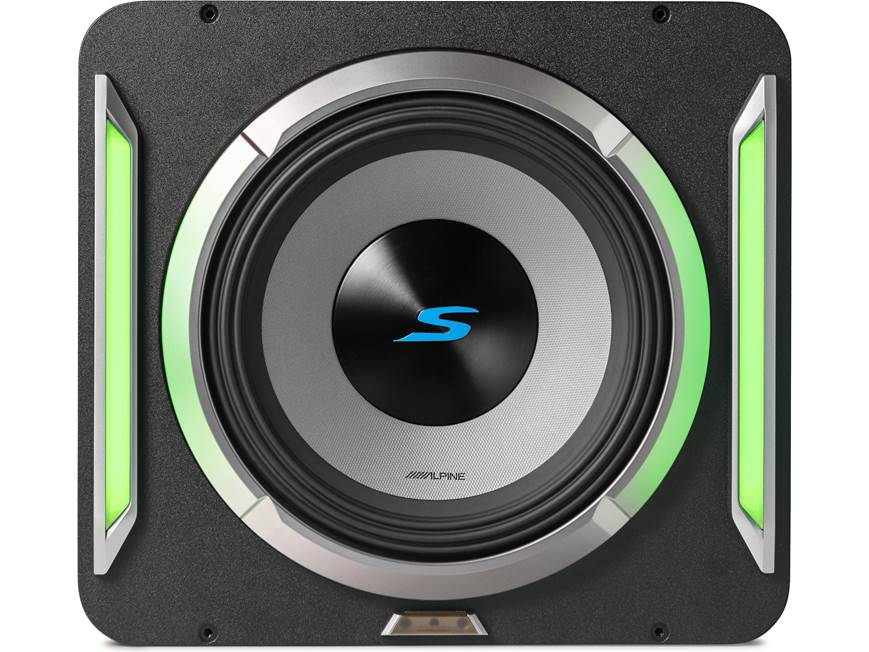

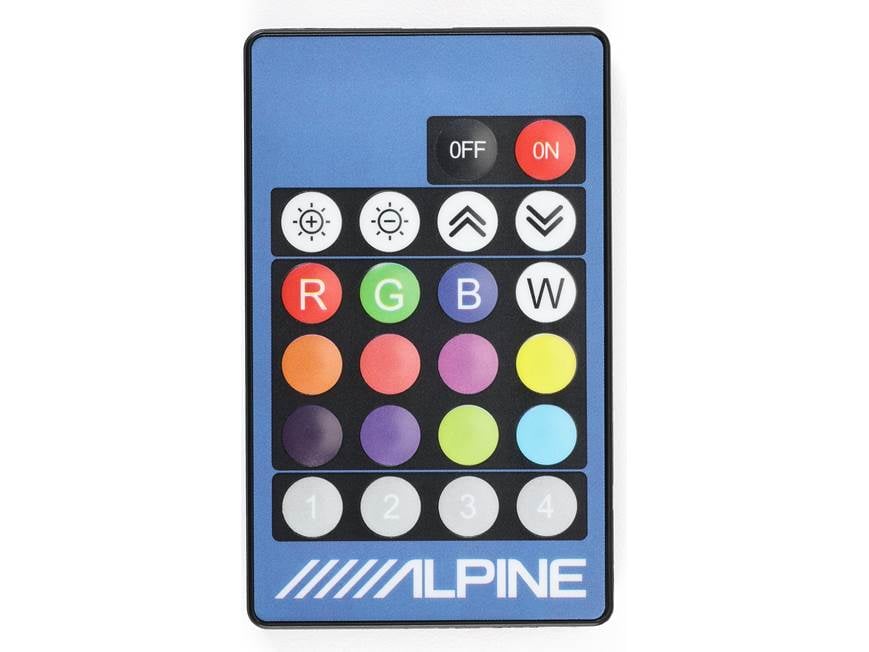

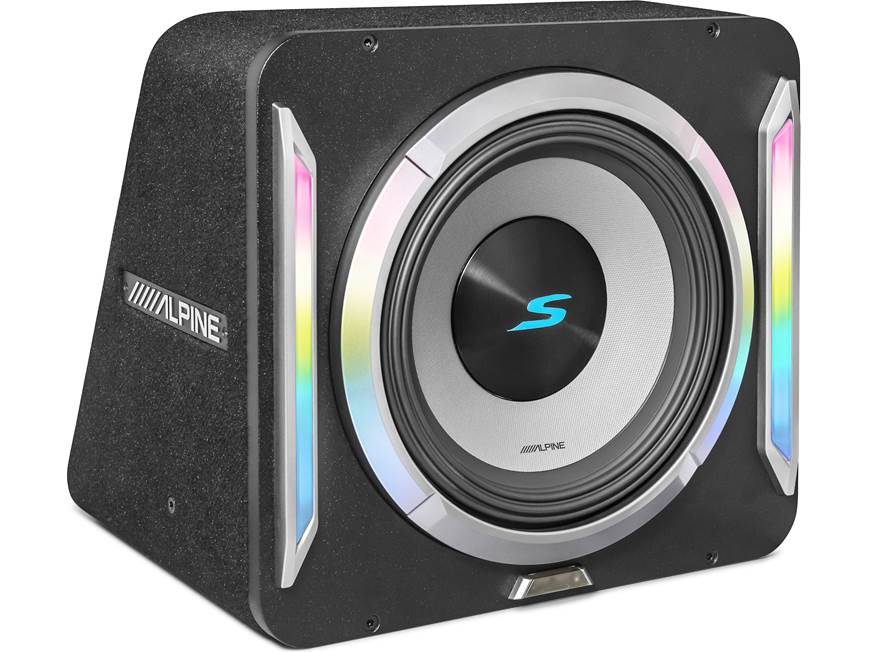

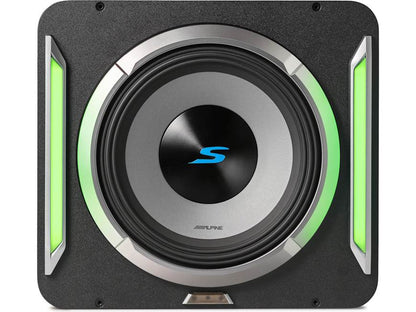

• integrated RGB lighting bars
• linkable to additional S2-SB12 enclosures with KTX-LK12 linking kit (sold separately)
• 2-ohm total impedance
• power handling: 600 watts RMS (1800 watts peak)
• frequency response: 23-215 Hz
• sensitivity: 85 dB
• dimensions: 16.6"W x 15"H x 13.13"D1 x 6.5"D2
