Alpine ILX-W770-M and KTA-450 Package

Includes iLX-W770-M multimedia receiver, dockable KTA-450 amplifier, and amp wiring kit

Product info:

• package includes iLX-W770-M multimedia receiver, KTA-450 4-channel amplifier, and 12-gauge amp wiring kit
• PowerStack bracket included for mounting amp behind receiver

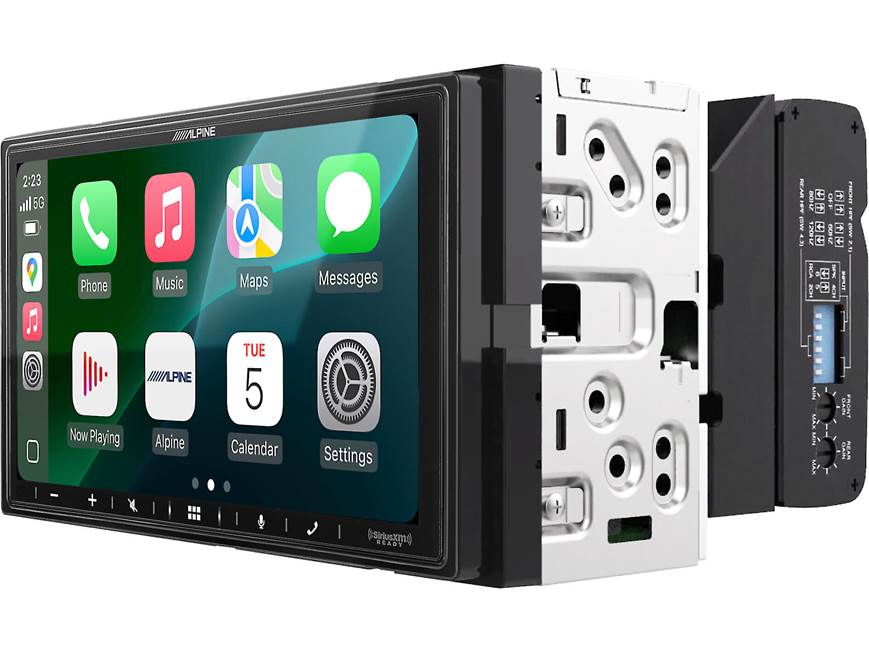

Alpine iLX-W770 receiver:

• digital multimedia receiver with AM/FM tuner (does not play CDs)
• shallow-mount chassis design: 3.2" deep (5.6" with amp attached)

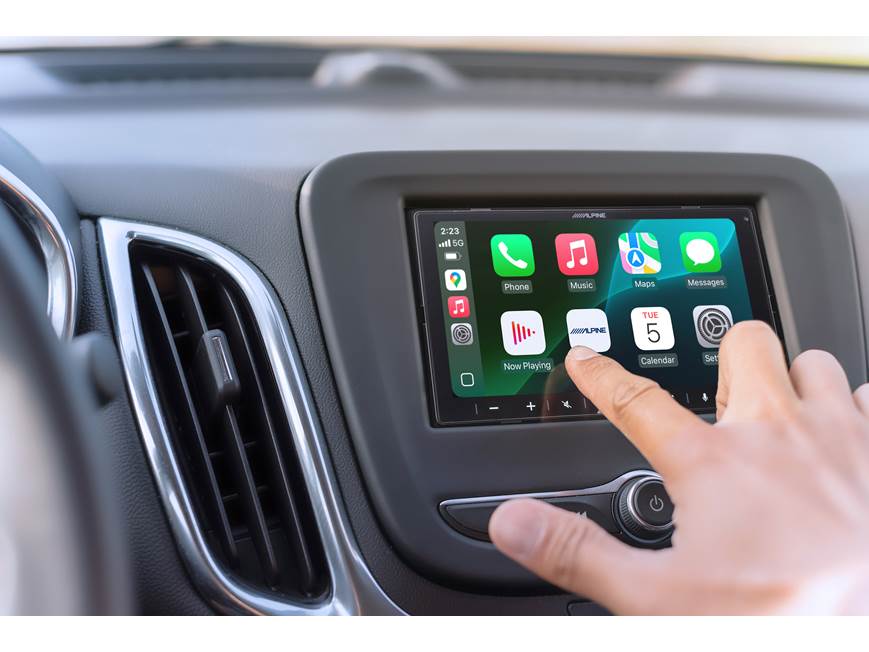

• 6.75" capacitive touchscreen with swipe controls
• Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features:

• Apple CarPlay and Android Auto compatible (wired or wireless)
• built-in iPhone control
• Siri Eyes Free and Google Assistant control

Audio/video features:

• plays MP3, WMA, AAC, WAV, and FLAC music files
• plays AVI, MP4, MPEG-1/2, and WMV video files
• 13-band graphic equalizer
• 6-channel time correction
• Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)
• Lighting Link Control (compatible with Alpine PrismaLink subwoofers)

Expandability:

• inputs: rear USB port, rear 3.5mm audio/video auxiliary input, two camera inputs
• works with SiriusXM SXV300 tuner (not included)
• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other features and specs:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• compatible with most factory steering wheel audio controls (iDatalink Maestro or PAC adapter required)
• built-in amplifier (16 watts RMS/50 peak x 4 channels)
• CTA-2006 compliant
• warranty: 1 year

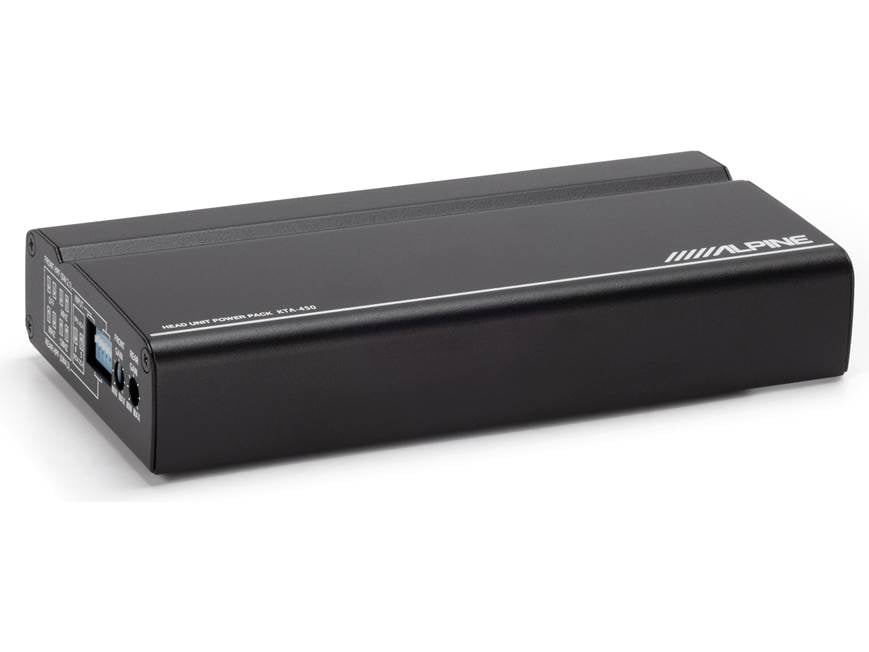

Alpine KTA-450 amplifier:

• compact 4-channel car amplifier
  • 50 watts RMS x 4 at 2 or 4 ohms
• CTA-2006 compliant
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• selectable high-pass filters (60, 80, 120 Hz at 12 dB/octave) on front and rear channels
• selectable 2- or 4-channel input
• preamp inputs

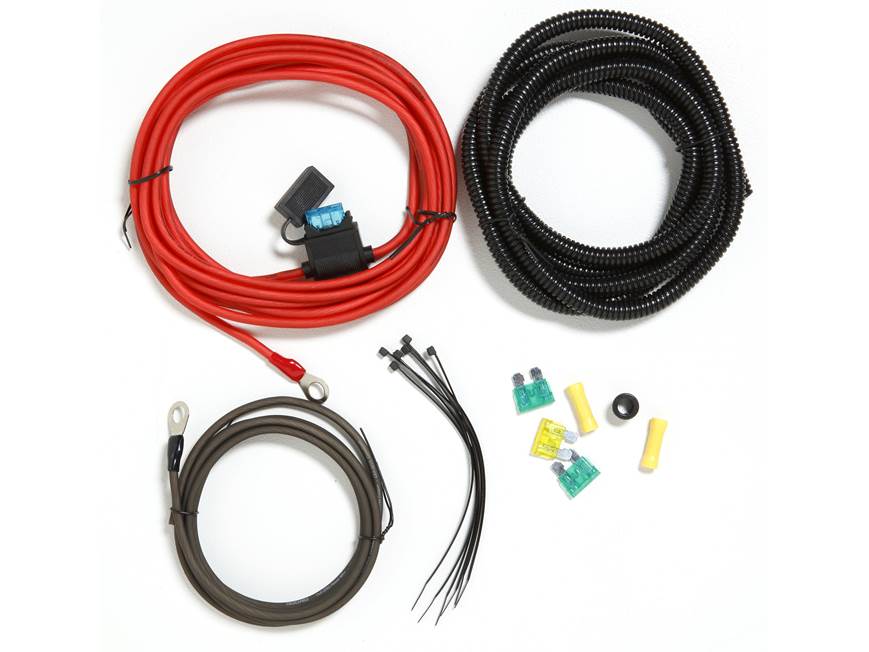

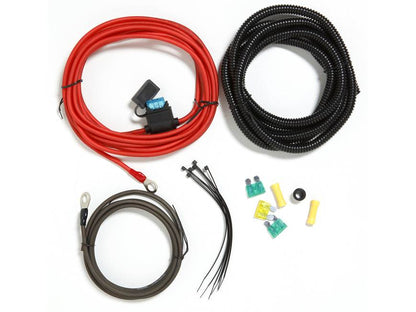

• 12-gauge power and ground amplifier kit included
• requires 20A fuse
• dimensions: 7"W x 1-3/8"H x 3-9/16"D
