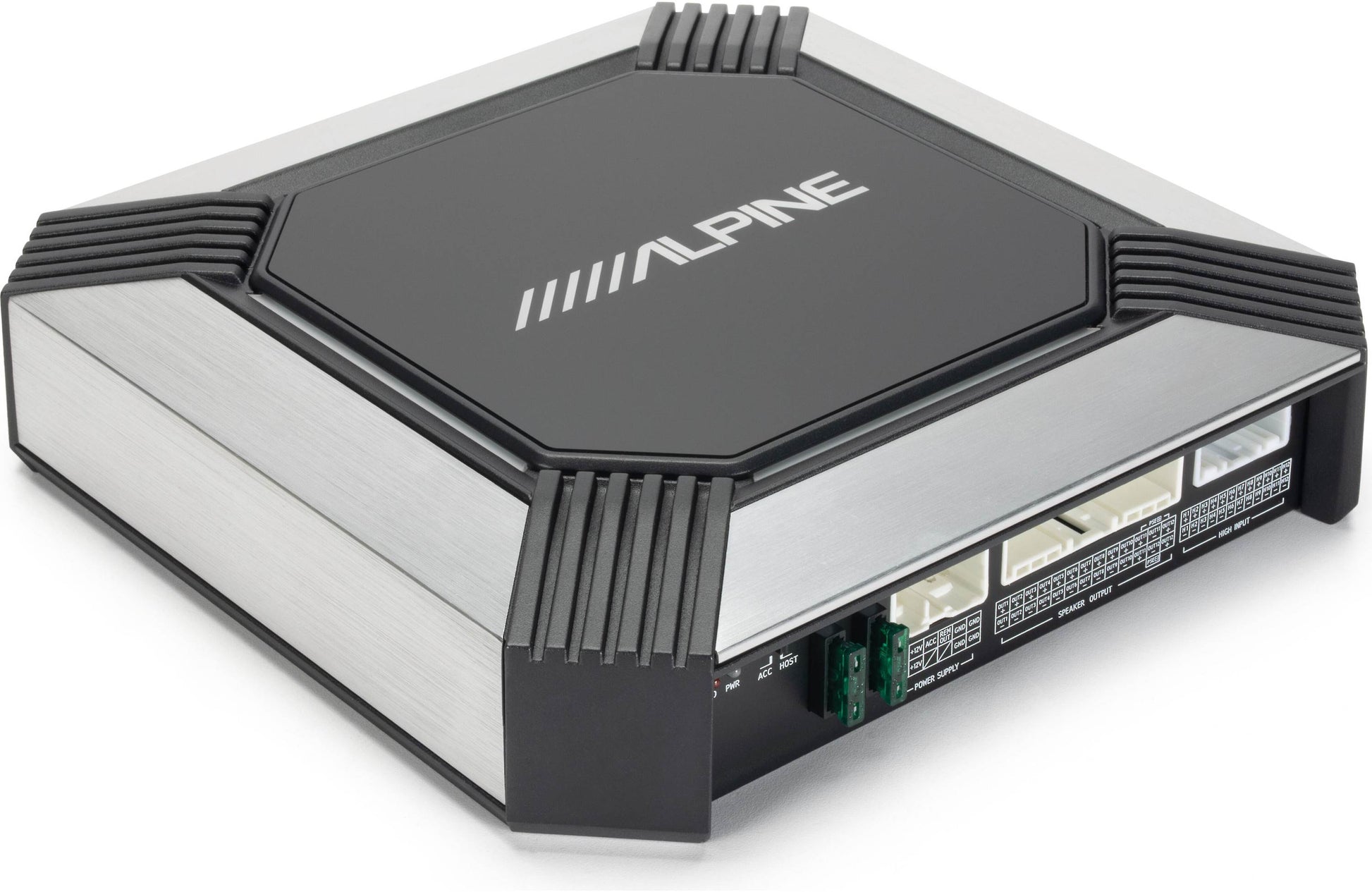

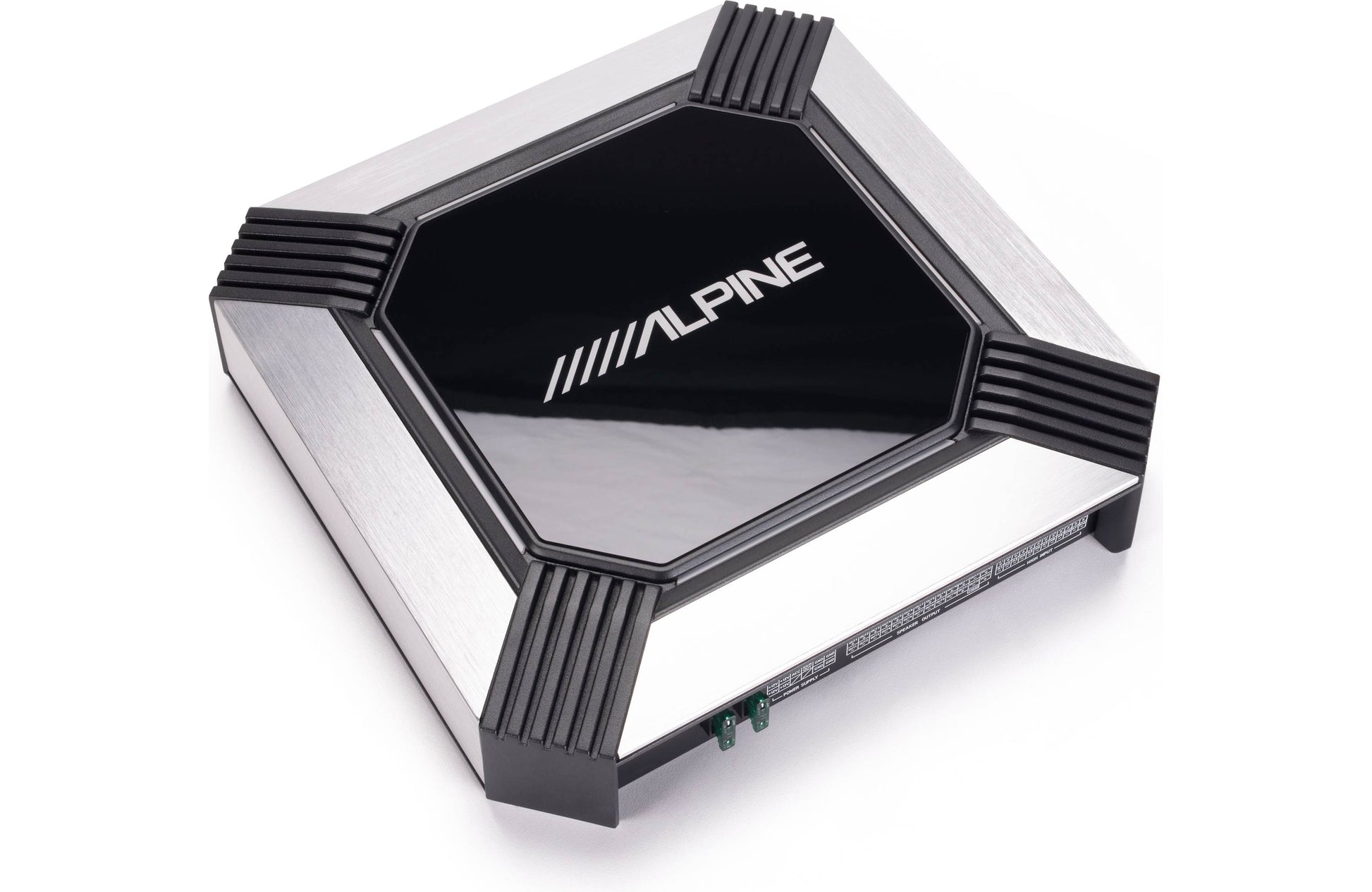

Alpine PXE-X121-12EV 12 Channel Amplifier With Digital Signal Processing

Product highlights:

• 12-channel car amplifier with digital signal processing
  • 25 watts RMS x 4 + 50 watts RMS x 6 + 100 watts RMS x 2
• Hi-Res Audio certified (frequency response: 20 - 40kHz)
• operating voltage: 9-17V
  • compatible with start-stop vehicle systems
• DSP adjustments and settings made via Bluetooth device, Windows PC via USB
  • download Alpine Music App for iOS or Android device from the Apple APP or Google Play Store
  • download PXE-X121-12EV Pc app for Windows at Alpine.com

Adjustment details:

• 12-channel 32-bit 300 MHz digital processor
• 31-band EQ with fine tuning
• adjustable high-, low-, and band-pass filters (20-20 KHz)
  • selectable filter slopes (12, 18, 24, 30, 36, 42, 48 dB/octave)
  • selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley)
• delay: 0-20 milliseconds (0-273")
• phase adjustment: 0 or 180°
• music and nav sound mixing
• full-range outputs available for larger systems

More info:

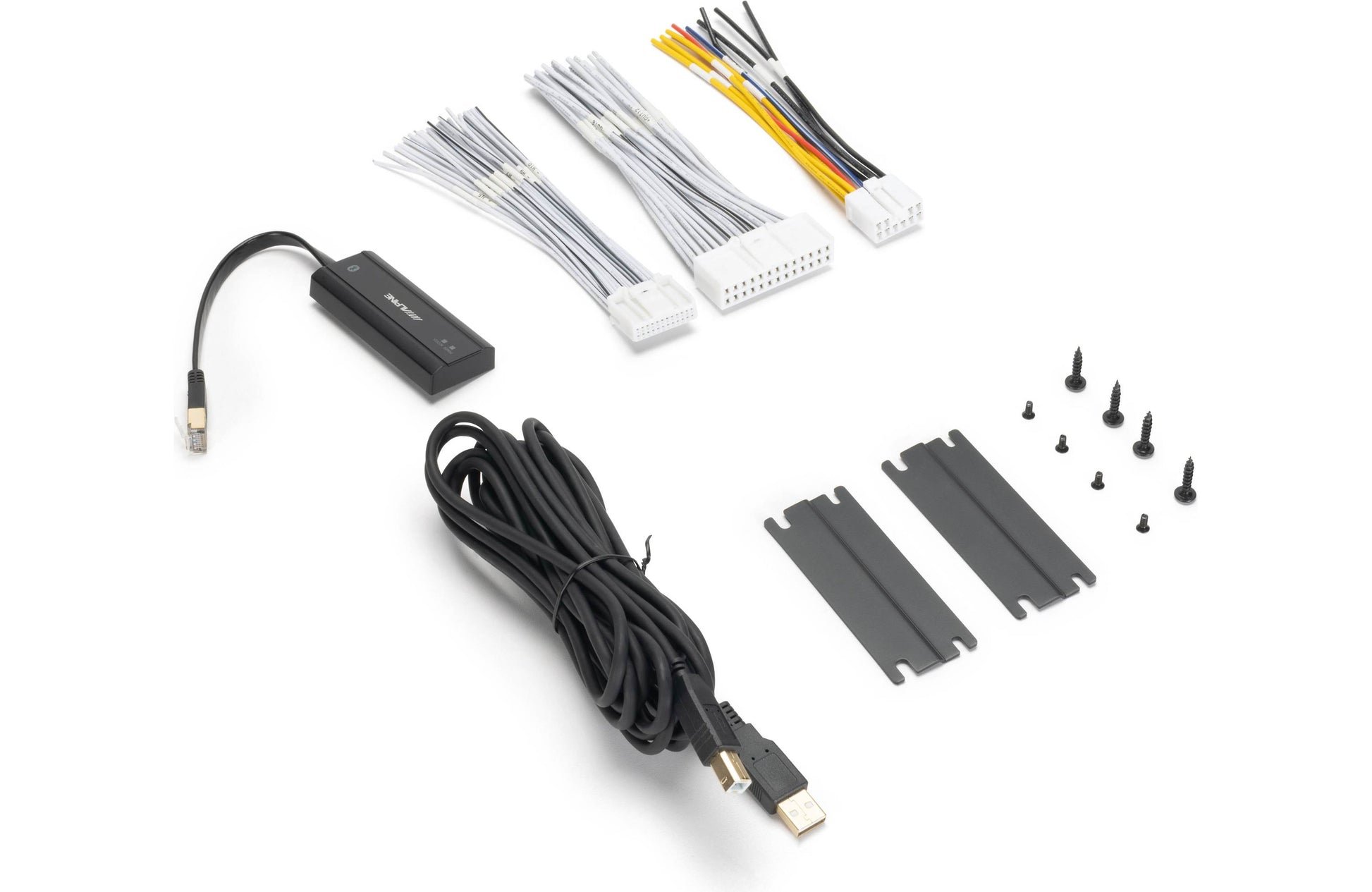

• includes Bluetooth adapter and USB cable

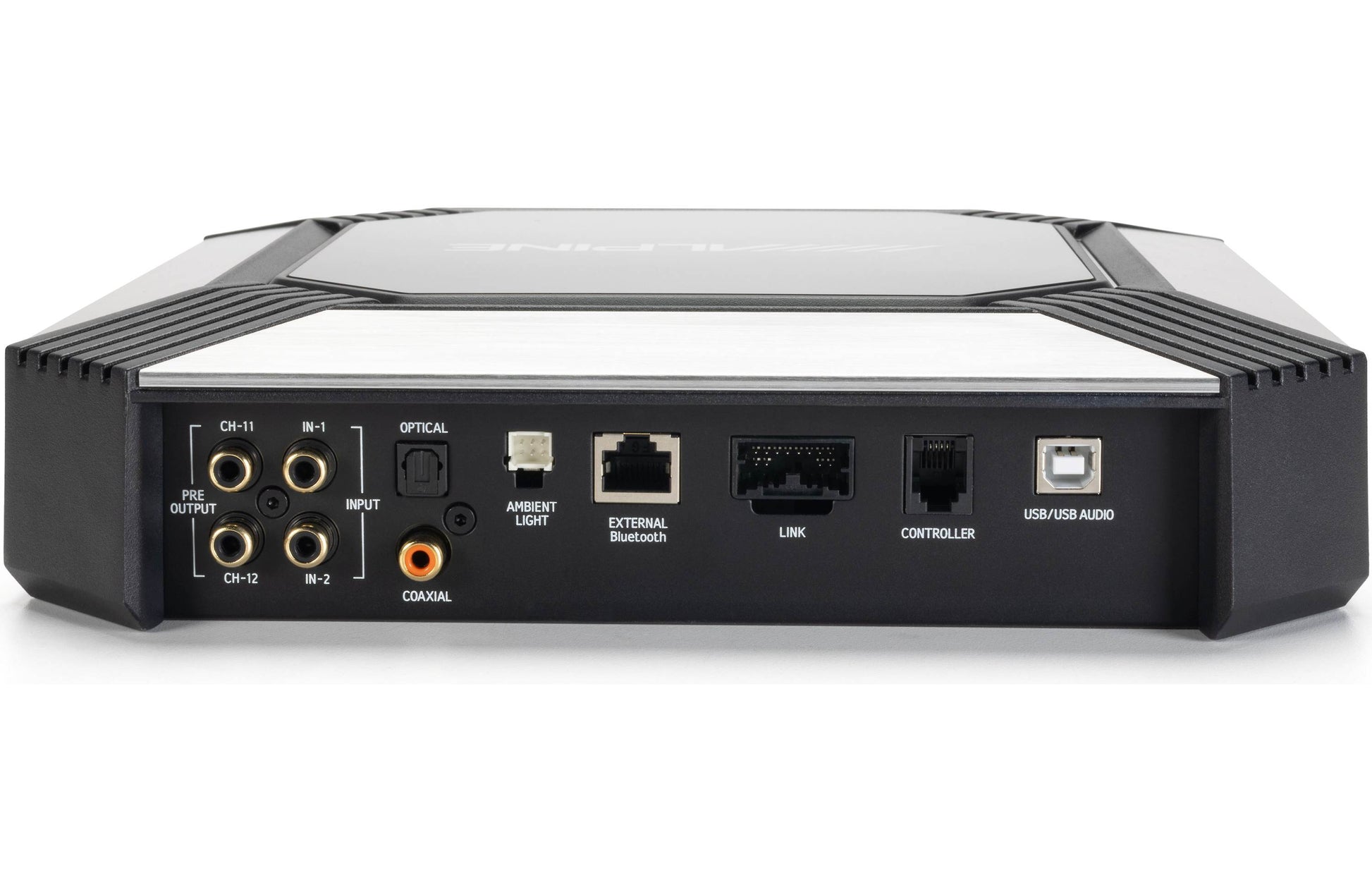

• inputs: 2 RCA preamp, 12 speaker-level, optical and coax digital, USB
  • speaker-level inputs handle up to 10.6V (28W)
• preamp outputs: 2 RCA
• wiring and hardware not included with amplifier
  • 8-gauge amp wiring kit with fuse recommended
• fuse rating: 30A x 2
• dimensions: 10.32"W x 2.33"H x 11.3"D
