Alpine's Next-Generation R-Series Pro 3-way component speaker system harnesses trickledown technology from their famed F#1 Status line to deliver a full-bodied, six-speaker experience that's high-res capable. Play your high-resolution music files with confidence, knowing that the ultra-wide frequency response of the included woofers, midrange drivers, and tweeters will provide the detailed, authentic sound you're looking for.
Minimal distortion

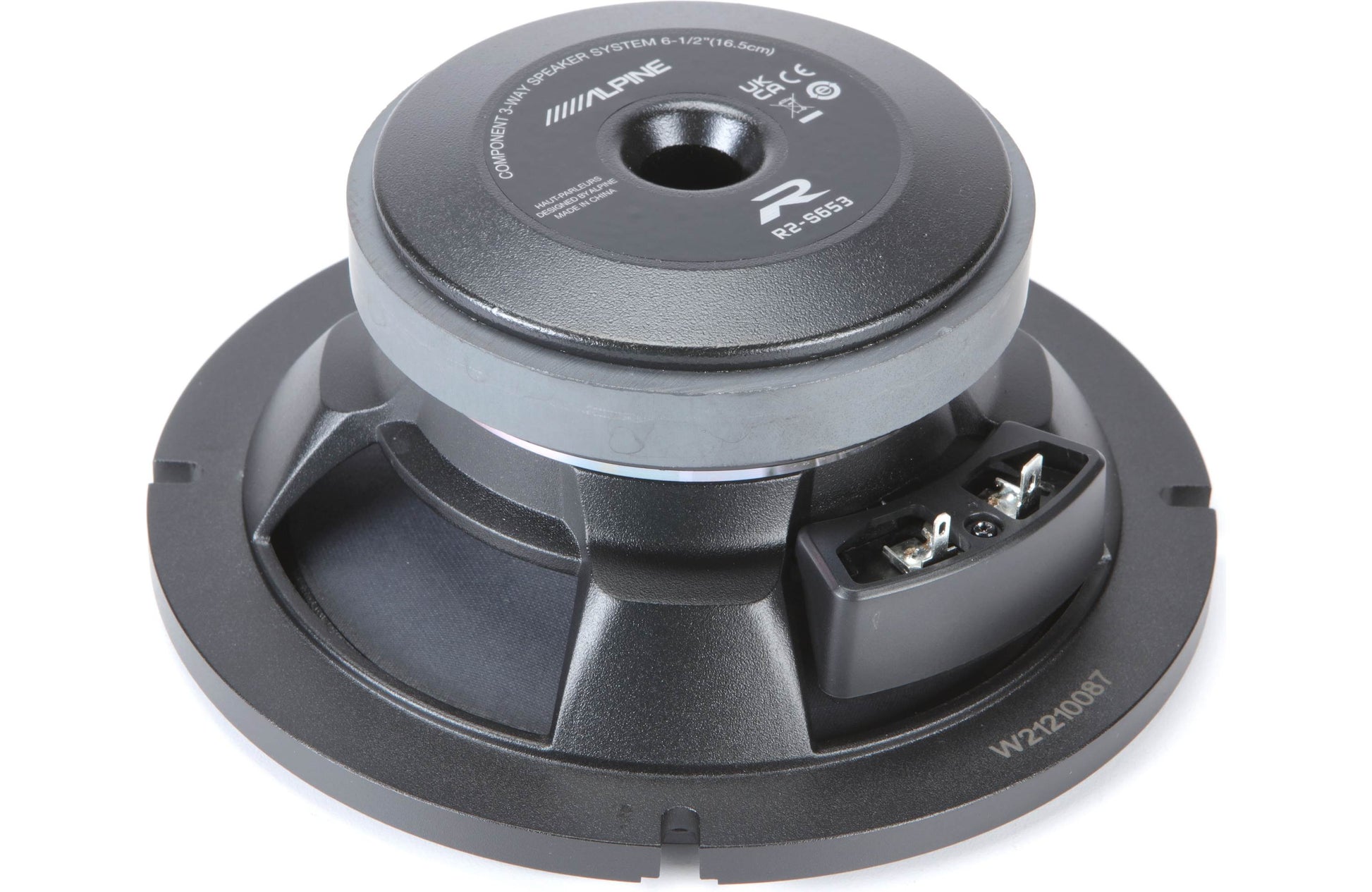

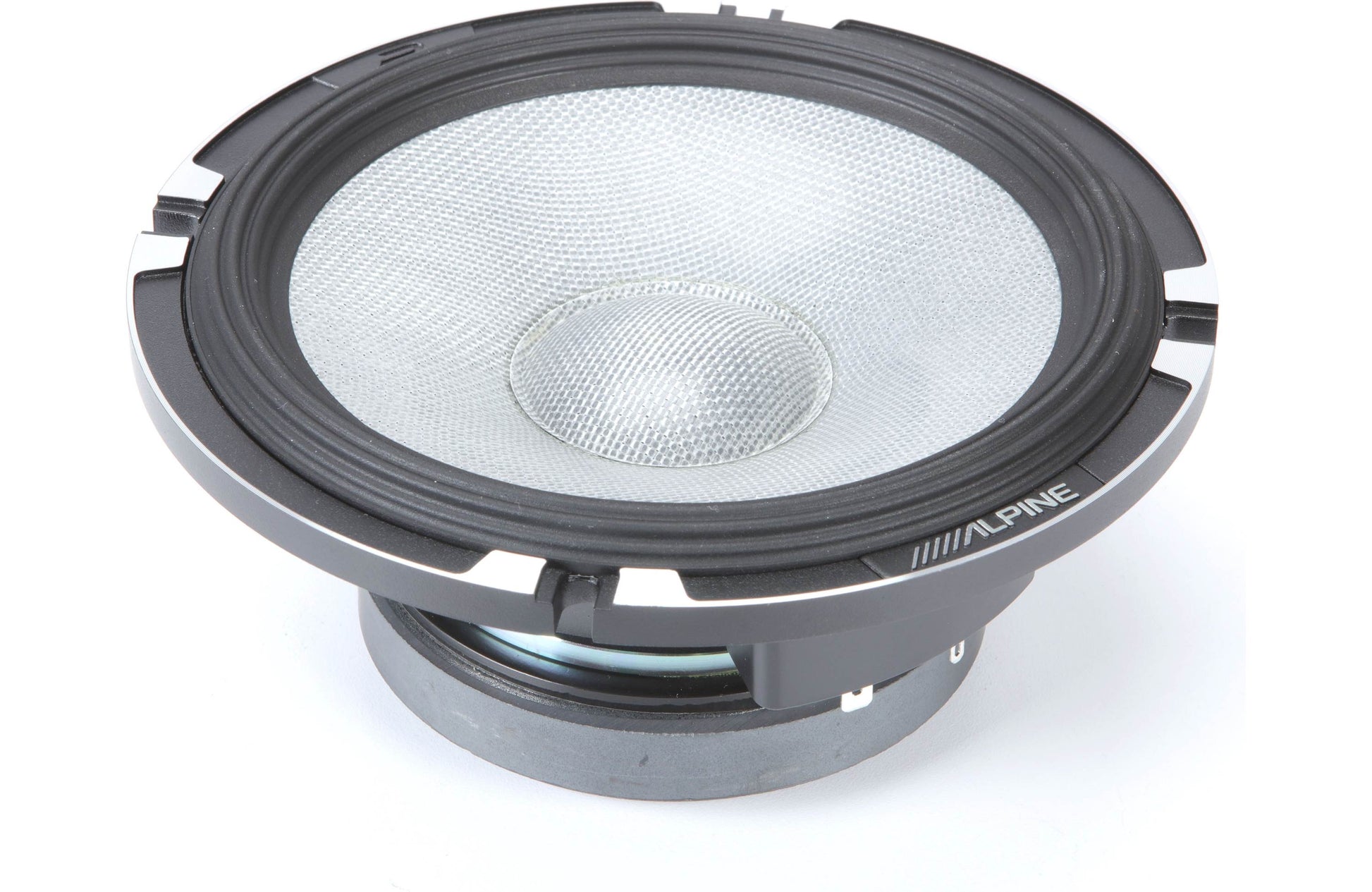

Alpine optimizes their R2-S653 6-1/2" 3-way component speaker system for near-perfect sound from premium sources. Both the woofer and midrange combine a highly rigid aluminum frame and a lightweight glass-fiber reinforced cone to keep the sound clean. The high-amplitude multi-roll surrounds of these drivers maximize impact while maintaining linearity, so you'll get punch with minimal distortion. And speaking of a little more punch, the woofer's ferrite magnet and large motor structure will pump up the mid-bass in your music.
Loud and fun

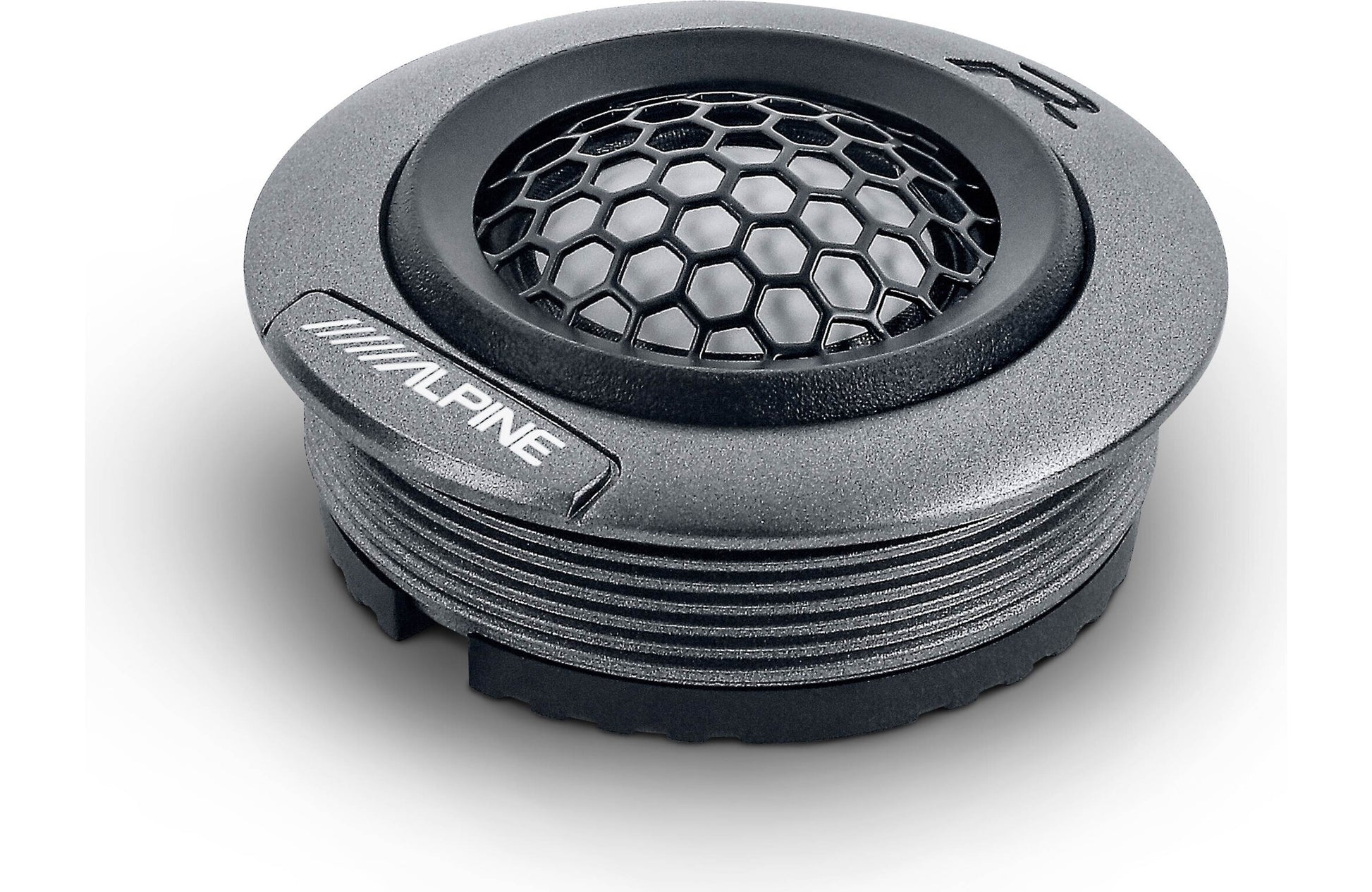

All the exquisite detail you need is handled by the 1" magnesium hard dome tweeters, which contribute to the "loud and fun" sound associated with Alpine's R-Series. Because tweeters can be challenging to install, Alpine provides a threaded removable housing and a swivel-mount design to make sure you have what you need to make them sound their best.
These speakers make a great addition to any high-powered system, thanks to power-handling up to 100 watts RMS. Hook ‘em up and play ‘em loud!
Product highlights:

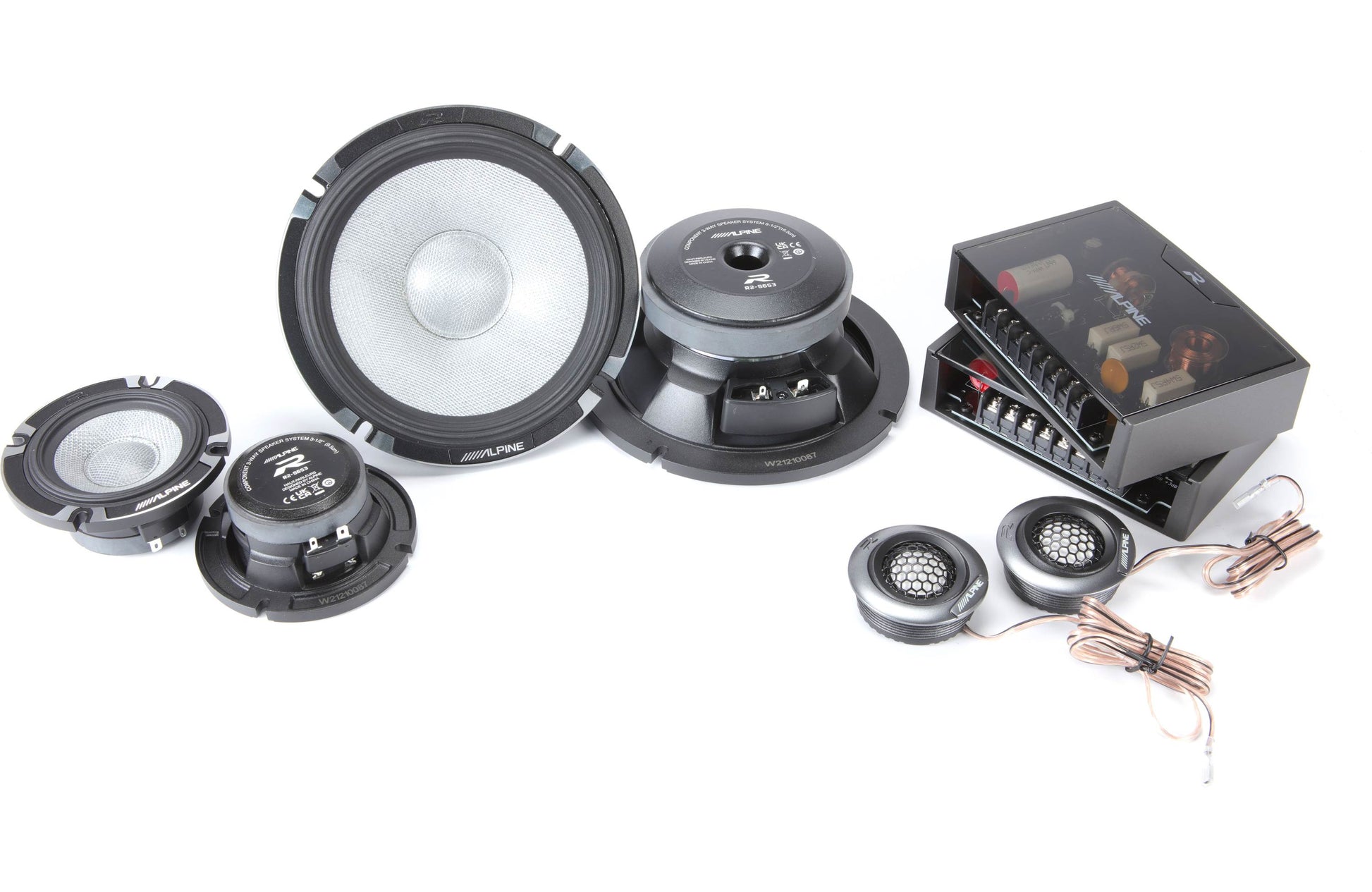

3-way component speaker system
6-1/2" glass-fiber woofer cone with High-Amplitude Multi-Roll surround
3" glass-fiber midrange
1" magnesium hard dome tweeter
handles up to 100 watts RMS (300 watts peak power)
frequency range: 65-40,000 Hz
warranty: 1 year
MFR # R2-S653
Item # 500R2S653
California customers:Pleaseclick herefor your Proposition 65 WARNING.
What's in the box:
If you need assistance accessing this owner's manual, please give us a call.
2 Woofers

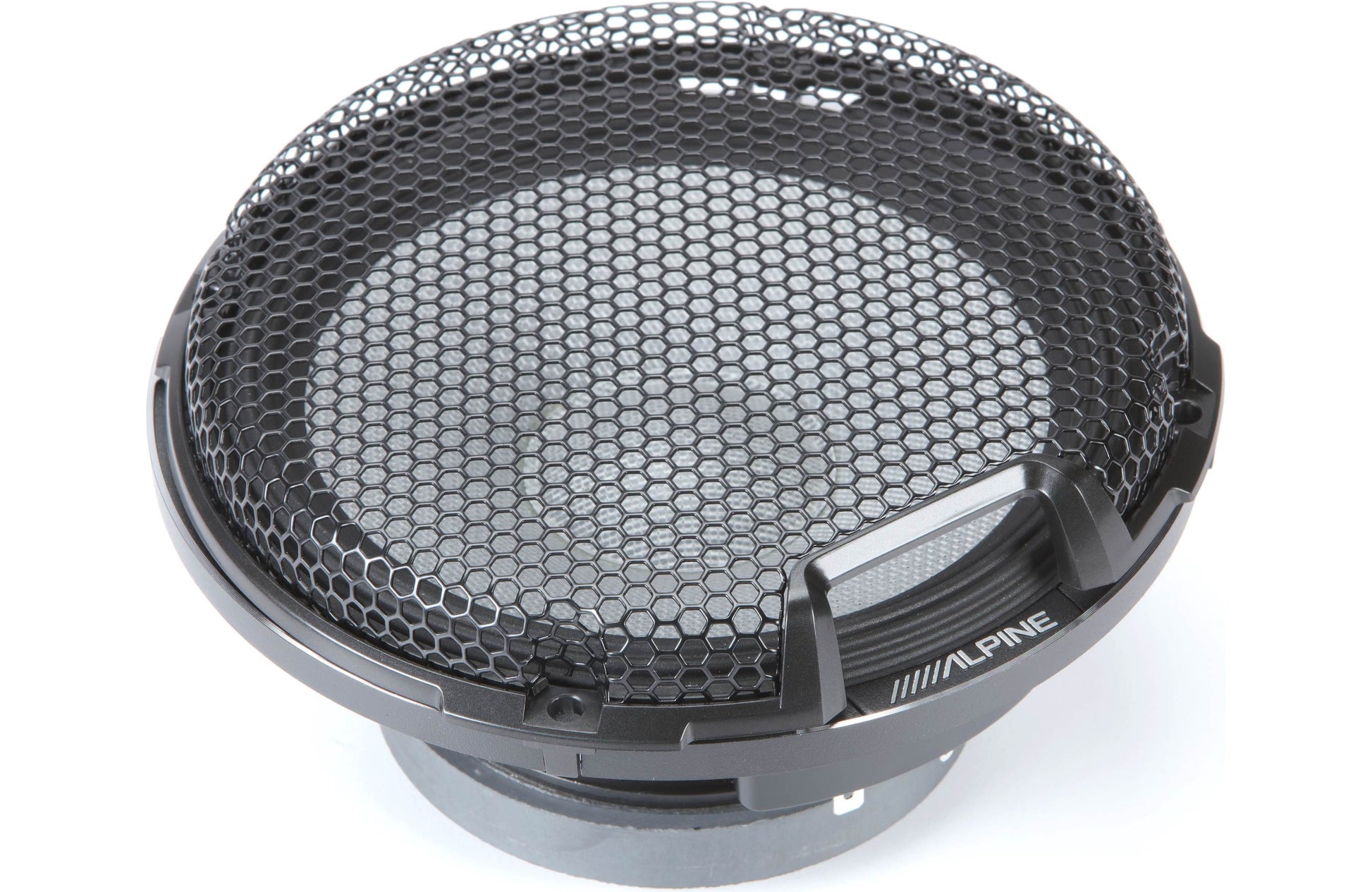

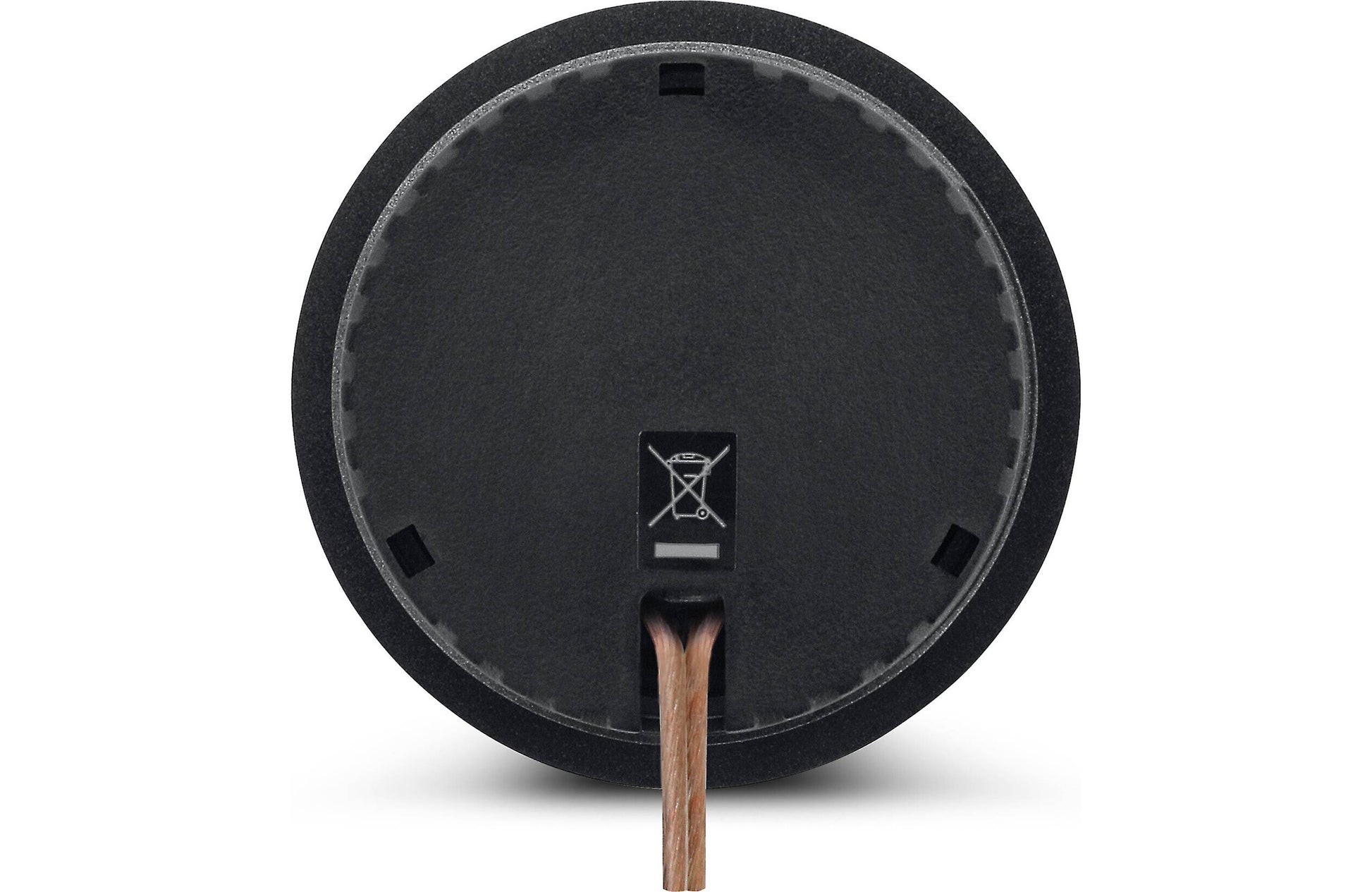

2 Woofer grilles
2 Midrange
2 Midrange grilles

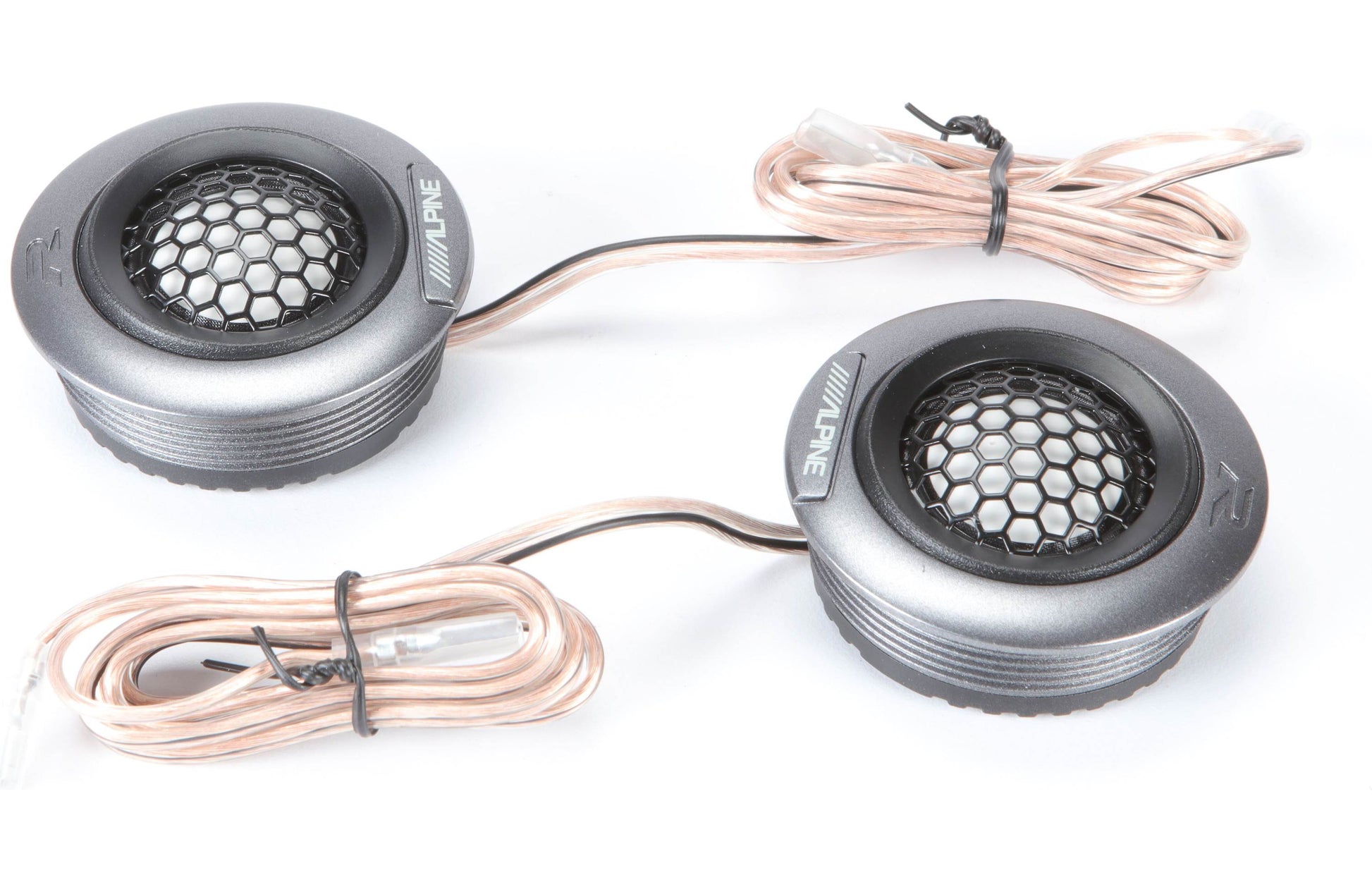

2 Tweeters (each has an attached 30" length of wire terminated with quick slides)
Size Note:Alpine describes this woofer size as 6½, but because it requires a larger cutout than a standard 6½, Crutchfield has traditionally referred to this size as 6¾. Please enter your vehicle information to confirm fit.
HAMR Surround:The R-Series speakers incorporate Alpine's patented High-Amplitude Multi-Roll (HAMR) surround, a technology developed for Alpine subwoofers that maintains control and stability at higher volume levels. HAMR surrounds combine increased cone area and long linear cone excursion for deep, powerful bass response.

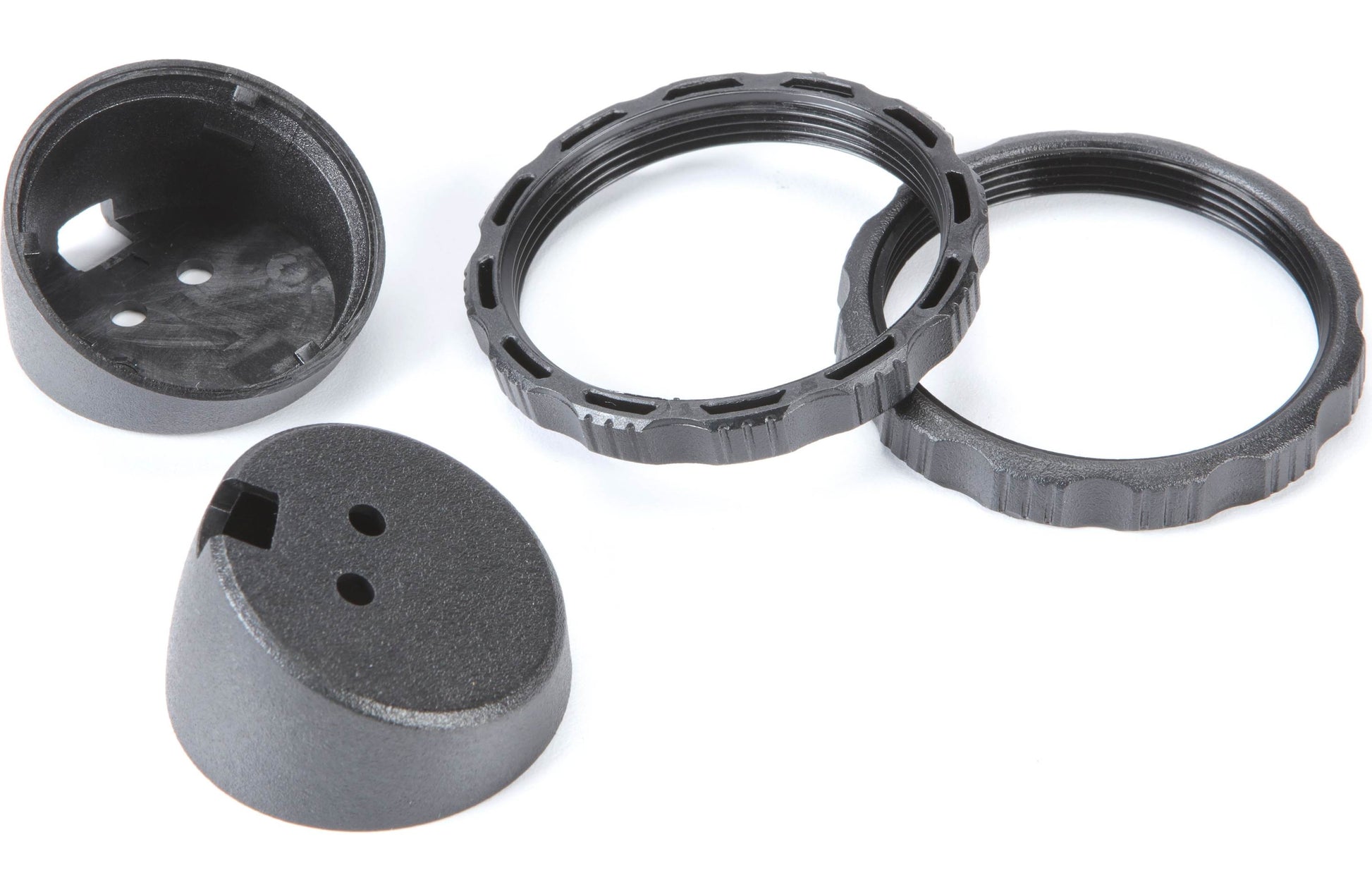

Tweeter Mounting Options:The tweeters come installed in a flush-mount housing. Once mounted, the tweeters pivot approximately 15° in any direction, to improve the stereo image. Angled surface-mount housings are also included. The installed tweeter dimensions are:
Flush Mount (swivel)
Angled Surface Mount
Mounting Depth
0.65"
N/A
Mounting Height
0.378"
1.325"
Cutout Diameter
2.0"
N/A
Frame Diameter
2.285"
1.82" x 1.71"

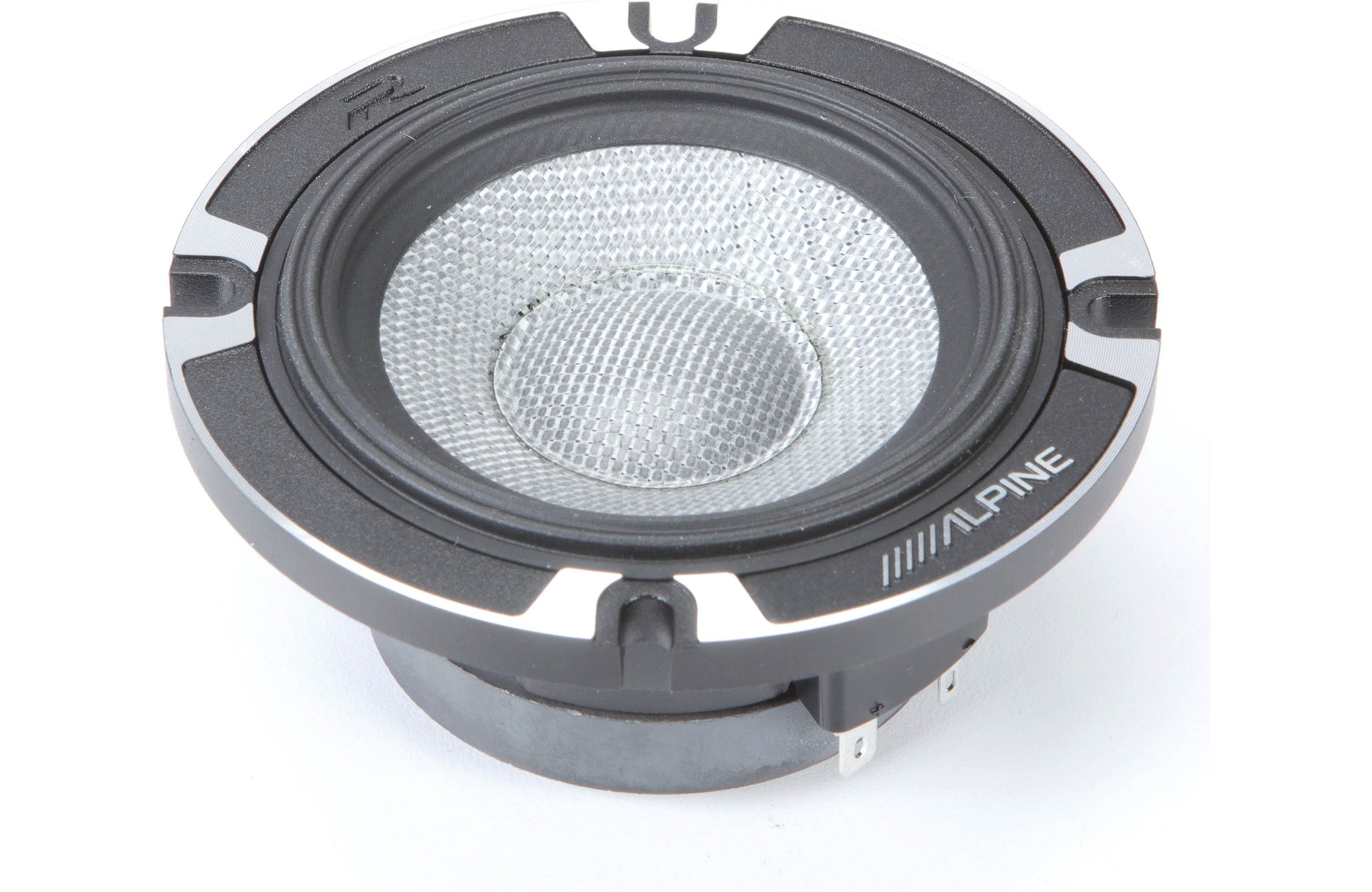

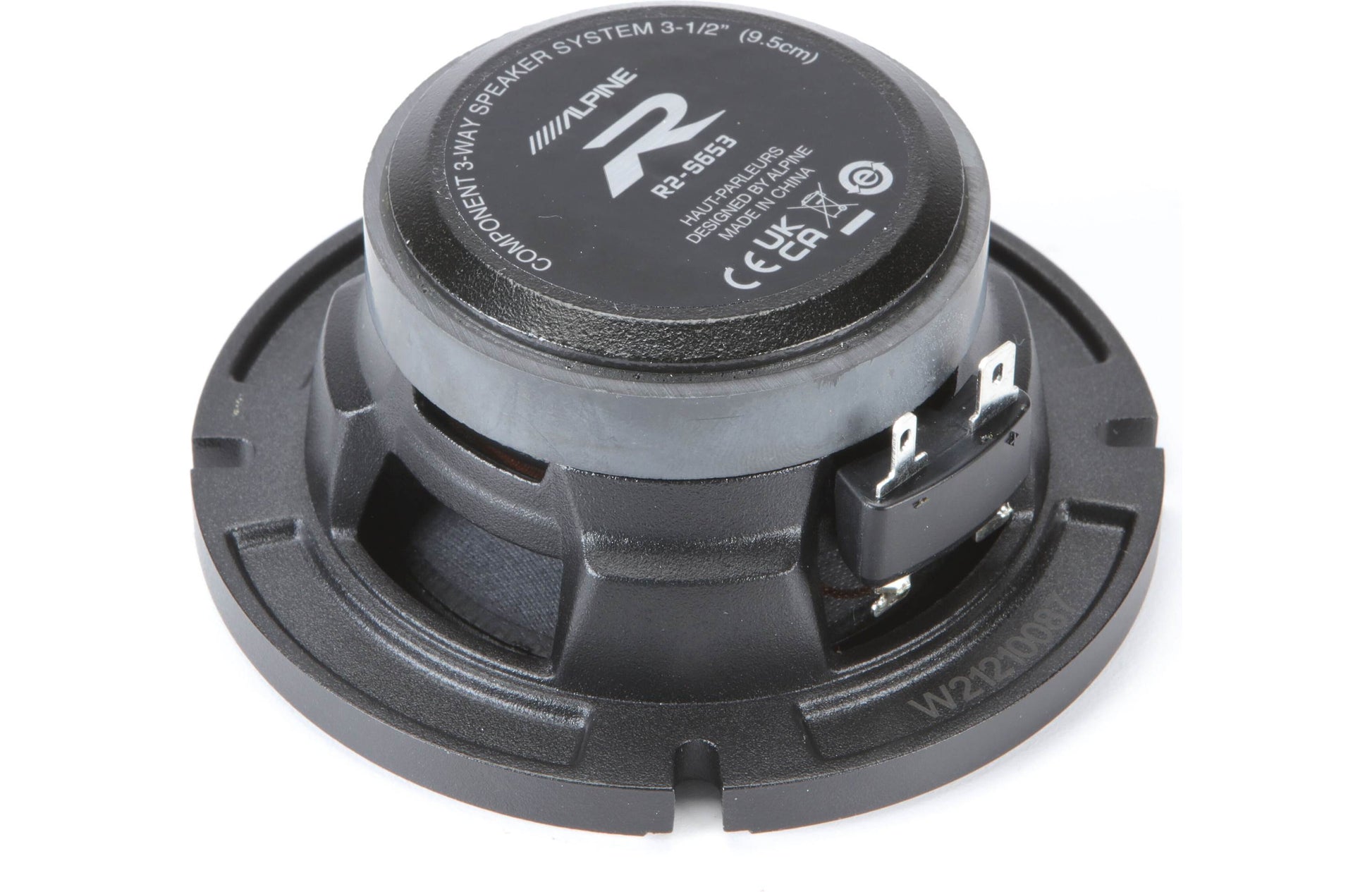

Midrange:The midrange drivers are not a standard size; they are similar to a 3½, but have a different screw hole pattern. They are top mounted and have these dimensions:
Depth:1.426"
Mounting height:0.36"
Flange height:0.24"
Cutout diameter:2.884"
Frame diameter:3.774"
Grille diameter:3.75"
Grille height:0.625"

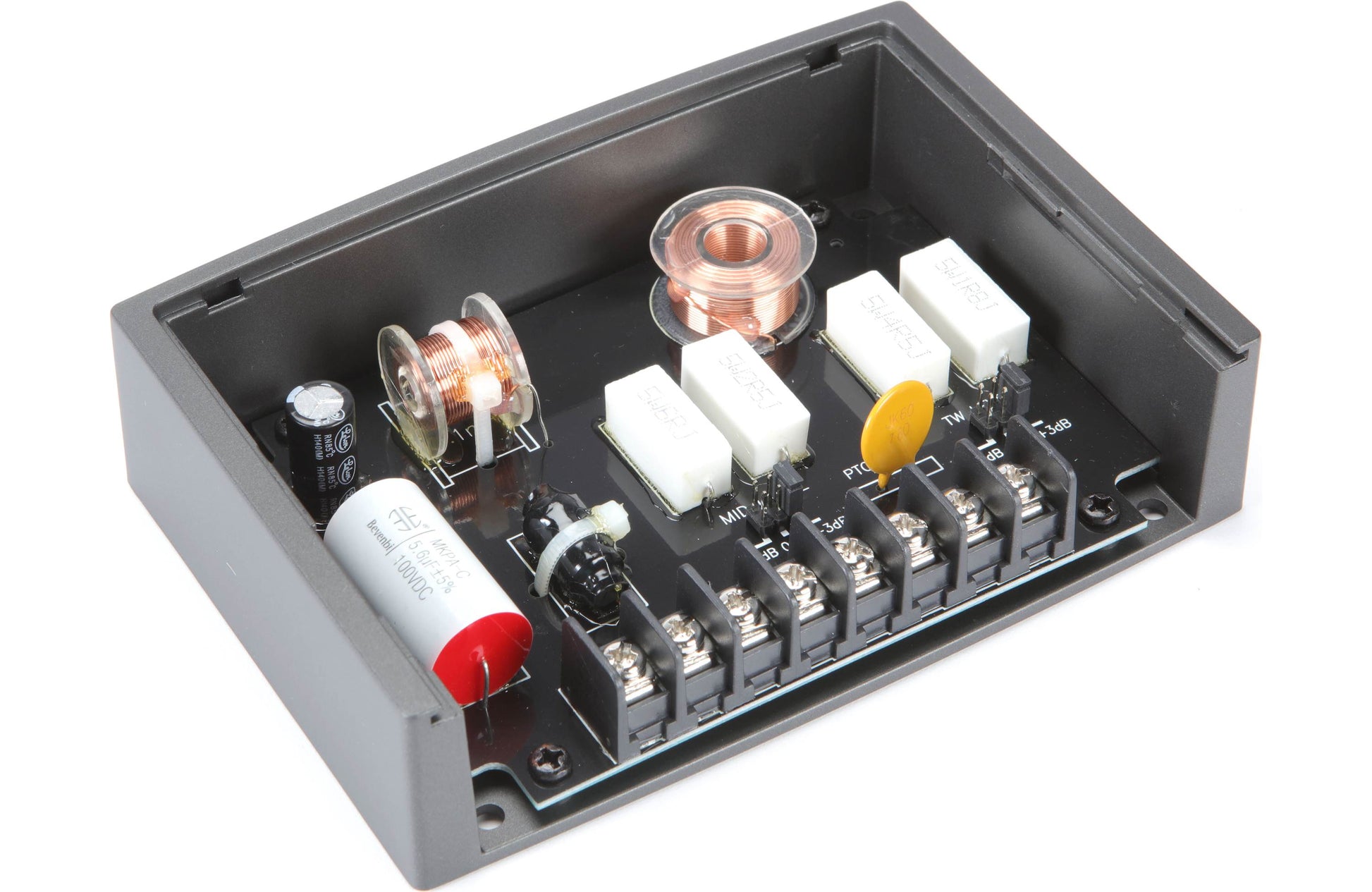

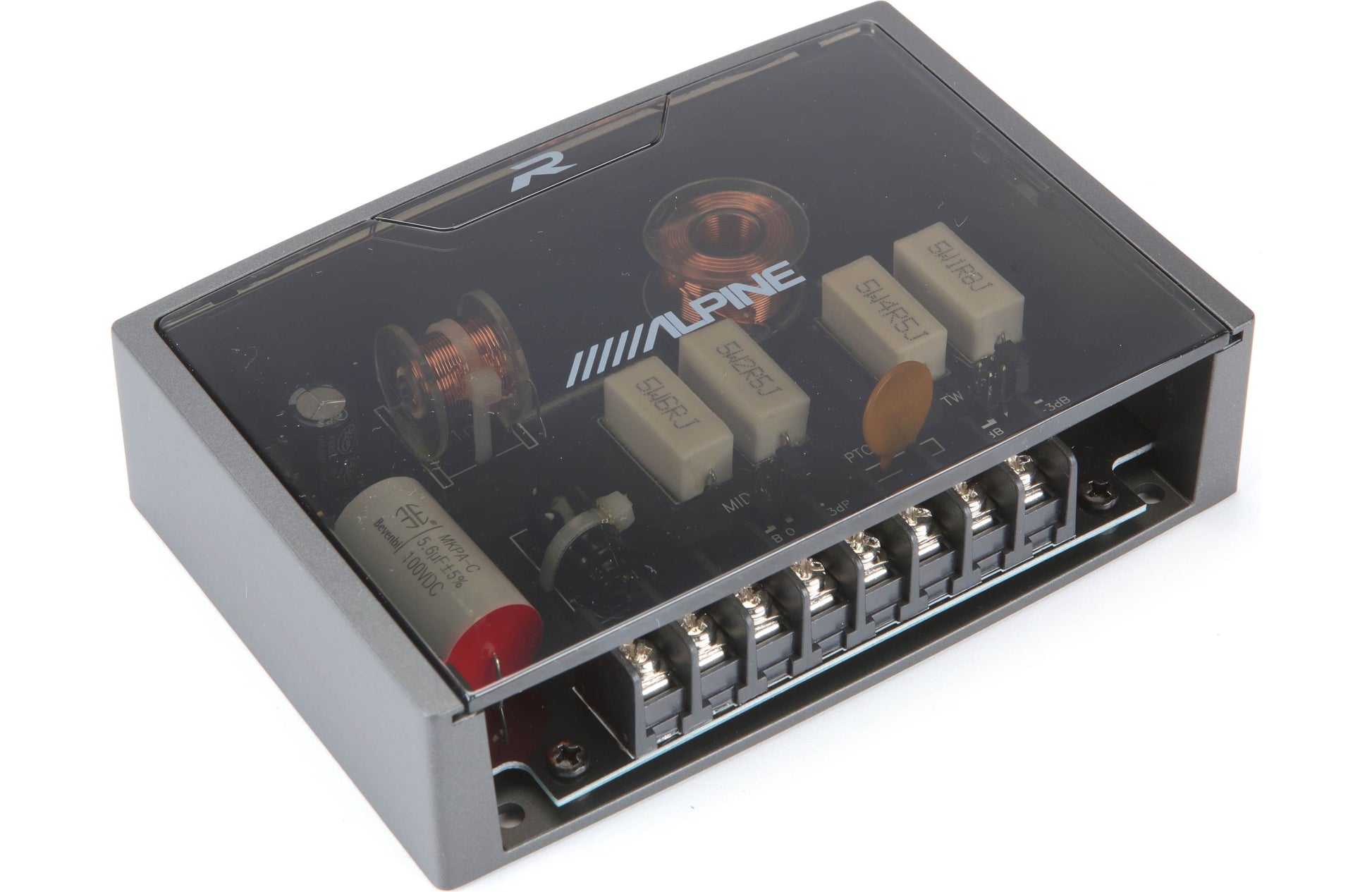

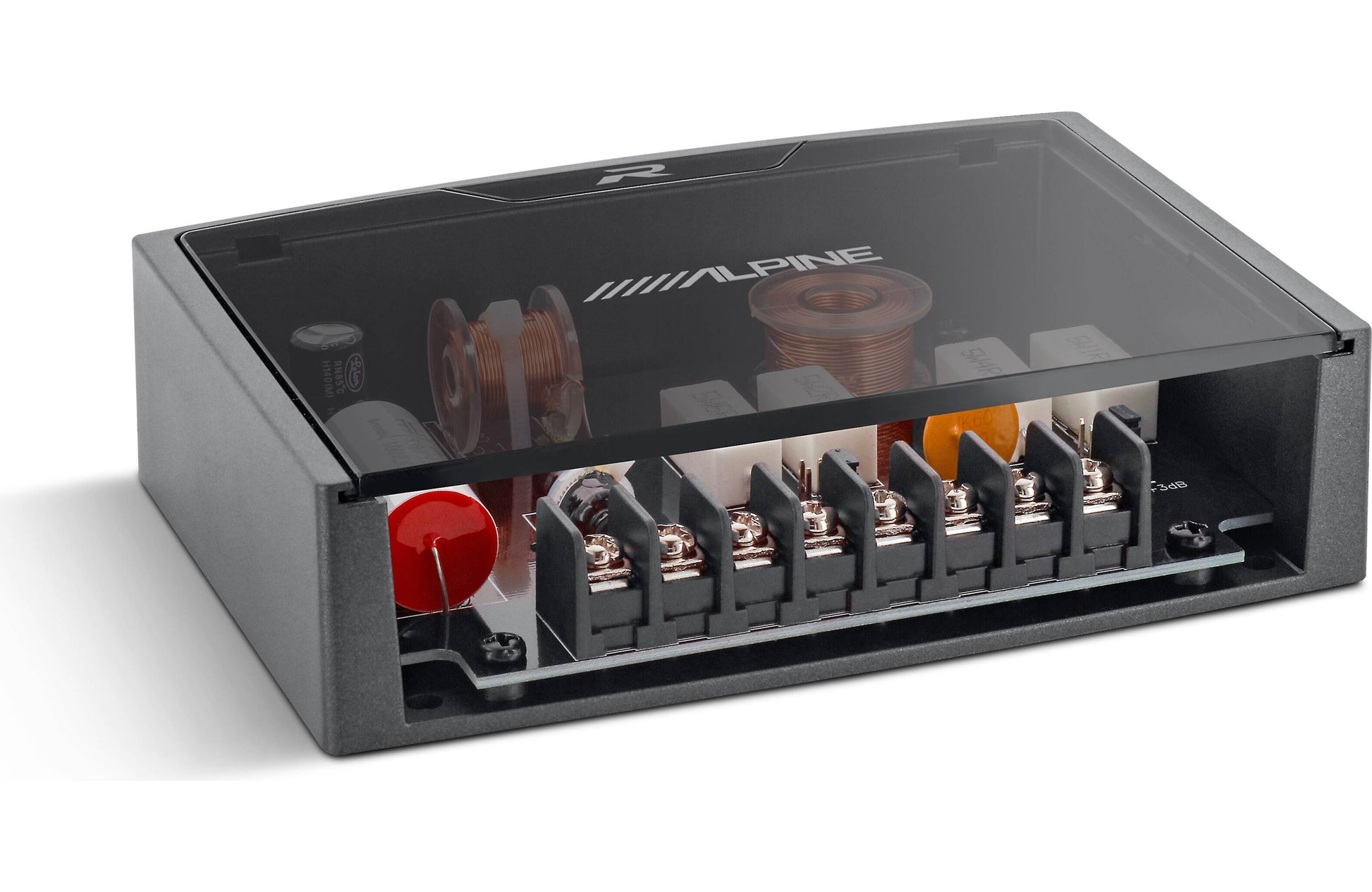

Crossovers:The passive crossovers allow some output flexibility; the tweeter and midrange output levels are independently adjustable.
Low Pass:6 dB/octave slope
Band Pass:6 dB/octave slope
High Pass:12 dB/octave slope
Tweeter Output Level:three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
Midrange Output Level:three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
Wire Connections:inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.3" wide
Crossover Dimensions:
Width:5.62"
Height:1.5"
Depth:3.9" (plus wire)
