Alpine

Alpine R2-W12D4

Alpine R2-W12D4

In stock

R Series 12" subwoofer with dual 4-ohm voice coils

  • New Launch
$449.95
$449.95
Save: $-449.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine R2-W12D4

Maximum bass output

With over 40 years of experience, Alpine has the know-how to deliver the kind of hard-hitting bass you want. The R2-W12D4 12" sub capitalizes on this knowledge with a new motor structure with double-stacked magnets for deeper bass and tighter sound. Its Kevlar-reinforced pulp cone features a durable HAMR Santoprene™ surround that allows for huge amounts of excursion, and an oversized poly ceramic dust cap supplies rigidity to keep the sound tight. It's the perfect sub for bassheads that want the best of both worlds: accurate response and otherworldly thump.

A versatile performer

The R2-W12D4 handles up to 750 watts RMS, so it's ready for your high-powered amp. Its dual oversized 4-ohm voice coils offer wiring flexibility for multiple subwoofer setups. Since it works well in sealed or ported enclosures you'll enjoy your music the way you like to hear it.

Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.

Product highlights:

  • Featured in our article: Best 12" car subwoofers for 2025
  • 12" subwoofer with dual 4-ohm voice coils
  • Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
  • frequency response: 24-200 Hz
  • power handling: 300-750 watts RMS (375 watts per coil)
  • peak power: 2250 watts
  • sensitivity: 84.6 dB
  • top-mount depth: 6.47"
  • sealed box volume: 0.65-1.1 cu. ft.
  • ported box volume: 1.1-1.6 cu. ft.
  • grille not included
  • warranty: 1 year
  • MFR # R2-W12D4
  • Item # 500R2W12D4
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • One 12" Dual 4-ohm voice coil subwoofer
  • Plastic trim ring
  • Two 4.5" jumper wires (each wire has a single banana connector on both ends)
  • Application guide (English/ French)
  • On-line product registration information
  • Warranty information (English/ French)
  • Important Notice (English /French)

Features

Kevlar Reinforced Pulp Cone: This Alpine R-Series subwoofer has a two-piece structural parabolic Kevlar reinforced pulp cone. Kevlar adds strength and tear resistance to the woofer cone while maintaining the benefits of a pulp cone design. There is also an oversized inverted polypropylene/ceramic composite dust cap, which increases rigidity and reduces cone distortion at extreme volume levels.

HAMRS: The woofer features a High Amplitude Multi Roll Surround (HAMRS), made of Santoprene Rubber, that allows a large linear excursion and greater SPL. The HAMRS design allows extreme excursions without sacrificing valuable cone area.

Progressive Spider: The progressive spider has reinforced layer tinsel leads to ensure reliable and consistent control of the tinsel leads and eliminate any mechanical noise or interference often seen in high excursion cone designs.

Compound Radius Curve Pole Geometry: Alpine's Patented Compound Radius Curve pole geometry ensures a symmetrical magnetic field, while optimizing flux density to reduce distortion and further improve power handling and output.

Dual Voice Coils: For system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

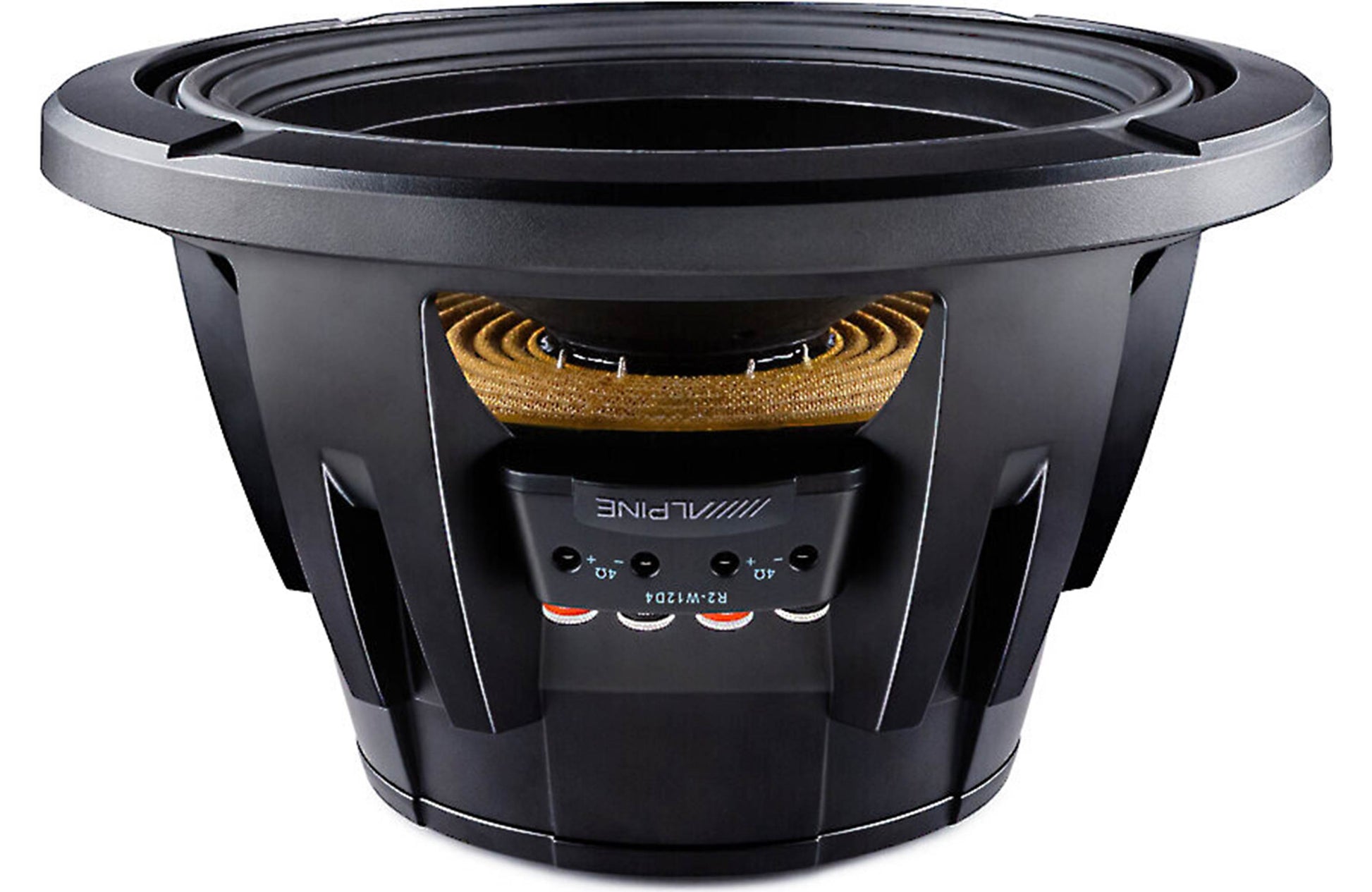

Spring Terminals: The spring post terminals are all located on one side of the woofer. The terminals will accept bare wire up to 8-gauge, pin connectors, or single banana plugs.

Jumpers: Included with the woofer are two voice coil terminal jumpers, allowing you to easily wire the voice coils in parallel (for a 2Ω load) or series (for an 8Ω load).

Enclosure Compatibility

Sealed Box Volume: The recommended sealed box volume (gross) range is from 0.65 to 1.1 ft³ cubic feet, with 0.85 ft³ cubic feet being the ideal size.

Ported Box Volume: The recommended ported box volume range is from 1.1 to 1.6 ft³. The ideal size is 1.55 ft³ using a slot port measuring 12½" (width) x 1½" (height) x 22" (length), resulting in a tuning frequency of 36 Hz.
