Alpine

Alpine S2-S65C

Alpine S2-S65C

In stock

Next-Generation S-Series 6-1/2" component speaker system

  • price-tag logoNew Launch
$143.95
$143.95
Save: $-143.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine S2-S65C

It's time for high-res

We're big fans of Alpine's push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine's Next Generation S-Series car speakers provide access to all the wonderous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.

Innovative materials

Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement.

A separate 1" cloth dome tweeter serves up all the high-frequency detail you've been missing with factory sound. Because tweeters can be challenging to install, Alpine provides in-line crossover systems and a threaded removable housing to make sure you have what you need to make them sound their best.

Grilles are not included; the factory grilles should be suitable for most applications. Optional grilles are available for custom installations.

Product highlights:

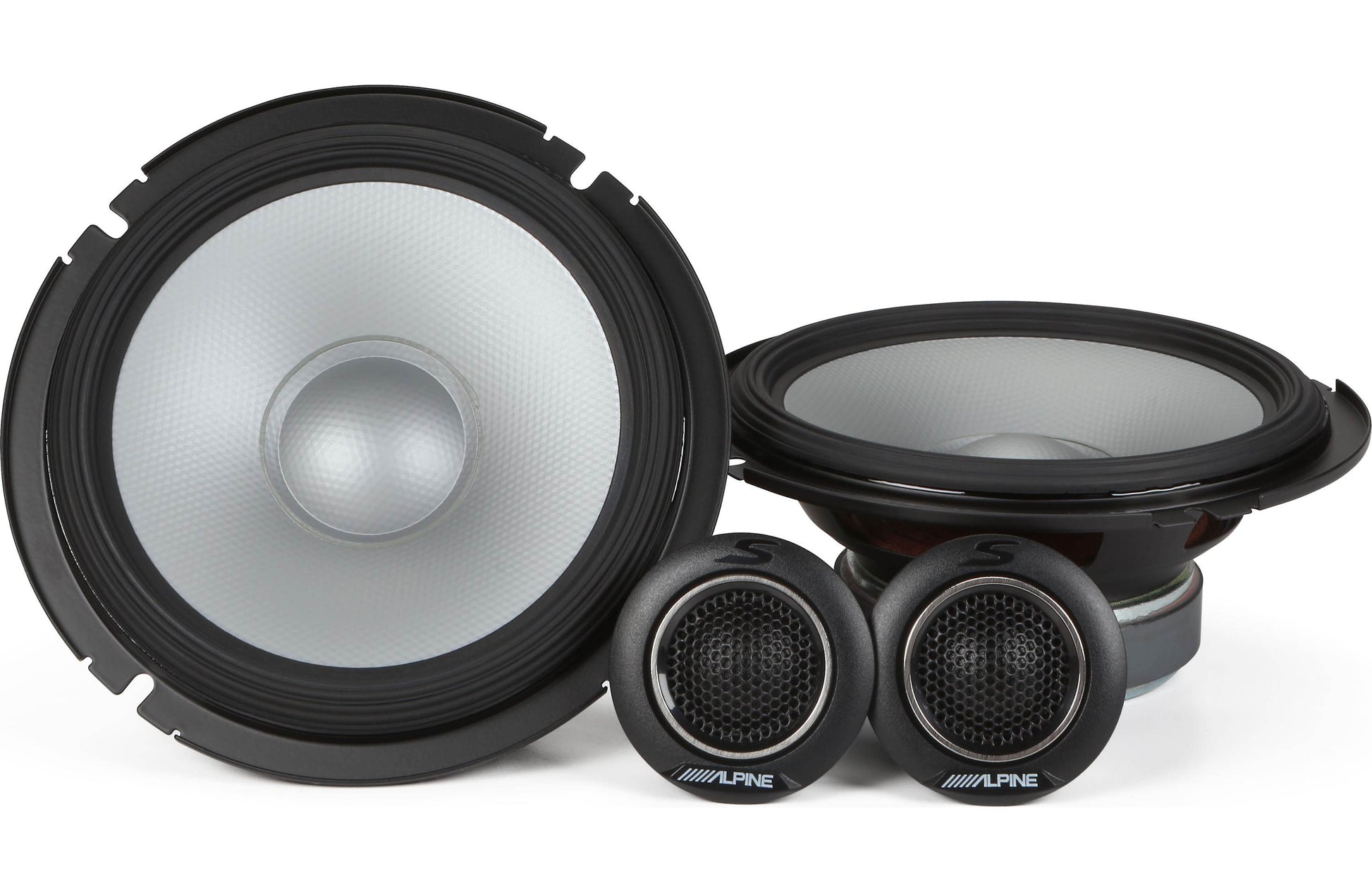

  • 2-way component speaker system

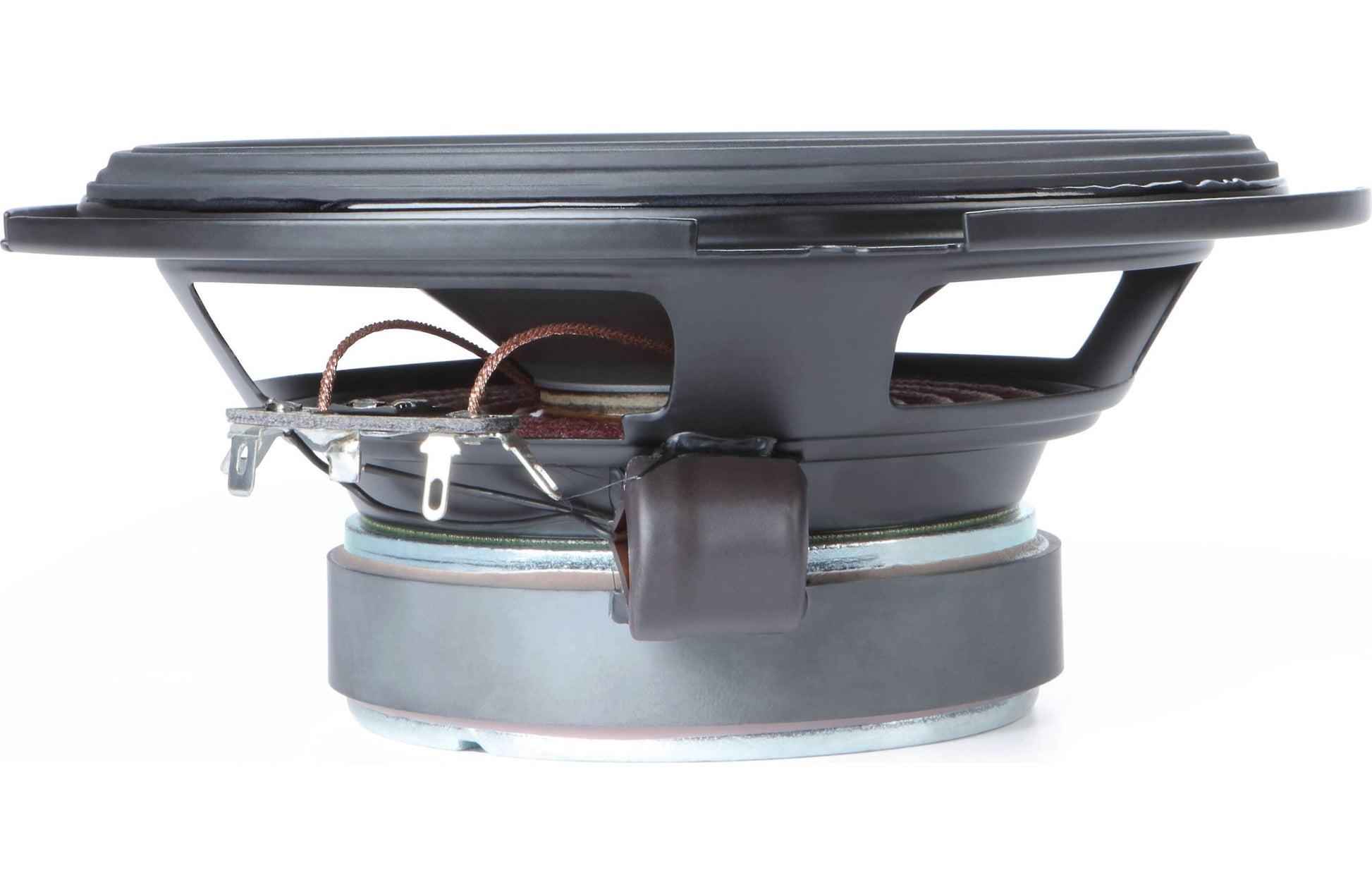

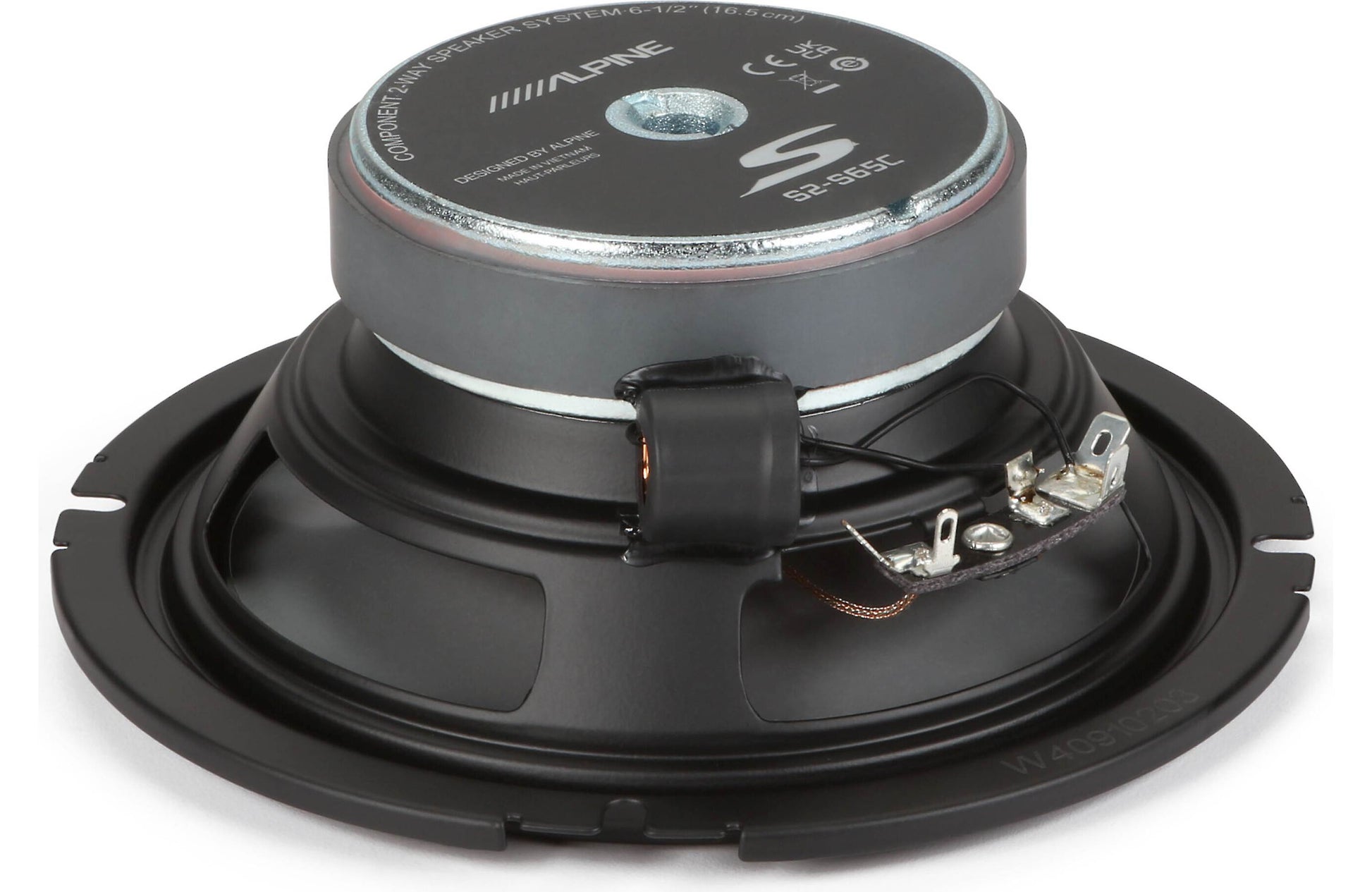

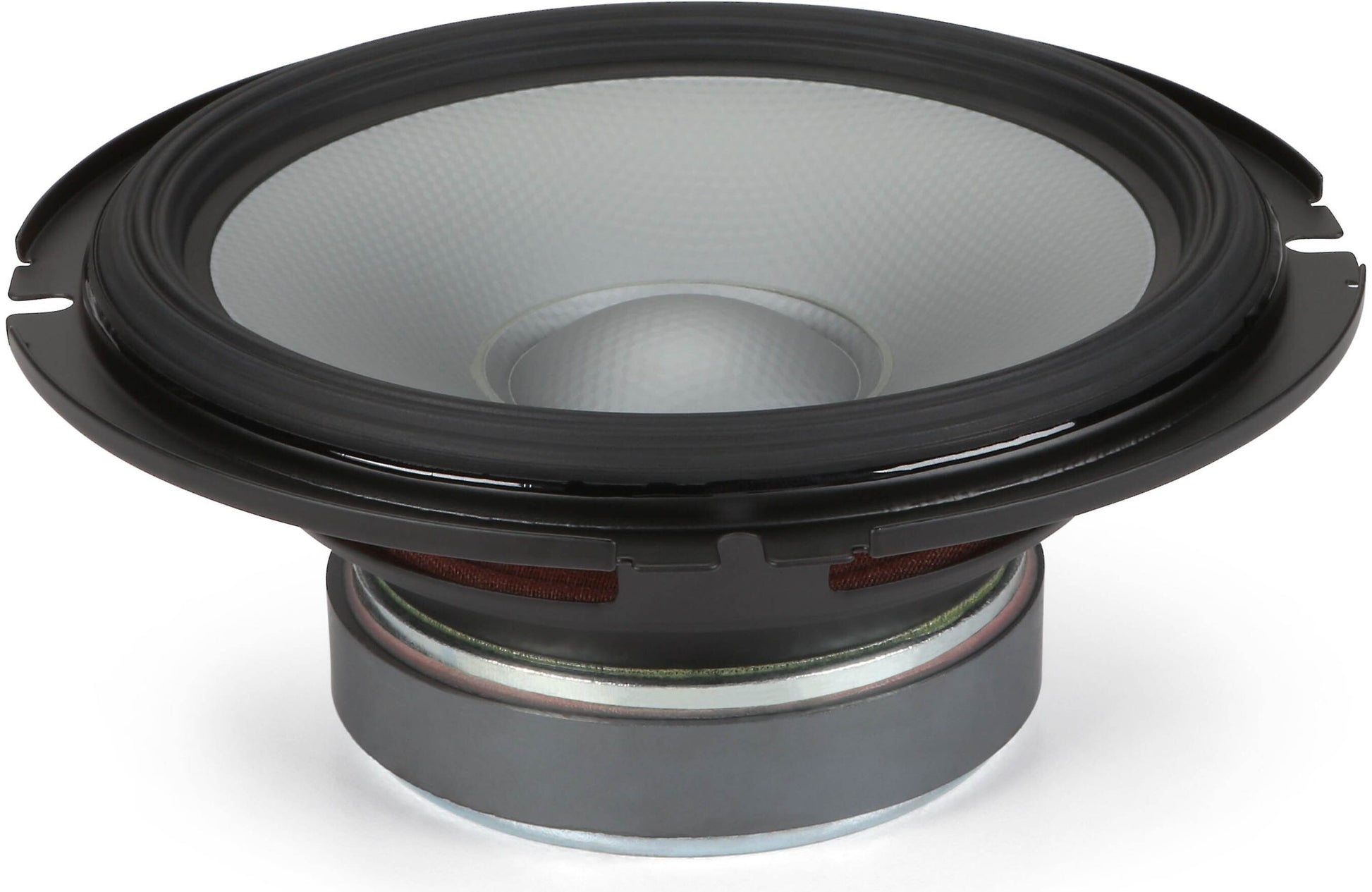

  • 6-1/2" glass-fiber woofer cone with High-Amplitude Multi-Roll surround

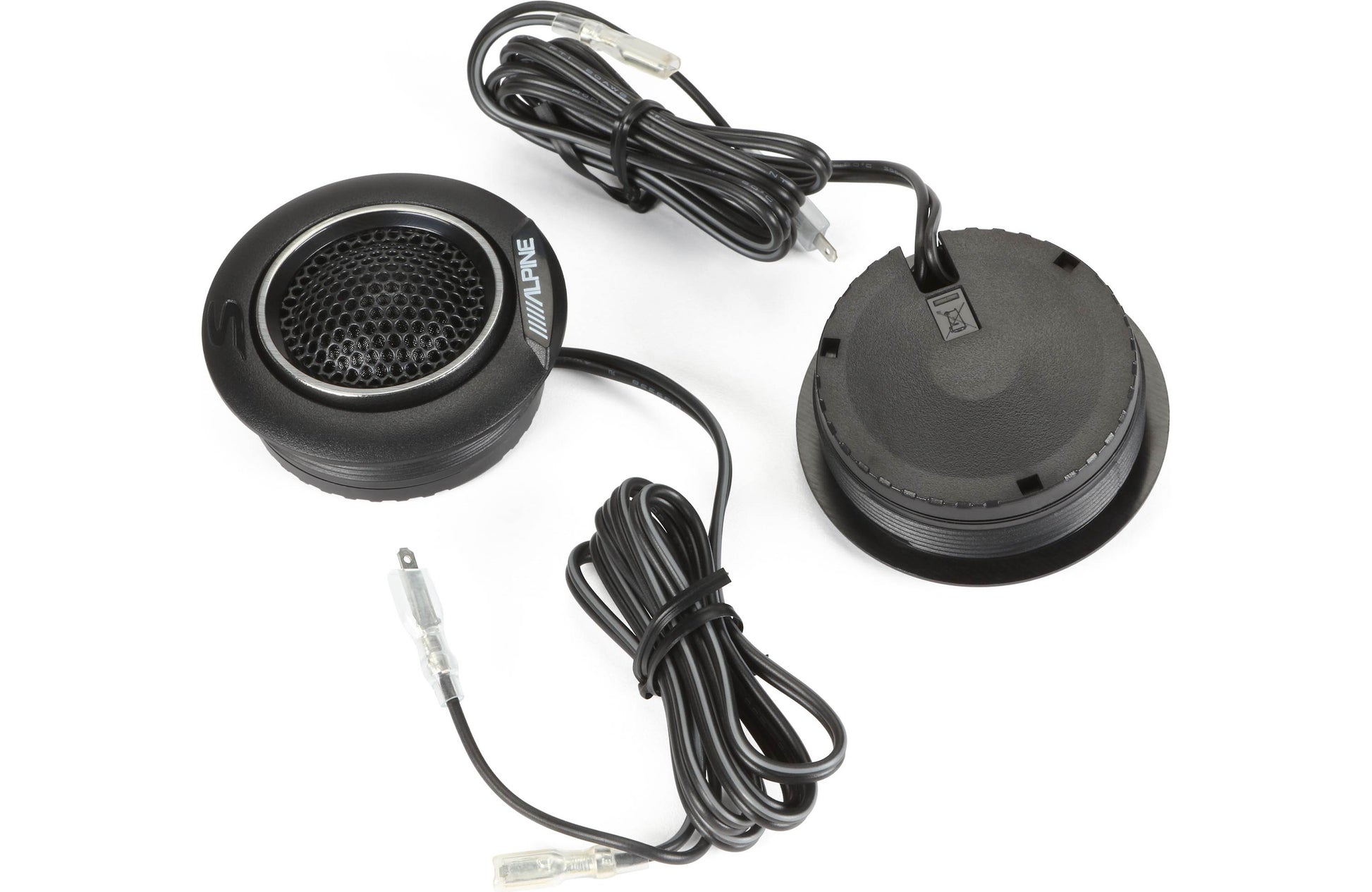

  • 1" cloth dome tweeter with threaded removable housing
  • handles up to 80 watts RMS (240 watts peak power)
  • frequency range: 55-40,000 Hz
  • sensitivity: 88 dB
  • impedance: 4 ohms
  • mounting depth: 2.28"
  • warranty: 1 year
  • MFR # S2-S65C
  • Item # 500S2S65C
  • California customers: Please click here for your Proposition 65 WARNING.

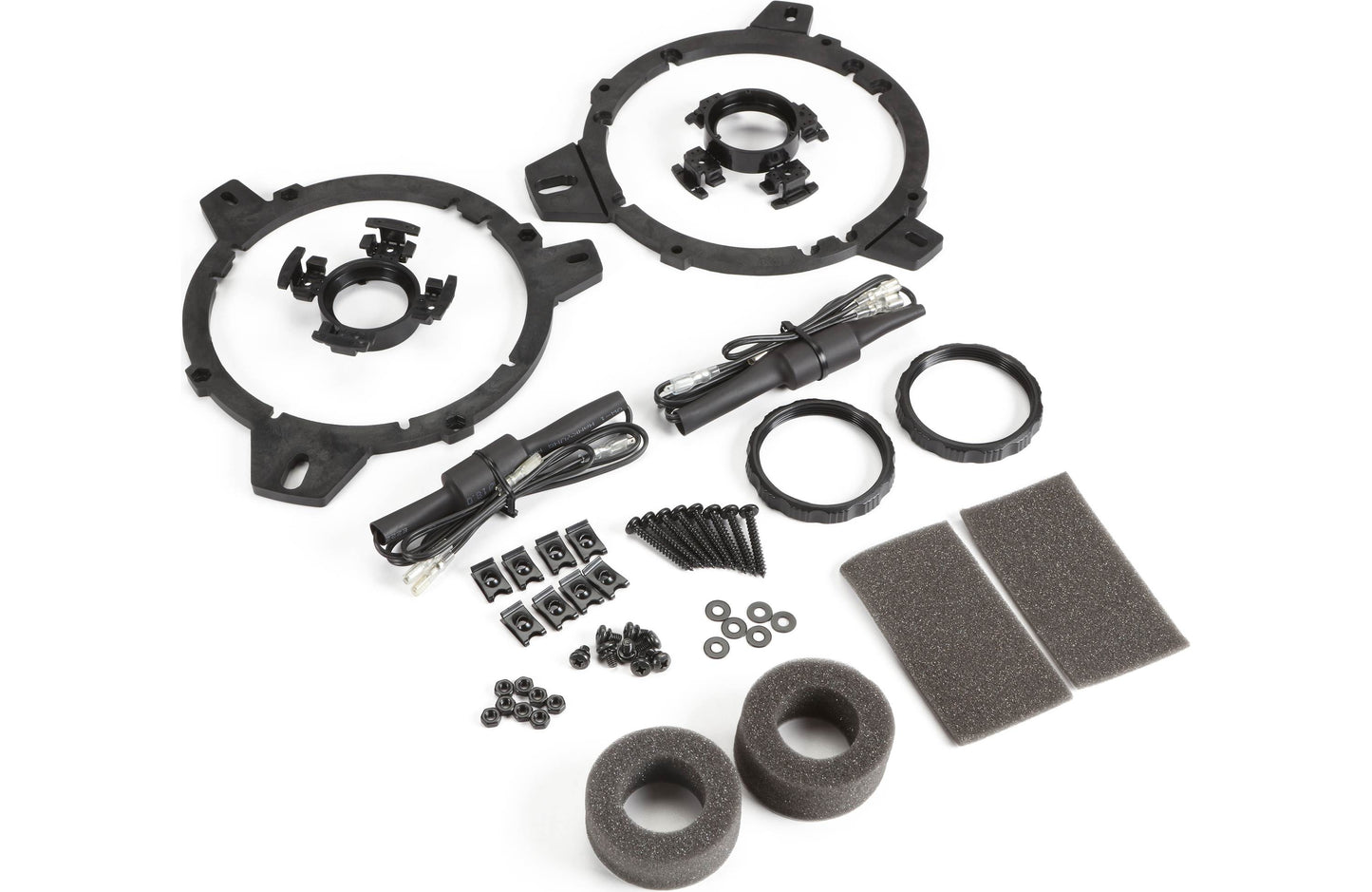

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • 2 Woofers
  • 2 Woofer mount adapter brackets
  • 2 Tweeters (each has a 29" length of wire attached)
  • 2 Flush mount housings (with tweeters installed)
  • 2 Tweeter grilles (fixed)
  • Two 37" Tweeter wires with in-line crossovers (each has quick slides on both ends)
  • 2 Flush mount retention rings
  • 2 Stealth brackets
  • 2 Foam self-adhesive pads
  • 2 Foam self-adhesive rings
  • Eight 1-1/8" Screws
  • Eight M4x6.5mm Machine screws with split lock washers attached
  • Eight M4 Nuts
  • 6 Flat washers
  • 8 Speed clips
  • Warranty information
  • On-line product registration information
  • Important Notice sheet
  • Declaration of conformity
  • Template and specs on box

Features & specs

General
Speaker Size 6 1/2
Driver Design 2-way
Woofer Design Cone
Woofer Material Polypropylene/Glass Fiber/Mica
Woofer Surround Rubber
Midrange Design ---
Midrange Material ---
Tweeter Design Dome
Tweeter Material Cloth
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included No
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 88
Sensitivity at 2.83 volts N/A
Frequency Response 55 - 40k Hz
Maximum RMS Wattage 80
Peak Power Handling (Watts) 240
Top-mount Depth (Inches) 2 5/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 1/8
Mounting Height (Inches) 0.44
Frame Width 6.506
Frame Length 6.506
The Alpine S2-S65C replaces these items:
  • Alpine S-S65C

Features

Woofer installation: Without an adapter, the woofers fit many standard 6¾" applications. Given their required cutout, they will also fit some standard 6½" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of standard 3-hole 6½" applications, Ford 4-hole 6½" applications, and non-standard 6¾" applications, without any modification. Please enter your vehicle information to confirm fit.

Tweeter Mounting Options: The tweeters can be flush mounted using the supplied flush mount brackets and rings. Once mounted, the tweeters can swivel approximately 20° for optimum imaging. The tweeters can also be mounted in factory tweeter locations behind factory tweeter grilles using the supplied stealth mounting brackets. (The stealth brackets have a multitude of tabs used for different mounting configurations. When not needed, the tabs are easily removed. The factory location measurements in the chart below are generally minimums, with some tabs removed.)

  Flush Mount Factory Location (bottom mount) Factory Location (top mount) Factory Location (under factory grille)
Depth 0.75" 0.721" 0.64" 0"
Height 0.35" 0" 0.08" 0.72"
Cutout Diameter 2.0" 1.25" 1.715" N/A
Frame Diameter 2.28" 1.715" 1.715" 1.715"

Crossovers: The Alpine S2-S65C features low-pass crossovers attached to each woofer's input terminal and high-pass crossovers in-line with the tweeters' speaker wires. The terminals on each tweeter wire easily plug into the tweeter and corresponding woofer. (They only plug in one way, so the polarity can't be reversed.)
