Alpine

Alpine S2-S69C

Alpine S2-S69C

In stock

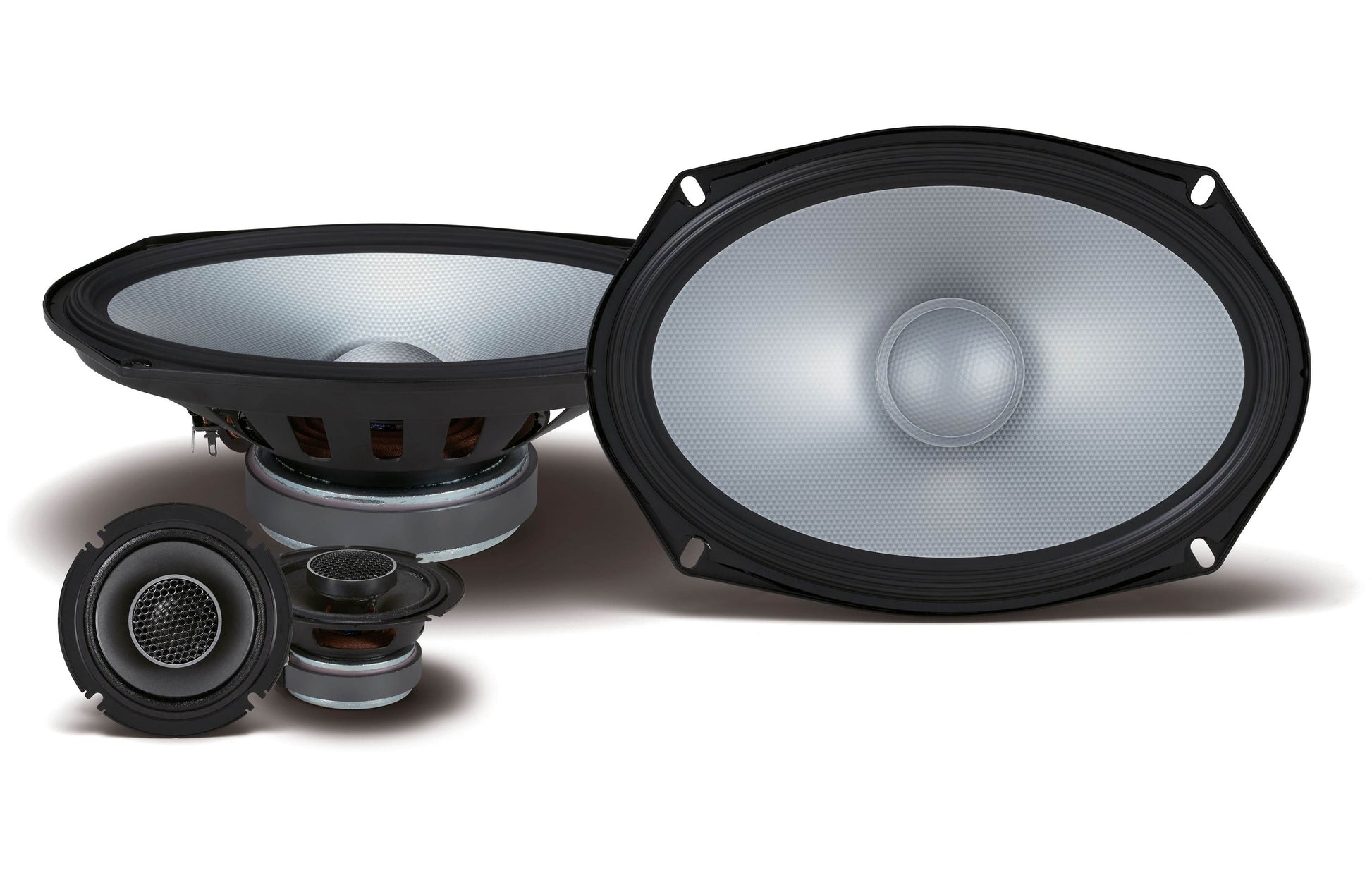

Next-Generation S-Series 6"x9" component speaker system

  • price-tag logoNew Launch
Regular price $191.95
Regular price Sale price $191.95
Save: $-191.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine S2-S69C

It's time for high-res

We're big fans of Alpine's push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine's Next Generation S-Series car speakers provide access to all the wondrous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.

Innovative materials

Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement.

A unique 3" separate midrange driver with an integrated 3/4" silk dome tweeter serves up impressive mid- and high-frequency detail that provides a rich sonic experience.

Grilles are not included; the factory grilles should be suitable for most applications. Optional woofer grilles are available for custom installations.

Product highlights:

  • 2-way component speaker system

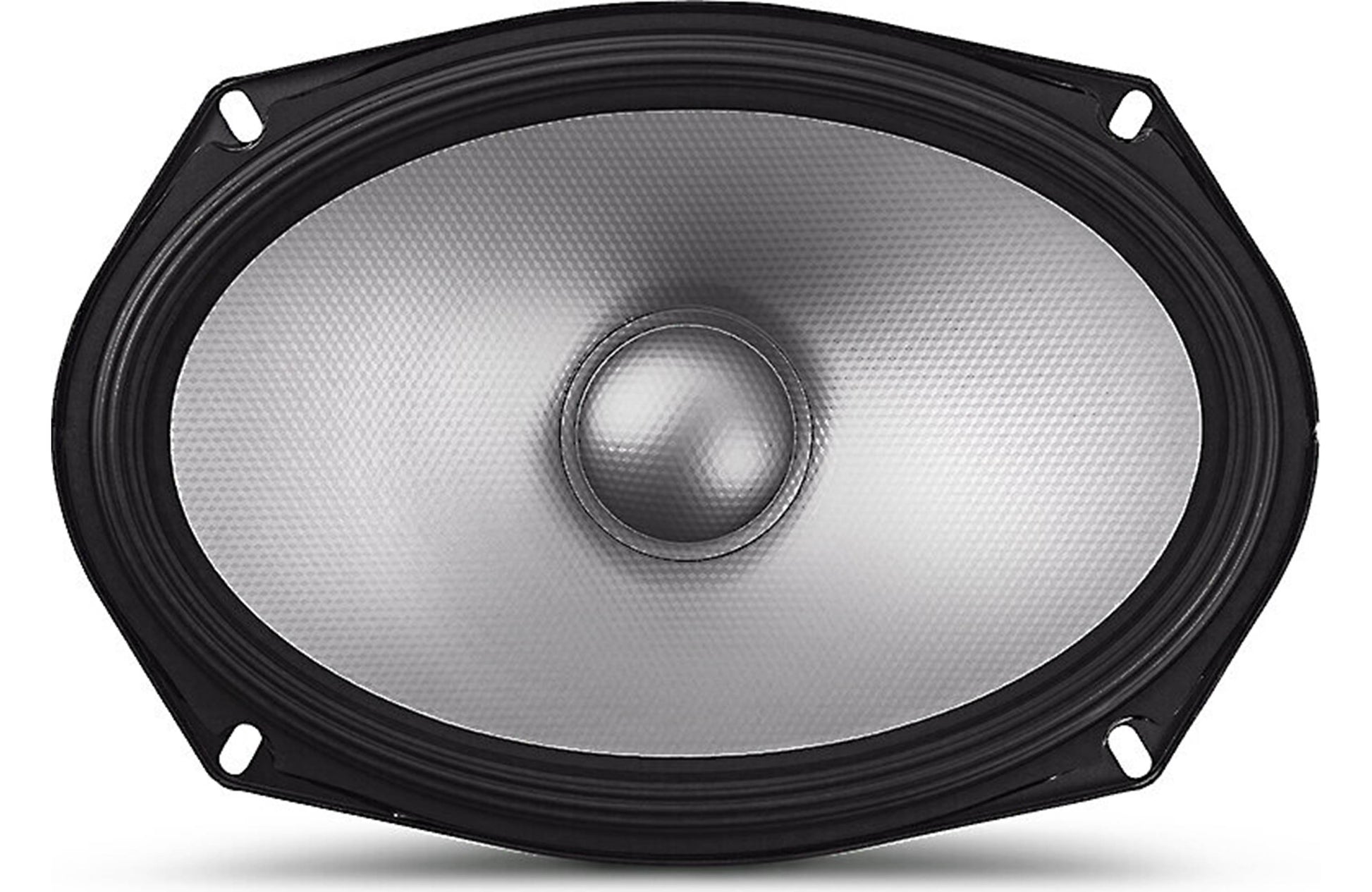

  • 6"x9" polypropylene/glass-fiber/mica woofer cone with High-Amplitude Multi-Roll surround

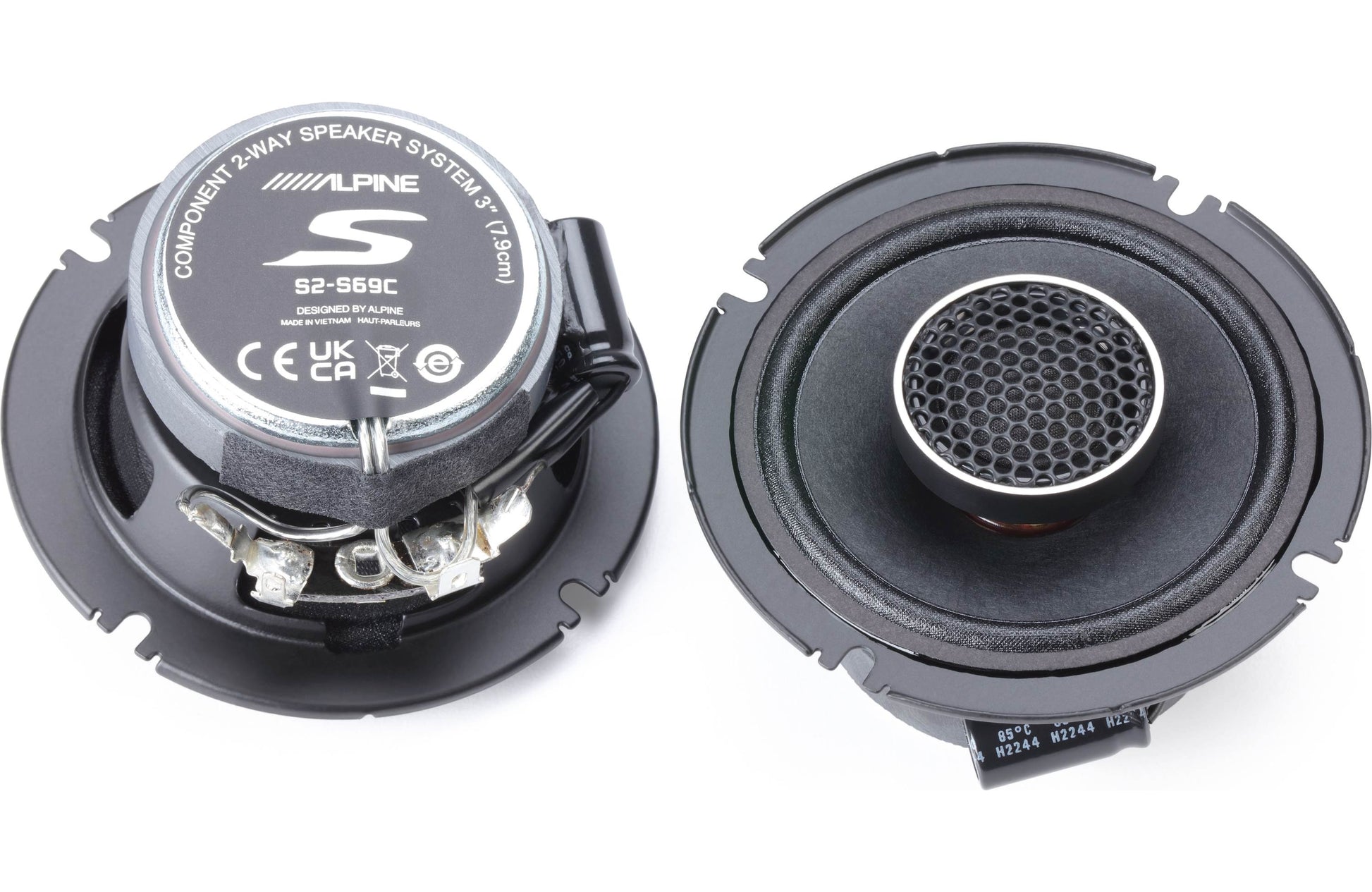

  • 3" midrange with integrated 3/4" silk dome tweeter
  • in-line crossovers for easier installation
  • handles up to 85 watts RMS (260 watts peak power)
  • frequency range: 55-40,000 Hz
  • top-mount depth: 3"
  • warranty: 1 year
  • MFR # S2-S69C
  • Item # 500S2S69C
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • 2 Woofers
  • 2 Bottom mount brackets
  • 2 Midrange-Tweeters
  • Two 6' Midrange-Tweeter wires with in-line crossovers (each has quick slides on both ends)
  • Two 2"x3.5" Adhesive-backed foam pads
  • Two 9-7/8"x1/4" Adhesive-backed foam strips
  • Eight 1-1/8" Screws
  • Eight 1/2" Screws
  • Eight M4x60mm Machine screws with split lock washers attached
  • Eight M4 Nuts
  • 16 Flat washers
  • 8 Speed clips
  • 8 Spacers
  • Warranty information
  • On-line product registration information
  • Important Notice sheet
  • Declaration of conformity
  • Template and specs on box

Features & specs

General
Speaker Size 6X9, 3
Driver Design 3-way
Woofer Design Cone
Woofer Material Polypropylene/Glass Fiber/Mica
Woofer Surround Rubber
Midrange Design Cone
Midrange Material Paper
Tweeter Design Dome
Tweeter Material Silk
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included No
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 90
Sensitivity at 2.83 volts N/A
Frequency Response 55 - 40k Hz
Maximum RMS Wattage 85
Peak Power Handling (Watts) 260
Top-mount Depth (Inches) 3
Bottom-mount Depth (Inches) 3 3/8
Cutout Diameter or Length (inches) 0
Mounting Height (Inches) 0.267
Frame Width 6.33
Frame Length 9.335
The Alpine S2-S69C replaces these items:
  • Alpine S-S69C

Features

Midrange-Tweeter: The included coaxial speakers are designed to replace the factory tweeters and must be custom mounted. Although the tweeters are protected, there is no midrange grille, so if they don't fit behind the factory tweeter grille a cover must be fabricated.

Crossovers: The woofers have low-pass crossovers attached to their input terminals. Each included speaker wire has an in-line high-pass crossover; one end plugs into the woofer terminal and the other into the midrange-tweeter terminal. A second high-pass crossover is mounted on each midrange-tweeter to protect the tweeter.
