We're big fans of Alpine's push to give more drivers access to high-res audio in the car. Using technology developed for their flagship F#1 Status Series, Alpine's Next Generation S-Series car speakers provide access to all the wondrous detail of your favorite high-resolution audio files at an appealing price. We recommend aftermarket power to drive these speakers, but even with factory power, their ultra-wide frequency response ensures a detailed, authentic sound.
Innovative materials
Alpine packs supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from polypropylene, glass fiber, and mica materials, serves up the essential high output/low distortion sound required for high-res performance. The High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement.
A 1" separate cloth dome tweeter serves up all the high-frequency detail you've been missing with factory sound. Because tweeters can be challenging to install, Alpine provides in-line crossovers and a threaded removable housing to make sure you have what you need to make them sound their best.
Grilles are not included; the factory grilles should be suitable for most applications.
Product highlights:
2-way component speaker system

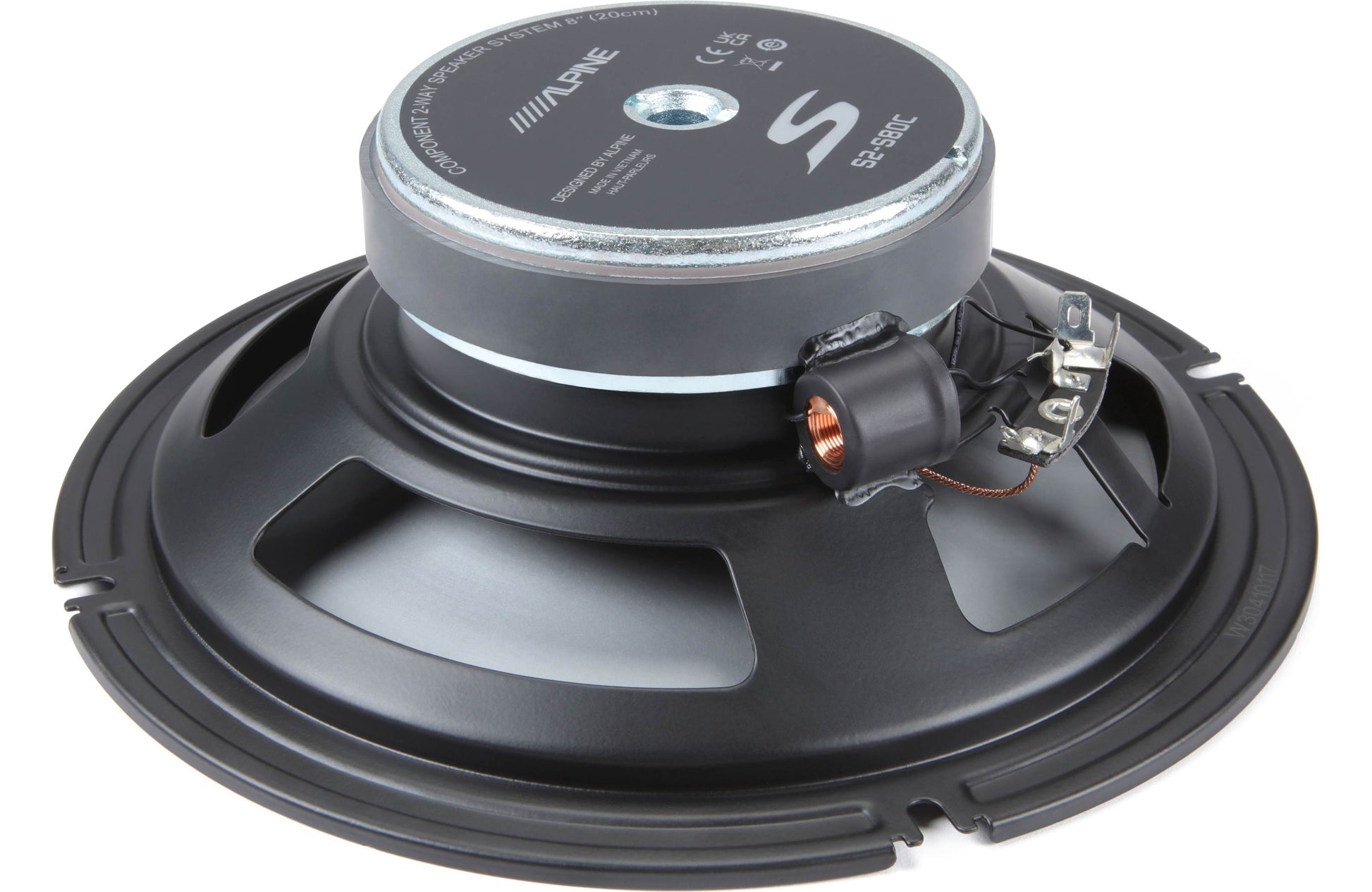

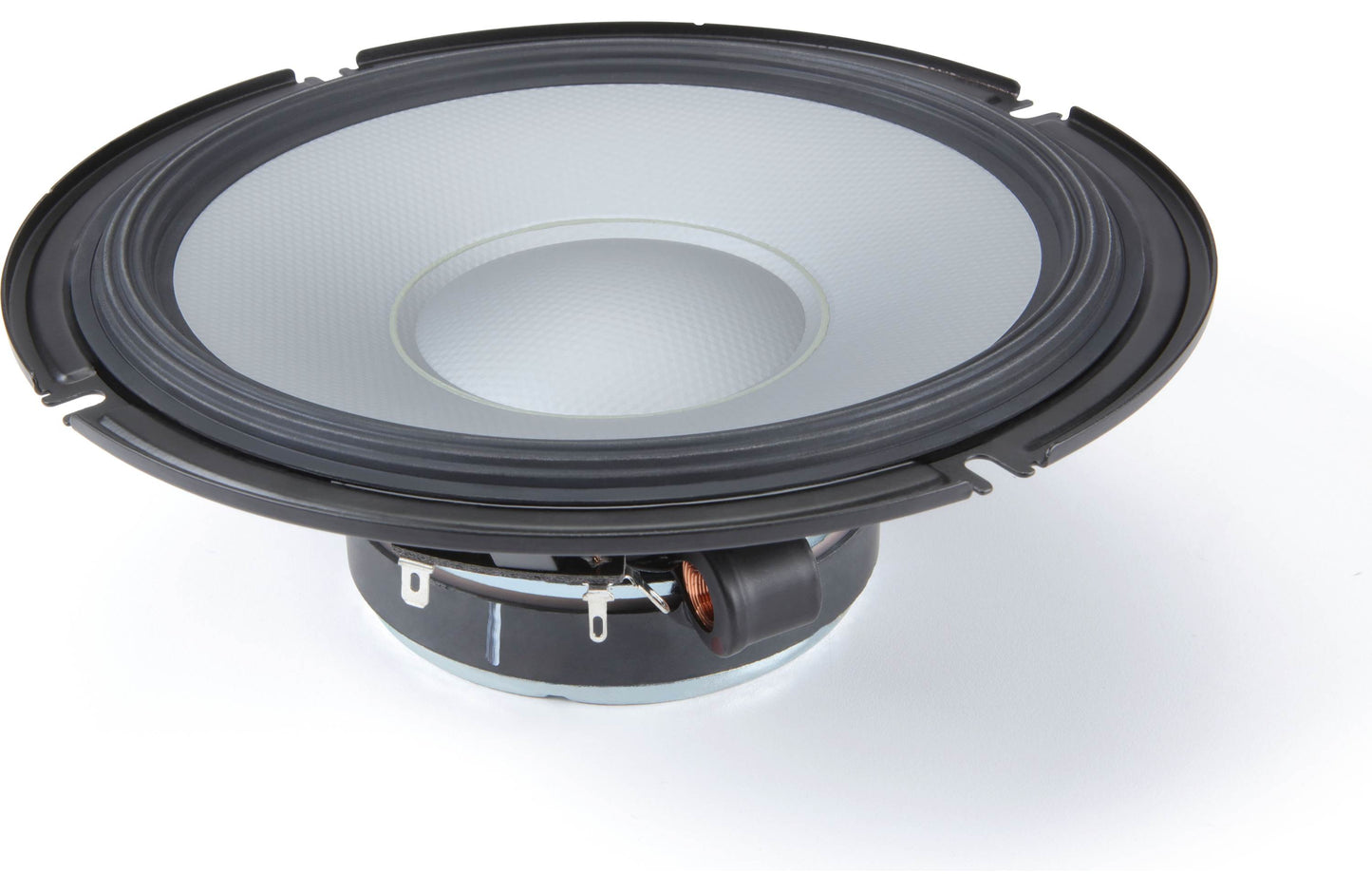

8" polypropylene/glass-fiber/mica woofer cone with High-Amplitude Multi-Roll surround

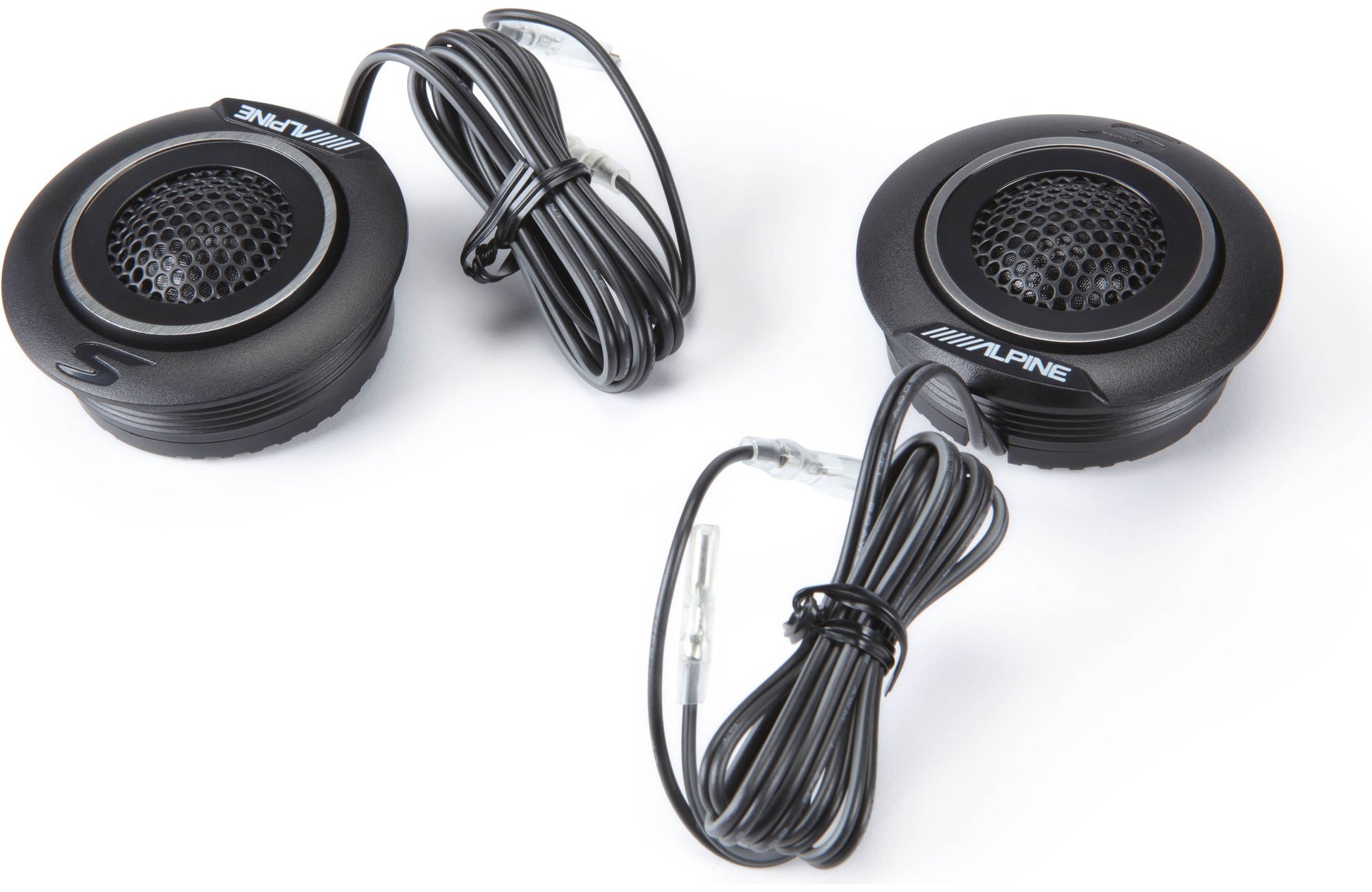

1" cloth dome tweeter with threaded removable housing
in-line crossovers for easier installation
handles up to 85 watts RMS (260 watts peak power)
frequency range: 50-40,000 Hz
sensiticity: 89 dB
impedance: 4 ohms
mounting depth: 2.615"
warranty: 1 year
MFR # S2-S80C
Item # 500S2S80C
California customers:Pleaseclick herefor your Proposition 65 WARNING.

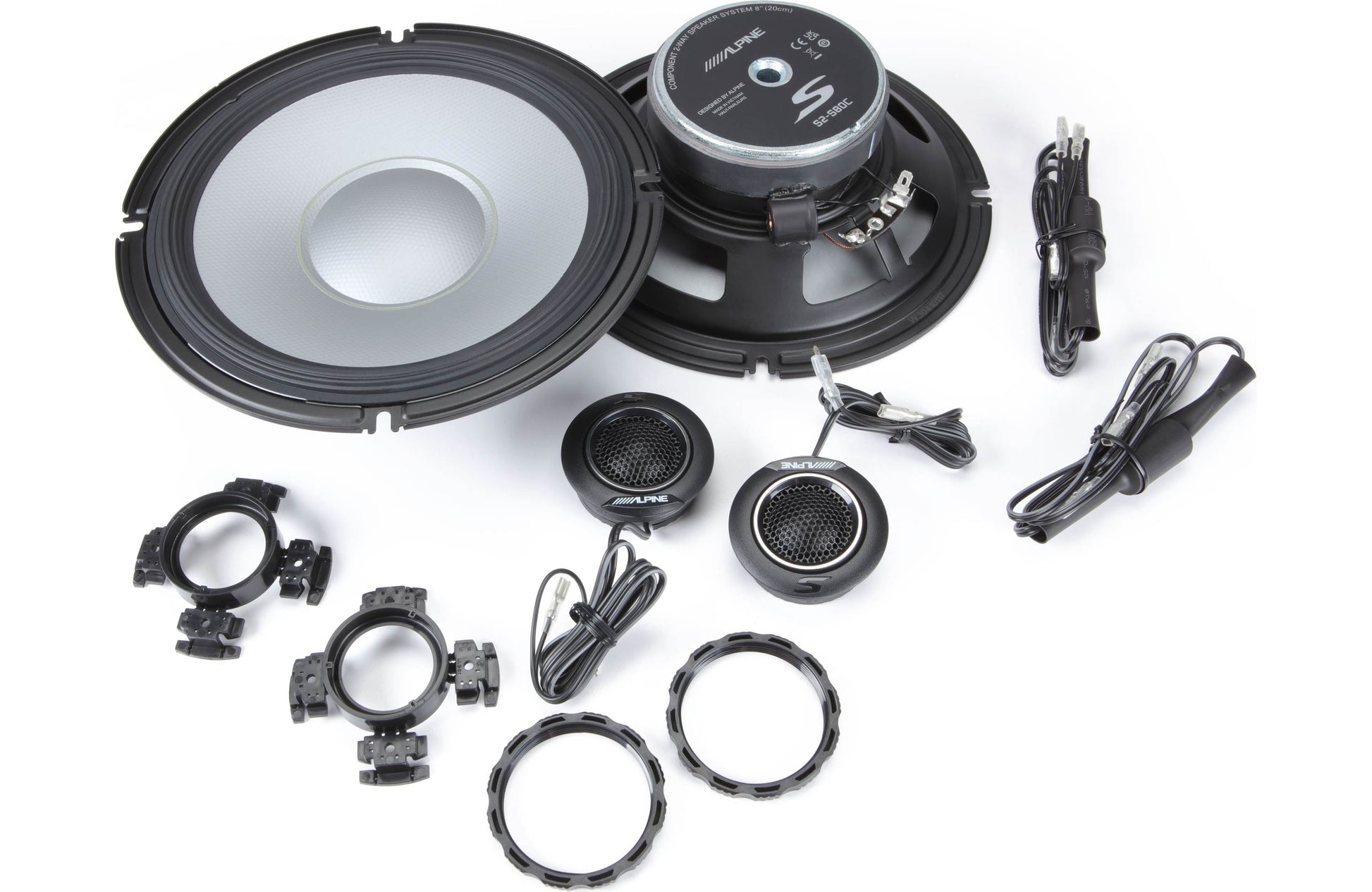

What's in the box:
If you need assistance accessing this owner's manual, please give us a call.
2 Woofers
2 Tweeters (each has a 29" length of wire attached)
2 Flush mount housings (with tweeters installed)
2 Tweeter grilles (fixed)

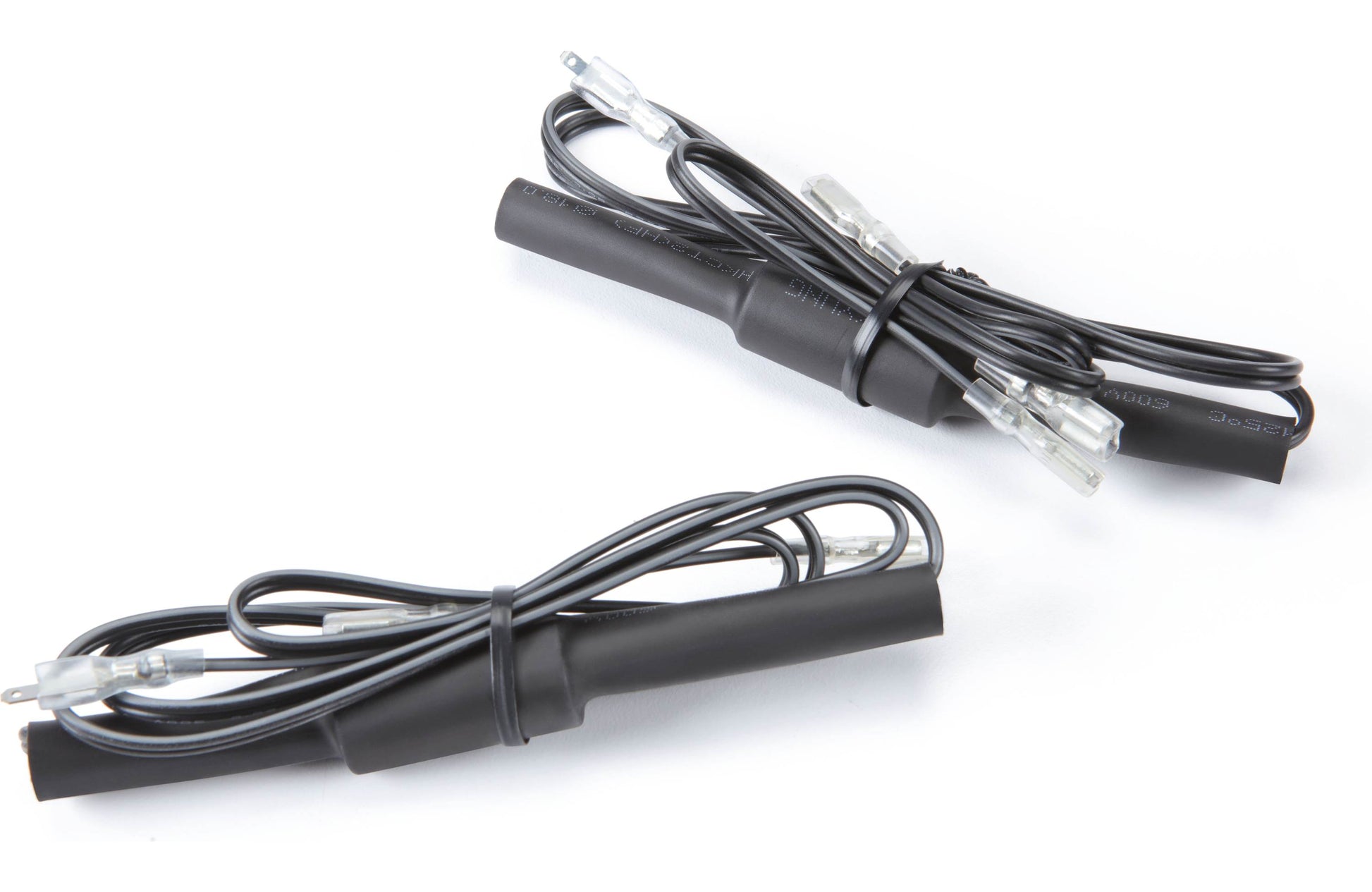

Two 37" Tweeter wires with in-line crossovers (each has quick slides on both ends)

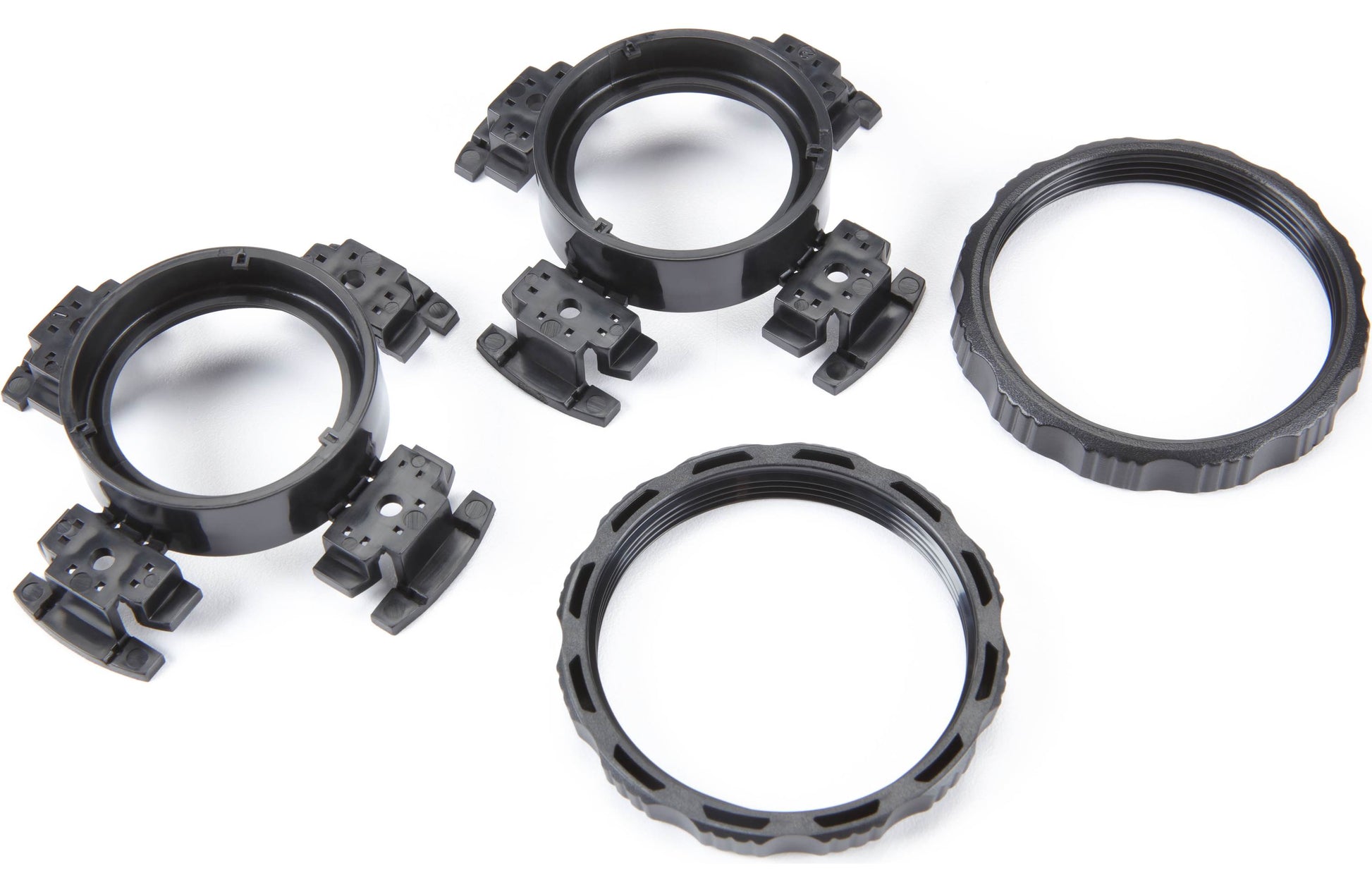

Tweeter Mounting Options:The tweeters can be flush mounted using the supplied flush mount brackets and rings. Once mounted, the tweeters can swivel approximately 20° for optimum imaging. The tweeters can also be mounted in factory tweeter locations behind factory tweeter grilles using the supplied stealth mounting brackets. (The stealth brackets have a multitude of tabs used for different mounting configurations. When not needed, the tabs are easily removed. The factory location measurements in the chart below are generally minimums, with some tabs removed.)
Flush Mount
Factory Location (bottom mount)
Factory Location (top mount)
Factory Location (under factory grille)
Depth
0.75"
0.721"
0.64"
0"
Height
0.35"
0"
0.08"
0.72"
Cutout Diameter
2.0"
1.25"
1.715"
N/A
Frame Diameter
2.28"
1.715"
1.715"
1.715"
Crossovers:The system features low-pass crossovers attached to each woofer's input terminal and high-pass crossovers in-line with the tweeters' speaker wires. The terminals on each tweeter wire easily plug into the tweeter and corresponding woofer. (They only plug in one way, so the polarity can't be reversed.)
