Alpine

Alpine S2-SB12

Alpine S2-SB12

In stock

PrismaLink™ S2-Series sealed subwoofer enclosure with 12" subwoofer and RGB lighting

  • New Launch
$499.95
$499.95
Save: $-499.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine S2-SB12

Good looks, great bass

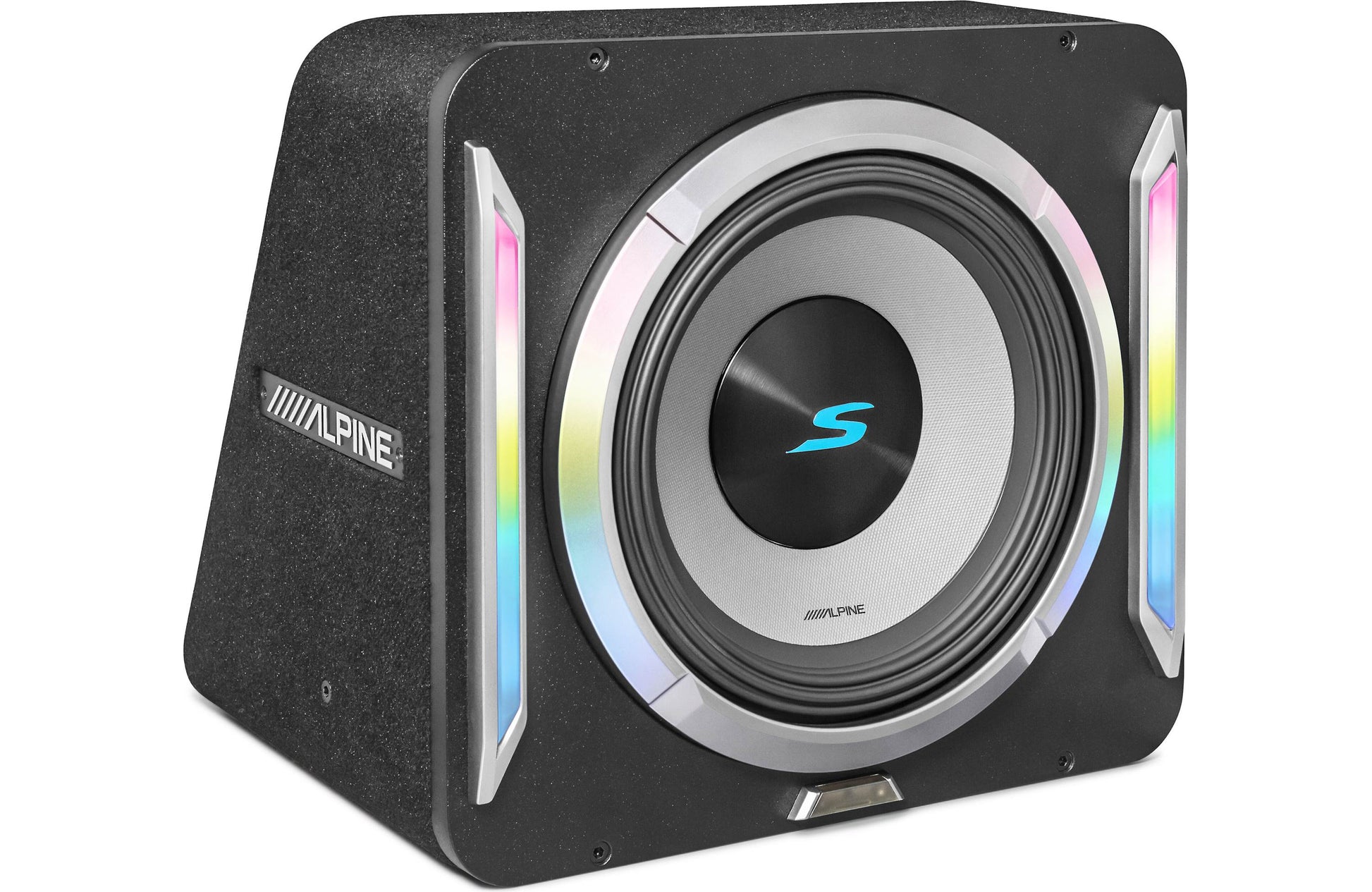

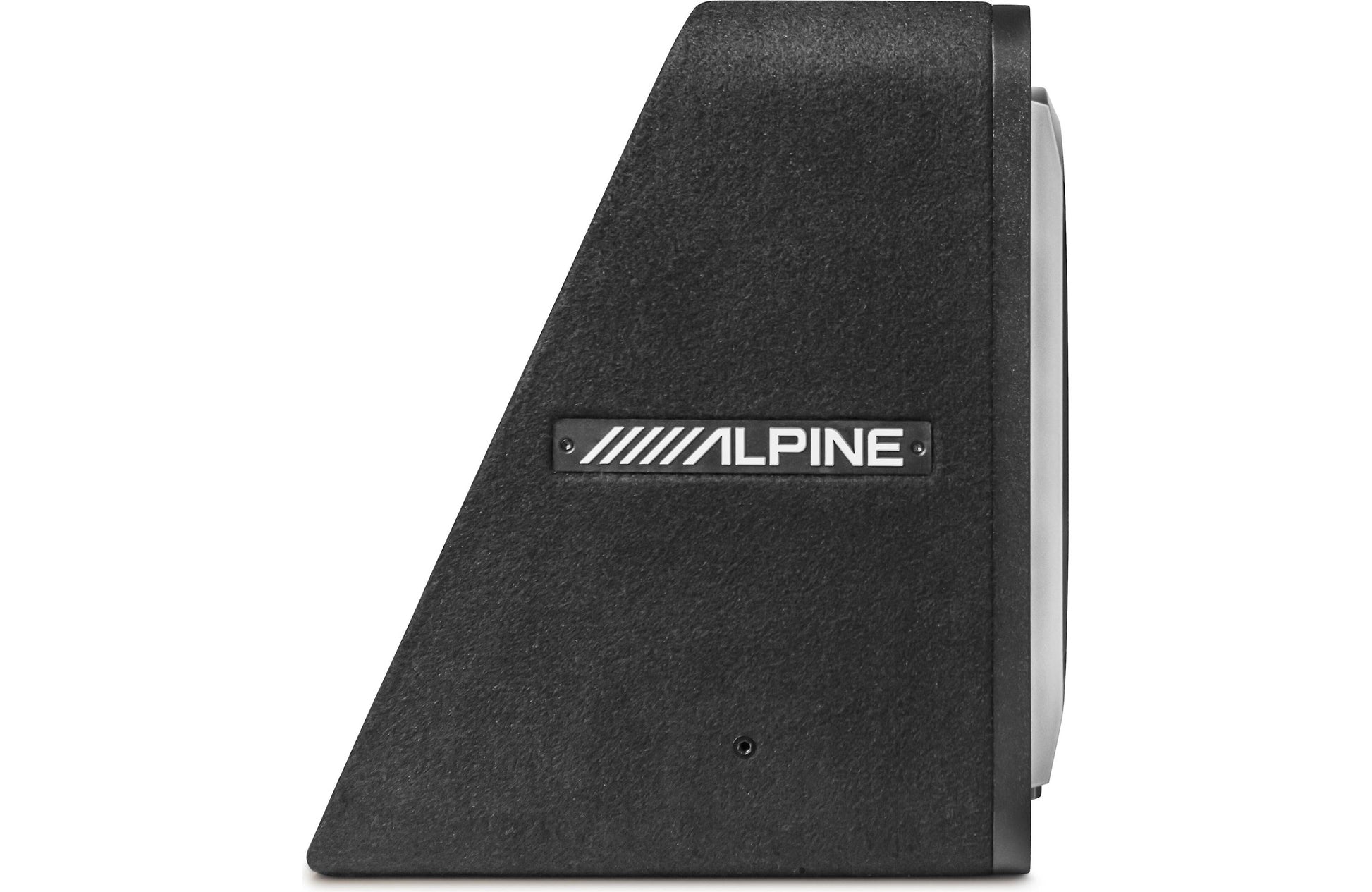

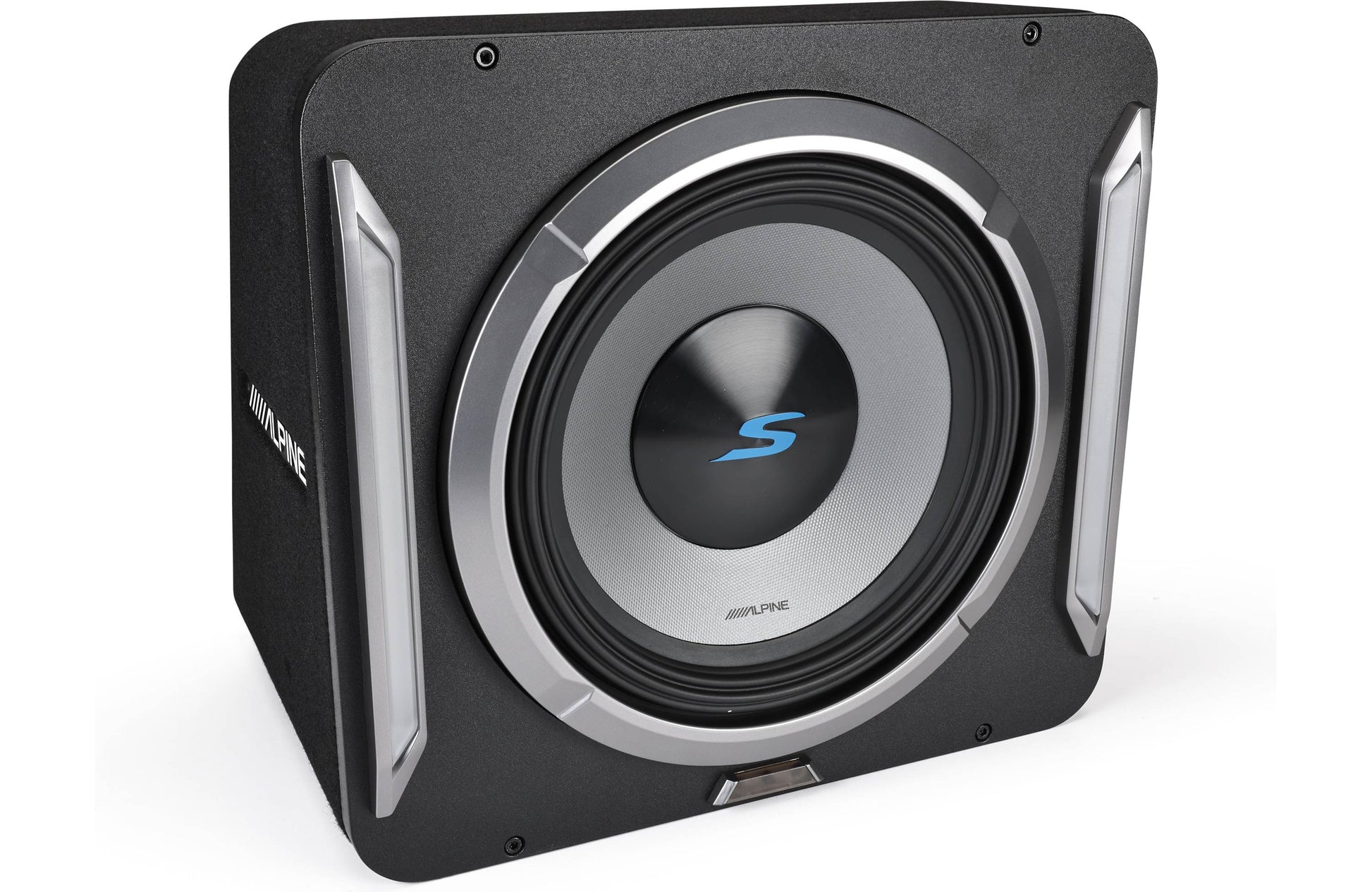

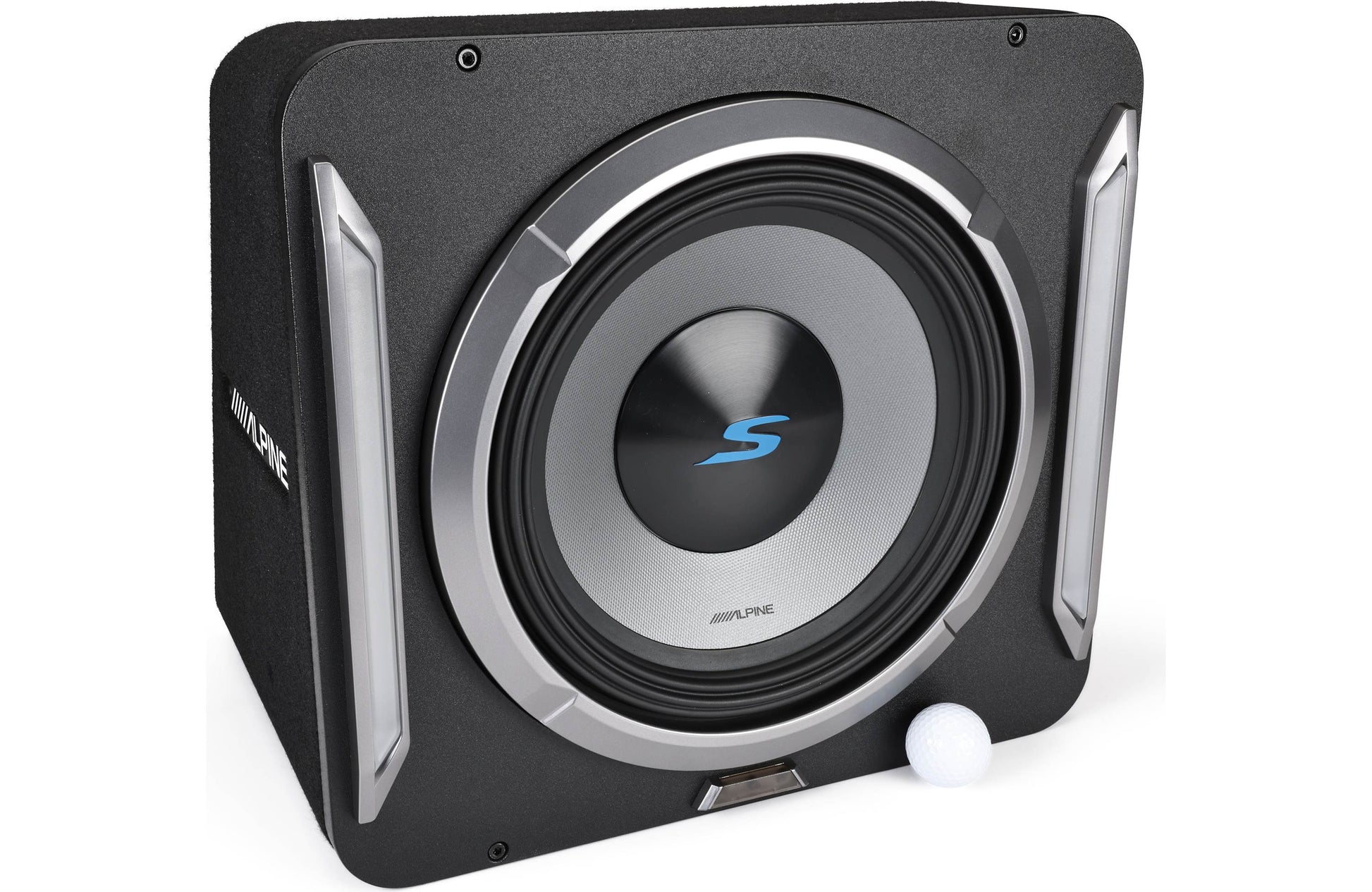

Alpine's PrismaLink S2-Series subwoofer enclosures combine great Alpine bass with stunning visual appeal. Integrated RGB lighting bars make your system look as good as it sounds while rugged built-in S2-Series subwoofers deliver the sonic goods. The rugged MDF enclosure with carpet covering stands up to the stresses of car life, and its wedge-shaped design allows it to fit in more places.

Lighting and multi-sub options

The pre-wired dual RGB lighting bars can be controlled by the included wireless remote or through the screen of the Alpine ILX-W670 receiver (sold separately). You can link multiple S2-S12B enclosures with the optional KTX-LK12 bracket for a kaleidoscopic multi-sub system. For the final touch, a twist-lock mounting system makes it easy to add Alpine's KTE-12G.3 speaker grille (sold separately).

Big bass from a 12" sub

This S2-SB12 features Alpine's S2-W12D4 subwoofer with dual 4-ohm voice coils wired for 2-ohm impedance. Its carbon fiber/polypropylene cone and HAMR multi-roll rubber surround deliver powerful bass. It handles up to 600 watts of RMS power (1800 watts peak), so you can feed it plenty of power.

Features & specs

General
Woofer Size (inches) 12
Speakers Per Box 1
Woofer Material Carbon fiber/poly
Enclosure Type Sealed
Color Black w/ silver trim
Pieces in System 1
Width (inches) 16-11/16
Height (inches) 15
Depth (inches) 13-3/16
Connector Type Spring terminal
Frequency Response 23-215 Hz
Power Handling (Watts RMS) 600
Power Handling (Watts Peak) 1800
Sensitivity 86 dB
Impedance 2 ohms
Parts Warranty 1 Year
Labor Warranty 1 Year

Features

Driver: The Alpine S2-SB12 loaded enclosure features a single S2-W12D4 10", dual 4-ohm voice coil subwoofer driver. The new S-Series driver features Alpine's High-Amplitude Multi-Roll (H.A.M.R) surround and an improved voice coil that allows the subwoofer to handle increased power over previous versions. A high strength frame is designed to withstand the rigors of the new S-Series motor, while frame leg vents and a vented back plate help keep the sub driver running cool. The driver also features two strontium ferrite magnets stacked together for increased motor strength and excursion. Both 4-ohm voice coils are internally wired in parallel for a single 2-ohm connection.

Power Handling: The S2-SB12 can handle up to 600W RMS (1800W peak).

Enclosure: The S2-SB12's sealed enclosure design has been optimized for use with the S2-W12D4 driver, producing deep, powerful bass from a small enclosure. It features a rigid, heavy-duty MDF construction that's wrapped in attractive black carpet, with a smooth black and silver trim on the front of the enclosure.

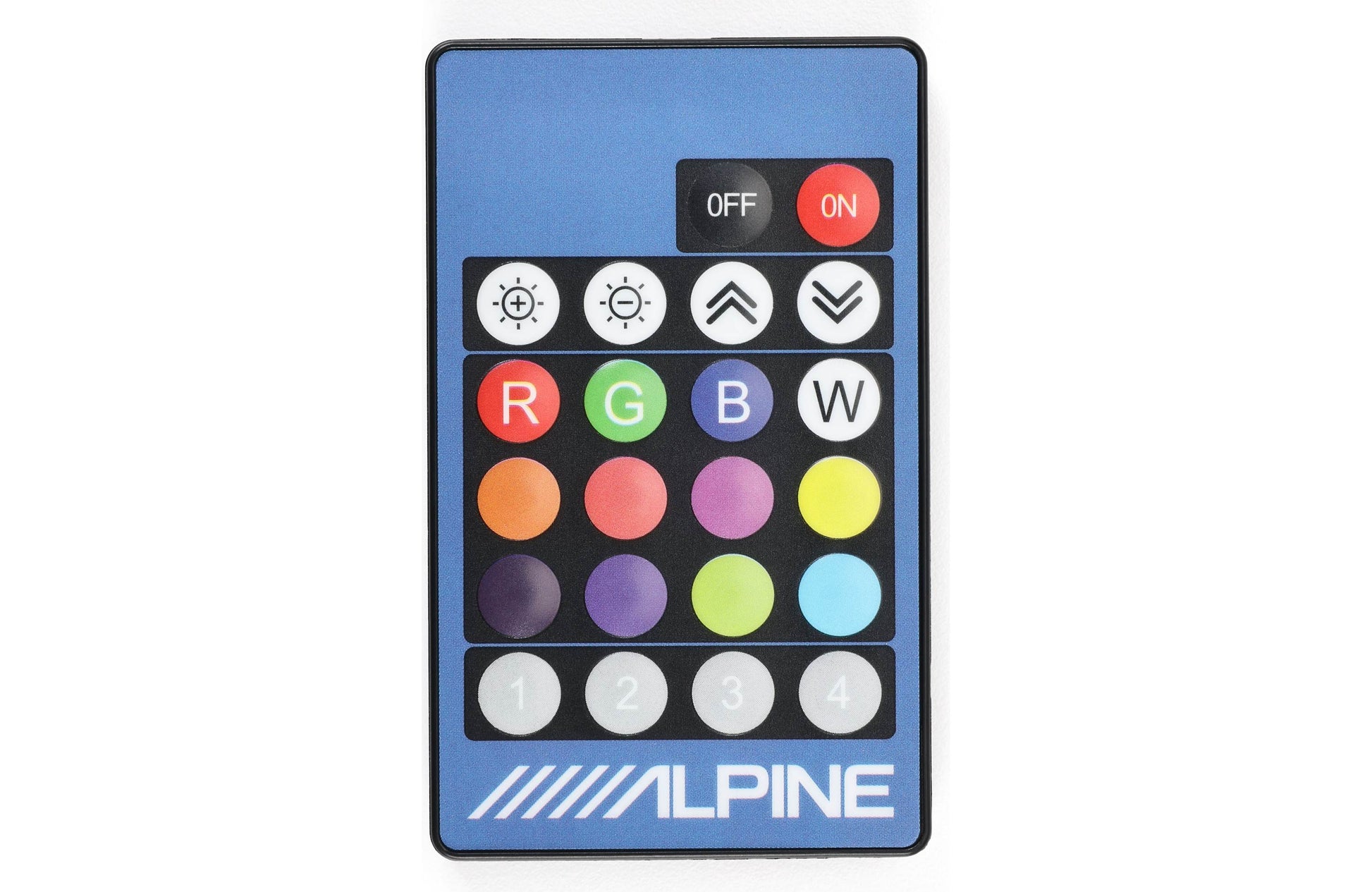

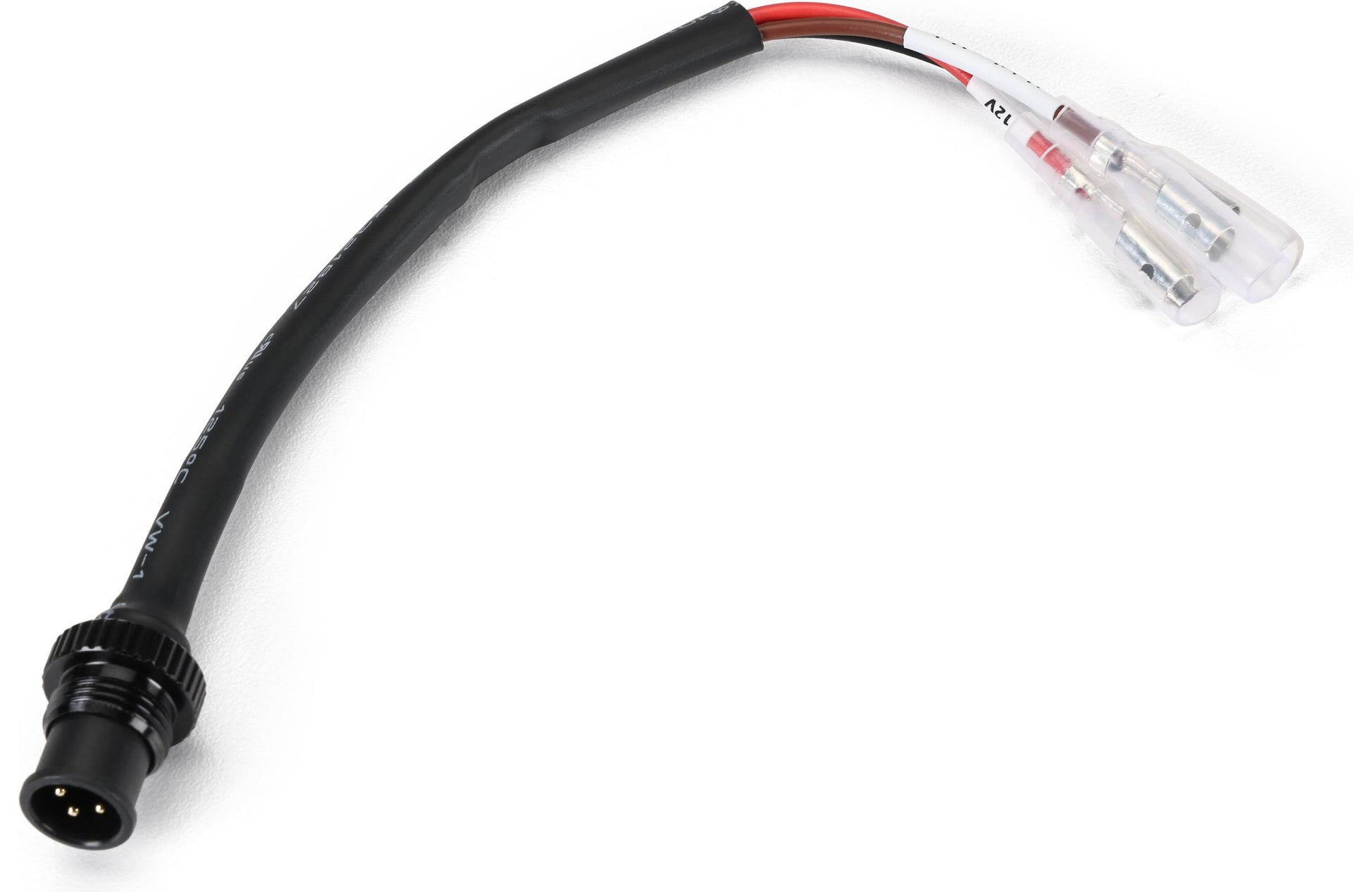

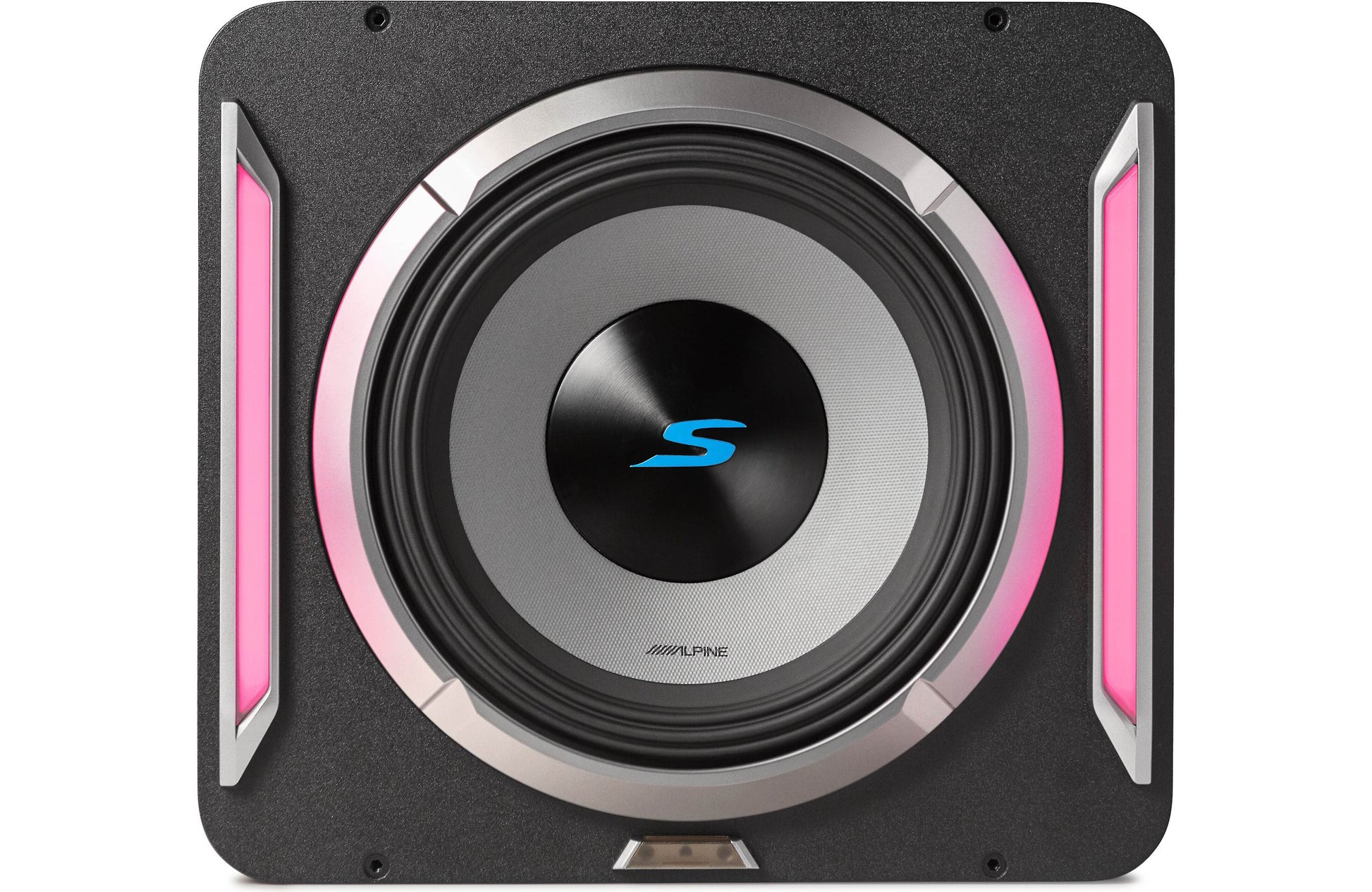

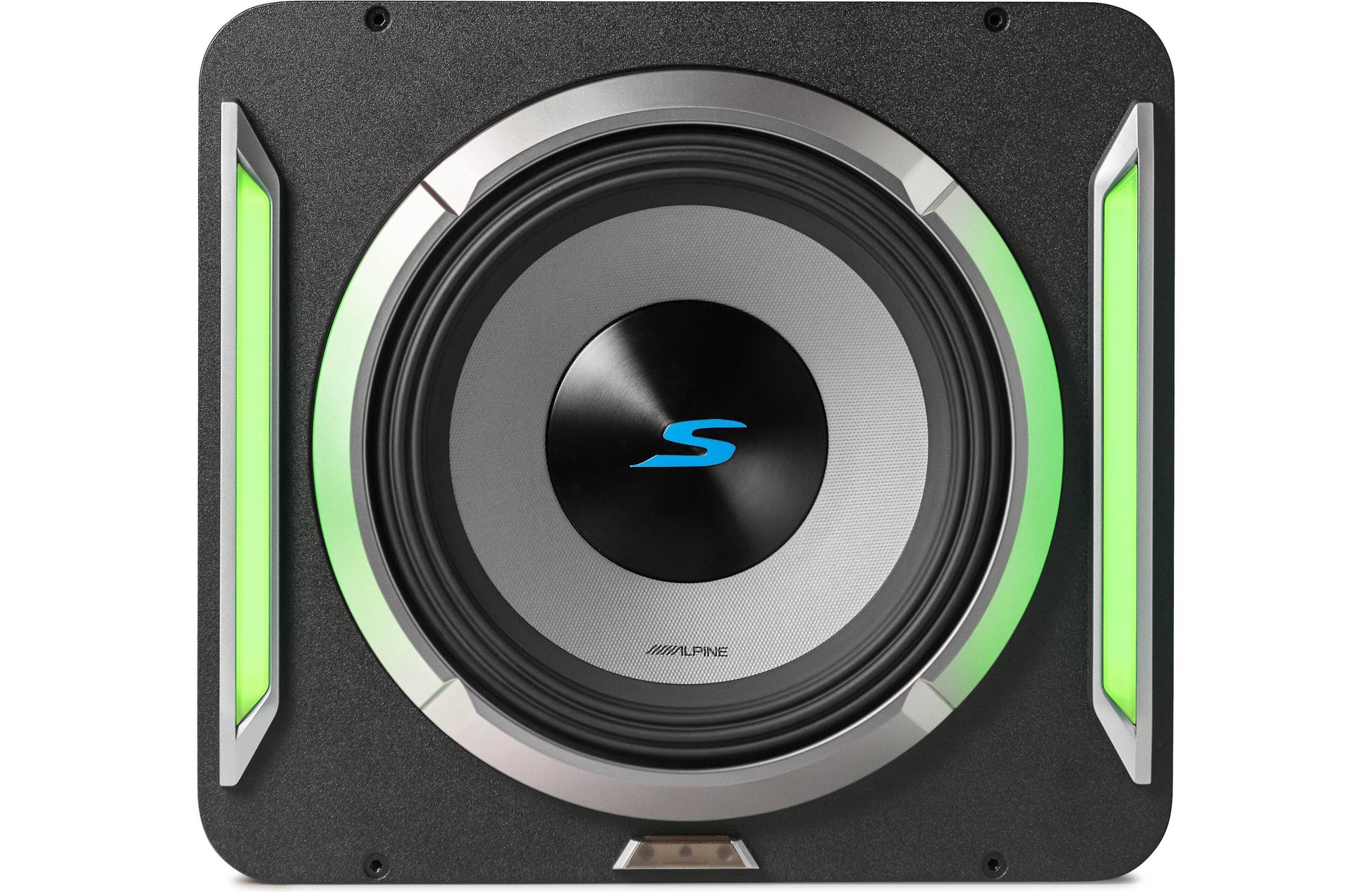

RGBW Lighting: The Alpine S2-SB12 enclosure includes RGBW lighting built into the enclosure trim, providing 12 static colors and 4 dynamic lighting modes. Control of the RGBW lighting can be made using the included hand-held IR remote control. The S2-SB12 RGBW lighting can also be controlled via a connected Alpine iLX-W670 headunit (sold separately). A 6" connection harness provides the +12V and Ground wires that get attached to the vehicle electrical system for powering the lighting. A third wire on the harness attaches directly to an Alpine iLX-W670 (if used) for control of the RGBW lighting. 3-Pin RGBW In and Out ports on the rear of the enclosure let you daisy-chain multiple Alpine S2-SB12 enclosures together for RGBW control from a single remote control or iLX-W670 headunit.

Enclosure Linking (Optional): The S2-SB12's unique design allows it to be linked to an additional S2-SB12 (sold separately) using the optional KTX-LK12 linking kit. This features an aluminum rear link-plate and an attractive, steel-reinforced ABS front linking bracket that securely locks the two enclosures together.

Subwoofer Grille (Optional): The Alpine S2-SB12 does not include a grille for the driver, but can be used with the optional Alpine KTE-12G.3 steel mesh grille (sold separately).

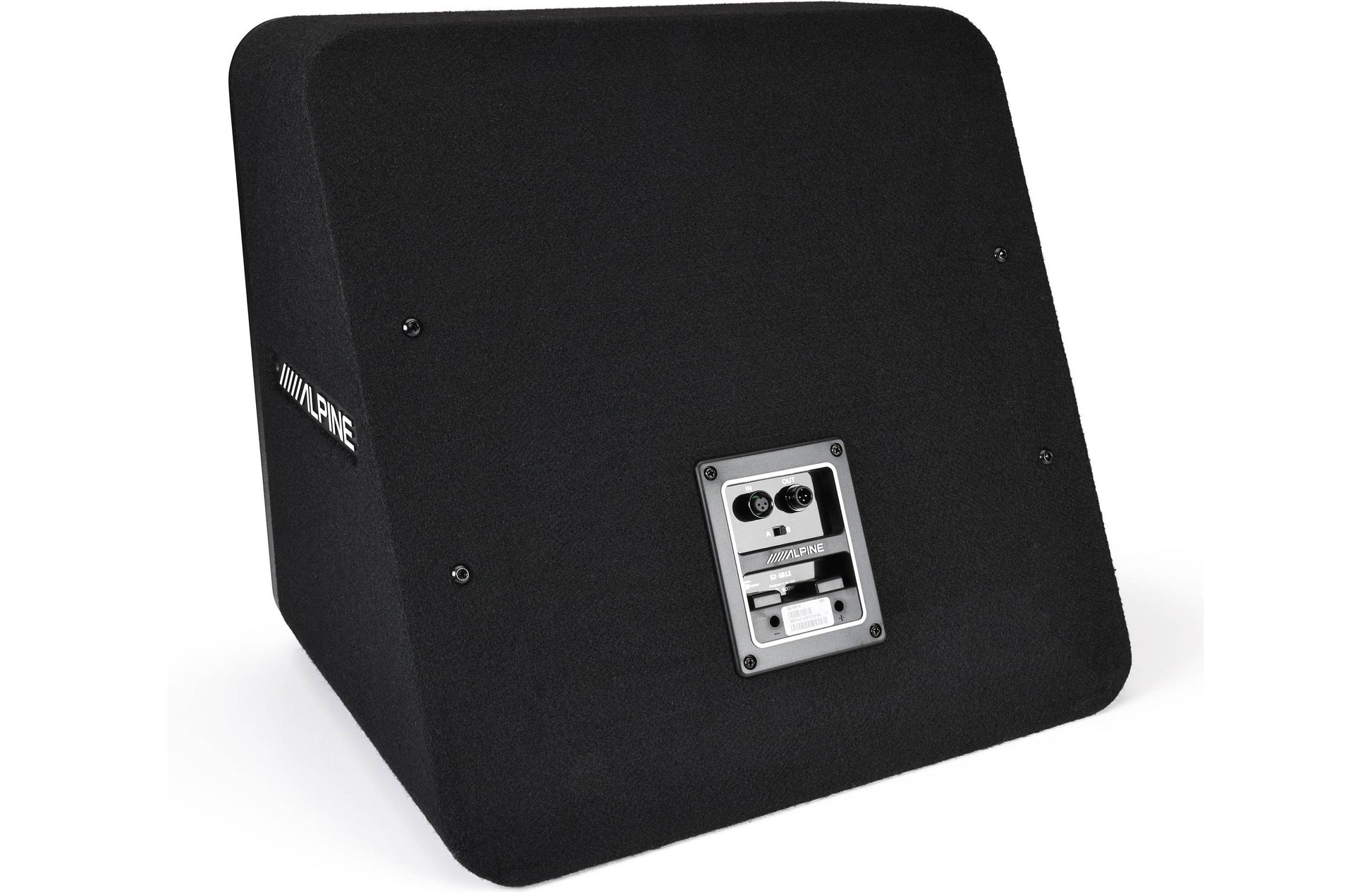

Terminals: A single rear-panel terminal cup houses a pair of spring terminals for connecting speaker wire up to 12 ga. in size. Both of the driver's voice coils are wired in parallel for a single 2-ohm load on the terminals.

Specifications:

  • Driver: Single 12"
  • Impedance: 2-Ohm (dual 4-ohm voice coils wired in parallel)
  • Power Handling: 600W RMS (1800W peak)
  • Enclosure: Sealed
  • Frequency Response: 23-215 Hz
  • Dimensions: Width = 16.63", Height = 15.0", Depth = 13.13"/6.50"
