Alpine SPV-10TW-WRA

Alpine SPV-10TW-WRA

In stock

1" component tweeters for 2007-up select Jeep Wrangler and Gladiator vehicles

  • price-tag logoNew Launch
$179.95
$179.95
Save: $-179.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

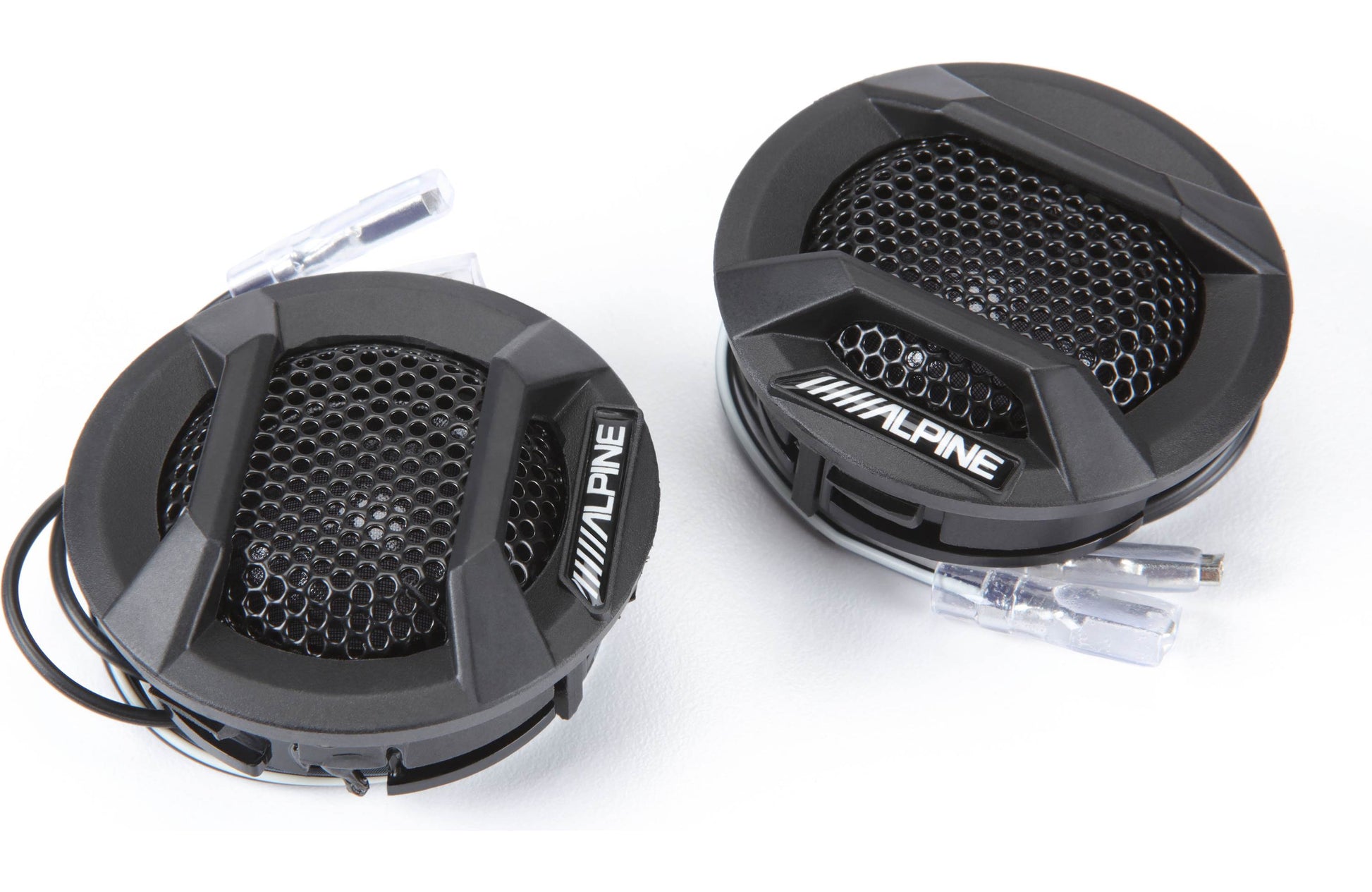

About the Alpine SPV-10TW-WRA


Fight the noise

Alpine knows that having fun in your Jeep can make it hard to listen to your favorite music. With these Alpine SPV-10TW-WRA 1" component tweeters installed in your Jeep's factory locations, you'll enjoy impactful, musical detail that cuts through the wind and road noise that comes with owning a Jeep. These Teteron dome tweeters are also weather-resistant, so you can indulge in your usual Jeepy activities without sweating a little elemental impact.

Fit the tweeters

Alpine provides everything you need for smooth installation and a factory look. You'll connect to your Jeep's factory harness and use your factory tweeter locations with the mounting hardware provided. Alpine also includes crossovers with adjustable tweeter levels that correspond to on-axis ("Tombstone" tweeter locations) or off-axis (in-dash tweeter locations) installation, so you can revel in all the details of your tunes.

Product highlights:

  • weather-resistant 1" Teteron dome tweeters (pair)
  • designed for use in select 2007-up Jeep Wrangler and Gladiator vehicles
  • mounting hardware included
  • crossovers with tweeter level output options (0dB, +3dB)
  • handles up to 75 watts RMS (225 watts peak power)
  • frequency response: 2,000-22,000 Hz
  • impedance: 4 ohms
  • warranty: 1 year
  • MFR # SPV-10TW-WRA
  • Item # 500SPV10TW
  • California customers: Please click here for your Proposition 65 WARNING.

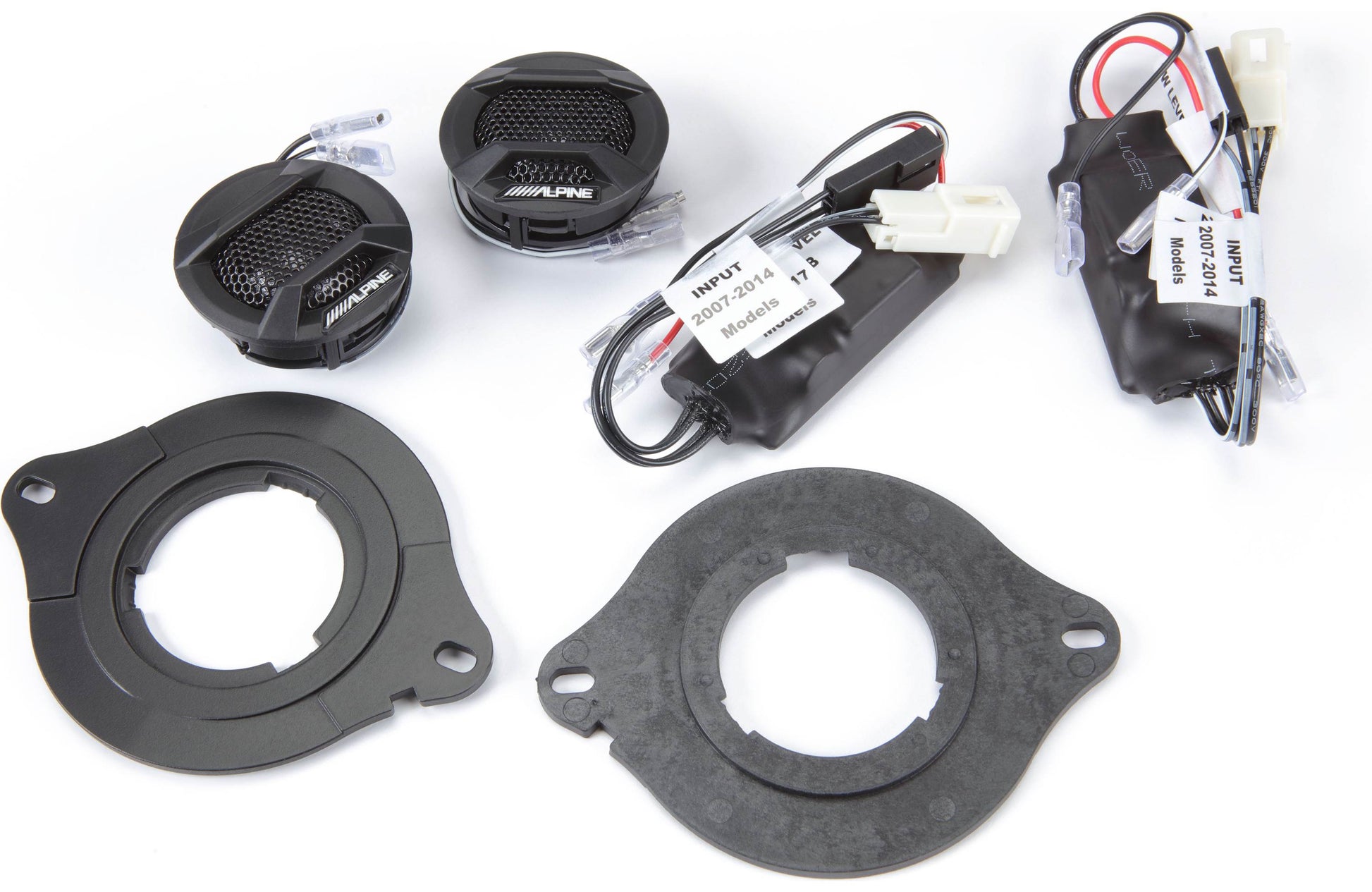

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • 2 Tweeters installed in mounting housings

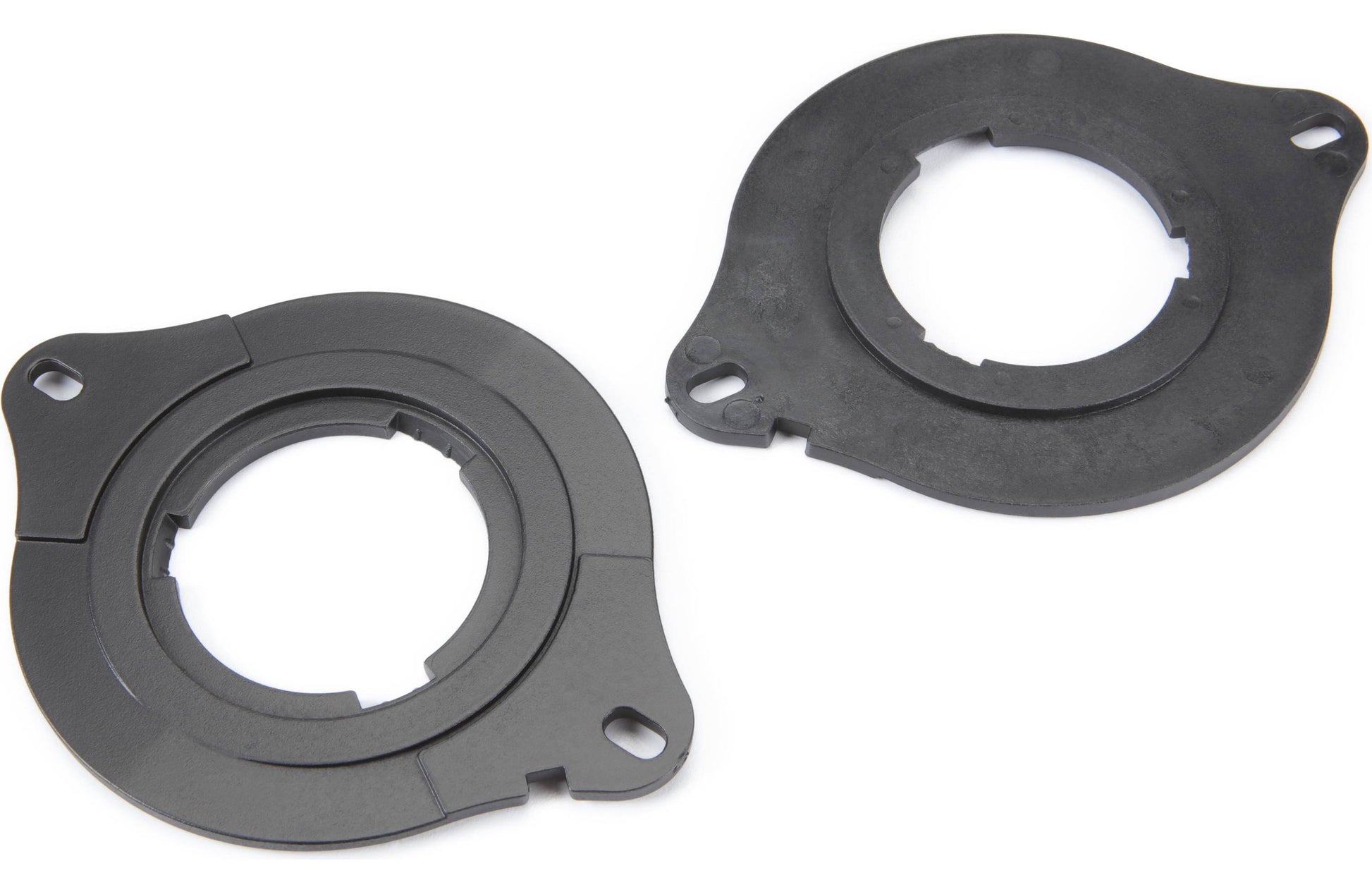

  • 2 Adapter plates
  • Two 12" harnesses with in-line crossovers (vehicle-specific)
  • 2 Alpine logo badges
  • Installation manual
  • Warranty information
  • On-line product registration information
  • Important Notice sheet
  • Specs printed on box

Features & specs

General
Speaker Size Vehicle-specific
Driver Design 1-way
Woofer Design ---
Woofer Material ---
Woofer Surround ---
Midrange Design ---
Midrange Material ---
Tweeter Design Dome
Tweeter Material Teteron
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant Yes
Grilles Included Black steel
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts N/A
Frequency Response 2000 - 22k Hz
Maximum RMS Wattage 75
Peak Power Handling (Watts) 225
Top-mount Depth (Inches) 0 5/8
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 1 11/16
Mounting Height (Inches) 0.35
Frame Width 1.984
Frame Length 1.984

Features

Overview: Alpine's SPV-10TW-WRA tweeters are designed for select 2007 and later Jeep Wrangler, Wrangler Unlimited, and Gladiator models (JK and JL). They fit both the dash and soundbar locations, when factory equipped.

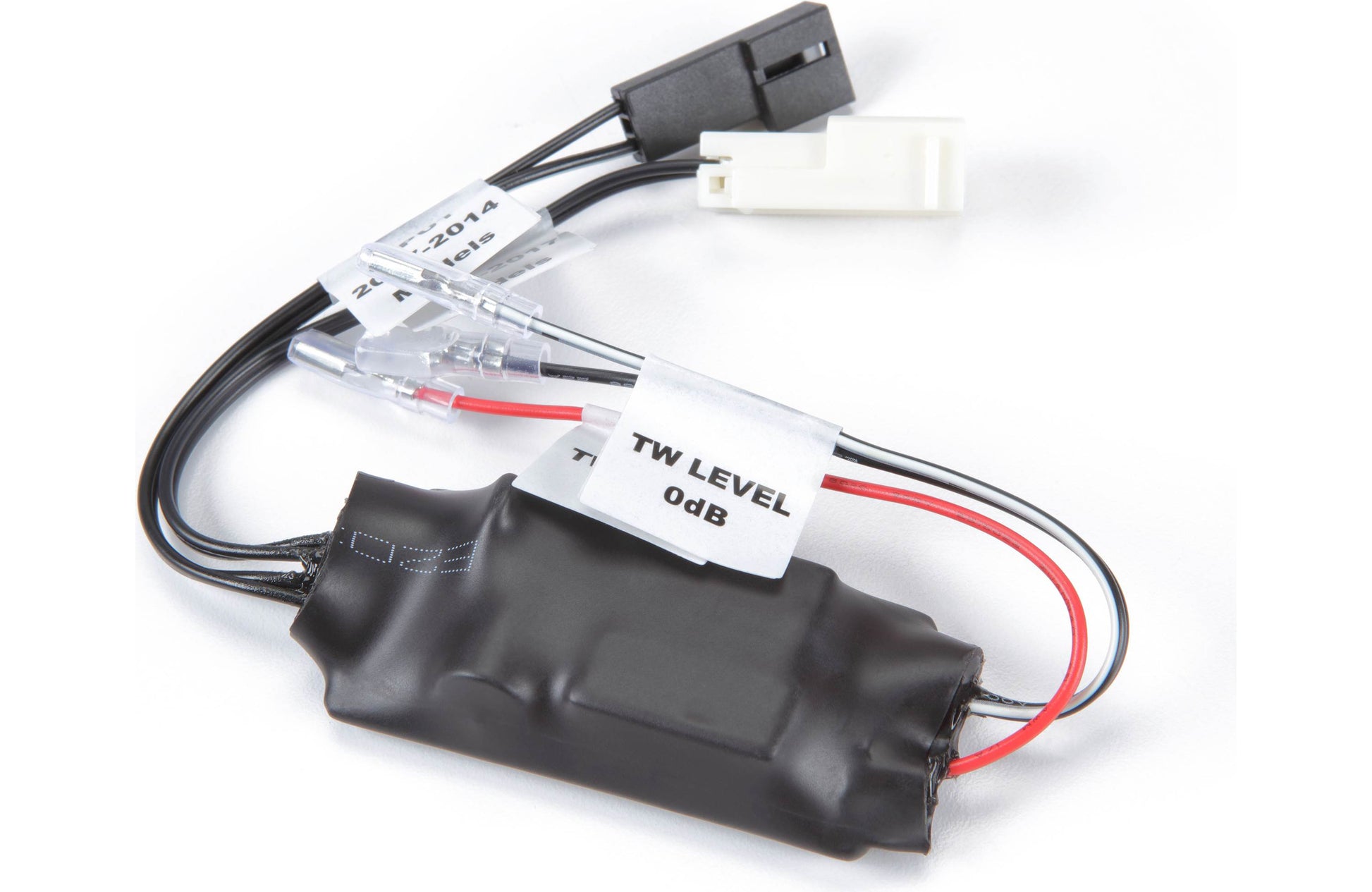

Wiring: The tweeters plug into the outputs of the included in-line tweeter crossovers. The crossovers have two inputs (shorted together), one fits the 2007-2014 Jeep factory tweeter harness and the other fits the 2015 and later factory harness. No cutting into the factory wiring is required.

Tweeter Level: The crossovers have two tweeter level output options, 0 dB (typically used in the Tombstone style on-axis mounts) and +3 dB (often used in the 3½" locations).

Mounting: In both the dash and soundbar locations the Alpine tweeters directly replace the factory tweeters. Tweeter mounting varies based on Jeep model year and the mounting location:

  • 2007-2014: The Alpine tweeters snap into the factory Tombstone housings on the dash.
  • 2015 and later: The Alpine tweeters snap into the included flush mount plates and are mounted behind the factory grilles in the dash and soundbar locations.
