Alpine

Alpine SPV-65X-WRA

Alpine SPV-65X-WRA

In stock

6-1/2" marine-grade component/coaxial speaker system for select Jeep Wrangler JK vehicles

  • price-tag logoNew Launch
$249.95
$249.95
Save: $-249.95 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

About the Alpine SPV-65X-WRA

Optimized for your Jeep

Alpine digs Jeeps. In their endeavor to optimize the audio experience for fellow Jeep fans, Alpine has designed the weatherproof and extremely versatile SPV-65X-WRA 6-1/2" speaker system that allows you to configure the included woofers and tweeters separately or as coaxials, depending on where you need to install them. Included factory wiring harnesses will also make installation go smoother.

As components

Alpine gives you several options for mounting the component 1" Teteron dome tweeters, including brackets to use your JK's tombstone-style locations if you have them. Inline crossovers make installation tidier as well.

As coaxials

If you have rear locations that don't make a component configuration feasible, use Alpine's included brackets to mount the tweeters onto the woofers in a coaxial design.

Highlights:

  • Featured in our article: Best audio gear for your Jeep Wrangler
  • designed to fit in select Jeep JK vehicles
  • vehicle-specific component/coaxial speaker system
    • two 6-1/2" woofers
    • two 1" Teteron dome tweeter with inline crossover
    • tweeters can be mounted separately or coaxially
    • vehicle-specific installation gear and wiring adapters included
  • handles up to 75 watts RMS (225 watts peak)
  • frequency response: 65-22,000 Hz
  • impedance: 4 ohms
  • warranty: 1 year
  • MFR # SPV-65X-WRA
  • Item # 500SPV65XW
  • California customers: Please click here for your Proposition 65 WARNING.

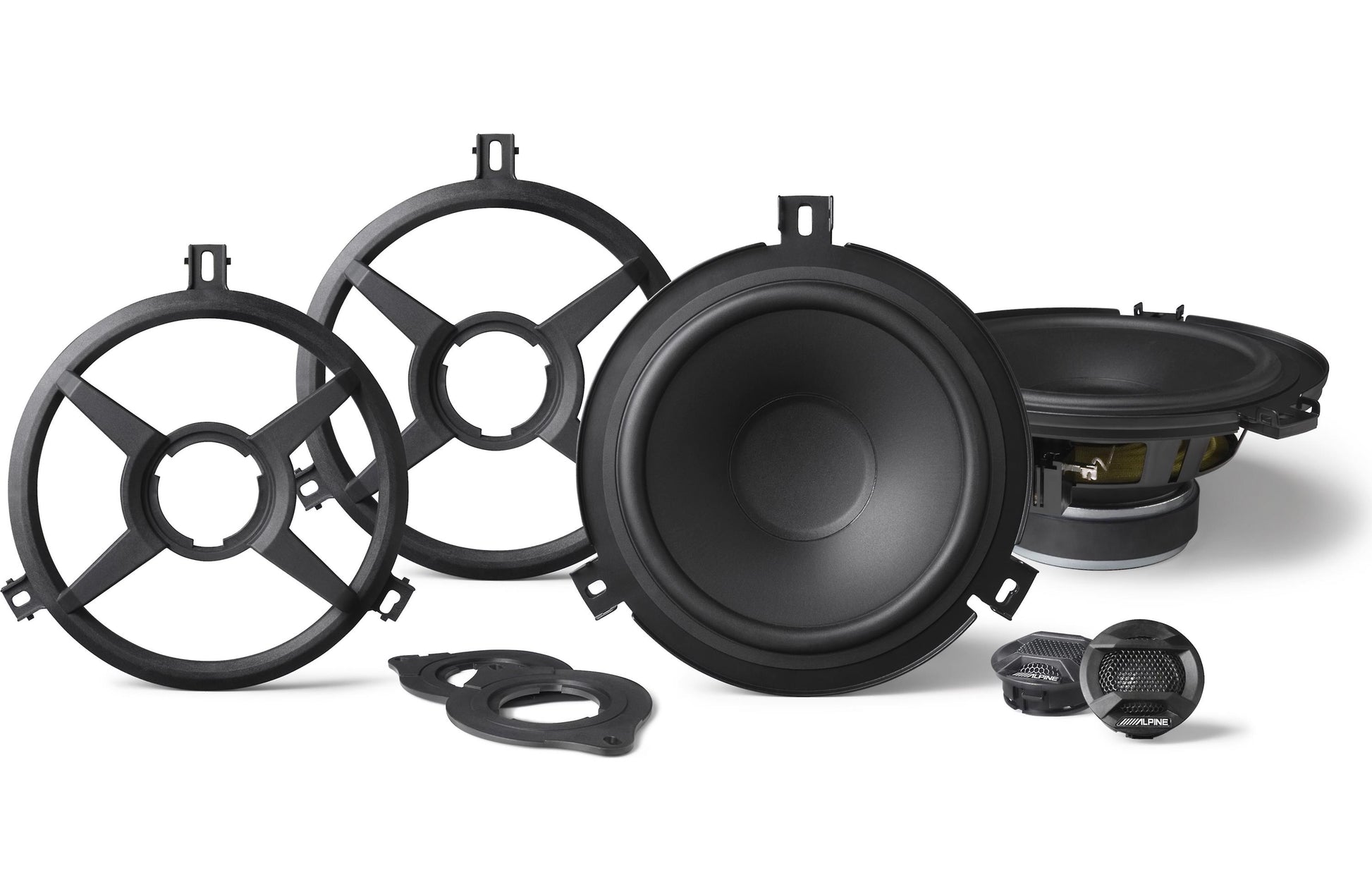

What's in the box:


If you need assistance accessing this owner's manual, please give us a call.
  • 2 Woofers

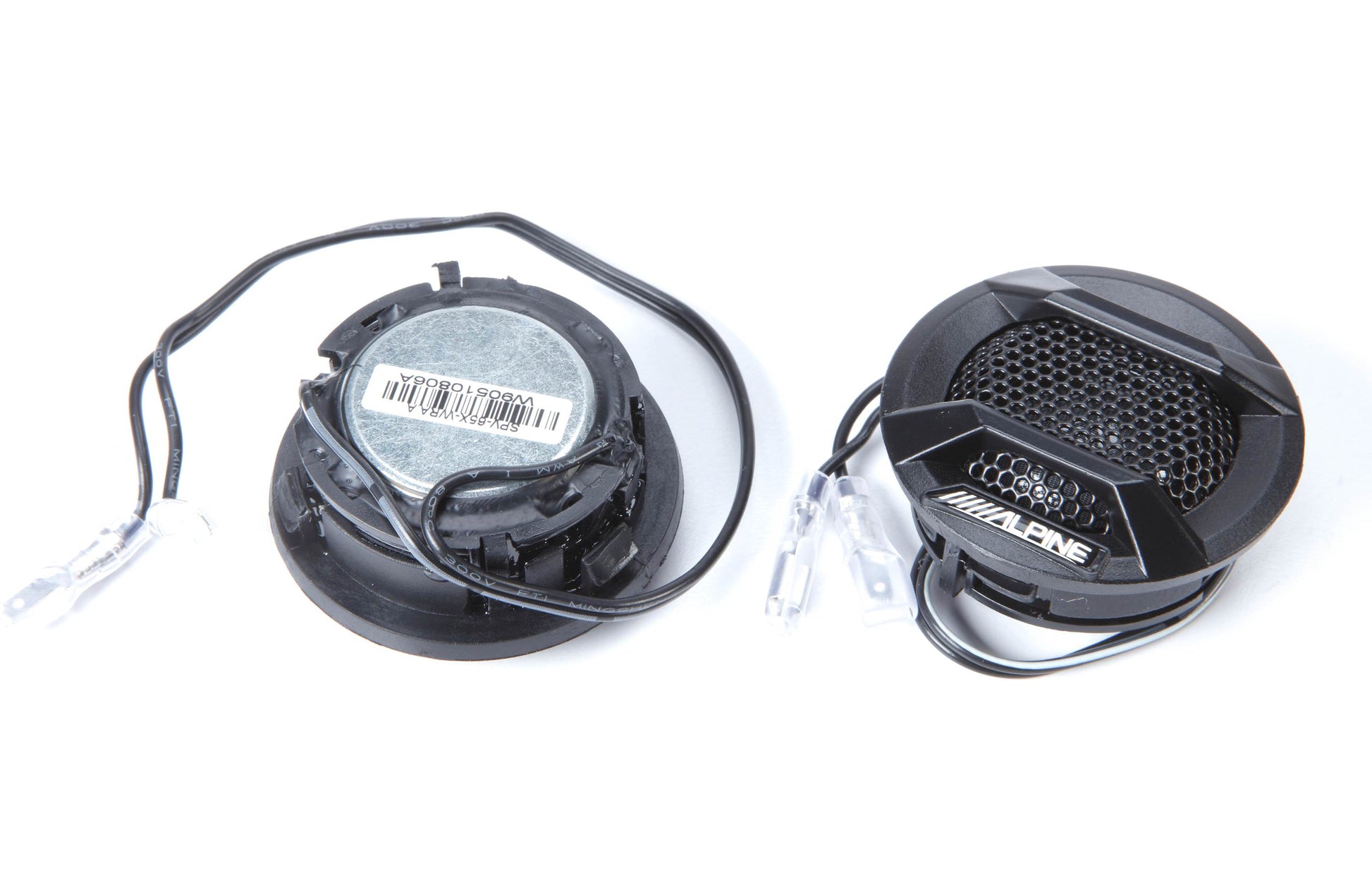

  • 2 Tweeters (with 5" wire attached)
  • 2 Tweeter crossovers (in-line)
  • 2 Polyfill sheets

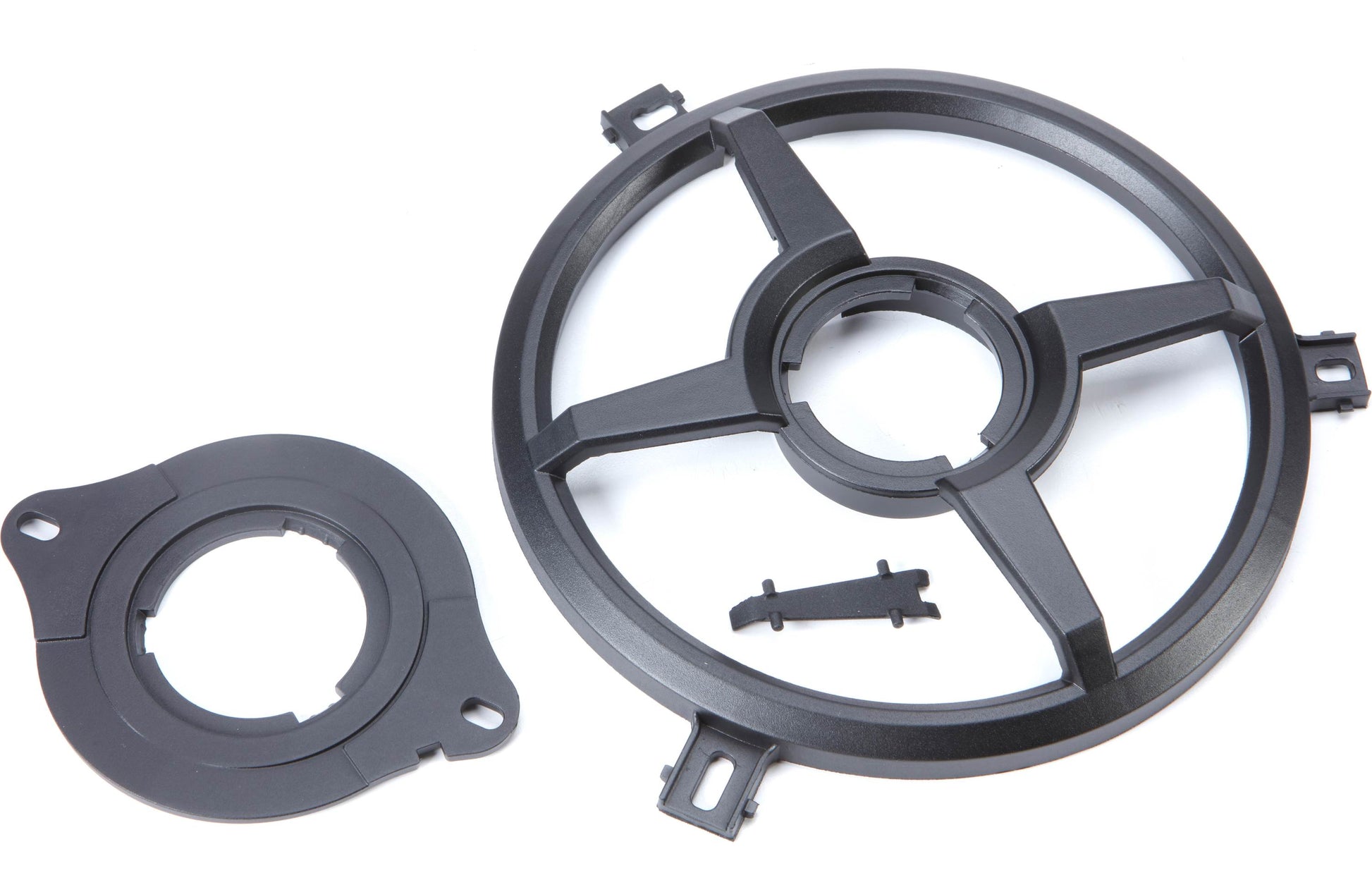

  • 2 Tweeter mounting plates
  • 2 Bridge mount brackets
  • 2 Bridge mount wire covers
  • 2 Foam strips (0.25" x 0.625")
  • 2 Alpine logo badges
  • Warranty information
  • On-line product registration information
  • Important Notice sheet
  • Installation instructions
  • Specifications on box

Features & specs

General
Speaker Size Vehicle-specific
Driver Design 2-way
Woofer Design Cone
Woofer Material Poly
Woofer Surround Rubber
Midrange Design ---
Midrange Material ---
Tweeter Design 1" Dome
Tweeter Material Teteron
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included Black plastic tweeter bridge, Spoke style
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 88
Sensitivity at 2.83 volts N/A
Frequency Response 70 - 22k Hz
Maximum RMS Wattage 75
Peak Power Handling (Watts) 225
Top-mount Depth (Inches) 2 5/8
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 7/16
Mounting Height (Inches) 0.45
Frame Width 6.903
Frame Length 6.903

Features

Overview: Alpine's SPV-65X-WRA component speakers are designed for 2007-2018 Jeep Wrangler and Wrangler Unlimited models (JK body style). They fit both the dash and soundbar locations, when factory equipped.

Note: In 2018 Jeep built two versions of the Wrangler and Wrangler Unlimited, the JK (older body style) and the JL (new body style). These Alpine speakers fit the JK body; they do not fit the new JL body.

Wiring: The Alpine woofers have the same input plug as the Jeep factory woofers, so the factory harness is directly compatible. The Alpine tweeters plug into the outputs of the included in-line tweeter crossovers. The crossovers have two inputs (shorted together), one terminated with the 2007-2014 Jeep factory tweeter harness, the other terminated with the 2015-2018 Jeep factory tweeter harness. The woofers also have a 5" output wire labeled 2007-2014 models. This wire is only used when coaxially mounting the tweeters in the soundbar. (The tweeter mounts separately in the soundbar location of 2015-2018 models.) No cutting into the factory wiring is required.

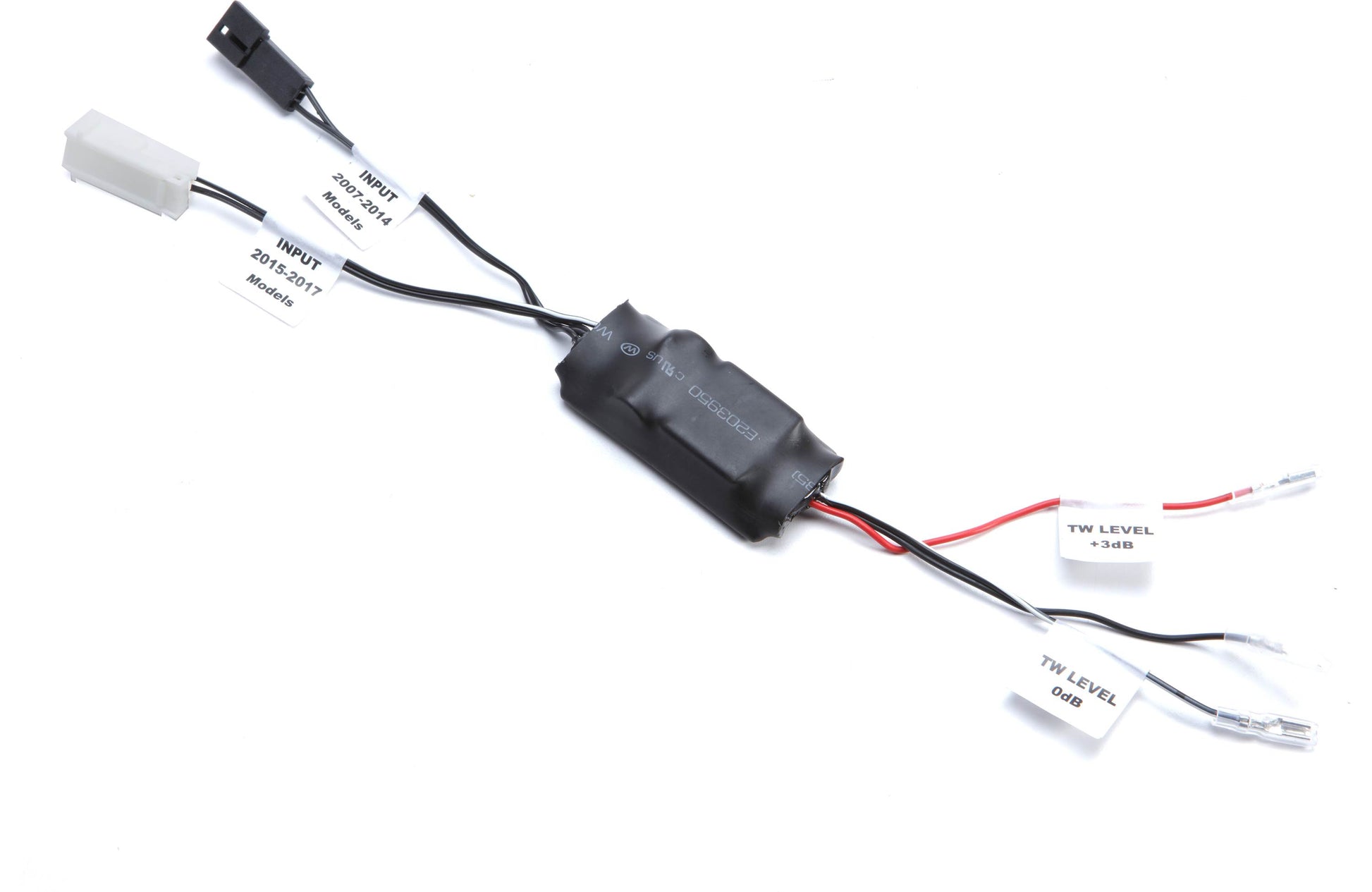

Tweeter Level: The crossovers have two tweeter level output options, 0 dB (flat) and +3 dB. Connect the tweeter the the wire labeled with your preference.

Mounting: In both the dash and soundbar locations the Alpine woofers are direct replacements for the factory woofers; no modification or adapter bracket is necessary. The factory screws are used to mount the new woofers. Tweeter mounting varies based on Jeep model year and the mounting location:

  • 2007-2014:

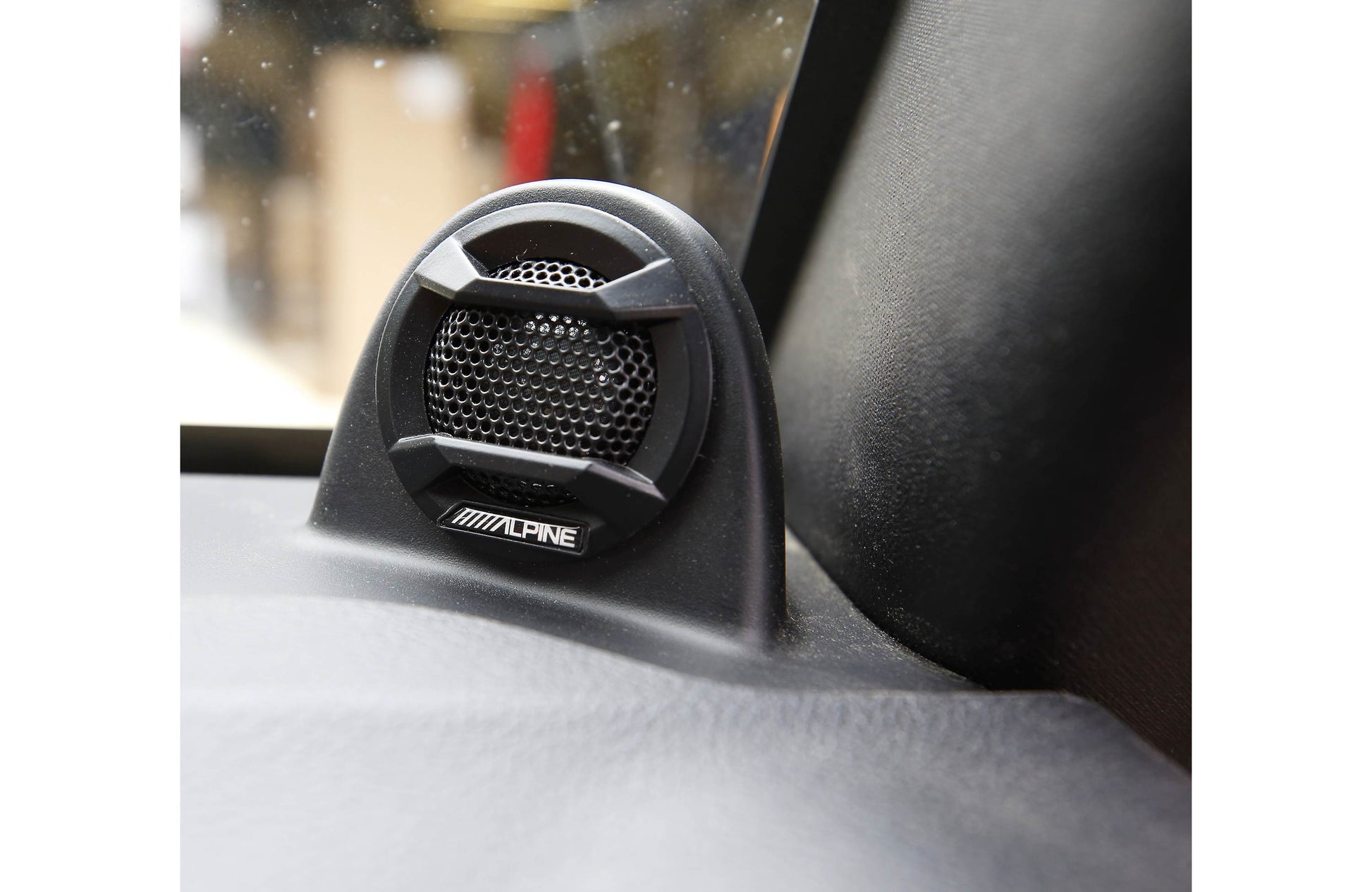

    • Dash: The Alpine tweeters snap into the factory "Tombstone" housing.
    • Soundbar: The Alpine tweeters are mounted coaxially to the Alpine woofers, using the included bridge mount brackets.
  • 2015-2018:
    • Dash: The Alpine tweeters snap into the included flush mount tweeter plates, and are mounted behind the factory grilles.
    • Soundbar: The Alpine tweeters snap into the included flush mount tweeter plates, and are mounted behind the factory grilles.
