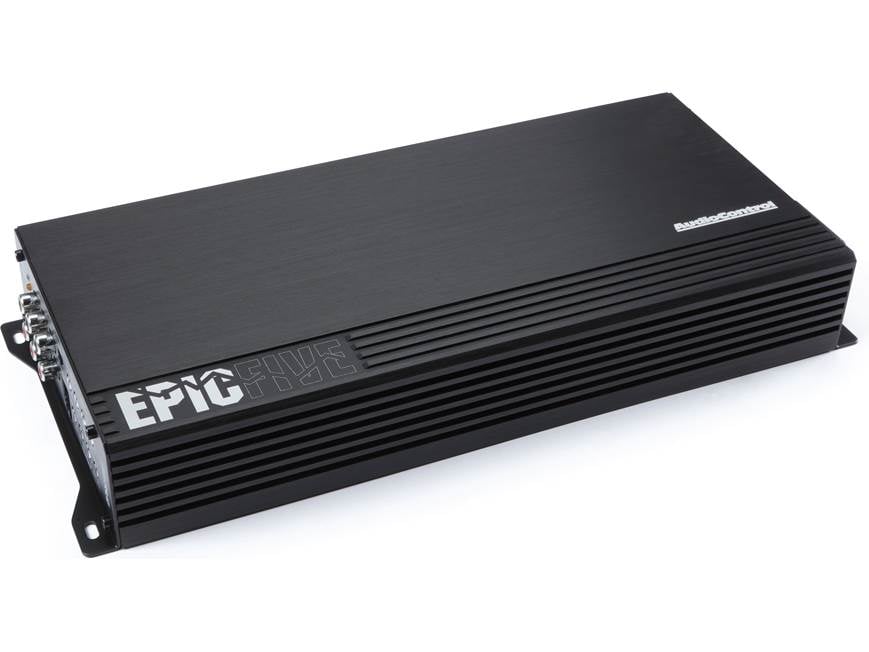

AudioControl EPICFIVE

EPIC Series 5-channel car amplifier — 75 watts RMS x 4 at 4 ohms + 700 watts RMS x 1 at 1 ohm

Product info:

• 5-channel car amplifier
  • 75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
  • 150 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 300 watts RMS x 2 bridged at 4 ohms + 700 watts RMS x 1 at 1 ohm
• Class D amp technology
  • frequency response: 10-22,000 Hz
• CH1-CH4:
  • variable high-pass filters (Off/50-500 Hz, 12 dB/octave)
• Subwoofer channel:
  • variable low-pass filter (40-180 Hz, 12 dB/octave)
  • variable subsonic filter (Off-50 Hz, 12 dB/octave)
  • EPICBoost™ Variable Frequency Bass Boost (0-12 dB at 30-80 Hz)

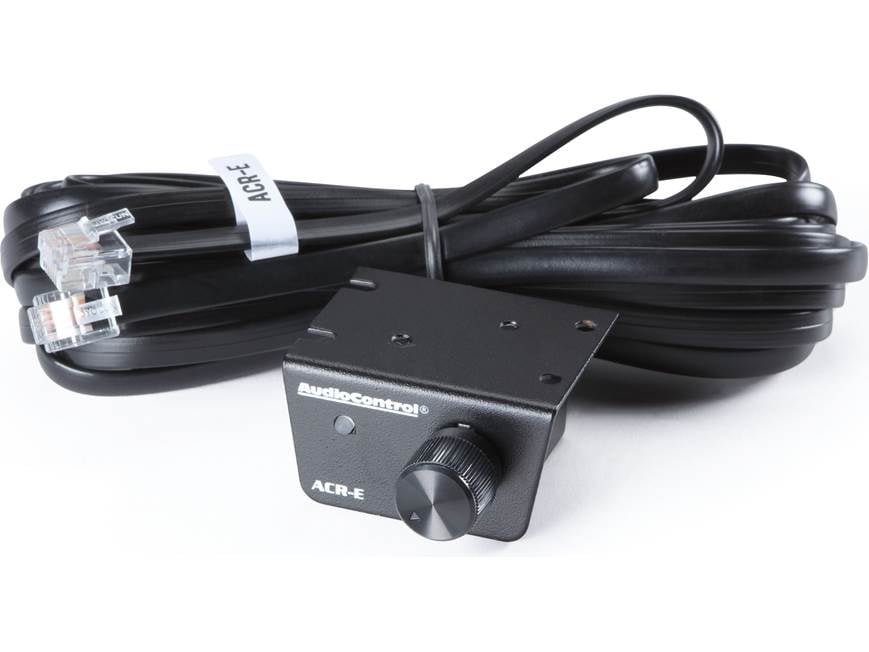

  • ACR-E wired remote control included

More info:

• power harness for accessory preamp included
  • compatible with AudioControl line output converters and Epicenter bass enhancers
  • pre-installed 1A fuse included for accessory power connection
• preamp inputs only
• wiring, fuse, and hardware not included with amplifier:
  • 4-gauge power and ground leads and an 150A fuse recommended
• dimensions: 13.63"W x 2.01"H x 6.09"D
