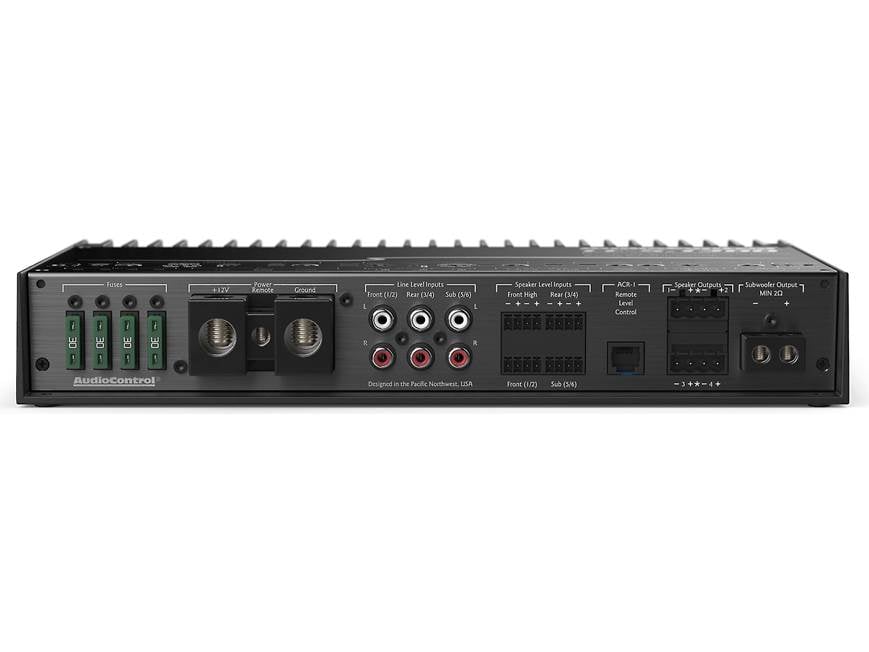

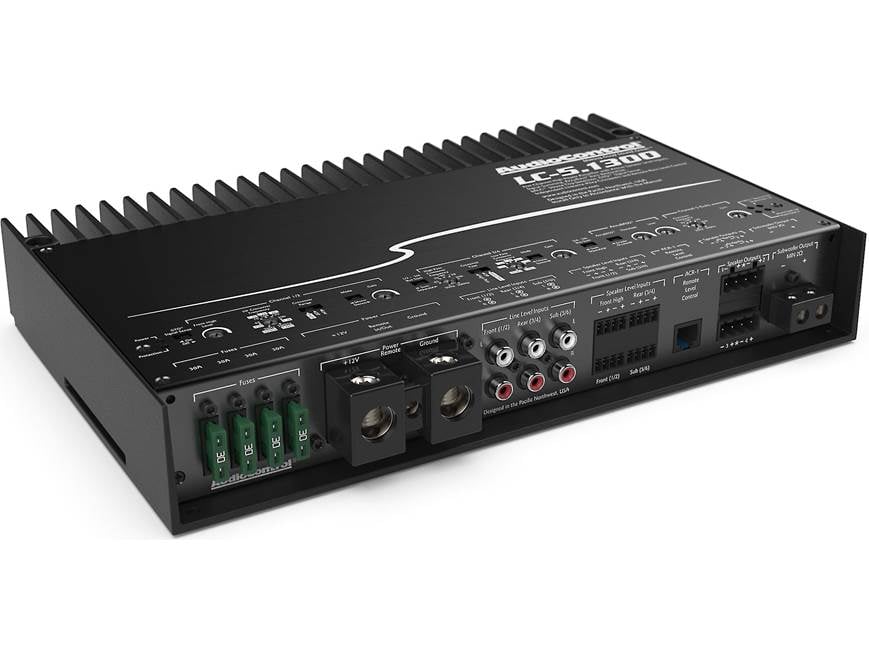

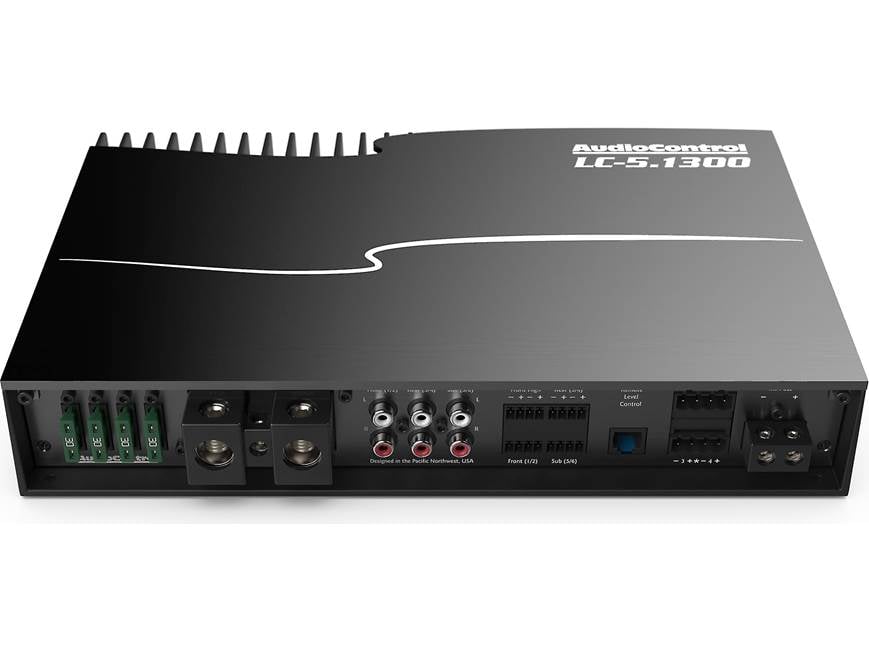

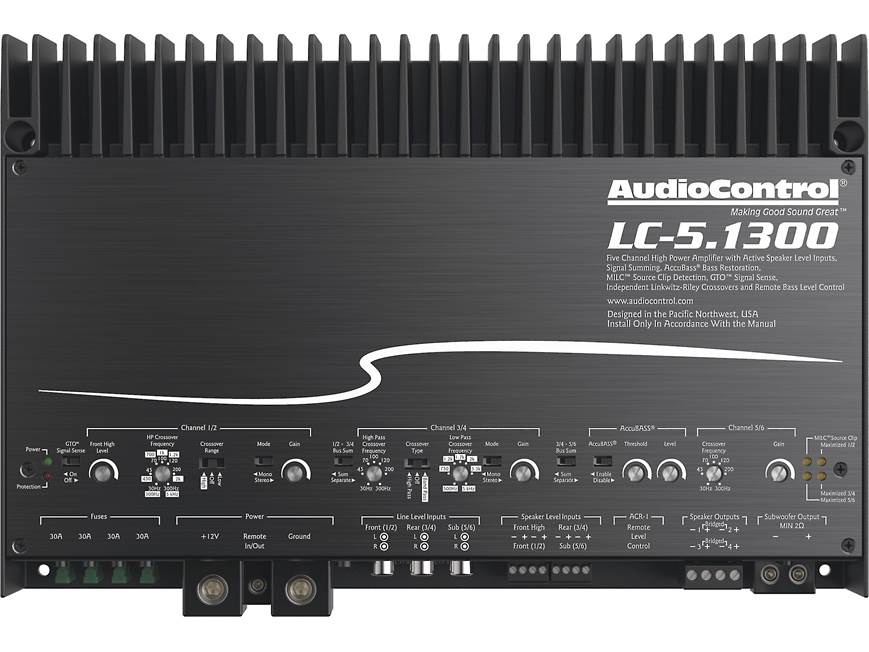

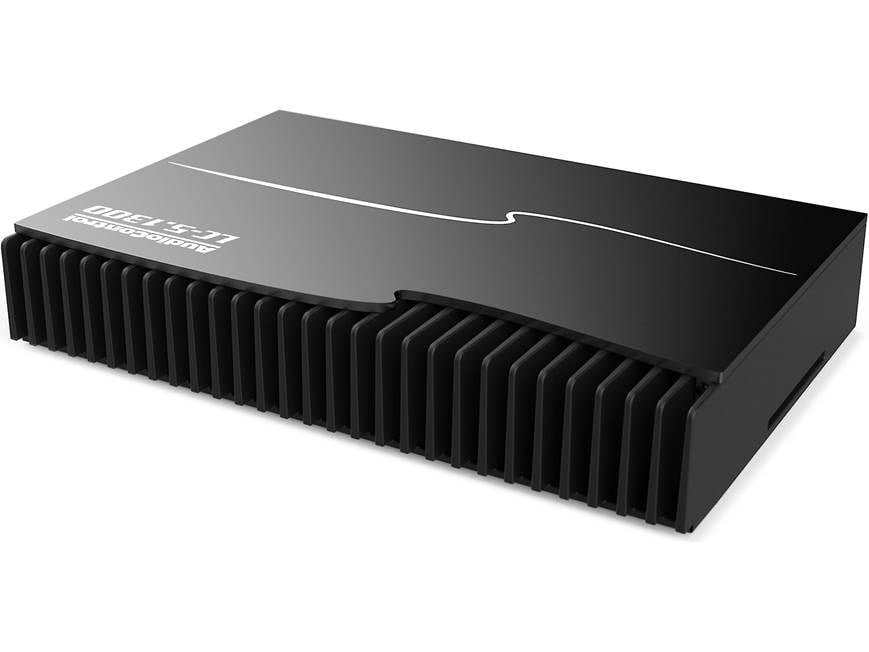

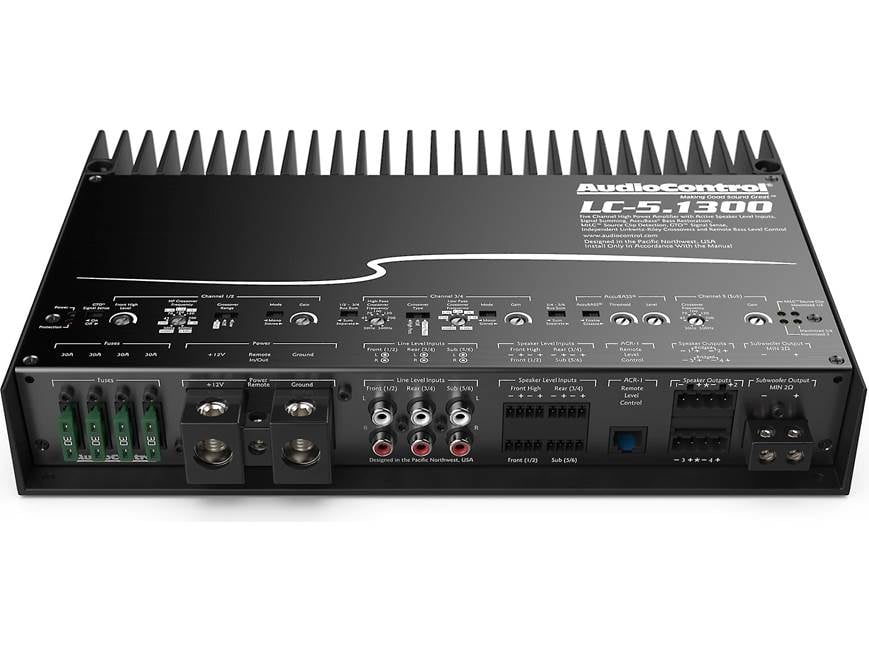

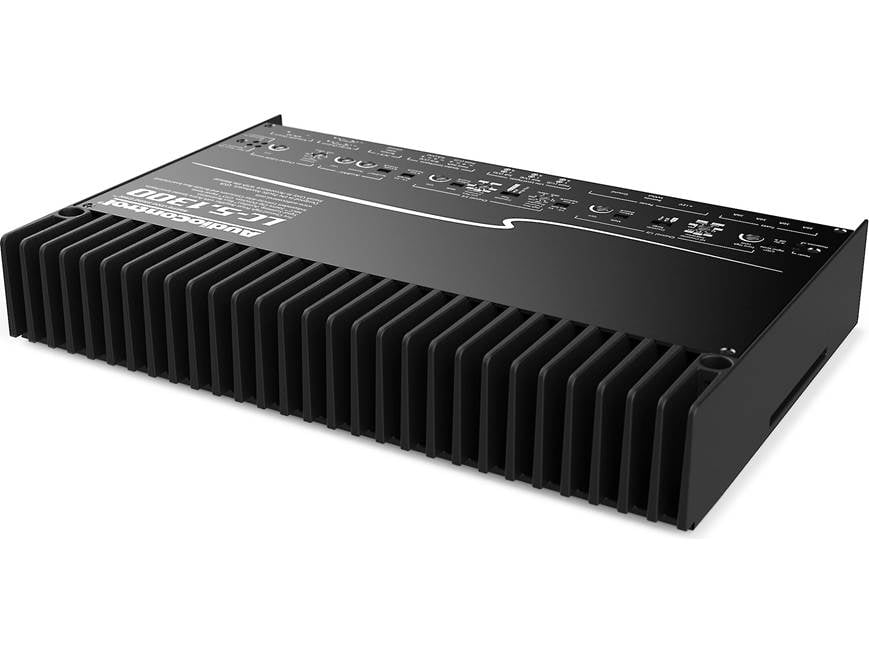

AudioControl LC-5.1300

5-channel car amplifier — 100 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms

Product info:

• 5-channel car amplifier
  • 100 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
  • 200 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 400 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• Class D amp technology
• MILC™ (Maximum Input Level Control) LED optimization and clip indicators
• stereo/mono switch on channel pairs

Tuning Controls:

• Ch 1/2:
  • variable high-pass filter (30-300 Hz or 500-5000 Hz, 12 dB/octave)
  • front high input level control — when using amplified factory tweeter wiring
• Ch 3/4:
  • variable high-pass or bandpass filter (HP: 30-300 Hz; LP: 500-5000 Hz, 12 dB/octave)
• Ch 5:
  • variable low-pass filter (30-300 Hz, 12 dB/octave)
  • AccuBASS® circuitry for improved bass response

Other Features:

• 6 preamp and 8 summable speaker-level inputs
• GTO™ (Great Turn On) signal-sensing turn-on with Ch1/2 speaker-level input
• optional wired remote level controller available
• fuse rating: 40A x 3
• wiring and hardware not included with amplifier
  • 1/0-gauge power and ground leads recommended
• dimensions: 12"W x 2-1/8"H x 9-1/2"D
