The
JBL SUBBPGOACCKIT (also sold as the
JBLSUBBPACCKITAM) is the
official Vehicle Installation Kit designed for the JBL BassPro Go hybrid powered subwoofer.
This package contains everything needed to wire and mount your speaker into a second vehicle, allowing you to transfer the BassPro Go seamlessly back and forth between two cars without removing the main wiring.
The JBL SUBBPGOACCKIT is a complete, secondary hardware and wiring suite. Since the BassPro Go utilizes a proprietary quick-disconnect docking base and customized wiring harness to function both as an in-car subwoofer and a portable full-range Bluetooth speaker, this kit eliminates the need to buy an entirely new subwoofer system for another household vehicle. Simply secure the second bracket in another trunk or cargo area, wire it to that vehicle's power and audio system, and click the speaker into place.

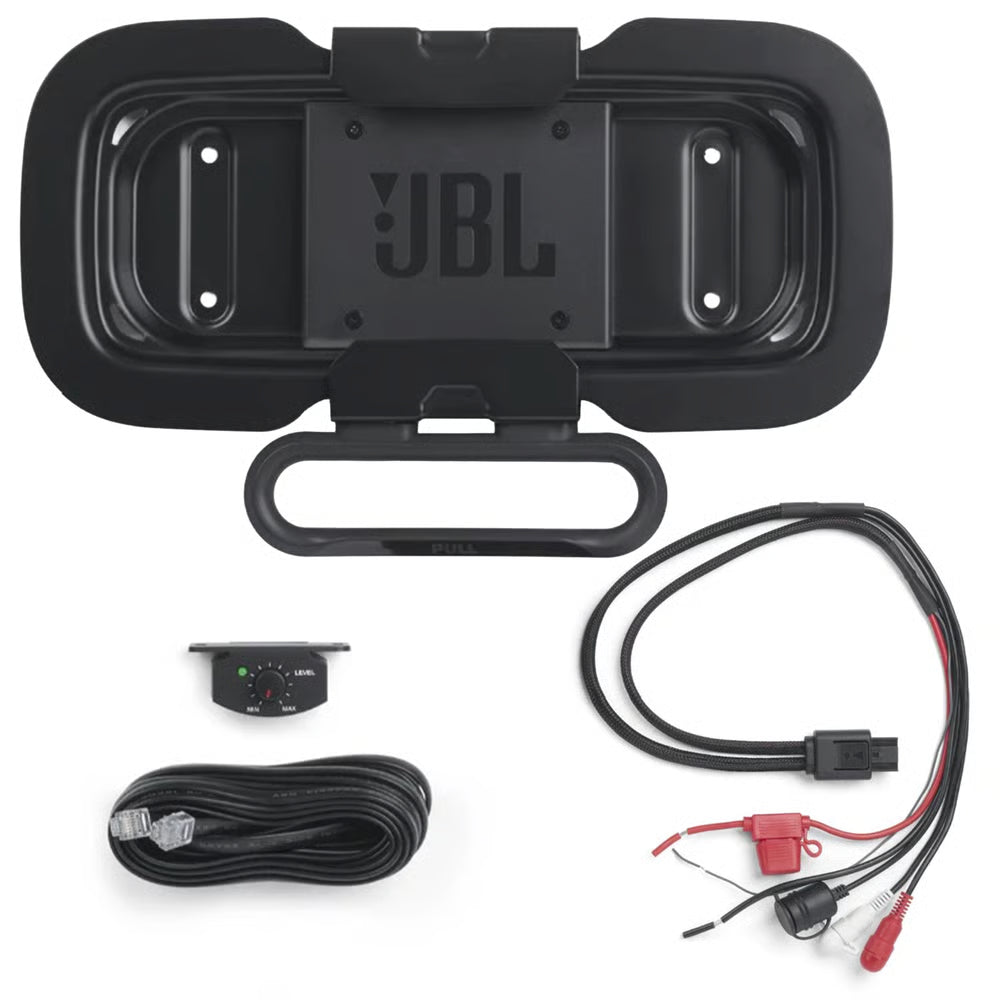

The components included in this installation kit replicate the exact factory hardware setup provided in the original retail box of the JBL BassPro Go:
-
Vehicle Mounting Bracket: Heavy-duty quick-release base plate that secures the subwoofer to the floor panel or trunk lining. Includes a quick-disconnect release lever.
-
Main Vehicle Wiring Harness: Heavy-gauge power, ground, and remote turn-on combination harness featuring a proprietary 10-pin quick-disconnect plug with an embossed JBL logo to ensure proper orientation.
-
In-Line Safety Fuse: Heavy-duty fuse holder with a pre-installed automotive blade fuse to shield the vehicle's electrical system from overcurrent.
-
Remote Bass Control Module & Cable: A dashboard-mountable wired volume knob that plugs into a phone-jack style connection on the harness, providing manual bass attenuation directly from the driver's seat.
-
Hi-Level Input Adapters (x2): Speaker-wire-to-RCA adapters allowing integration into factory sound systems that do not feature aftermarket low-level RCA pre-outs.
-
Audio Input Compatibility: The harness configuration accepts low-level inputs ranging from 400mV to 6V and high-level speaker inputs ranging from 1V to 15V.
1. Hardware & Mechanical Component Specs
-
Quick-Release Mounting Bracket: Molded impact-resistant base tracking mount equipped with an integrated over-center manual tension locking latch. Holds the subwoofer securely against standard automotive cornering and braking forces while granting push-lever extraction.
-
Remote Bass Control Module: Low-profile dashboard wired attenuation pod featuring a rotary linear potentiometer for driver-seat bass leveling. Includes a 16.5-foot (approx. 5 meters) RJ-25 audio control cable.
2. Electrical Harness & Interface Specs
-
Main Wire Harness Length: 26-inch (approx. 66 cm) integrated branch loom terminating at a multi-conductor, keyed proprietary quick-release female terminal block with molded grip ridges.
-
Power Line Protection: Pre-assembled inline heavy-duty waterproof automotive fuse holder equipped with a 15A ATO blade fuse to safely throttle current draw on a 12V DC vehicle rail.
-
Input Signaling Compatibility: Dual line-level RCA female jack entry pairs optimized to accept balanced differential inputs.
-
Hi-Level Adapters: Two high-level speaker wire-to-RCA barrier clip adapters included to handle factory speaker line inputs natively on cars without aftermarket pre-out decks.
3. Operating Parameters & Tolerances
| Metric / System
|
Engineering Rating
|
|
System Voltage Range
|
9 V – 16 V DC Operations
|
|
Circuit Overcurrent Threshold
|
15 Amp Max
|
|
Low-Level Input Range (RCA)
|
400mV – 6V
|
|
High-Level Input Range (Speaker Wire)
|
1V – 15V
|
|
Connection Configuration
|
12V Constant Power, Chassis Ground, Remote Turn-on (REM), Remote Volume (RJ-25), Left/Right Signal
|
