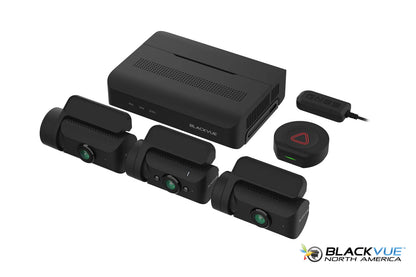

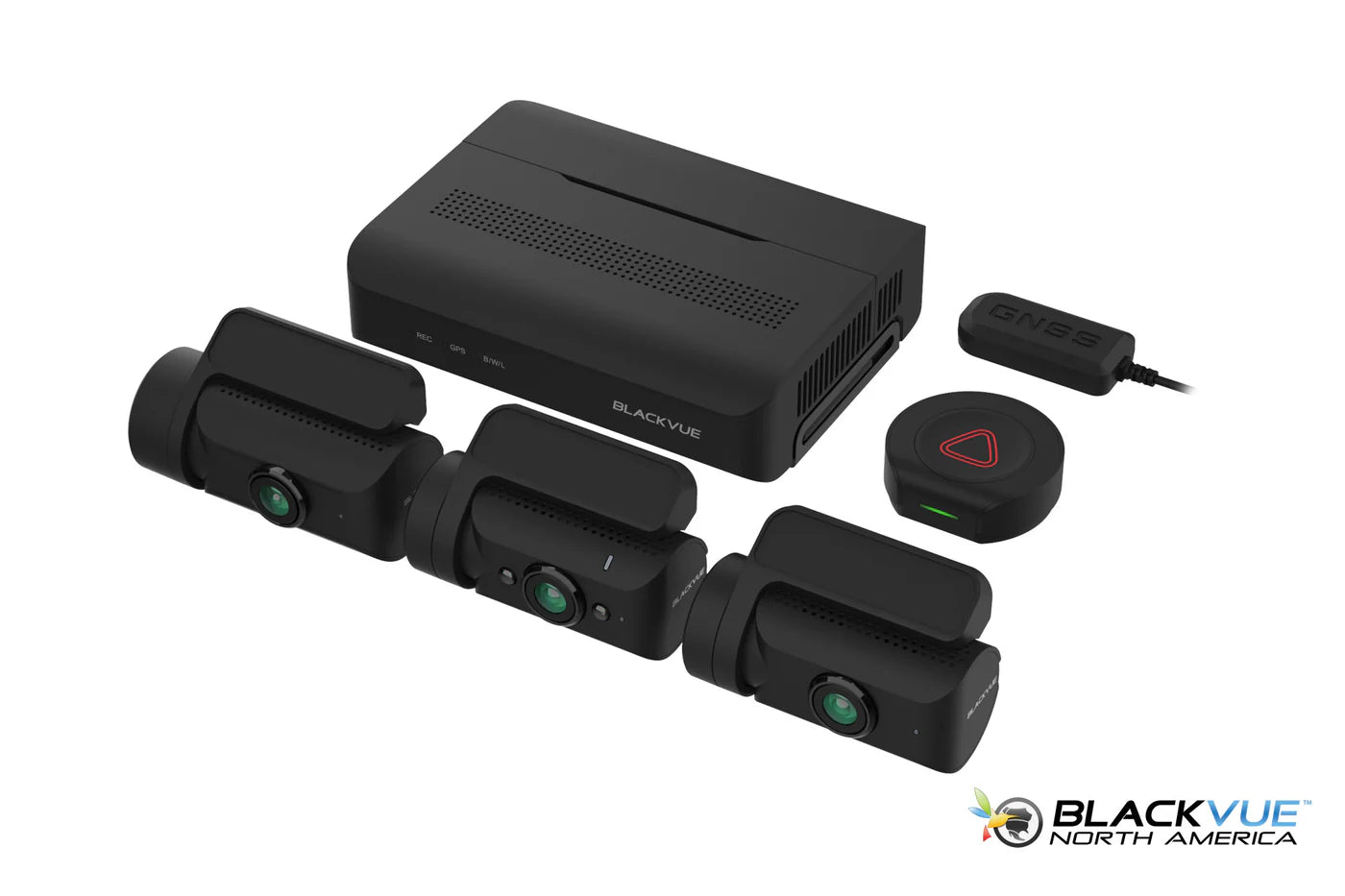

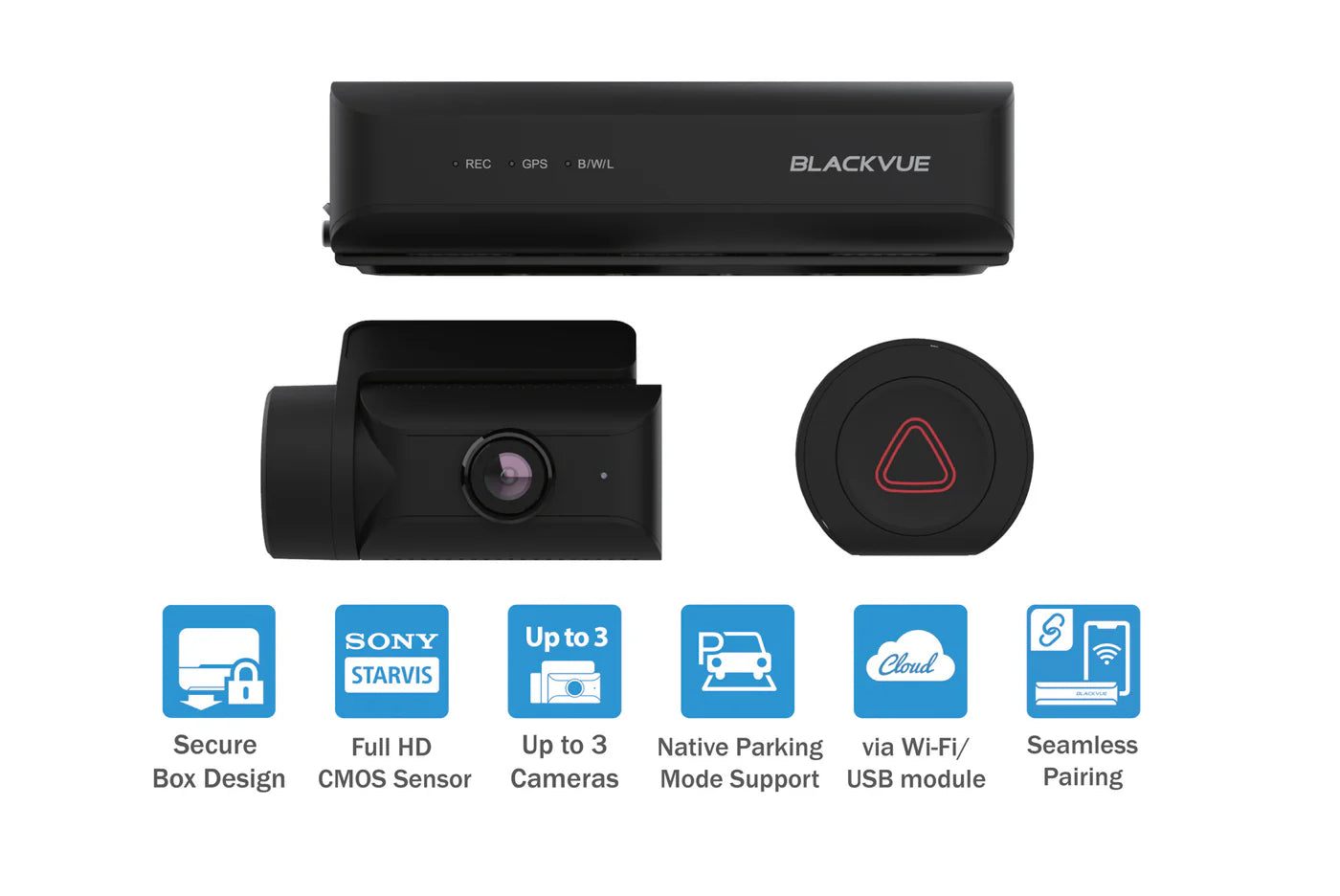

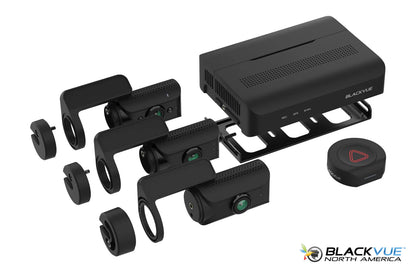

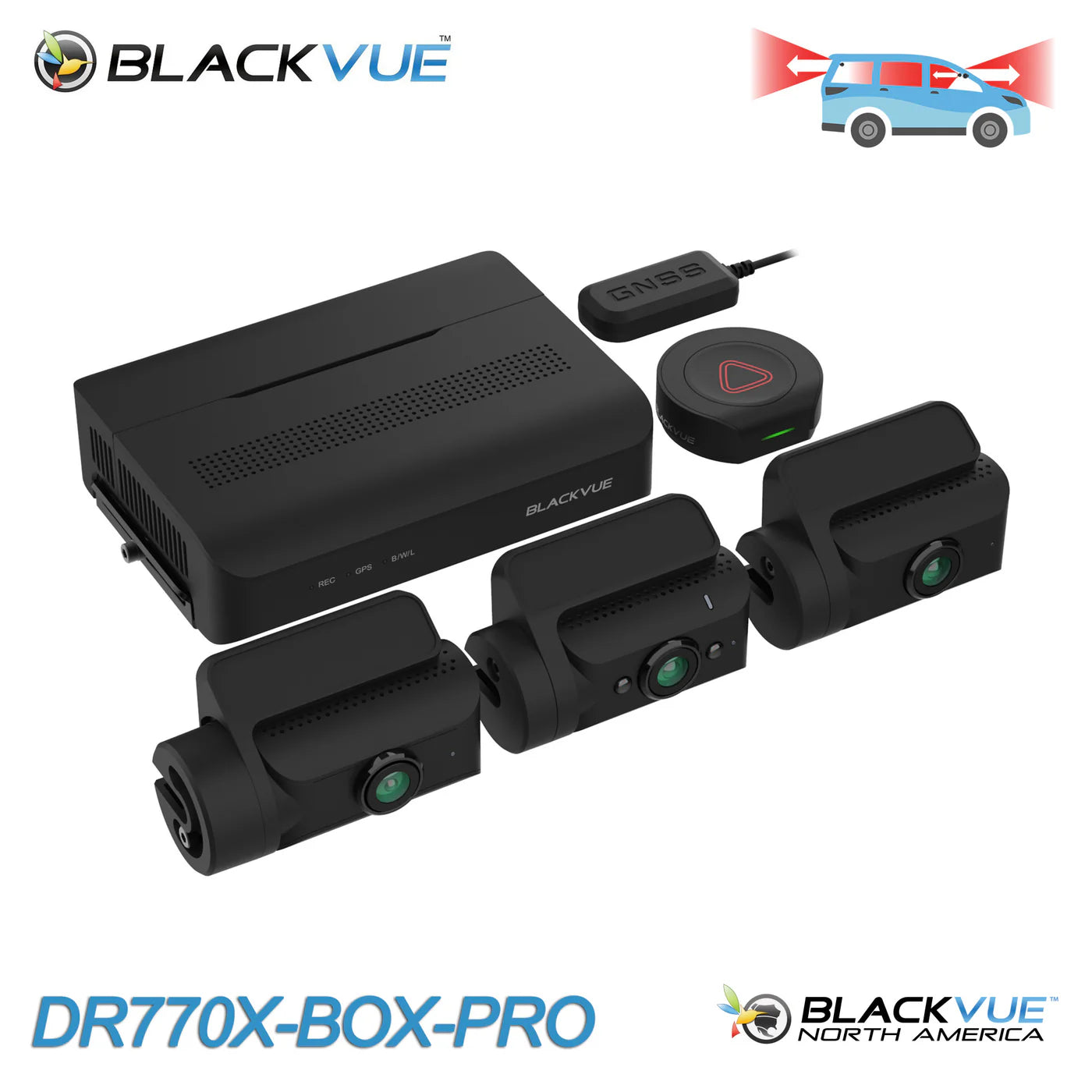

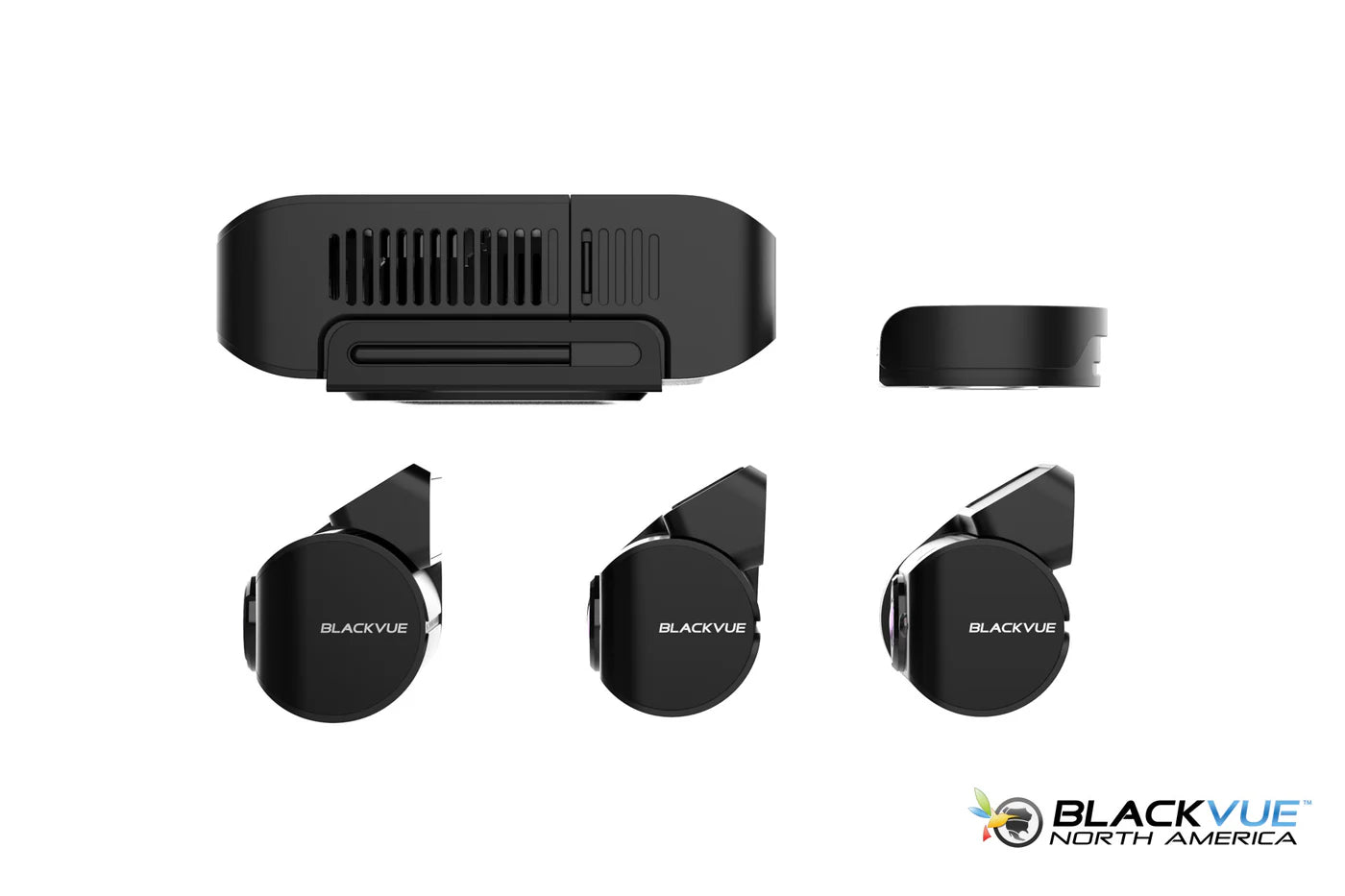

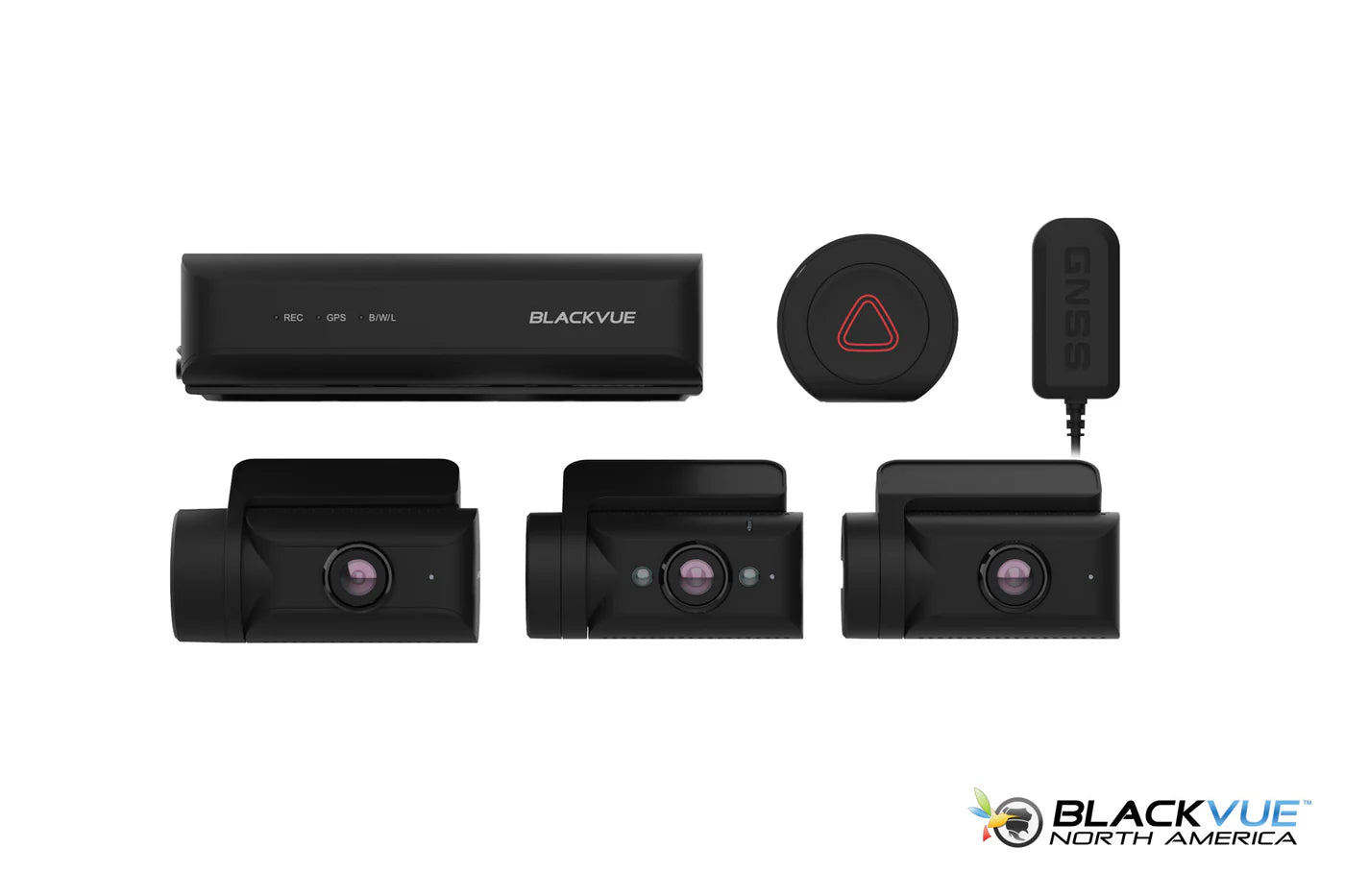

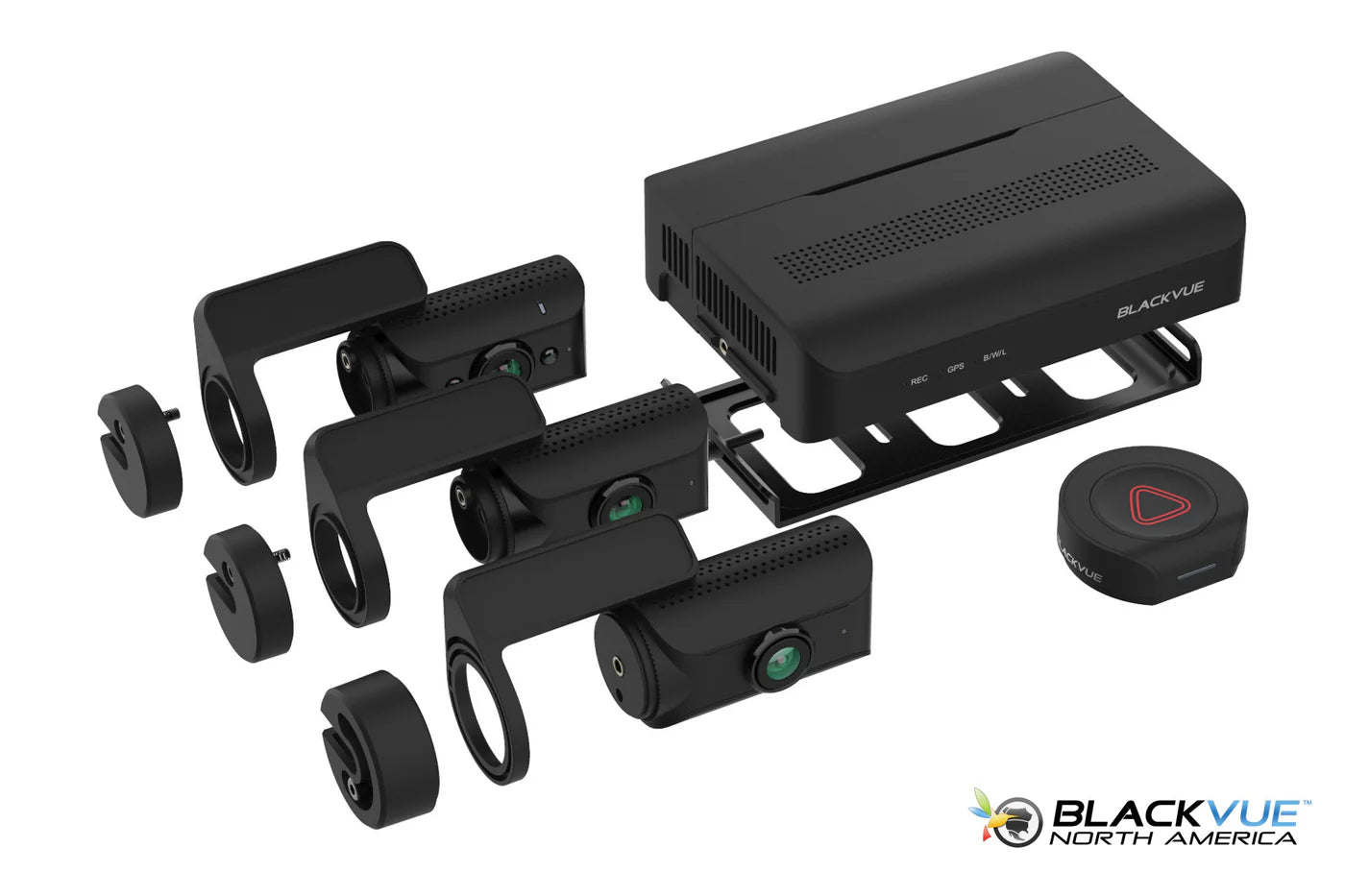

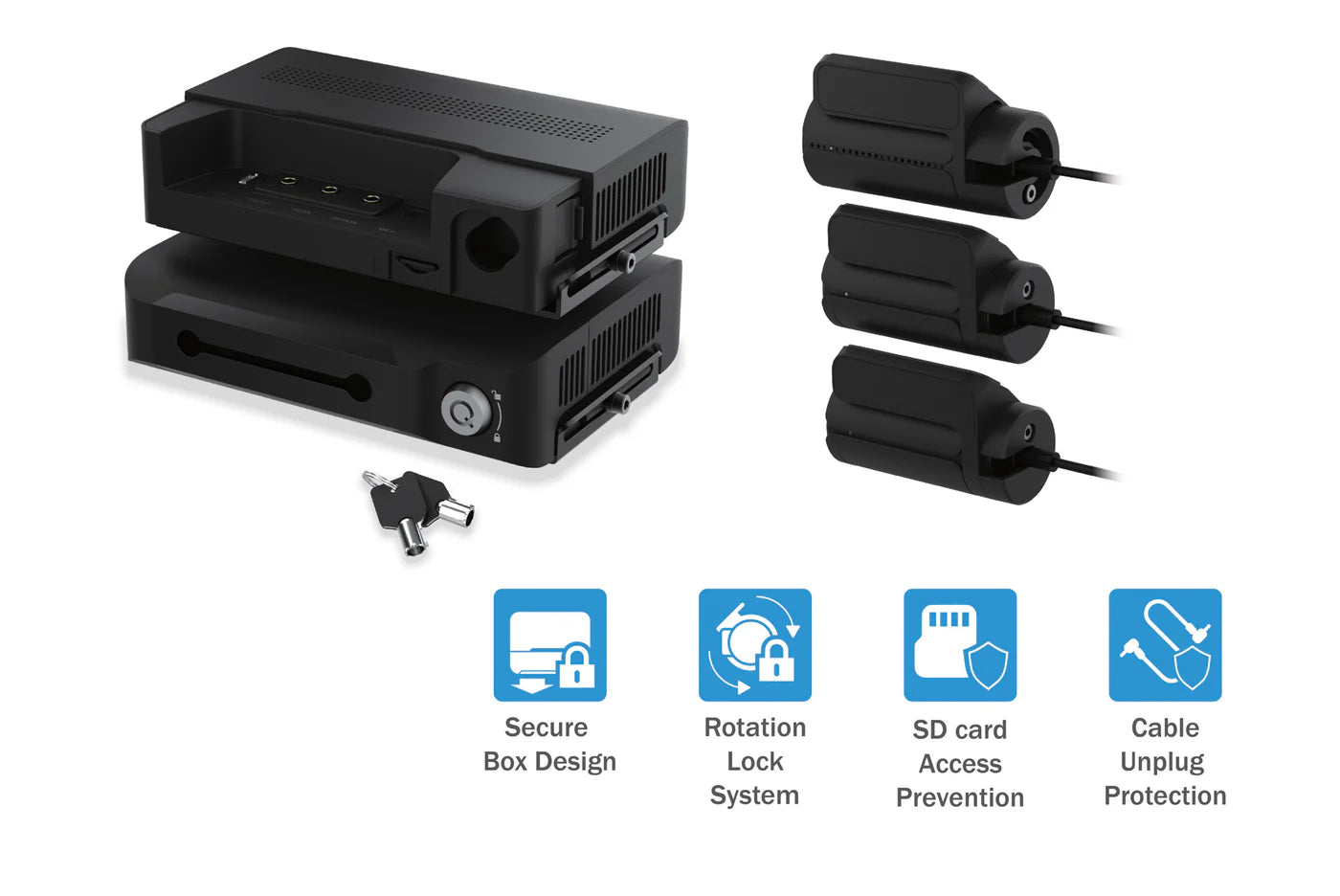

The DR770X BOX PRO is compact front, interior, and rear dash cam featuring a seperate lock-protected "Box" recording unit, which can be discreetly stored in the glove compartment for enhanced stealth and security. Equipped with BlackVue's premium features. All cameras include Full HD Sony STARVIS™ image sensors delivering exceptional image quality in any lighting condition.
Introducing the BlackVue DR770X BOX PRO, the newest upgrade to the DR770X BOX series that's packed with features both individual drivers and fleet operators will love. The PRO models now extended 10-second event buffer—up from the previous 6 seconds—so it captures even more of those crucial moments leading up to an incident. Plus, it now includes built-in fleet management features, making vehicle surveillance and control more reliable than ever.
Each camera comes equipped with Sony's groundbreaking STARVIS™ sensor, delivering exceptional video clarity day and night. And with the infrared interior camera, you get complete visibility even in pitch-black conditions.

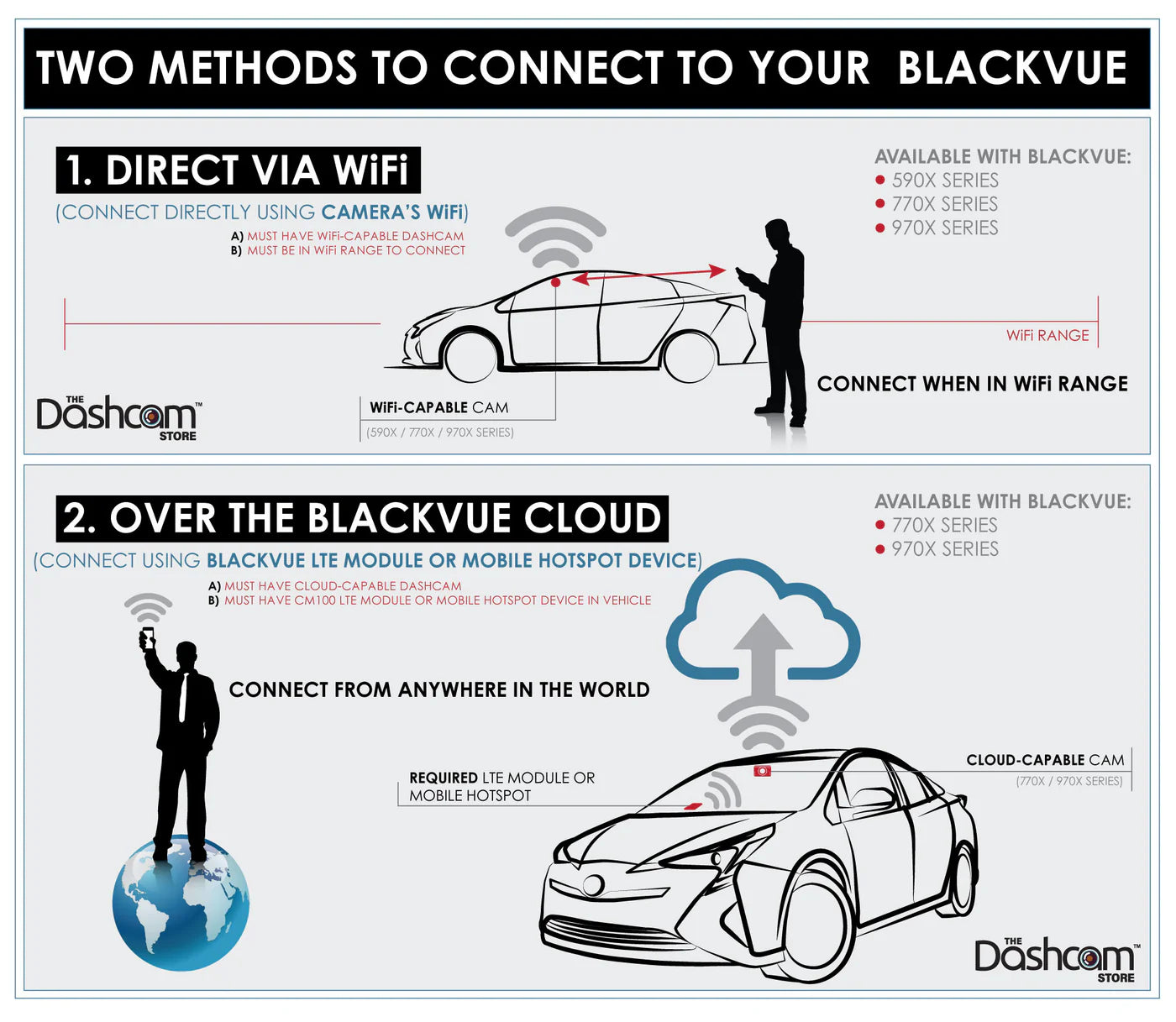

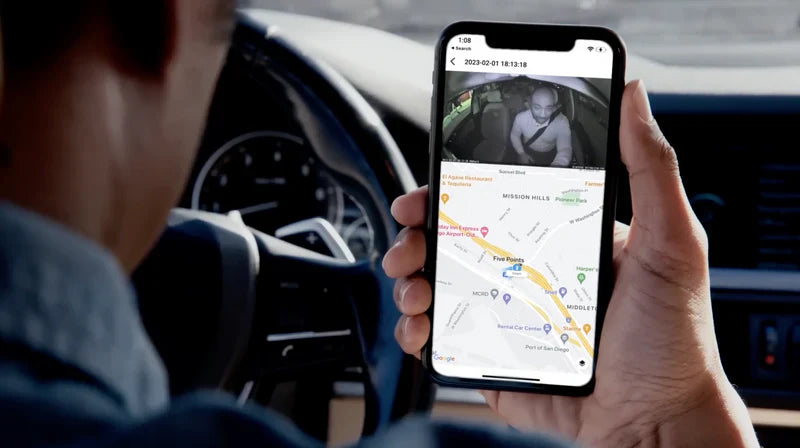

Designed with fleets in mind, the PRO model offers a host of fleet-friendly features. Fleet operators can benefit from real-time tracking, event-triggered cloud uploads, and remote notifications through the BlackVue Cloud platform. With Parking Mode support, built-in voltage monitoring, and optional LTE connectivity, your vehicles are protected around the clock. Whether you're managing a single vehicle or an entire fleet, this dash cam provides the peace of mind, control, and comprehensive protection you need to keep things safe and efficient on the road.
| DR770X-BOX-PRO | |
| Channel | 3CH |

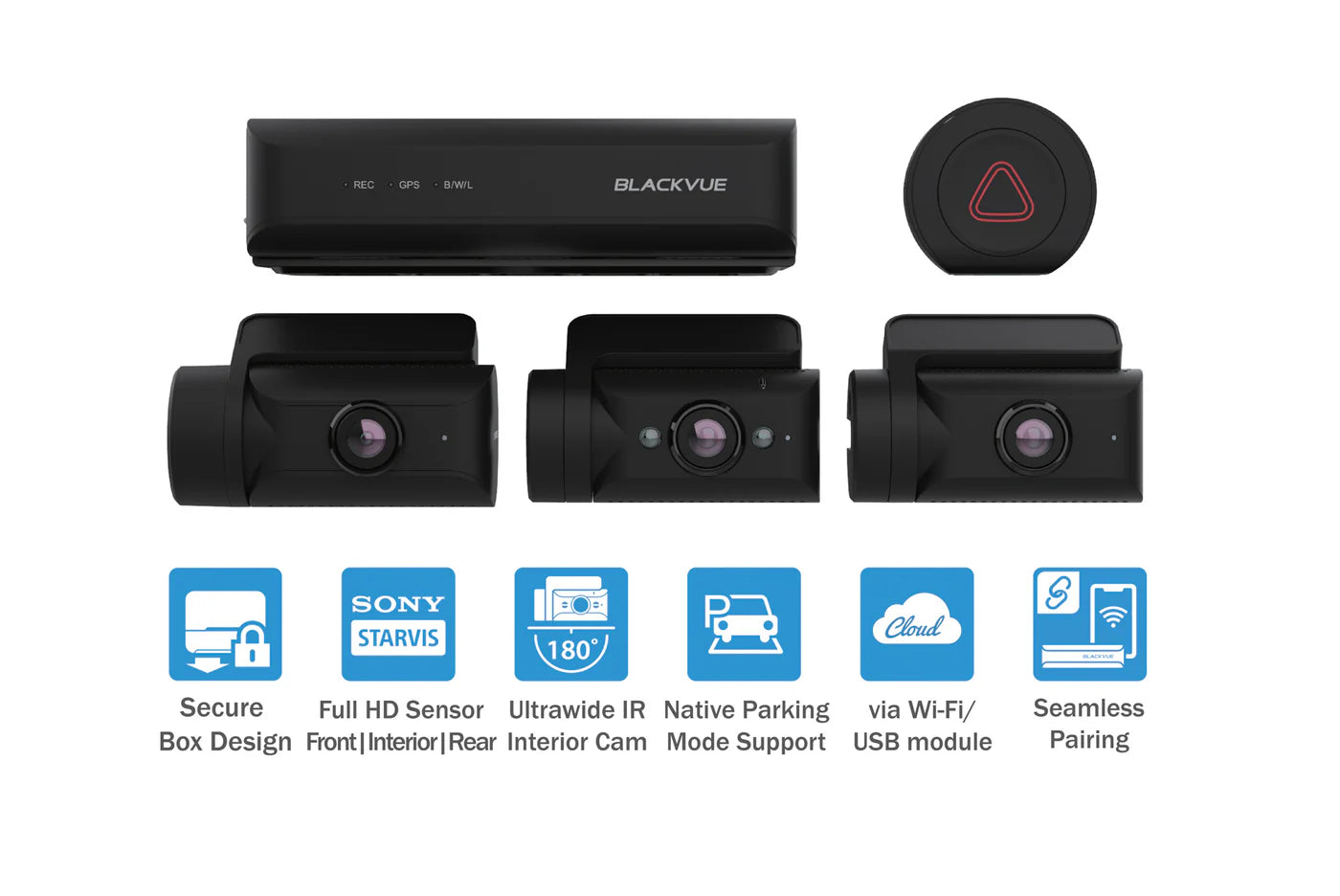

| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Color/Size/Weight |

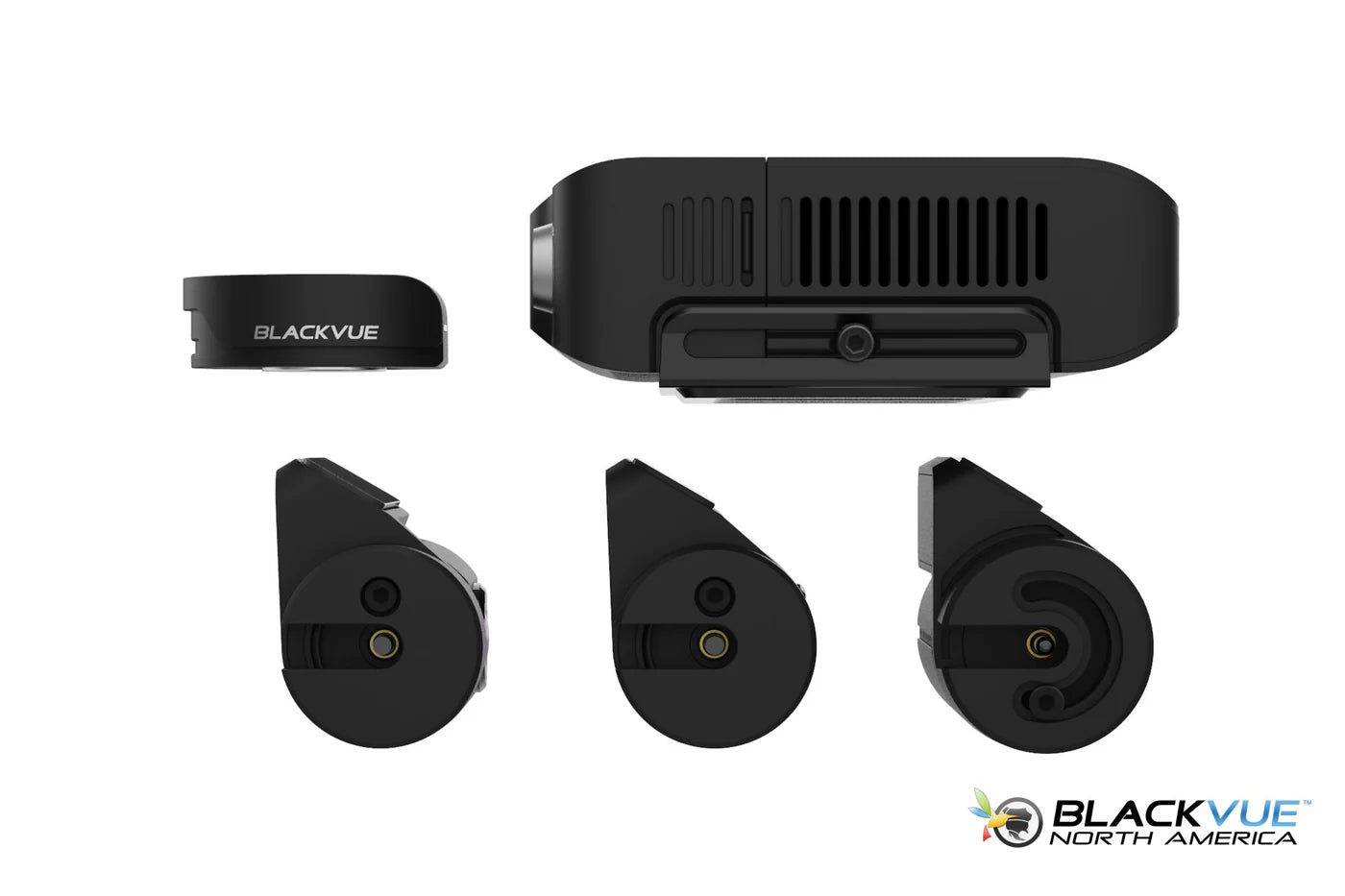

Main Unit: Black / Length 5.12 in x Width 3.98 in x Height 1.30 in / 7.37 oz Front: Black / Length 2.46 in x Width 1.35 in x Height 1.34 in / 1.52 oz Rear: Black / Length 2.50 in x Width 1.26 in x Height 1.26 in / 1.16 oz Interior IR: Black / Length 2.50 in x Width 1.26 in x Height 1.26 in / 1.20 oz Wireless Button: Black / Length 1.78 in x Width 1.65 in x Height 0.57 in / 0.81 oz |
| Memory | microSD Card (64 GB / 128 GB / 256 GB/ 512GB) |
| Recording Modes |
Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode |

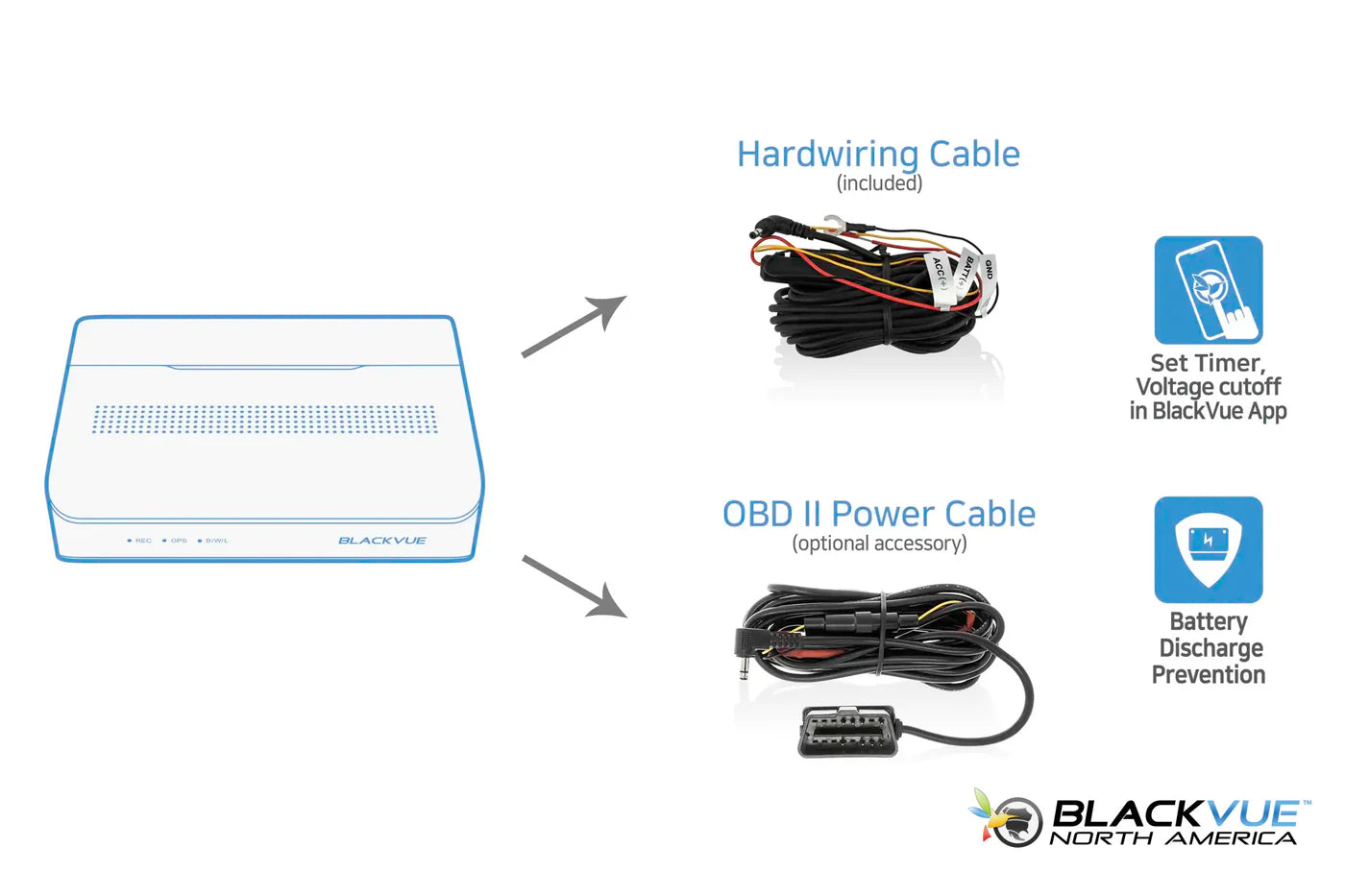

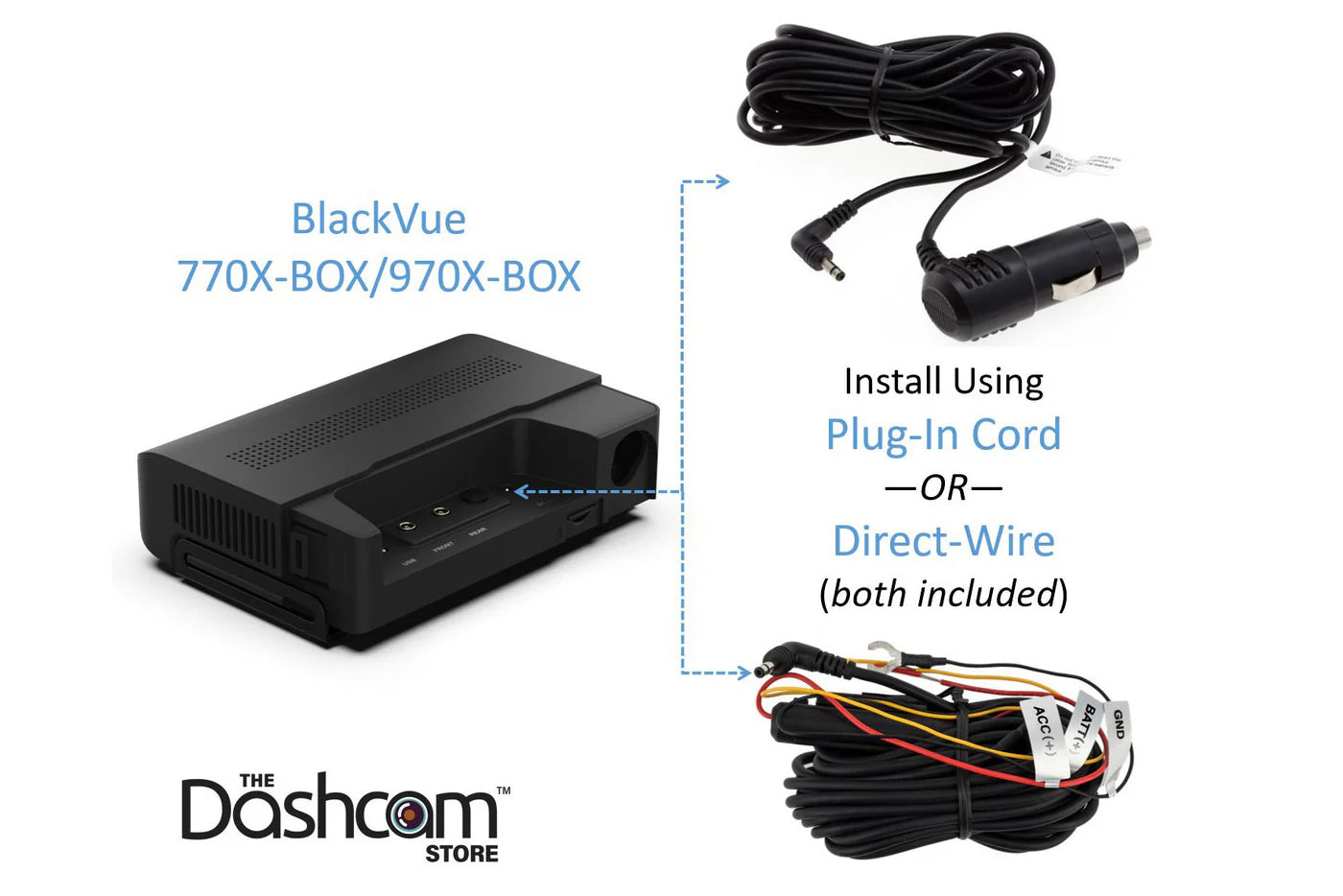

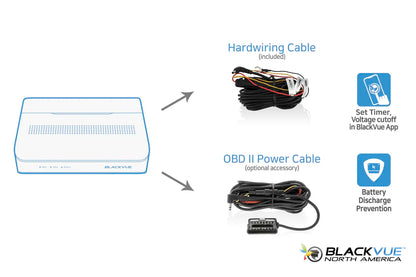

YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Camera |

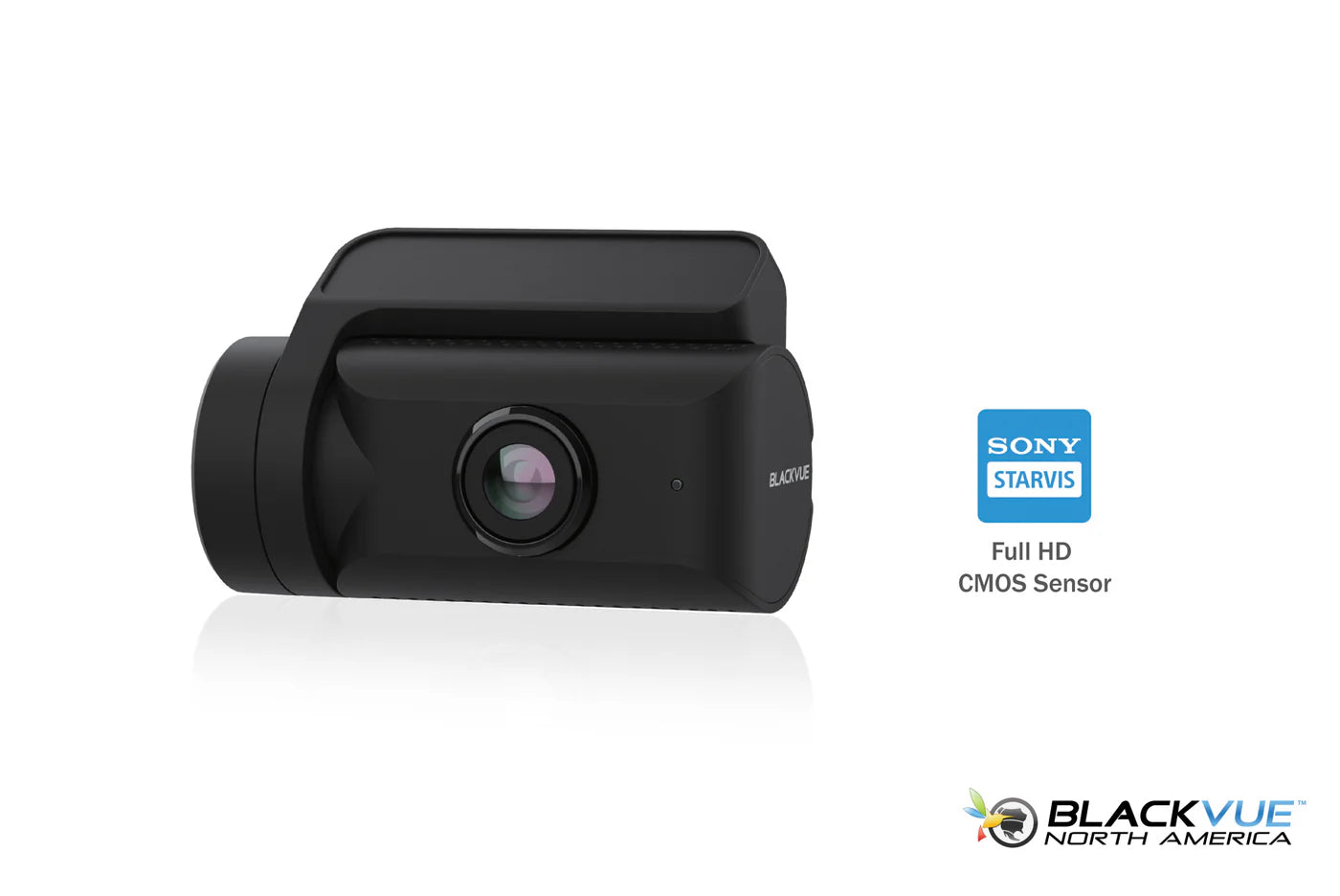

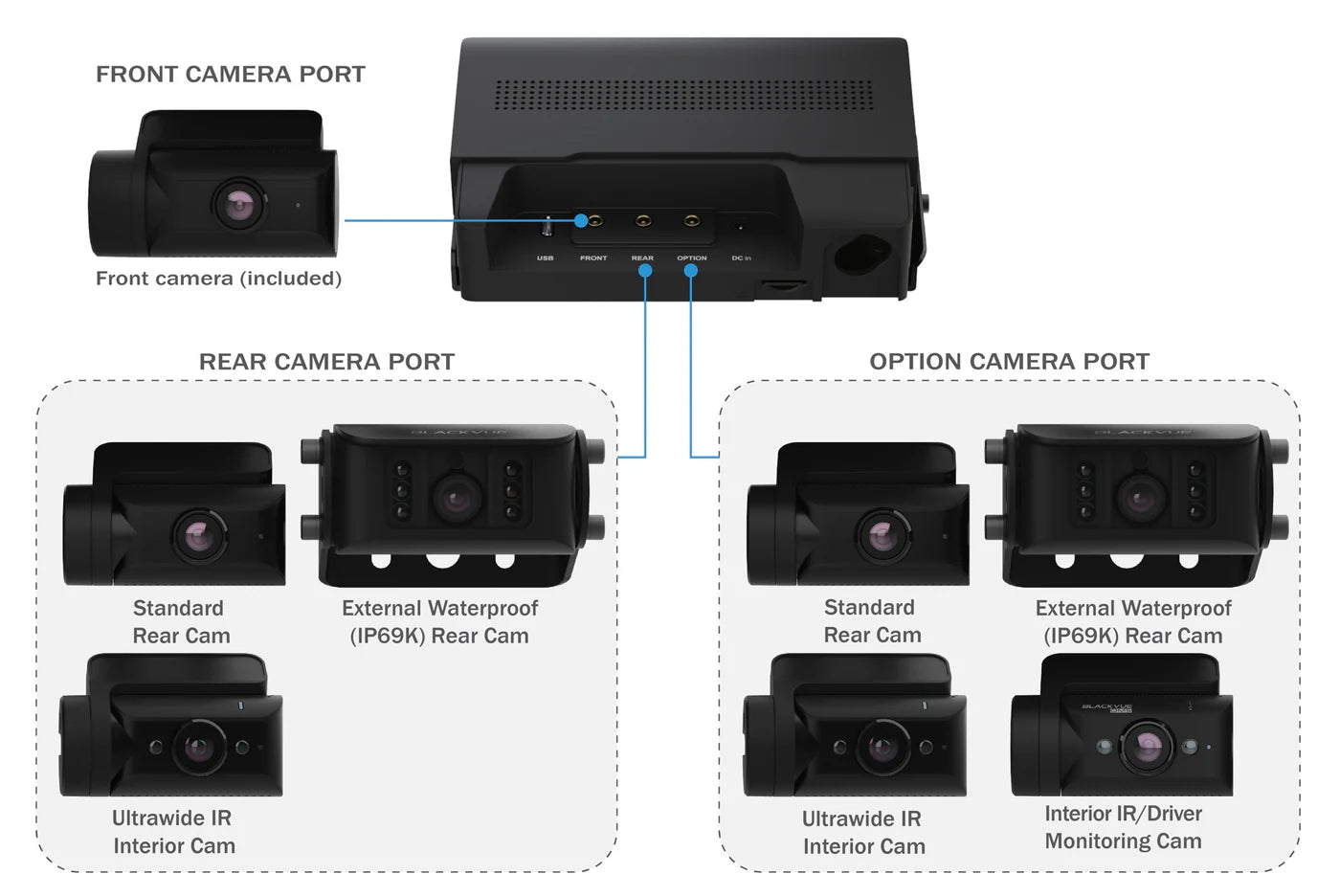

Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61° Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61° Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93° |
| Resolution/Frame Rate |
Front / Rear / Interior IR Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality (MB/s) |
Front / Rear / Interior Extreme: 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 51) |
| Video Compression Mode | MP4 |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |

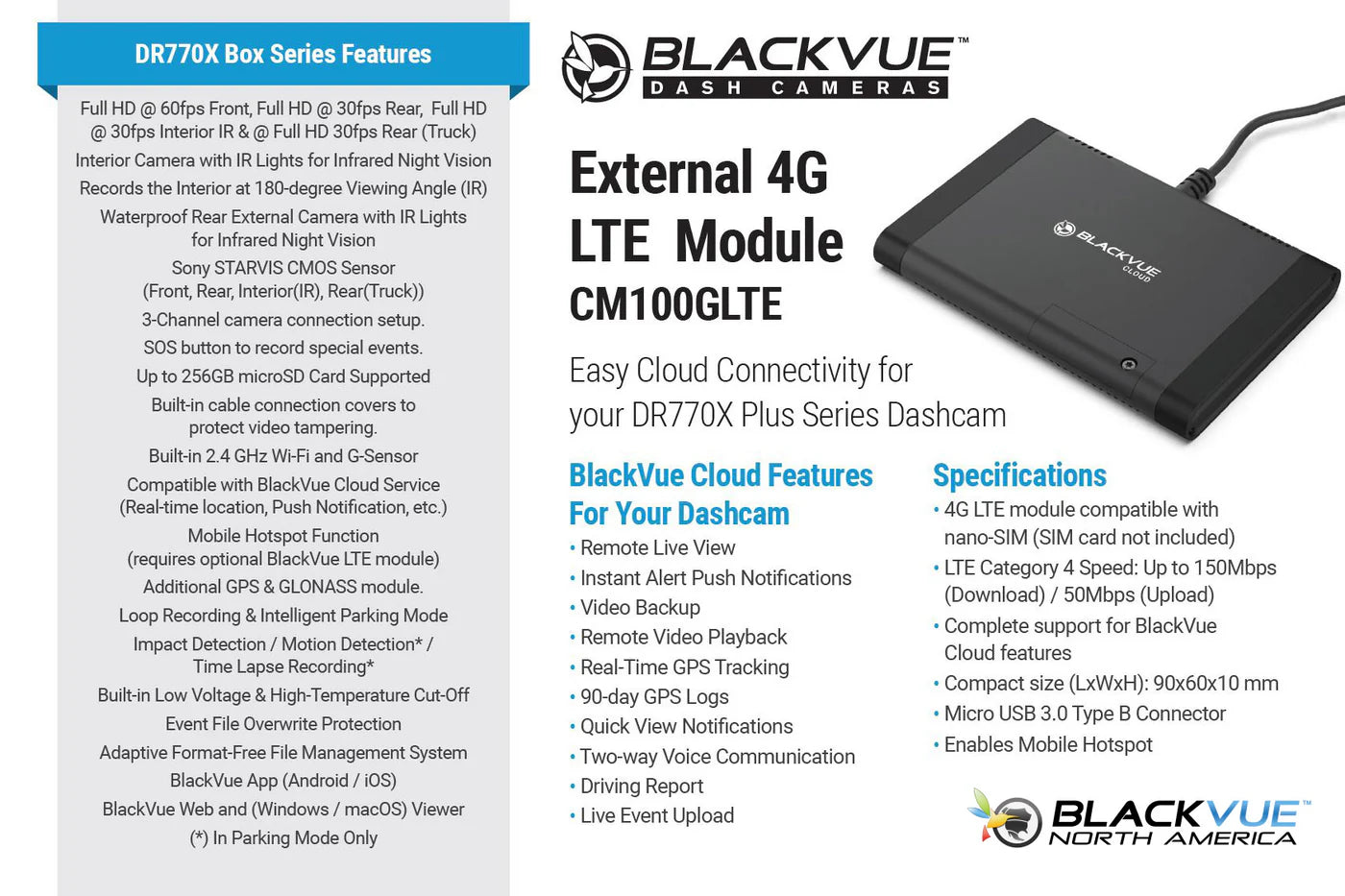

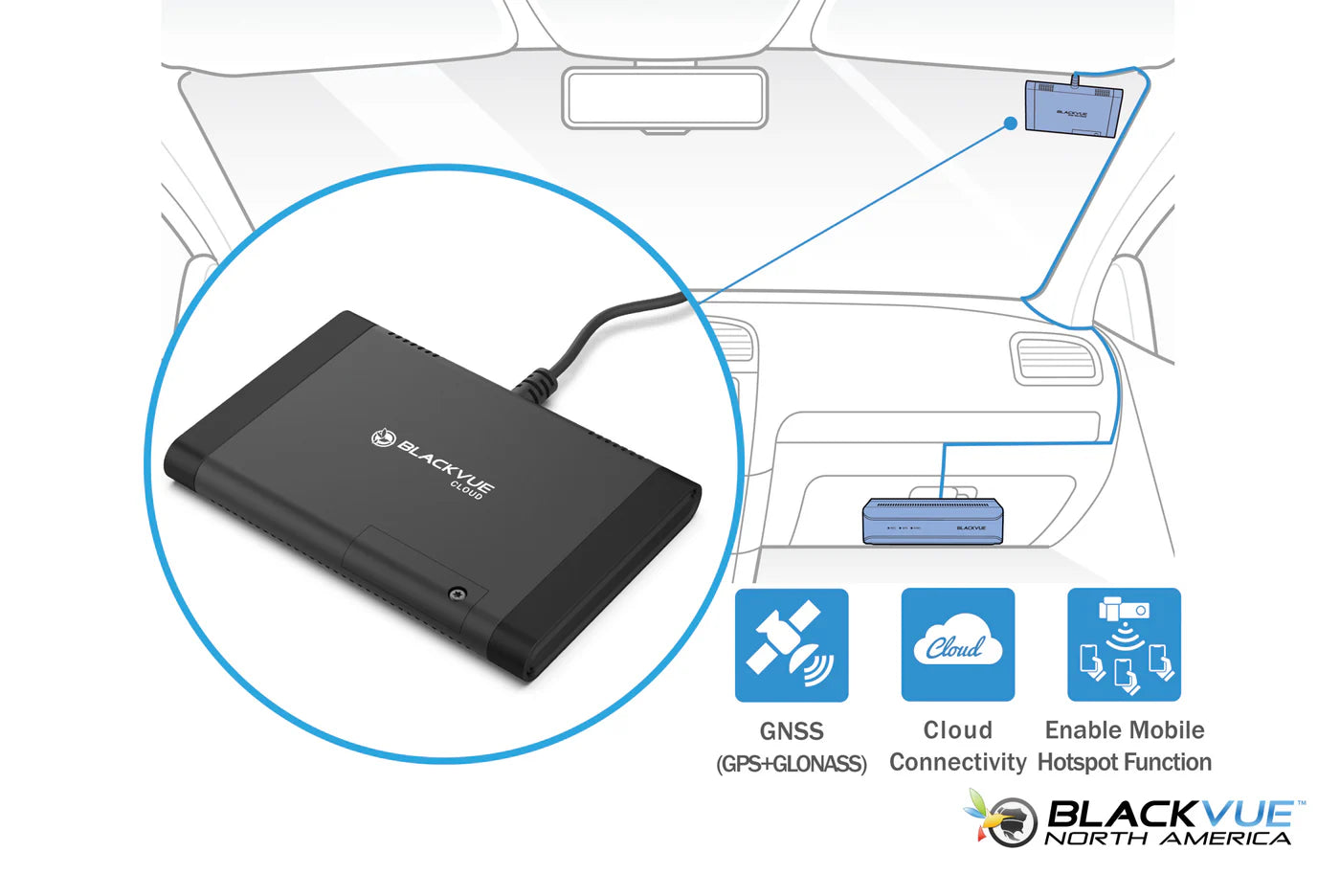

| LTE | Optional External Module |
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker (Voice Guidance) | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators |

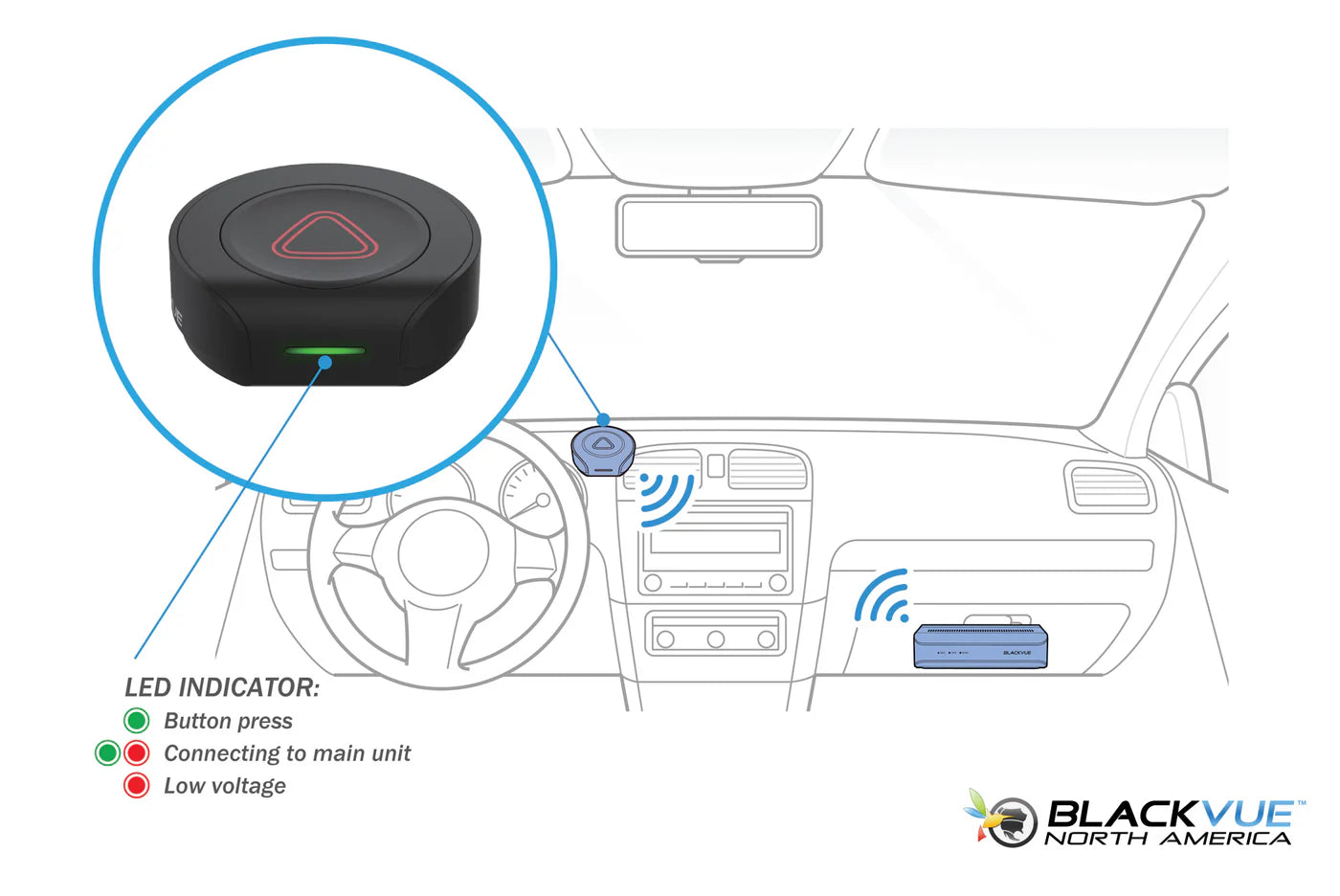

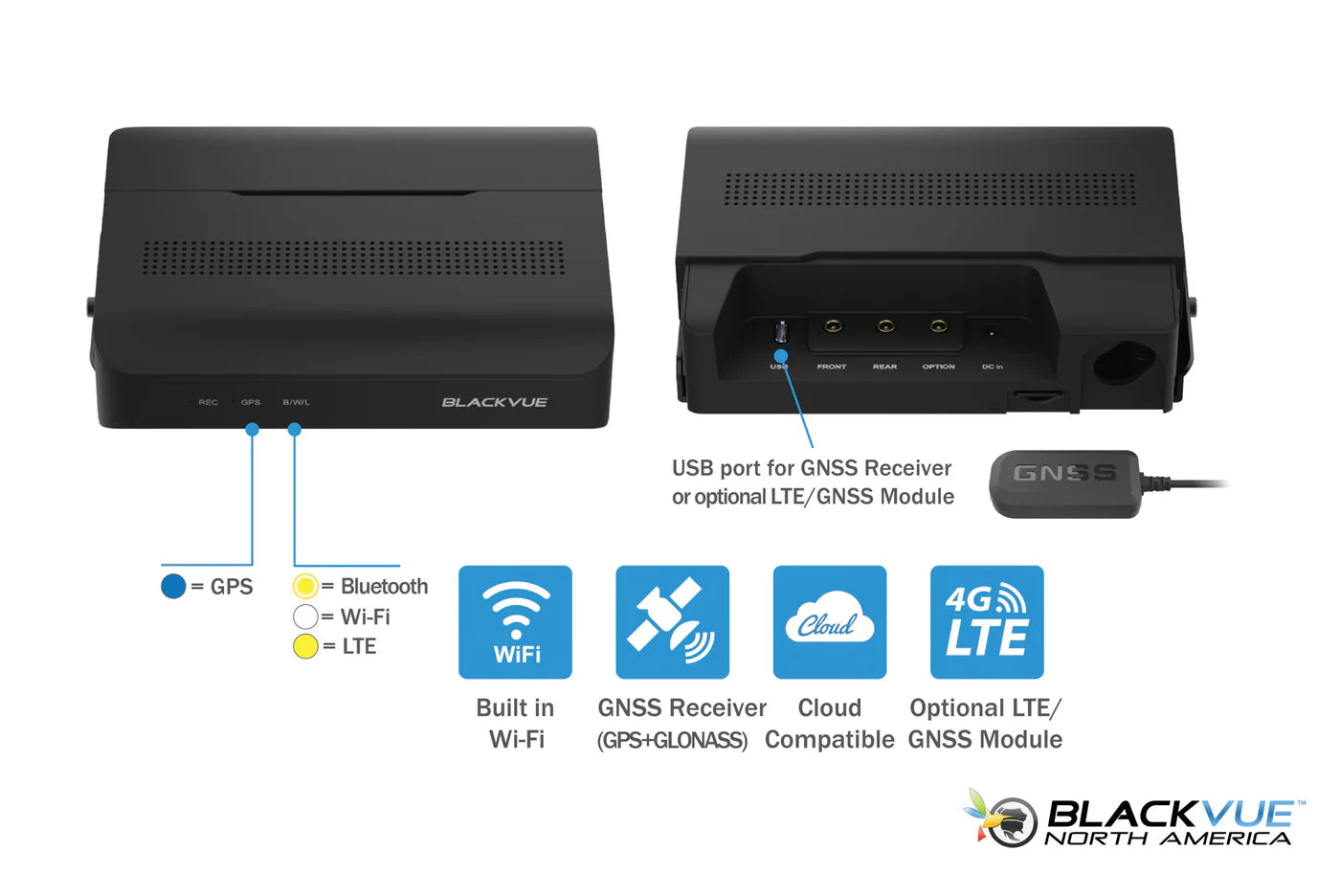

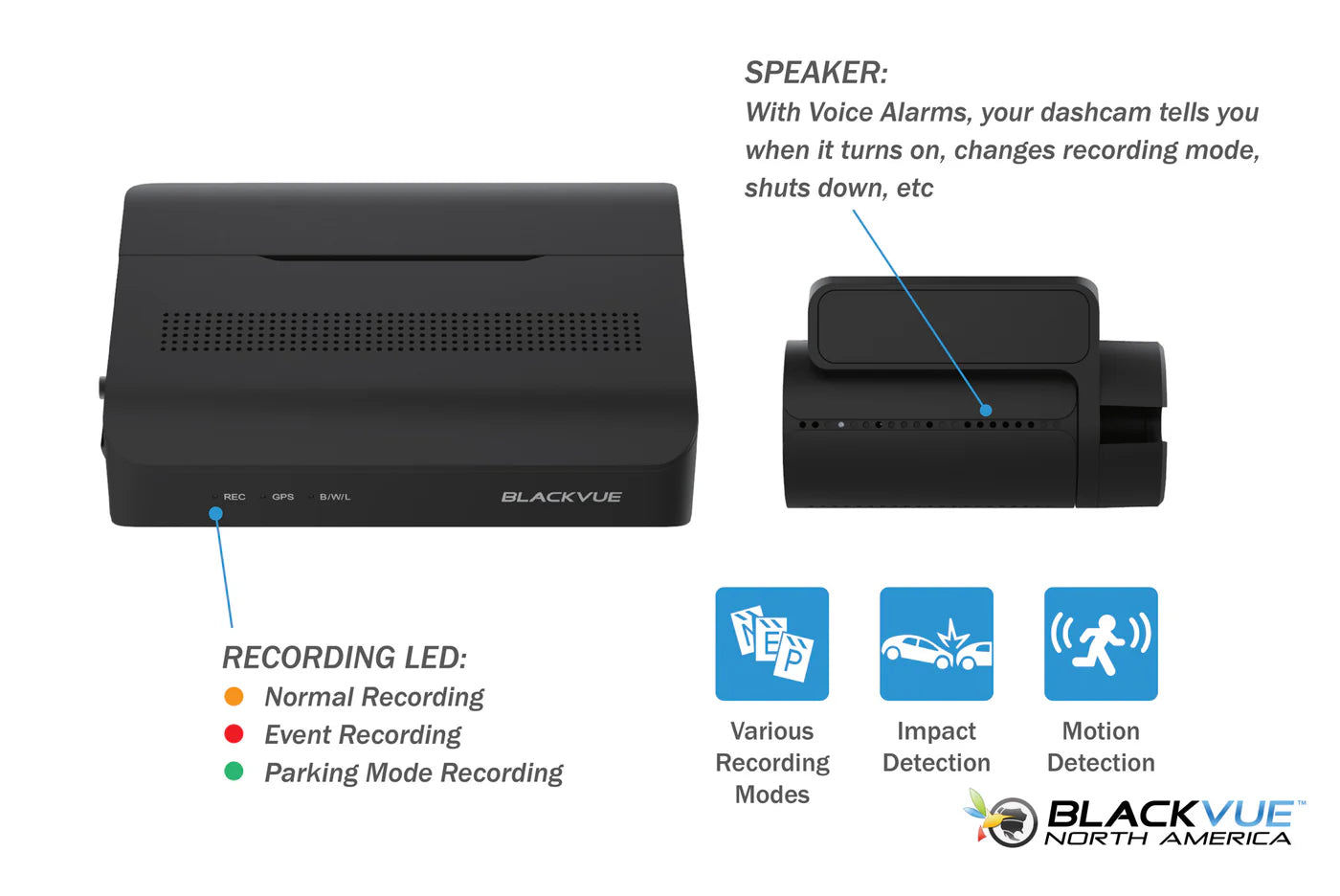

Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Front: Front & Rear Security LED Rear: Front & Rear Security LED Interior IR: Front & Rear Security LED EB-1: Operating / Battery low voltage LED |
| Rear Camera IR Illumination |

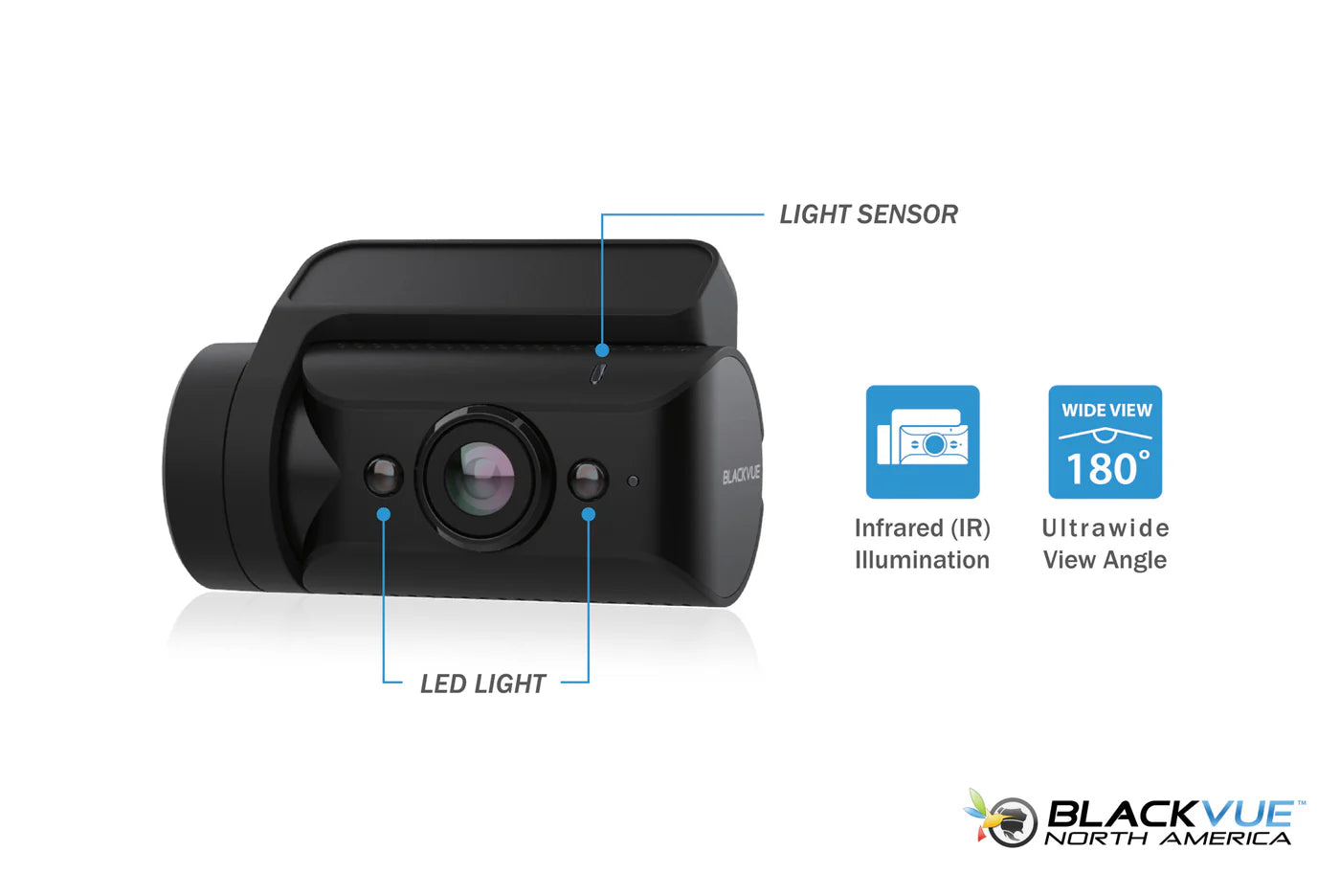

Interior IR: 940nm (2 Infrared (IR) LEDs) |
| Button |

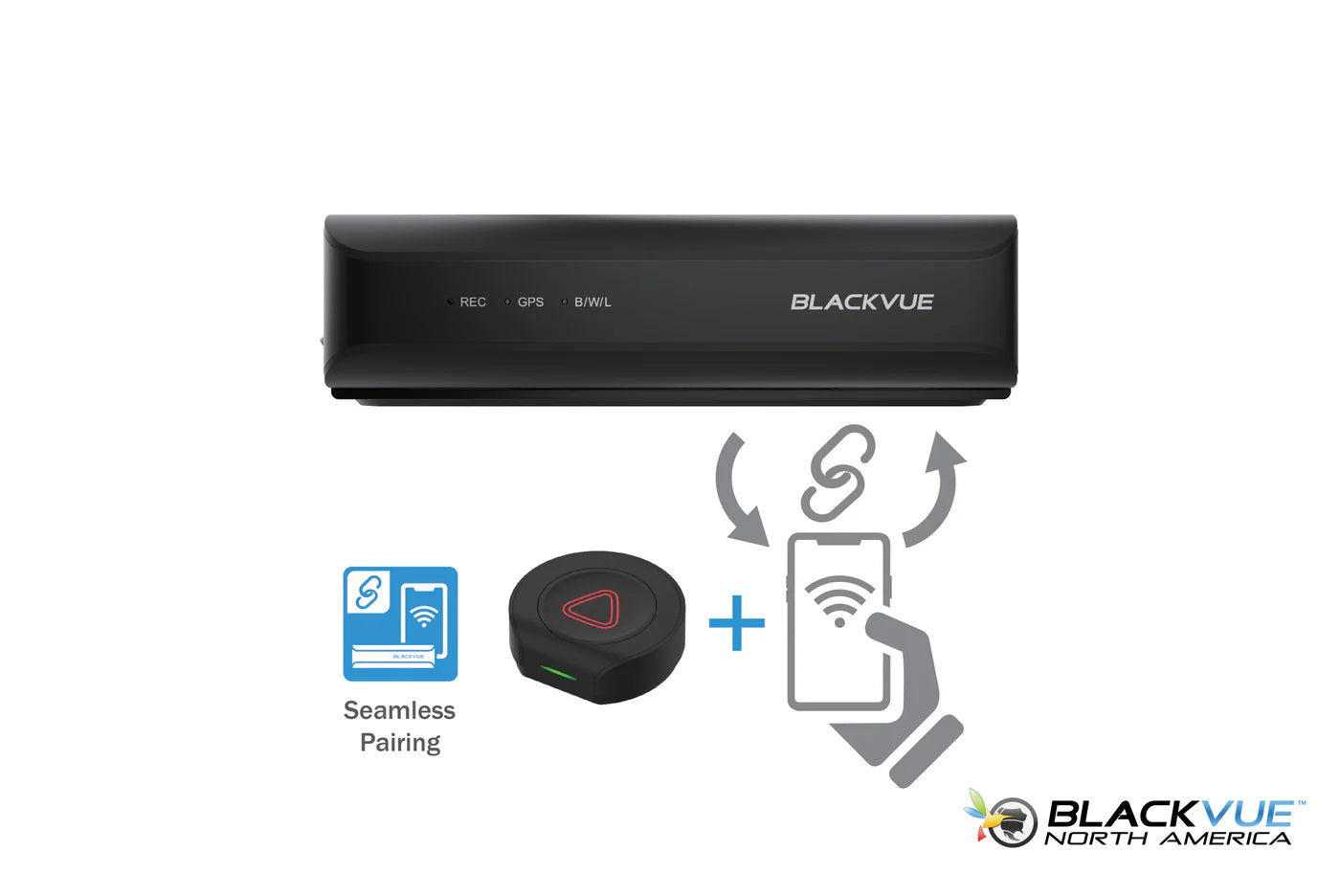

EB-1 button : Press the button – manual recording. |
| Backup Battery | Built-in supercapacitor |

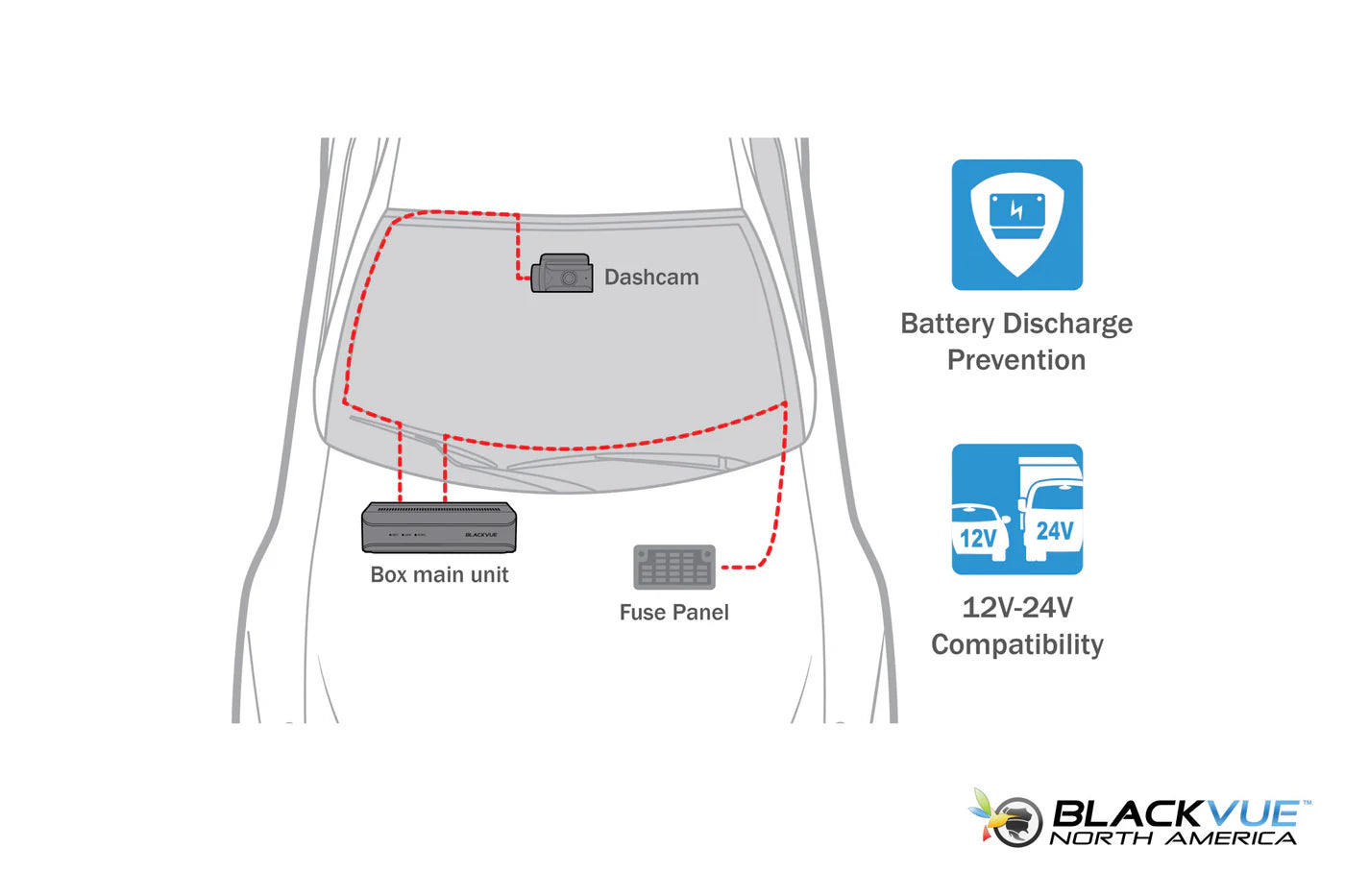

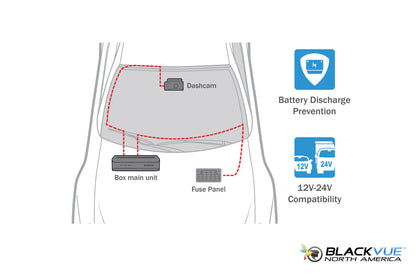

| Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption |
Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V * Approx.40mA increase in current when Interior Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temperature Cut-Off | Approx. 75 °C (167 °F) |
| Certifications |
Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC |
| Software |
BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Other Features | Adaptive Format Free File Management System |
