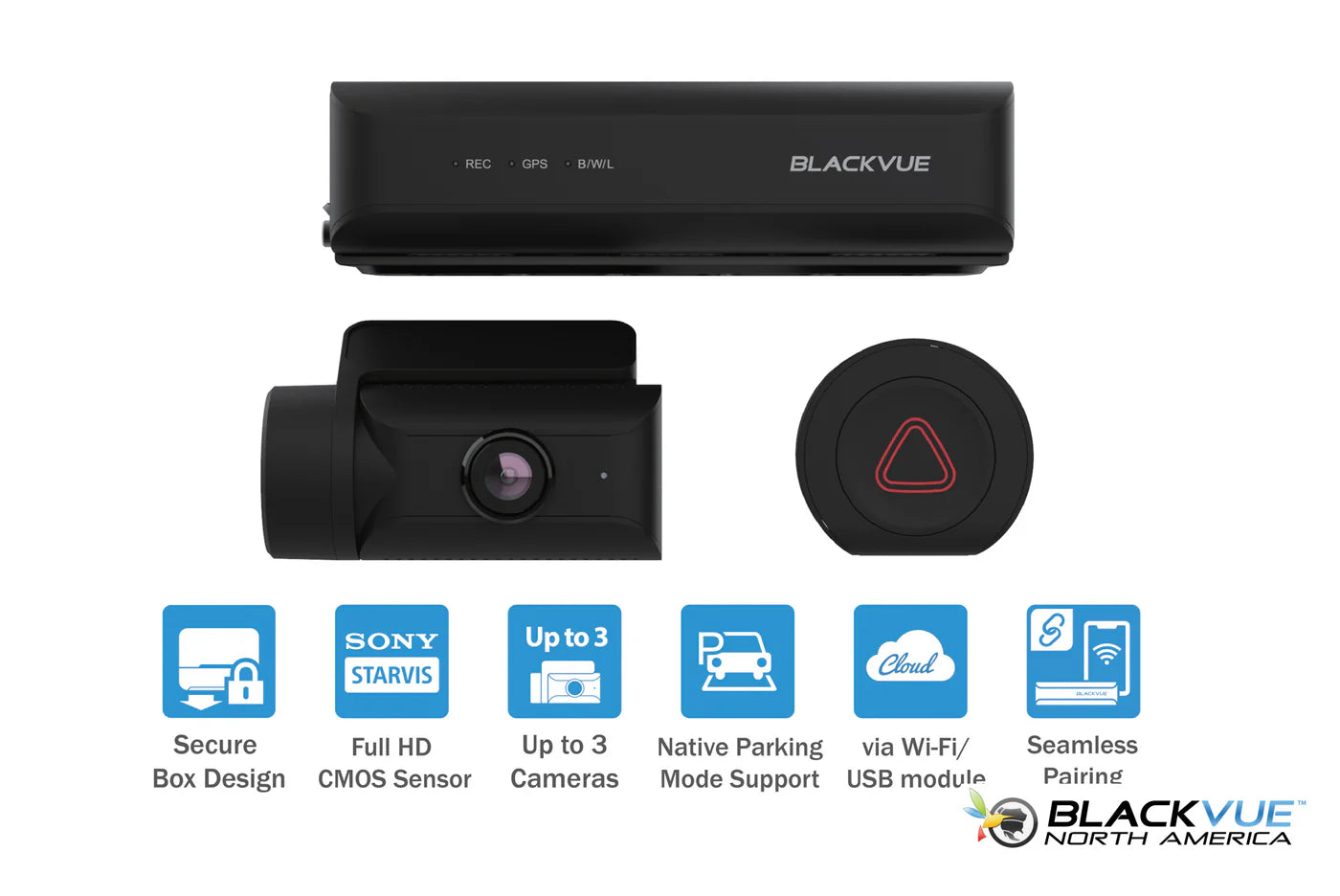

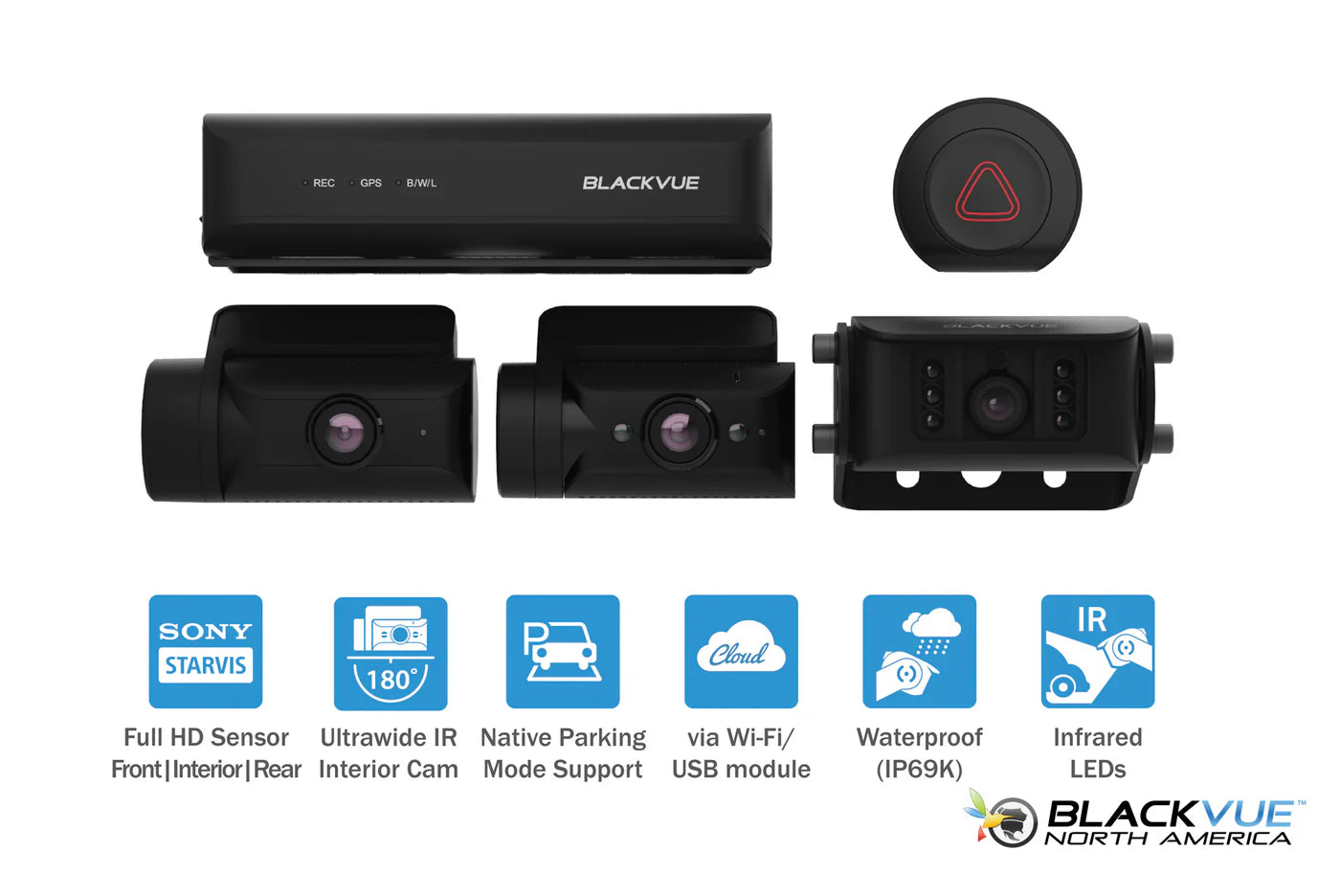

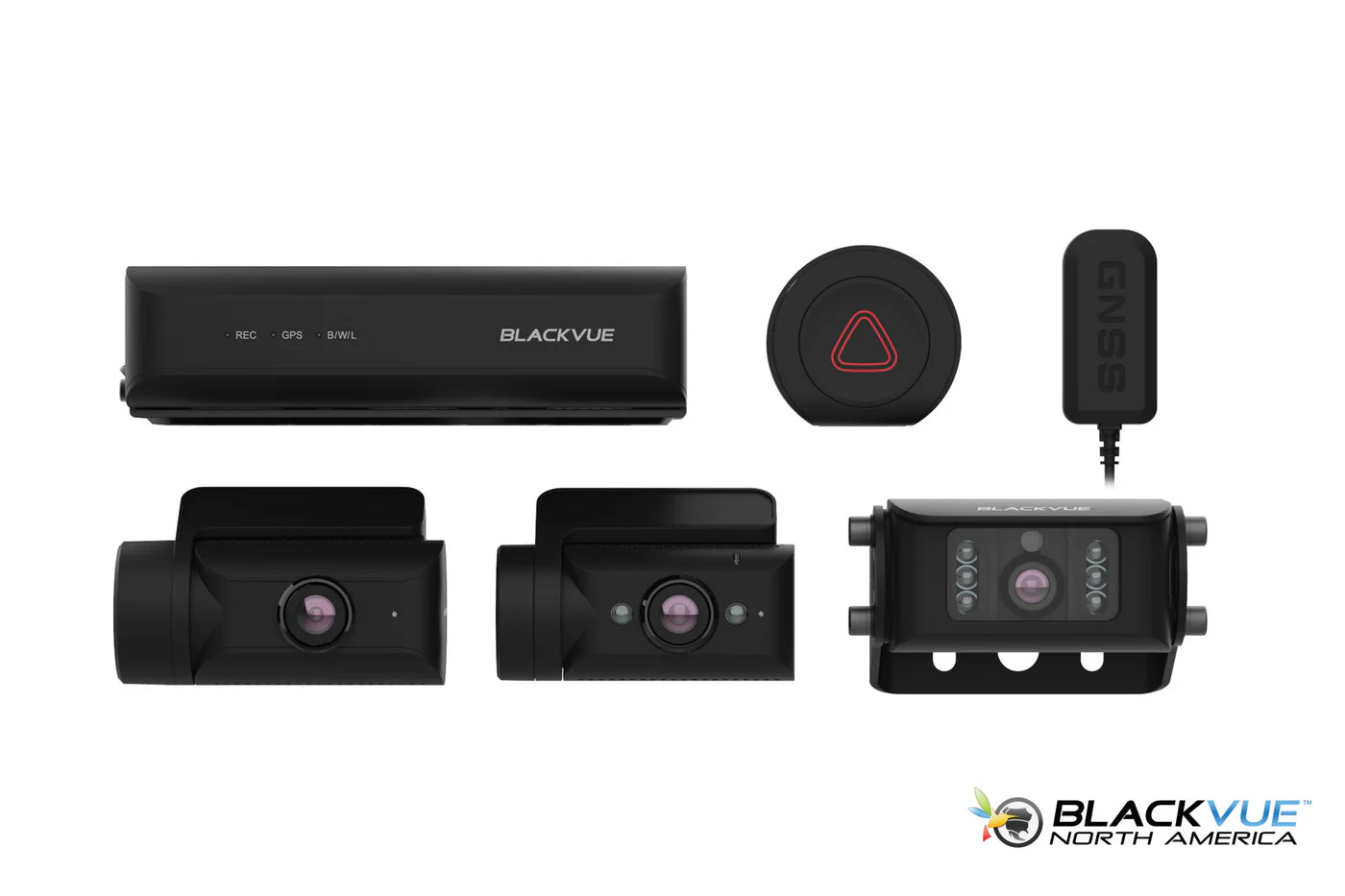

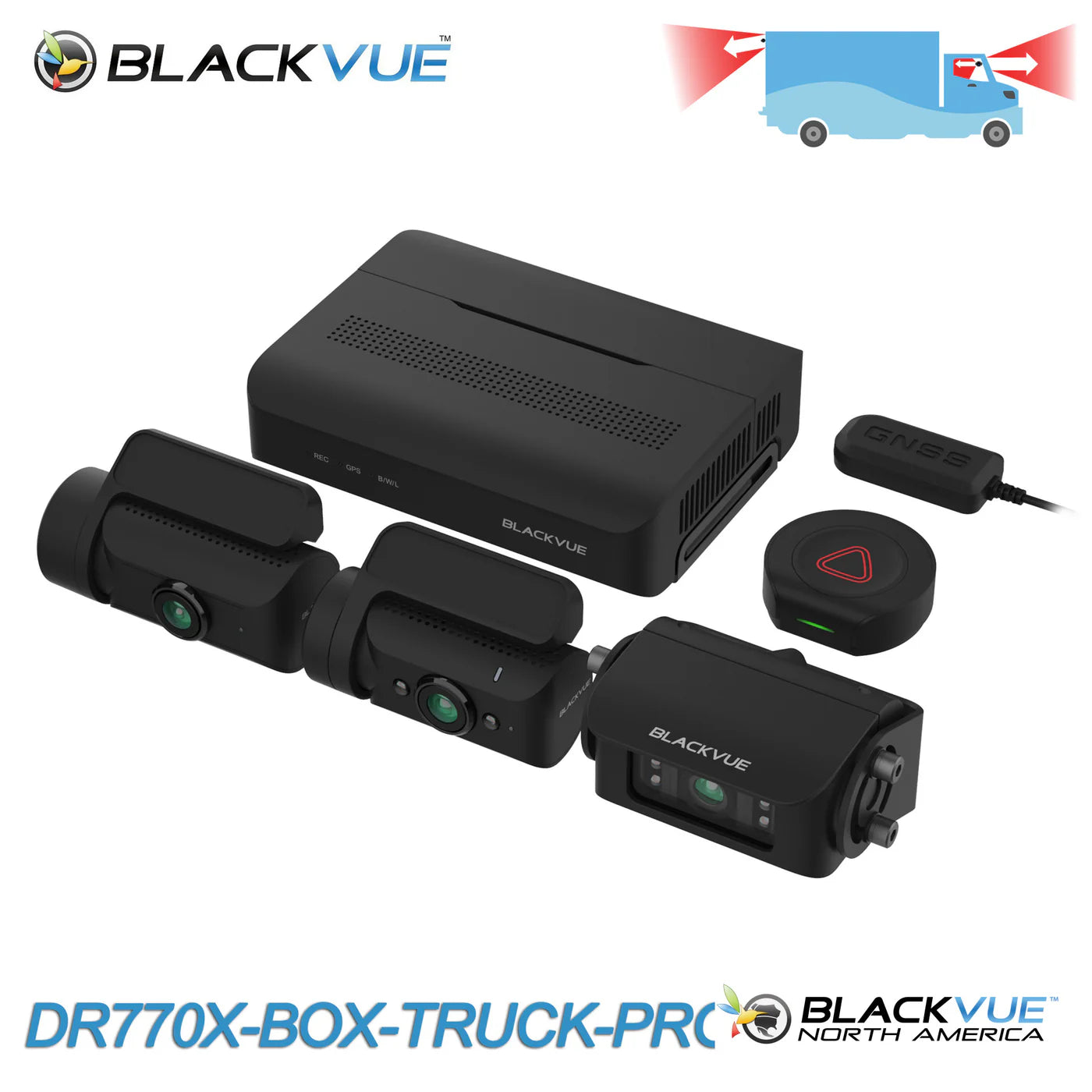

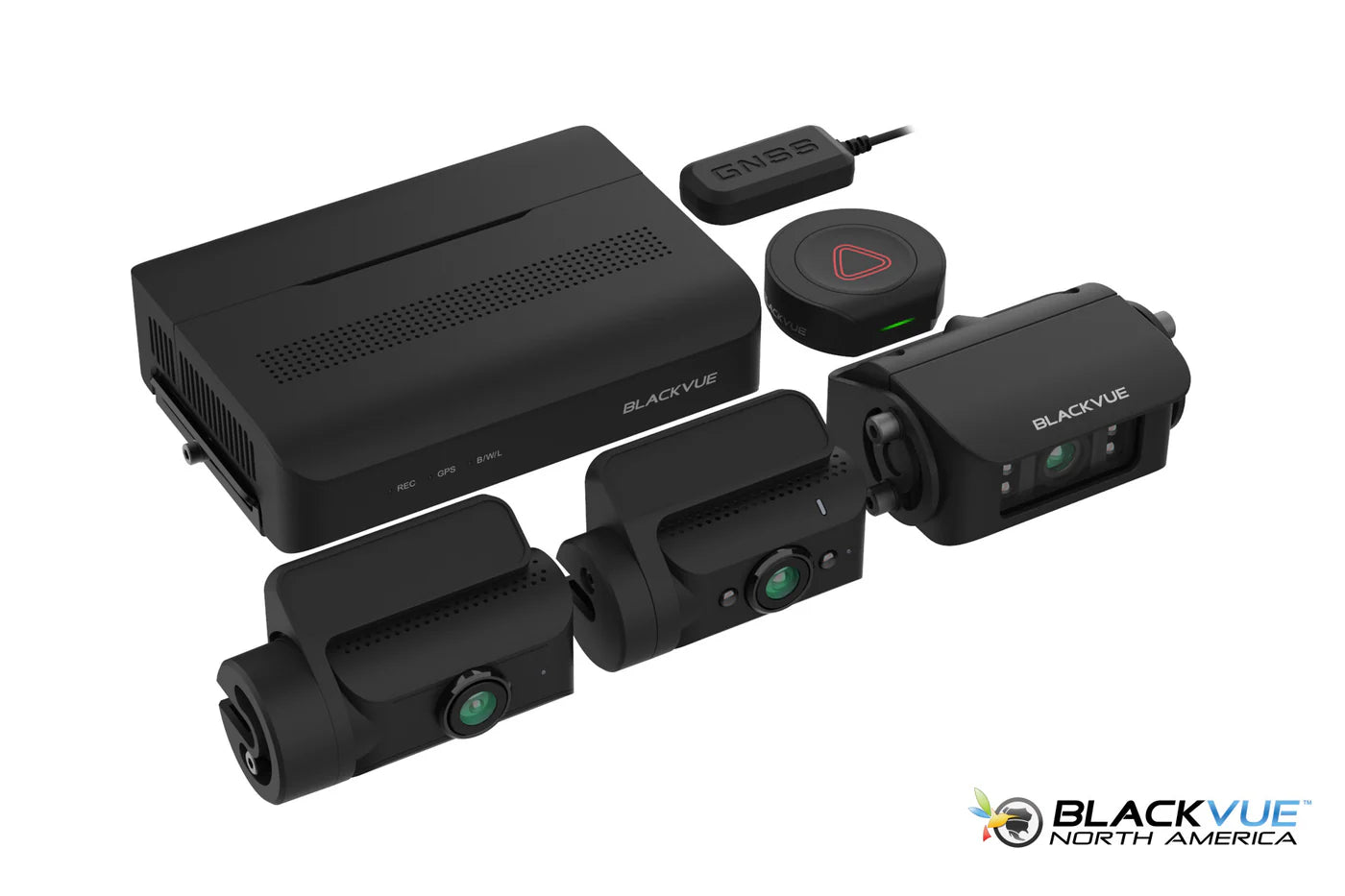

The BlackVue DR770X BOX TRUCK PRO brings robust surveillance in a compact, all-in-one front, rear, and interior dash cam with a separate recording box. This PRO series brings a longer 10-second event buffer and new fleet management features, ideal for individual drivers and fleet operators alike. Its unique, weatherproof rear camera is designed for external mounting, perfect for trucks, vans, and heavy-duty vehicles. With Sony STARVIS sensors, built-in infrared, real-time tracking, cloud uploads, and LTE connectivity options, the DR770X BOX TRUCK PRO ensures clear video and continuous vehicle monitoring, day or night.
The DR770X BOX TRUCK PRO is an ideal choice for monitoring most large commercial trucks. Its waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable, allowing you to observe not only the road behind but also cargo loading and unloading processes.
Additionally, the ultra-wide interior camera is equipped with infrared LEDs, ensuring clear cabin footage regardless of lighting conditions. An optional LTE Connectivity Module can be connected, maintaining continuous dashcam connection to the Cloud for live map locations, remote live viewing, and two-way communication.

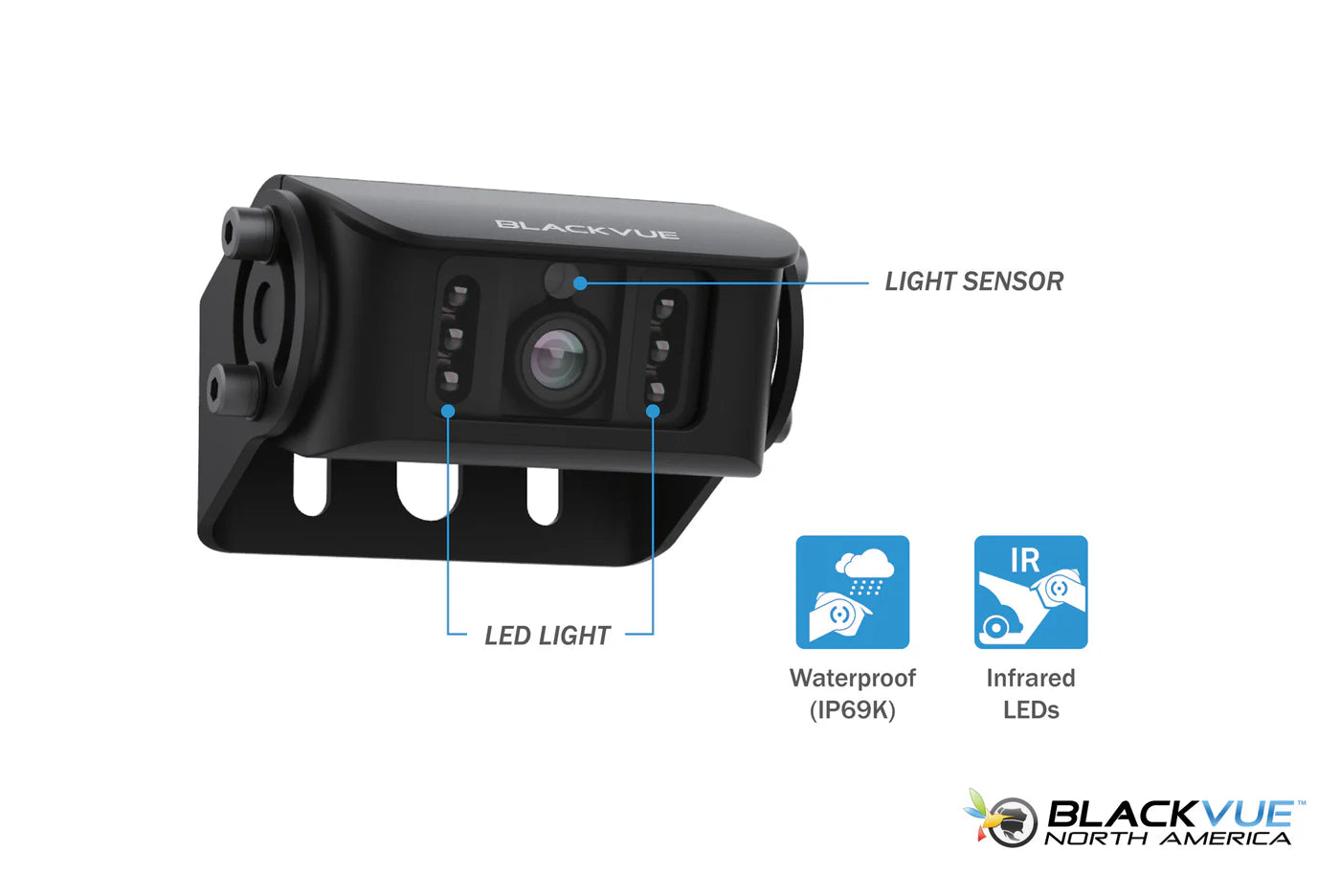

The DR770X Box Truck's rear camera boasts a robust, waterproof metal casing, designed to endure even the most challenging weather conditions. With an Ingress Protection rating of IP69K, the camera can withstand power washing, making it an ideal choice for those operating in harsh environments. This camera is intended for installation at the rear of trucks or heavy vehicles and includes screws to secure it on a flat surface. Moreover, it is equipped with a luminosity sensor that detects ambient light levels, automatically activating its six infrared lights to help identify vehicles and objects in low light conditions.

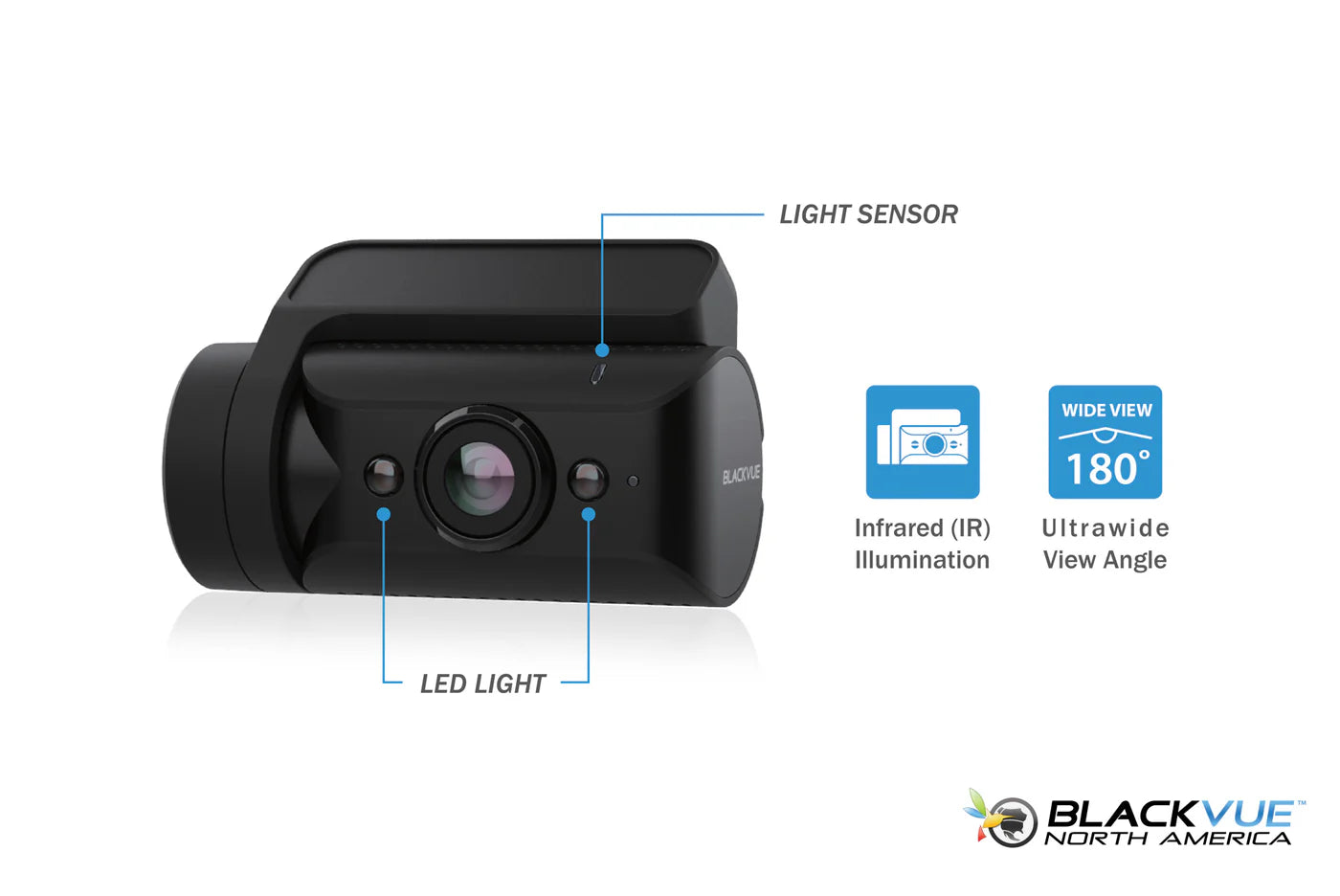

The infrared camera offers improved security for your vehicle's interior. In low-light situations, its infrared LEDs switch on, while its broad 180-degree viewing angle records both sides of the car. The BlackVue app or viewer enables customization of the camera's settings, which is particularly beneficial for rideshare operators and managers overseeing their vehicles, as well as worried parents of novice drivers.

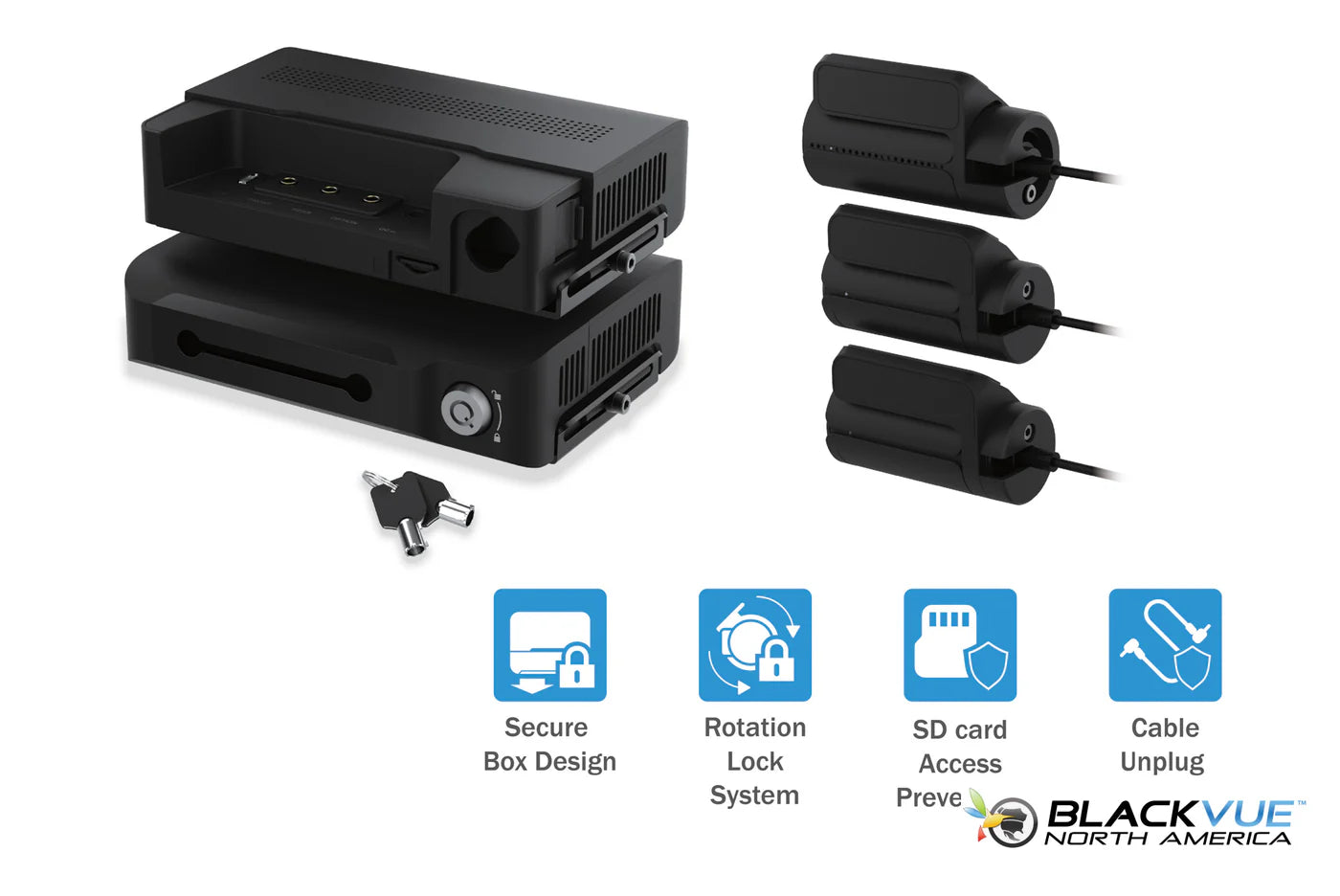

The DR770X Box has been specifically engineered to deter tampering. Its primary unit includes a cover that can be secured with a key, efficiently blocking unauthorized access to the microSD card and cable connectors. The camera covers are fastened with a hex screw to prevent cable unplugging and secure the camera angle within the mount.
Recording video at 60 frames per second offers significant benefits. With the DR770X, you can capture ultra-smooth videos that preserve every detail, even in fast-paced action scenes. As a result, the camera is better equipped to capture crucial details like license plates, even when objects are in motion, as motion blur is greatly reduced compared to 30fps.
GPS: While reviewing the footage, you can track the location of your vehicle on a map, and the video can also display your speed as an overlay. If you prefer not to have the speed displayed, you can hide it through the settings.

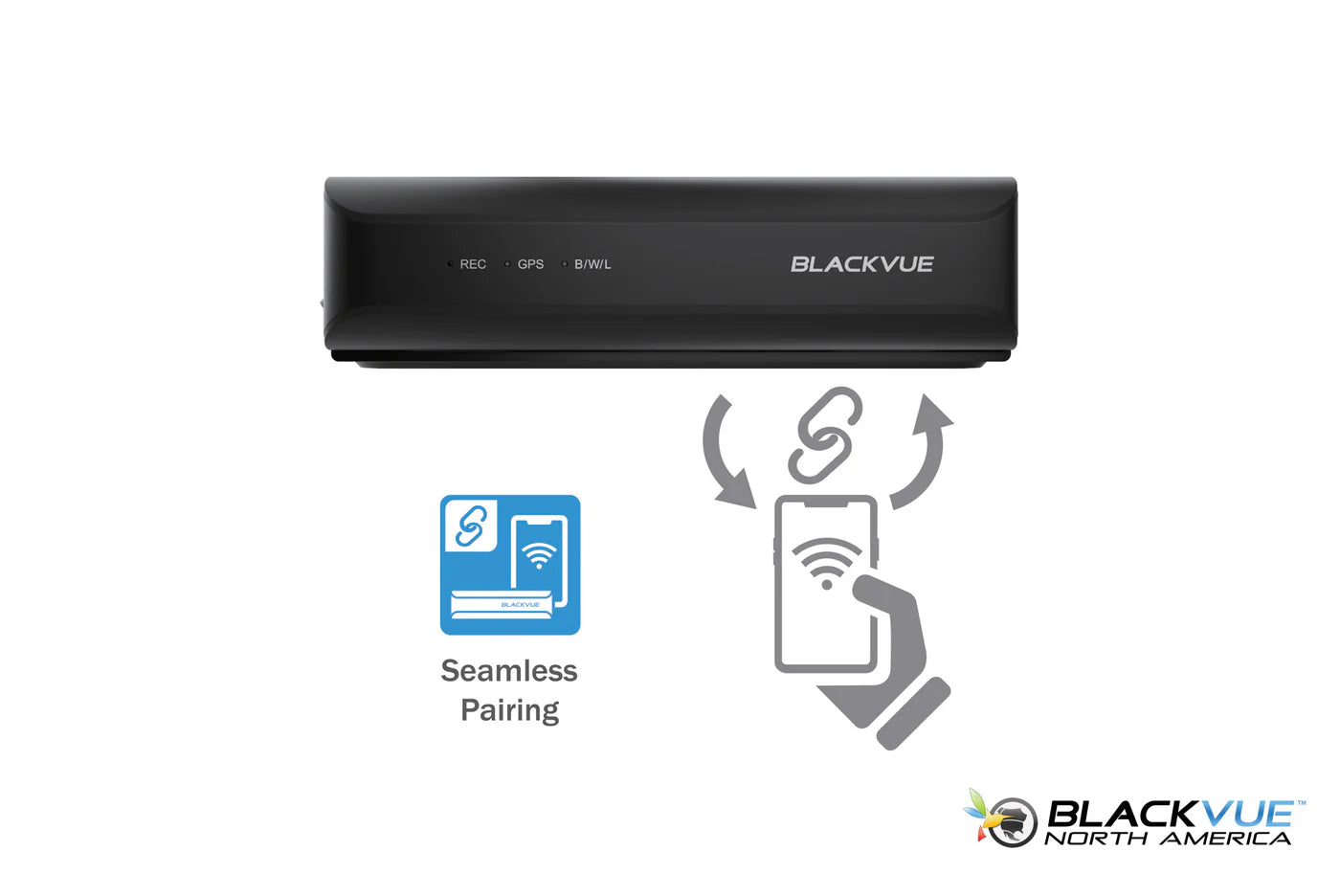

Wi-Fi: Thanks to its Wi-Fi capabilities, you can effortlessly link your BlackVue dashcam to your smartphone or tablet. Moreover, Wi-Fi connectivity allows the camera to connect to the BlackVue Cloud via any mobile or home Wi-Fi hotspot or router. This connection grants easy access to files and settings.
Optional LTE: For the optimal Cloud experience, you have the option to connect the DR770X to the BlackVue Cloud via an LTE connectivity module. The module can be connected via the USB port.
SIM card included!

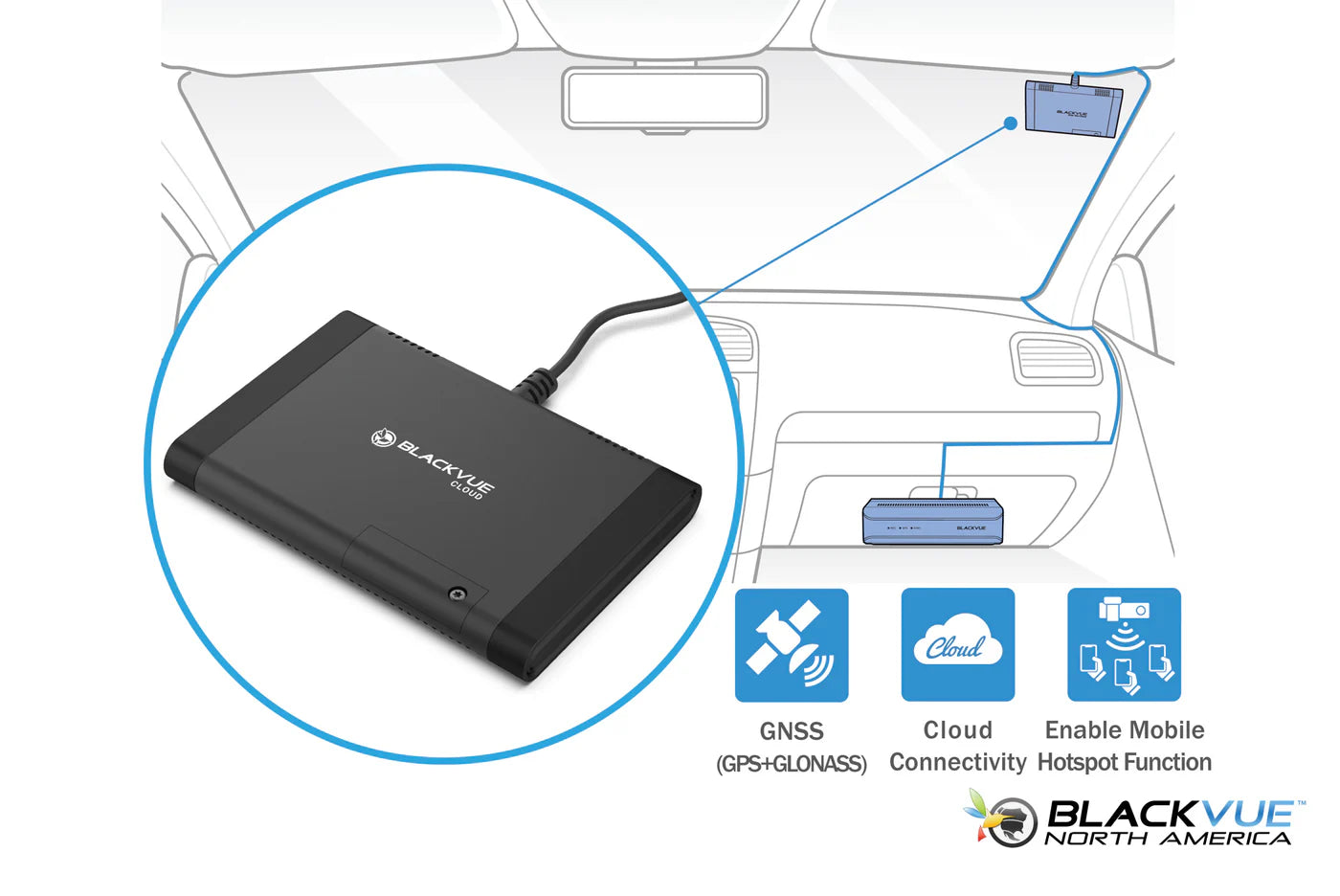

With the optional CM100LTE module, connecting to the cloud 24/7 is effortless. This add-on device links to the DR770X front camera through a USB port, enabling a constant internet connection. It also transforms the DR770X into a mobile hotspot for up to five devices. Unlike in-vehicle Wi-Fi hotspots, this module stays active while parked, making your dash camera accessible from any location worldwide.

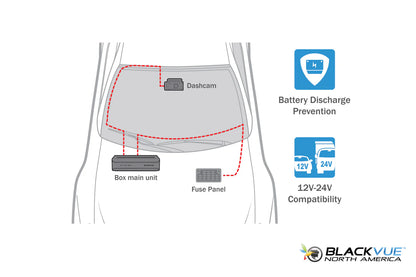

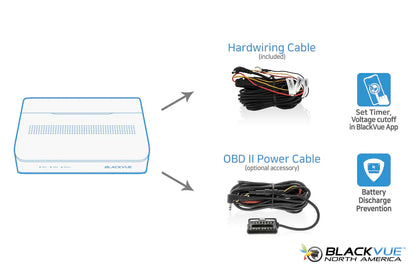

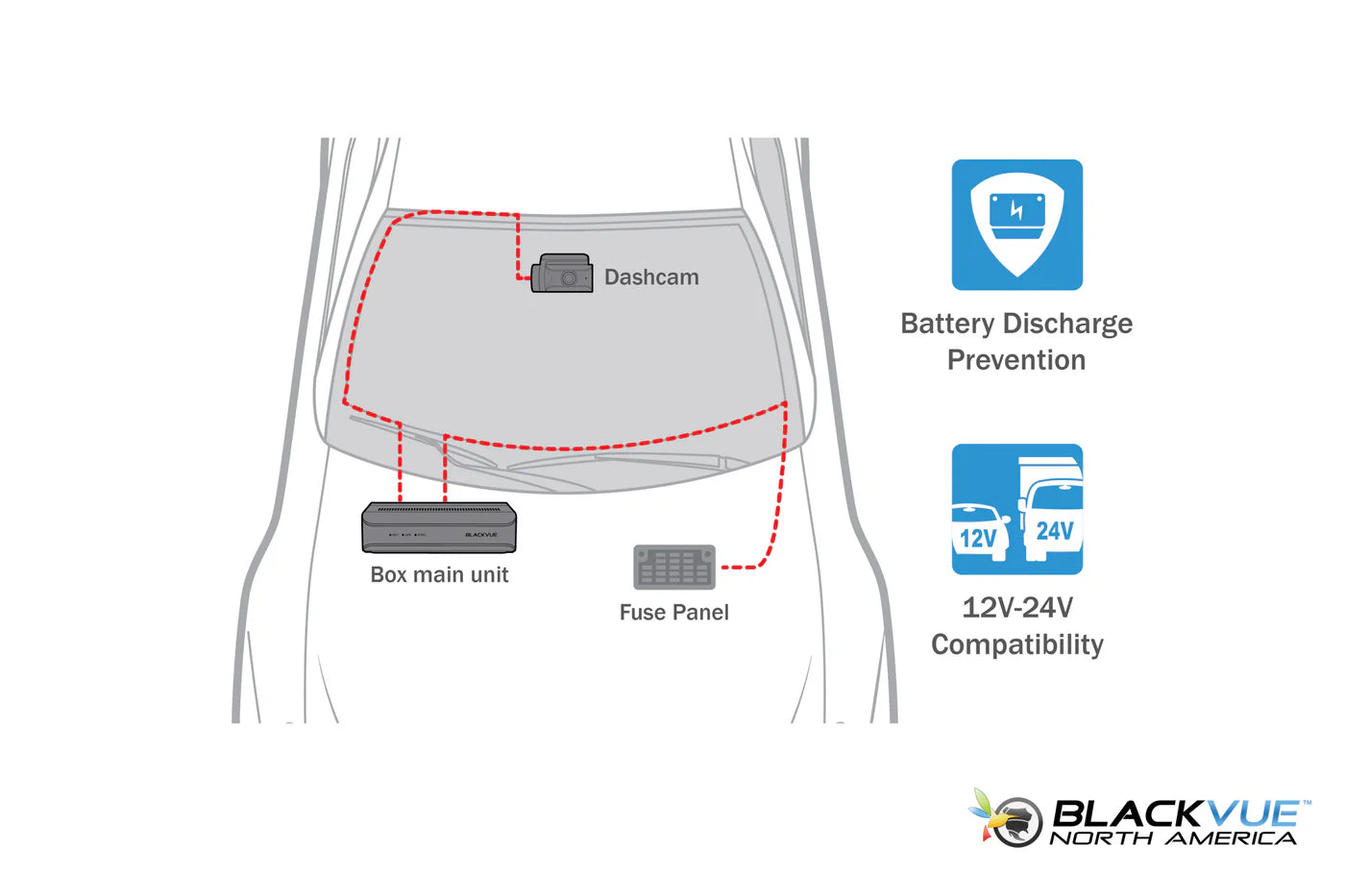

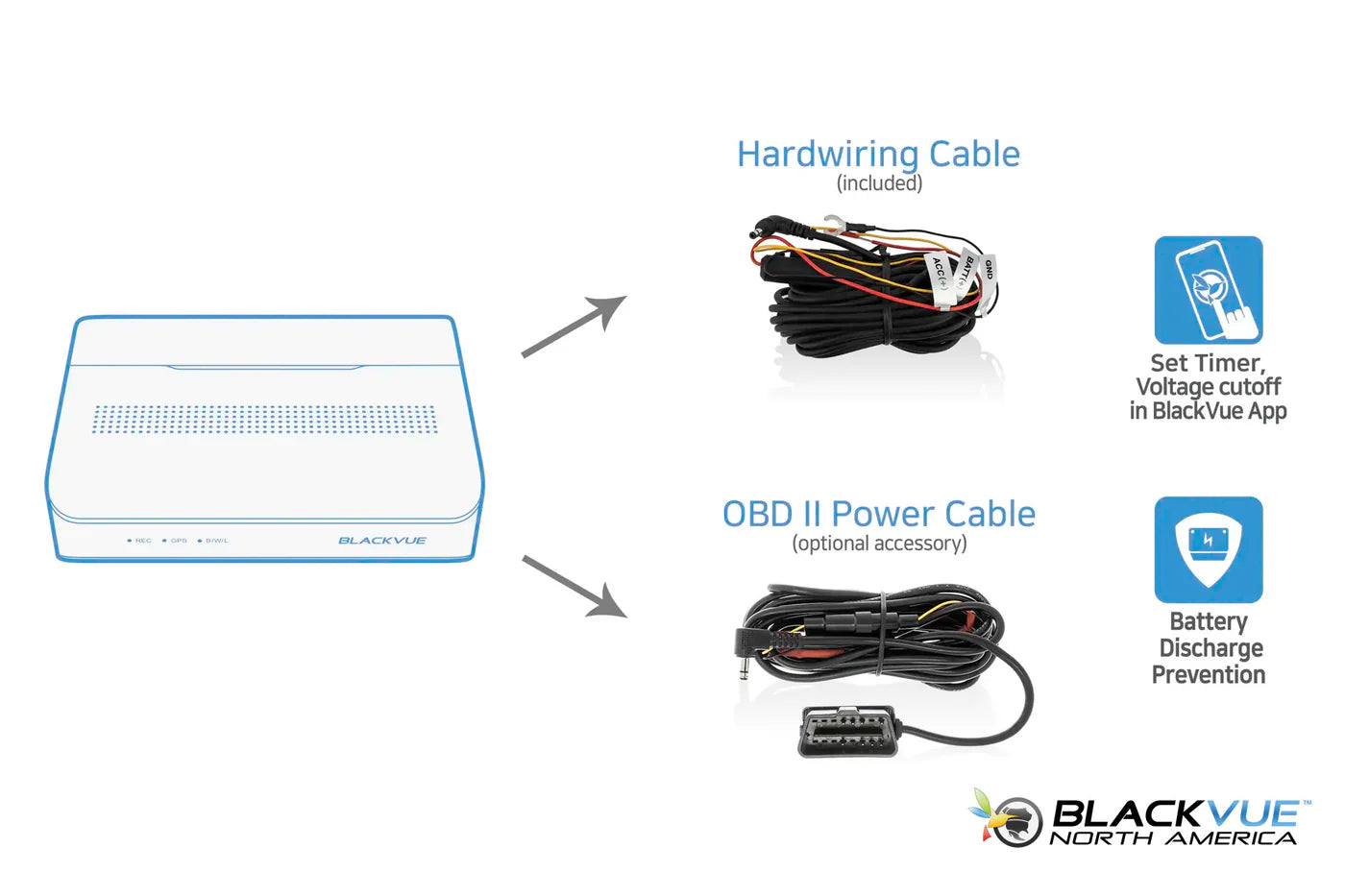

By using the included hardwiring kit or the optional B-130X battery pack, you can hardwire the DR770X to your vehicle's fuse panel for Parking Surveillance Mode. When the ignition is turned off, the DR770X will switch to Parking Mode automatically. There are three variations of Parking Mode available:
Motion Detection: Triggered when the sensor detects movement (marked “P” in the file list).
Impact Detection: Detected by the accelerometer/G-sensor (marked “E” in the file list)
Time Lapse Mode: Records continuously at 1FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Impacts initiate a buffered Event video.
The built-in accelerometer (G-sensor) in the DR770X can detect abrupt changes in speed or impacts while driving. Similarly, when parked, it can detect any visible movements around your vehicle, and these incidents are automatically labeled and saved. If a cloud connection is established, you can receive alerts and access the clips from both your computer and mobile device.
| DR770X-1CH | |
| Channel | 3CH |
| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Color/Size/Weight |
Main Unit: Black / Length 5.12 in x Width 3.98 in x Height 1.30 in / 7.37 oz Front: Black / Length 2.46 in x Width 1.35 in x Height 1.34 in / 1.52 oz Front: Black / Length 2.46 in x Width 1.35 in x Height 1.34 in / 1.52 oz Rear Truck: Black / Length 2.77 in x Width 2.23 in x Height 1.42 in / 5.54 oz Wireless Button: Black / Length 1.78 in x Width 1.65 in x Height 0.57 in / 0.81 oz |

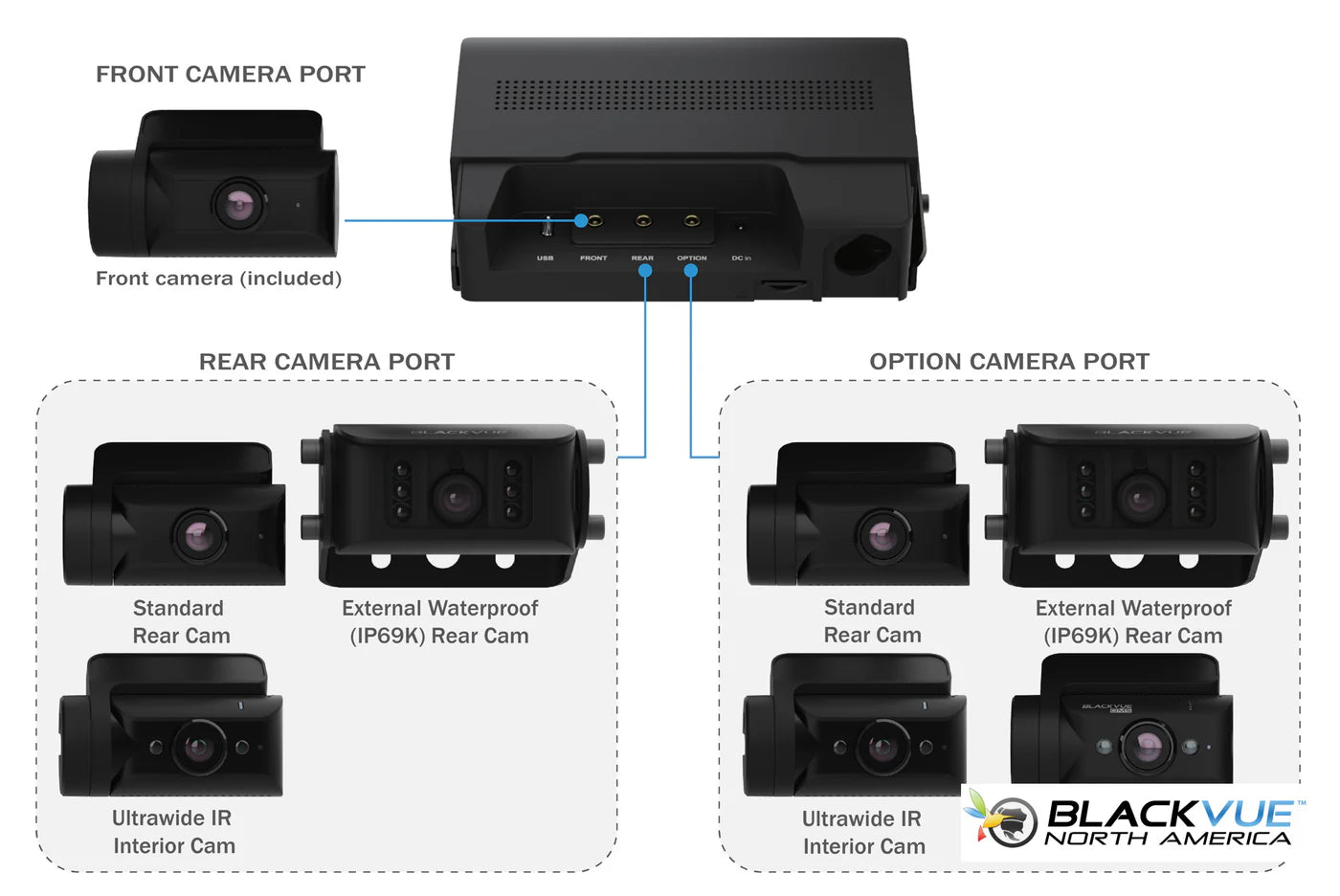

| Rear Camera Connection | Coaxial cable |
| Memory | microSD Card (64 GB / 128 GB / 256 / 512 GB) |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Camera |

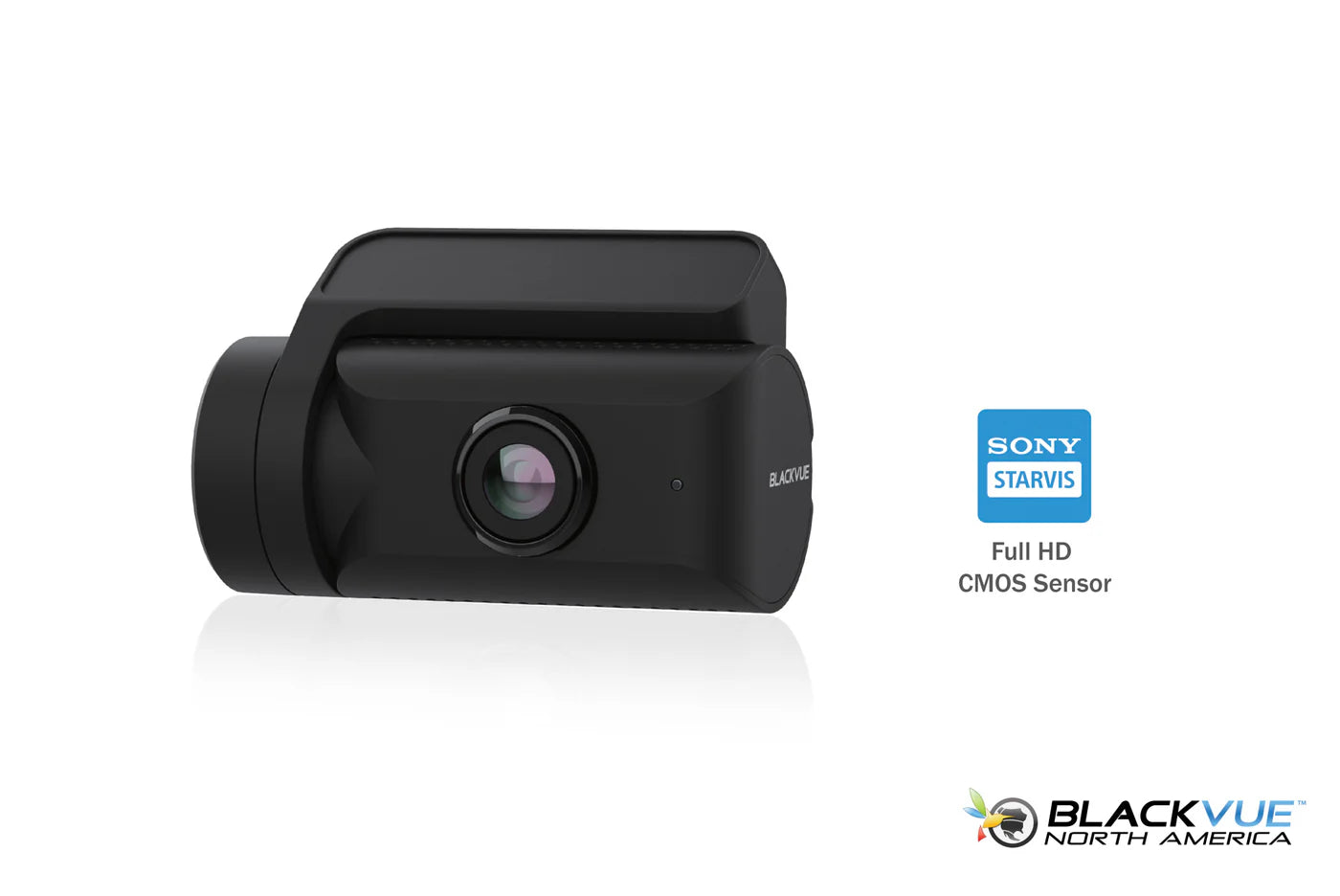

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear Truck: Diagonal 116°, Horizontal 97°, Vertical 51° Interior IR: Diagonal 180°, Horizontal 150°, Vertical 93° |
| Resolution/Frame Rate |
Front / Interior IR / Rear Truck Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality |
Front / Interior IR / Rear Truck Highest (Extreme): 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 51) |
| Video Compression Mode | MP4 |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| LTE | Optional External Module |
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker (Voice Guidance) | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |

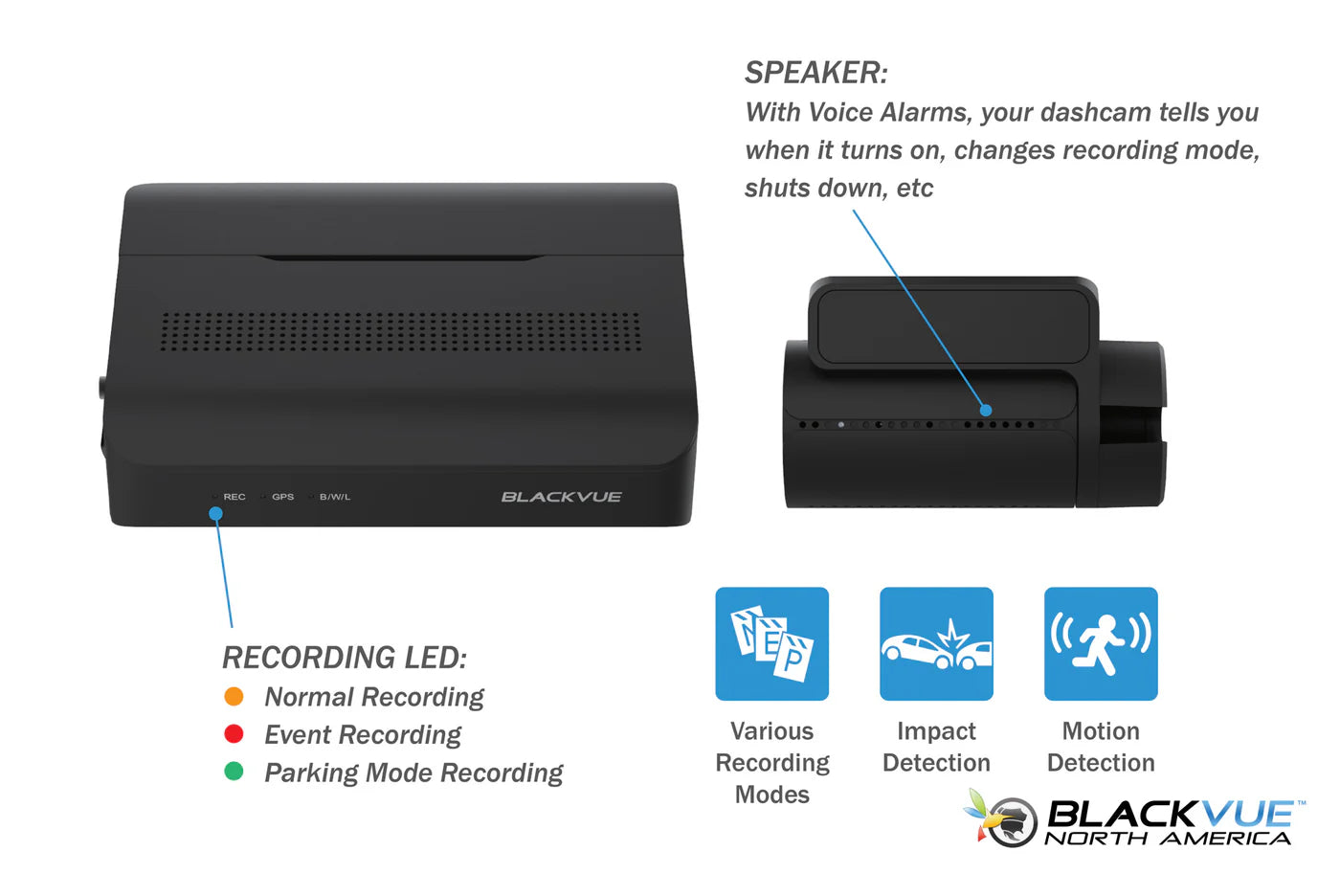

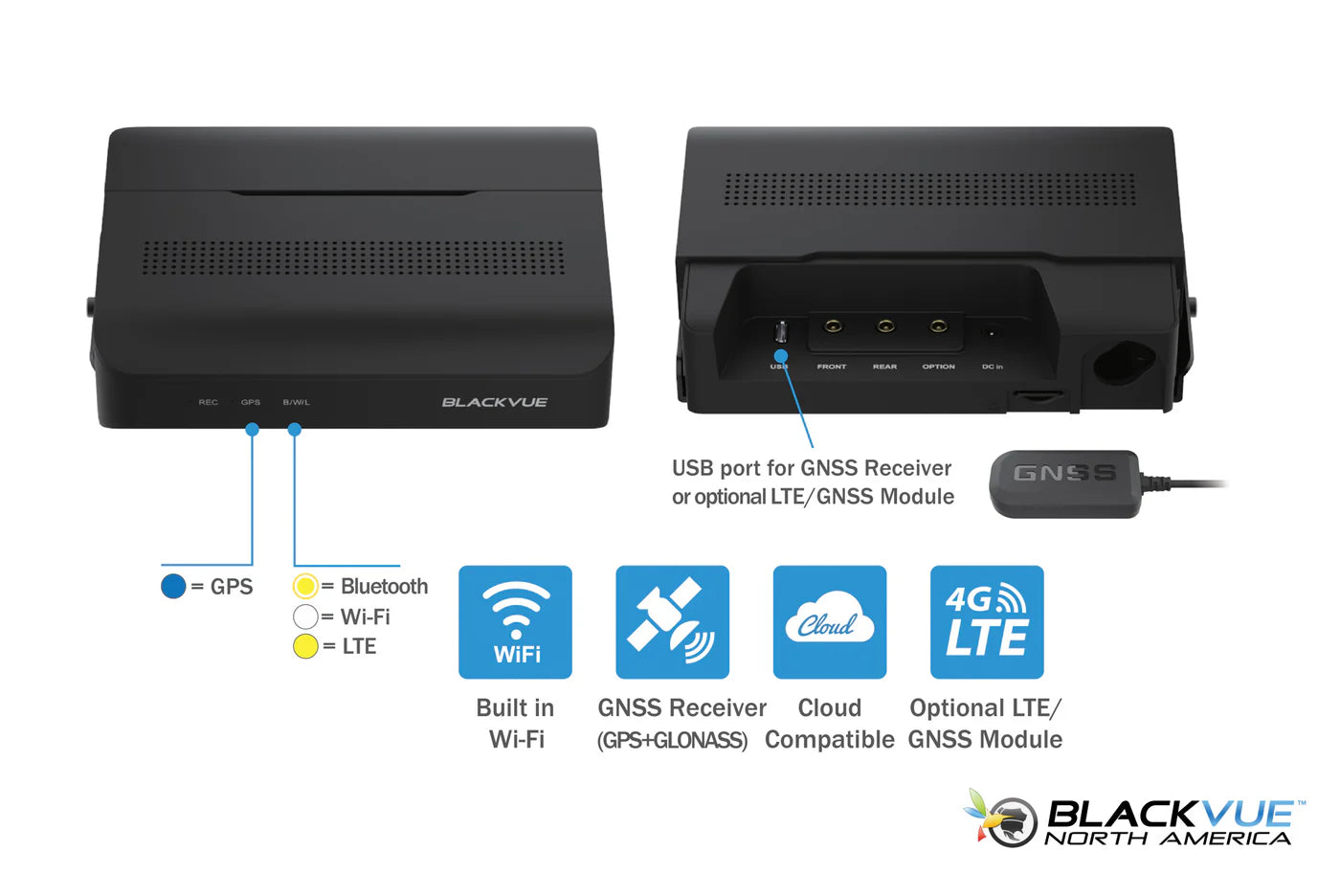

| LED Indicators |
Main unit: Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front: Front & Rear Security LED Rear Truck: None Interior IR: Front&Rear Security LED EB-1: Operating/Battery low voltage LED |
| Rear Camera IR Illumination |
Rear Truck : 940nm (6 Infrared (IR) LEDS) Interior IR : 940nm (2 Infrared (IR) LEDS) |

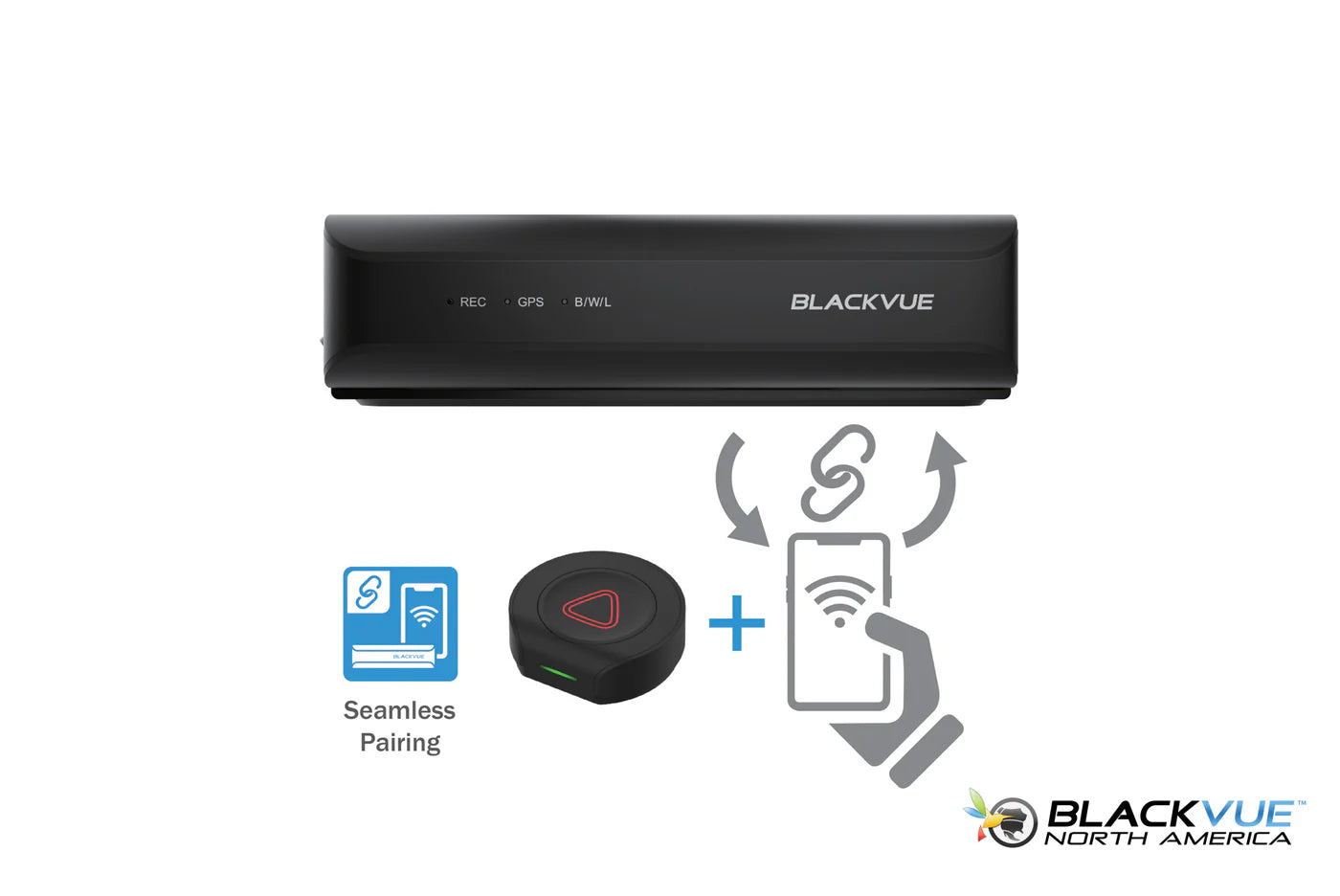

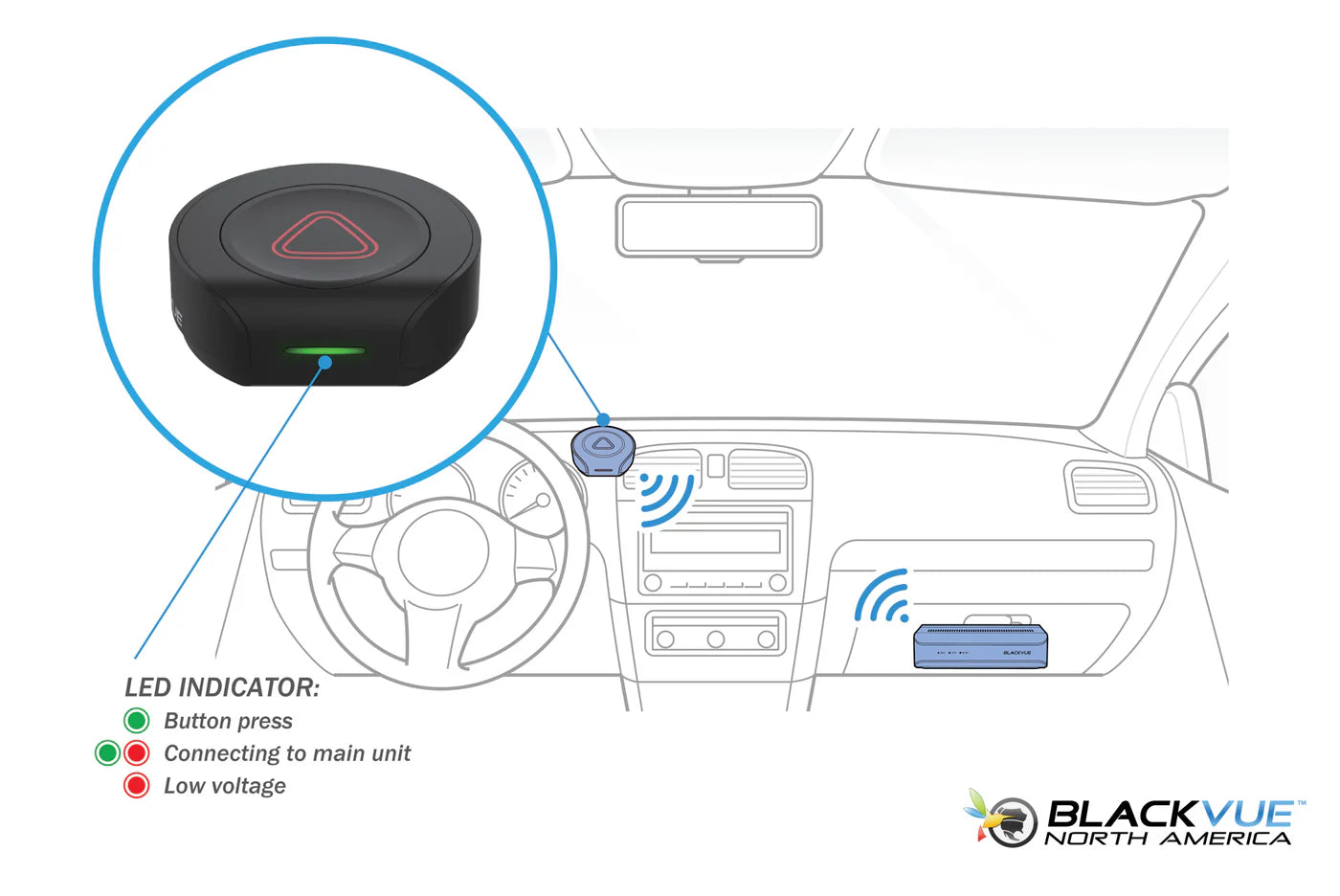

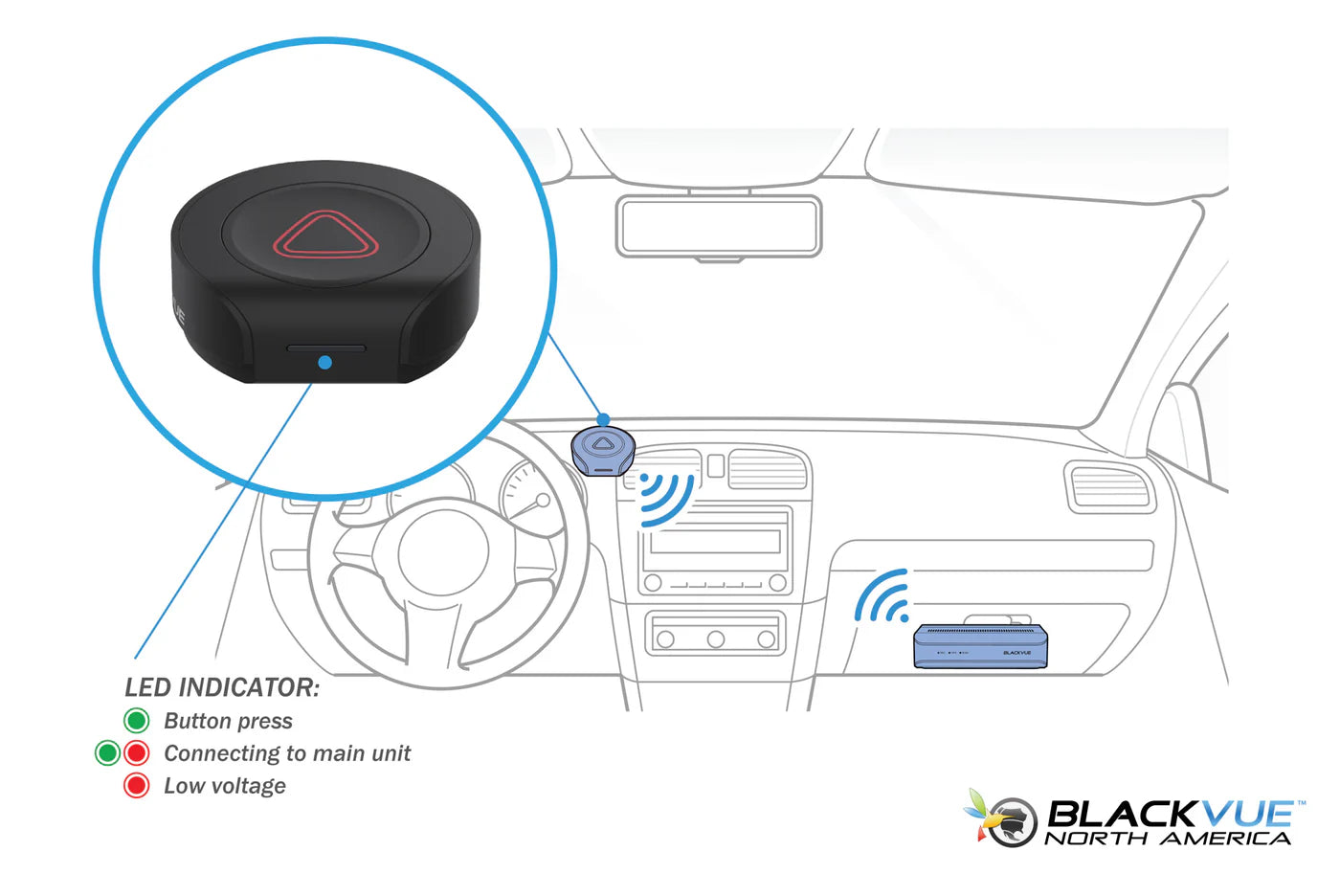

| Button | EB-1 button: Press the button – manual recording |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption |
Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V * Approx.60mA increase in current when Rear Truck Camera IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment. |
| Operation Temperature | -20°C − 80°C (-4°F − 176°F) |
| Storage Temperature | -20°C − 80°C (-4°F − 176°F ) |
| High Temperature Cut-Off | Approx. 80°C (176°F) |
| Certifications |
Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC |
| Software |

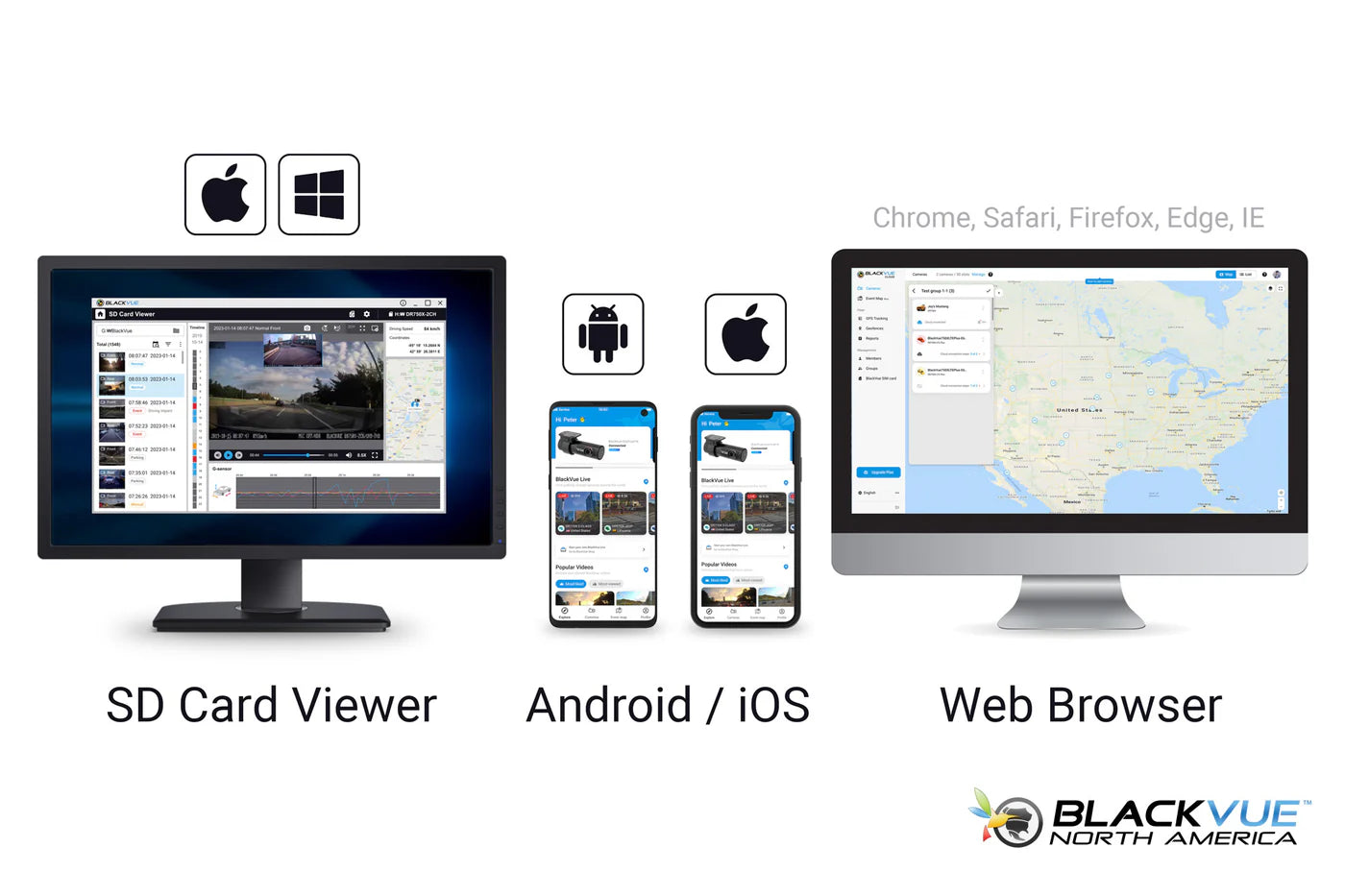

BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) |
| Other Features |
Adaptive Format Free File Management System |
