BlackVue LTE Module With 4G SIM Card Included | CM100GLTE-NA

With the new 4G LTE USB Plug-in Connectivity Module (CM100GLTE-NA), you can stay connected to your BlackVue DR750X/770X/900X/970X dashcam 24/7!

Features:

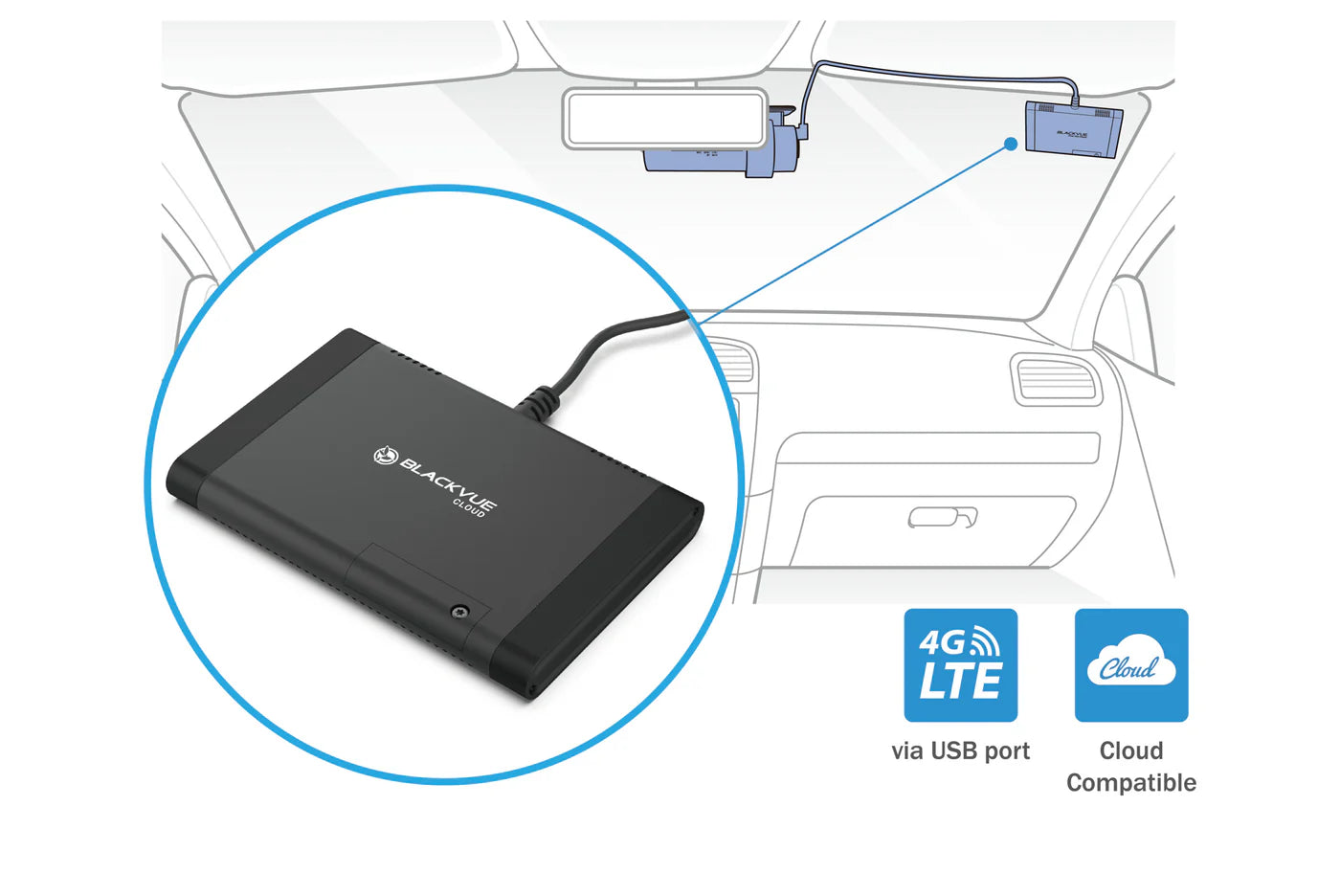

Always know what's going on with your vehicle. The CM100GLTE-NA connects to your compatible BlackVue dashcam for hassle-free and dependable 4G LTE access. Simply insert a valid SIM card and connect the CM100GLTE-NA to your dashcam's USB port: no additional cabling is necessary. When the module is connected, it's powered by the dash cam and automatically connects to the Cloud. No need to worry about it running out of power while parked.

Specification:

• Version: North America (USA/Canada/Mexico)
• Supported Cellular Bands: B2, B4, B12
• Primary Supported Carriers: AT&T, T-Mobile, Rogers, Telus (Other carriers possible as well)
• Color: Black
• Size: L/W/H - 90mm x 60mm x 10mm / 3.5in x 2.4in x 0.4in
• Weight: 74g / 2.6oz
• Mounting Type: Adhesive Pads
• SIM Type: Nano SIM card
• Connector Type: Micro USB Type-B Connector with Harness Cable
• USB Interface: Compliant with USB 2.0 specification, up to 480Mbps data transfer rate
• Power Supply: USB
• Typical Power Supply Voltage: 5.0V / 1A Supply Input Voltage: 3.3V -5.5V / Max. Current: 2A
• Power Consumption: Idle: 20mA / Peak Traffic: 570mA @ Max. Power (23dBm)
• Operation Temperature Range: -35°C to +75°C / -31°F to 167°F
• Storage Temperature Range: -40°C - +85°C / -40°F to 185°F
• Certifications: PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS

Manual:

• User Manual: CM100LTE LTE Module(2.29 MB PDF)

• SIM Activation Guide: CM100LTE SIM Activation Guide (1.6MB PDF)
