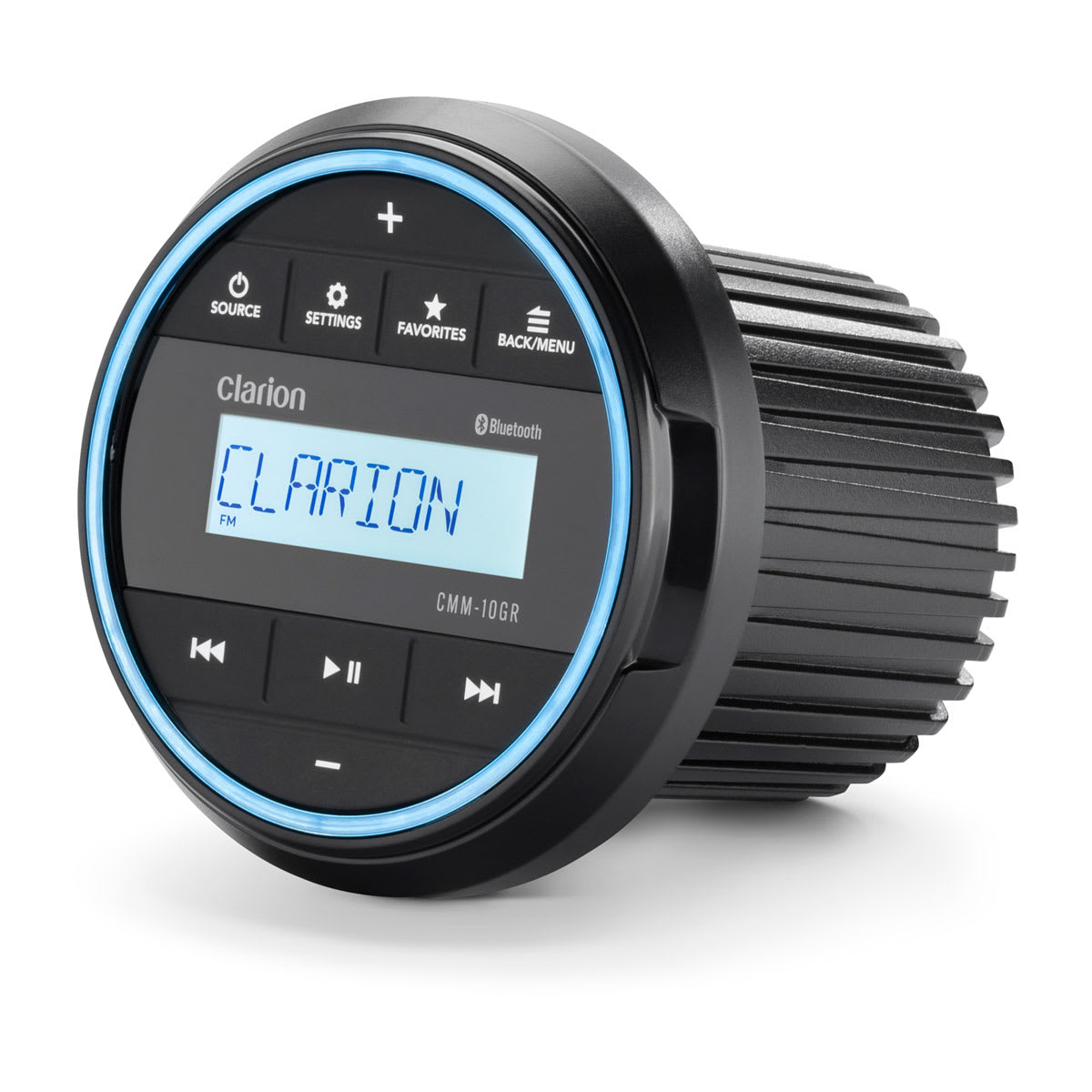

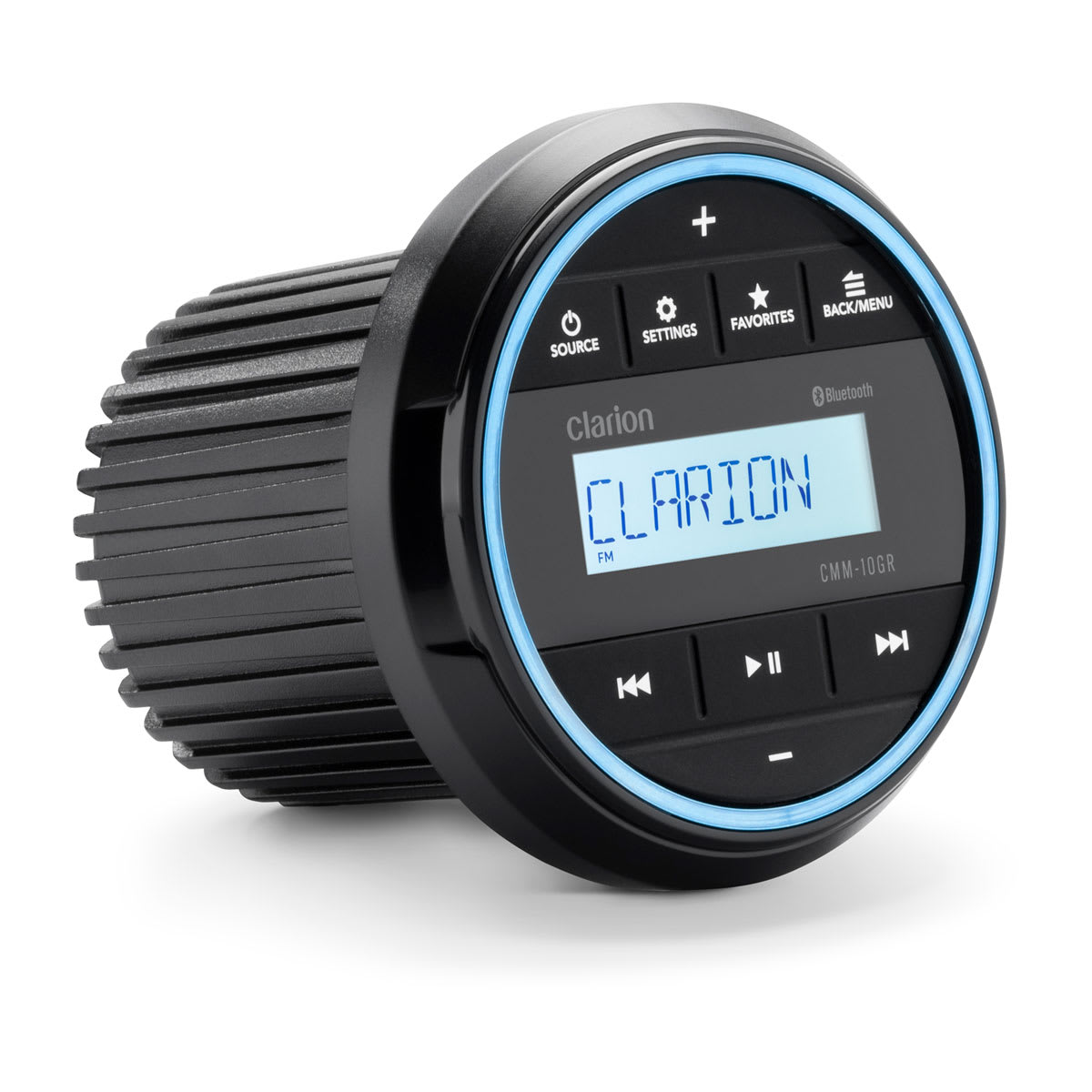

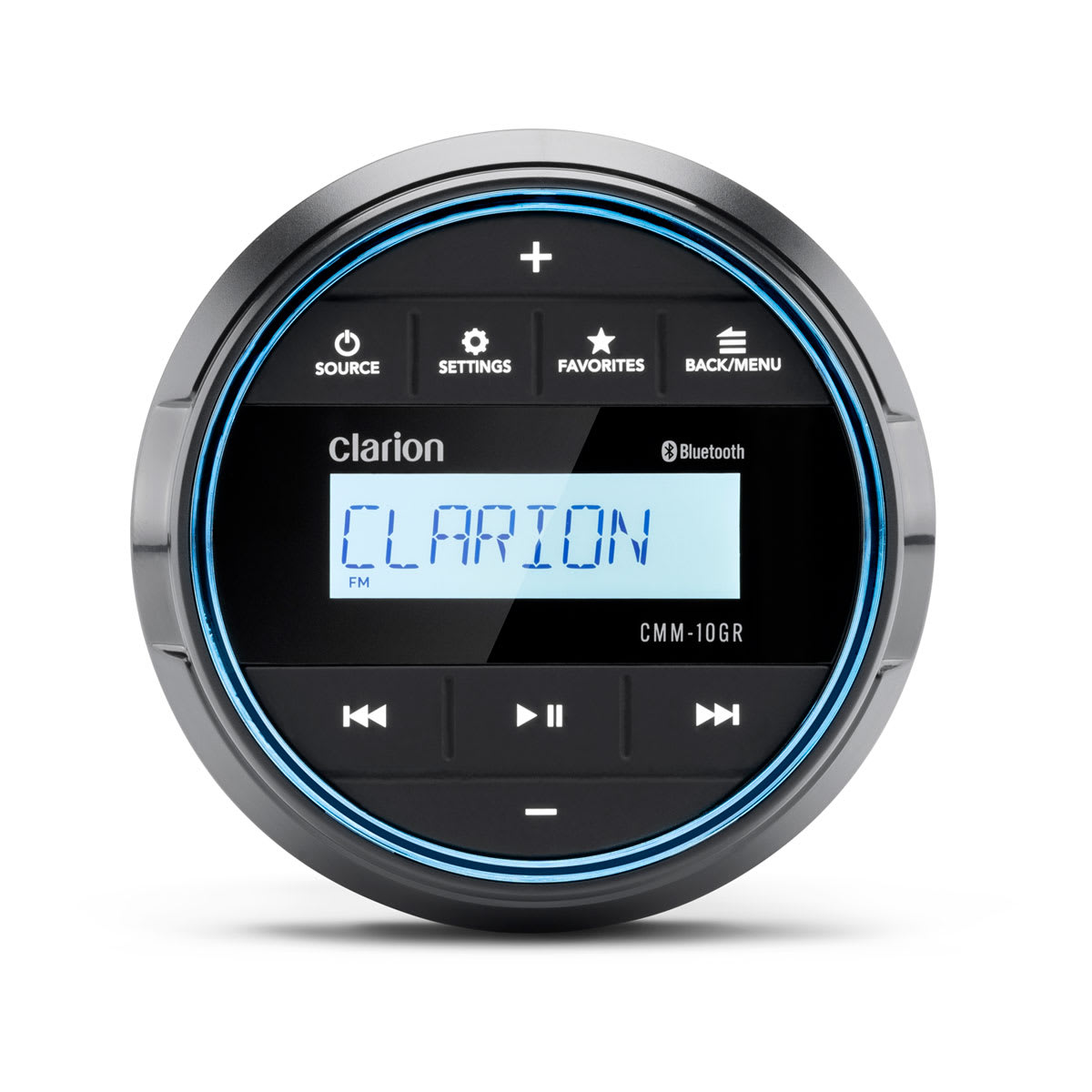

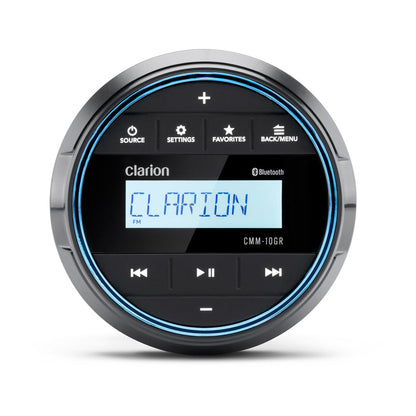

Clarion® Marine Compact Source Unit 3" Gauge Hole with LCD Display (CMM-10GR)

Clarion® Marine Compact Source Unit 3" Gauge Hole with LCD Display (CMM-10GR)

  • price-tag logoNew Launch
$179.99
$179.99
Save: $-179.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

ULTRACOMPACT BUILD. FULL SOUND.

Engineered for marine and powersports use, CMM-10 is an ultracompact source unit with built-in power and versatile audio features.

MUSIC STREAMING VIA BLUETOOTH® TECHNOLOGY

LCD DISPLAY

ROUND OR RECTANGULAR BUILD

GLOBAL AM/FM AND WEATHER BAND TUNER

BUILT-IN AMPLIFIER

IP66-RATED WATER-RESISTANT DESIGN

BLUETOOTH STREAMING

Start streaming from your compatible smartphone or any device with BLUETOOTH technology.


CONNECTIVITY OPTIONS

This digital receiver has a front-facing AUX input as well as USB for charging and file playback.


SHAPE YOUR SOUND

Customize your sound with bass and treble controls plus a built-in amp. Or you can select from 4 equalizer presets. You can also adjust sound in different parts of the boat with 2-zone control.


TUNE IN TO RADIO

Play local radio stations with a built-in AM/FM tuner, or get the latest forecast from the weather band.


RUGGED AND READY

This source unit is IP66- rated, so you can move confidently out on the water.



Specifications:



      General
      Physical dimensions (Height) CMM-10: 2.48" (63 mm)
        CMM-10GR: 4.03" (102 mm)
      Physical dimensions (Width) CMM-10: 4.33" (110 mm)
        CMM-10GR: 4.03" (102 mm)
      Physical dimensions (Depth) 3.15" (80 mm)
      Control Surface Dust/Water Rating IP66 (when properly installed)
      Operating temperature range  to  ( to )
      Current draw (max) 15 A
      Warranty 1 year
      Networking
      Bluetooth® wireless range Up to 35 ft (11 meters)
      Wireless frequencies/protocols BLUETOOTH®
      Audio
      Rated continuous (RMS) power (14.4 V input @ 4  < 1% THD)
      Electrical Features
      Power Input
      Stereo Features
      Display size CMM-10: 2.09" (53 mm)
        CMM-10GR: 2.09" (53mm)
      Display type monochrome, segmented, TFT LCD backlit
      Optically bonded display Not specified
      Built-in amplifier Class AB ()
      Multi-Zone™ technology Not specified
      Bluetooth® wireless technology Yes
      DAB+ ready See Additional
      Multi-language interface English
      Sources
      Supported sources Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod
      Supported audio formats (USB) MP3, WMA, FLAC, WAV
      Connections
      USB 2.0 ports 1 (USB storage device, 1 A charging output)
      AM/FM ports (Motorola antenna connector) 1
      Speaker connections 4 (2 zones amplified)
      RCA pre-out (left, right and subwoofer) 2 zones (L+R) or Zone 2 as subwoofer (requires external amplification)
      Line out 2 (L + R per zone) (requires external amplification)
      Subwoofer out Occupies Zone 2 (requires external amplification)
      Additional
      DAB+ Ready CMM-10i: yes

      In the Box:

      • Marine digital media with trim ring (attached)
      • Power and speaker connections wire harness
      • One mounting template
      • Four mounting screws
