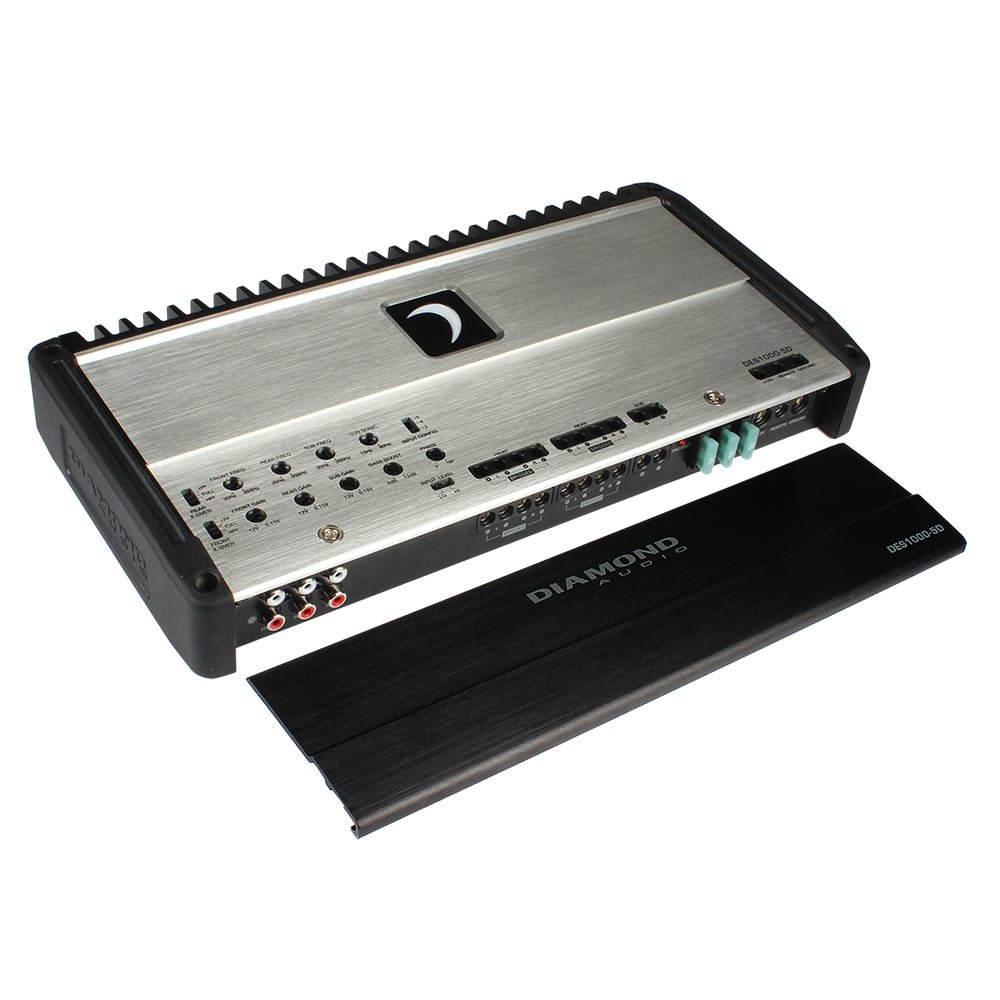

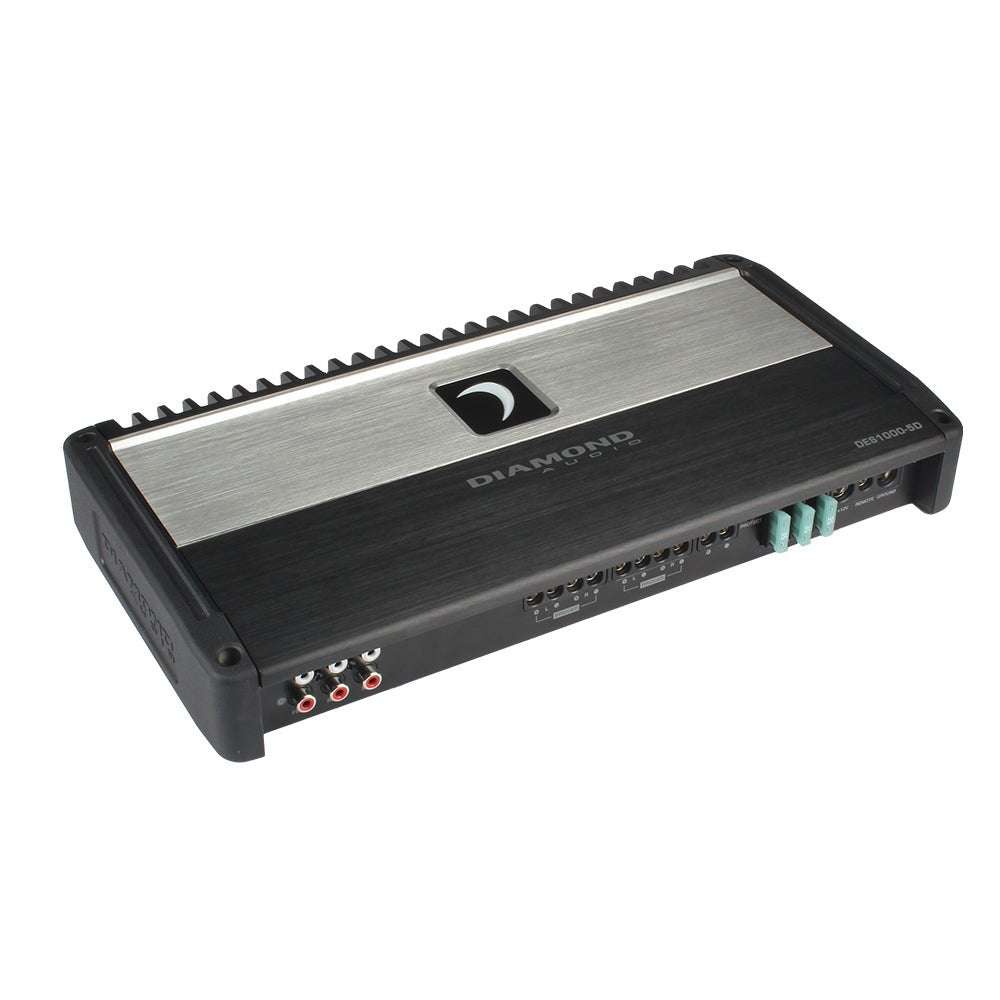

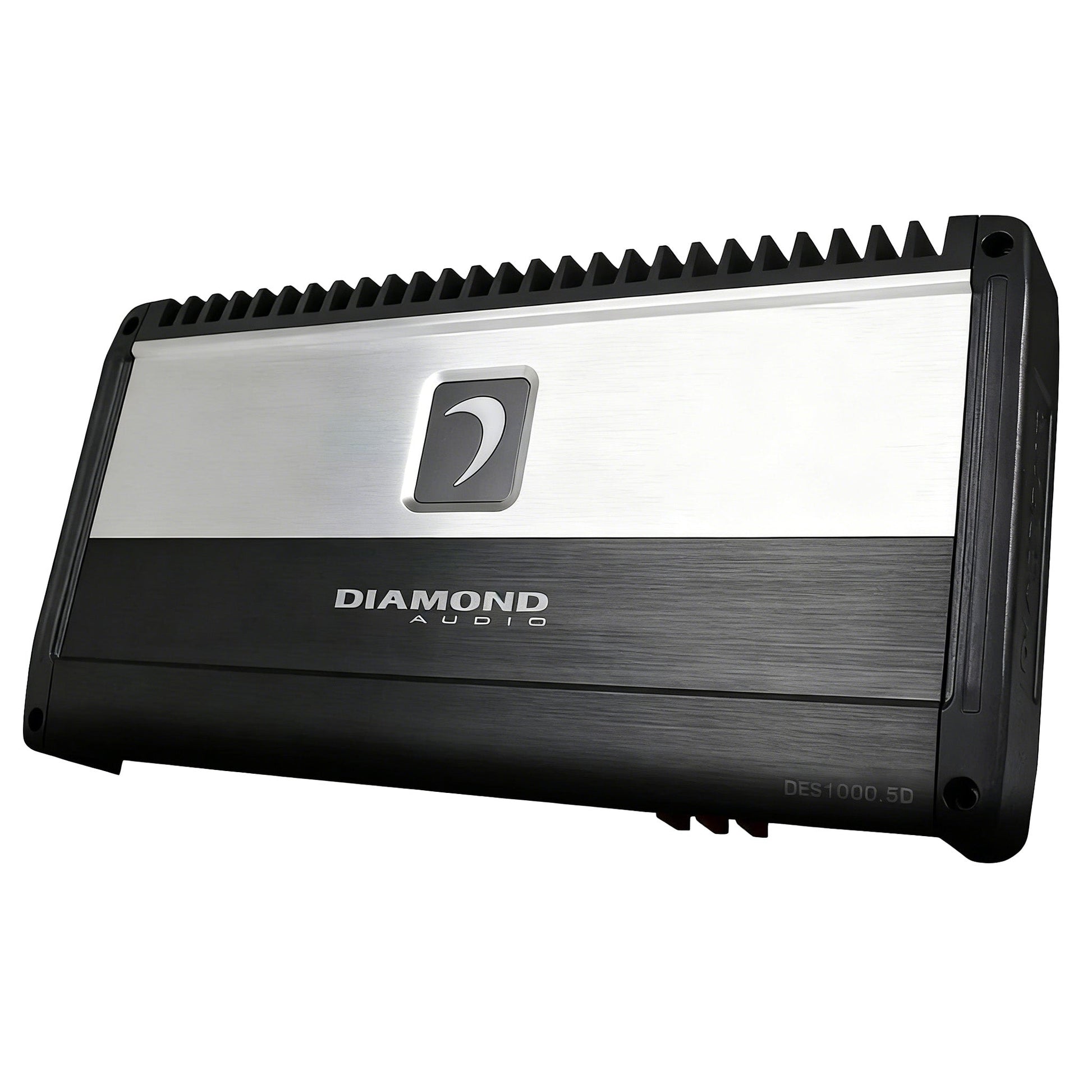

Diamond Audio DES1000.5D DES Series 1000W 5-Channel Class D Amplifier

Experience pure sonic power with the Diamond Audio DES Series 5-Channel amplifier. This compact powerhouse utilizes advanced digital chipset technology to deliver precise, dynamic sound across all your favorite tracks. Installation is a breeze thanks to versatile switched speaker level turn-on options, making it the perfect upgrade for any audio enthusiast. Elevate your car audio system and finally feel the music exactly as it was meant to be heard.

5-Channel Power Ratings

• 90W RMS x 4/150 x 1 @4Ω
• 150W RMS x 4/250 x 1 @2Ω
• Bridged (Mono @4Ω) 300W x 2/500W x 1 (Ch 5/6 Bridged)

Power Supply

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: 0.7A

Distortion:

• THD (1kHz@4Ω): 0.03%
• S/N Ratio (A Weighted @ 1W): -76.7dBA
• S/N Ratio (A Weighted @ FP): -96.7dBA

Input Sensitivity

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

Input Impedance

• Low Input Level: 22KΩ

Output Stage

• Output Impedance: 0.051Ω
• Damping Factor (50Hz@4Ω): >70
• Bandwidth (-3dB): 10Hz-350Hz

Crossover (-12dB/Oct)

• Variable High Pass: 35Hz-350Hz
• Variable Low Pass: 35Hz-350Hz

Fuse Rating

• ATC: 3x40A

Dimensions (Length x Height x Width)

• 11.81"x7.25"x2.0"(299.99mm x 184.2mm x 50.8mm)
