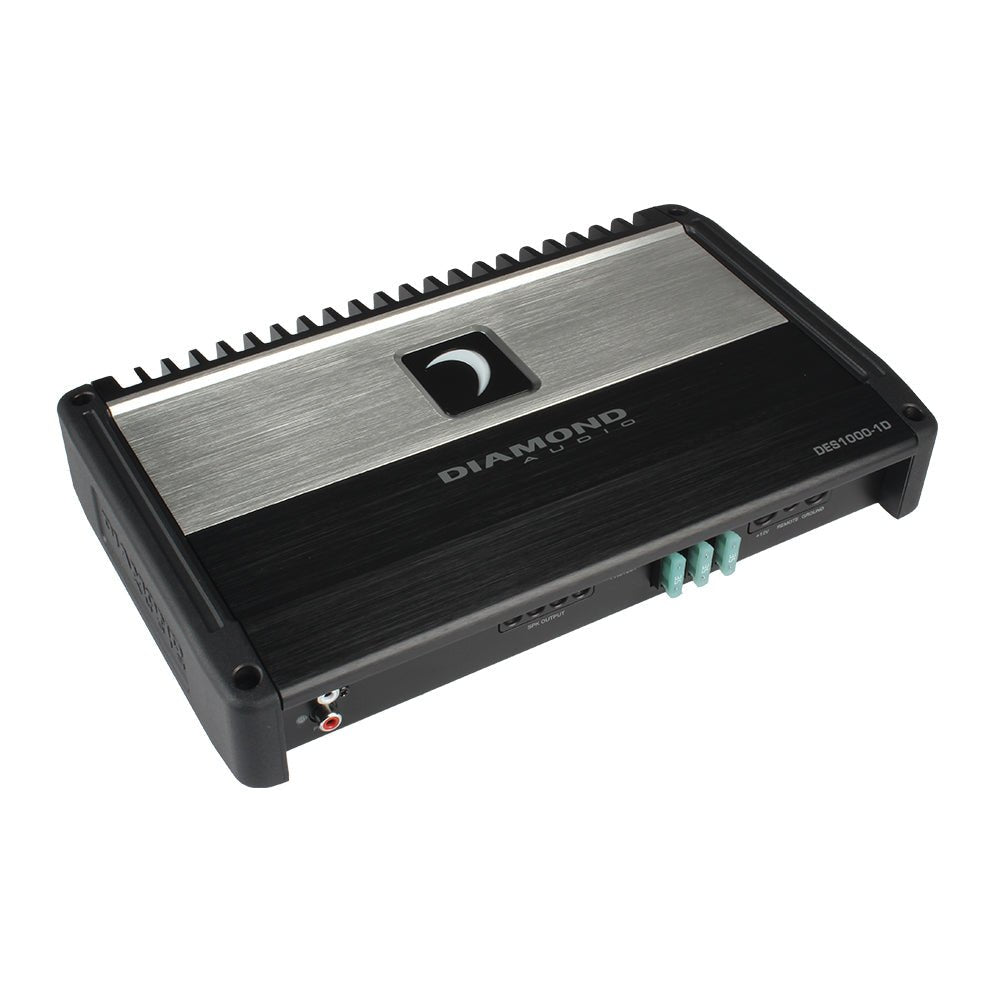

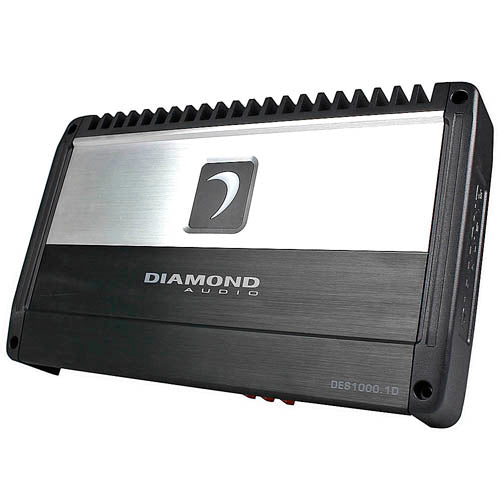

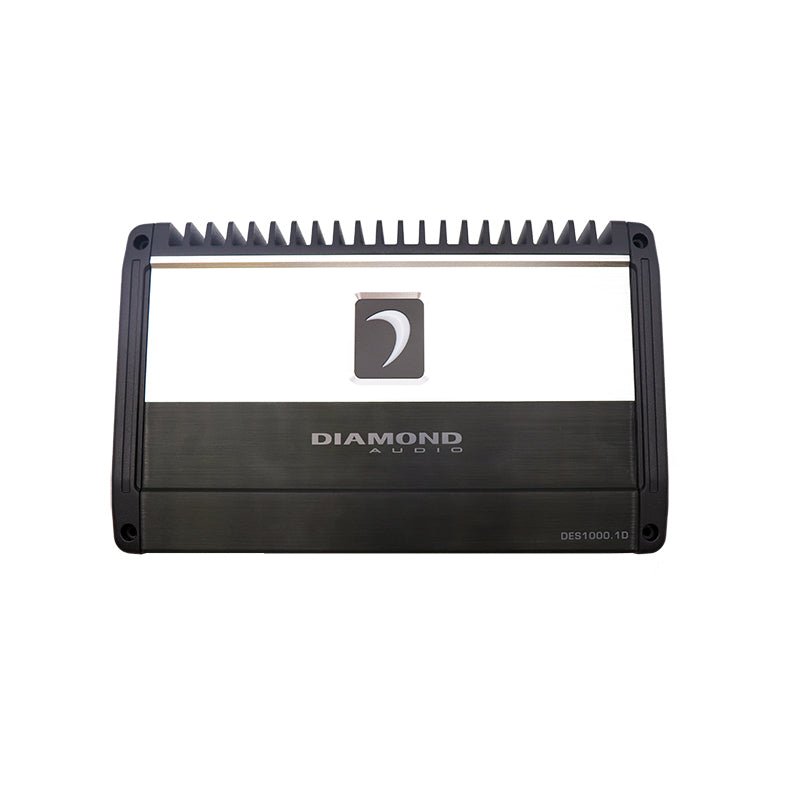

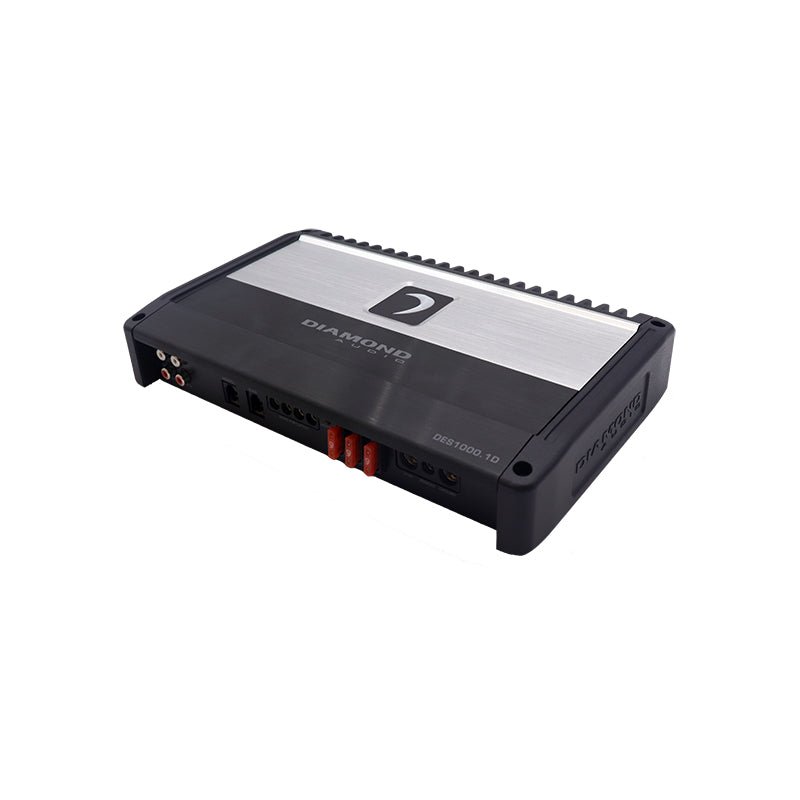

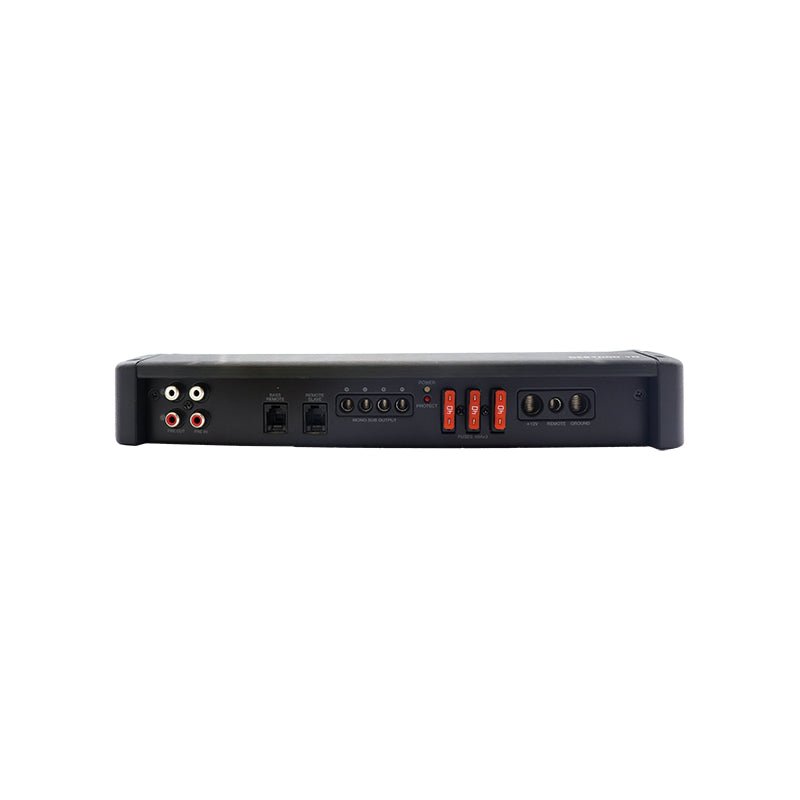

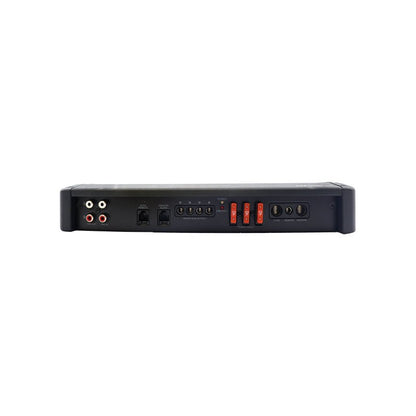

Diamond Audio DES1000.1D DES Series 1-Channel Monoblock Class D Amplifier

Crank up the bass and feel the rumble with the Diamond Audio DES1000.1D, a powerhouse designed to transform your car's audio system. This compact monoblock beast utilizes advanced digital chipset technology to deliver precise, dynamic sound that hits hard at every impedance level. Installation is a breeze thanks to versatile switched turn-on options, making it the perfect upgrade for any audio enthusiast. Stop just listening to your music and start experiencing it with the sheer clarity and raw performance of the DES Series.

• 800W RMS X1 @4Ω
• 1000W RMS X1 @2Ω
• 1000W RMS X1 @1Ω

Power Supply

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: 0.7A

Distortion:

• THD (1kHz@4Ω): 0.07%
• S/N Ratio (A Weighted @ 1W): -77.4dBA
• S/N Ratio (A Weighted @ FP): -97.4dBA

Input Sensitivity

• Low Input Level: 0.2mV-10.0V
• High Input Level: Up to 25W RMS

Input Impedance

• Low Input Level: 22KΩ
• High Input Level: 22KΩ

Output Stage

• Output Impedance: 0.047Ω
• Damping Factor (50Hz@4Ω): >250
• Bandwidth (-3dB): 10Hz-350Hz

Crossover (-12dB/Oct)

• Variable Low Pass: 35Hz-350Hz

Fuse Rating

• ATC: 3x40A

Dimensions (Length x Height x Width)

• 11.81"x7.25"x2.0"(299.99mm x 184.2mm x 50.8mm)
