Diamond Audio DMD1000.1D DMD Series 1000W RMS Mono Block Digital Amplifier

Crank up the volume with this powerhouse amplifier that packs serious punch into a compact, heat-sink-friendly design. Utilizing advanced IR chipset and SMD technology on a 4-layer FR4 board, it delivers crystal-clear, noise-free sound for your mobile audio setup. You’ll love the precise control from the built-in subsonic filter and bass boost, all while the snazzy LED logo keeps you looking as good as you sound. It’s the ultimate upgrade for anyone craving high-performance audio without sacrificing precious vehicle space.

Power Rating

• 1000W RMS @ 2Ω
• 680W RMS @ 4Ω

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (1KHZ @4Ω): 0.03%
• S/N RATIO (A WEIGHTED @1W): -76.7dBA
• S/N RATIO (A WEIGHTED @FP): -96.7dBA

Input Sensitivity

• Low Level Input: 0.2mV-10.0V
• High Level Input: Up to 25W RMS

Input Impedance

• Low Level Input: 22KΩ

Output Stage

• Output Impedance: 0.051Ω
• Damping Factor (50Hz@4Ω): >70
• Bandwidth (-3db): 10Hz-350Hz

Crossover (1-12dB/Oct)

• Variable High-Pass: 35Hz-350Hz
• Variable low-Pass: 35Hz-350Hz

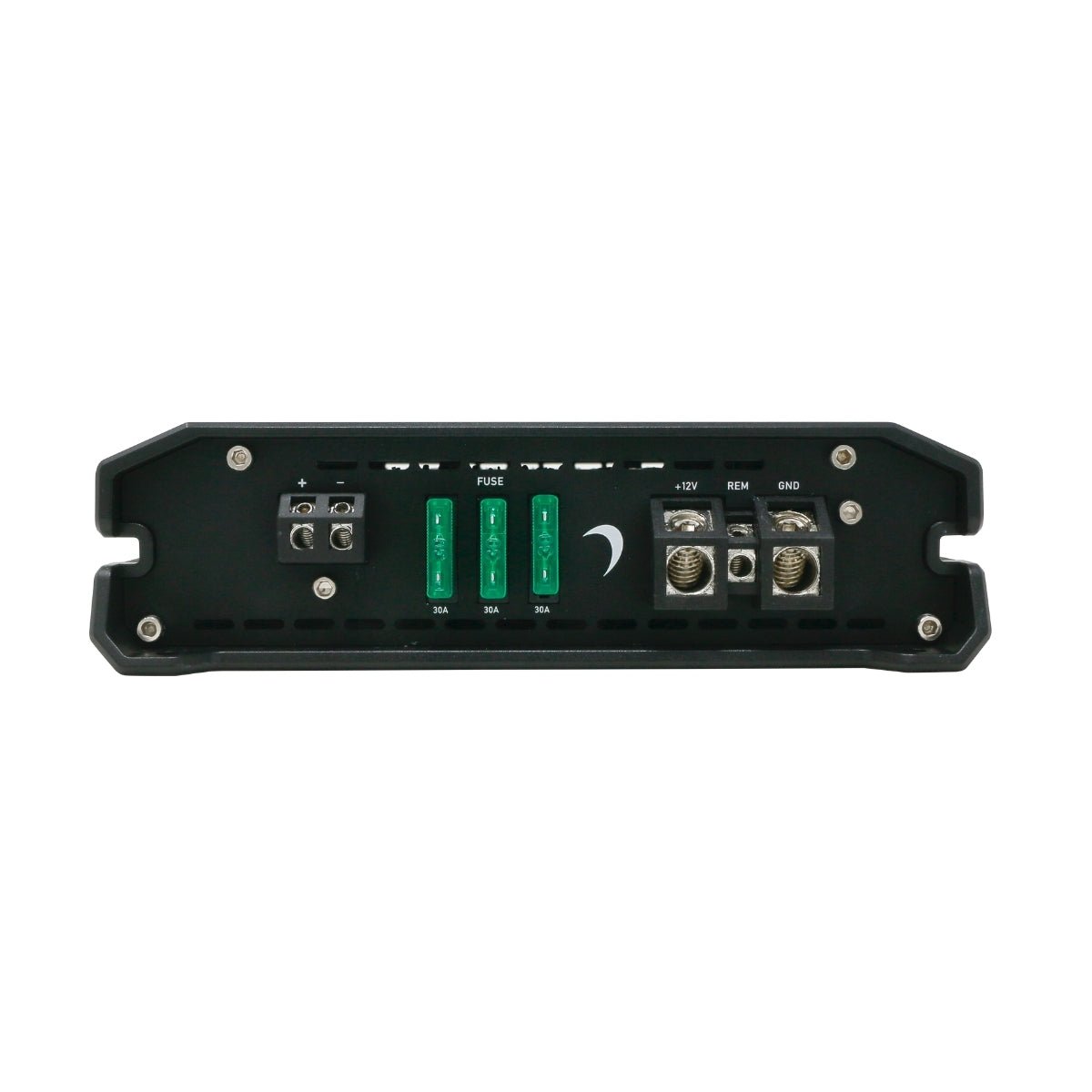

Fuse Rating

• 3x40A

Dimensions

• Length x Width x Height: 8”x6.85”x1.9” (203.1mm x 174mm x 48.4 mm)

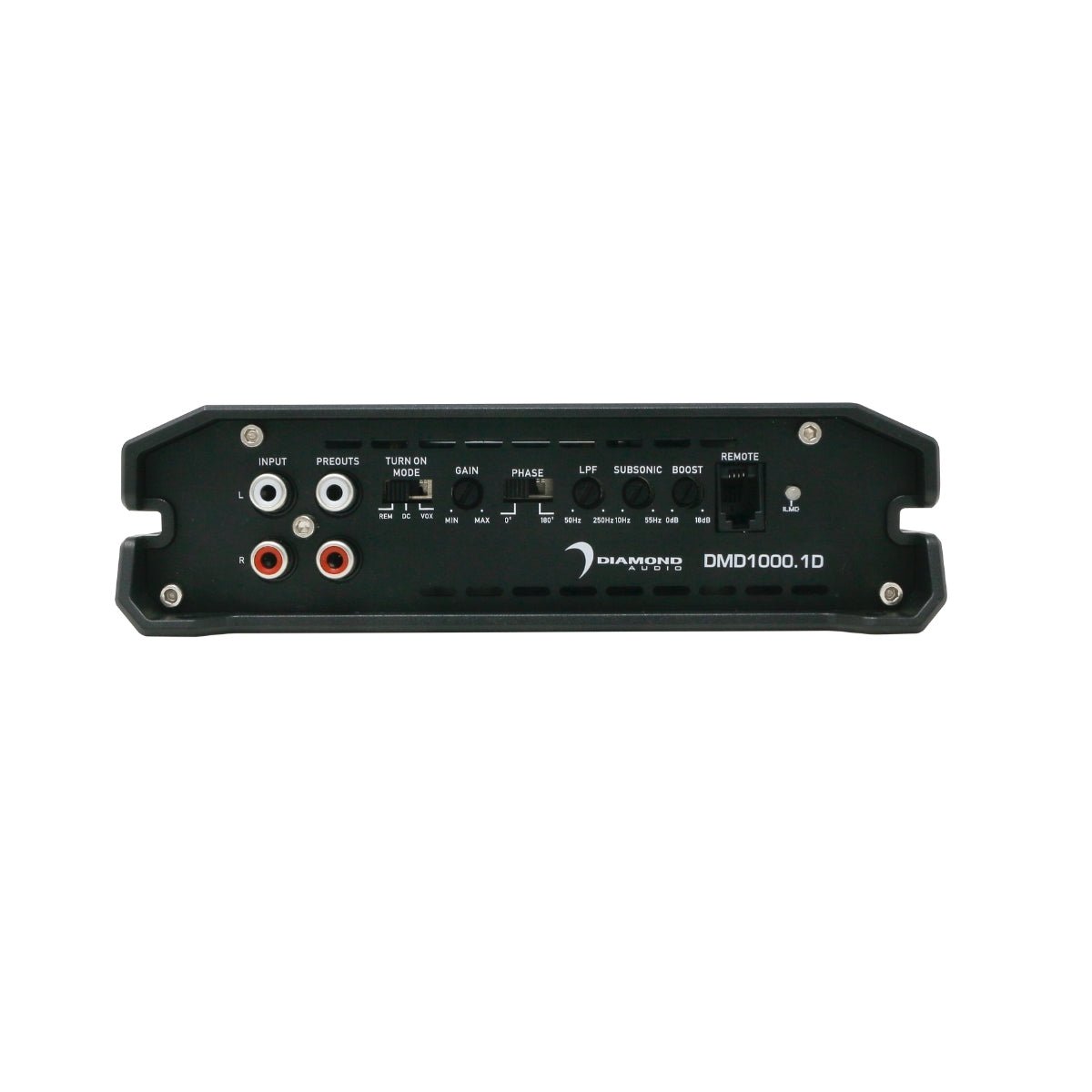

FEATURES

• Input Sensitity: 0.2-10 VOLT
• Frequency Response: 20-500Hz
• Signal to Noise Ratio: >90dB
• Bass Boost: 0-18dB
• Overall Operation Efficiency: >88%
• Selectable REM/VOX/DC Turn On Modes
• Variable Phase Adjustment
• Remote Bass Knob Included
