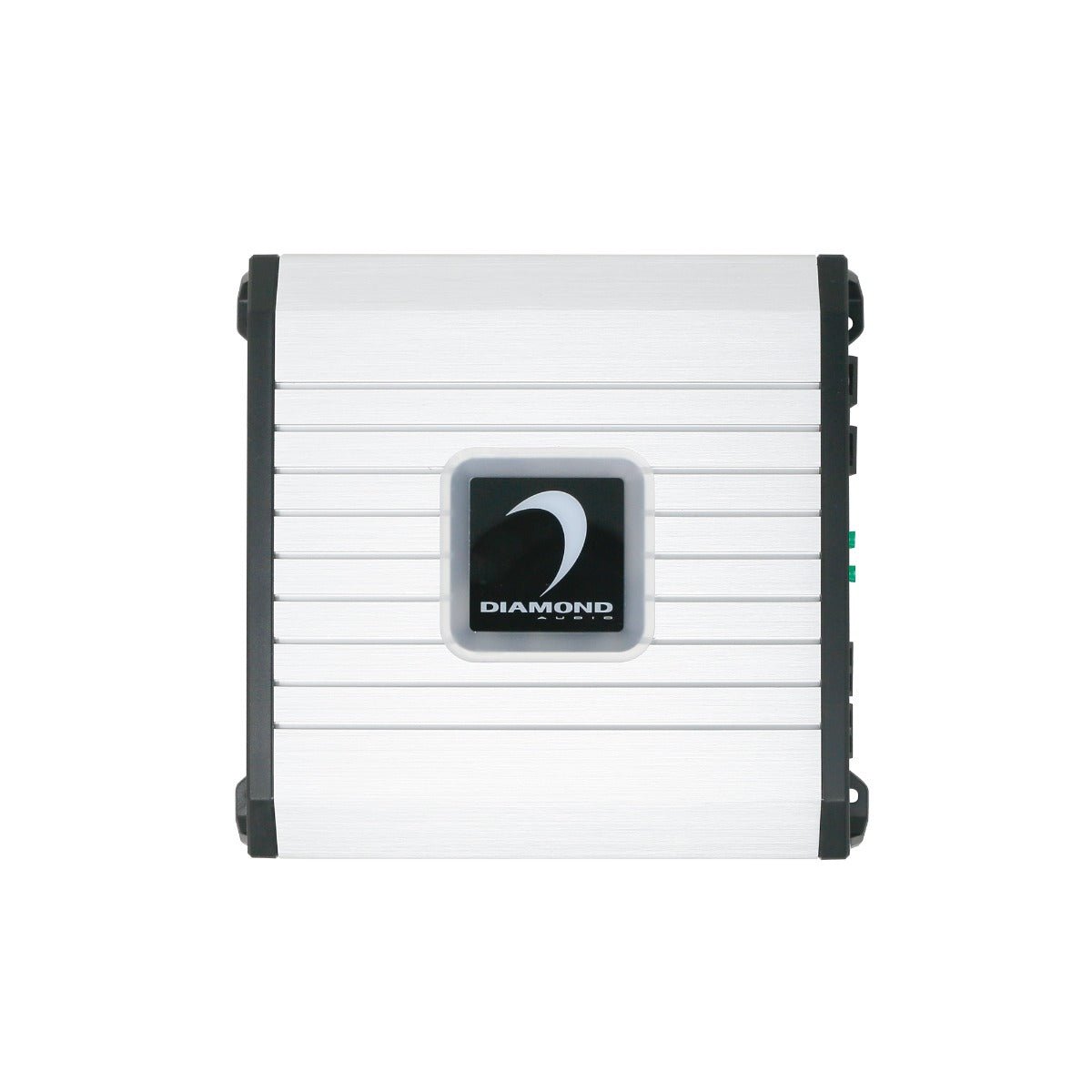

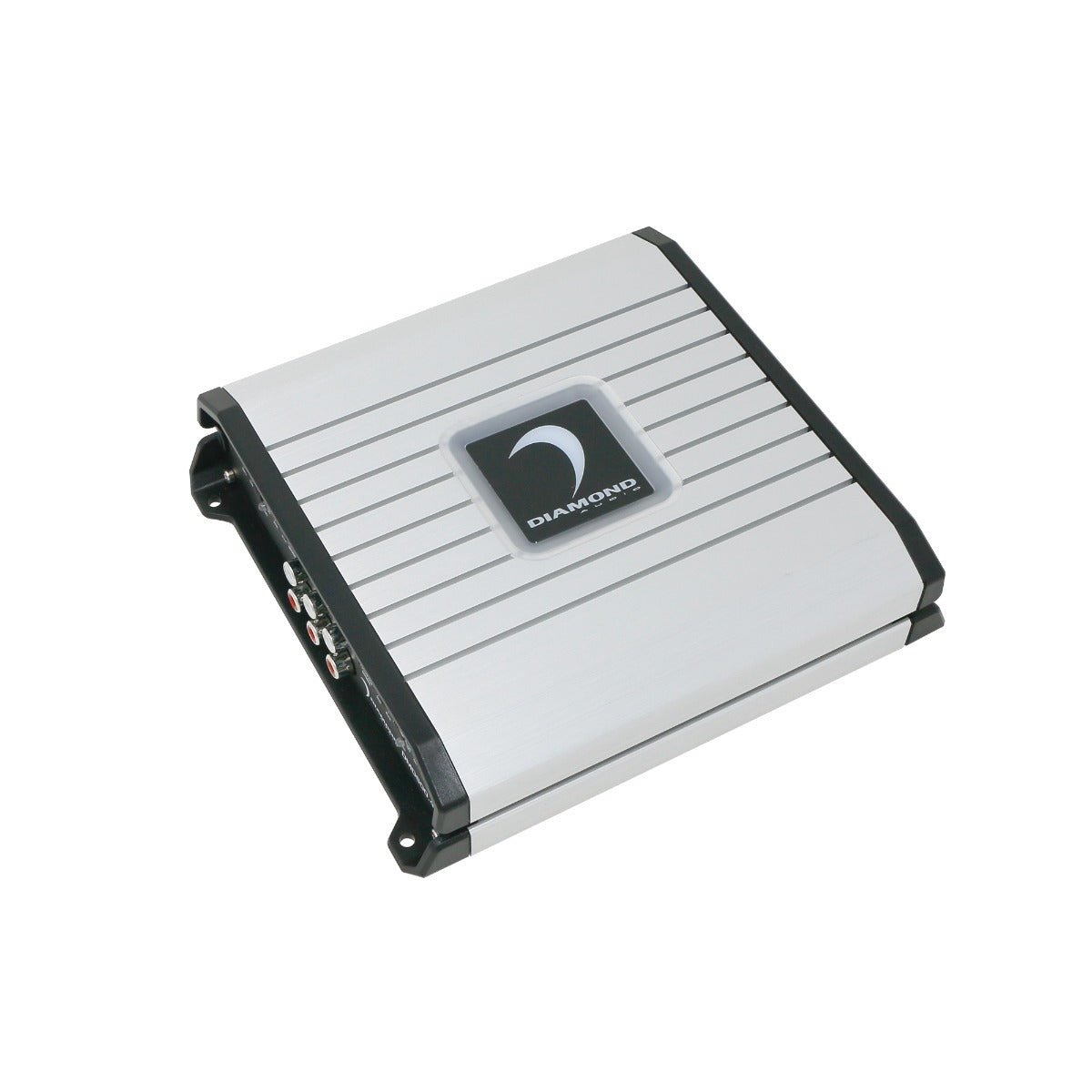

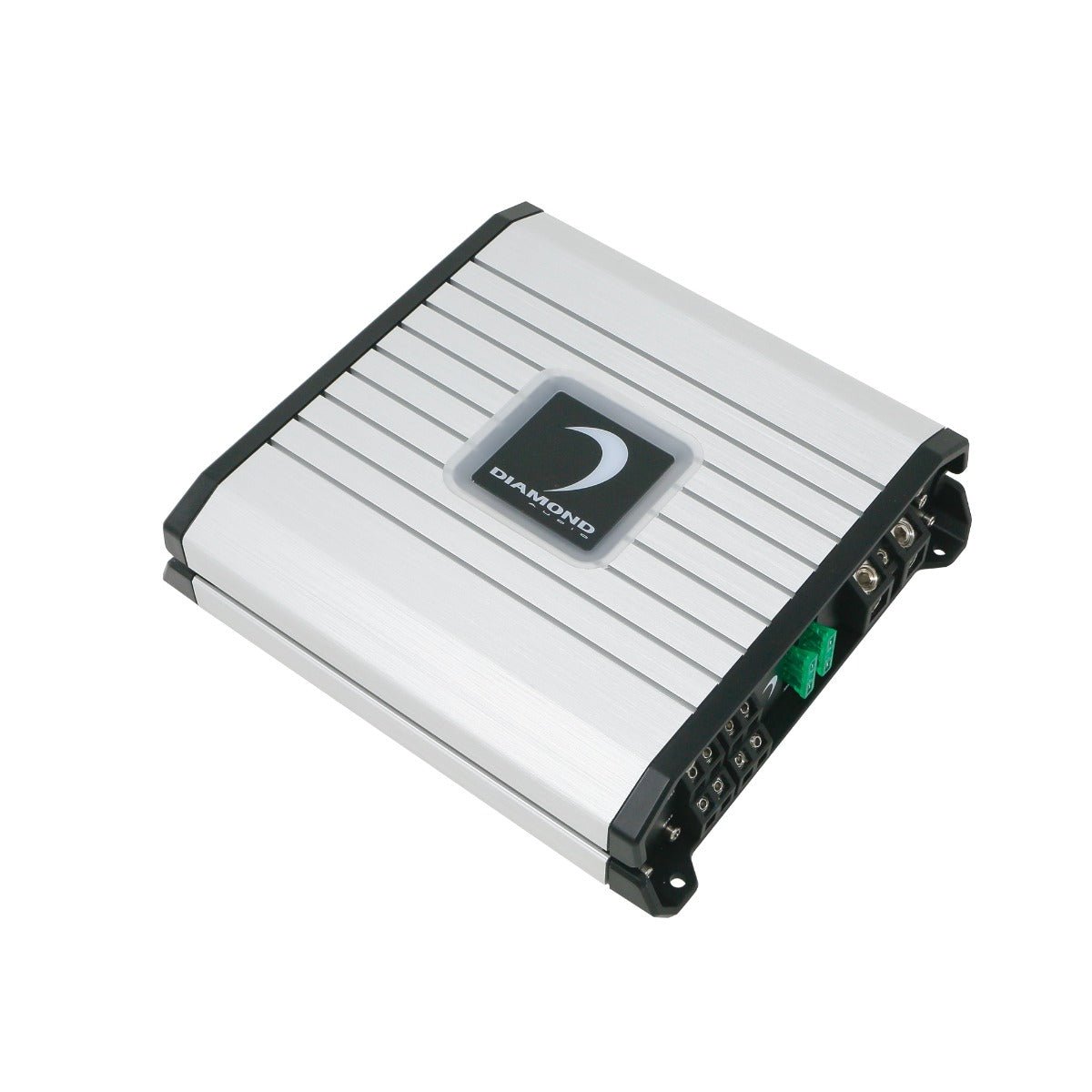

Diamond Audio DMD600.4D DMD Series 4-Channel Full Range Digital Amplifier DMD600.4D

Crank up your tunes with this powerhouse, packing serious punch into a sleek, compact heat sink perfect for any mobile audio setup. Featuring advanced IR chipset technology and 4-layer FR4 PC boards, this amp delivers glorious, noise-free sound that keeps your music crystal clear. You'll love the smooth bass boost and subsonic filter that make every beat hit just right, while the nifty LED-lit logo keeps you looking as cool as you sound. It is the perfect upgrade for audiophiles who demand top-tier performance without cluttering their ride.

4-Channel Full Range Digital Amplifier

Power Rating (RMS)

• 150W x 4 @ 2Ω
• 100W x 4 @ 4Ω
• 320W x 2 @ 4Ω (Bridged)

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (1KHZ @4Ω): 0.05%
• S/N RATIO (A WEIGHTED @1W): -77.2dBA
• S/N RATIO (A WEIGHTED @FP): -98.9dBA

Input Sensitivity

• Low Level Input: 0.2mV-10.0V
• High Level Input: Up to 25W RMS

Input Impedance

• Low Level Input: 22KΩ
• High Level Input: 22KΩ

Output Stage

• Output Impedance: 0.047Ω
• Damping Factor (50Hz@4Ω): >250
• Bandwidth (-3db): 10Hz-350Hz

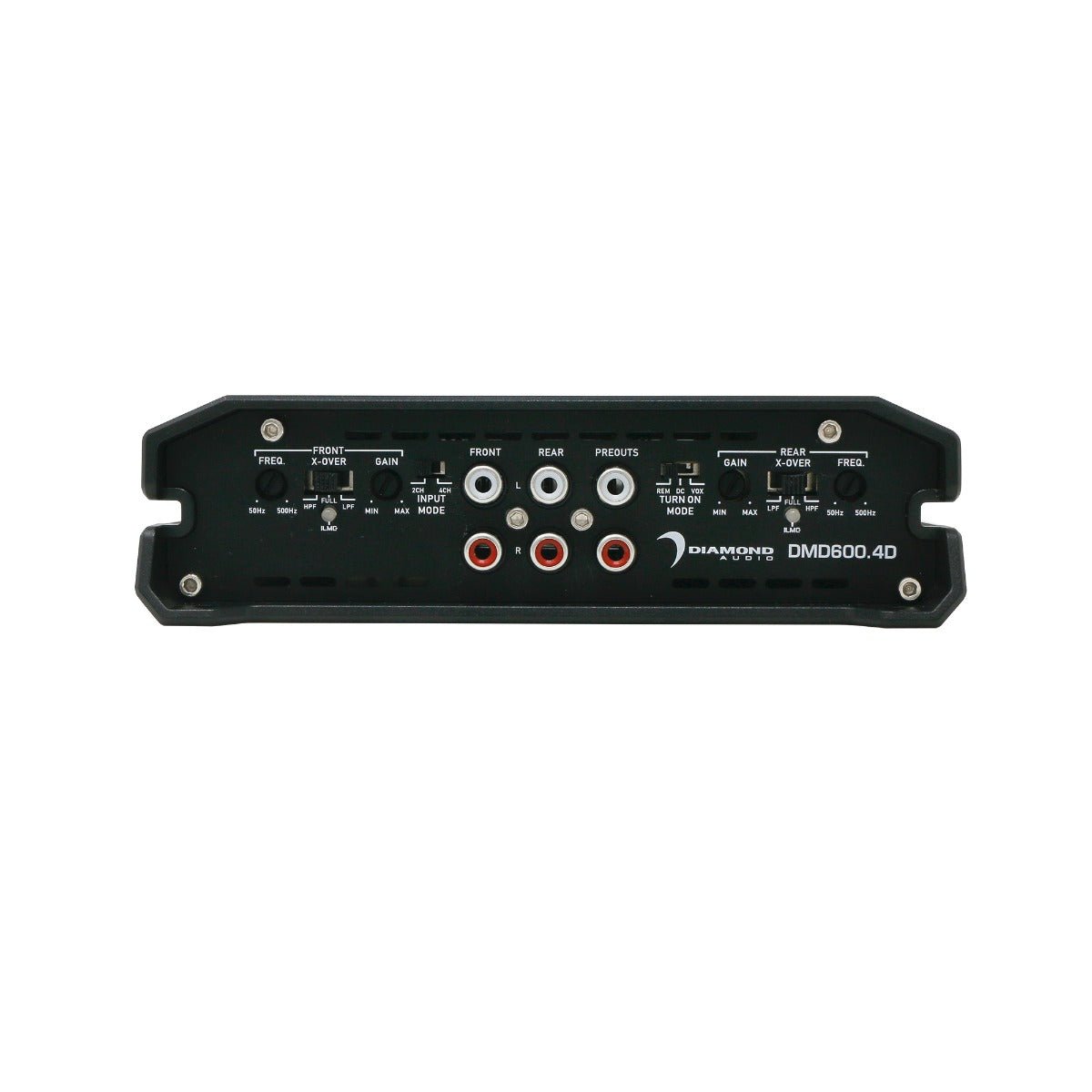

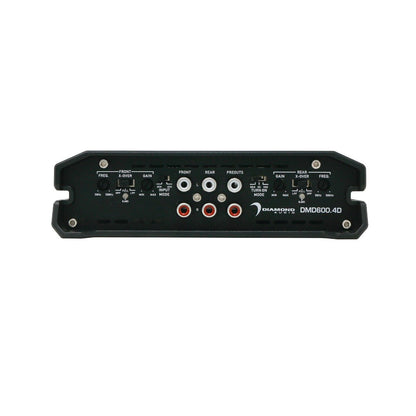

Crossover (1-12dB/Oct)

• Variable High-Pass:
• Variable low-Pass: 35Hz-350Hz

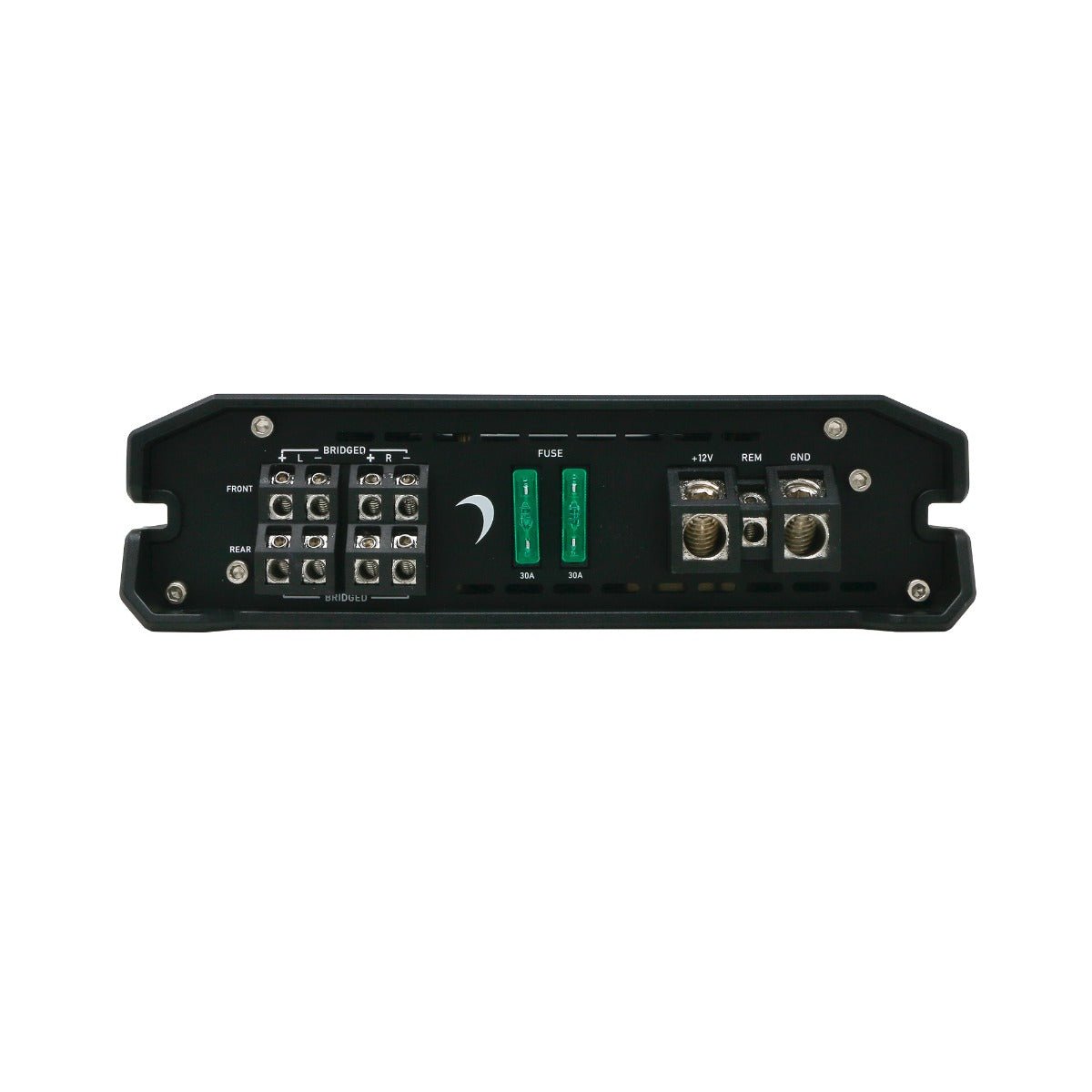

Fuse Rating

• 3x40A

Dimensions

• Length x Width x Height: 7.6”x6.85”x1.9” (193.1mm x 174mm x 48.4 mm)

FEATURES

• Input Sensitity: 0.2-10 VOLT
• Frequency Response: 20-20kHz
• Signal to Noise Ratio: >90dB
• Bass Boost: 0-18dB
• Overall Operation Efficiency:
• Selectable REM/VOX/DC Turn On Modes
• Switchable 2CH & 4CH Input Configuration
