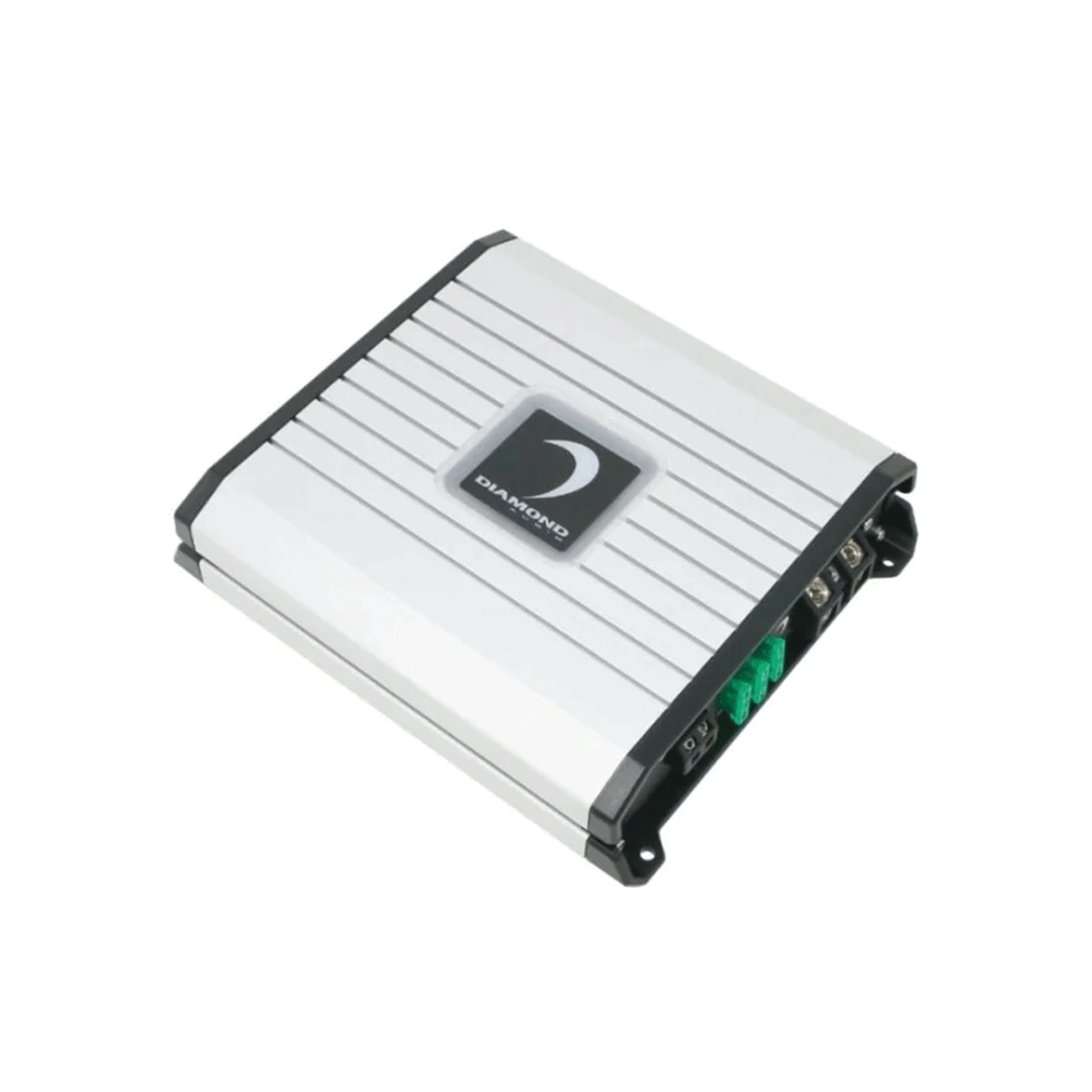

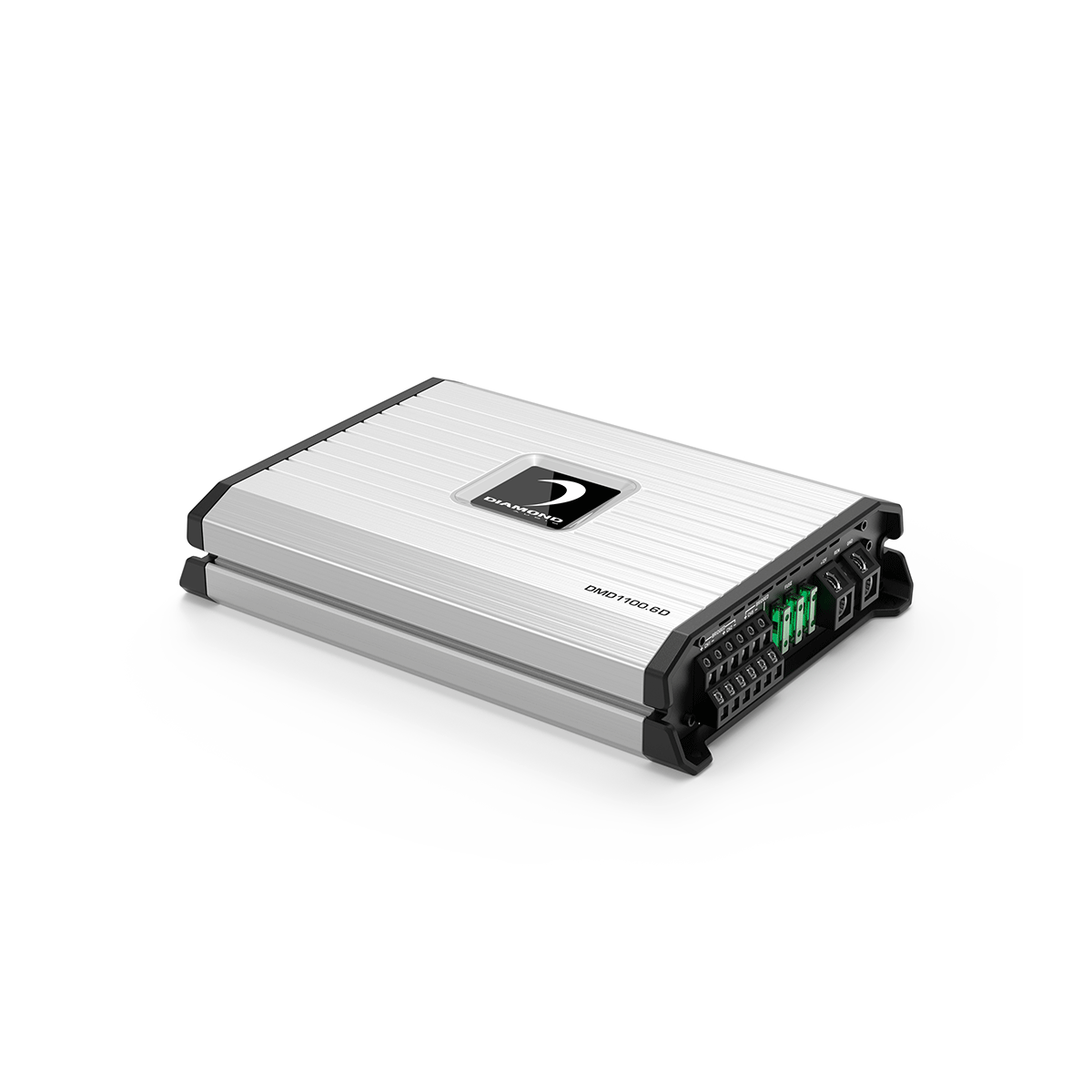

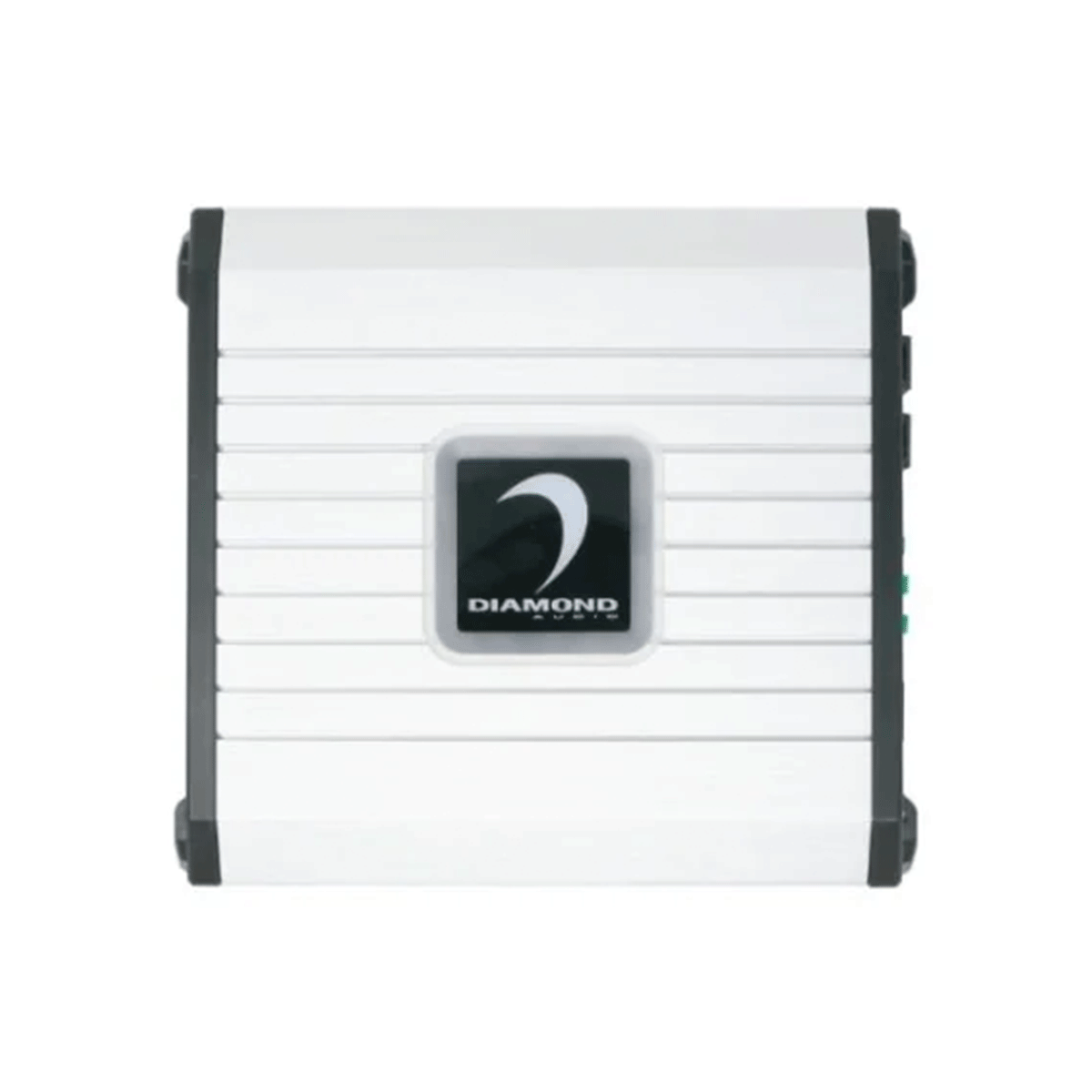

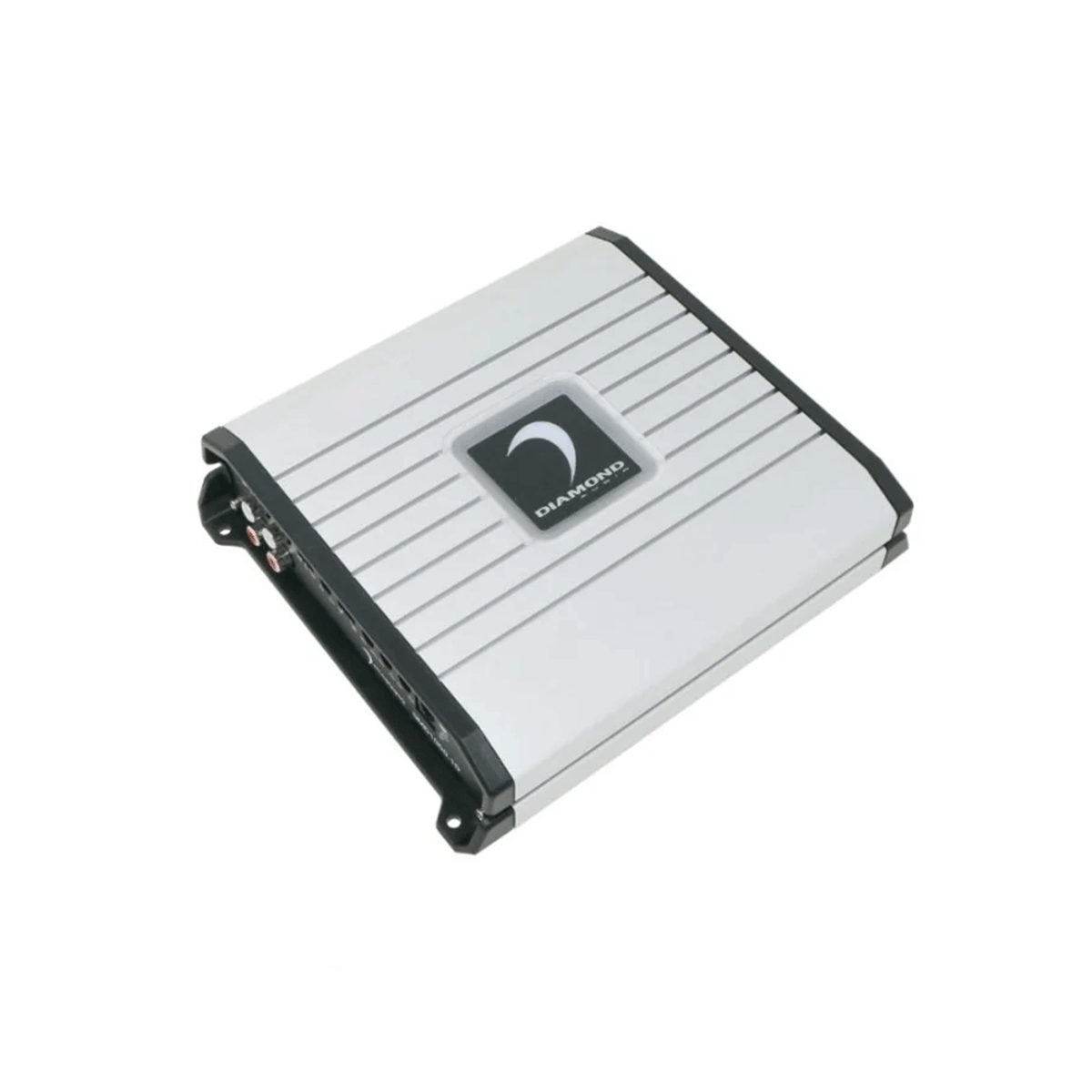

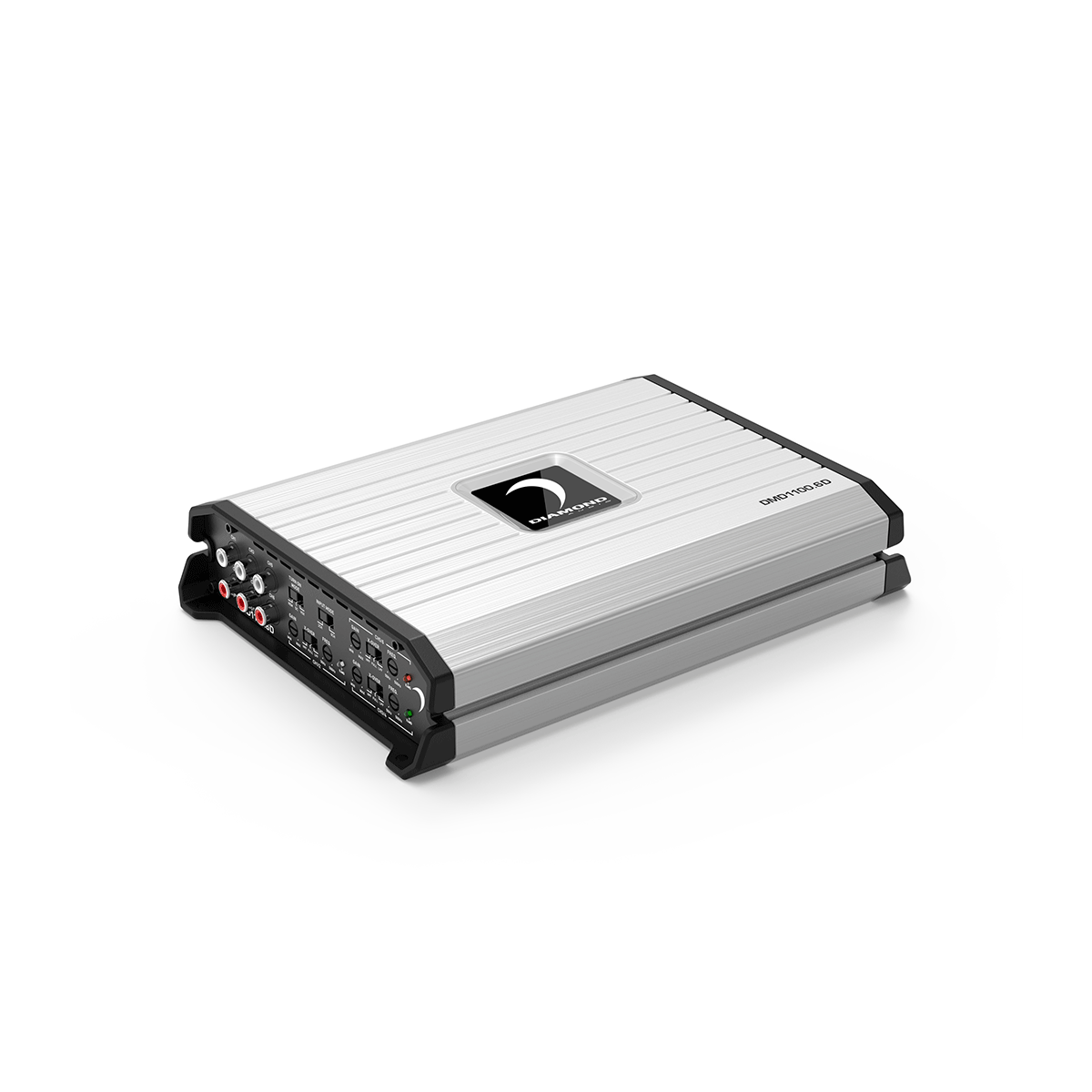

Diamond Audio DMD1100.6D DMD Series 6-Channel Full Range Digital Car Amplifier

Experience exceptional clarity and power with the Diamond Audio DMD Series 6-Channel Amplifier, designed to transform your vehicle's audio system. This compact powerhouse utilizes advanced IR chipset technology and 4-layer FR4 PC boards to deliver high-performance sound without the bulk. Enjoy a noise-free listening experience thanks to balanced differential inputs, while the integrated subsonic filter and bass boost give you total control over your music. Its sleek heat sink design keeps everything running cool, ensuring your beats stay loud and crisp on every drive.

Power Rating (RMS)

• 125W X 4 + 250W X 2 @ 2Ω
• 80W X 4 + 125W X 2 @ 4Ω
• 250W X 2 + 500W X 1 @ 4Ω (Bridged)
• 350W X 2 @ 1Ω (CH5 & CH6 Only)
• 700W X 1 @ 2Ω (Bridged: CH.5 & CH.6 Only)

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (1KHZ @4Ω): 0.03%

Input Sensitivity

• Low Level Input: 0.2mV-10.0V
• High Level Input: Up to 25W RMS

Input Impedance

• Low Level Input: 22KΩ

Output Stage

• Output Impedance:
• Damping Factor (50Hz@4Ω):
• Bandwidth (-3db):

Crossover (1-12dB/Oct)

• Variable High-Pass: 50Hz-500Hz
• Variable low-Pass: 50Hz-500Hz

Fuse Rating

• 3x40A

Dimensions

• Length x Width x Height: 9.76”x6.85”x1.9” (248.1mm x 174mm x 48.4 mm)

FEATURES

• Input Sensitity: 0.2-10 VOLT
• Frequency Response: 10-20kHz
• Signal to Noise Ratio: >90dB
• Overall Operation Efficiency: >86%
• Selectable REM/VOX/DC Turn On Modes
• Selectable 2CH/6CH Input Modes
